KH0608/JC001 - Pendant Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

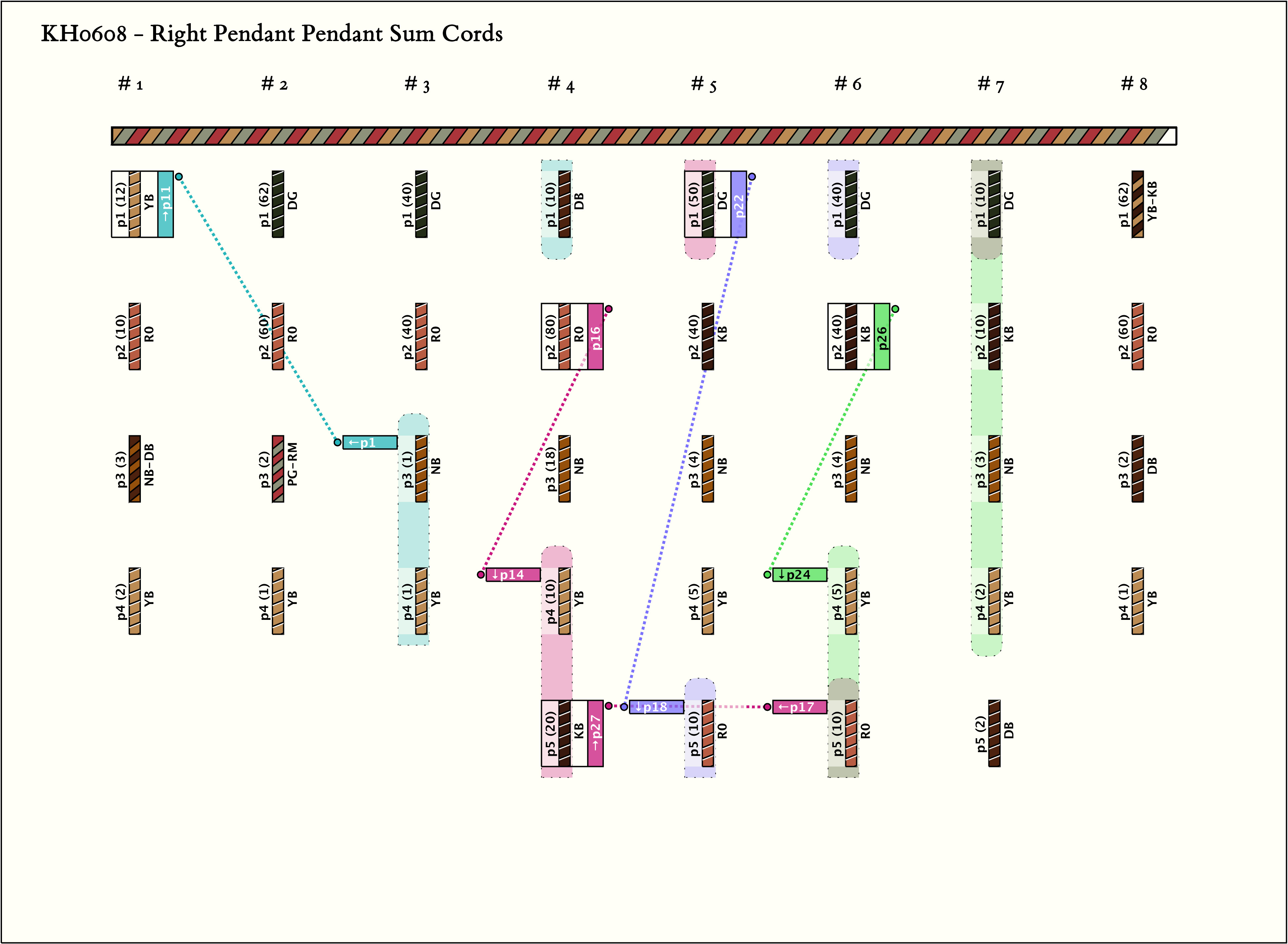

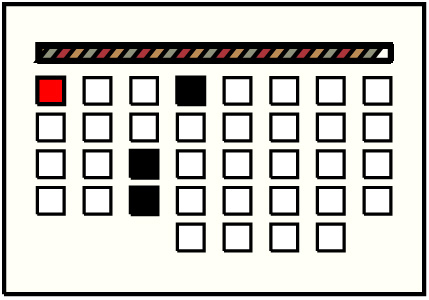

Right Handed Sums with Figure-8-Knots: # Sums = 5, Max # Summands = 6, (Min, Mean, Max) Sum Values = (12, 40, 80)
Click on Image to View Larger

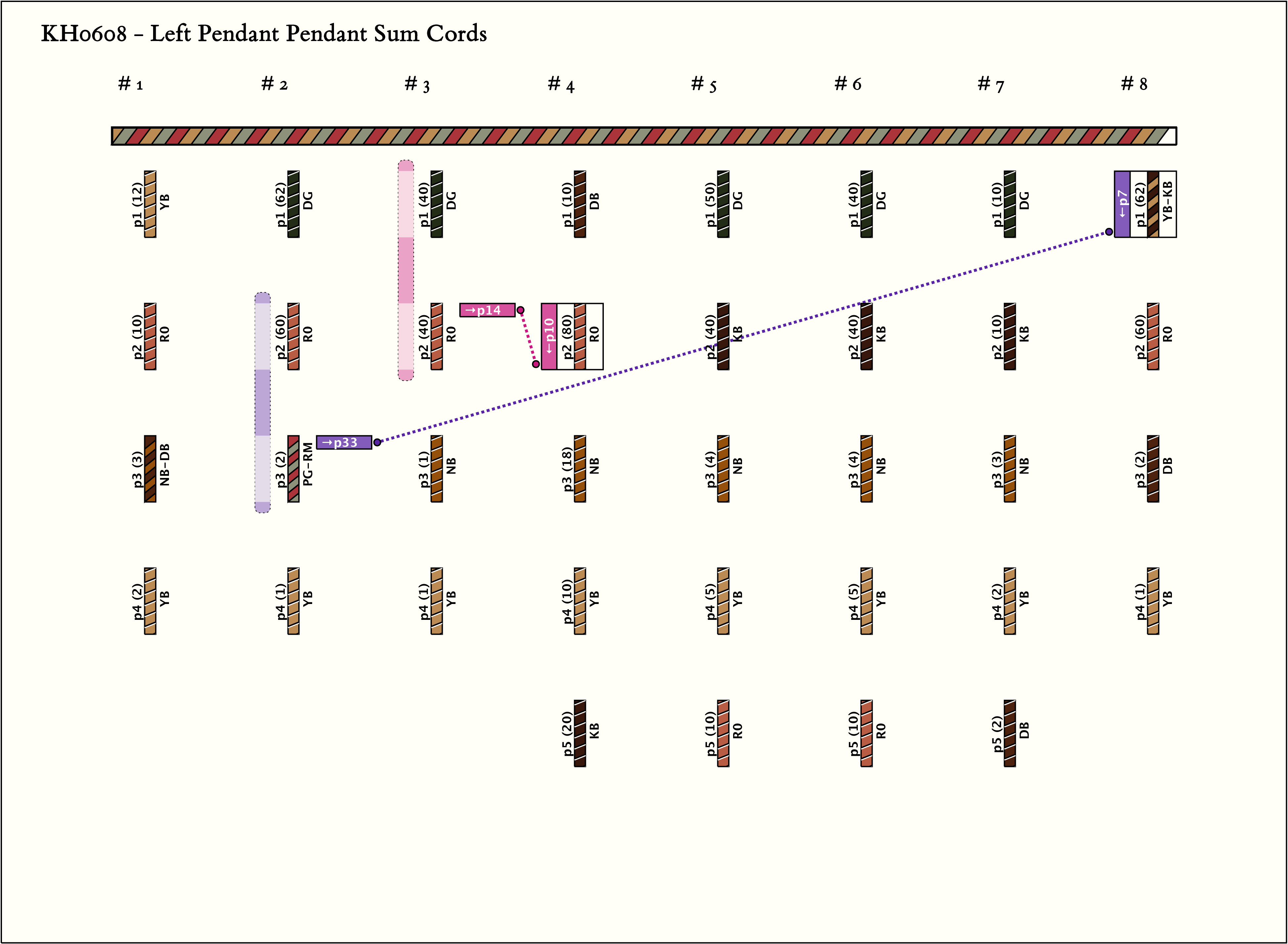

Left Handed Sums with Figure-8-Knots: # Sums = 2, Max # Summands = 2, (Min, Mean, Max) Sum Values = (62, 71, 80)
Click on Image to View Larger

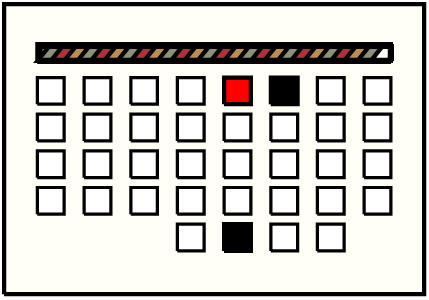

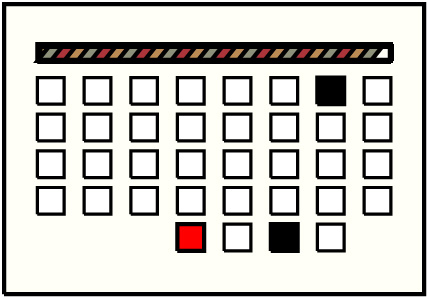

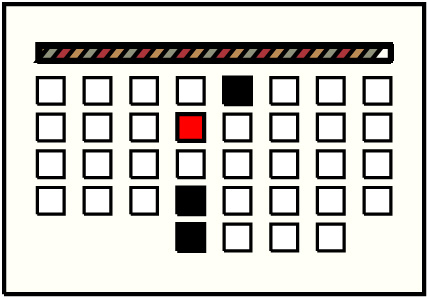

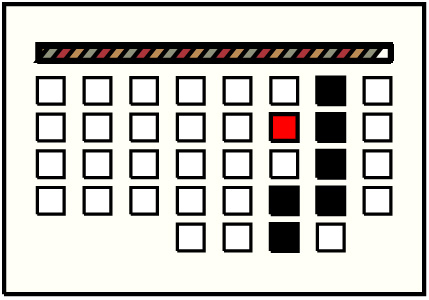

Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p1 : 12YB | 12 | 3 | ❽g3p3: 1NB + g3p4: 1YB + ∞g4p1: 10DB | |
| 2 |  | g4p2 : 80R0 | 80 | 3 | g4p4: 10YB + g4p5: 20KB + g5p1: 50DG | |
| 3 |  | g4p5 : 20KB | 20 | 2 | g6p5: 10R0 + g7p1: 10DG | |
| 4 |  | g5p1 : 50DG | 50 | 2 | g5p5: 10R0 + g6p1: 40DG | |
| 5 |  | g6p2 : 40KB | 40 | 6 | g6p4: 5YB + g6p5: 10R0 + g7p1: 10DG + g7p2: 10KB + g7p3: 3NB + g7p4: 2YB |

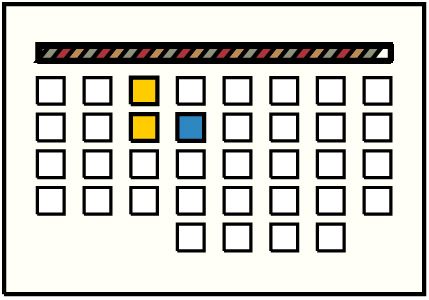

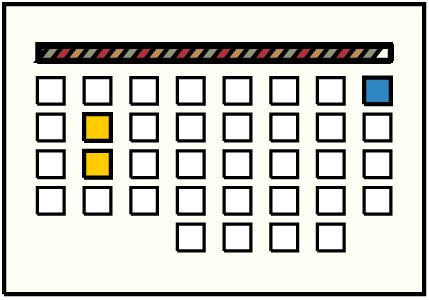

Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g4p2 : 80R0 | 80 | 2 | ∞g3p1: 40DG + g3p2: 40R0∞ | |
| 2 |  | g8p1 : 62YB-KB | 62 | 2 | g2p2: 60R0 + g2p3: 2PG-RM∞ |
