MM001 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 31, Max # Summands = 22, (Min, Mean, Max) Sum Values = (20, 115, 450)
Click on Image to View Larger

Left Handed Sums: # Sums = 42, Max # Summands = 18, (Min, Mean, Max) Sum Values = (20, 97, 450)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

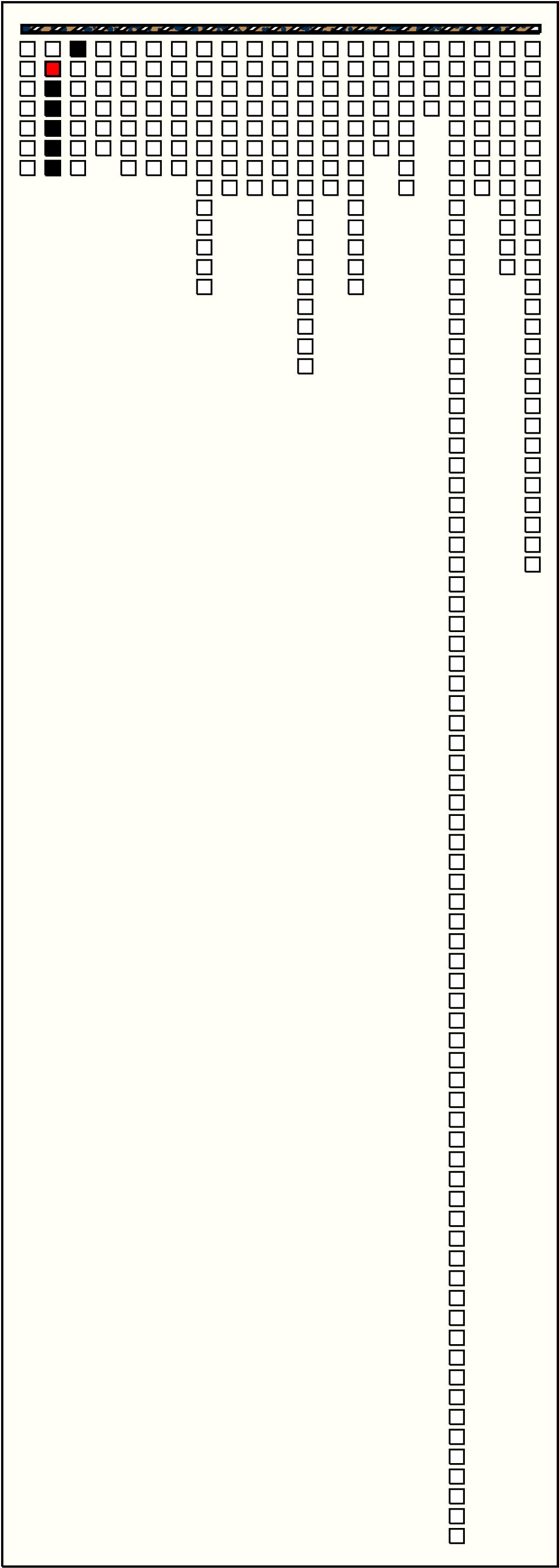

1	p9_{2, 2} : 110_PG	110	6	p10: 2_W:KB + p11: 40_RL + p12: 4_PG + p13: 4_MB + p14: 20_W + p15: 40_YB
2	p23_{4, 2} : 110_YB	110	9	p47: 20_YB + p48: 10_W + p49: 0_YB-MB + p50: 20_YB:PG + p51: 0_YB + p52: 10_W + p53: 10_W + p54: 0_YB + p55: 40_YB
3	p24_{4, 3} : 30_AB	30	3	p28: 10_YB:PG + p29: 10_W:YB + p30: 10_W
4	p27_{4, 6} : 25_W	25	2	p129: 5_W + p130: 20_YB:PG

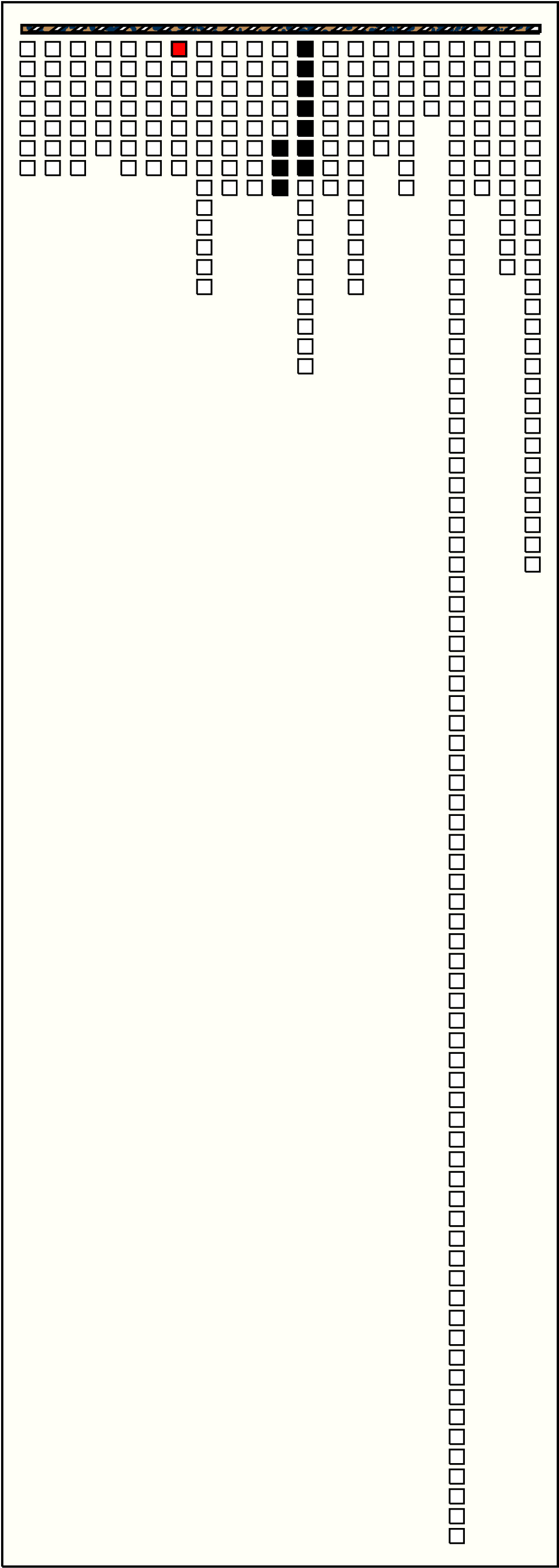

5	p42_{7, 1} : 181_W	181	10	p83: 21_MB + p84: 10_W + p85: 20_YB-MB + p86: 20_PG + p87: 10_YB:MB + p88: 10_W + p89: 30_YB + p90: 10_YB + p91: 0_KB + p92: 50_PG

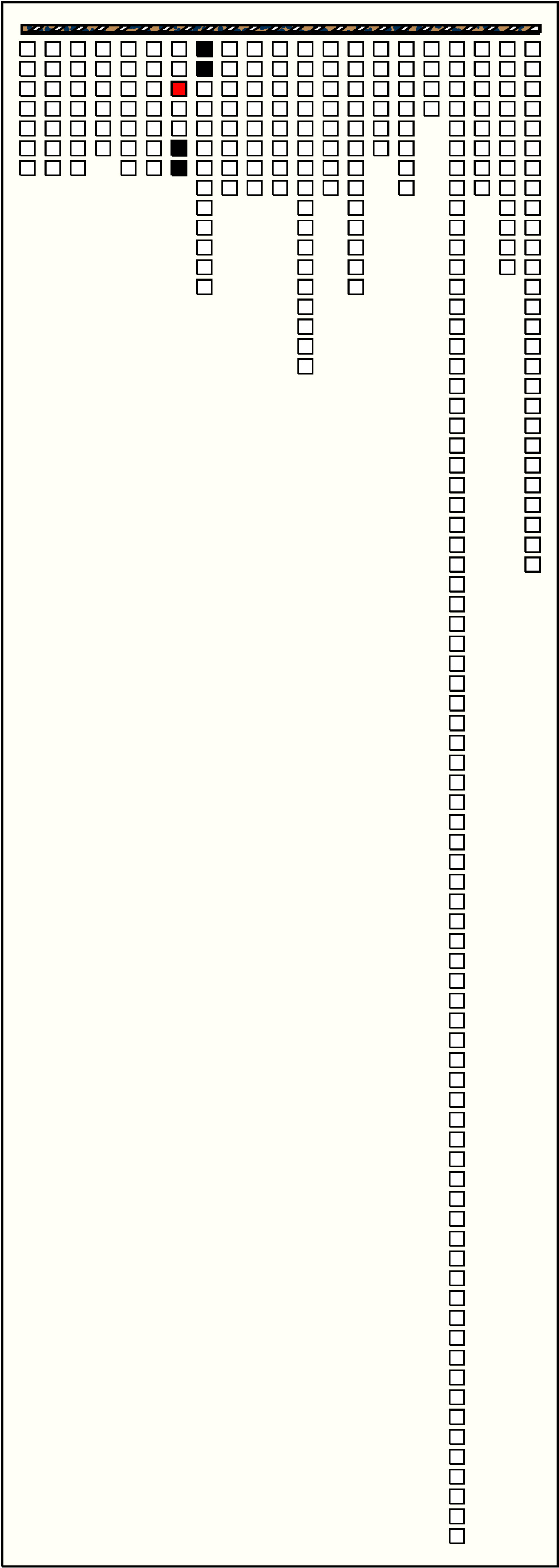

6	p44_{7, 3} : 50_YB	50	4	p47: 20_YB + p48: 10_W + p49: 0_YB-MB + p50: 20_YB:PG
7	p45_{7, 4} : 44_YB	44	5	p213: 2_PG + p214: 2_MB + p215: 10_W + p216: 20_YB:PG + p217: 10_AB
8	p55_{8, 7} : 40_YB	40	3	p62: 20_PG + p63: 10_W:YB + p64: 10_W

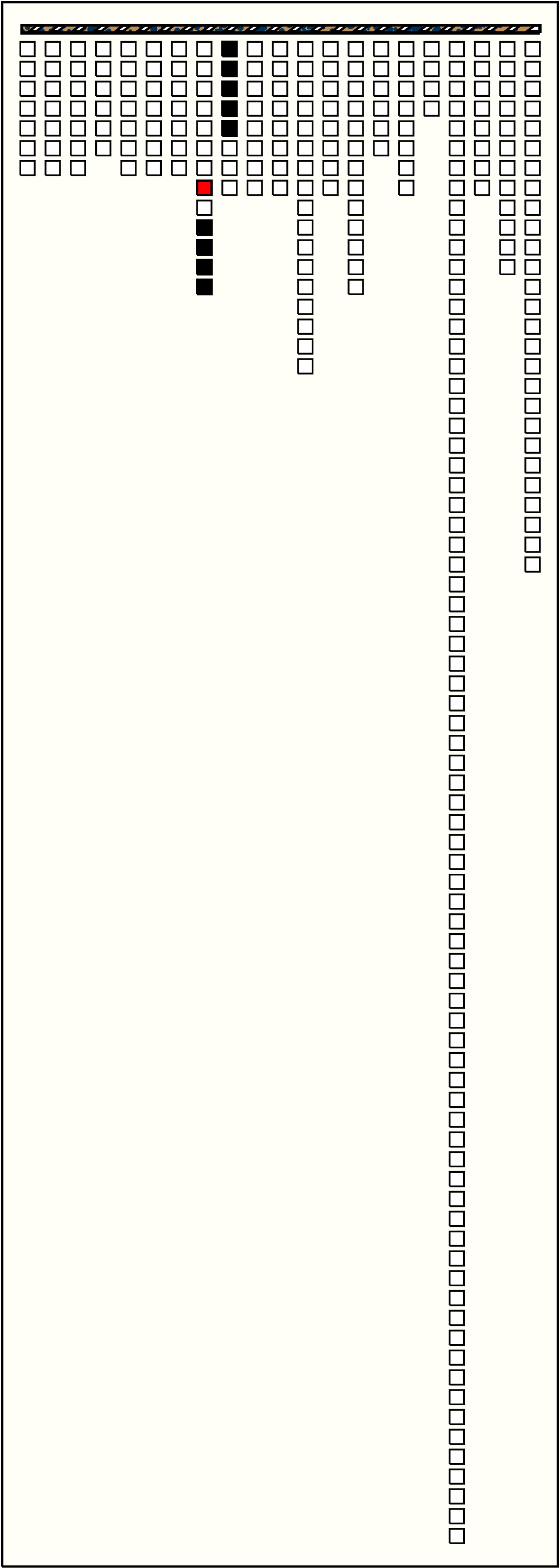

9	p56_{8, 8} : 100_PG	100	9	p58: 24_YB + p59: 0_GL + p60: 0_KB + p61: 6_W + p62: 20_PG + p63: 10_W:YB + p64: 10_W + p65: 10_YB + p66: 20_PG

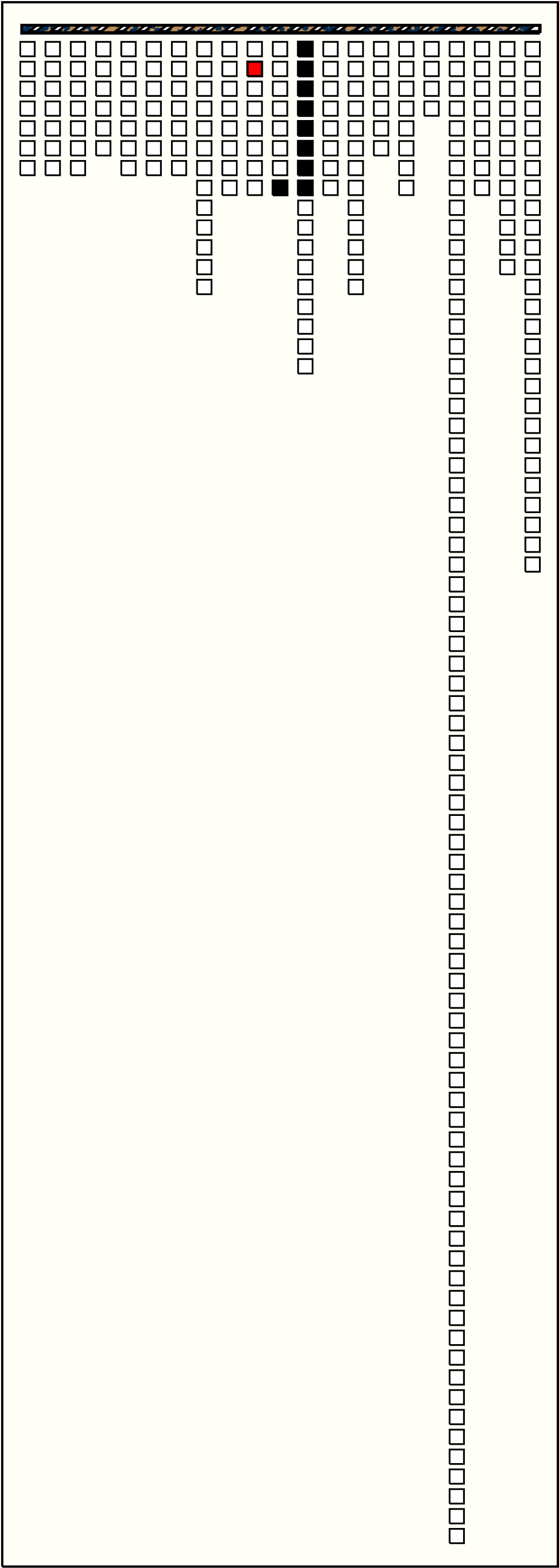

10	p71_{10, 2} : 276_KB	276	9	p85: 20_YB-MB + p86: 20_PG + p87: 10_YB:MB + p88: 10_W + p89: 30_YB + p90: 10_YB + p91: 0_KB + p92: 50_PG + p93: 126_YB

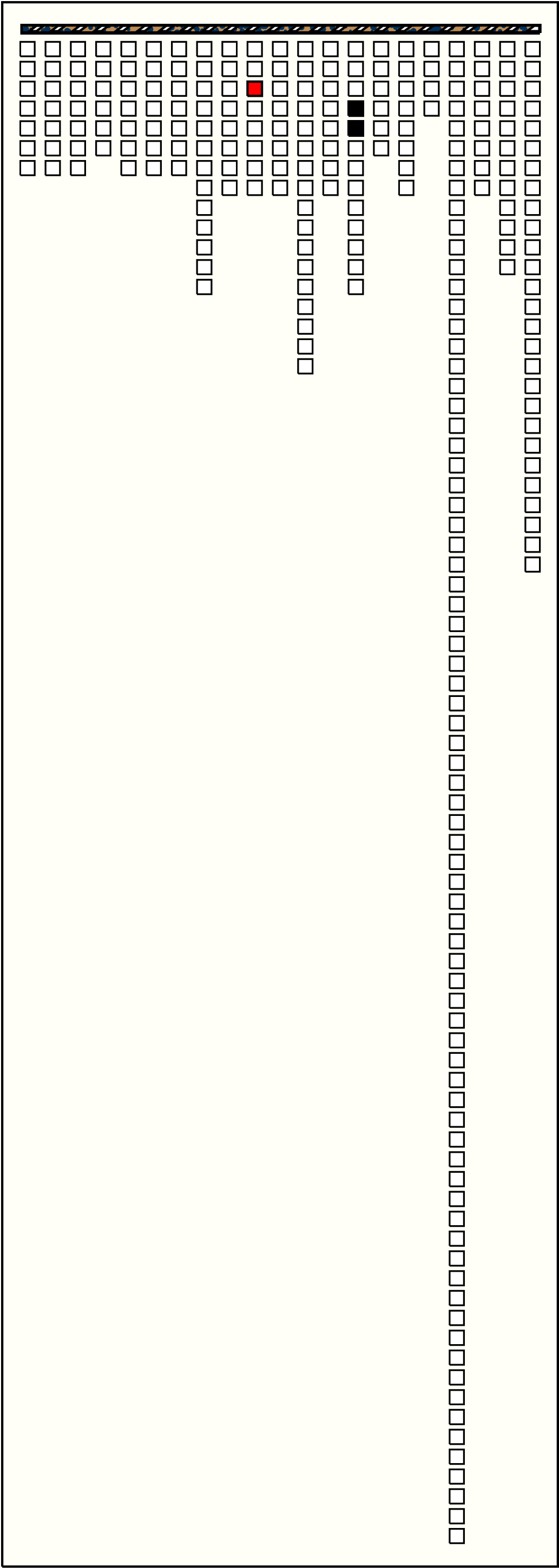

11	p72_{10, 3} : 54_PG	54	2	p114: 50_AB + p115: 4_PG

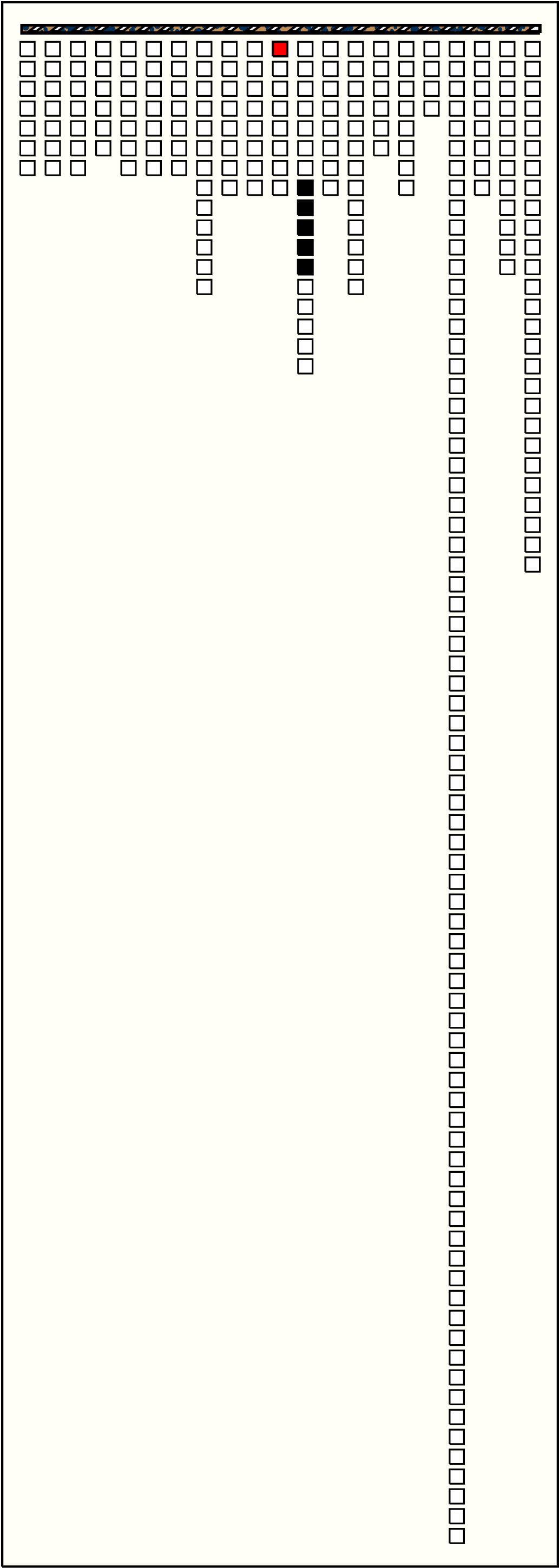

12	p78_{11, 1} : 212_W	212	5	p93: 126_YB + p94: 3_W:YB:KB + p95: 80_AB + p96: 0_PG + p97: 3_MB
13	p81_{11, 4} : 40_AB	40	2	p85: 20_YB-MB + p86: 20_PG
14	p95_{12, 10} : 80_AB	80	4	p120: 10_YB:MB + p121: 10_W + p122: 50_YB + p123: 10_YB
15	p104_{13, 2} : 210_KB	210	6	p120: 10_YB:MB + p121: 10_W + p122: 50_YB + p123: 10_YB + p124: 30_GL + p125: 100_YB
16	p105_{13, 3} : 130_PG	130	6	p119: 20_YB:PG + p120: 10_YB:MB + p121: 10_W + p122: 50_YB + p123: 10_YB + p124: 30_GL
17	p111_{14, 1} : 204_W	204	22	p202: 15_MB + p203: 16_W + p204: 0_YB-AB + p205: 10_YB:PG + p206: 10_AB + p207: 10_W + p208: 0_YB + p209: 0_YB + p210: 0_PG + p211: 0_YB + p212: 29_AB + p213: 2_PG + p214: 2_MB + p215: 10_W + p216: 20_YB:PG + p217: 10_AB + p218: 10_W + p219: 10_YB + p220: 20_YB:PG + p221: 10_AB + p222: 10_W + p223: 10_YB
18	p112_{14, 2} : 450_GL	450	2	p231: 200_PG + p232: 250_YB

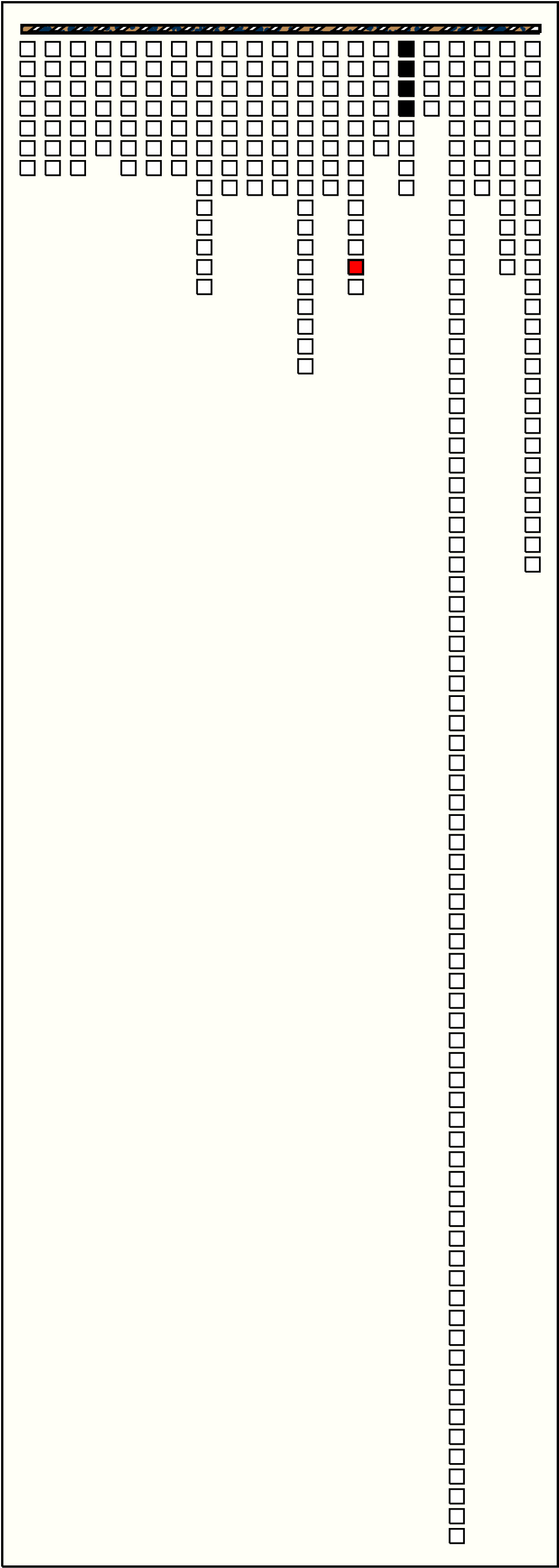

19	p122_{14, 12} : 50_YB	50	4	p130: 20_YB:PG + p131: 10_YB:MB + p132: 10_W + p133: 10_YB
20	p125_{15, 2} : 100_YB	100	8	p130: 20_YB:PG + p131: 10_YB:MB + p132: 10_W + p133: 10_YB + p134: 20_YB:PG + p135: 10_YB:MB + p136: 10_W + p137: 10_YB

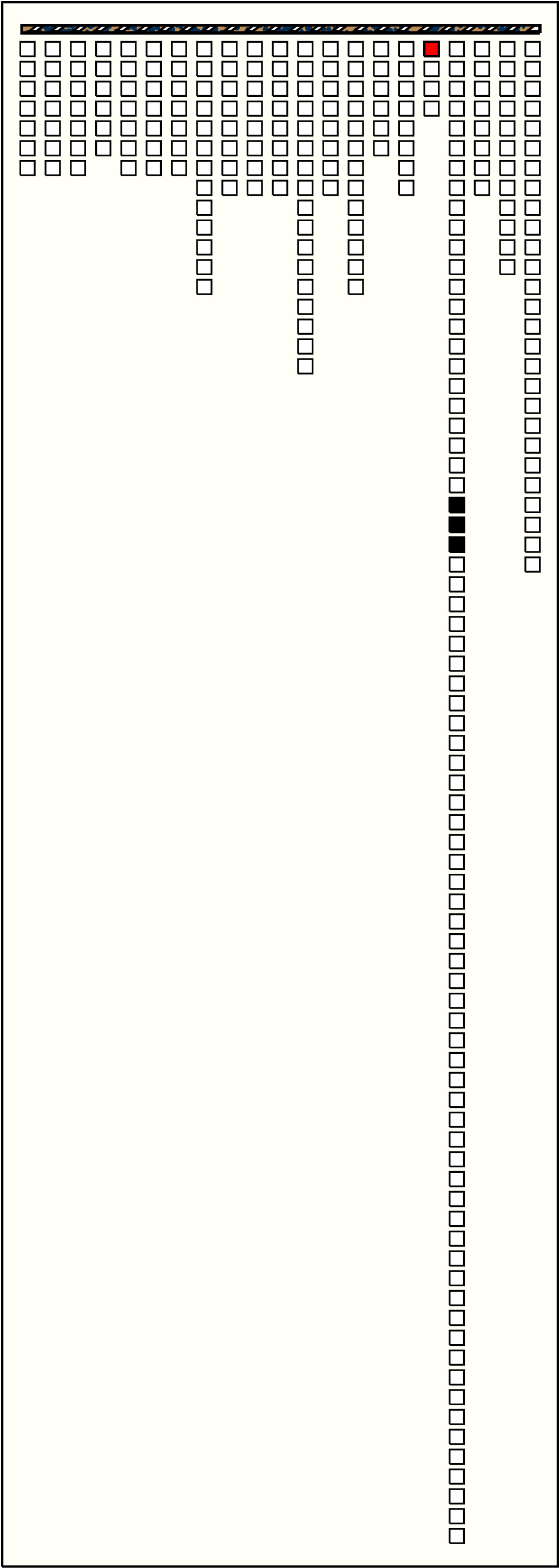

21	p138_{17, 1} : 50_YB	50	3	p165: 10_YB:MB + p166: 10_W + p167: 30_YB
22	p139_{17, 2} : 46_W	46	2	p159: 40_YB + p160: 6_PG
23	p141_{17, 4} : 36_W	36	2	p171: 30_YB + p172: 6_PG

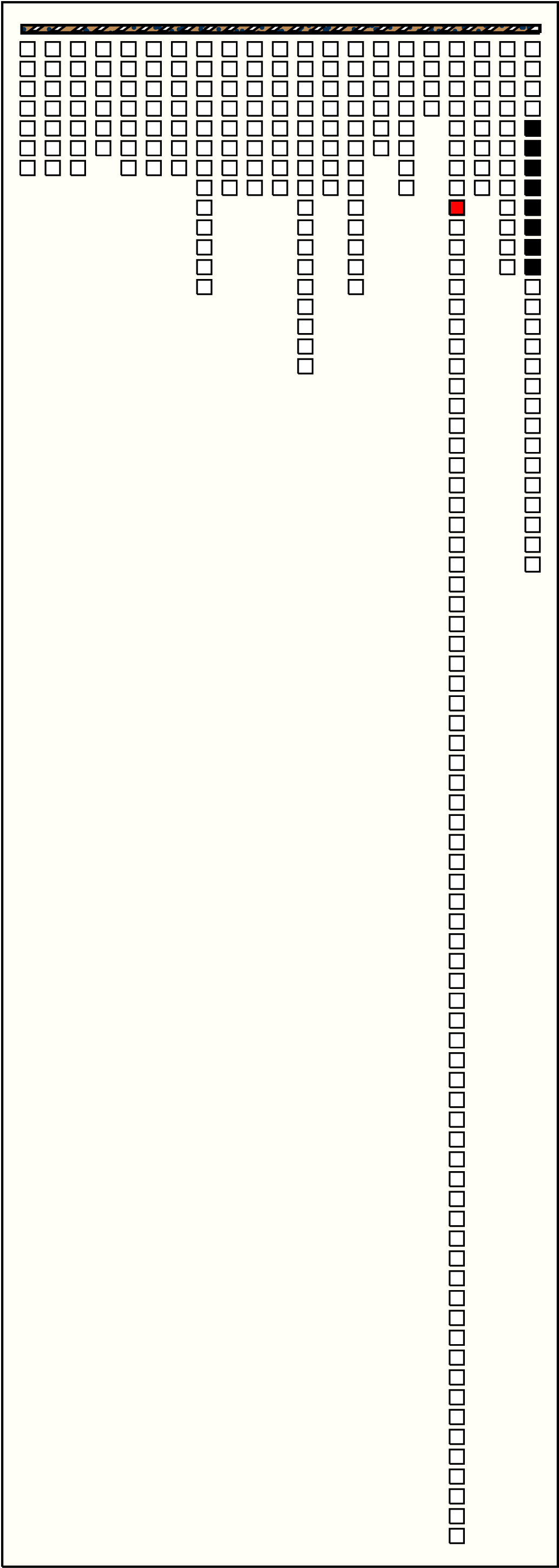

24	p150_{18, 9} : 130_AB	130	8	p242: 10_PG + p243: 19_MB + p244: 31_W + p245: 0_YB-AB + p246: 10_YB:AB + p247: 20_W:PG + p248: 10_W + p249: 30_YB

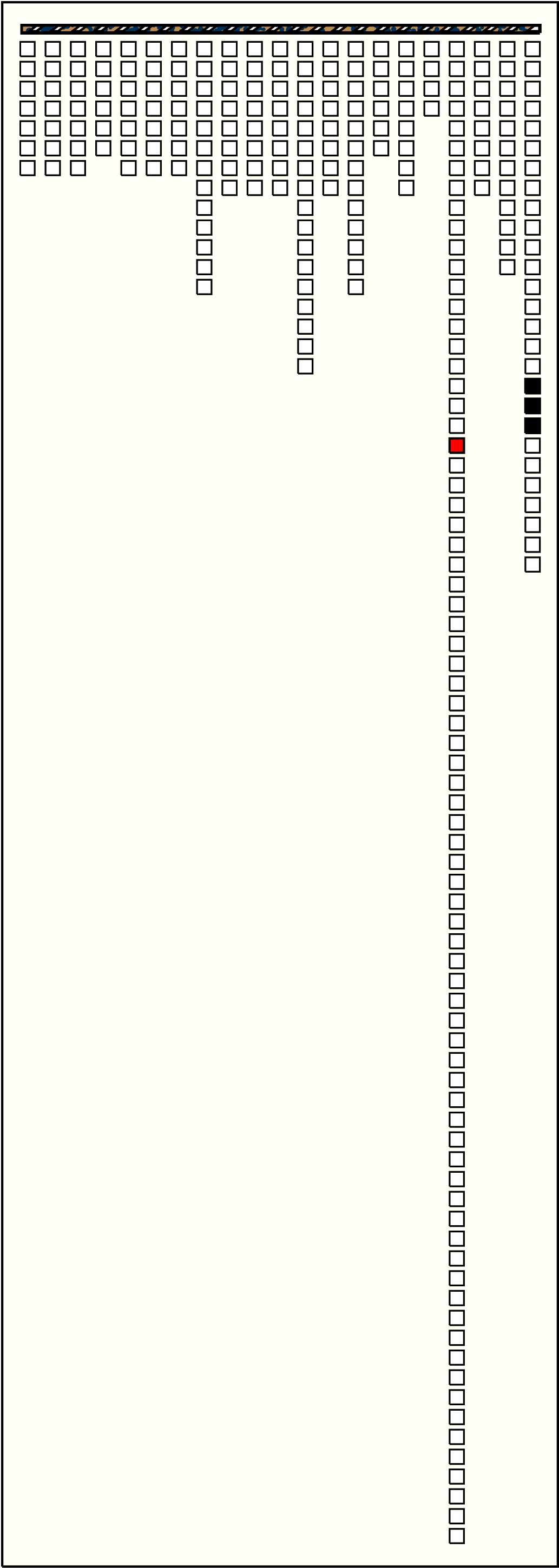

25	p162_{18, 21} : 21_W	21	3	p255: 1_MB + p256: 10_W + p257: 10_PG:AB
26	p193_{18, 52} : 71_AB	71	5	p244: 31_W + p245: 0_YB-AB + p246: 10_YB:AB + p247: 20_W:PG + p248: 10_W
27	p197_{18, 56} : 203_W	203	10	p252: 100_YB + p253: 23_YB + p254: 9_PG + p255: 1_MB + p256: 10_W + p257: 10_PG:AB + p258: 10_YB:MB + p259: 10_W + p260: 10_AB + p261: 20_PG:AB
28	p199_{18, 58} : 100_YB	100	8	p215: 10_W + p216: 20_YB:PG + p217: 10_AB + p218: 10_W + p219: 10_YB + p220: 20_YB:PG + p221: 10_AB + p222: 10_W
29	p212_{18, 71} : 29_AB	29	2	p242: 10_PG + p243: 19_MB

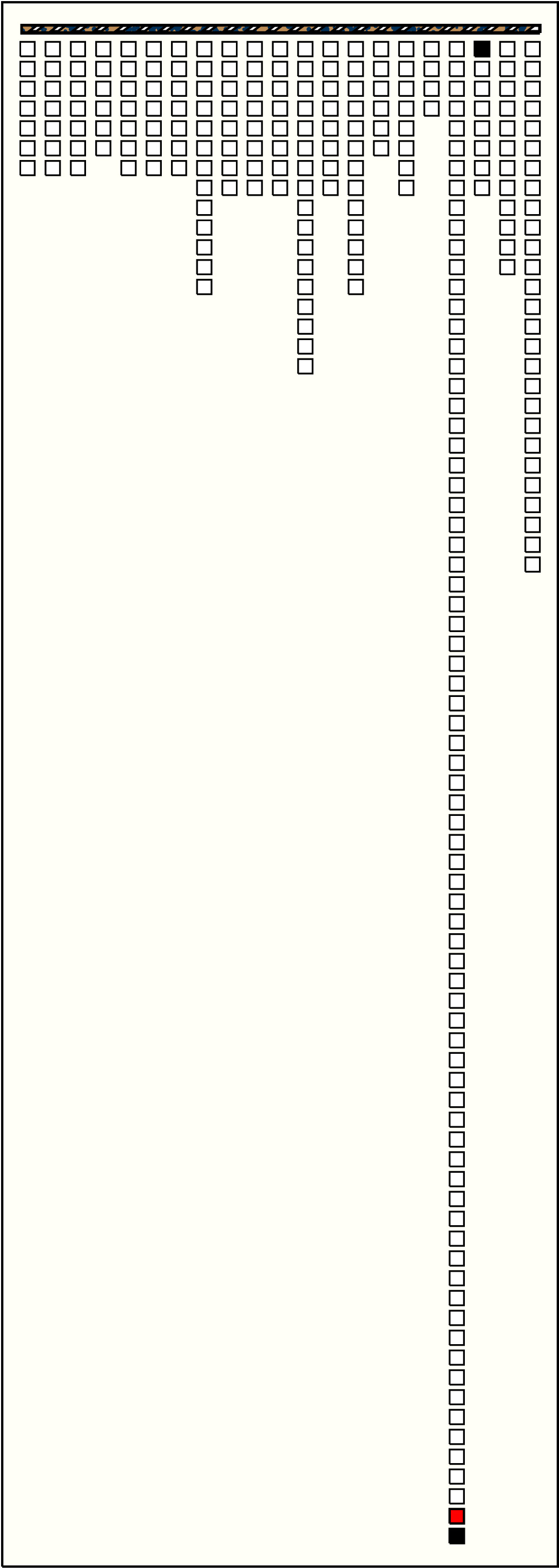

30	p216_{18, 75} : 20_YB:PG	20	2	p217: 10_AB + p218: 10_W

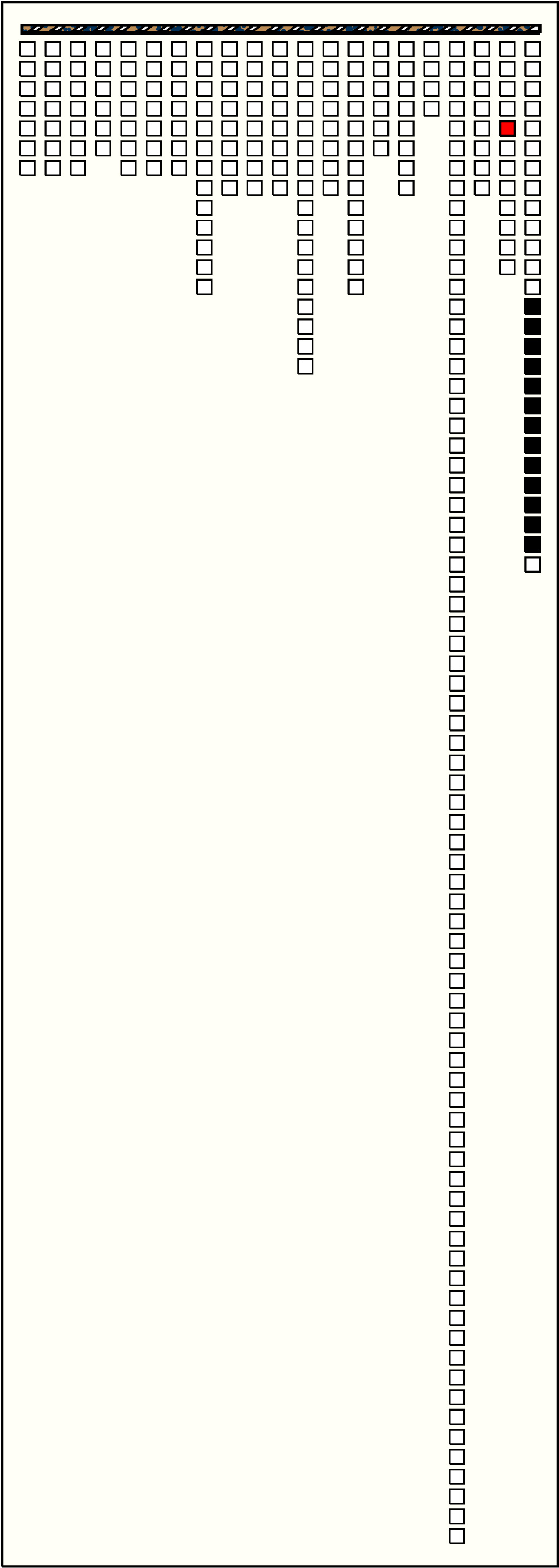

31	p230_{20, 5} : 363_W	363	13	p251: 140_PG + p252: 100_YB + p253: 23_YB + p254: 9_PG + p255: 1_MB + p256: 10_W + p257: 10_PG:AB + p258: 10_YB:MB + p259: 10_W + p260: 10_AB + p261: 20_PG:AB + p262: 10_AB + p263: 10_W

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p21_{3, 7} : 100_YB	100	6	p14: 20_W + p15: 40_YB + p16: 20_YB:PG + p17: 0_W:YB + p18: 10_W + p19: 10_YB
2	p22_{4, 1} : 40_GL	40	4	p16: 20_YB:PG + p17: 0_W:YB + p18: 10_W + p19: 10_YB
3	p23_{4, 2} : 110_YB	110	2	p20: 10_YB + p21: 100_YB

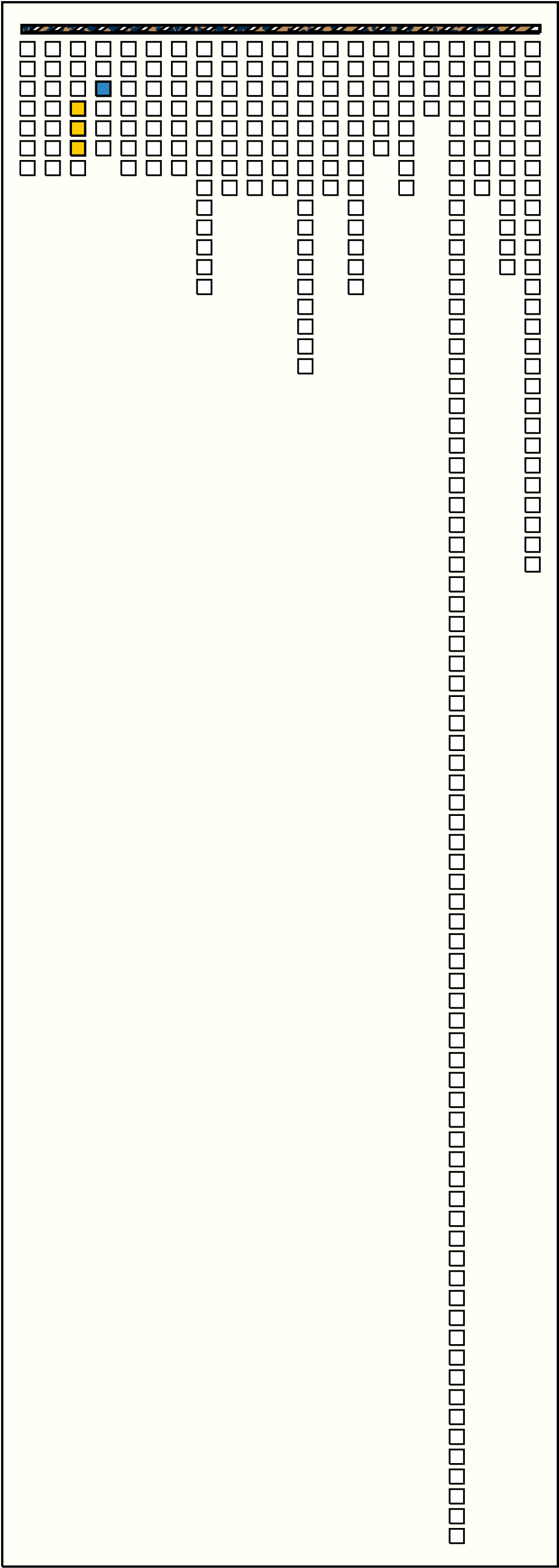

4	p24_{4, 3} : 30_AB	30	3	p18: 10_W + p19: 10_YB + p20: 10_YB

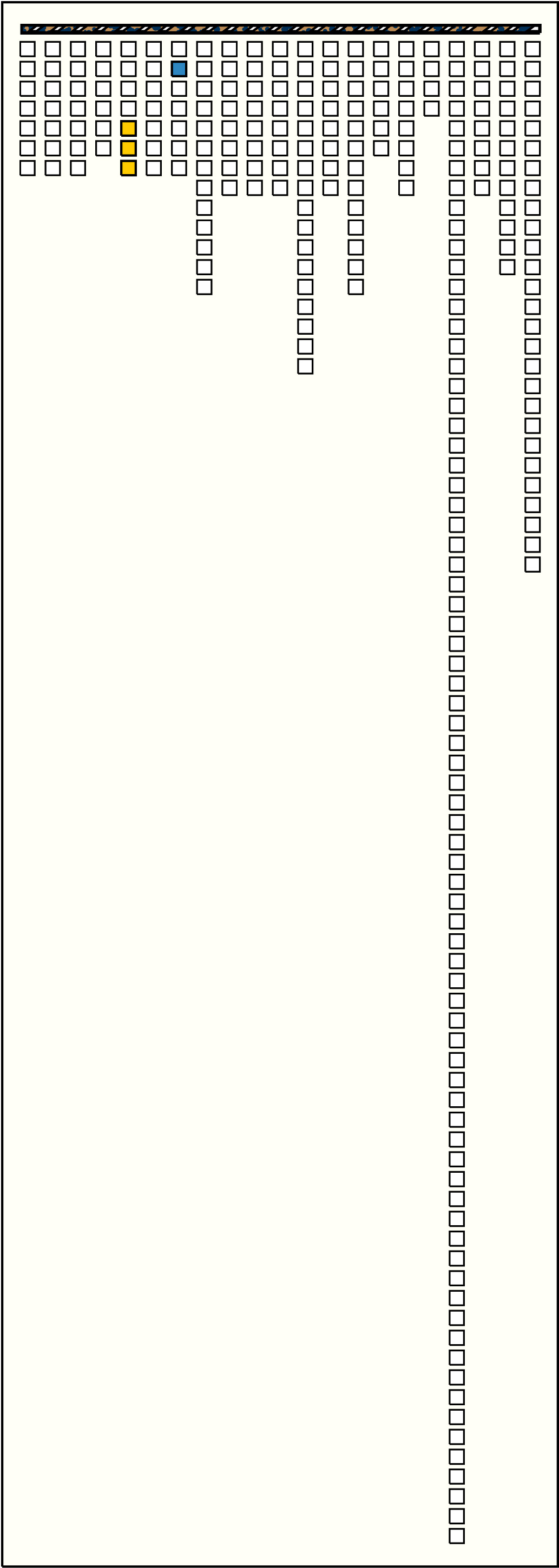

5	p43_{7, 2} : 30_PG	30	3	p32: 10_W:YB + p33: 10_W + p34: 10_YB
6	p44_{7, 3} : 50_YB	50	5	p30: 10_W + p31: 10_YB + p32: 10_W:YB + p33: 10_W + p34: 10_YB
7	p45_{7, 4} : 44_YB	44	2	p11: 40_RL + p12: 4_PG
8	p47_{7, 6} : 20_YB	20	2	p33: 10_W + p34: 10_YB
9	p58_{8, 10} : 24_YB	24	2	p13: 4_MB + p14: 20_W
10	p62_{9, 1} : 20_PG	20	2	p52: 10_W + p53: 10_W
11	p78_{11, 1} : 212_W	212	8	p36: 1_PG + p37: 0_YB + p38: 0_AB + p39: 0_PG + p40: 0_KB + p41: 0_W + p42: 181_W + p43: 30_PG
12	p79_{11, 2} : 40_PG	40	3	p66: 20_PG + p67: 10_AB + p68: 10_W
13	p83_{11, 6} : 21_MB	21	4	p33: 10_W + p34: 10_YB + p35: 0_W + p36: 1_PG
14	p85_{11, 8} : 20_YB-MB	20	2	p68: 10_W + p69: 10_YB
15	p104_{13, 2} : 210_KB	210	12	p56: 100_PG + p57: 0_YB + p58: 24_YB + p59: 0_GL + p60: 0_KB + p61: 6_W + p62: 20_PG + p63: 10_W:YB + p64: 10_W + p65: 10_YB + p66: 20_PG + p67: 10_AB
16	p105_{13, 3} : 130_PG	130	7	p86: 20_PG + p87: 10_YB:MB + p88: 10_W + p89: 30_YB + p90: 10_YB + p91: 0_KB + p92: 50_PG
17	p111_{14, 1} : 204_W	204	9	p50: 20_YB:PG + p51: 0_YB + p52: 10_W + p53: 10_W + p54: 0_YB + p55: 40_YB + p56: 100_PG + p57: 0_YB + p58: 24_YB
18	p112_{14, 2} : 450_GL	450	16	p10: 2_W:KB + p11: 40_RL + p12: 4_PG + p13: 4_MB + p14: 20_W + p15: 40_YB + p16: 20_YB:PG + p17: 0_W:YB + p18: 10_W + p19: 10_YB + p20: 10_YB + p21: 100_YB + p22: 40_GL + p23: 110_YB + p24: 30_AB + p25: 10_PG
19	p114_{14, 4} : 50_AB	50	4	p99: 20_YB:PG + p100: 10_YB:MB + p101: 10_W + p102: 10_YB
20	p124_{15, 1} : 30_GL	30	2	p119: 20_YB:PG + p120: 10_YB:MB
21	p125_{15, 2} : 100_YB	100	4	p121: 10_W + p122: 50_YB + p123: 10_YB + p124: 30_GL
22	p130_{16, 1} : 20_YB:PG	20	2	p120: 10_YB:MB + p121: 10_W
23	p138_{17, 1} : 50_YB	50	4	p134: 20_YB:PG + p135: 10_YB:MB + p136: 10_W + p137: 10_YB
24	p139_{17, 2} : 46_W	46	4	p61: 6_W + p62: 20_PG + p63: 10_W:YB + p64: 10_W
25	p140_{17, 3} : 40_YB	40	3	p134: 20_YB:PG + p135: 10_YB:MB + p136: 10_W
26	p141_{17, 4} : 36_W	36	3	p61: 6_W + p62: 20_PG + p63: 10_W:YB
27	p149_{18, 8} : 30_PG	30	3	p135: 10_YB:MB + p136: 10_W + p137: 10_YB
28	p150_{18, 9} : 130_AB	130	8	p131: 10_YB:MB + p132: 10_W + p133: 10_YB + p134: 20_YB:PG + p135: 10_YB:MB + p136: 10_W + p137: 10_YB + p138: 50_YB
29	p152_{18, 11} : 78_AB	78	5	p116: 16_MB + p117: 32_W + p118: 0_YB-AB + p119: 20_YB:PG + p120: 10_YB:MB
30	p156_{18, 15} : 155_W	155	10	p129: 5_W + p130: 20_YB:PG + p131: 10_YB:MB + p132: 10_W + p133: 10_YB + p134: 20_YB:PG + p135: 10_YB:MB + p136: 10_W + p137: 10_YB + p138: 50_YB
31	p157_{18, 16} : 140_GL	140	3	p123: 10_YB + p124: 30_GL + p125: 100_YB
32	p158_{18, 17} : 100_PB	100	5	p134: 20_YB:PG + p135: 10_YB:MB + p136: 10_W + p137: 10_YB + p138: 50_YB
33	p170_{18, 29} : 104_YB	104	8	p45: 44_YB + p46: 0_PG + p47: 20_YB + p48: 10_W + p49: 0_YB-MB + p50: 20_YB:PG + p51: 0_YB + p52: 10_W
34	p230_{20, 5} : 363_W	363	18	p116: 16_MB + p117: 32_W + p118: 0_YB-AB + p119: 20_YB:PG + p120: 10_YB:MB + p121: 10_W + p122: 50_YB + p123: 10_YB + p124: 30_GL + p125: 100_YB + p126: 22_AB + p127: 0_PG + p128: 8_KB + p129: 5_W + p130: 20_YB:PG + p131: 10_YB:MB + p132: 10_W + p133: 10_YB
35	p232_{20, 7} : 250_YB	250	15	p168: 10_YB + p169: 0_PG + p170: 104_YB + p171: 30_YB + p172: 6_PG + p173: 1_MB + p174: 19_W + p175: 10_YB:PG + p176: 10_AB + p177: 10_W + p178: 10_YB + p179: 10_YB:PG + p180: 10_MB + p181: 10_W + p182: 10_YB
36	p234_{20, 9} : 54_AB	54	6	p213: 2_PG + p214: 2_MB + p215: 10_W + p216: 20_YB:PG + p217: 10_AB + p218: 10_W
37	p238_{21, 1} : 212_W	212	5	p122: 50_YB + p123: 10_YB + p124: 30_GL + p125: 100_YB + p126: 22_AB
38	p239_{21, 2} : 100_PG	100	8	p216: 20_YB:PG + p217: 10_AB + p218: 10_W + p219: 10_YB + p220: 20_YB:PG + p221: 10_AB + p222: 10_W + p223: 10_YB
39	p241_{21, 4} : 41_YB	41	7	p207: 10_W + p208: 0_YB + p209: 0_YB + p210: 0_PG + p211: 0_YB + p212: 29_AB + p213: 2_PG
40	p244_{21, 7} : 31_W	31	2	p212: 29_AB + p213: 2_PG
41	p247_{21, 10} : 20_W:PG	20	2	p222: 10_W + p223: 10_YB
42	p251_{21, 14} : 140_PG	140	3	p170: 104_YB + p171: 30_YB + p172: 6_PG

Khipu Notes:

Museum Notes

Museum Description: Object on long-term loan from Werner Grünevald (German sugar magnate, spent two decades living in Peru), first lent to the museum in April, 2017 by Grünevald (still alive as of August '18) after initial restoration of the khipu by the Landesmuseum Hannover in March, 2017. The object is Grünevald's only khipu (as he primarily collected ceramics and textiles) and has never before been lent to an institution. He would like to place it in an institution that will take long-term care of the artifact, meaning that the long-term loan is likely to convert to a donation upon Grünevald's death. The khipu was recently mounted by Jan Hoffman (head conservator) with plans to hang the khipu in a frame in the permanent exhibition next to the Gretzer khipus (AS10-AS13).
Provenance: Bought from Gerente del Banco in Chocope in 1969. The merchant attributed the khipu to Huacho and referred to it as "Chancay/Inka."

Primary Cord

Fiber: CN - Cotton (confirmed by the Landesmuseum Hannover using chemical sourcing methods, but only for a select sample of cords)

Cord Notes:

93: Color change from YB to PB occurs during last turn of 6L long knot (see photo)
137: Loop begins after cord 137, color PK, ties back to primary cord after pendant 141 (see photo)
144: Incomplete unwraveled former mottled cord (see photo)
183/184: Loop pendants which reaches length of approx. 4.0cm before turning back and re-attaching to primary cord
239s1: Subsidiary broken at attachment to pendant 239
247: Attachment knot unknown because pendant 247 is attached under pendant 246, which makes the attachment ambiguous (unclear if attached to primary cord or if 247 is actually a subsidiary to 246, but I think it's more likely a pendent than a subsidiary)
All khipus I have studied are currently designated "MM", following convention in the field (and until a more suitable replacement convention is agreed upon)
(Manuel Medrano)
