MM007/AN002 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 2, Max # Summands = 4, (Min, Mean, Max) Sum Values = (12, 14, 15)
Click on Image to View Larger

Left Handed Sums: # Sums = 2, Max # Summands = 6, (Min, Mean, Max) Sum Values = (12, 16, 21)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

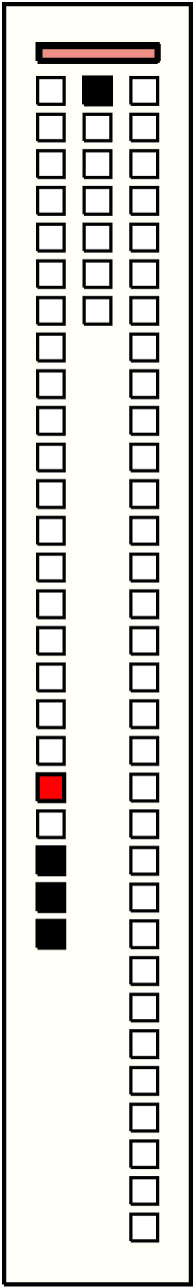

1			p20_{1, 20} : 15_W:DB	15	4	p22: 1_W:DB + p23: 0_W:DB + p24: 10_W:DB + p25: 4_YB:GL
2			p28_{2, 4} : 12_YB:GL	12	3	p56: 1_YB:MG + p57: 4_YB:MG + p58: 7_YB:MG

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

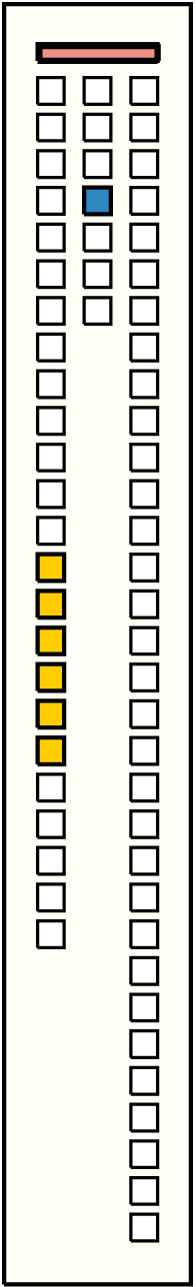

1			p28_{2, 4} : 12_YB:GL	12	6	p14: 2_YB:PG + p15: 1_YB:PG + p16: 5_YB:PG + p17: 3_W:DB + p18: 0_W:DB + p19: 1_W:DB

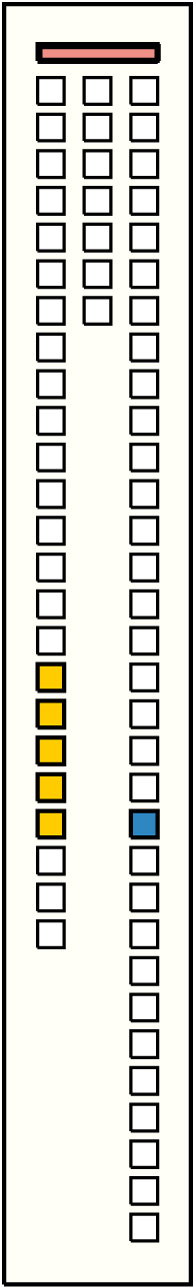

2			p52_{3, 21} : 21_YB:MG	21	5	p17: 3_W:DB + p18: 0_W:DB + p19: 1_W:DB + p20: 15_W:DB + p21: 2_W:DB

Khipu Notes:

Cord Notes

1: Under/Over knot "under"
2: Under/Over knot "under"; extra loop on bottom
4: Only pendant 4 retains knots, within the 4, 4s1, 4s2 pendant set
5s1-5s2: The order of these two subsidiaries is difficult to discern due to deterioration and the tight spacing. The vertical order as photographed is used to order the subsidiaries.
6s1: Under/Over knot "under"; extra loop on bottom
8: Over/Under knot "over"; extra loop in E at top
15: Over/Under knot "over"
16: Pair of long knots near each other in close proximity (see photograph)
19: Over/Under knot "over" with extra loop on top
22: Over/Under knot "over" with extra loop on top
22s1: Over/Under knot "under"
22s2: Over/Under knot "over"
24: Knot/pendant cord broken directly after first turn - likely a long knot
26s1: Subsidiary broken immediately after knot
26s2: Subsidiary broken immediately after knot
T1: Top cord bundle. Likely 3 interwover Z-Ply cords. Boundaries of the group are difficult to discern.
38: Over/Under knot "under"
45: Over/Under knot "over"
48: Over/Under knot "over"
52: Over/Under knot "over"
56: Over/Under knot "under"; 1 ply of cord broken from 2.5cm to 7.4cm
All khipus I have studied are currently designated "MM", following convention in the field (and until a more suitable replacement convention is agreed upon)
(Manuel Medrano)
