MM019 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 14, Max # Summands = 25, (Min, Mean, Max) Sum Values = (14, 47, 201)
Click on Image to View Larger

Left Handed Sums: # Sums = 9, Max # Summands = 25, (Min, Mean, Max) Sum Values = (14, 30, 80)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

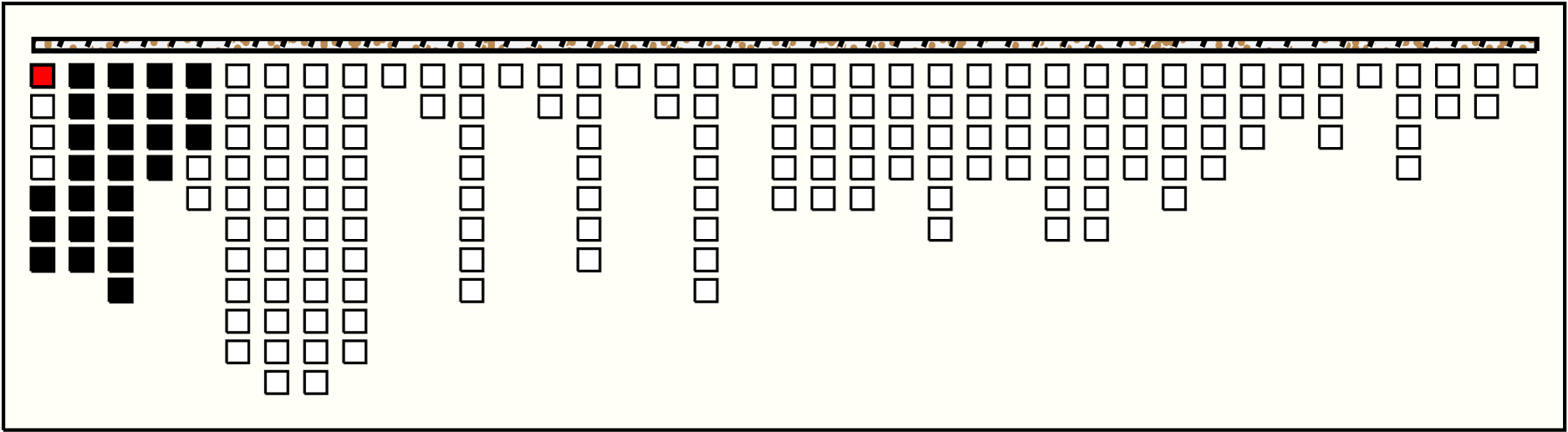

1	p1_{1, 1} : 201_W	201	25	p5: 20_AB + p6: 14_B + p7: 0_B:KB + p8: 2_W + p9: 1_W + p10: 2_W + p11: 2_W + p12: 2_W + p13: 2_W + p14: 2_W + p15: 0_W + p16: 9_W + p17: 9_W + p18: 7_W + p19: 7_W + p20: 7_W + p21: 7_W + p22: 7_YB + p23: 9_W + p24: 1_W + p25: 6_W + p26: 0_W + p27: 45_W + p28: 26_R + p29: 14_YB
2	p2_{1, 2} : 73_W	73	16	p6: 14_B + p7: 0_B:KB + p8: 2_W + p9: 1_W + p10: 2_W + p11: 2_W + p12: 2_W + p13: 2_W + p14: 2_W + p15: 0_W + p16: 9_W + p17: 9_W + p18: 7_W + p19: 7_W + p20: 7_W + p21: 7_W
3	p3_{1, 3} : 38_W:YB	38	11	p8: 2_W + p9: 1_W + p10: 2_W + p11: 2_W + p12: 2_W + p13: 2_W + p14: 2_W + p15: 0_W + p16: 9_W + p17: 9_W + p18: 7_W
4	p4_{1, 4} : 55_R	55	9	p14: 2_W + p15: 0_W + p16: 9_W + p17: 9_W + p18: 7_W + p19: 7_W + p20: 7_W + p21: 7_W + p22: 7_YB
5	p5_{1, 5} : 20_AB	20	8	p9: 1_W + p10: 2_W + p11: 2_W + p12: 2_W + p13: 2_W + p14: 2_W + p15: 0_W + p16: 9_W
6	p6_{1, 6} : 14_B	14	2	p18: 7_W + p19: 7_W
7	p27_{5, 1} : 45_W	45	25	p36: 2_R + p37: 2_YB + p38: 2_YB-KB + p39: 2_YB + p40: 2_W + p41: 0_W + p42: 2_YB + p43: 2_W + p44: 2_W + p45: 2_R + p46: 2_R + p47: 2_YB + p48: 2_YB-KB + p49: 2_YB + p50: 2_W + p51: 0_W + p52: 0_W + p53: 2_YB + p54: 2_W + p55: 2_W + p56: 2_R + p57: 2_R + p58: 2_YB + p59: 2_YB-KB + p60: 3_YB
8	p28_{5, 2} : 26_R	26	7	p31: 14_W + p32: 2_W + p33: 2_W + p34: 2_W + p35: 2_R + p36: 2_R + p37: 2_YB
9	p31_{5, 5} : 14_W	14	7	p32: 2_W + p33: 2_W + p34: 2_W + p35: 2_R + p36: 2_R + p37: 2_YB + p38: 2_YB-KB

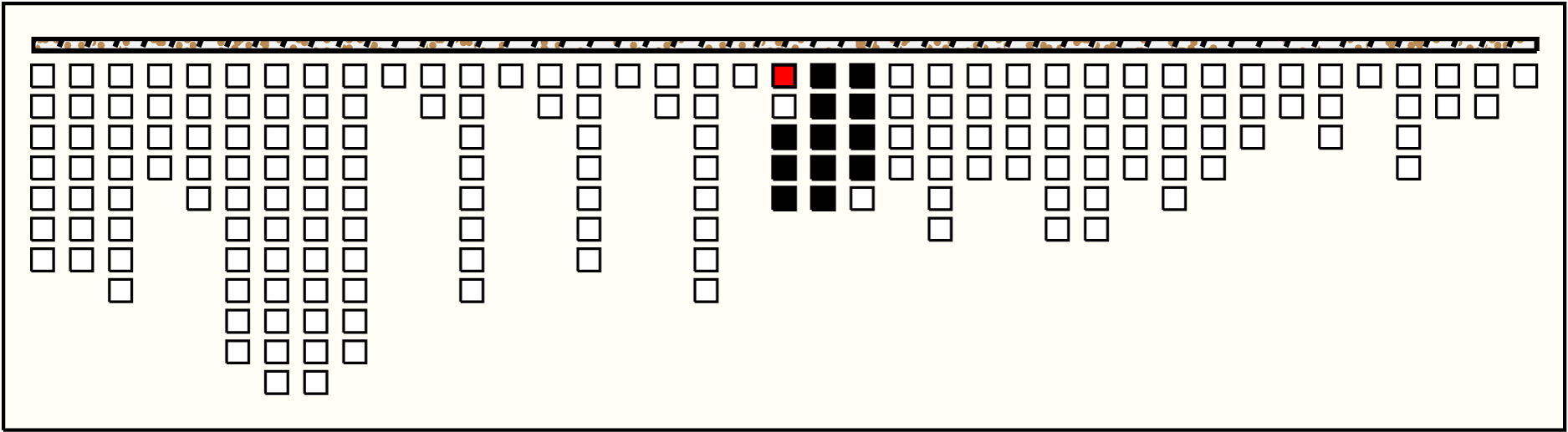

10	p107_{20, 1} : 80_B	80	12	p109: 6_MB + p110: 24_R + p111: 24_YB + p112: 0_W + p113: 4_W + p114: 2_MB + p115: 6_R + p116: 4_YB + p117: 0_W + p118: 4_W + p119: 2_MB + p120: 4_R

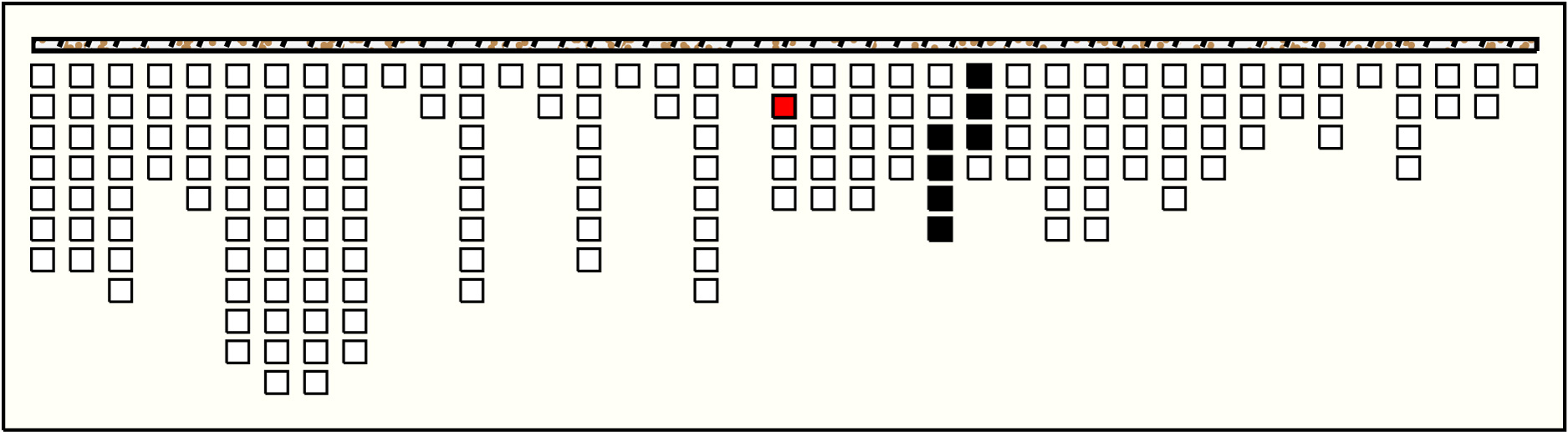

11	p108_{20, 2} : 25_W	25	7	p128: 4_W + p129: 2_MB + p130: 6_R + p131: 4_YB + p132: 1_W + p133: 4_W + p134: 4_R

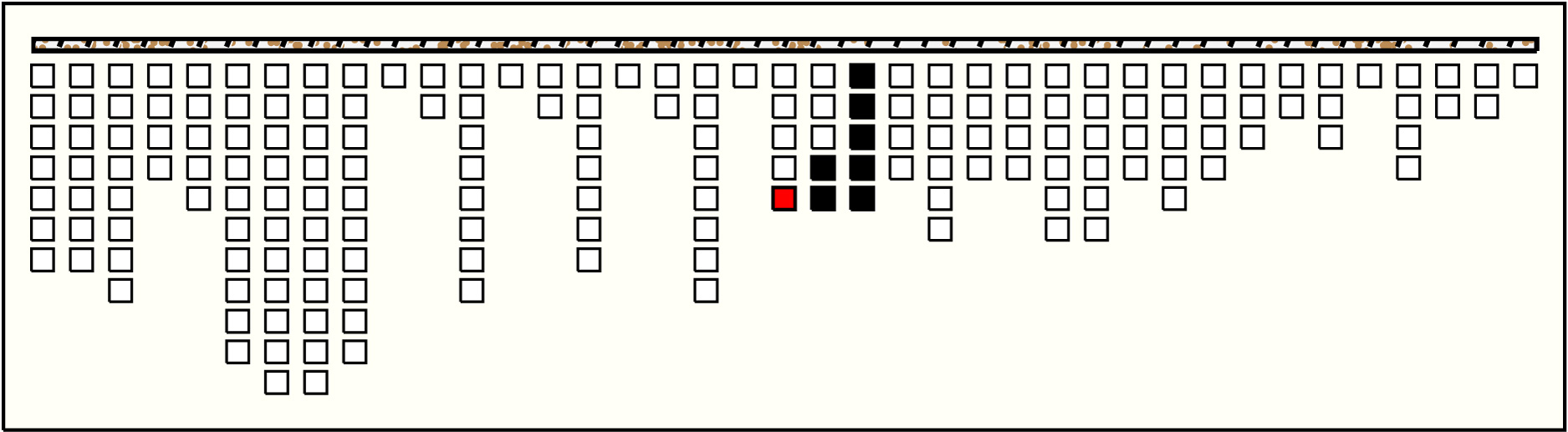

12	p111_{20, 5} : 24_YB	24	7	p115: 6_R + p116: 4_YB + p117: 0_W + p118: 4_W + p119: 2_MB + p120: 4_R + p121: 4_YB
13	p141_{27, 2} : 16_W	16	4	p145: 8_MB-KB + p146: 0_MB + p147: 4_W + p148: 4_PK
14	p143_{27, 4} : 24_R	24	6	p144: 6_YB + p145: 8_MB-KB + p146: 0_MB + p147: 4_W + p148: 4_PK + p149: 2_R

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

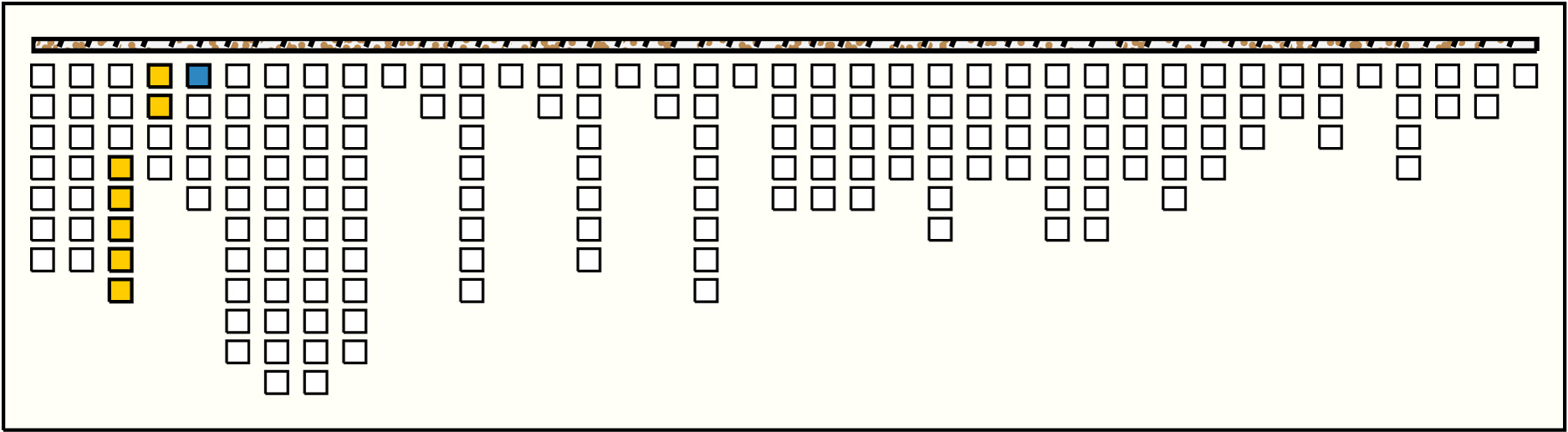

1	p27_{5, 1} : 45_W	45	7	p18: 7_W + p19: 7_W + p20: 7_W + p21: 7_W + p22: 7_YB + p23: 9_W + p24: 1_W

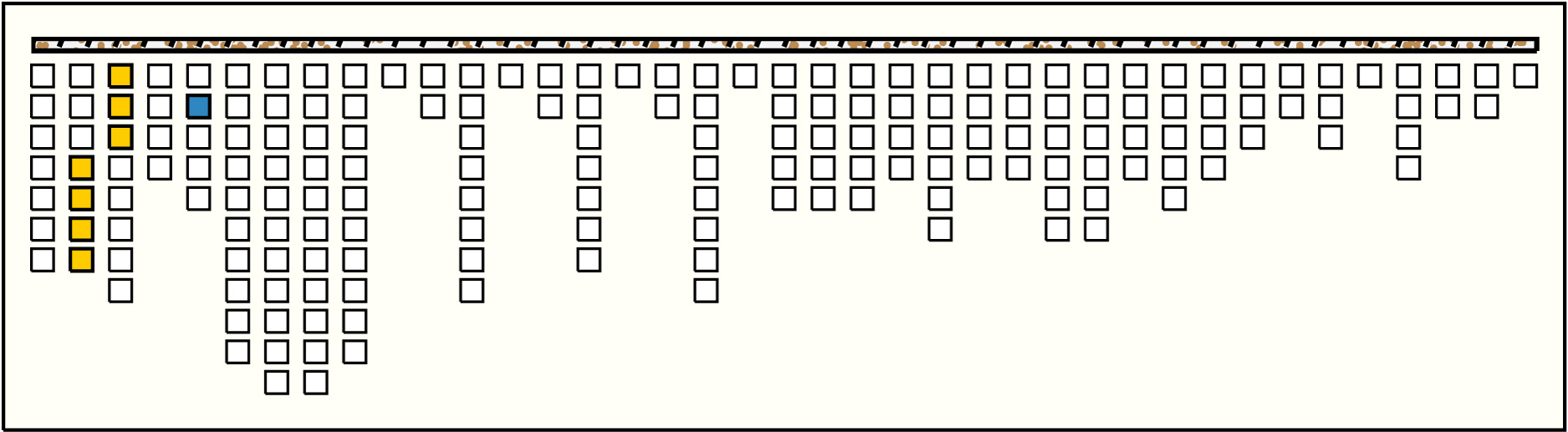

2	p28_{5, 2} : 26_R	26	7	p11: 2_W + p12: 2_W + p13: 2_W + p14: 2_W + p15: 0_W + p16: 9_W + p17: 9_W
3	p29_{5, 3} : 14_YB	14	2	p21: 7_W + p22: 7_YB

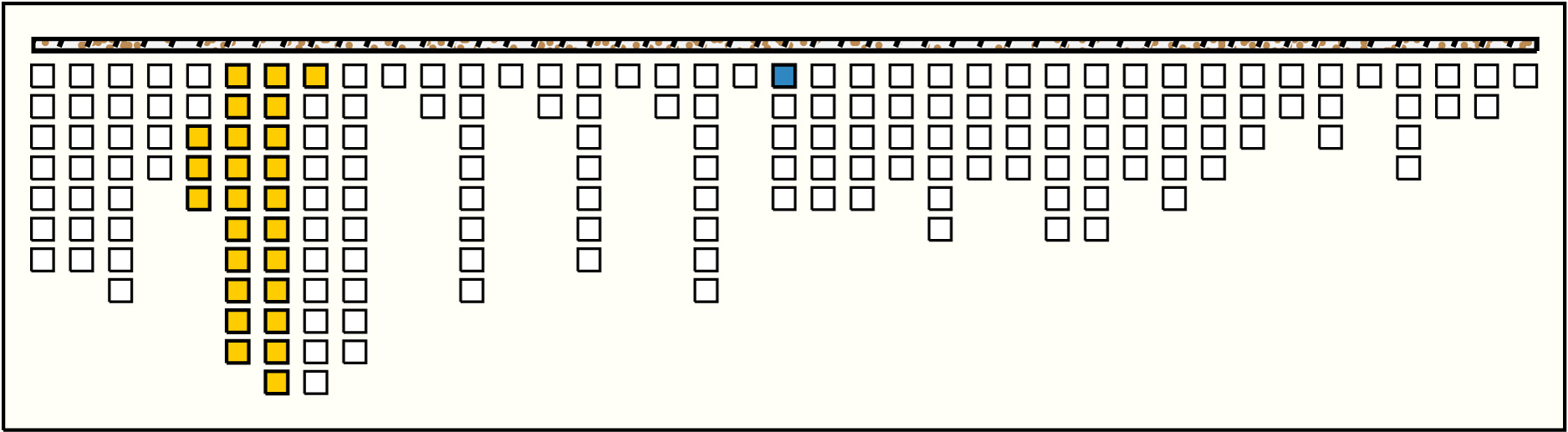

4	p107_{20, 1} : 80_B	80	25	p29: 14_YB + p30: 14_YB-KB + p31: 14_W + p32: 2_W + p33: 2_W + p34: 2_W + p35: 2_R + p36: 2_R + p37: 2_YB + p38: 2_YB-KB + p39: 2_YB + p40: 2_W + p41: 0_W + p42: 2_YB + p43: 2_W + p44: 2_W + p45: 2_R + p46: 2_R + p47: 2_YB + p48: 2_YB-KB + p49: 2_YB + p50: 2_W + p51: 0_W + p52: 0_W + p53: 2_YB
5	p108_{20, 2} : 25_W	25	16	p60: 3_YB + p61: 2_W + p62: 0_W + p63: 0_W + p64: 2_YB + p65: 2_W + p66: 2_W + p67: 2_R + p68: 2_R + p69: 2_YB + p70: 2_YB-KB + p71: 2_YB + p72: 2_W + p73: 0_W + p74: 0_W + p75: 2_YB
6	p110_{20, 4} : 24_R	24	14	p91: 2_YB + p92: 2_YB-KB + p93: 2_YB + p94: 2_W + p95: 0_W + p96: 0_YB + p97: 2_W + p98: 2_W + p99: 2_R + p100: 2_R + p101: 2_YB + p102: 2_YB-KB + p103: 2_YB + p104: 2_W
7	p141_{27, 2} : 16_W	16	5	p133: 4_W + p134: 4_R + p135: 4_YB + p136: 2_W + p137: 2_W

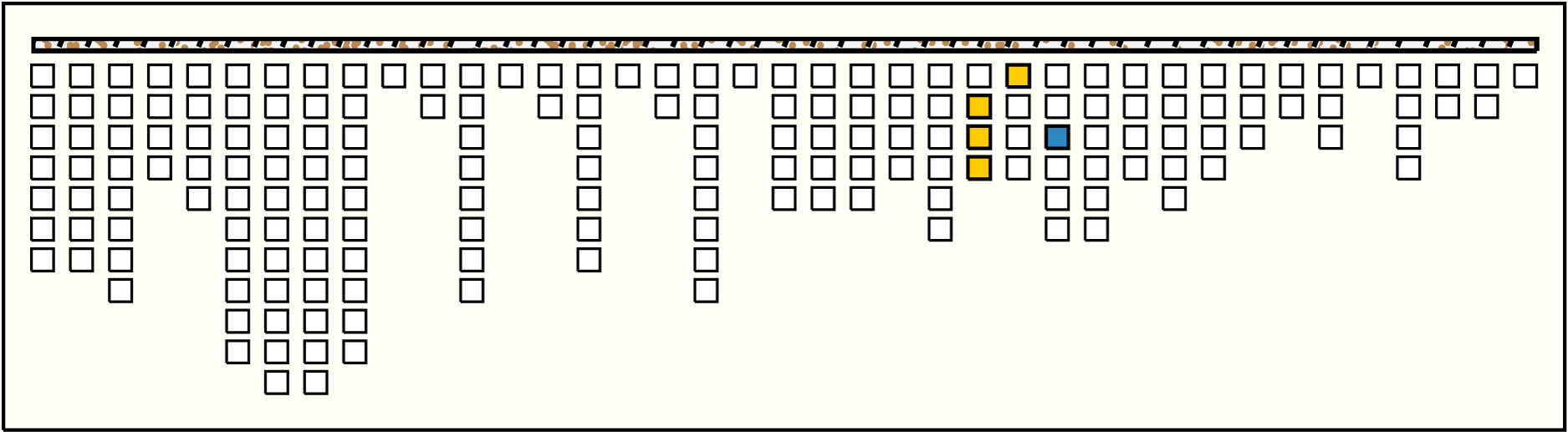

8	p142_{27, 3} : 14_YB	14	4	p133: 4_W + p134: 4_R + p135: 4_YB + p136: 2_W
9	p143_{27, 4} : 24_R	24	9	p121: 4_YB + p122: 0_W + p123: 4_W + p124: 4_R + p125: 4_YB + p126: 2_W + p127: 0_W + p128: 4_W + p129: 2_MB

Khipu Notes:

Primary Cord Thread Wrappings

SR wrapping 7.25-7.5cm and 8.0-8.75cm
LG wrapping 18.25-19.0cm
R wrapping 19.0-19.75cm
BL wrapping 128.5-130.5cm

Cord Notes and Obeservations for Khipu MM019

6: KB mottled thread introduced in long knot
13s2: MB wrapping around pendant from 43.0-44.0cm
31: color changes in 1S knot
69: barber pole portion of cord is quite deteriorated and fragile
109: GG thread tied around pendant at 34.0cm
114: PG thread tied around pendant at 36.0cm
119: YB thread tied around pendant at 34.5cm
129: PG thread tied around pendant at 34.5cm
140: cord broken in first turn of unidentifiable knot
141: color changes in single knot
151: YB thread tied around pendant at 38.5cm
159: traces of YB-KB in attachment knot
175: R thread tied around pendant at 0.5cm
176: cord raveled 33.0-45.0cm
178: R thread tied around pendant between 0.5-2.0cm
181: SR thread inserted following p181 attachment knot; p181 also has an anomalous figure eight knot
All khipus I have studied are currently designated "MM", following convention in the field (and until a more suitable replacement convention is agreed upon). Manuel Medrano.
