MM020 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

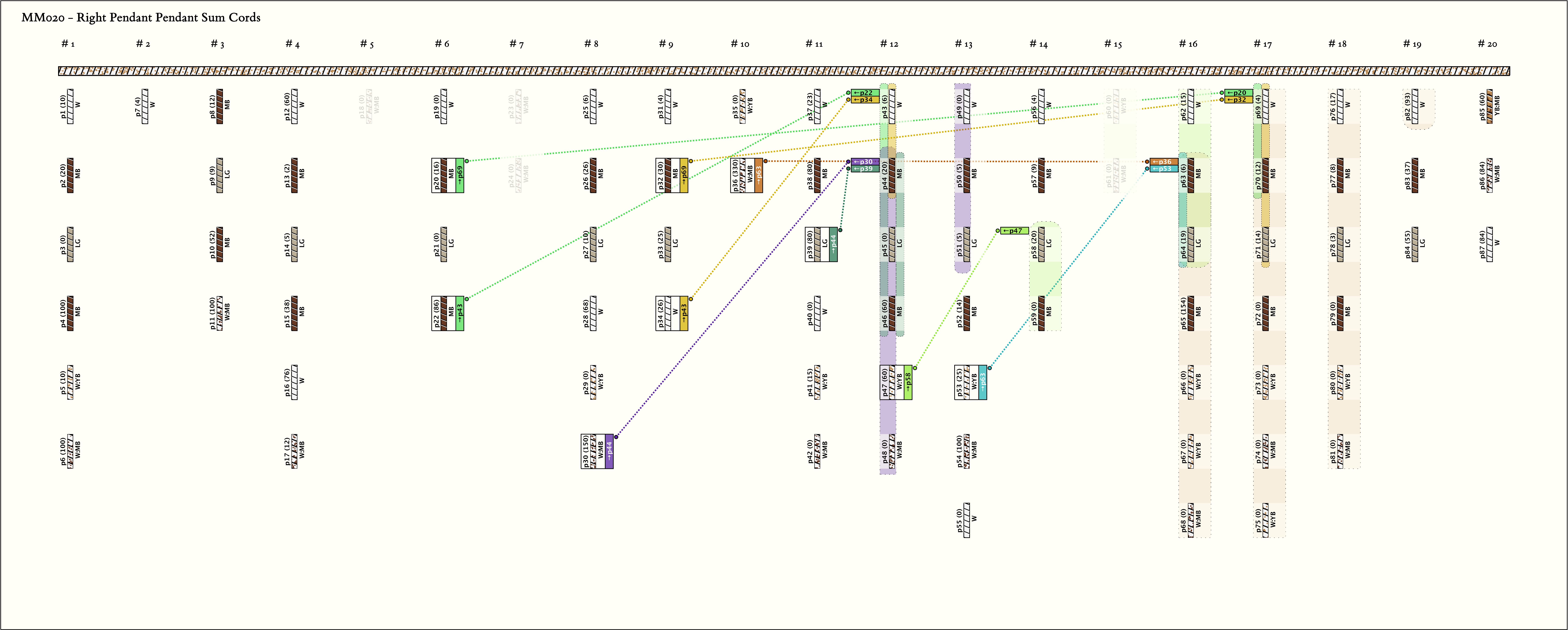

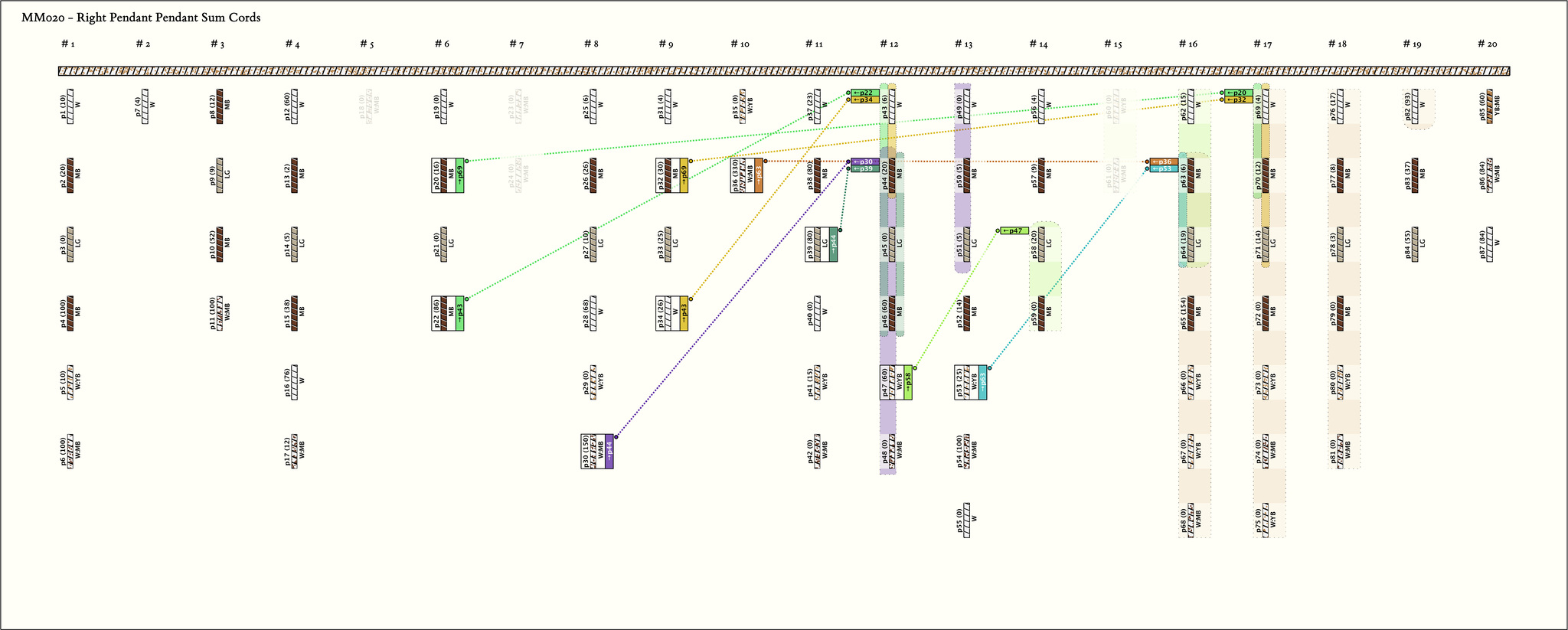

Right Handed Sums: # Sums = 9, Max # Summands = 20, (Min, Mean, Max) Sum Values = (16, 89, 330)
Click on Image to View Larger

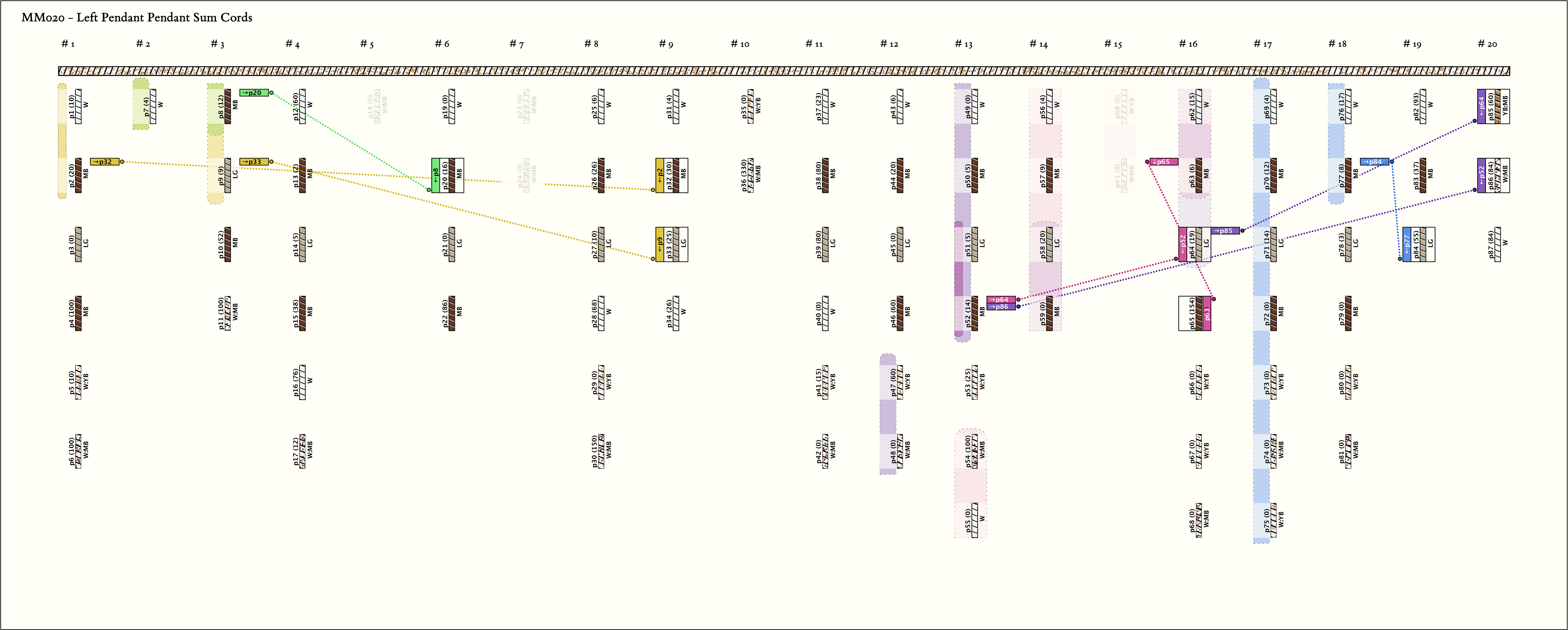

Left Handed Sums: # Sums = 8, Max # Summands = 10, (Min, Mean, Max) Sum Values = (16, 55, 154)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

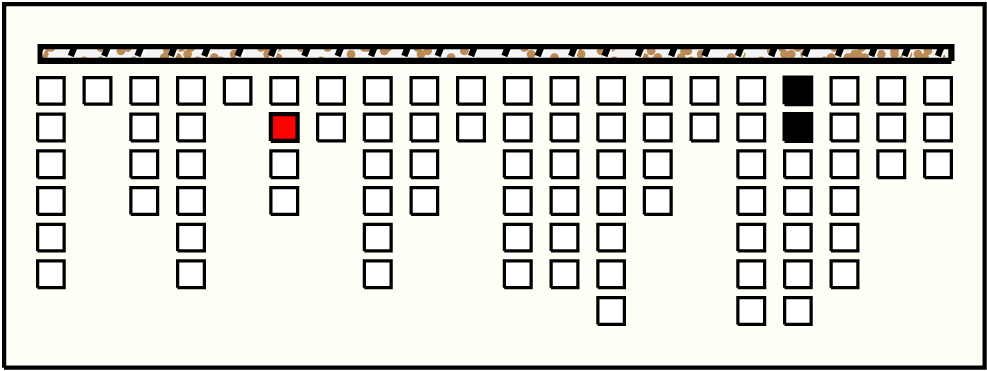

1	p20_{6, 2} : 16_MB	16	2	p69: 4_W + p70: 12_MB

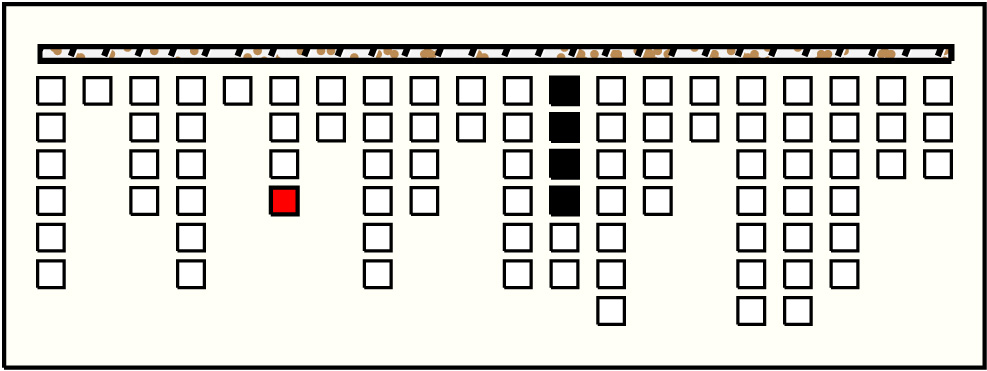

2	p22_{6, 4} : 86_MB	86	4	p43: 6_W + p44: 20_MB + p45: 0_LG + p46: 60_MB

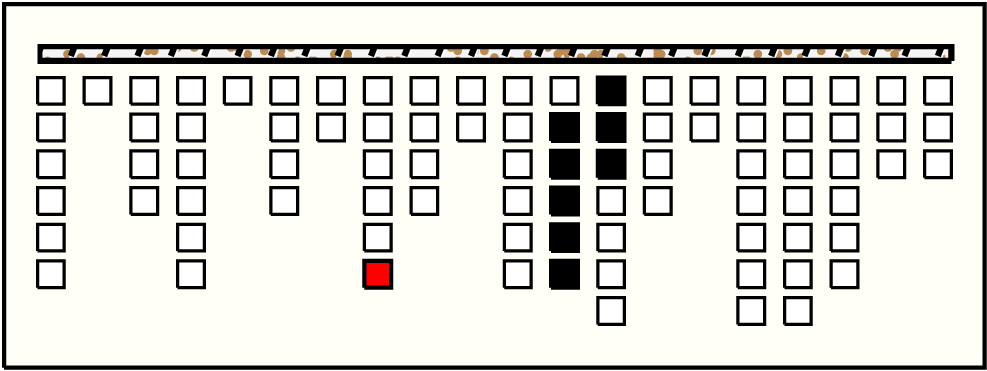

3	p30_{8, 6} : 150_W:MB	150	8	p44: 20_MB + p45: 0_LG + p46: 60_MB + p47: 60_W:YB + p48: 0_W:MB + p49: 0_W + p50: 5_MB + p51: 5_LG

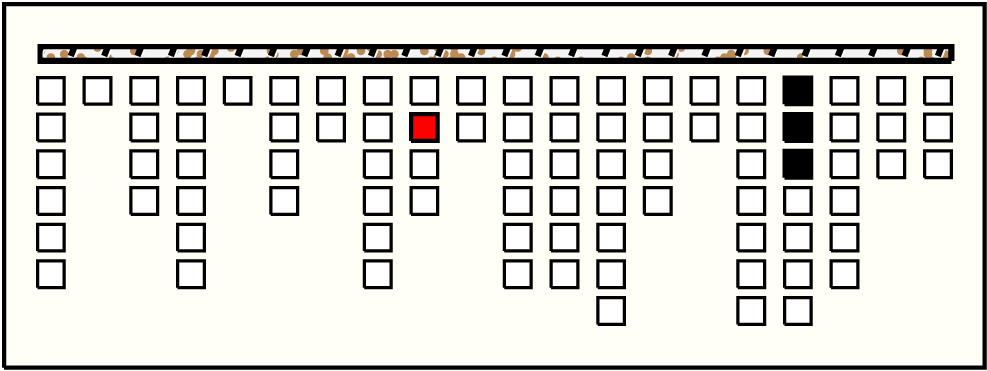

4	p32_{9, 2} : 30_MB	30	3	p69: 4_W + p70: 12_MB + p71: 14_LG

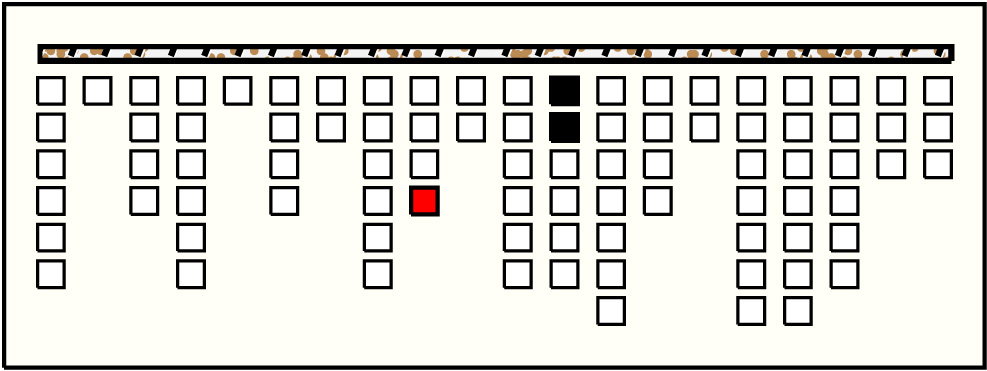

5	p34_{9, 4} : 26_W	26	2	p43: 6_W + p44: 20_MB

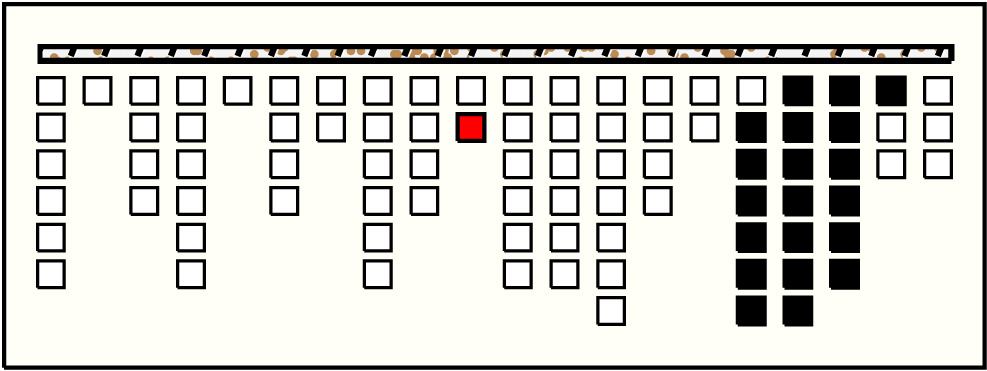

6	p36_{10, 2} : 330_W:MB	330	20	p63: 6_MB + p64: 19_LG + p65: 154_MB + p66: 0_W:YB + p67: 0_W:YB + p68: 0_W:MB + p69: 4_W + p70: 12_MB + p71: 14_LG + p72: 0_MB + p73: 0_W:YB + p74: 0_W:MB + p75: 0_W:YB + p76: 17_W + p77: 8_MB + p78: 3_LG + p79: 0_MB + p80: 0_W:YB + p81: 0_W:MB + p82: 93_W

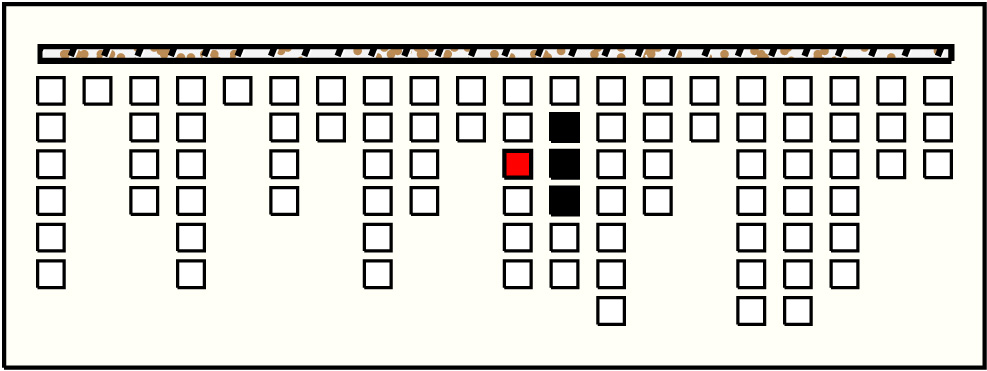

7	p39_{11, 3} : 80_LG	80	3	p44: 20_MB + p45: 0_LG + p46: 60_MB

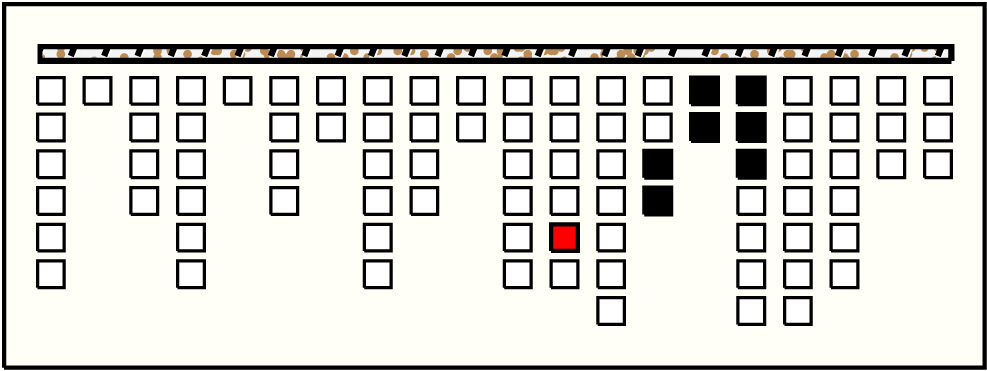

8	p47_{12, 5} : 60_W:YB	60	7	p58: 20_LG + p59: 0_MB + p60: 0_W:YB + p61: 0_W:MB + p62: 15_W + p63: 6_MB + p64: 19_LG

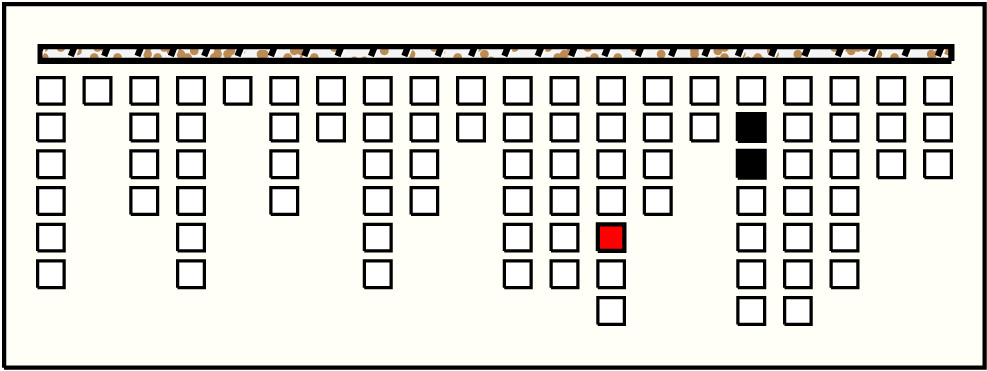

9	p53_{13, 5} : 25_W:YB	25	2	p63: 6_MB + p64: 19_LG

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

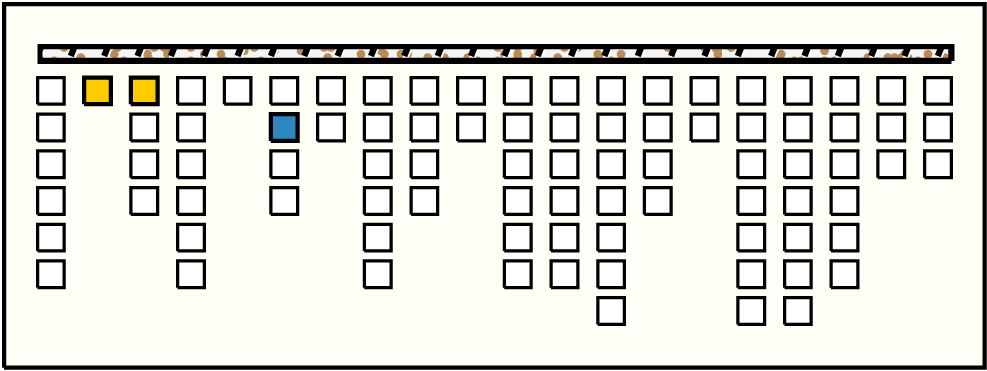

1	p20_{6, 2} : 16_MB	16	2	p7: 4_W + p8: 12_MB

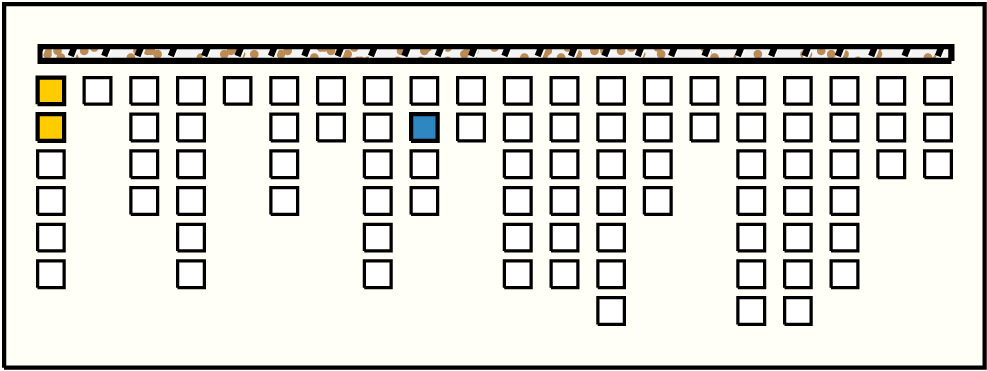

2	p32_{9, 2} : 30_MB	30	2	p1: 10_W + p2: 20_MB

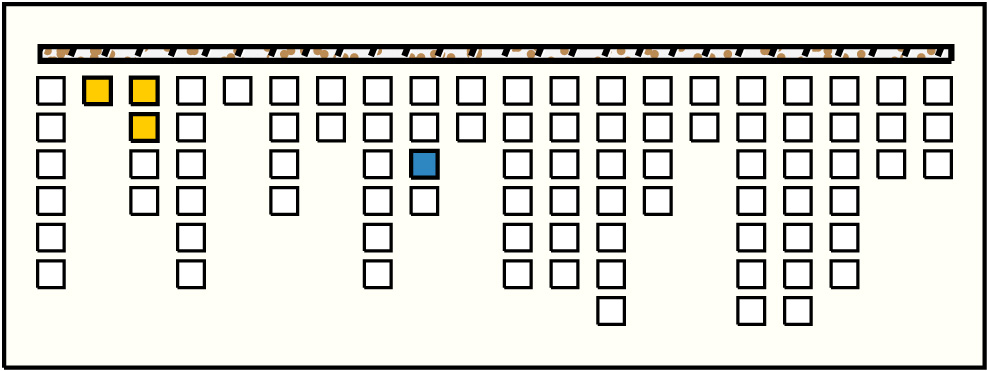

3	p33_{9, 3} : 25_LG	25	3	p7: 4_W + p8: 12_MB + p9: 9_LG

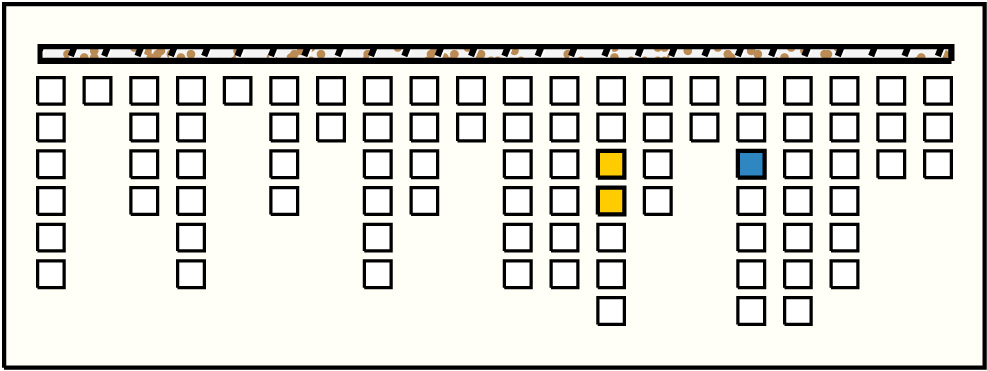

4	p64_{16, 3} : 19_LG	19	2	p51: 5_LG + p52: 14_MB

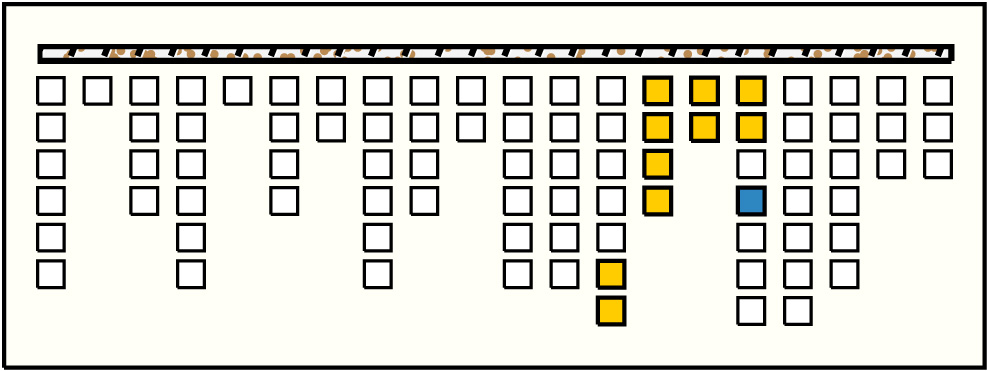

5	p65_{16, 4} : 154_MB	154	10	p54: 100_W:MB + p55: 0_W + p56: 4_W + p57: 9_MB + p58: 20_LG + p59: 0_MB + p60: 0_W:YB + p61: 0_W:MB + p62: 15_W + p63: 6_MB

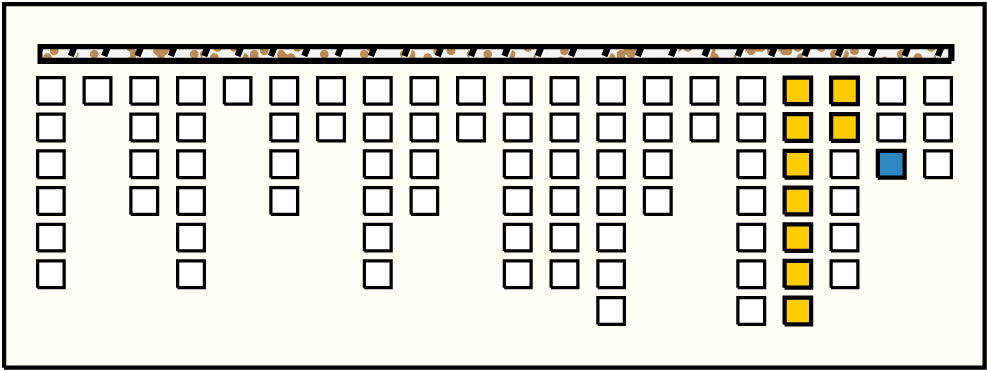

6	p84_{19, 3} : 55_LG	55	9	p69: 4_W + p70: 12_MB + p71: 14_LG + p72: 0_MB + p73: 0_W:YB + p74: 0_W:MB + p75: 0_W:YB + p76: 17_W + p77: 8_MB

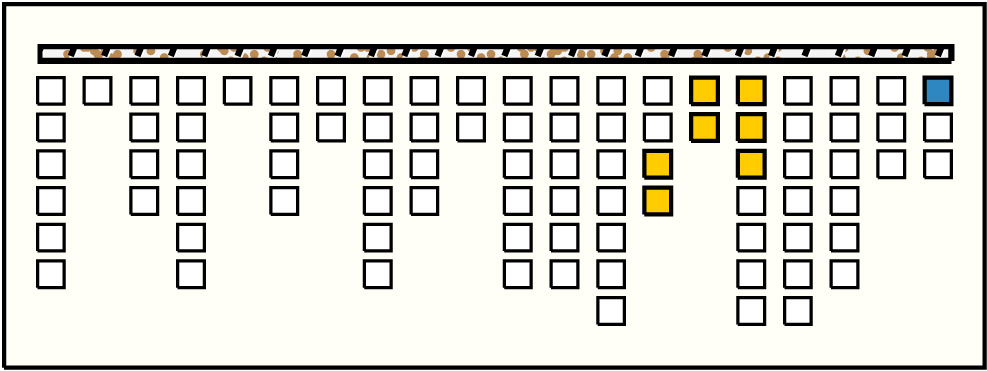

7	p85_{20, 1} : 60_YB:MB	60	7	p58: 20_LG + p59: 0_MB + p60: 0_W:YB + p61: 0_W:MB + p62: 15_W + p63: 6_MB + p64: 19_LG

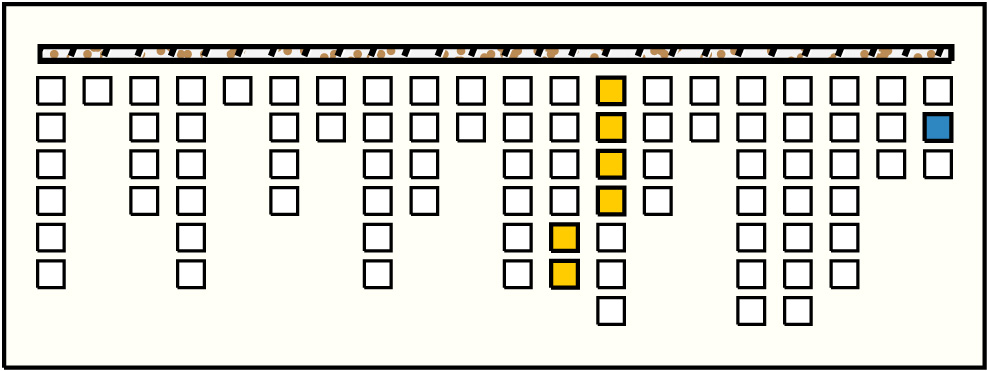

8	p86_{20, 2} : 84_W:MB	84	6	p47: 60_W:YB + p48: 0_W:MB + p49: 0_W + p50: 5_MB + p51: 5_LG + p52: 14_MB

Khipu Notes:

Notes and Obeservations for Khipu MM020

36: second set of 3S knots aligns with ones' place of other pendants on the khipu; counted as tens
40: repair knot aligned with tens' place
69: strand of animal hair of some sort interlaced at top of pendant
85: pendant broken immediately after 6th S knot

Primary Cord Notes

Primary Cord Thread Wrappings
W wrapping 15.0-16.0cm and 26.5-28.5cm
All khipus I have studied are currently designated "MM", following convention in the field (and until a more suitable replacement convention is agreed upon). Manuel Medrano.
