MM021 - Pendant Pendant Sum

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Relationships	Right-Handed X-Ray
All Pendant Pendant Sum Relationships	Left-Handed X-Ray
This Khipu's Ascher Sum Relationships	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

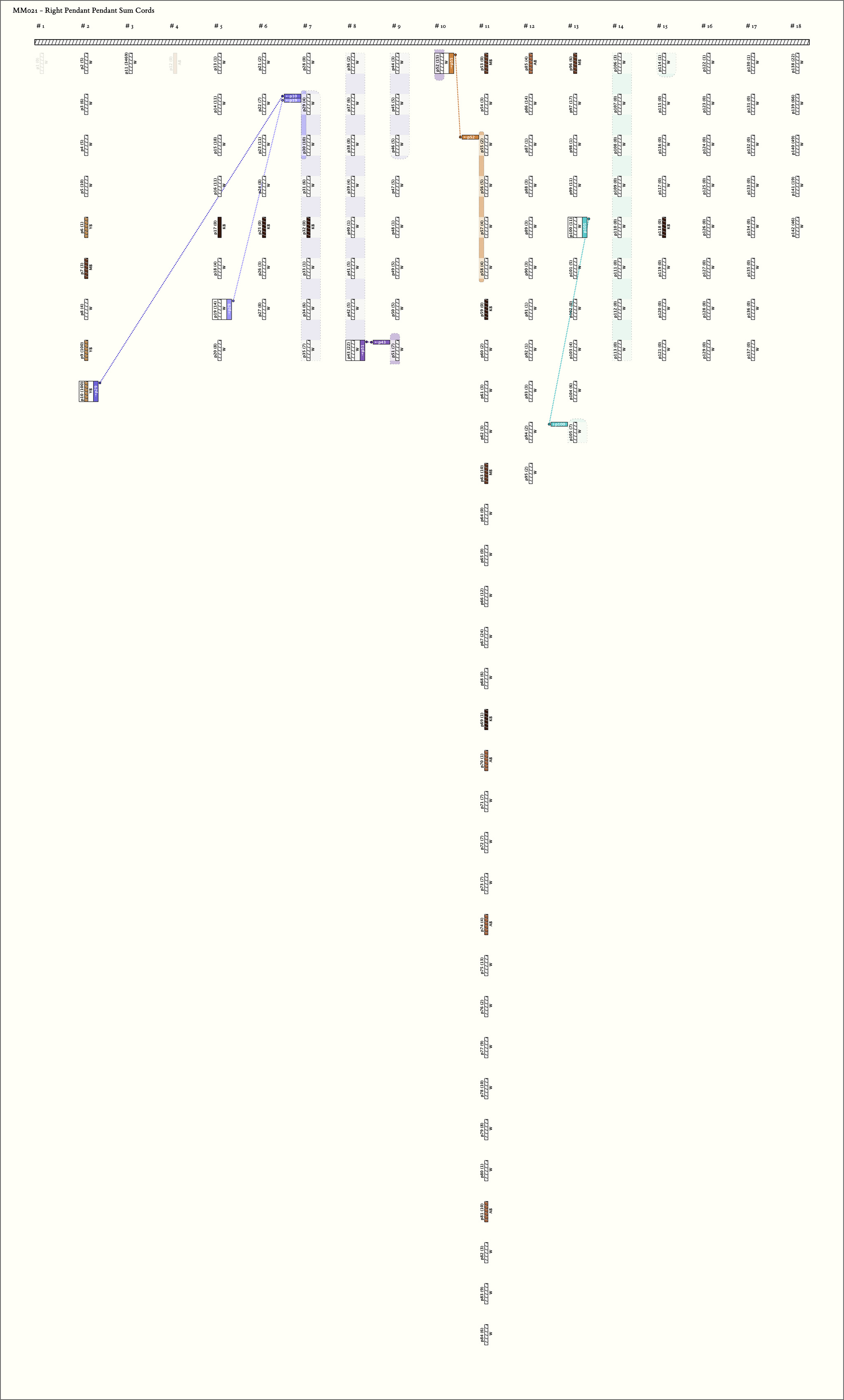

Right Handed Sums: # Sums = 5, Max # Summands = 18, (Min, Mean, Max) Sum Values = (11, 32, 100)
Click on Image to View Larger

Left Handed Sums: # Sums = 14, Max # Summands = 27, (Min, Mean, Max) Sum Values = (11, 25, 66)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

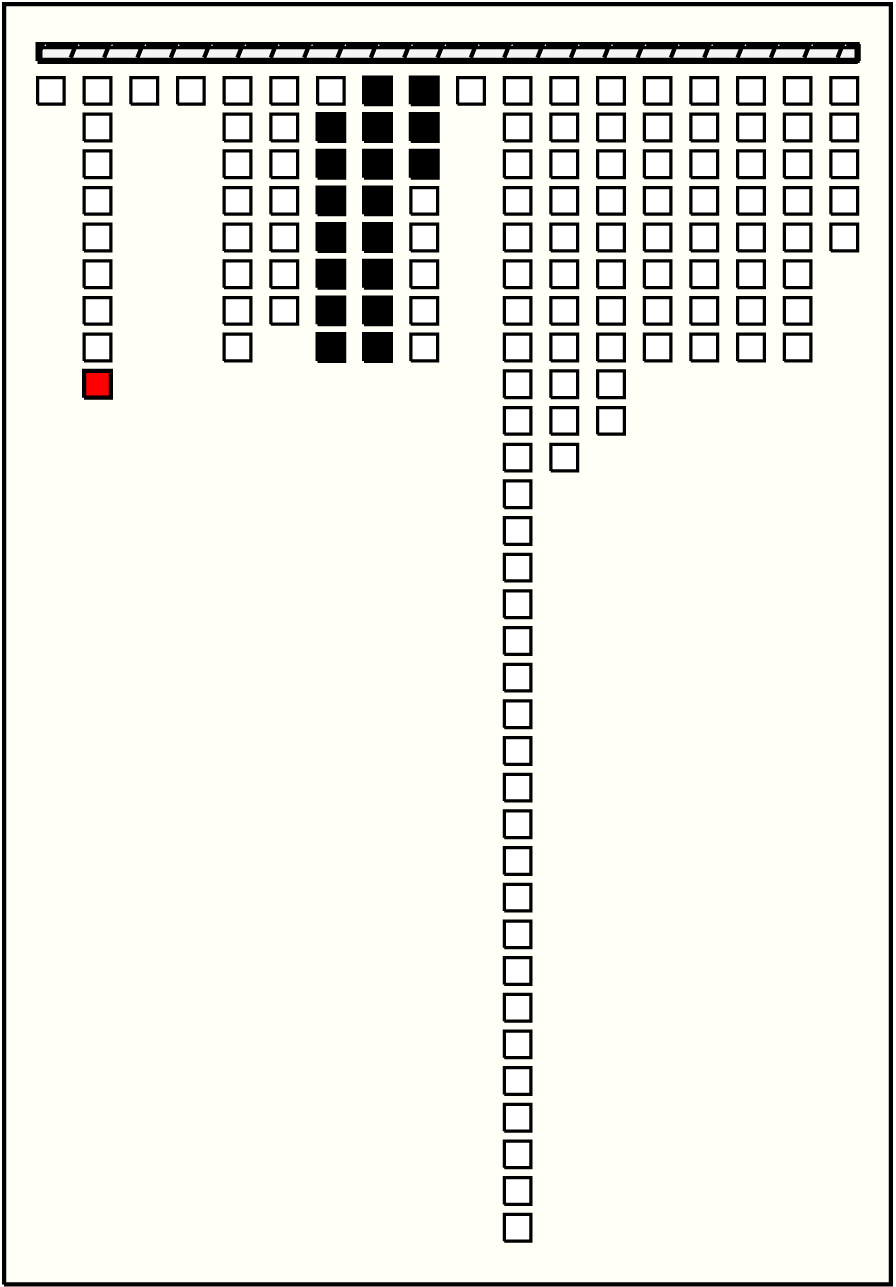

1	p10_{2, 9} : 100_YB	100	18	p29: 4_W + p30: 10_W + p31: 6_W + p32: 0_KB + p33: 1_W + p34: 6_W + p35: 7_W + p36: 2_W + p37: 6_W + p38: 8_W + p39: 4_W + p40: 1_W + p41: 5_W + p42: 5_W + p43: 22_W + p44: 3_W + p45: 5_W + p46: 5_W

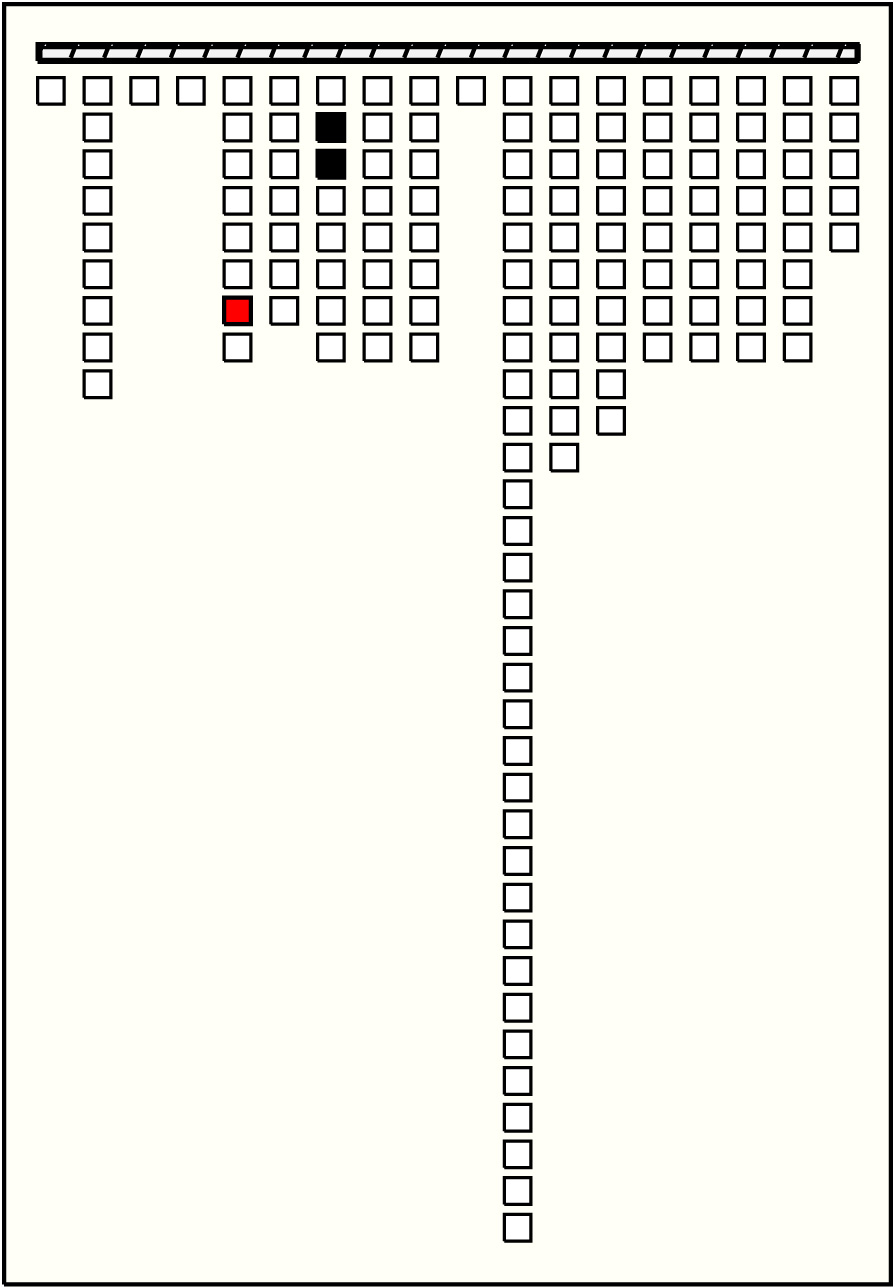

2	p19_{5, 7} : 14_W	14	2	p29: 4_W + p30: 10_W

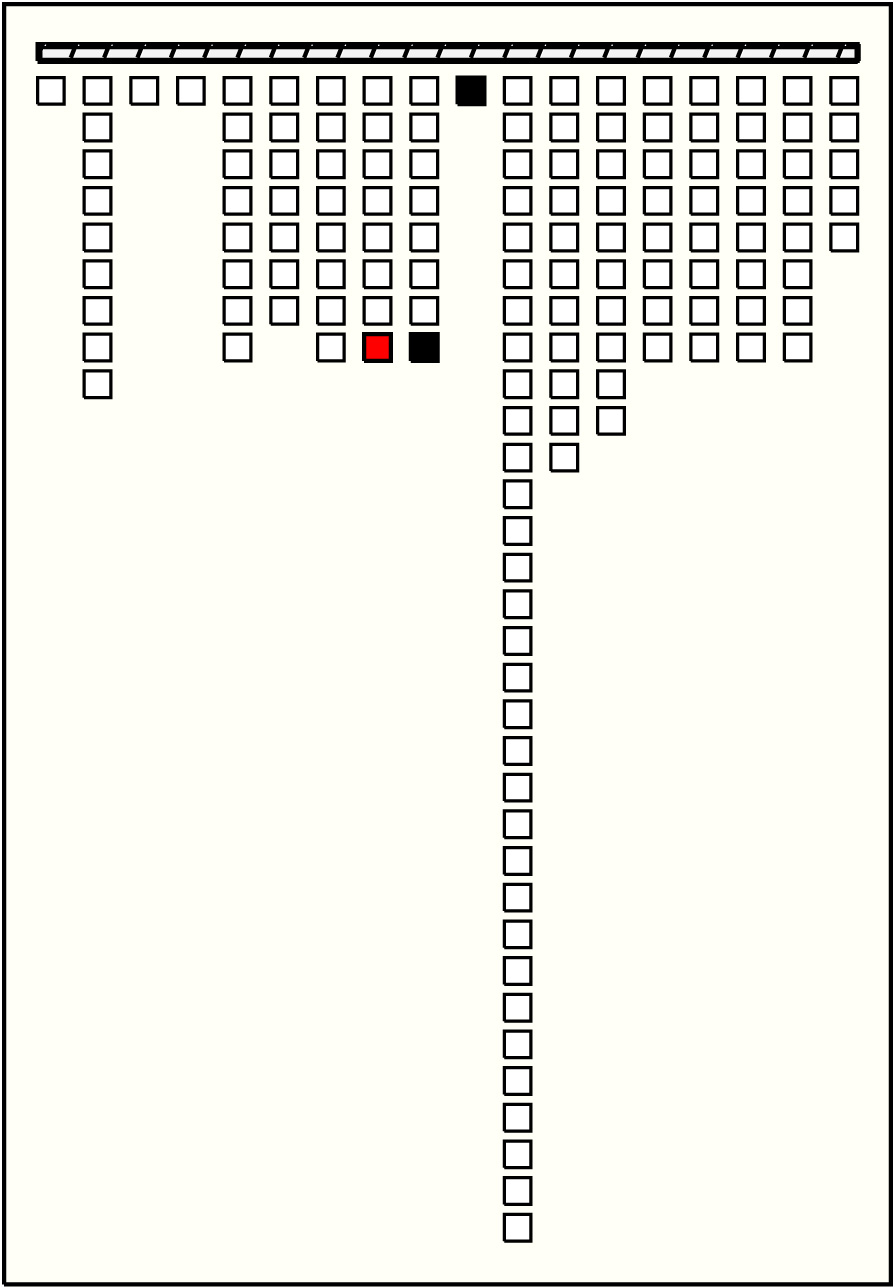

3	p43_{8, 8} : 22_W	22	2	p51: 7_W + p52: 15_W

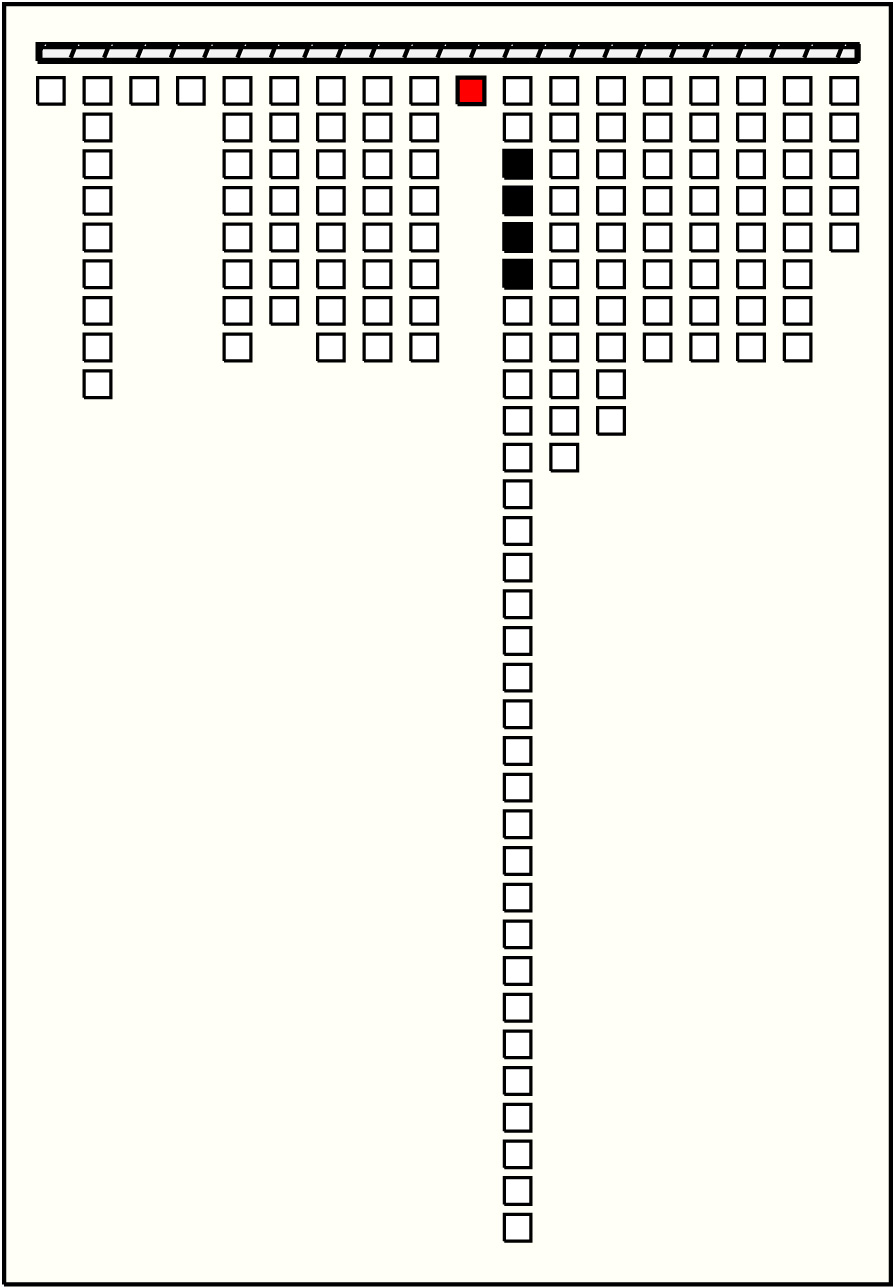

4	p52_{10, 1} : 15_W	15	4	p55: 2_W + p56: 5_W + p57: 4_W + p58: 4_W

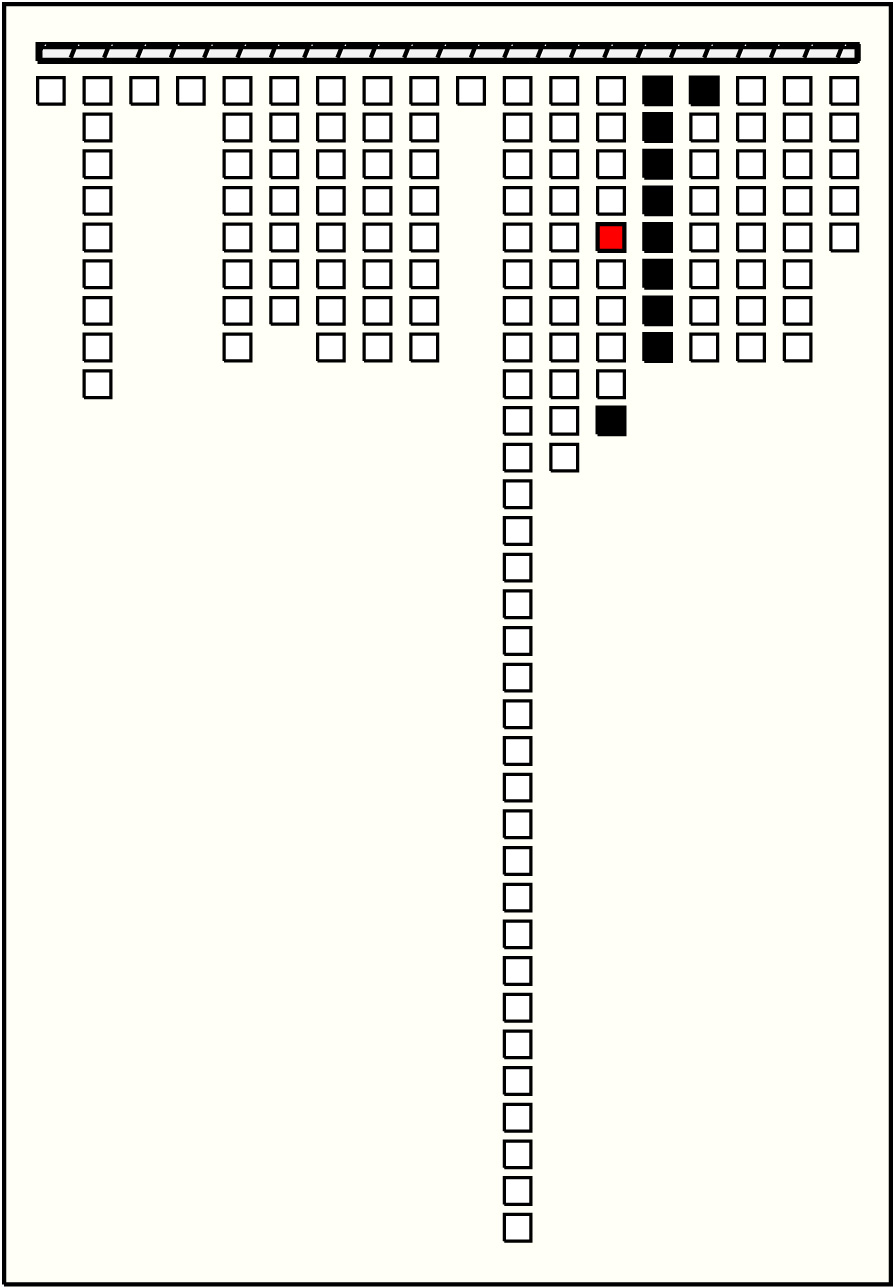

5	p100_{13, 5} : 11_W	11	10	p105: 7_W + p106: 3_W + p107: 0_W + p108: 0_W + p109: 0_W + p110: 0_W + p111: 0_W + p112: 0_W + p113: 0_W + p114: 1_W

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p14_{5, 2} : 11_W	11	2	p5: 10_W + p6: 1_YB

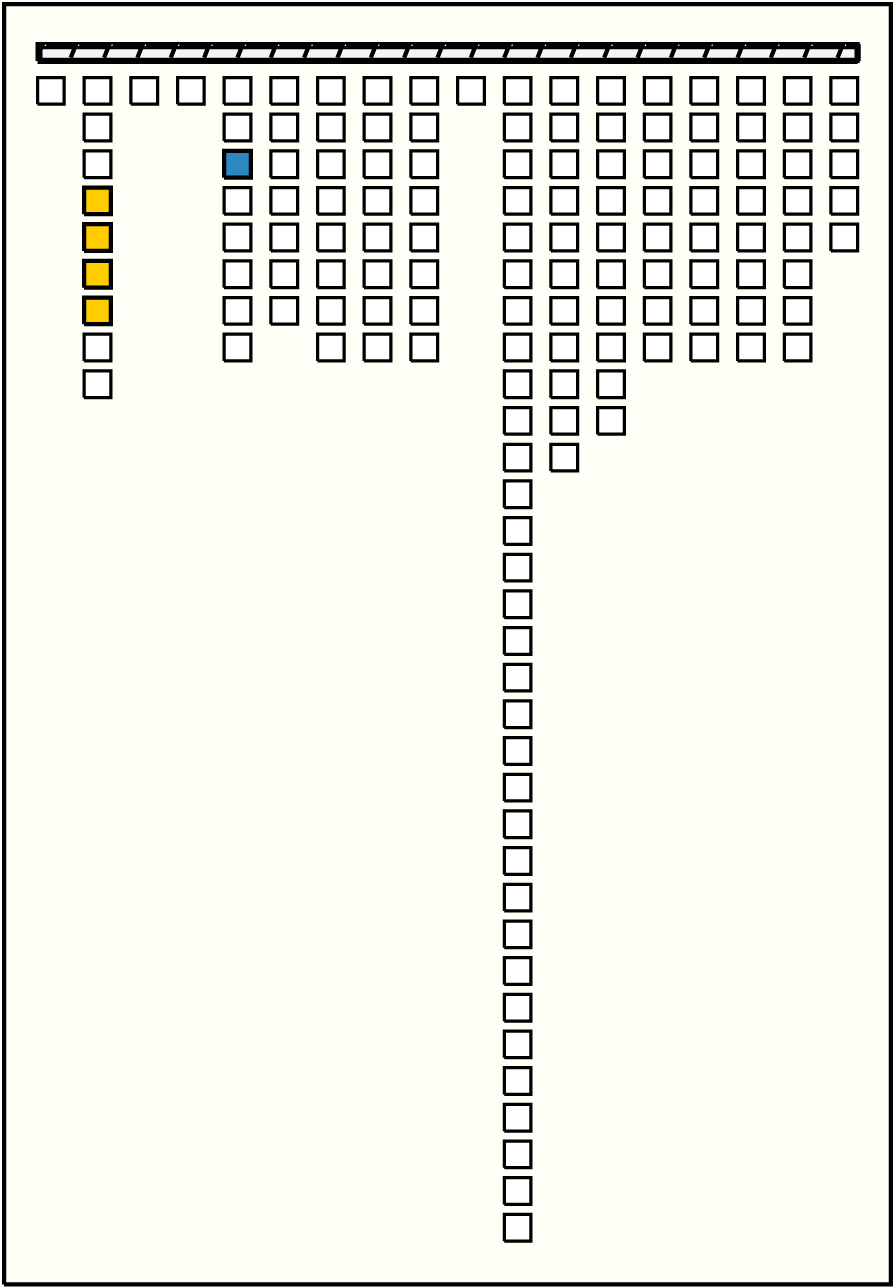

2	p15_{5, 3} : 18_W	18	4	p5: 10_W + p6: 1_YB + p7: 3_MB + p8: 4_W

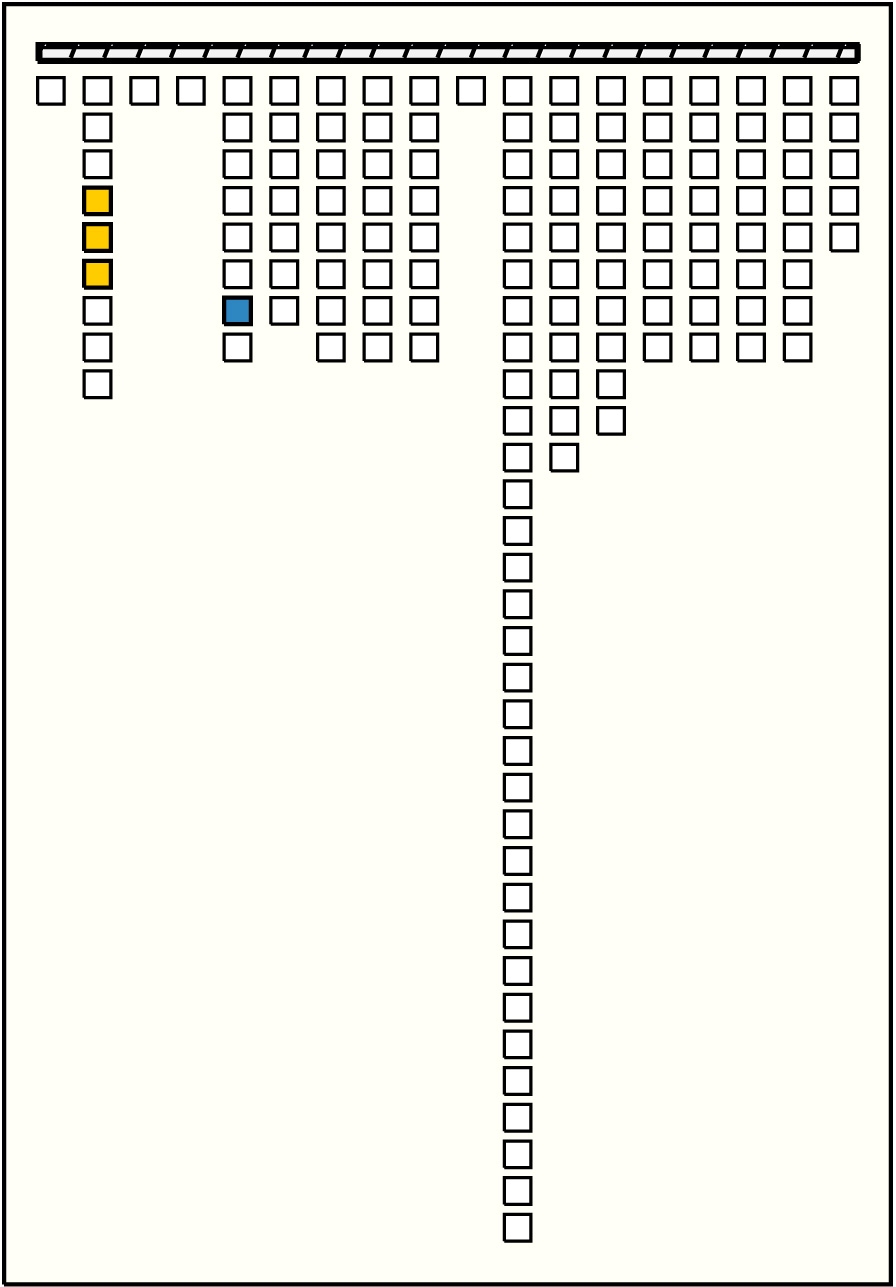

3	p19_{5, 7} : 14_W	14	3	p5: 10_W + p6: 1_YB + p7: 3_MB

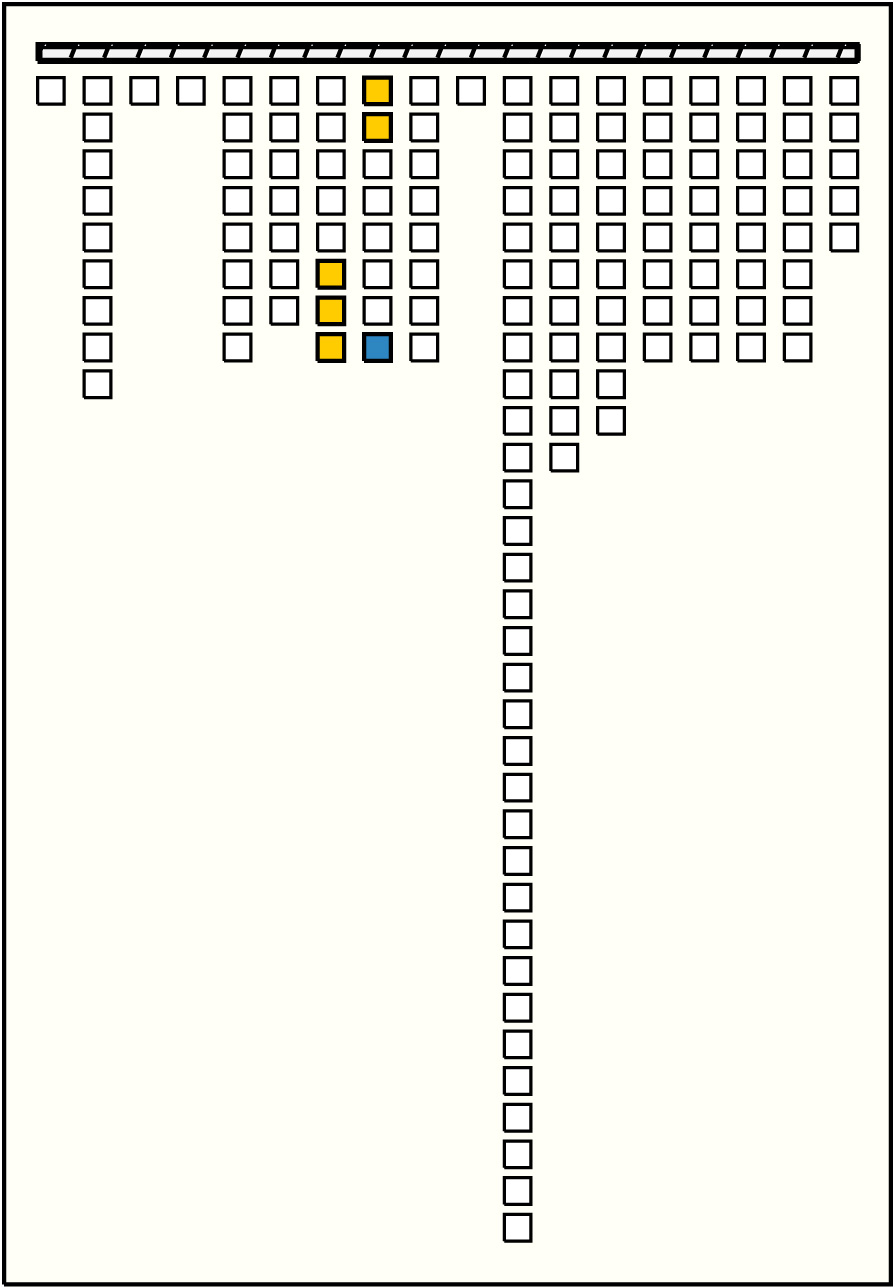

4	p43_{8, 8} : 22_W	22	5	p33: 1_W + p34: 6_W + p35: 7_W + p36: 2_W + p37: 6_W

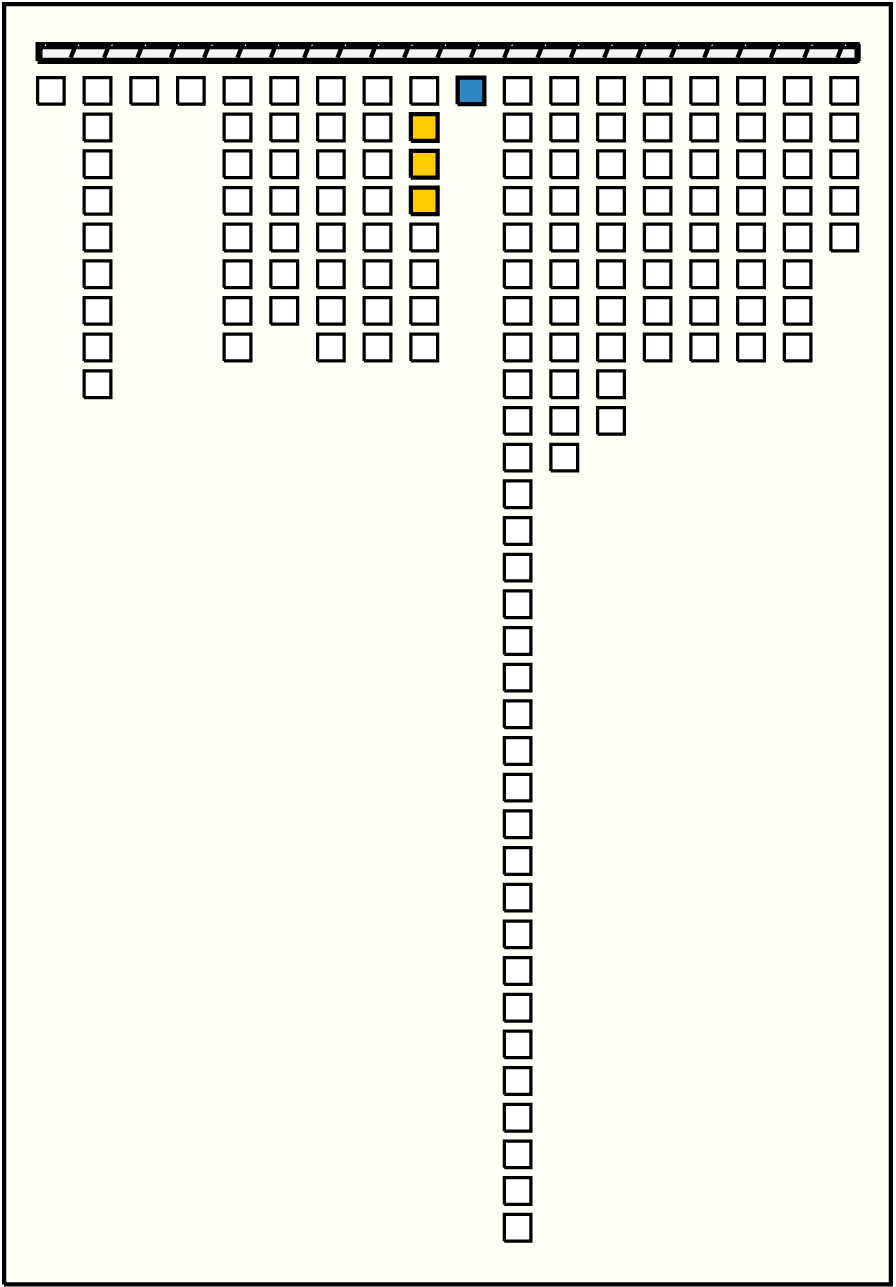

5	p52_{10, 1} : 15_W	15	3	p45: 5_W + p46: 5_W + p47: 5_W

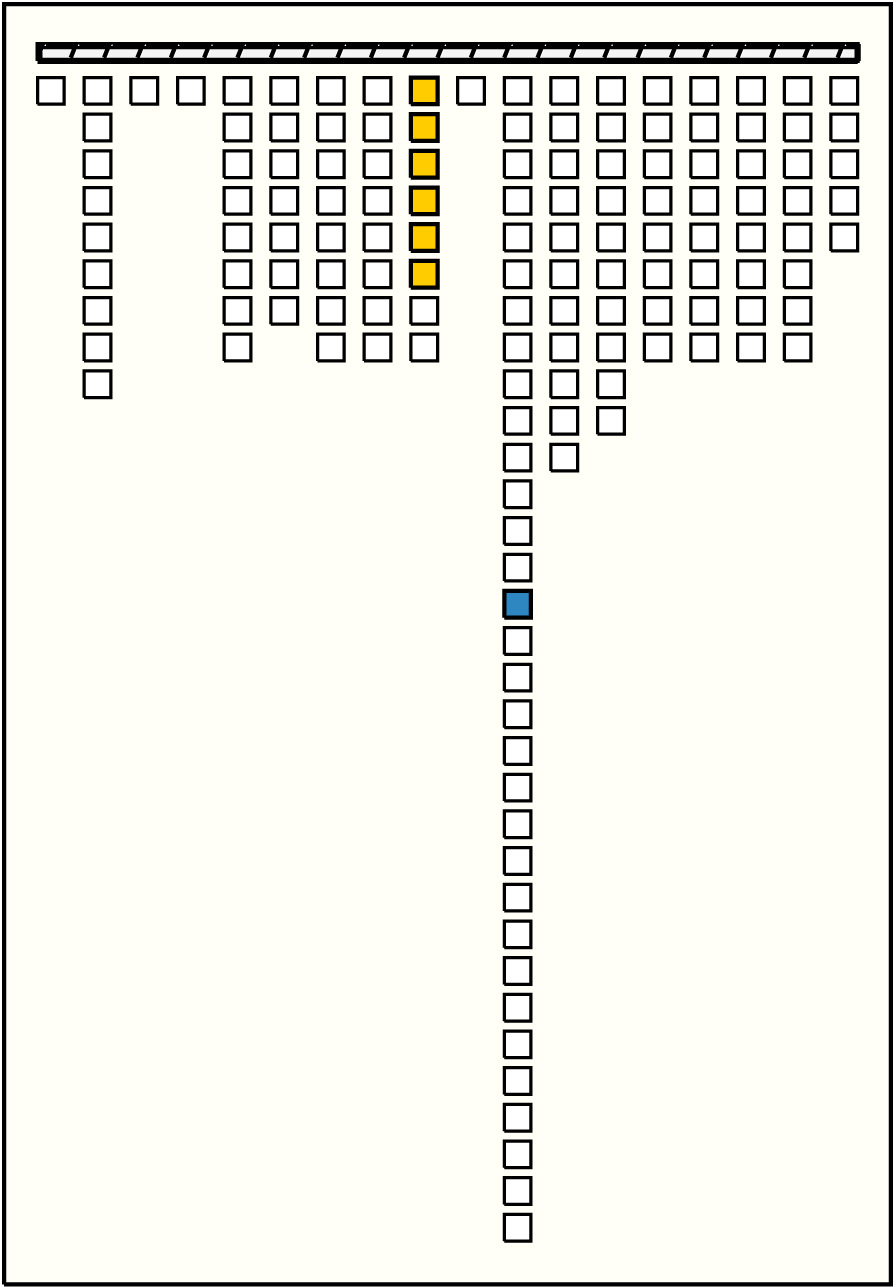

6	p67_{11, 15} : 24_W	24	6	p44: 3_W + p45: 5_W + p46: 5_W + p47: 5_W + p48: 1_W + p49: 5_W

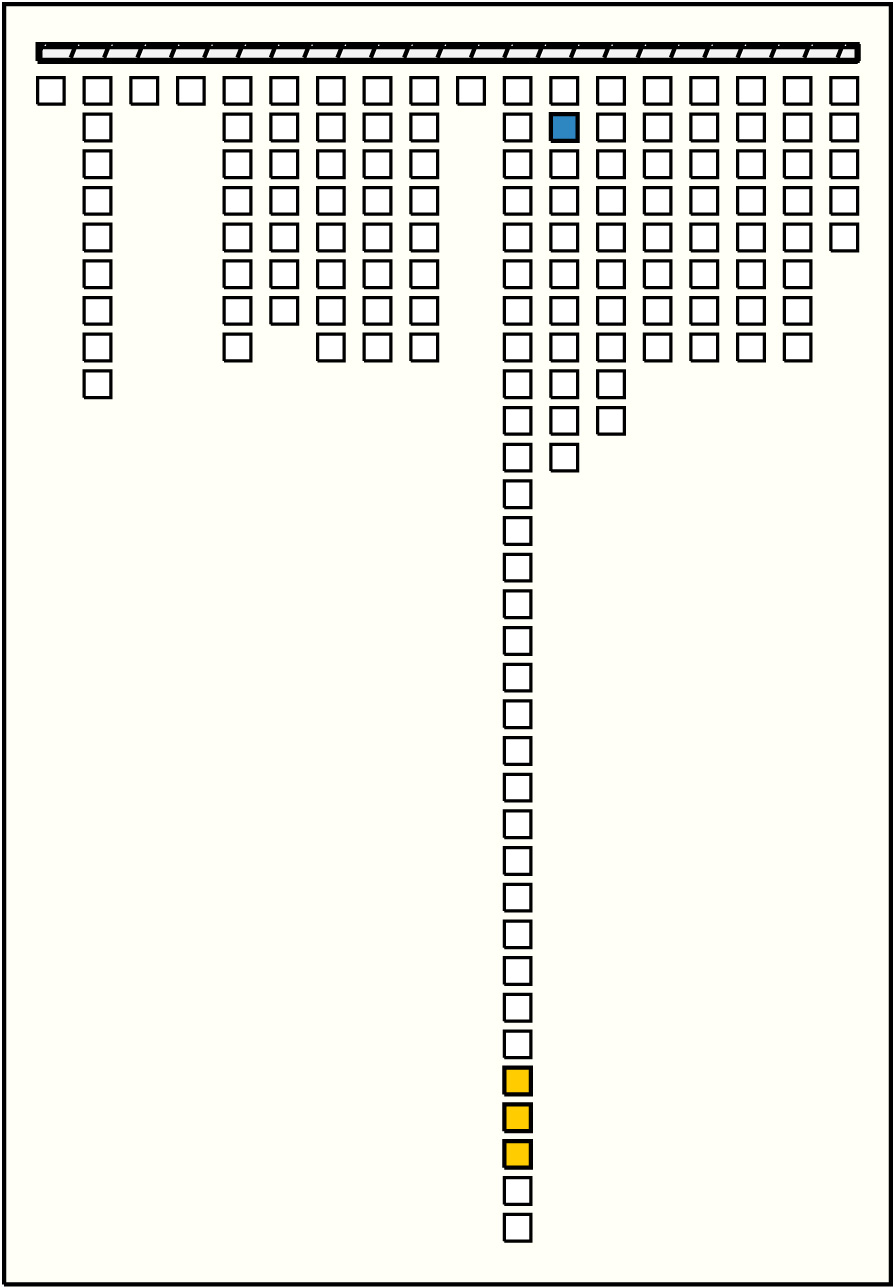

7	p86_{12, 2} : 14_W	14	3	p80: 1_W + p81: 10_AB + p82: 3_W

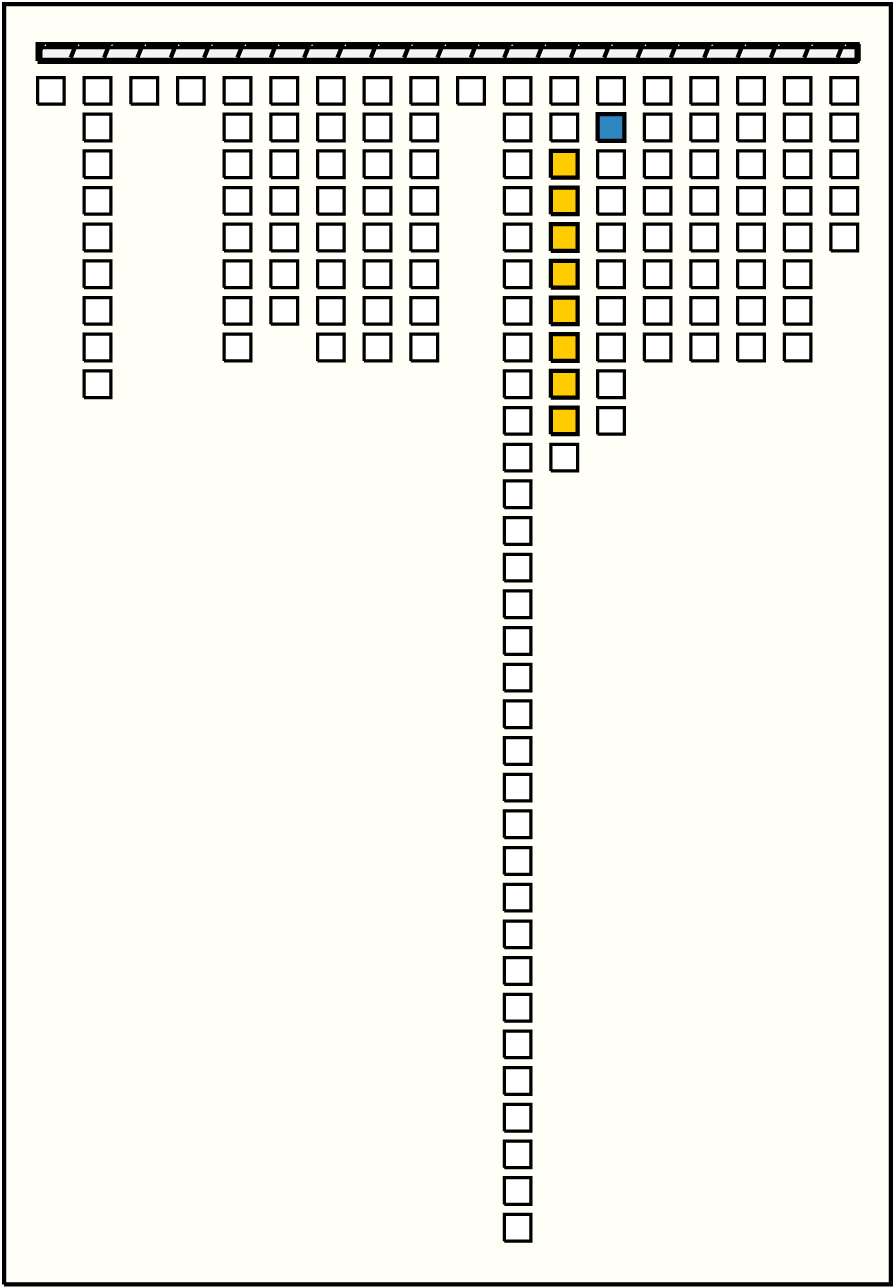

8	p97_{13, 2} : 17_W	17	8	p87: 1_W + p88: 3_W + p89: 3_W + p90: 3_W + p91: 1_W + p92: 1_W + p93: 3_W + p94: 2_W
9	p99_{13, 4} : 11_W	11	5	p89: 3_W + p90: 3_W + p91: 1_W + p92: 1_W + p93: 3_W

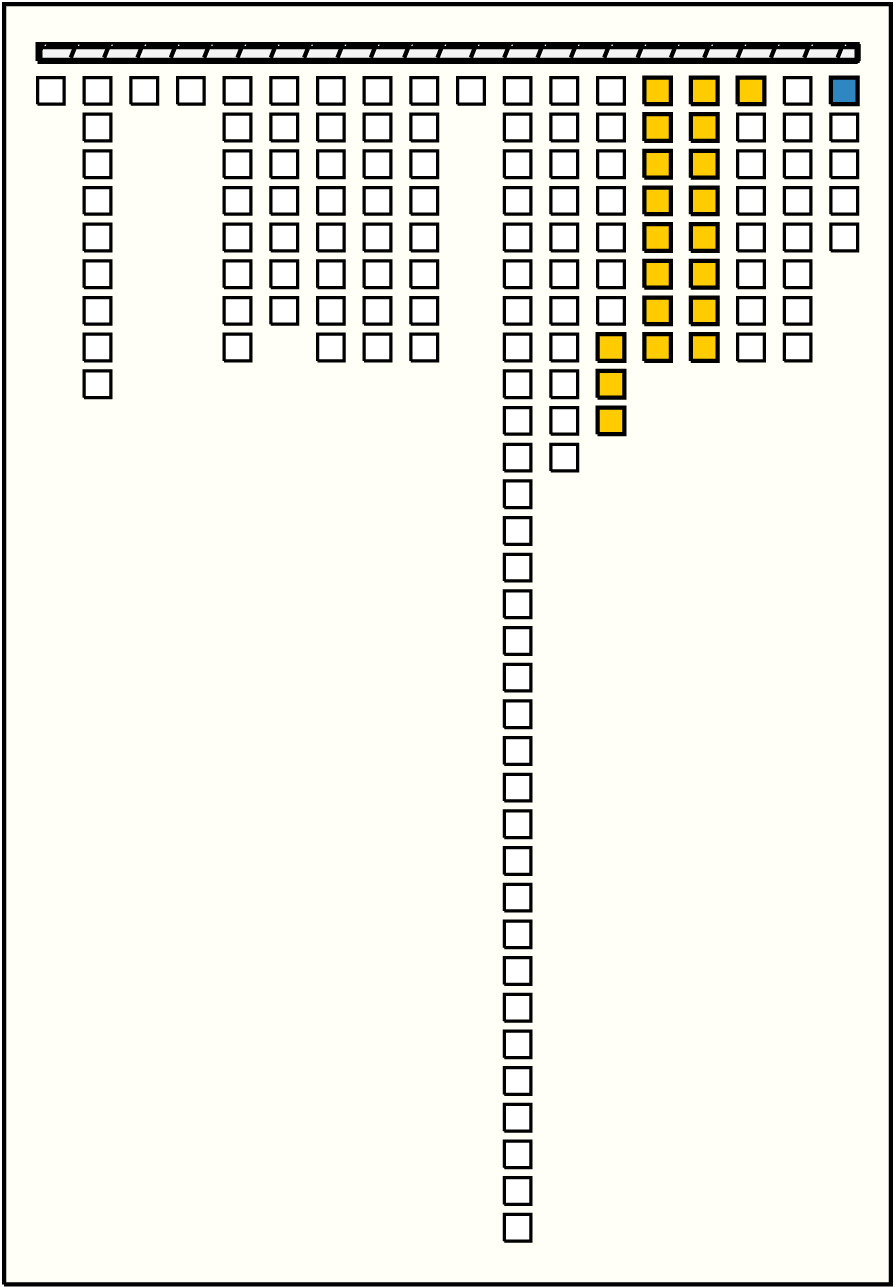

10	p138_{18, 1} : 22_W	22	20	p103: 4_W + p104: 6_W + p105: 7_W + p106: 3_W + p107: 0_W + p108: 0_W + p109: 0_W + p110: 0_W + p111: 0_W + p112: 0_W + p113: 0_W + p114: 1_W + p115: 0_W + p116: 0_W + p117: 0_W + p118: 0_KB + p119: 0_W + p120: 0_W + p121: 0_W + p122: 1_W

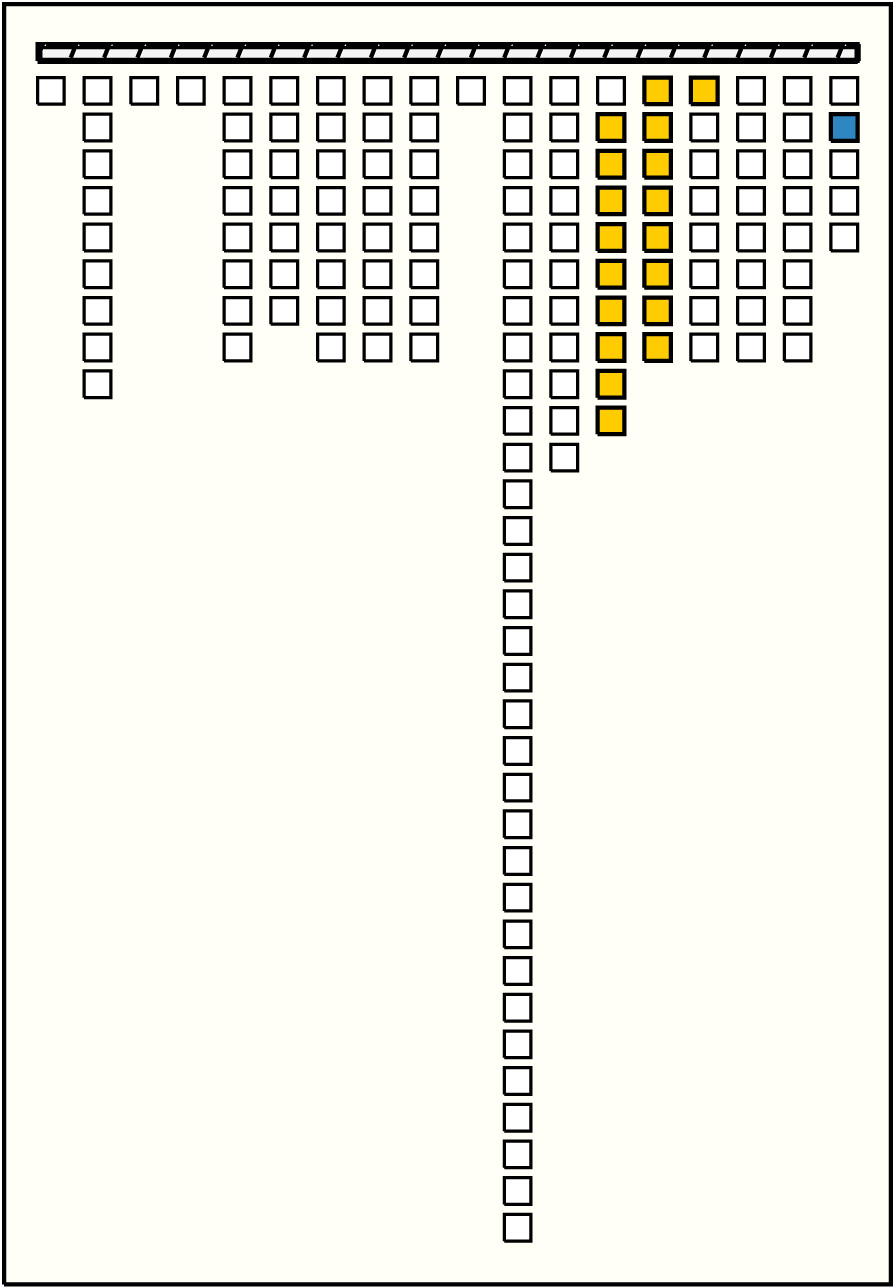

11	p139_{18, 2} : 66_W	66	18	p97: 17_W + p98: 1_W + p99: 11_W + p100: 11_W + p101: 5_W + p102: 0_W + p103: 4_W + p104: 6_W + p105: 7_W + p106: 3_W + p107: 0_W + p108: 0_W + p109: 0_W + p110: 0_W + p111: 0_W + p112: 0_W + p113: 0_W + p114: 1_W

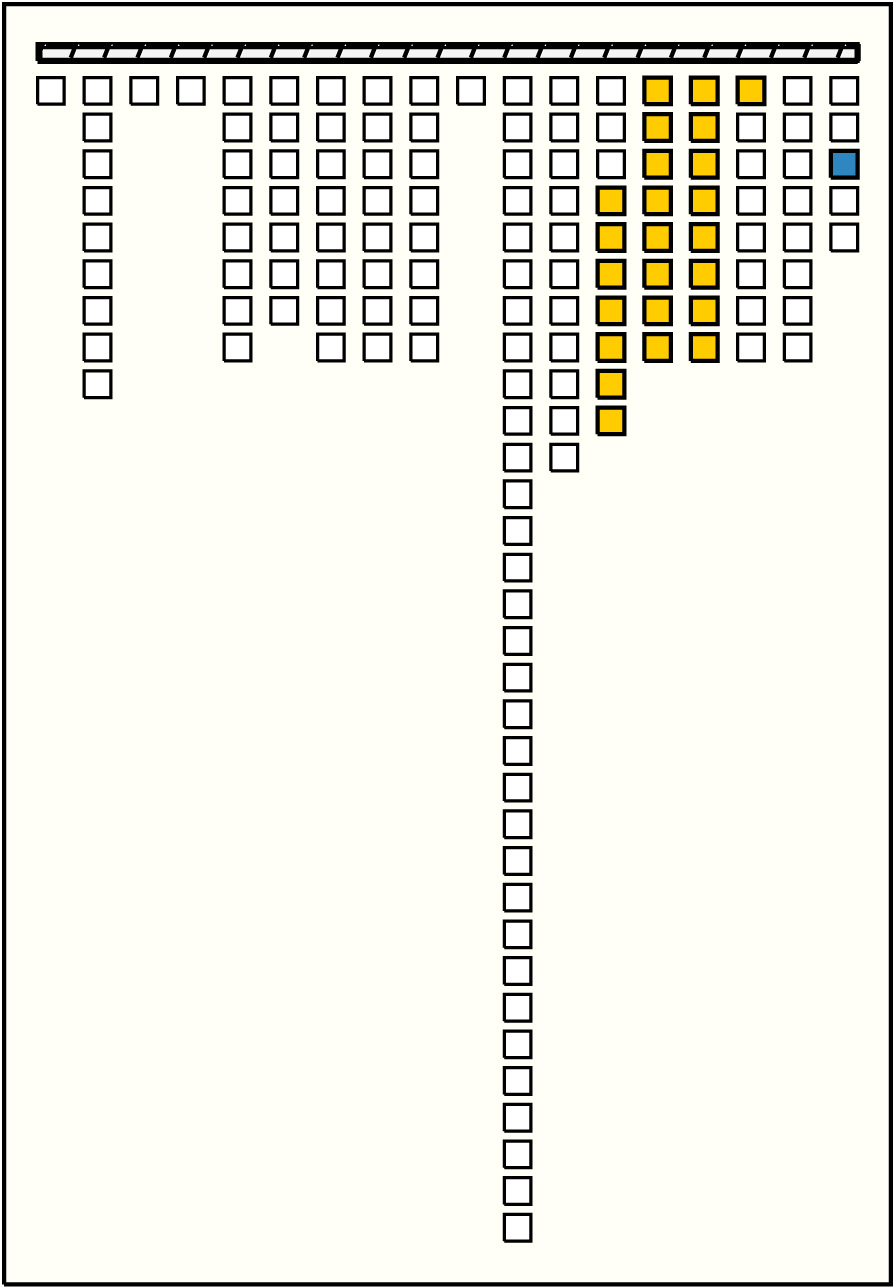

12	p140_{18, 3} : 49_W	49	24	p99: 11_W + p100: 11_W + p101: 5_W + p102: 0_W + p103: 4_W + p104: 6_W + p105: 7_W + p106: 3_W + p107: 0_W + p108: 0_W + p109: 0_W + p110: 0_W + p111: 0_W + p112: 0_W + p113: 0_W + p114: 1_W + p115: 0_W + p116: 0_W + p117: 0_W + p118: 0_KB + p119: 0_W + p120: 0_W + p121: 0_W + p122: 1_W

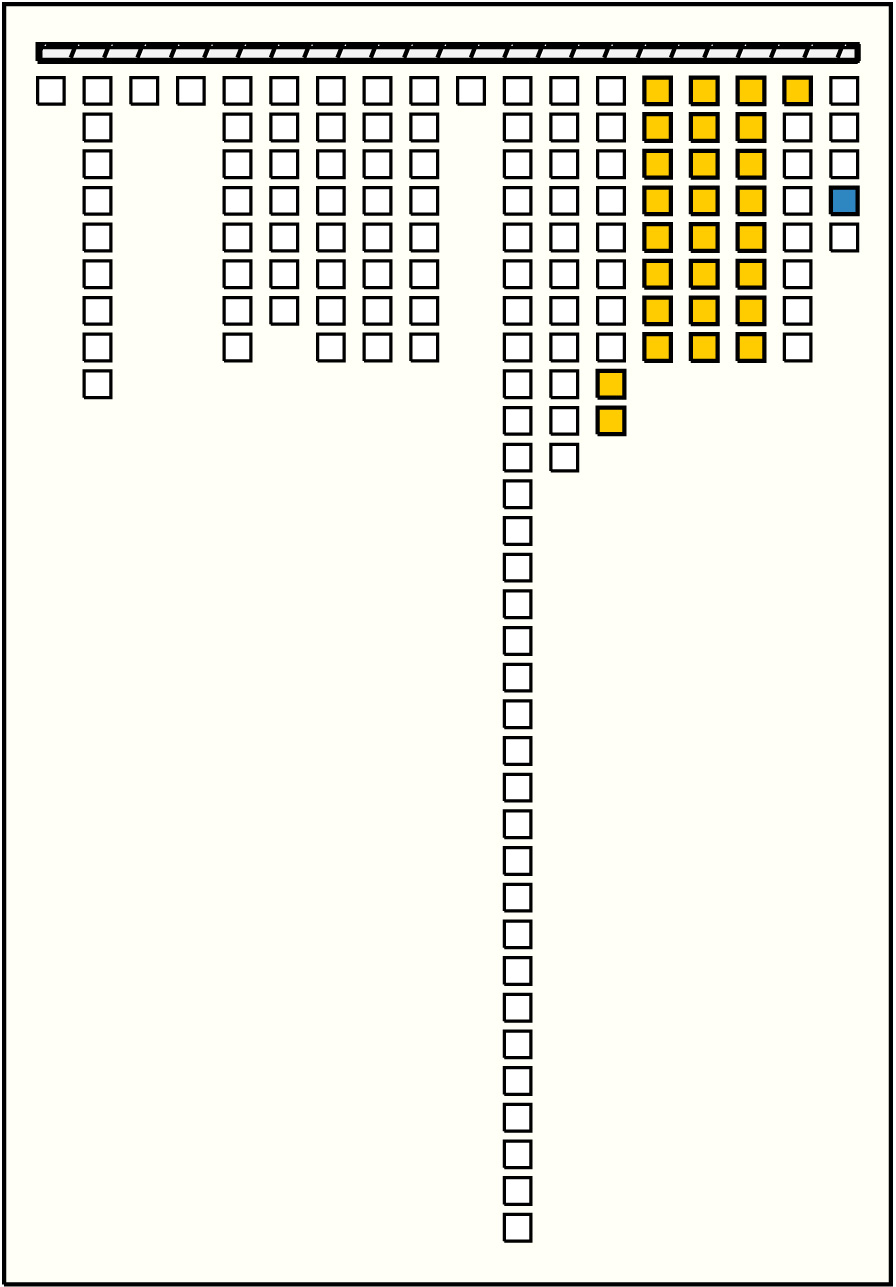

13	p141_{18, 4} : 19_W	19	27	p104: 6_W + p105: 7_W + p106: 3_W + p107: 0_W + p108: 0_W + p109: 0_W + p110: 0_W + p111: 0_W + p112: 0_W + p113: 0_W + p114: 1_W + p115: 0_W + p116: 0_W + p117: 0_W + p118: 0_KB + p119: 0_W + p120: 0_W + p121: 0_W + p122: 1_W + p123: 0_W + p124: 0_W + p125: 0_W + p126: 0_W + p127: 0_W + p128: 0_W + p129: 0_W + p130: 1_W

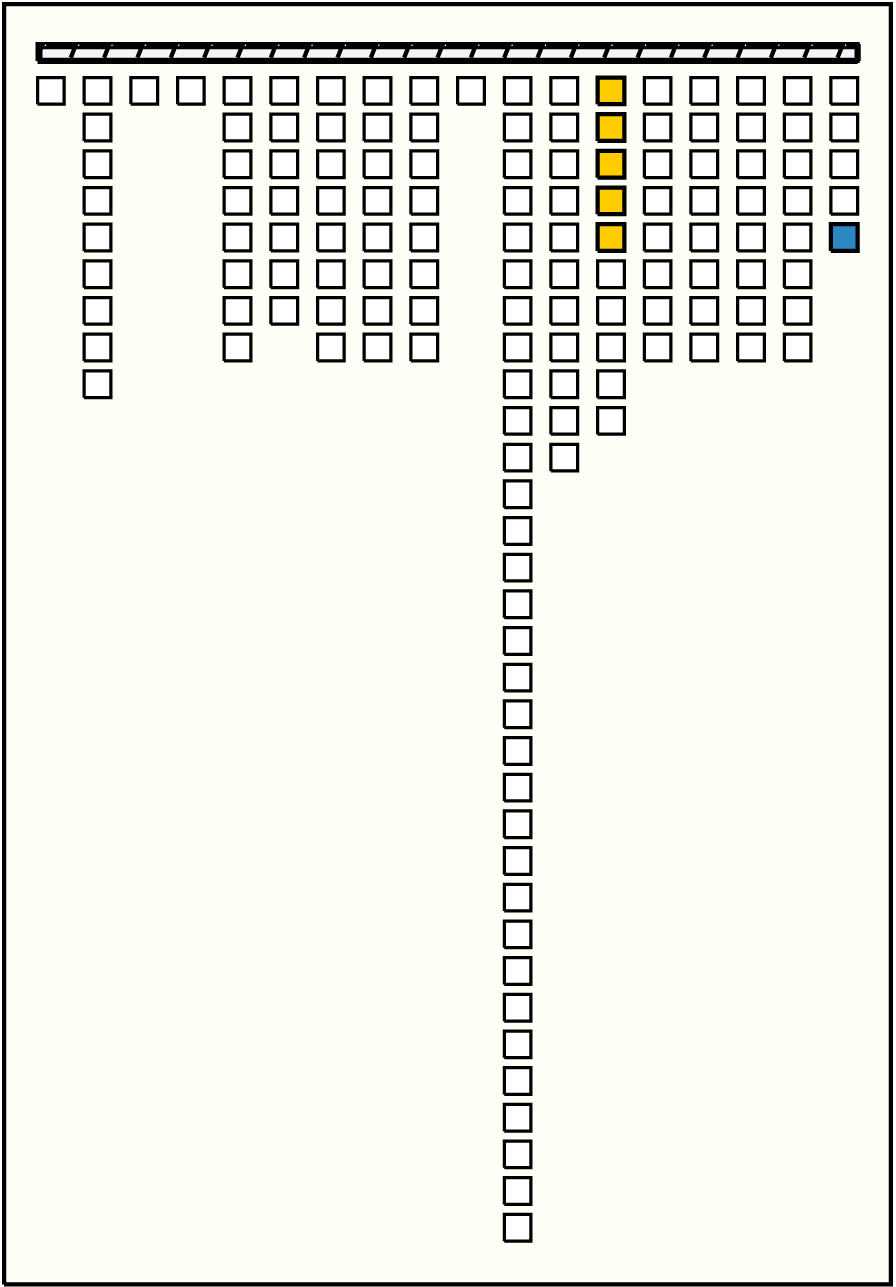

14	p142_{18, 5} : 46_W	46	5	p96: 6_MB + p97: 17_W + p98: 1_W + p99: 11_W + p100: 11_W

Khipu Notes:

Notes and Obeservations for Khipu MM021

1: p1 subsidiaries (p1s1-P1s6) attached with pendant-like attachment knots, though p1 is not significantly thicker than other pendant cords, suggesting this is not a subsidiary primary cord
6: string damaged between 8.0-18.0cm
11: repair knot at 14.0cm
13: untied 1S knot at 31.0cm
27: extra loop behind top of 8L knot
37: pendant loop at 27.0cm
58: color changes in turn of long knot
75: repair knot at 18.0cm
77: color changes in turn of long knot
87: pendant loop at 16.5cm
102: pendant damaged between 15.5-18.0cm

Primary Cord Notes

Primary Cord Thread Wrappings
YB wrapping at 47.5cm
All khipus I have studied are currently designated "MM", following convention in the field (and until a more suitable replacement convention is agreed upon) - Nanuel Medrano
