QU014/KH0602 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 31, Max # Summands = 25, (Min, Mean, Max) Sum Values = (13, 94, 470)
Click on Image to View Larger

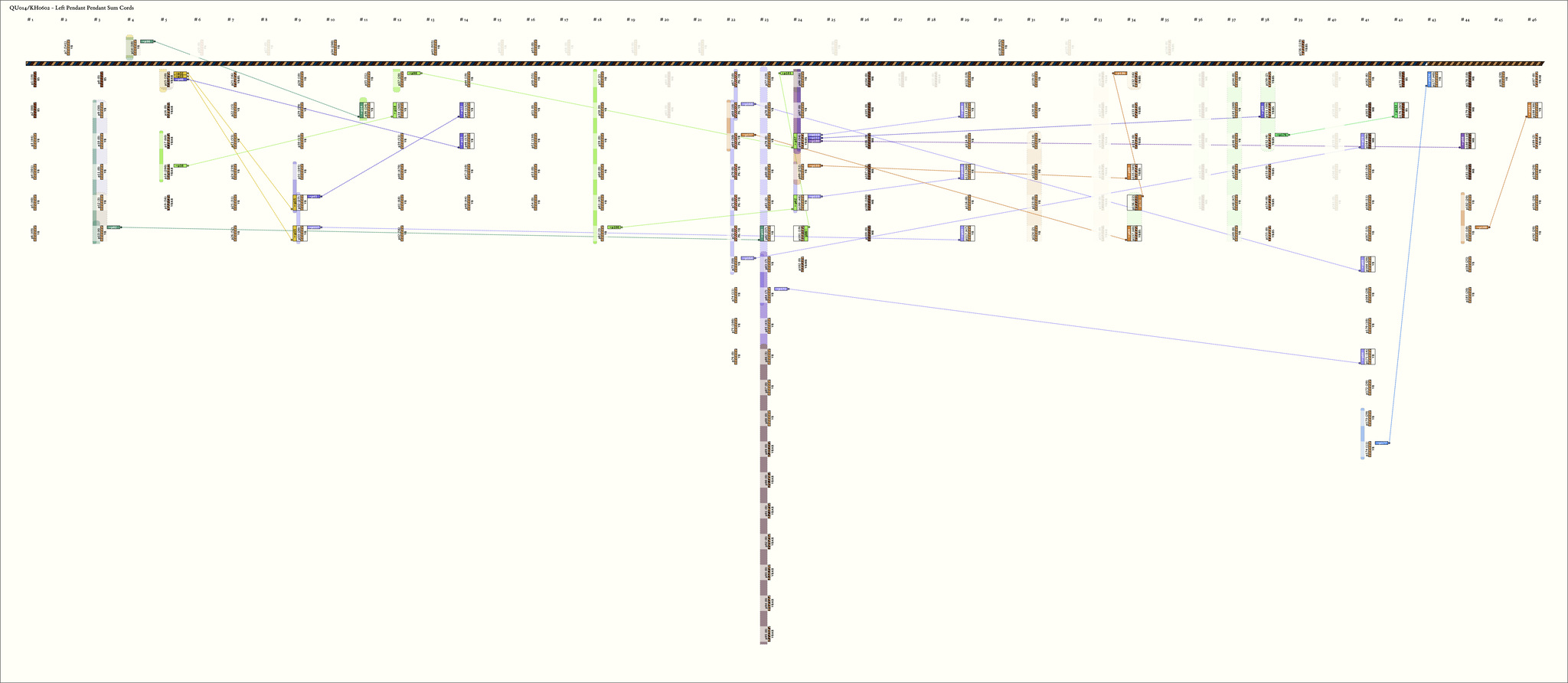

Left Handed Sums: # Sums = 24, Max # Summands = 22, (Min, Mean, Max) Sum Values = (14, 90, 305)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

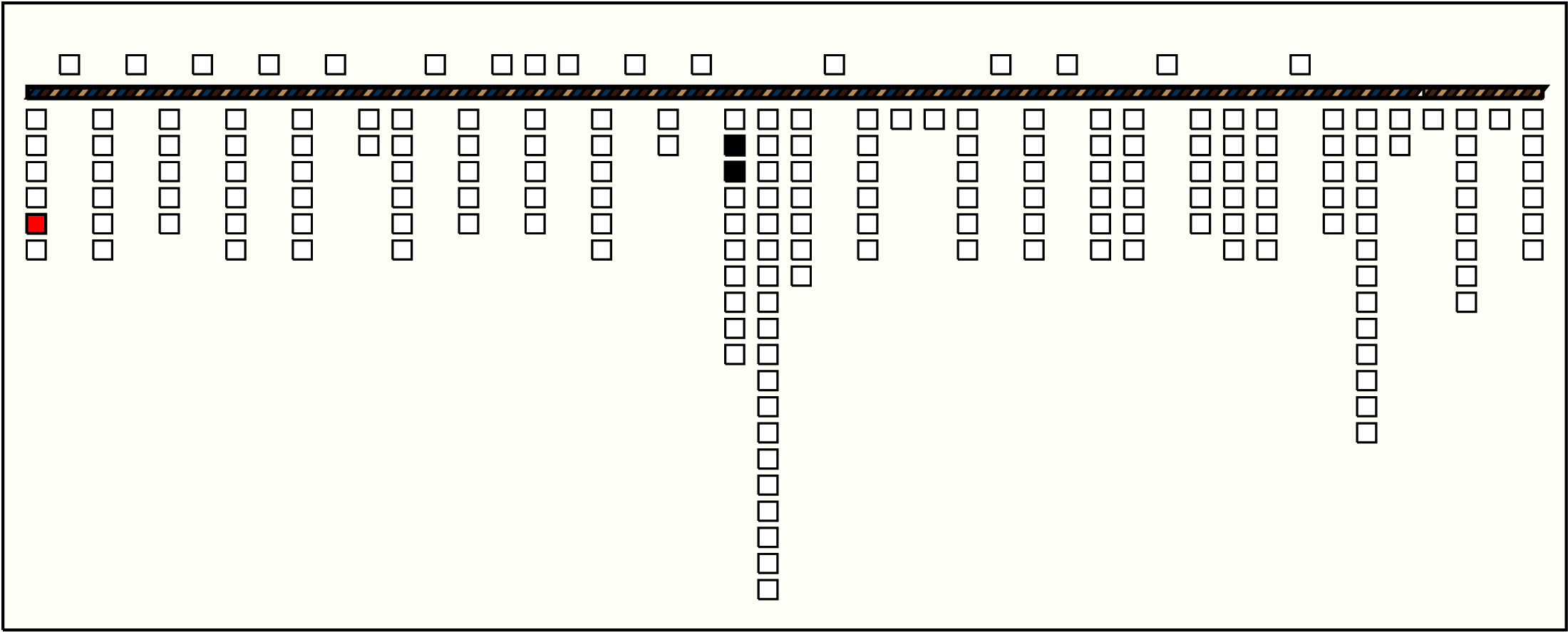

1	p5_{1, 5} : 40_YB	40	2	p68: 10_PK-YB + p69: 30_PK-YB

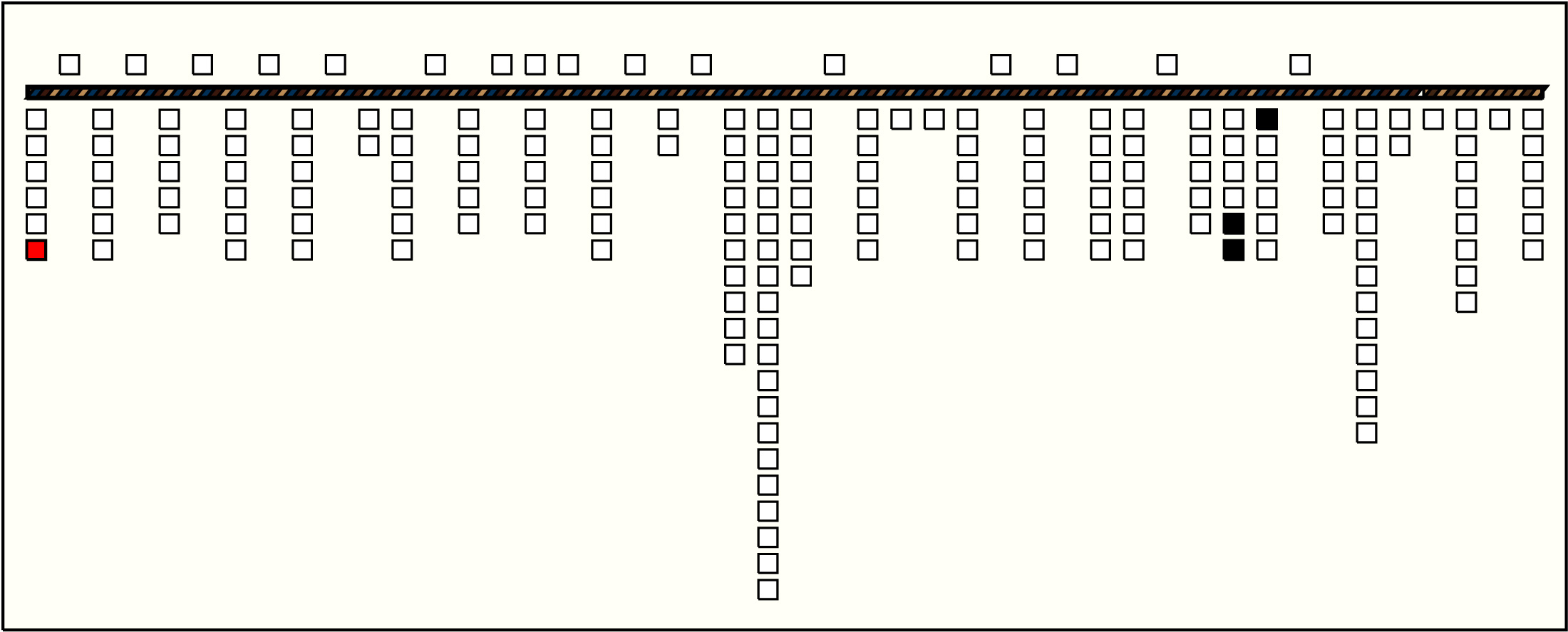

2	p6_{1, 6} : 49_YB	49	3	p148: 47_YB + p149: 0_YB + p150: 2_YB:BS

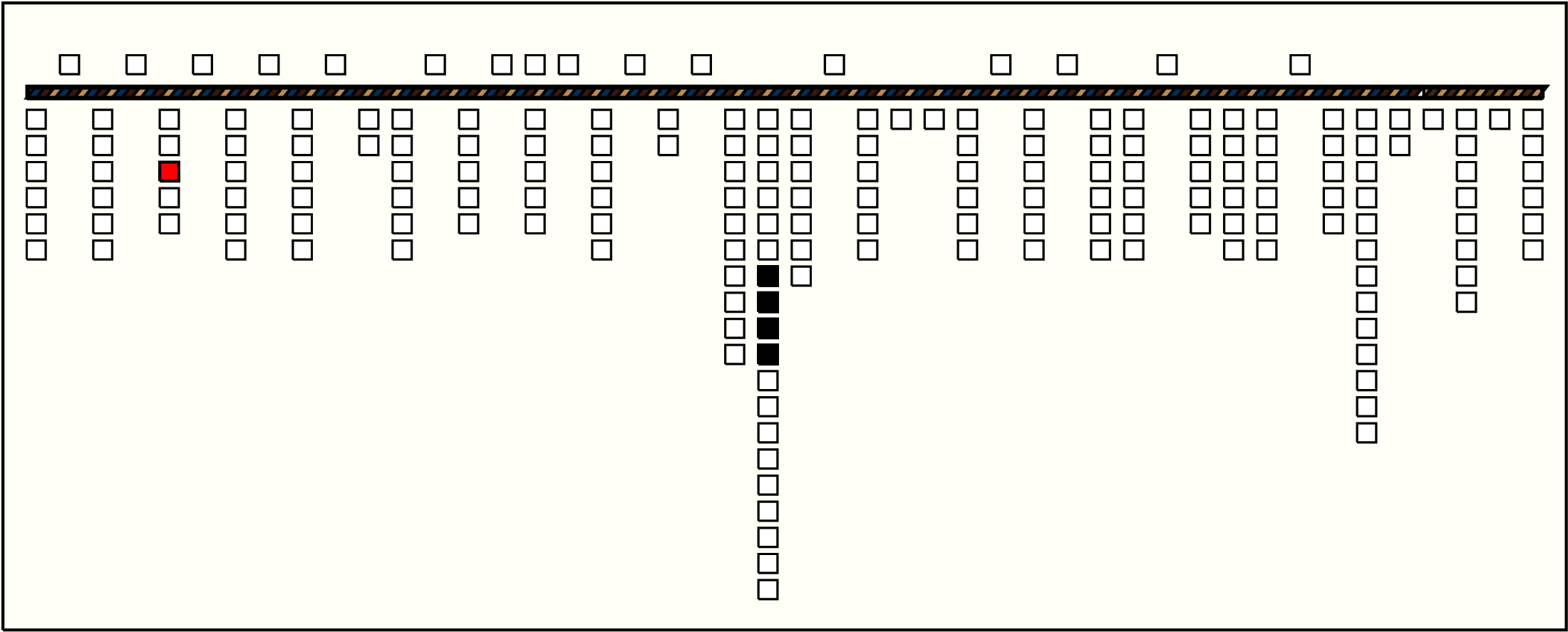

3	p17_{5, 3} : 60_YB:KB	60	4	p83: 7_YB + p84: 7_YB + p85: 43_YB + p86: 3_YB
4	p24_{7, 4} : 239_YB	239	6	p26: 52_YB + p27: 0_YB + p28: 10_YB + p29: 59_YB + p30: 13_YB + p31: 105_YB
5	p26_{7, 6} : 52_YB	52	2	p150: 2_YB:BS + p151: 50_YB:BS

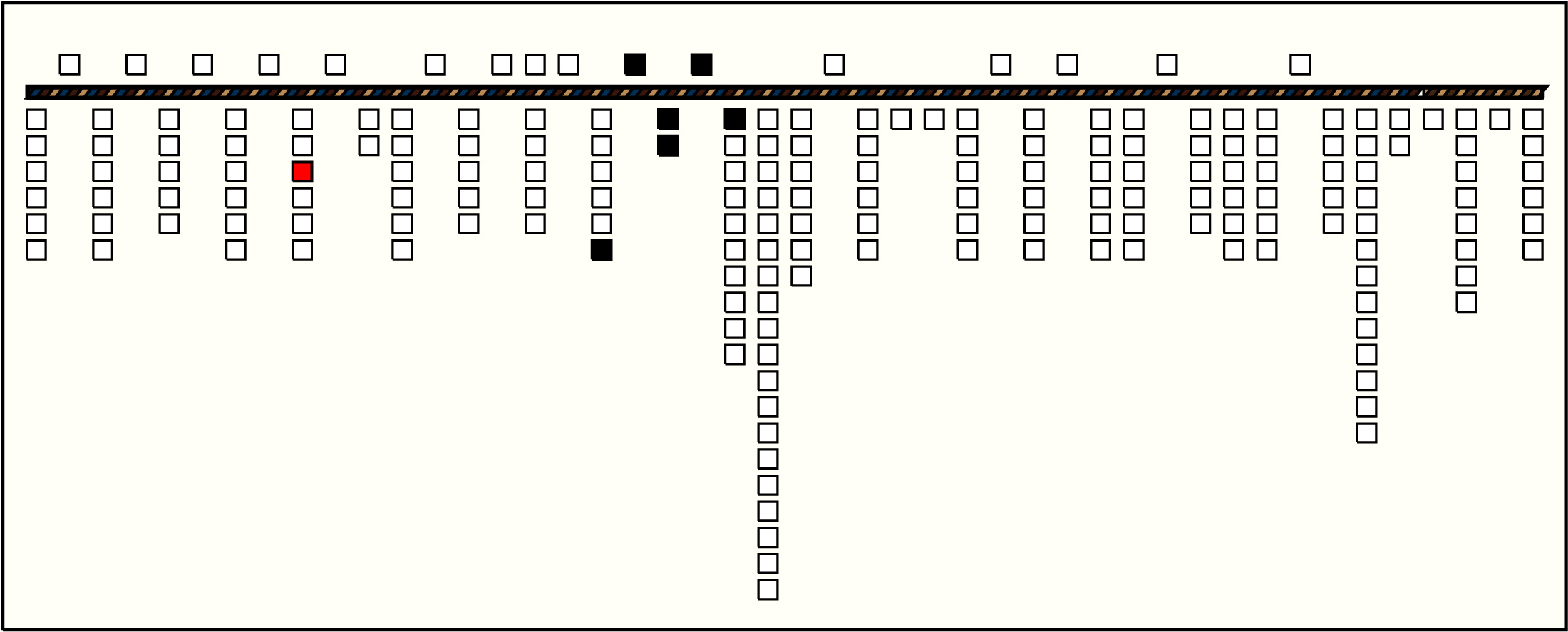

6	p30_{9, 3} : 13_YB	13	6	p62: 3_YB + p63: 0_YB + p64: 0_MB + p65: 0_MB + p66: 0_YB + p67: 10_PK-YB

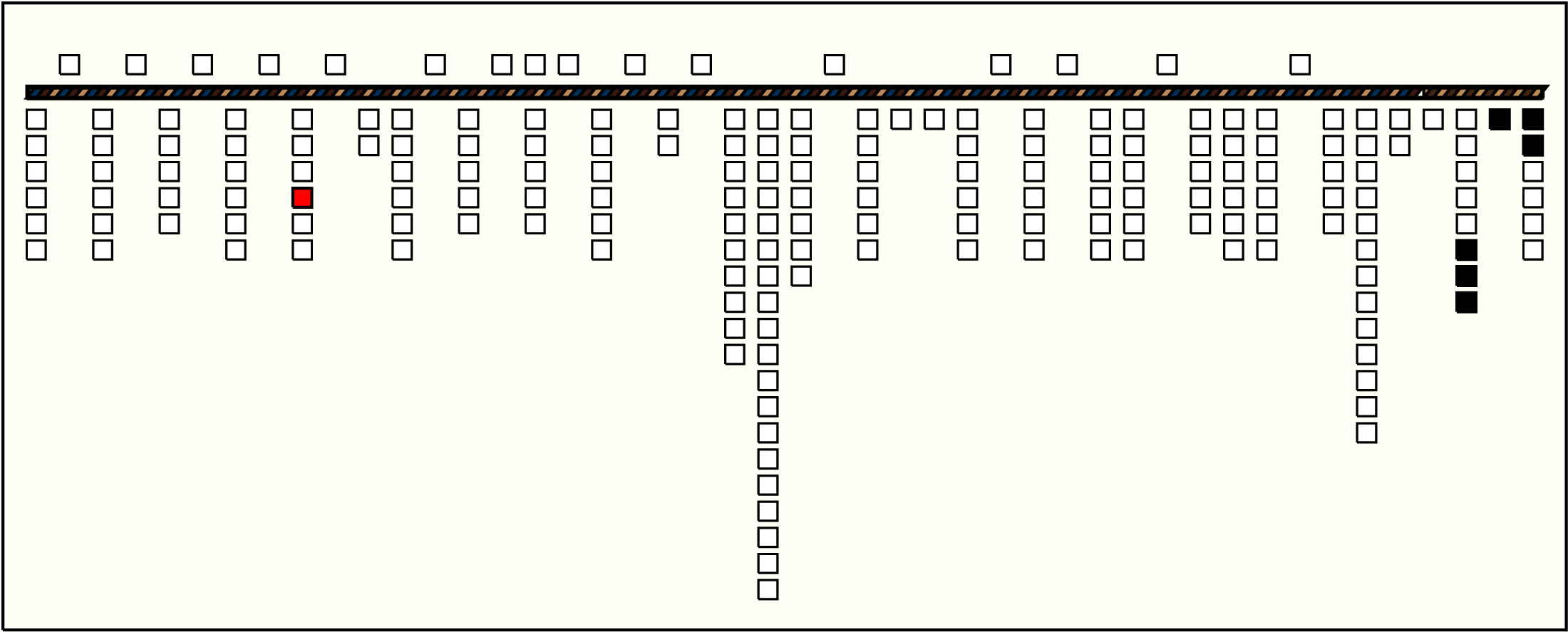

7	p31_{9, 4} : 105_YB	105	6	p183: 10_YB + p184: 25_YB + p185: 20_YB + p186: 20_YB + p187: 0_YB:AB + p188: 30_YB

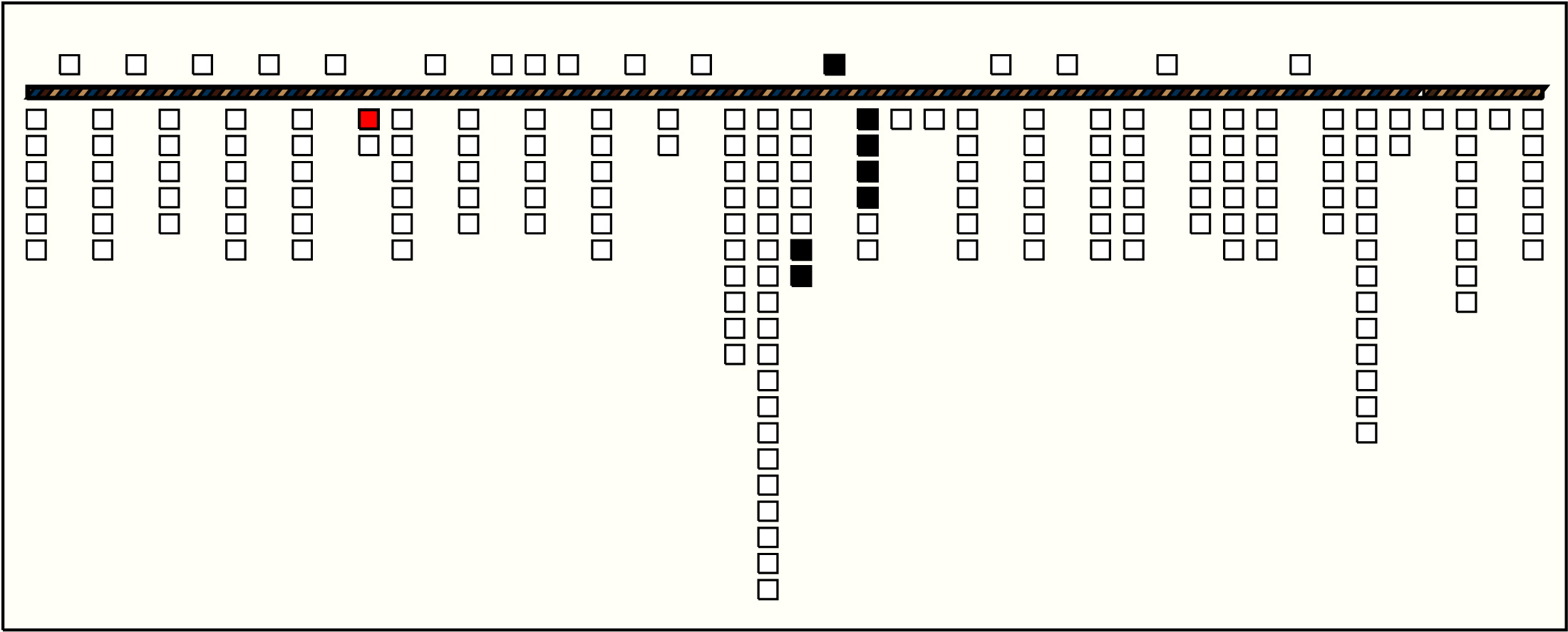

8	p35_{11, 1} : 31_YB	31	7	p101: 19_YB:MB + p102: 0_YB:MB + p103: 0_YB + p104: 0_MB + p105: 0_MB + p106: 0_MB + p107: 12_MB
9	p36_{11, 2} : 14_YB	14	2	p83: 7_YB + p84: 7_YB

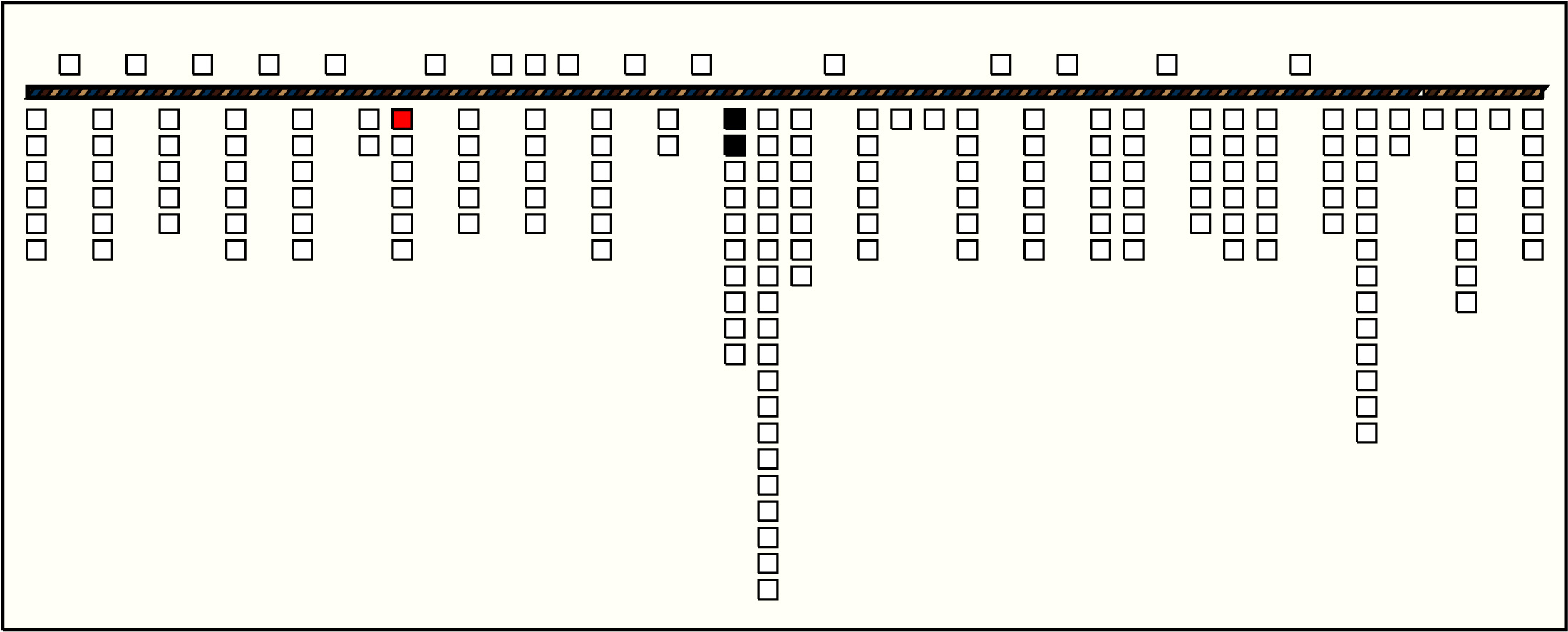

10	p37_{12, 1} : 20_YB	20	2	p67: 10_PK-YB + p68: 10_PK-YB

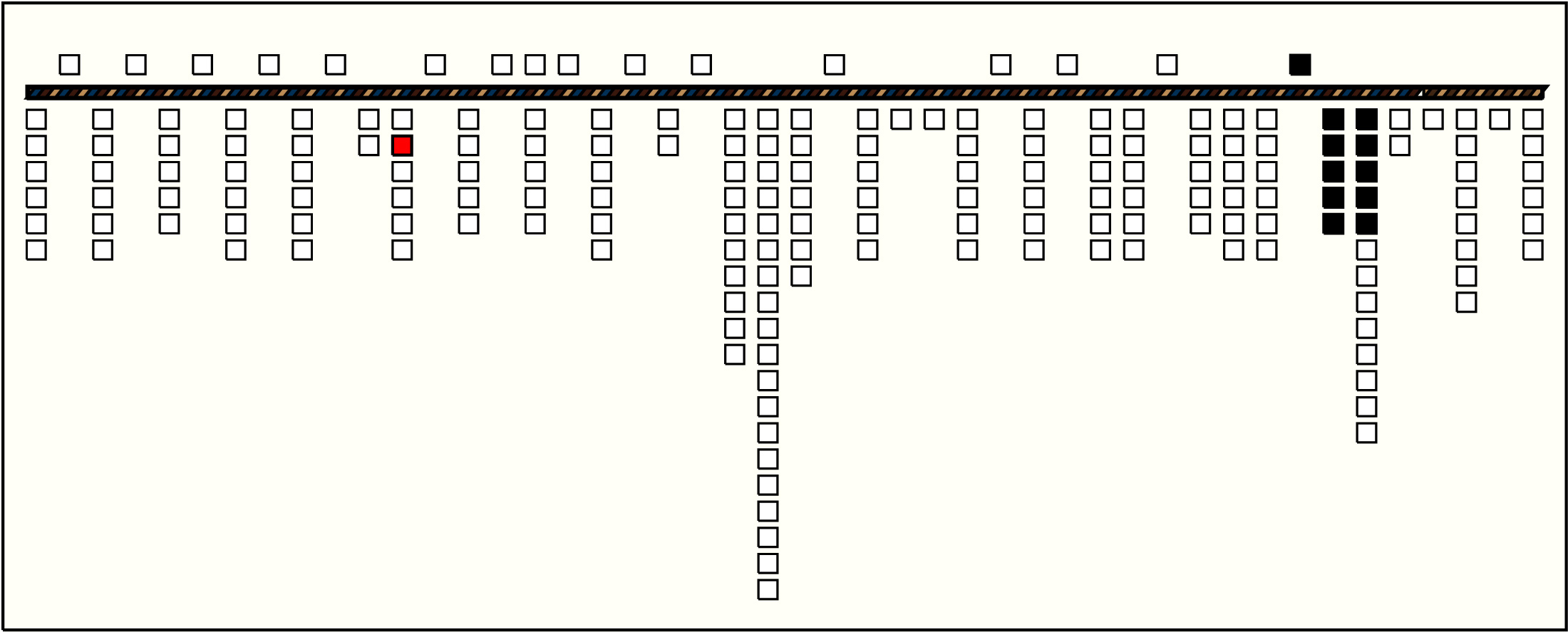

11	p38_{12, 2} : 260_YB	260	11	p156: 119_YB:BS + p157: 0_YB + p158: 0_YB + p159: 0_YB + p160: 0_YB + p161: 0_YB + p162: 6_YB + p163: 0_MB + p164: 90_MB + p165: 34_YB + p166: 11_YB

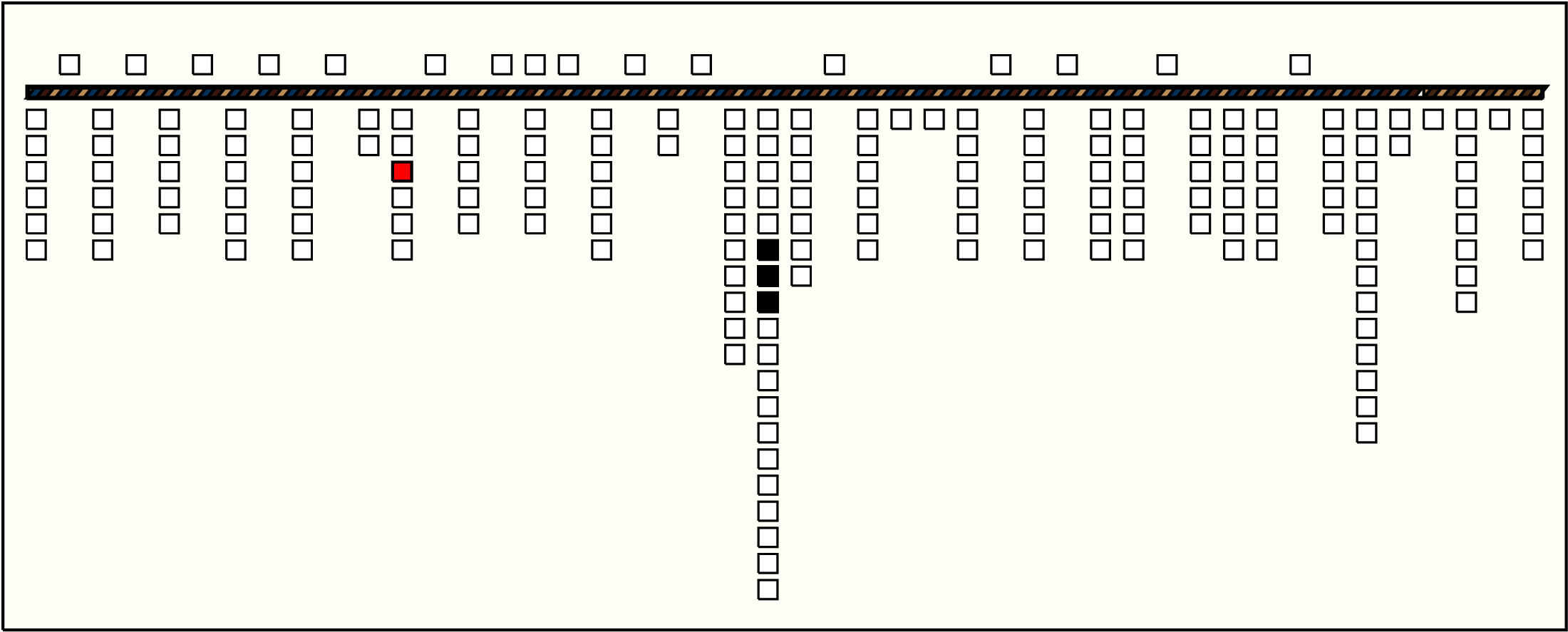

12	p39_{12, 3} : 51_YB	51	3	p82: 37_YB + p83: 7_YB + p84: 7_YB

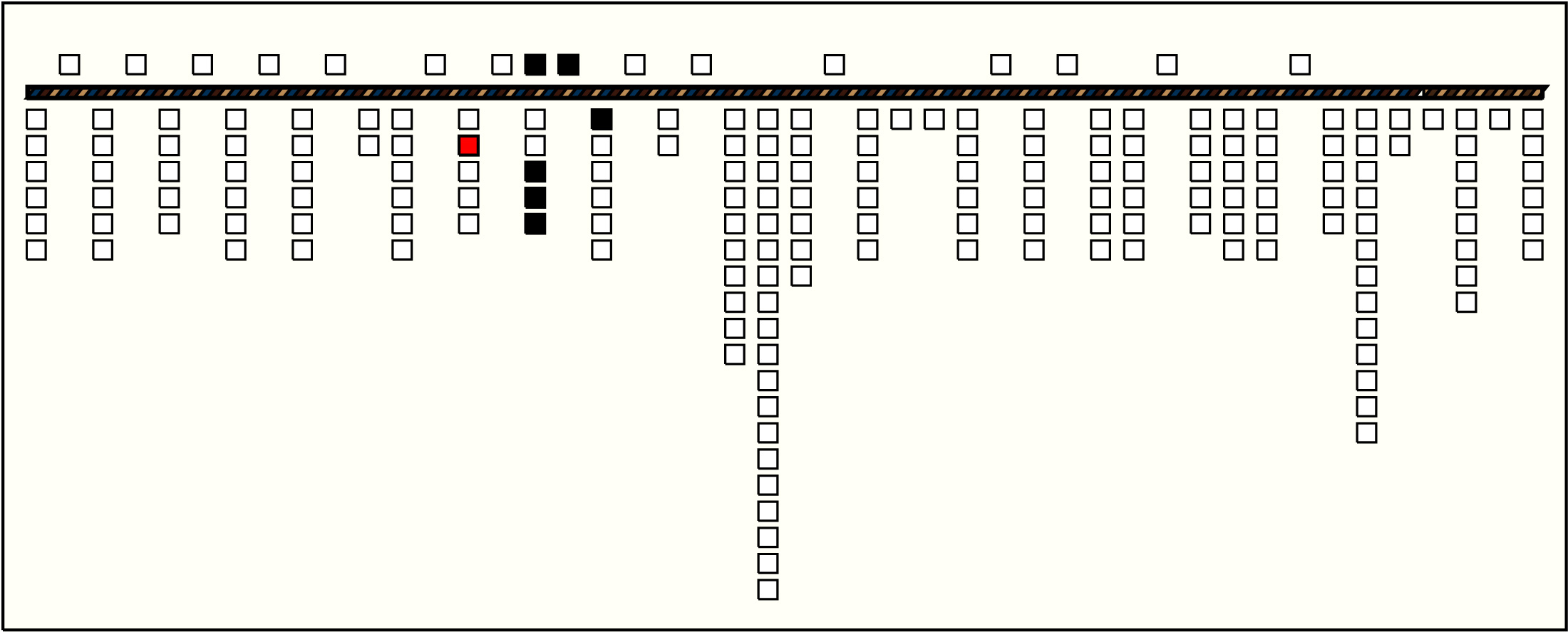

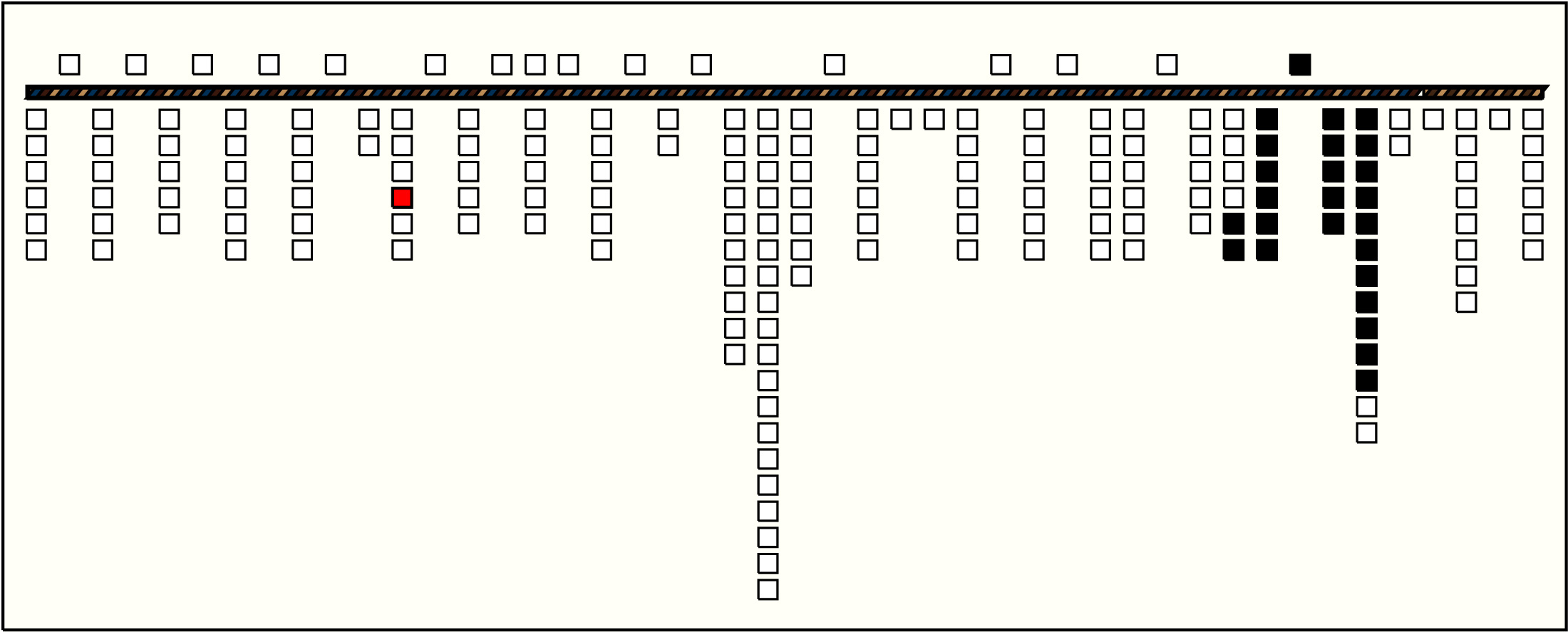

13	p40_{12, 4} : 470_YB	470	25	p148: 47_YB + p149: 0_YB + p150: 2_YB:BS + p151: 50_YB:BS + p152: 4_YB:BS + p153: 0_YB:BS + p154: 0_YB:BS + p155: 0_YB:BS + p156: 119_YB:BS + p157: 0_YB + p158: 0_YB + p159: 0_YB + p160: 0_YB + p161: 0_YB + p162: 6_YB + p163: 0_MB + p164: 90_MB + p165: 34_YB + p166: 11_YB + p167: 15_YB + p168: 20_YB + p169: 28_YB + p170: 10_YB + p171: 14_YB + p172: 20_YB

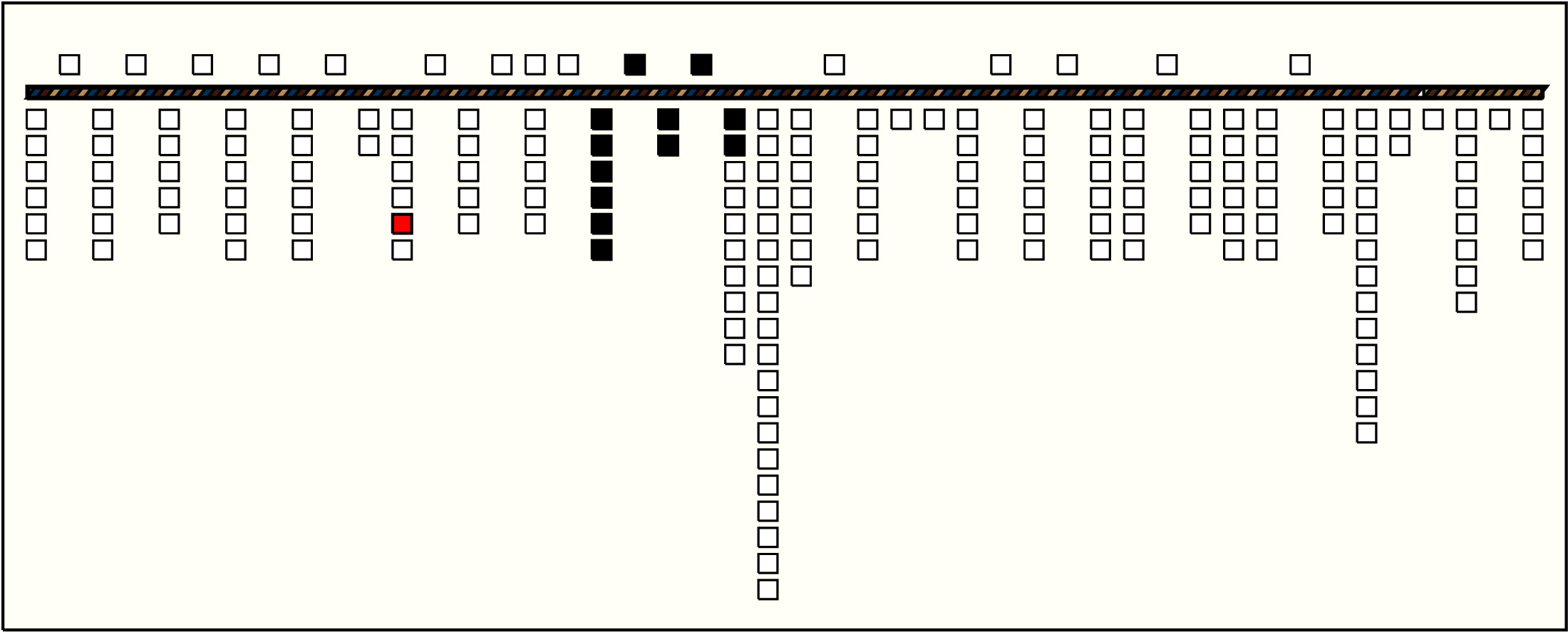

14	p41_{12, 5} : 68_YB	68	12	p57: 2_YB + p58: 0_YB + p59: 0_YB + p60: 0_YB + p61: 43_YB + p62: 3_YB + p63: 0_YB + p64: 0_MB + p65: 0_MB + p66: 0_YB + p67: 10_PK-YB + p68: 10_PK-YB

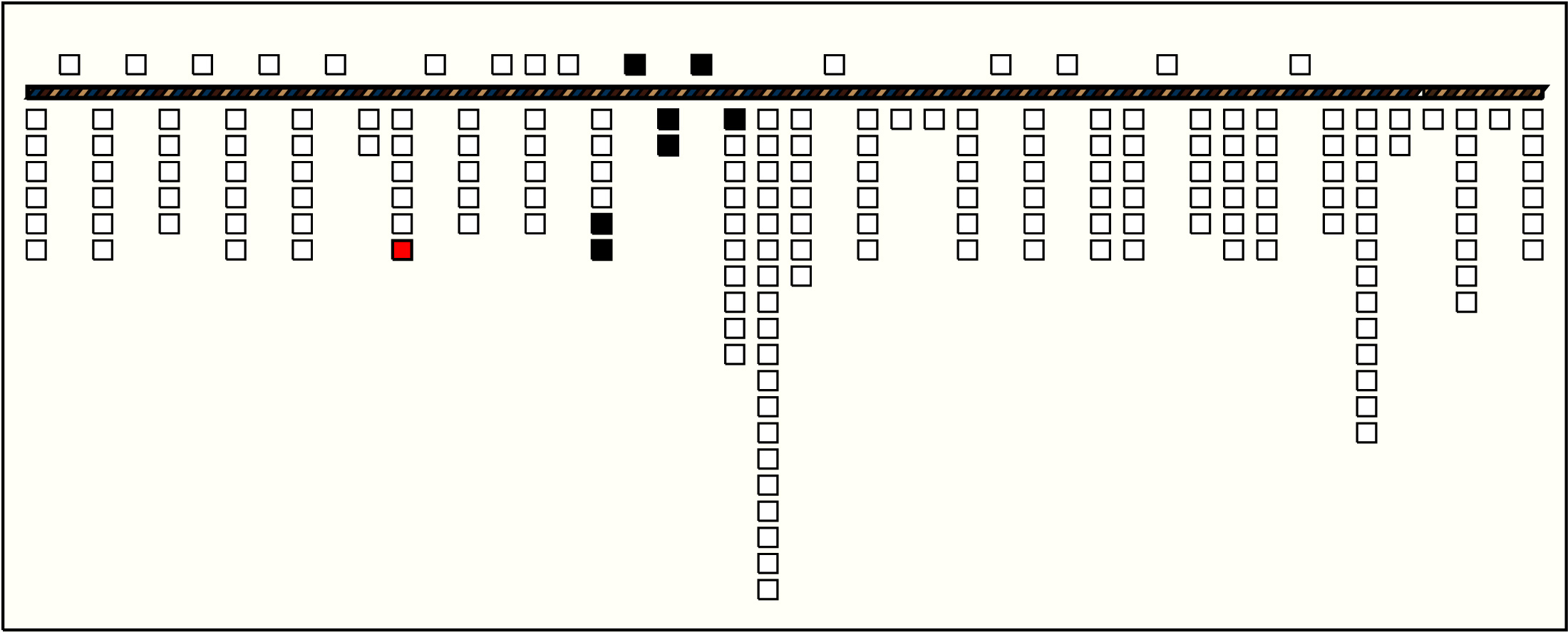

15	p42_{12, 6} : 56_YB	56	7	p61: 43_YB + p62: 3_YB + p63: 0_YB + p64: 0_MB + p65: 0_MB + p66: 0_YB + p67: 10_PK-YB

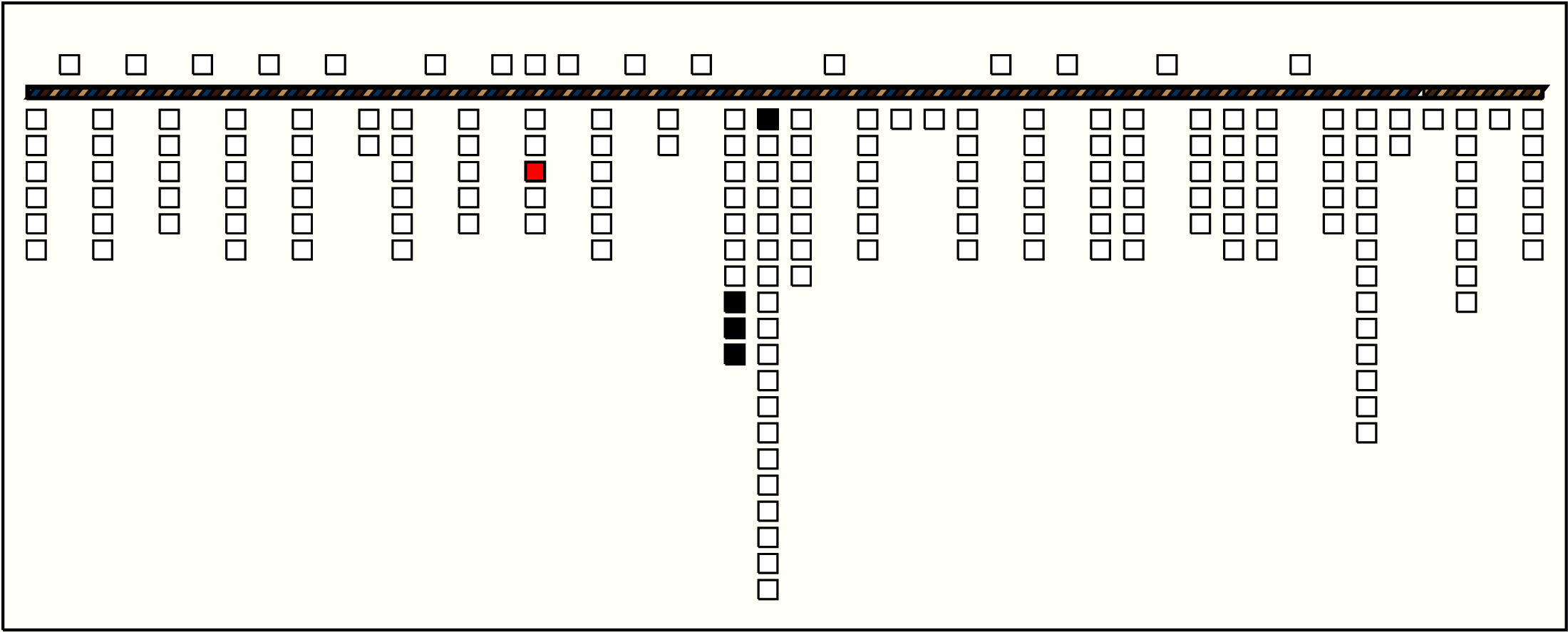

16	p45_{14, 2} : 132_YB	132	6	p52: 130_YB + p53: 0_YB + p54: 0_YB + p55: 0_YB + p56: 0_YB + p57: 2_YB
17	p46_{14, 3} : 57_YB	57	3	p83: 7_YB + p84: 7_YB + p85: 43_YB
18	p48_{14, 5} : 44_YB	44	2	p82: 37_YB + p83: 7_YB

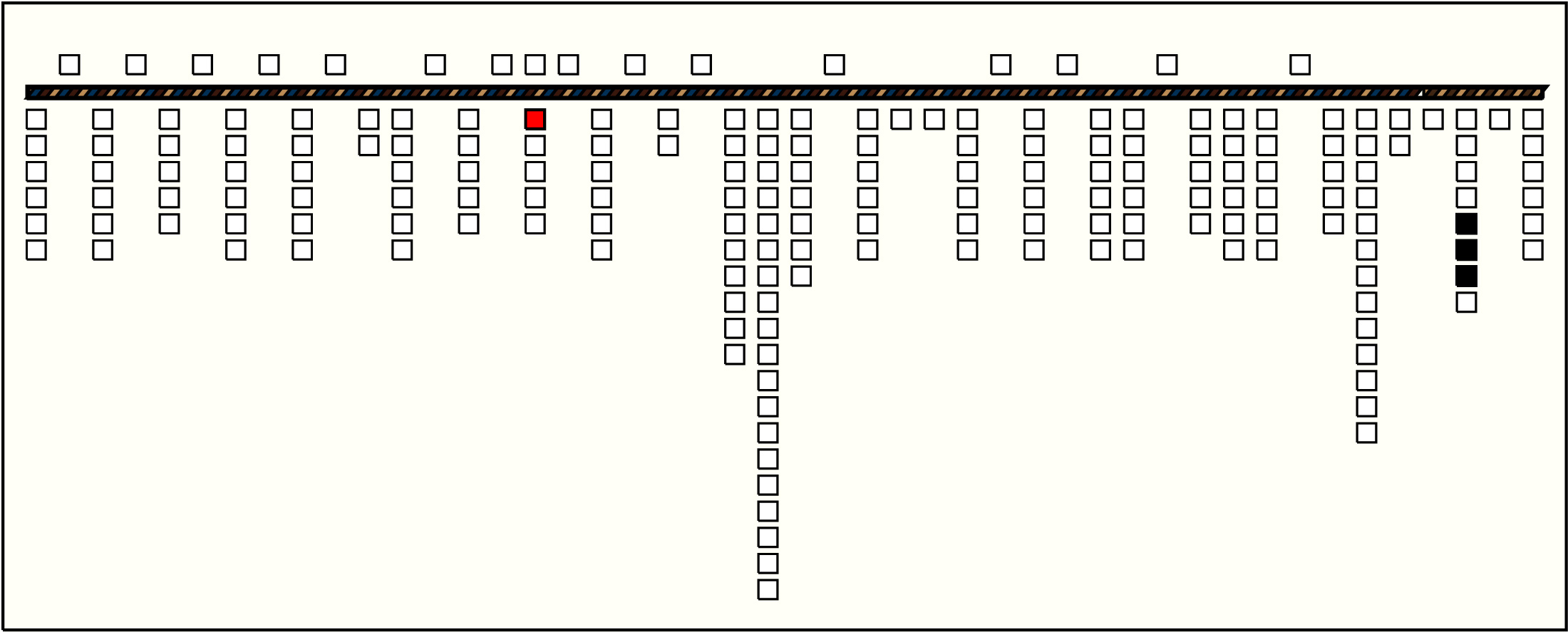

19	p50_{16, 1} : 55_YB	55	3	p182: 20_YB + p183: 10_YB + p184: 25_YB
20	p52_{16, 3} : 130_YB	130	4	p74: 11_YB + p75: 100_YB + p76: 0_YB + p77: 19_YB
21	p69_{22, 3} : 30_PK-YB	30	2	p182: 20_YB + p183: 10_YB

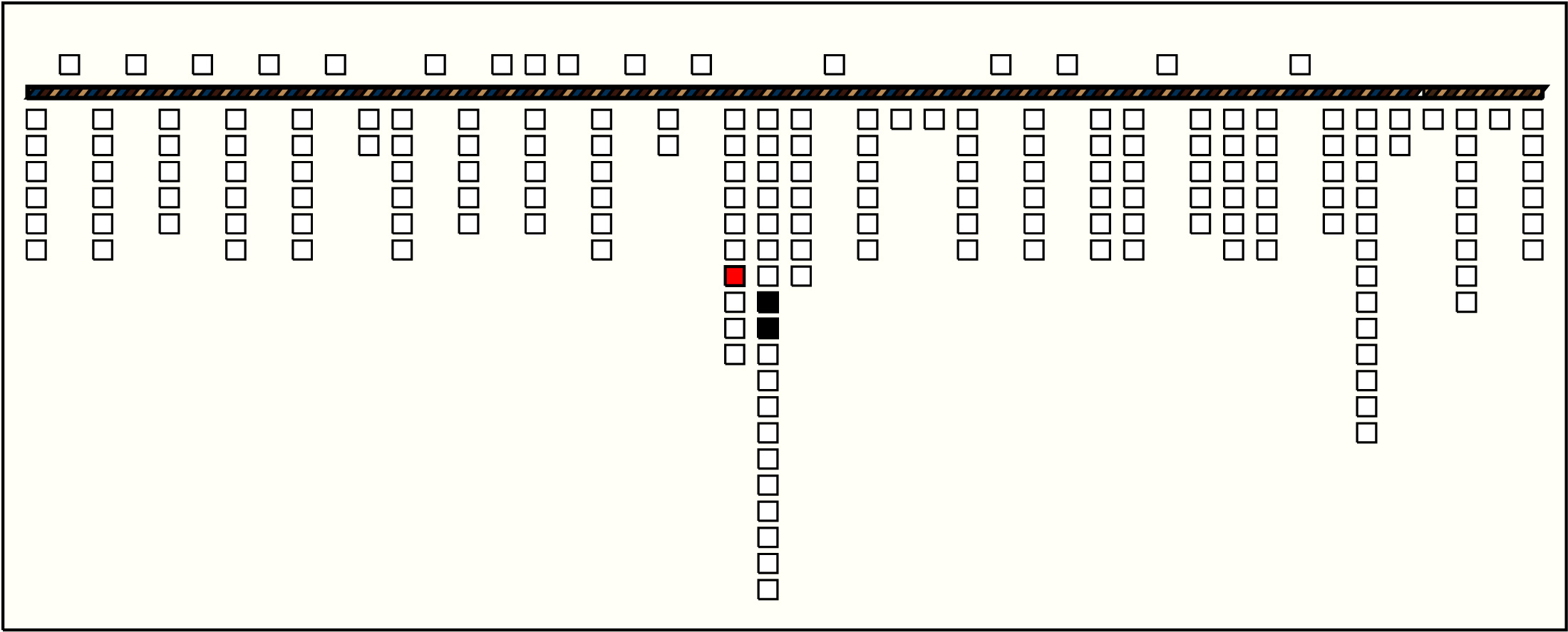

22	p73_{22, 7} : 50_YB	50	2	p84: 7_YB + p85: 43_YB

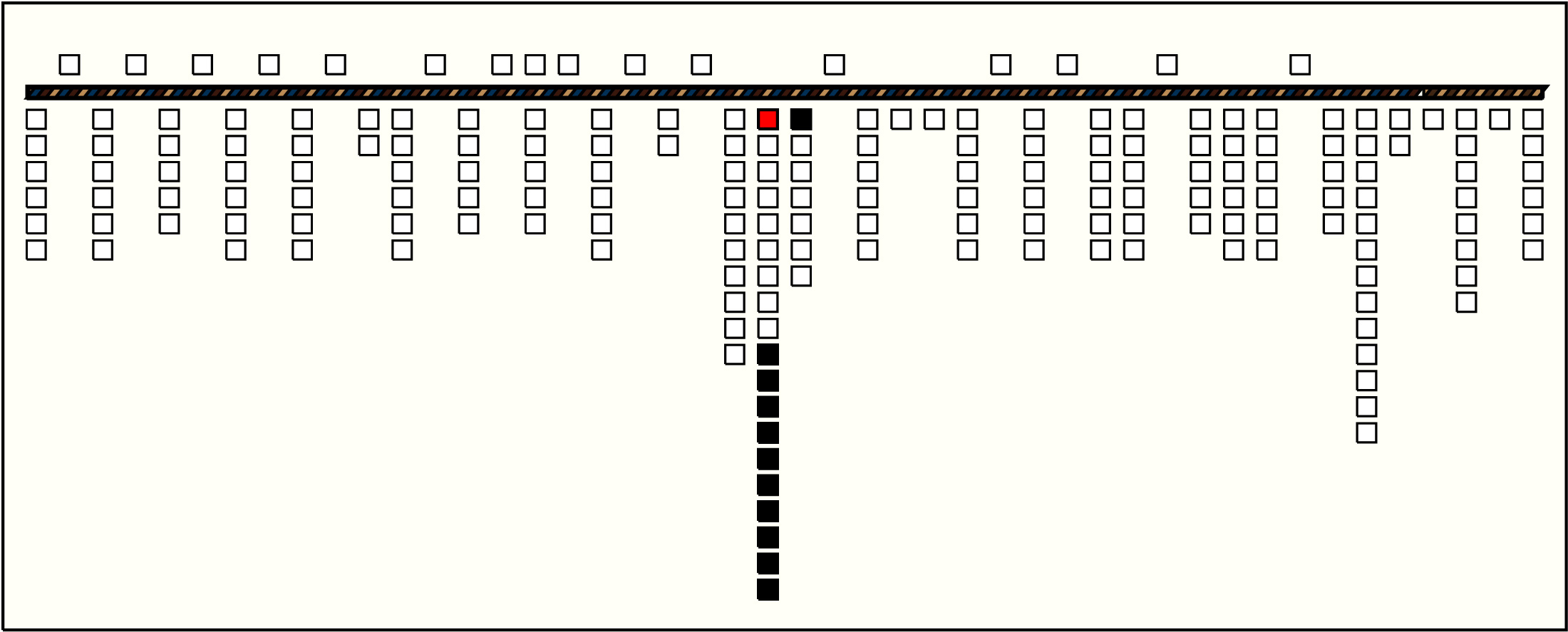

23	p77_{23, 1} : 19_YB	19	11	p86: 3_YB + p87: 0_YB + p88: 0_YB + p89: 0_YB:KB + p90: 0_YB:KB + p91: 0_YB:KB + p92: 0_YB:KB + p93: 0_YB:KB + p94: 0_YB:KB + p95: 0_YB:KB + p96: 16_YB

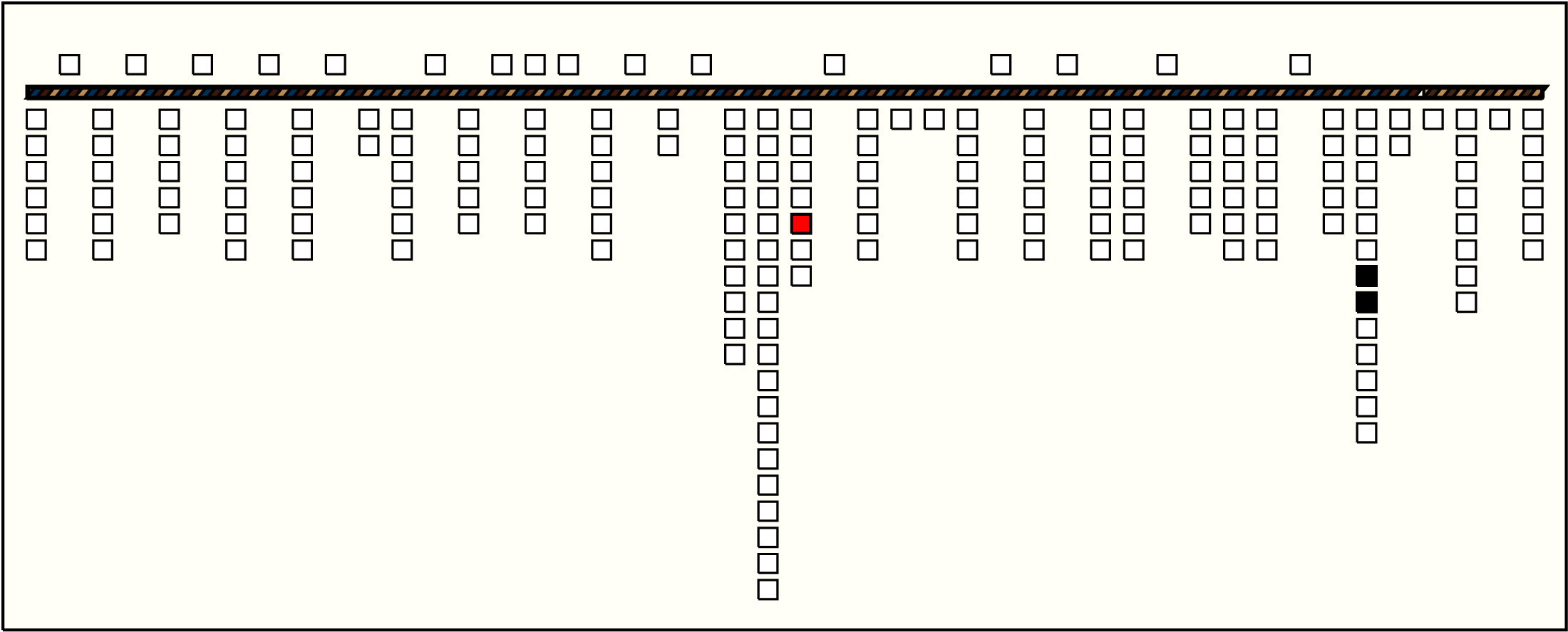

24	p100_{24, 5} : 48_YB	48	2	p168: 20_YB + p169: 28_YB
25	p135_{34, 4} : 305_YB:BS	305	16	p150: 2_YB:BS + p151: 50_YB:BS + p152: 4_YB:BS + p153: 0_YB:BS + p154: 0_YB:BS + p155: 0_YB:BS + p156: 119_YB:BS + p157: 0_YB + p158: 0_YB + p159: 0_YB + p160: 0_YB + p161: 0_YB + p162: 6_YB + p163: 0_MB + p164: 90_MB + p165: 34_YB

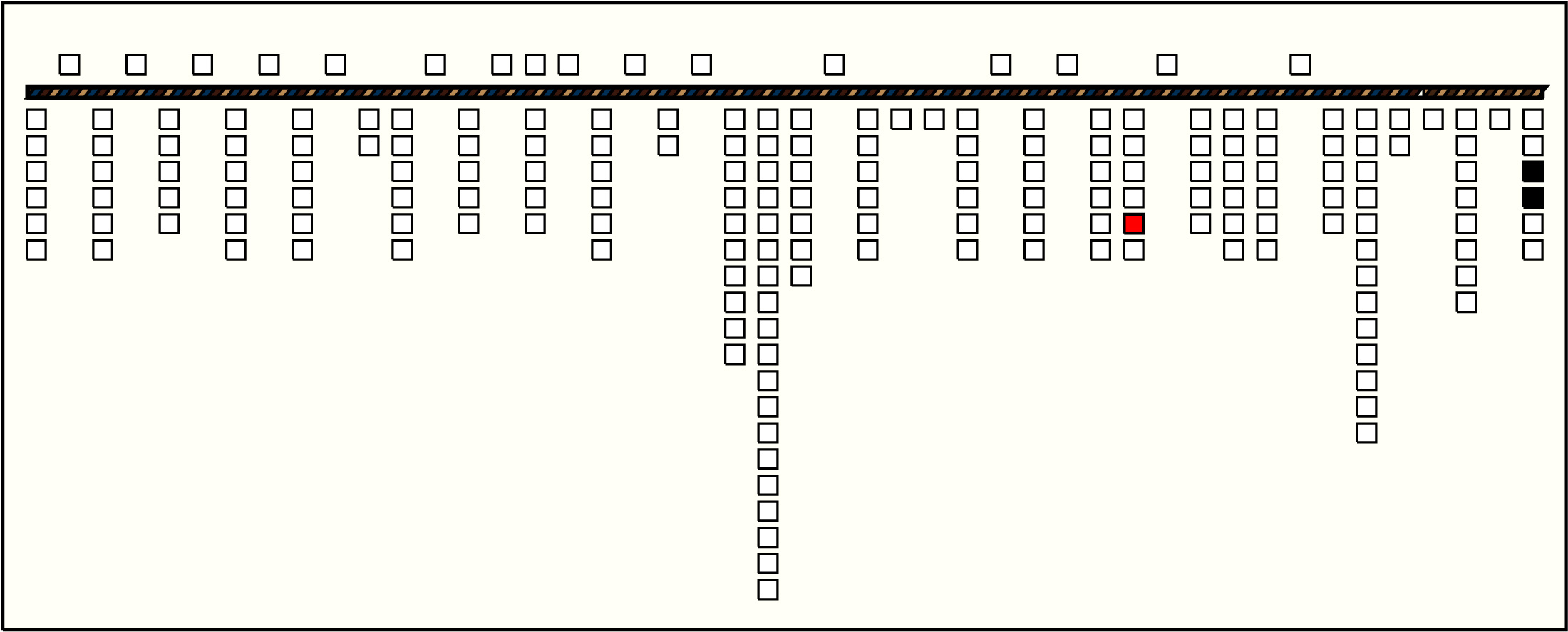

26	p136_{34, 5} : 22_YB:BS	22	2	p189: 2_YB:AB + p190: 20_YB

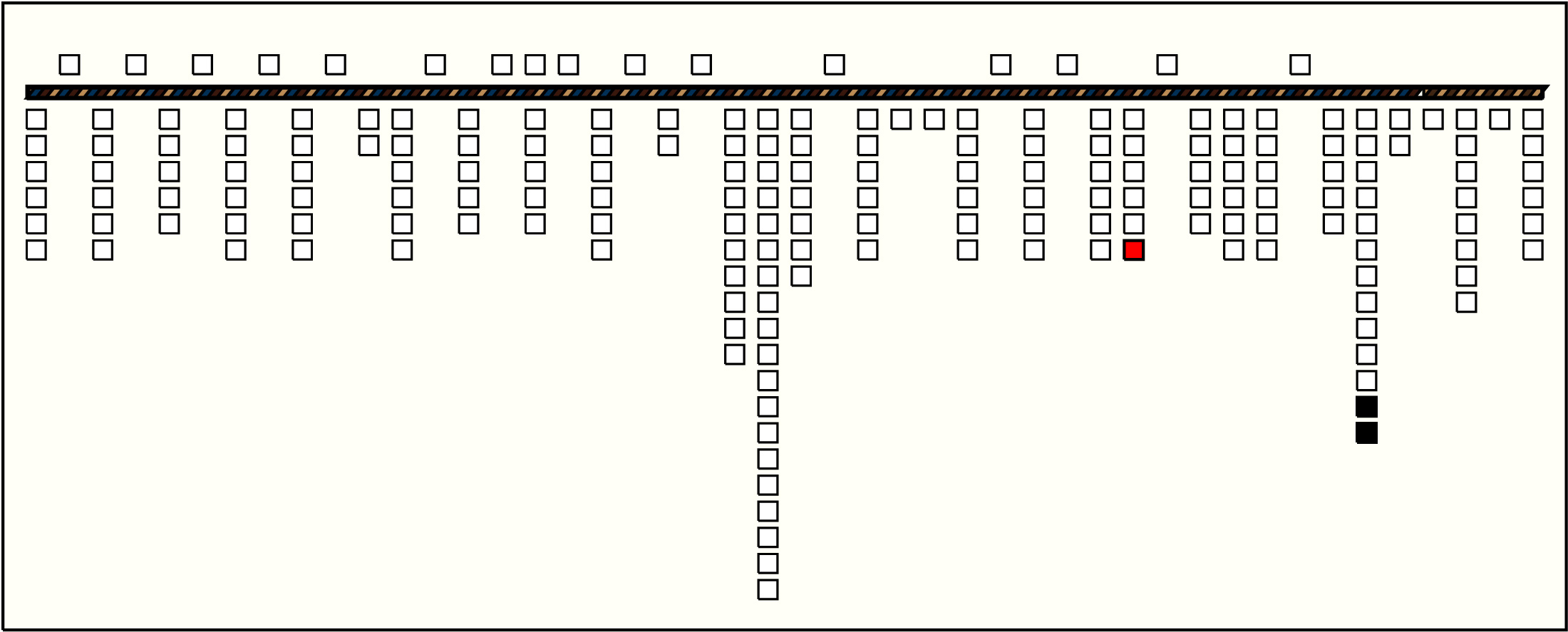

27	p137_{34, 6} : 40_YB:BS	40	2	p173: 29_YB + p174: 11_YB
28	p151_{38, 2} : 50_YB:BS	50	2	p177: 40_YB + p178: 10_MB
29	p164_{41, 3} : 90_MB	90	3	p177: 40_YB + p178: 10_MB + p179: 40_MB

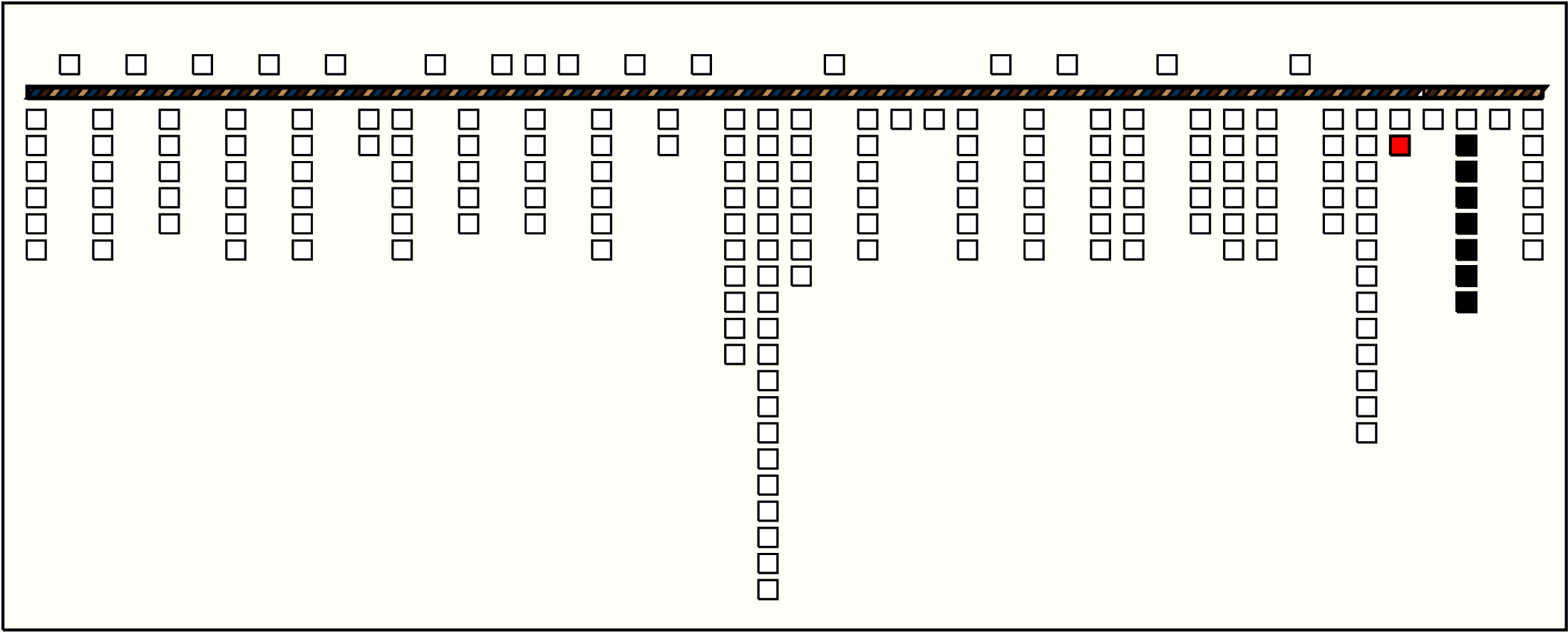

30	p176_{42, 2} : 265_BS	265	7	p179: 40_MB + p180: 110_MB + p181: 40_MB + p182: 20_YB + p183: 10_YB + p184: 25_YB + p185: 20_YB

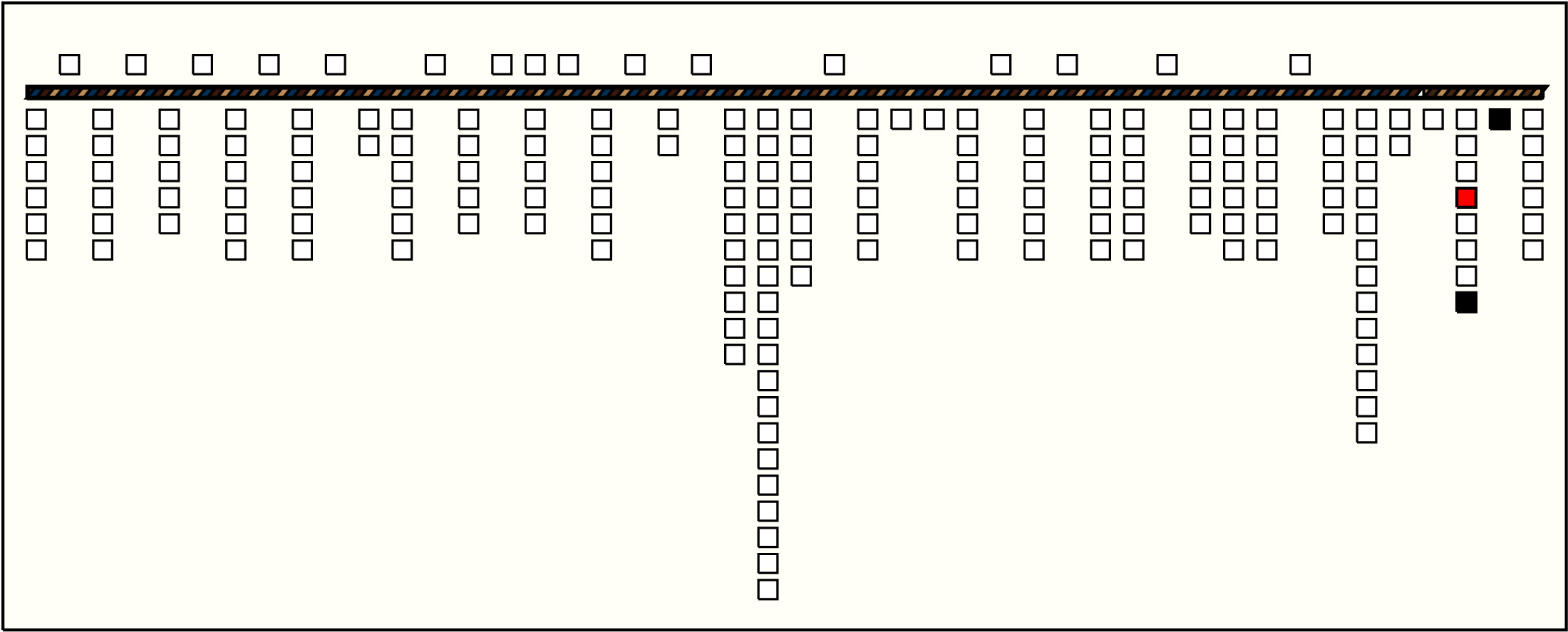

31	p181_{44, 4} : 40_MB	40	2	p185: 20_YB + p186: 20_YB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

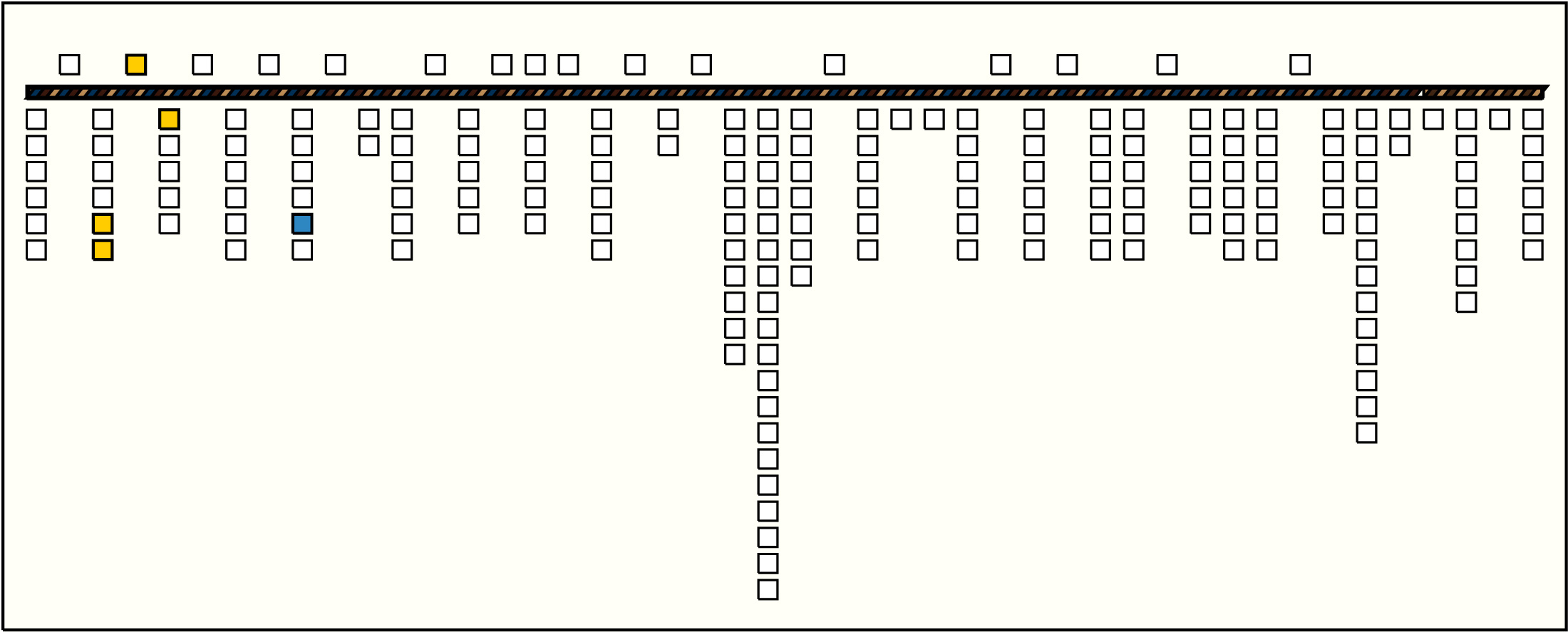

1	p32_{9, 5} : 27_YB	27	4	p12: 3_YB + p13: 4_YB + p14: 10_YB + p15: 10_YB:KB

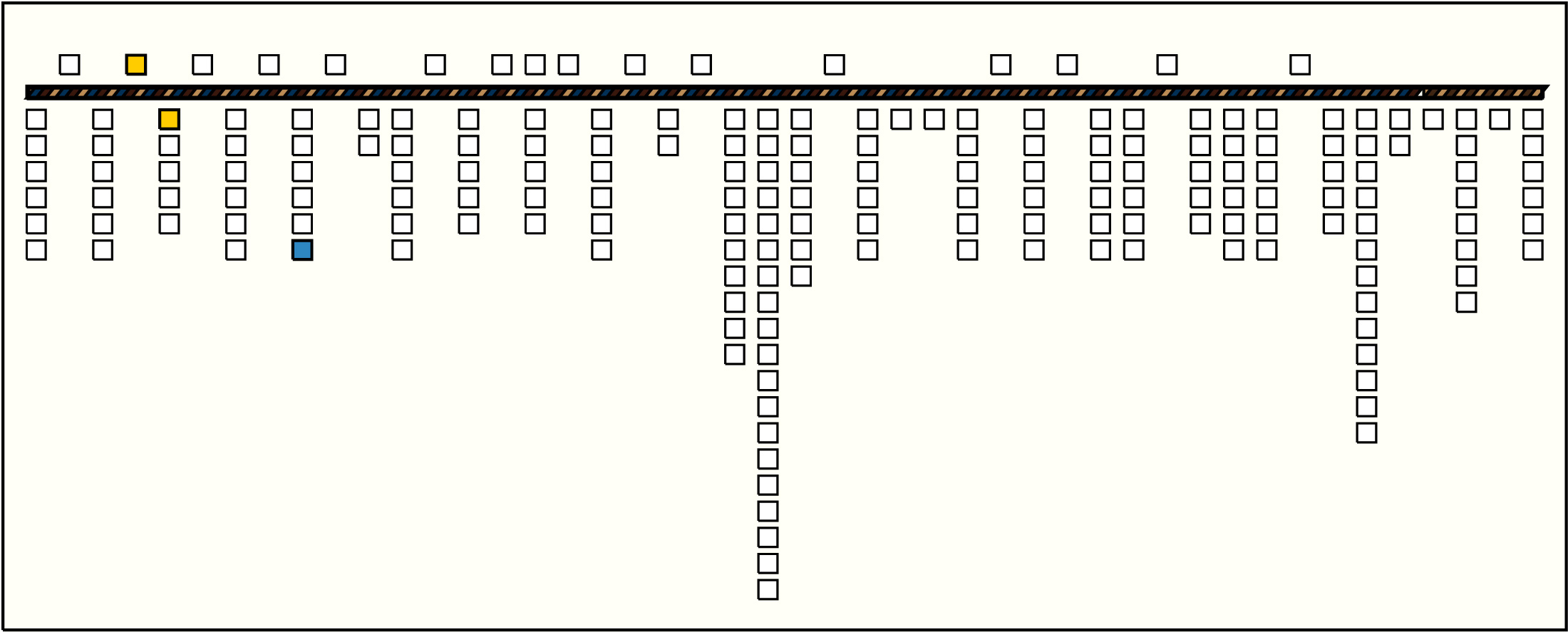

2	p33_{9, 6} : 20_YB	20	2	p14: 10_YB + p15: 10_YB:KB

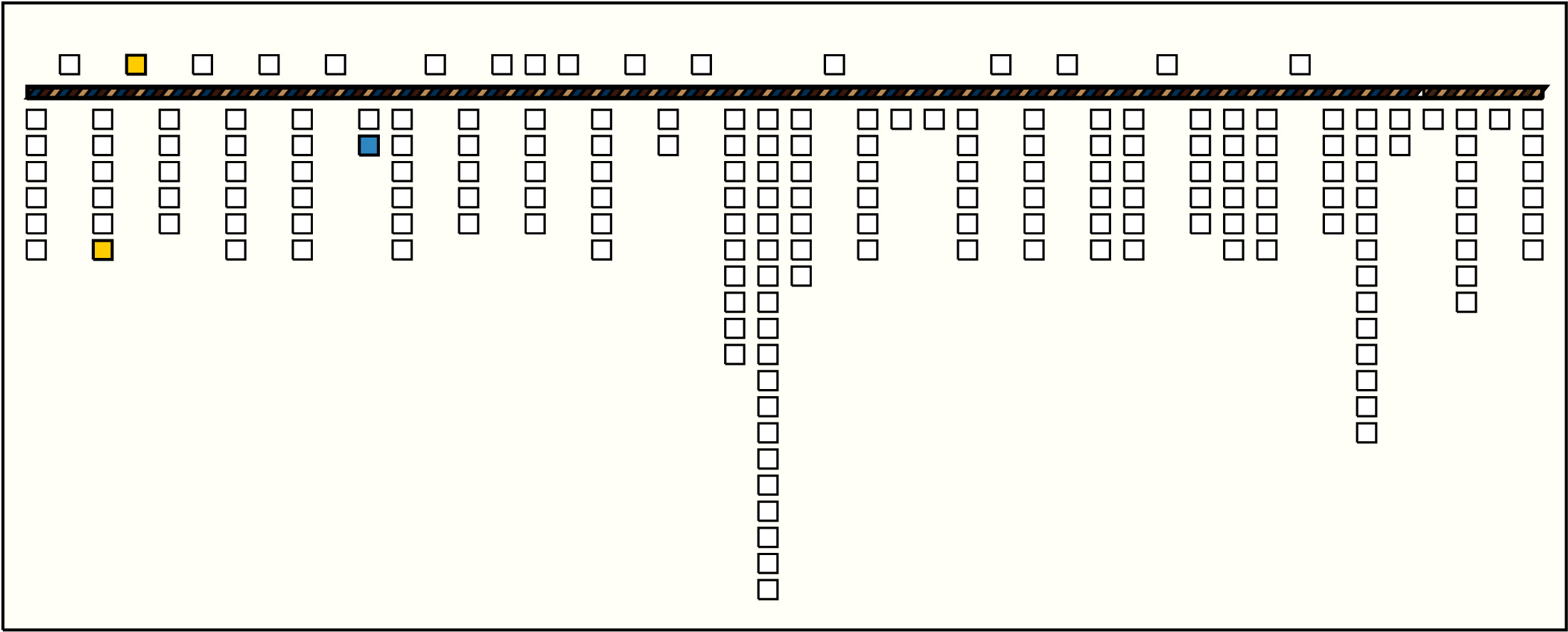

3	p36_{11, 2} : 14_YB	14	2	p13: 4_YB + p14: 10_YB

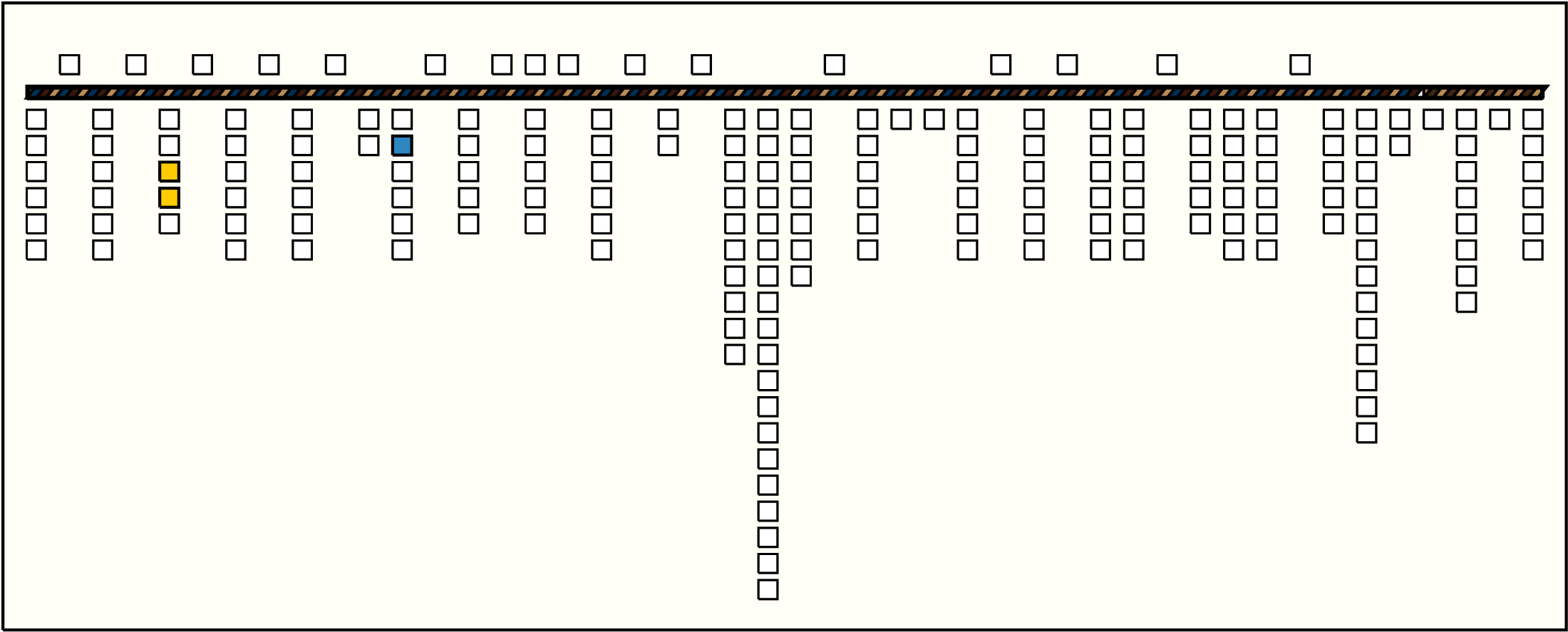

4	p38_{12, 2} : 260_YB	260	2	p17: 60_YB:KB + p18: 200_YB:KB

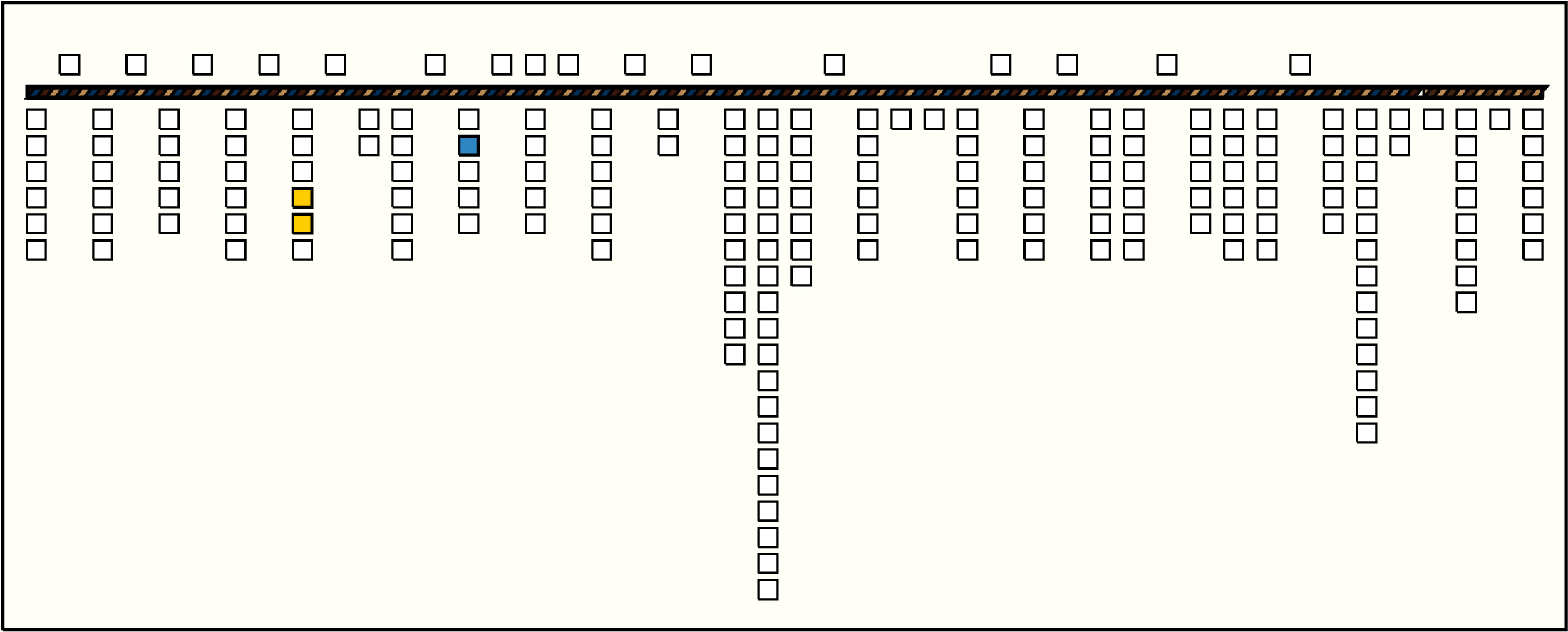

5	p45_{14, 2} : 132_YB	132	2	p31: 105_YB + p32: 27_YB

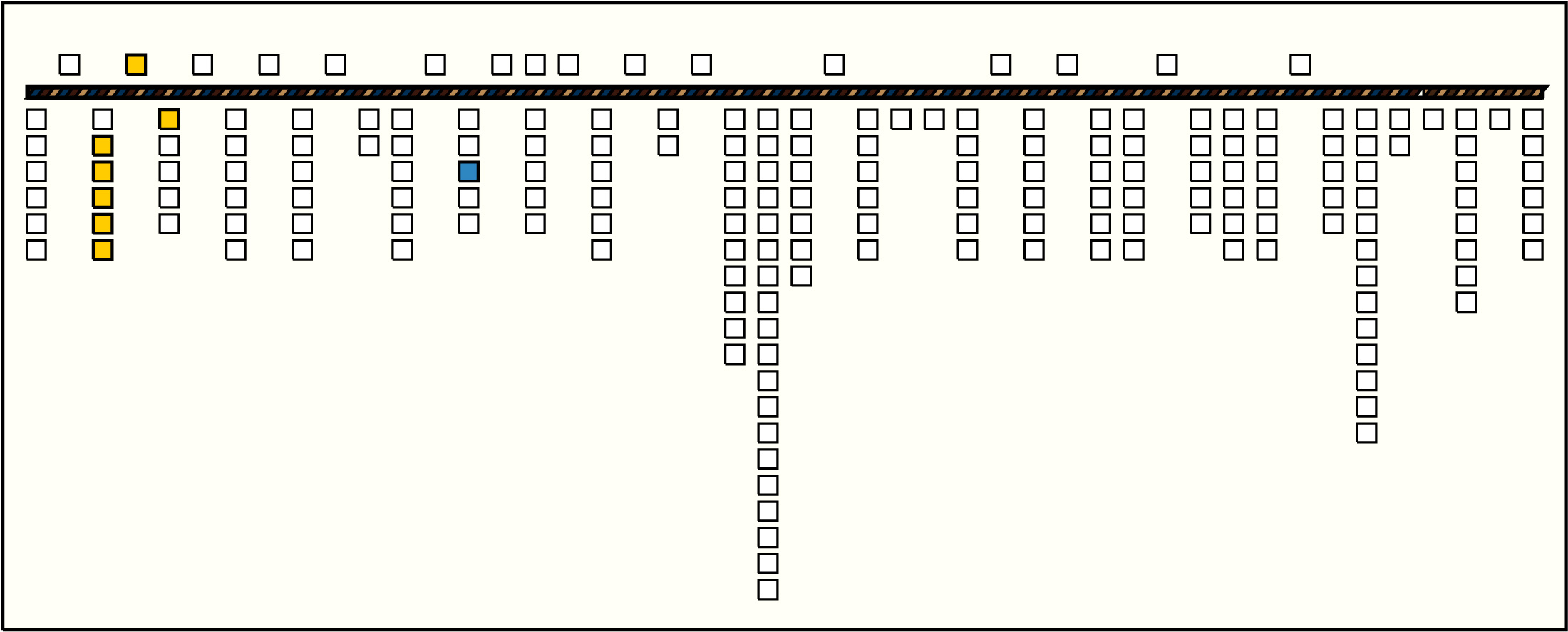

6	p46_{14, 3} : 57_YB	57	7	p9: 30_YB + p10: 0_YB + p11: 0_YB + p12: 3_YB + p13: 4_YB + p14: 10_YB + p15: 10_YB:KB

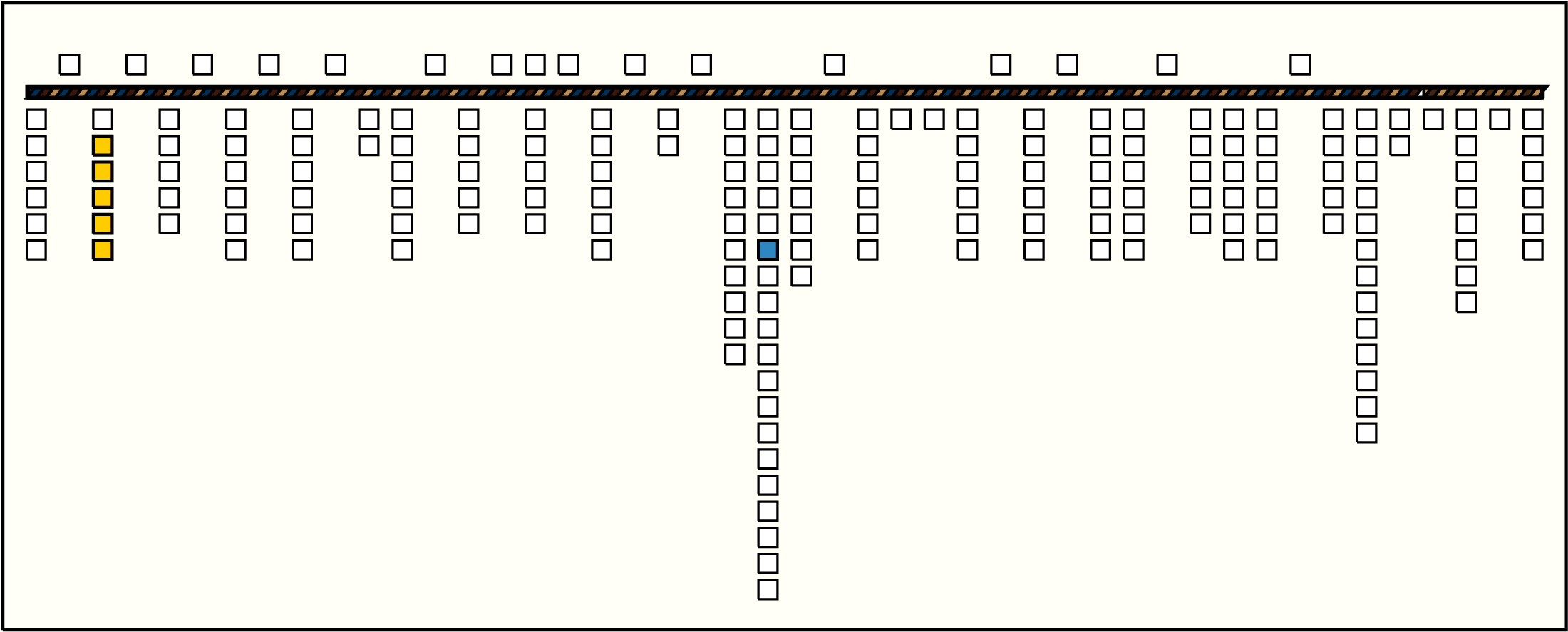

7	p82_{23, 6} : 37_YB	37	5	p9: 30_YB + p10: 0_YB + p11: 0_YB + p12: 3_YB + p13: 4_YB

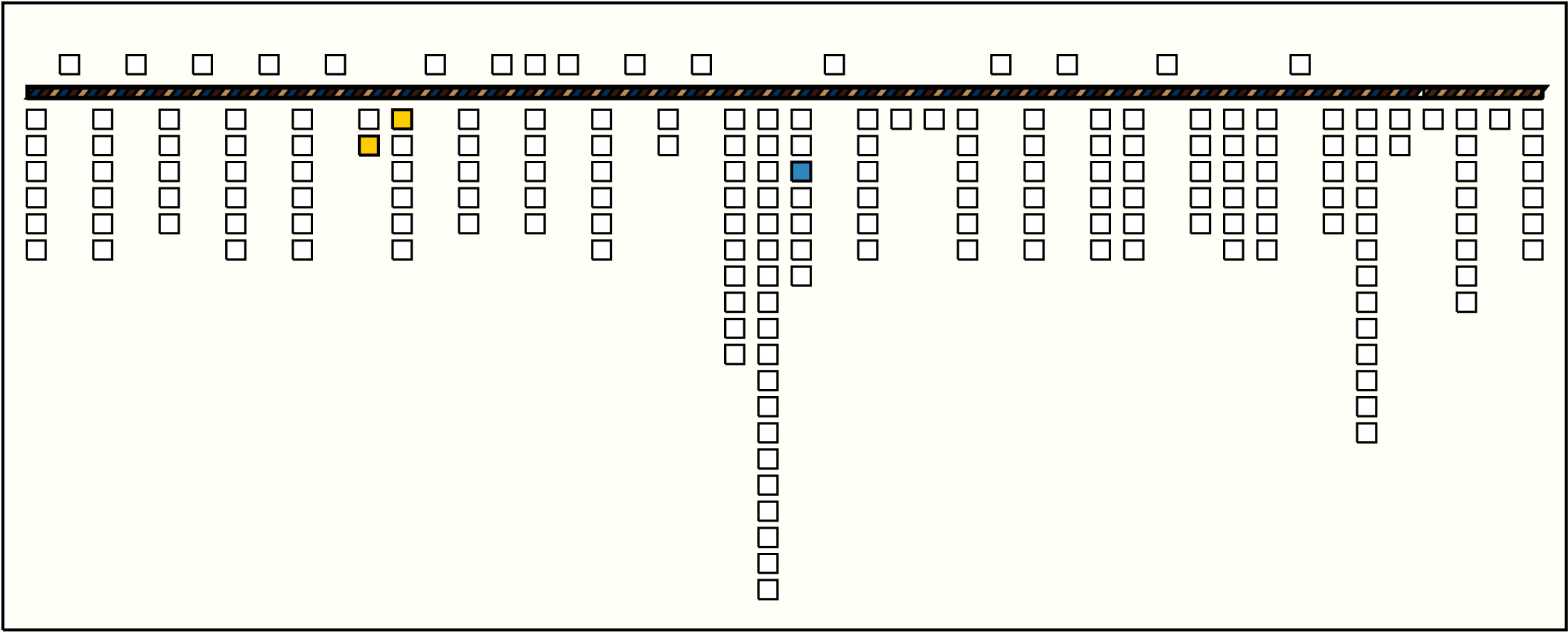

8	p98_{24, 3} : 34_YB:BS	34	2	p36: 14_YB + p37: 20_YB
9	p100_{24, 5} : 48_YB	48	6	p57: 2_YB + p58: 0_YB + p59: 0_YB + p60: 0_YB + p61: 43_YB + p62: 3_YB

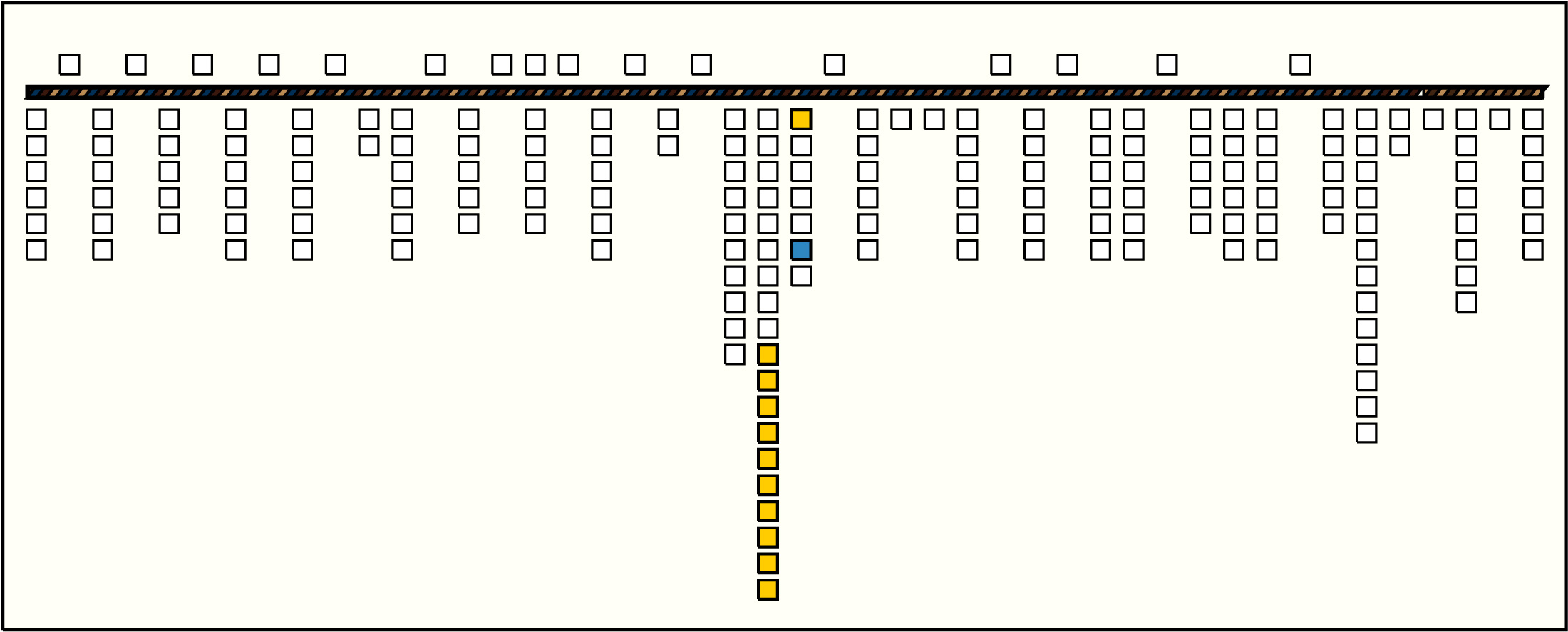

10	p101_{24, 6} : 19_YB:MB	19	11	p86: 3_YB + p87: 0_YB + p88: 0_YB + p89: 0_YB:KB + p90: 0_YB:KB + p91: 0_YB:KB + p92: 0_YB:KB + p93: 0_YB:KB + p94: 0_YB:KB + p95: 0_YB:KB + p96: 16_YB

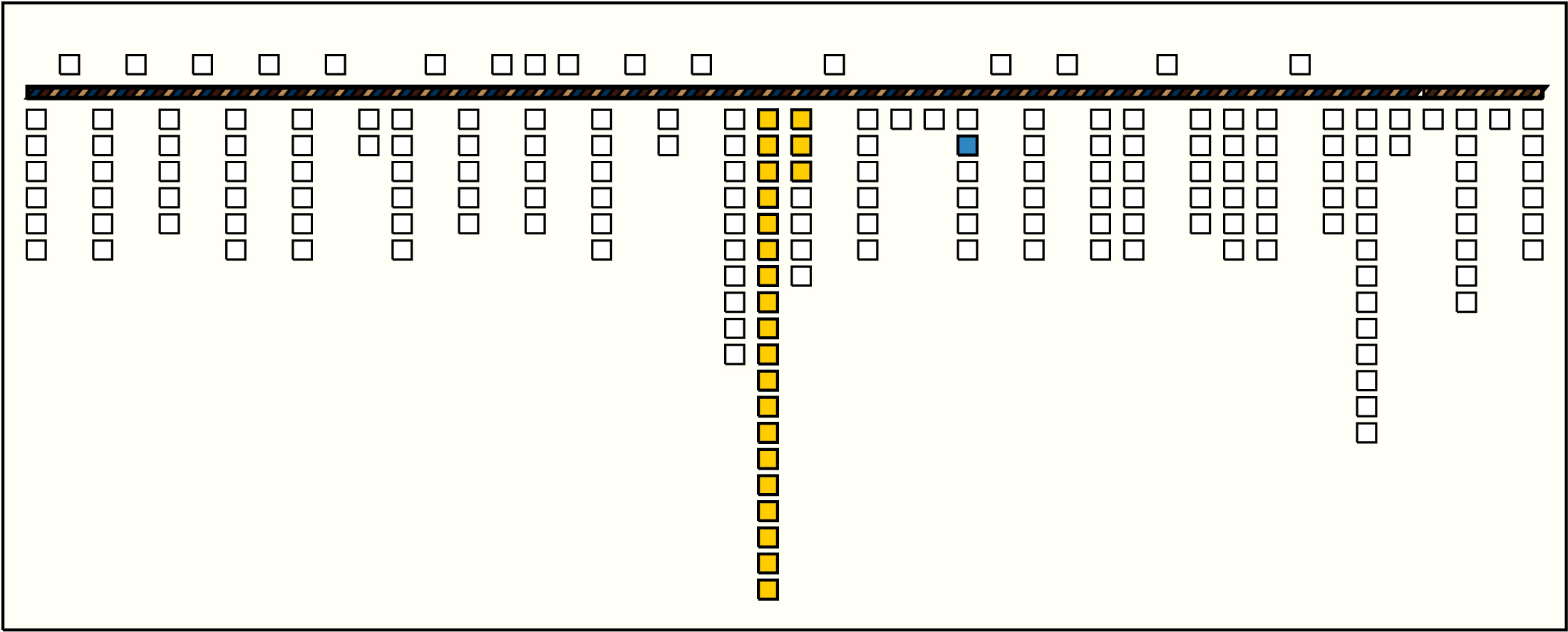

11	p113_{29, 2} : 168_YB	168	22	p77: 19_YB + p78: 0_YB + p79: 0_YB + p80: 0_YB + p81: 2_YB + p82: 37_YB + p83: 7_YB + p84: 7_YB + p85: 43_YB + p86: 3_YB + p87: 0_YB + p88: 0_YB + p89: 0_YB:KB + p90: 0_YB:KB + p91: 0_YB:KB + p92: 0_YB:KB + p93: 0_YB:KB + p94: 0_YB:KB + p95: 0_YB:KB + p96: 16_YB + p97: 0_YB + p98: 34_YB:BS

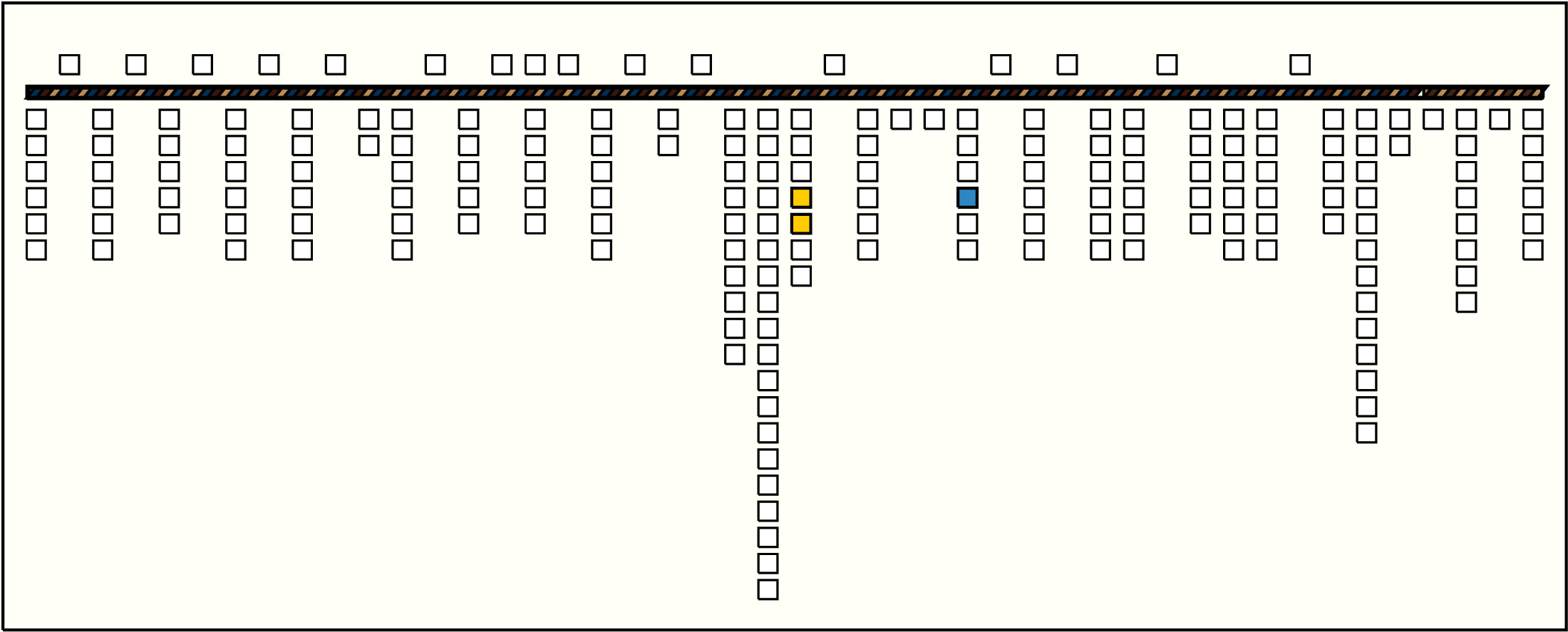

12	p115_{29, 4} : 300_YB	300	2	p99: 252_YB + p100: 48_YB

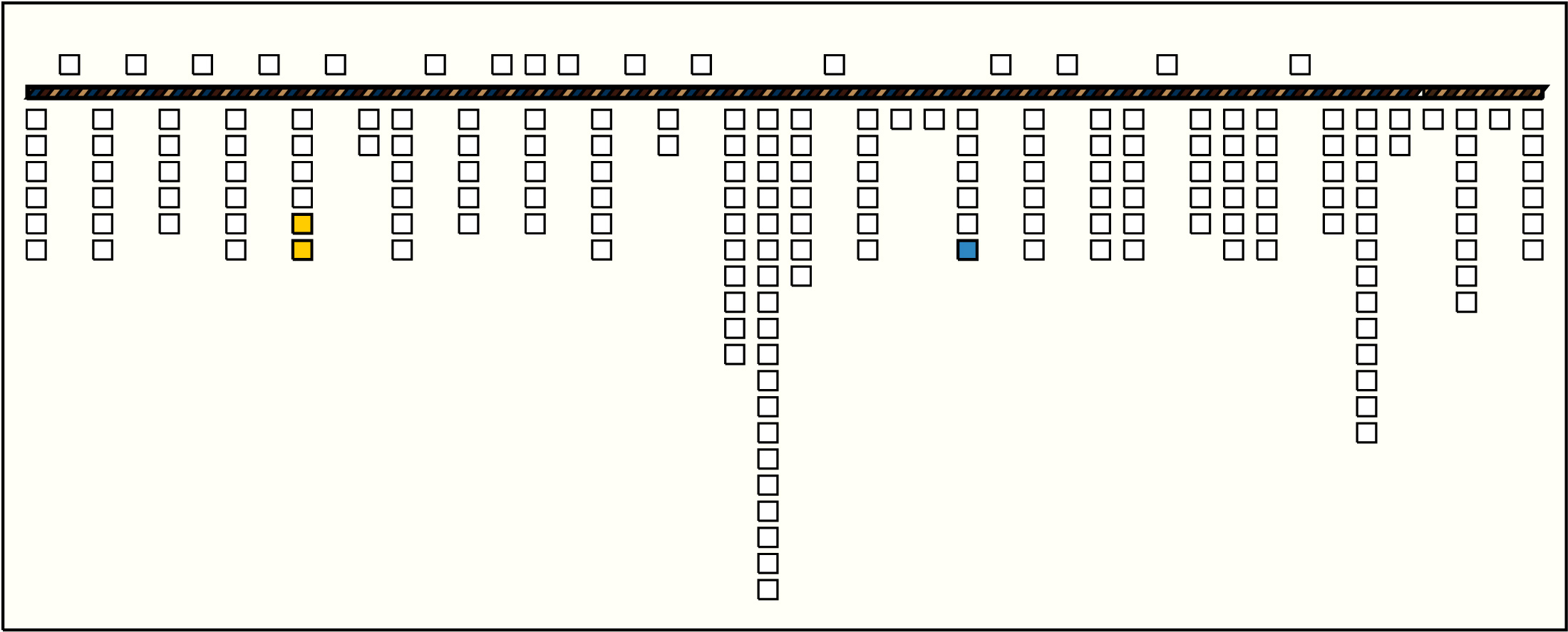

13	p117_{29, 6} : 47_YB	47	2	p32: 27_YB + p33: 20_YB

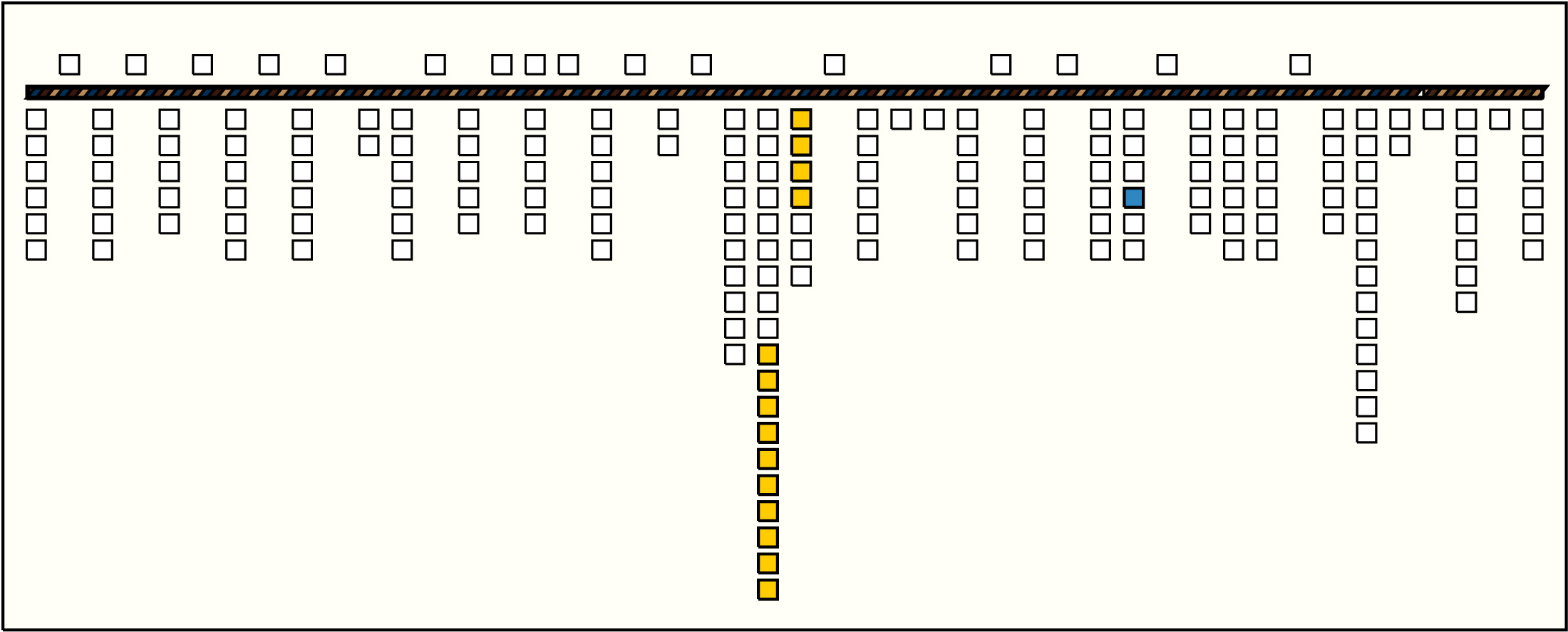

14	p135_{34, 4} : 305_YB:BS	305	14	p86: 3_YB + p87: 0_YB + p88: 0_YB + p89: 0_YB:KB + p90: 0_YB:KB + p91: 0_YB:KB + p92: 0_YB:KB + p93: 0_YB:KB + p94: 0_YB:KB + p95: 0_YB:KB + p96: 16_YB + p97: 0_YB + p98: 34_YB:BS + p99: 252_YB

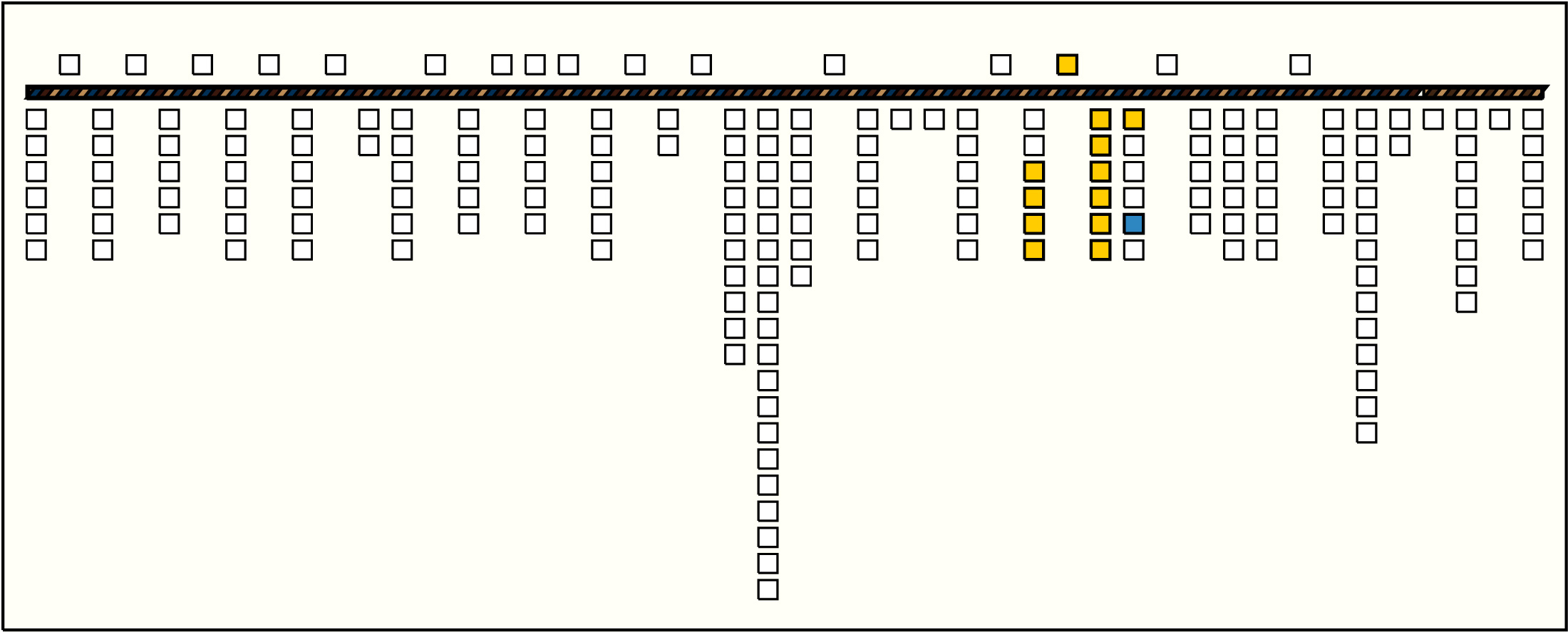

15	p136_{34, 5} : 22_YB:BS	22	12	p121: 4_YB + p122: 0_YB + p123: 0_YB + p124: 2_YB + p125: 0_YB + p126: 0_YB:KB + p127: 0_YB:KB + p128: 0_YB:KB + p129: 0_YB:KB + p130: 0_YB:KB + p131: 0_YB:KB + p132: 16_YB:BS

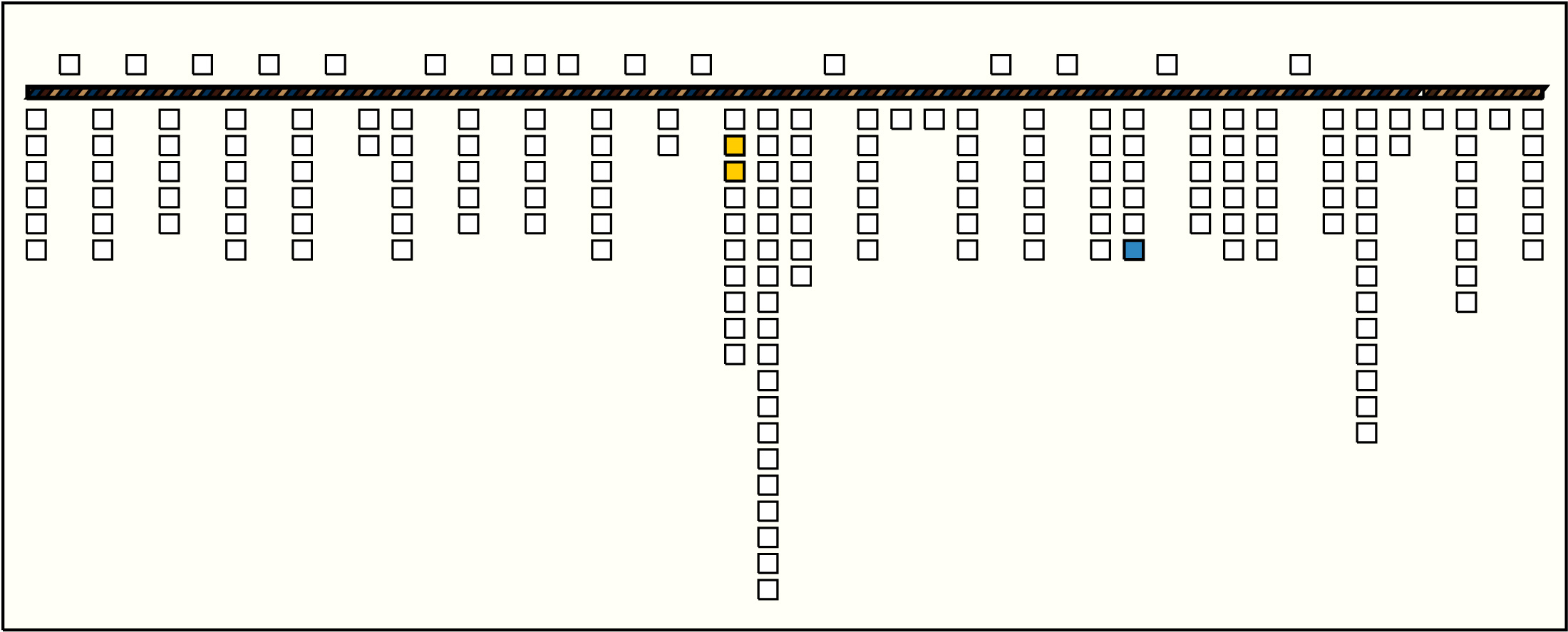

16	p137_{34, 6} : 40_YB:BS	40	2	p68: 10_PK-YB + p69: 30_PK-YB
17	p151_{38, 2} : 50_YB:BS	50	3	p96: 16_YB + p97: 0_YB + p98: 34_YB:BS
18	p164_{41, 3} : 90_MB	90	6	p68: 10_PK-YB + p69: 30_PK-YB + p70: 0_PK-YB + p71: 0_PK-YB + p72: 0_PK-YB + p73: 50_YB
19	p168_{41, 7} : 20_YB	20	2	p67: 10_PK-YB + p68: 10_PK-YB
20	p171_{41, 10} : 14_YB	14	2	p83: 7_YB + p84: 7_YB
21	p176_{42, 2} : 265_BS	265	17	p136: 22_YB:BS + p137: 40_YB:BS + p138: 0_YB:BS + p139: 0_MB + p140: 0_MB + p141: 0_MB + p142: 0_MB + p143: 0_MB + p144: 0_YB + p145: 100_YB + p146: 0_YB + p147: 0_YB + p148: 47_YB + p149: 0_YB + p150: 2_YB:BS + p151: 50_YB:BS + p152: 4_YB:BS
22	p177_{43, 1} : 40_YB	40	2	p173: 29_YB + p174: 11_YB
23	p180_{44, 3} : 110_MB	110	16	p83: 7_YB + p84: 7_YB + p85: 43_YB + p86: 3_YB + p87: 0_YB + p88: 0_YB + p89: 0_YB:KB + p90: 0_YB:KB + p91: 0_YB:KB + p92: 0_YB:KB + p93: 0_YB:KB + p94: 0_YB:KB + p95: 0_YB:KB + p96: 16_YB + p97: 0_YB + p98: 34_YB:BS
24	p188_{46, 2} : 30_YB	30	2	p182: 20_YB + p183: 10_YB

Khipu Notes:

Wise Khipu B399 / T41299.34
Fragmentary khipu with two main cords and top and subsidiary cords
Khipu fragment. Front end of main cord severed. Back end is broken, not knotted. Is it 2 khipu attached to each other? Can't tell because sewn down.
Khipu was removed from board. Appears that the 2 main cords are sewn together by a rust brown string. Not sure when this was done.
Includes 1 scrap package
A = 16 fragments

Primary Cord Notes

Main cord = str md tn/lt tn (2 parts md tn, 1 part lt tn). Both ends broken, but sewn together with a ru-br thread (not sure if it
Are two main cords attached to each other originally?

Cord Notes

Top cords looped around some groups of pendants. Could be many cords missing.
Main cord is 2 S-plied parts. First- dark brown/light tan/blue (most dark brown dusted away). Second - 2 parts dark tan/1 part light tan.
The "first" khipu has all verso cord attachments. Looks like this one may have 2 separate main cords too that are sewn together.
At the "second" khipu, the main cord changes to a different color combination and has all recto pendant attachments.
The orientation of the object is not known because there are no finished ends on the main cord. Could be read in either direction.
Left side of khipu is in poor condition -- many broken and unattached cords. Loose ones put into a package.
Should be removed from poster board -- cord is tearing where sewn down from the tension. Removed 3/30/06 by Dawn Planas and Kylie Quave.
Knots are on level decimal planes within groups but not from group to group.
Subsidiaries have their own decimal levels, separate from their pendants.
At Group 27, there is a distinct change in knot levels-- lowered significantly.
Not sure if were sewn together while in Wise collection or earlier.
Group 1 top cord is total of its pendants --possible that other groups had the same, but they are damaged too much to confirm
Census khipu?
