QU015/KH0603 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

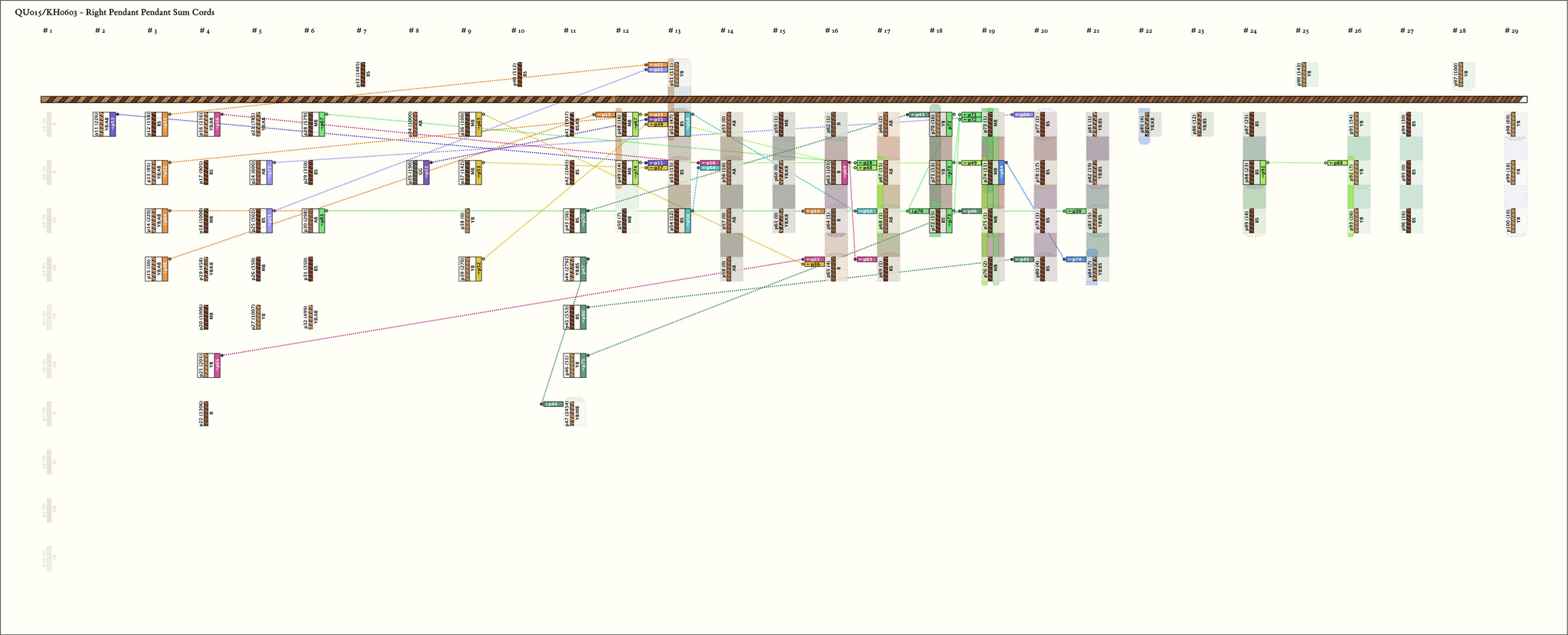

Right Handed Sums: # Sums = 29, Max # Summands = 38, (Min, Mean, Max) Sum Values = (11, 257, 2792)
Click on Image to View Larger

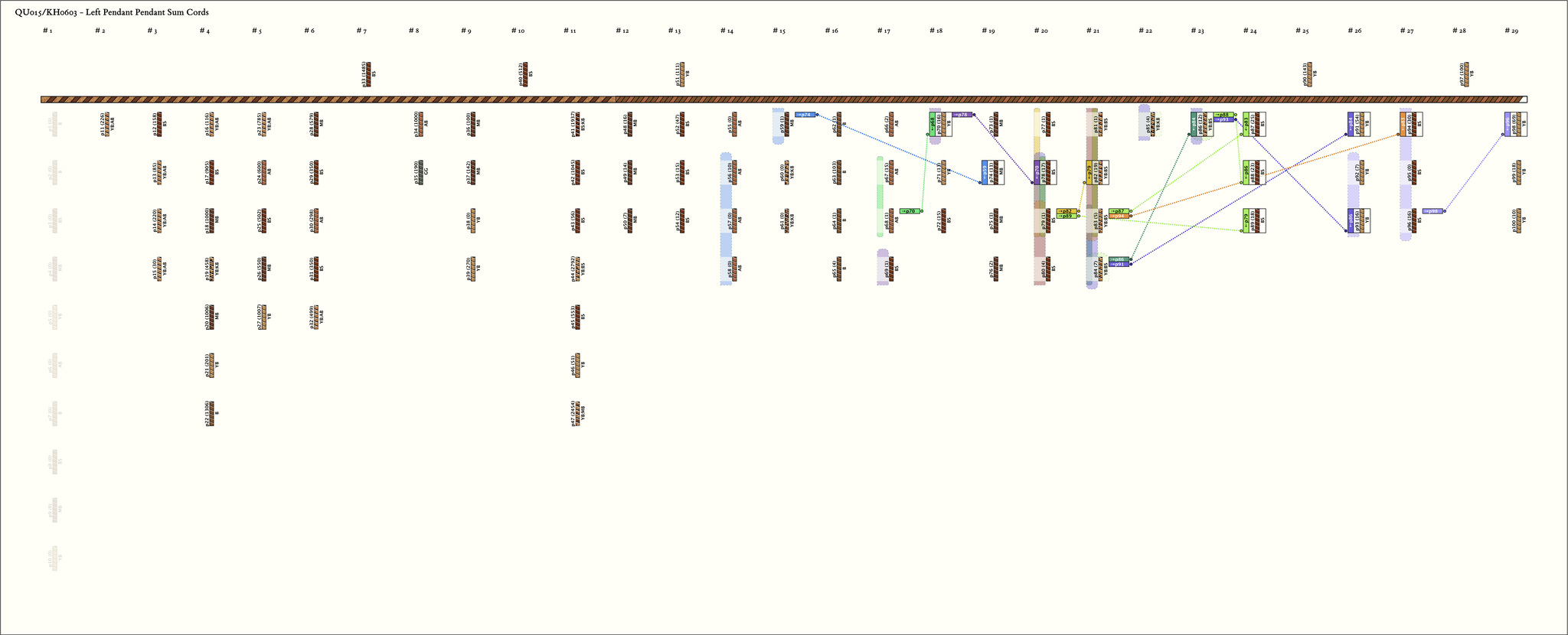

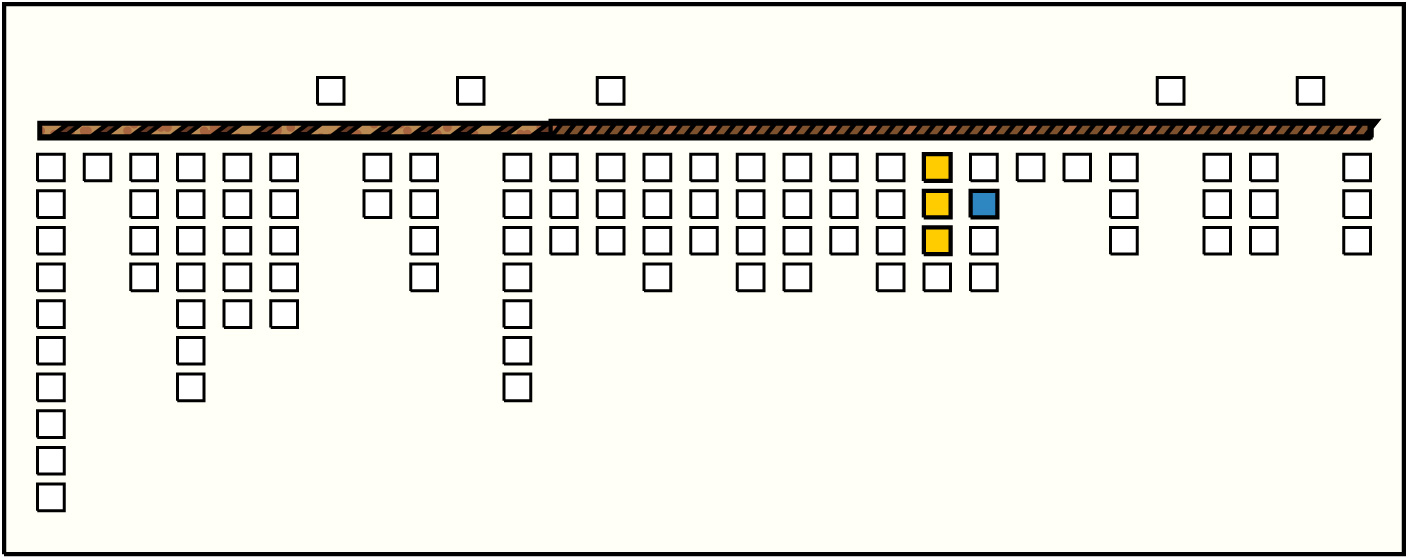

Left Handed Sums: # Sums = 12, Max # Summands = 7, (Min, Mean, Max) Sum Values = (11, 26, 69)
Click on Image to View Larger

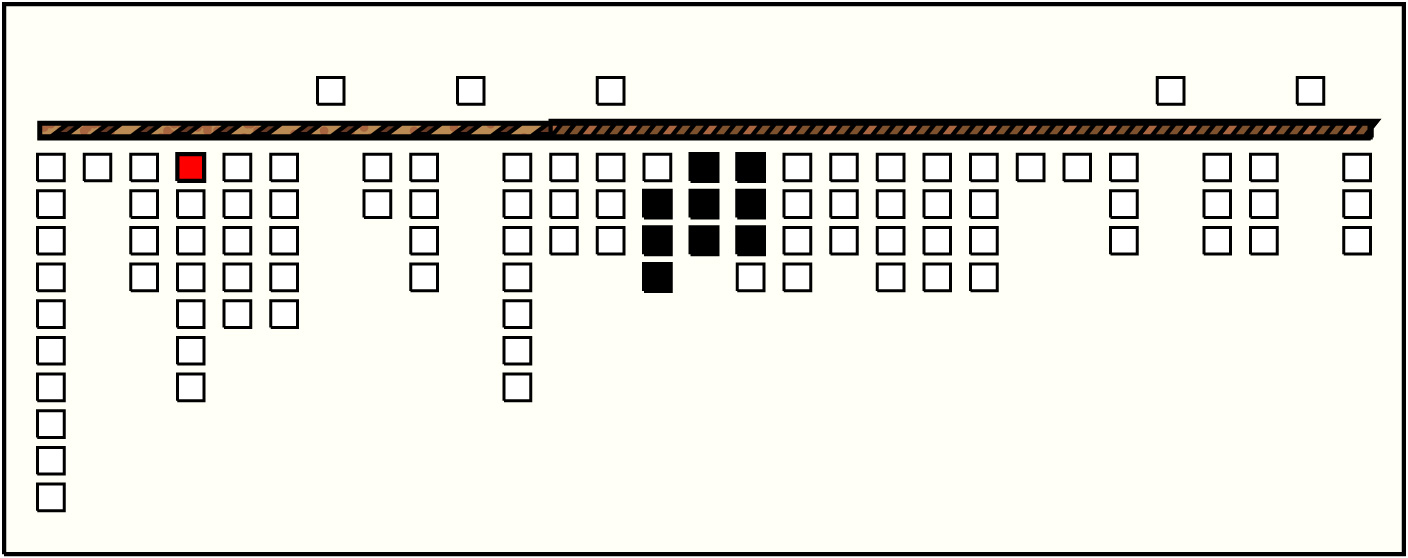

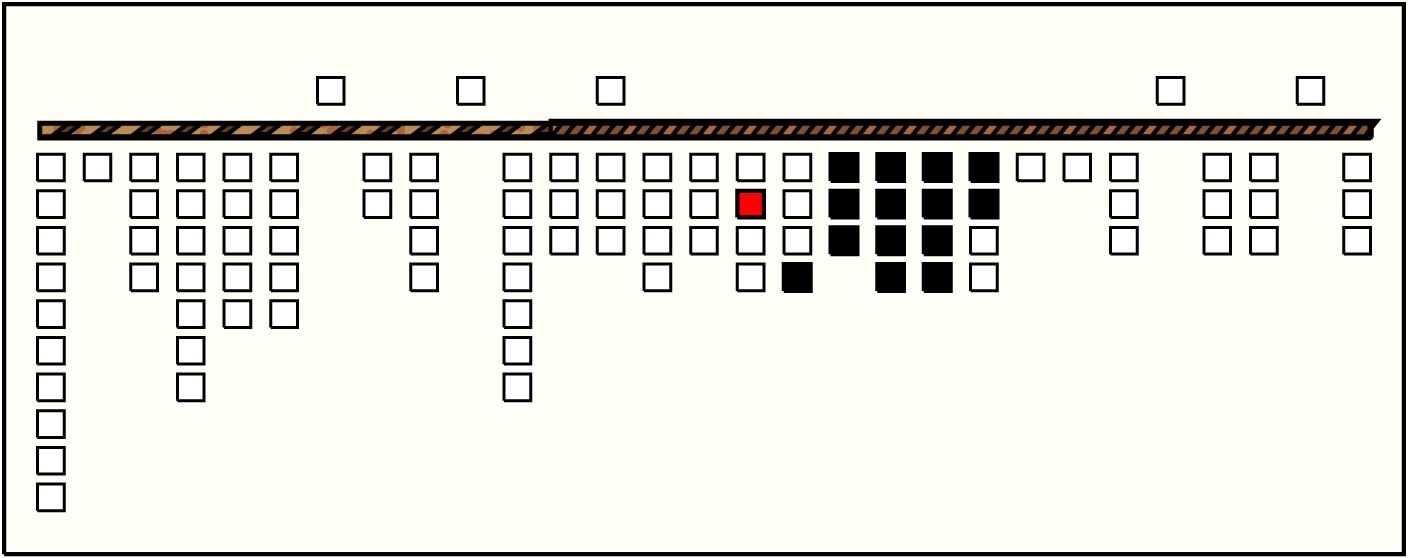

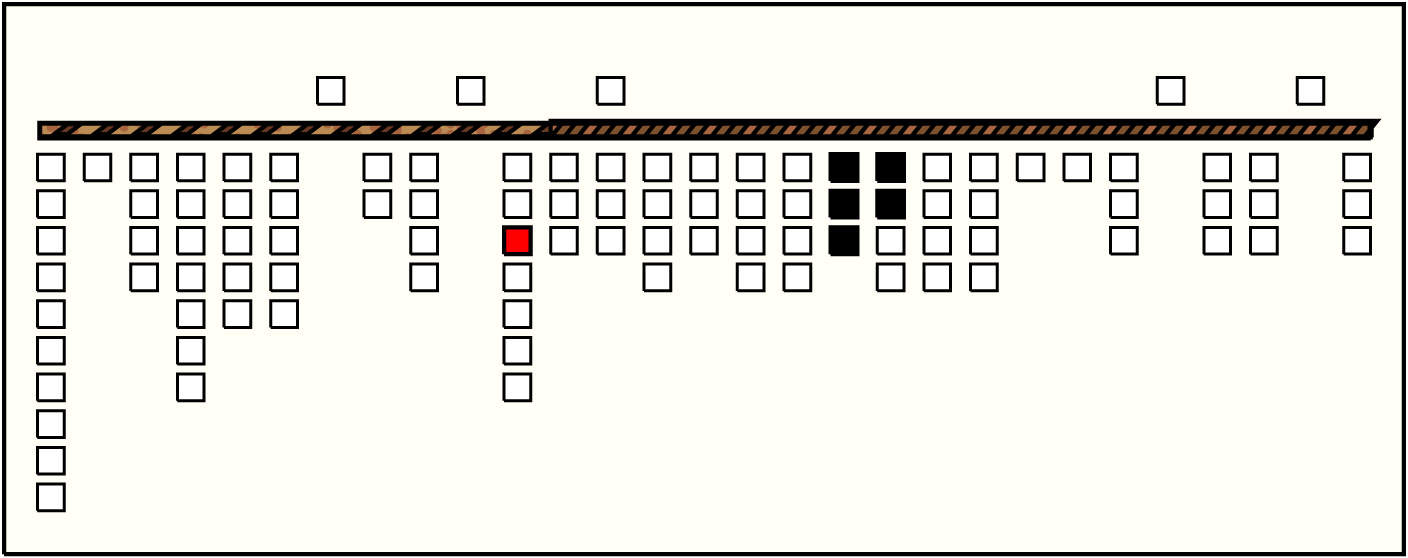

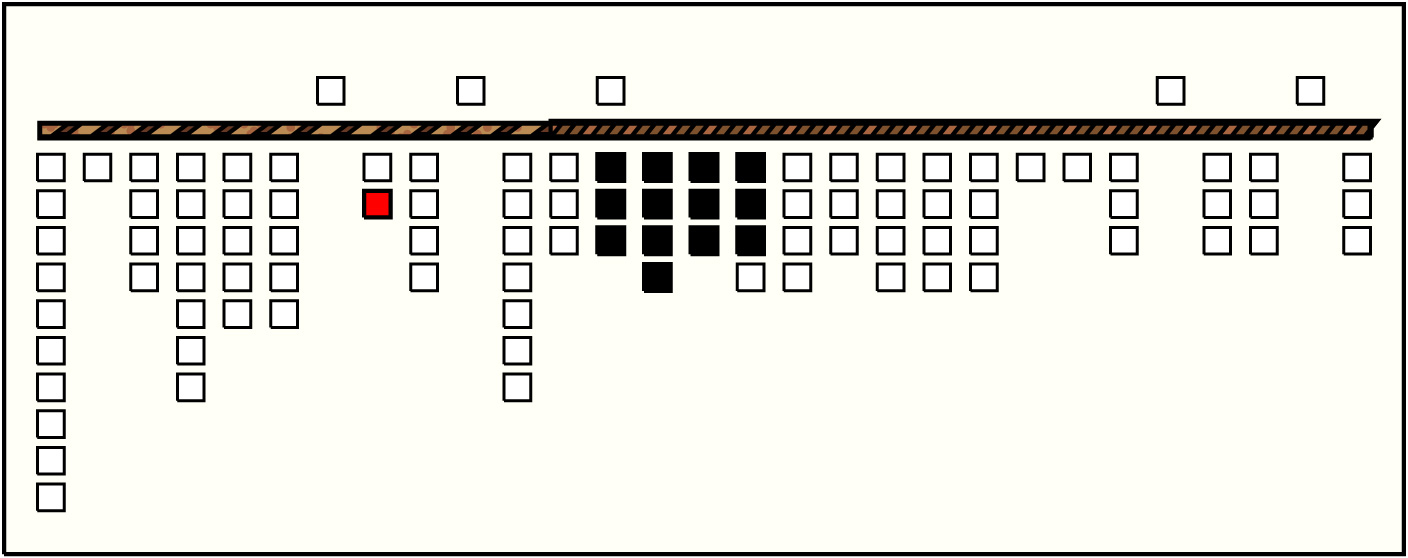

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

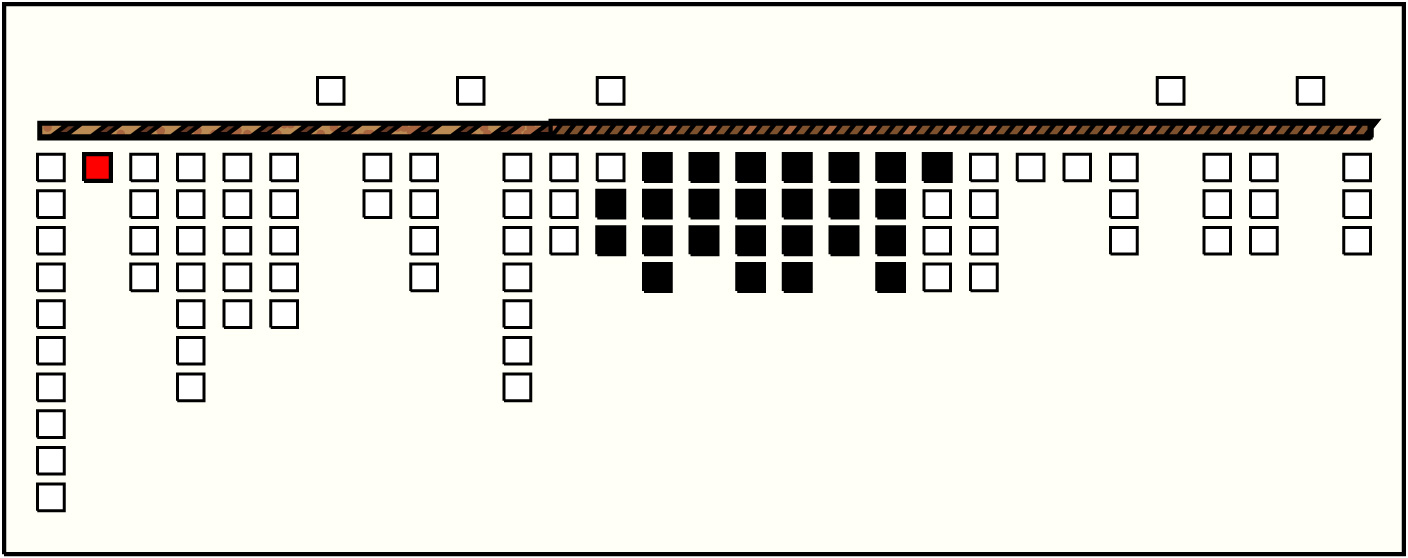

1	p11_{2, 1} : 226_YB:AB	226	25	p53: 15_BS + p54: 12_BS + p55: 0_AB + p56: 10_AB + p57: 0_AB + p58: 0_AB + p59: 1_MB + p60: 0_YB:KB + p61: 0_YB:KB + p62: 1_B + p63: 103_B + p64: 1_B + p65: 4_B + p66: 2_AB + p67: 15_AB + p68: 1_AB + p69: 1_BS + p70: 16_YB + p71: 13_YB + p72: 15_BS + p73: 1_MB + p74: 11_MB + p75: 1_MB + p76: 2_MB + p77: 1_BS

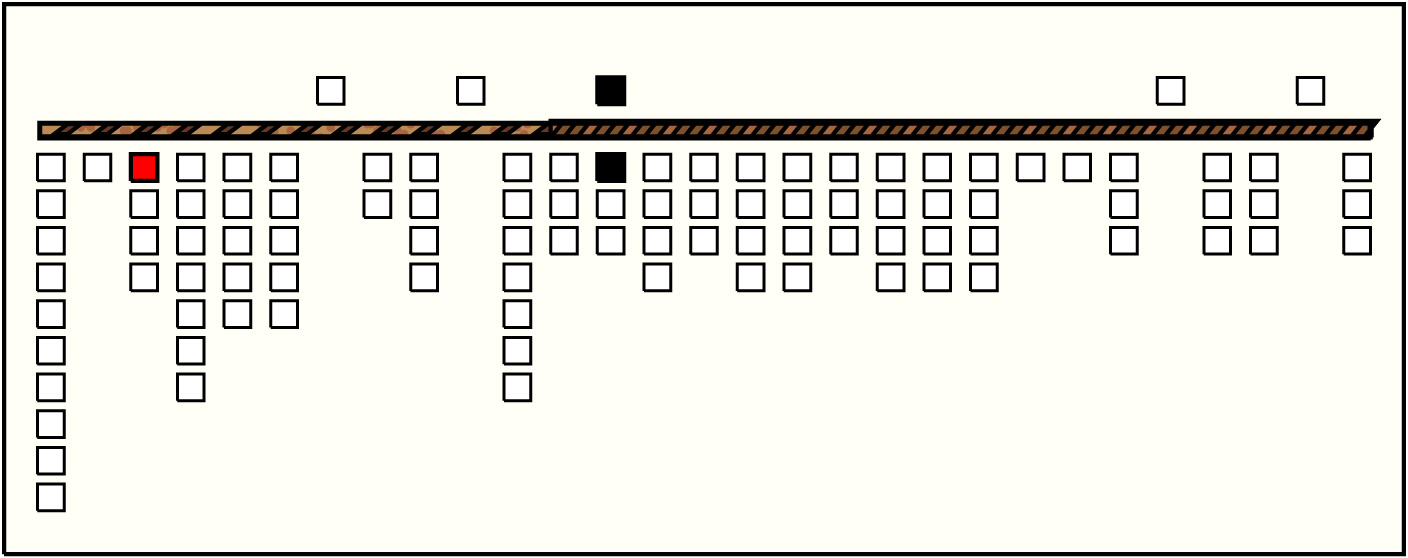

2	p12_{3, 1} : 158_BS	158	2	p51: 111_YB + p52: 47_BS

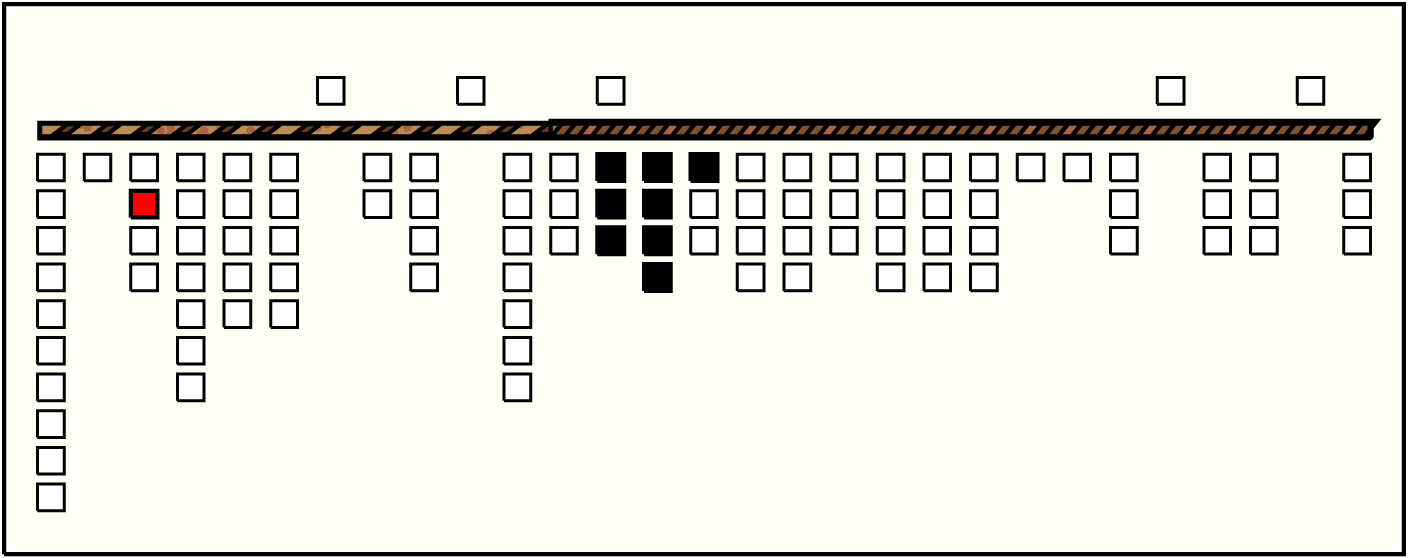

3	p13_{3, 2} : 85_YB:AB	85	8	p52: 47_BS + p53: 15_BS + p54: 12_BS + p55: 0_AB + p56: 10_AB + p57: 0_AB + p58: 0_AB + p59: 1_MB

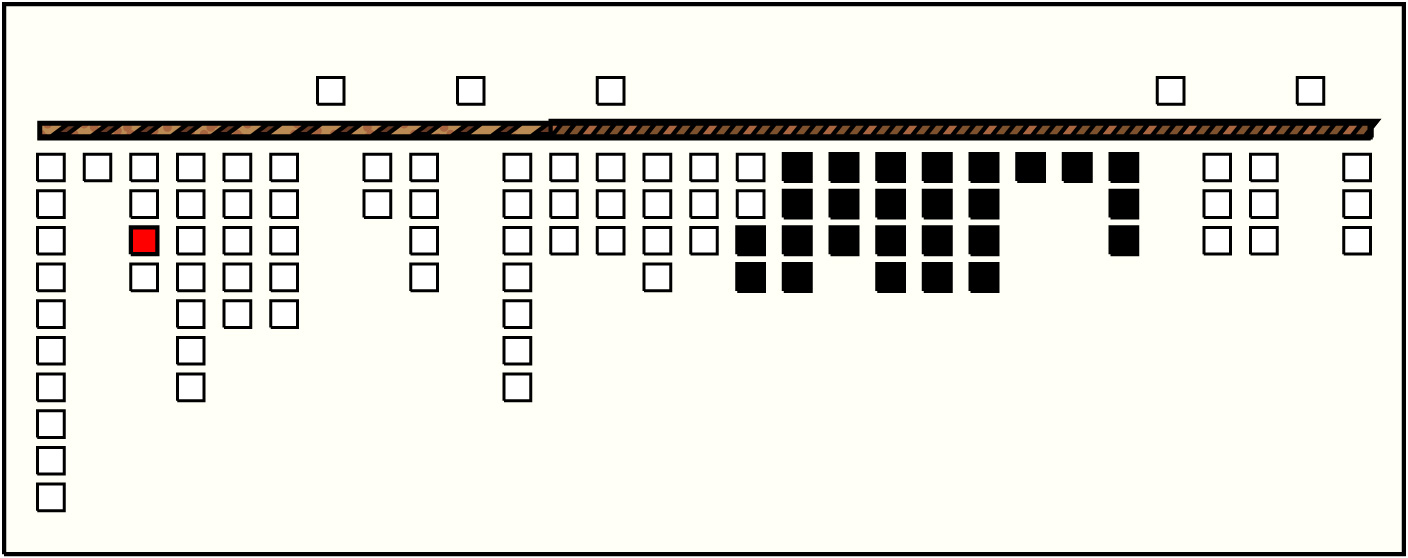

4	p14_{3, 3} : 220_YB:AB	220	26	p64: 1_B + p65: 4_B + p66: 2_AB + p67: 15_AB + p68: 1_AB + p69: 1_BS + p70: 16_YB + p71: 13_YB + p72: 15_BS + p73: 1_MB + p74: 11_MB + p75: 1_MB + p76: 2_MB + p77: 1_BS + p78: 17_BS + p79: 1_BS + p80: 4_BS + p81: 1_YB:BS + p82: 19_YB:BS + p83: 5_YB:BS + p84: 7_YB:BS + p85: 4_YB:KB + p86: 12_YB:BS + p87: 25_BS + p88: 23_BS + p89: 18_BS

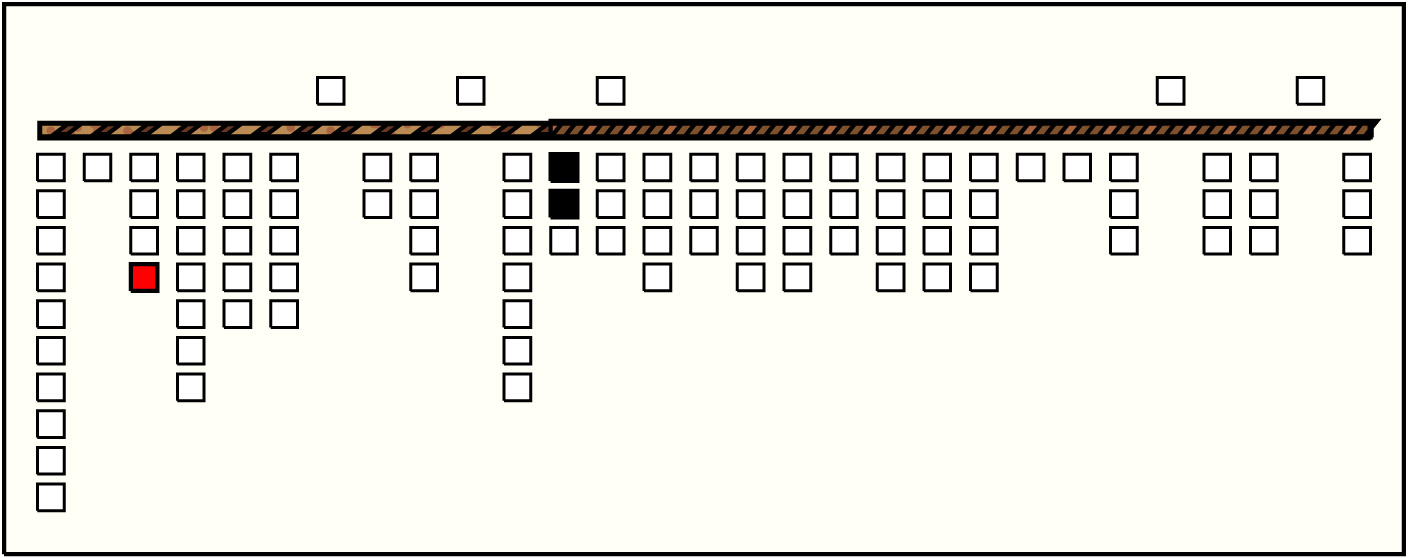

5	p15_{3, 4} : 30_YB:AB	30	2	p48: 16_MB + p49: 14_MB
6	p16_{4, 1} : 116_YB:AB	116	9	p56: 10_AB + p57: 0_AB + p58: 0_AB + p59: 1_MB + p60: 0_YB:KB + p61: 0_YB:KB + p62: 1_B + p63: 103_B + p64: 1_B

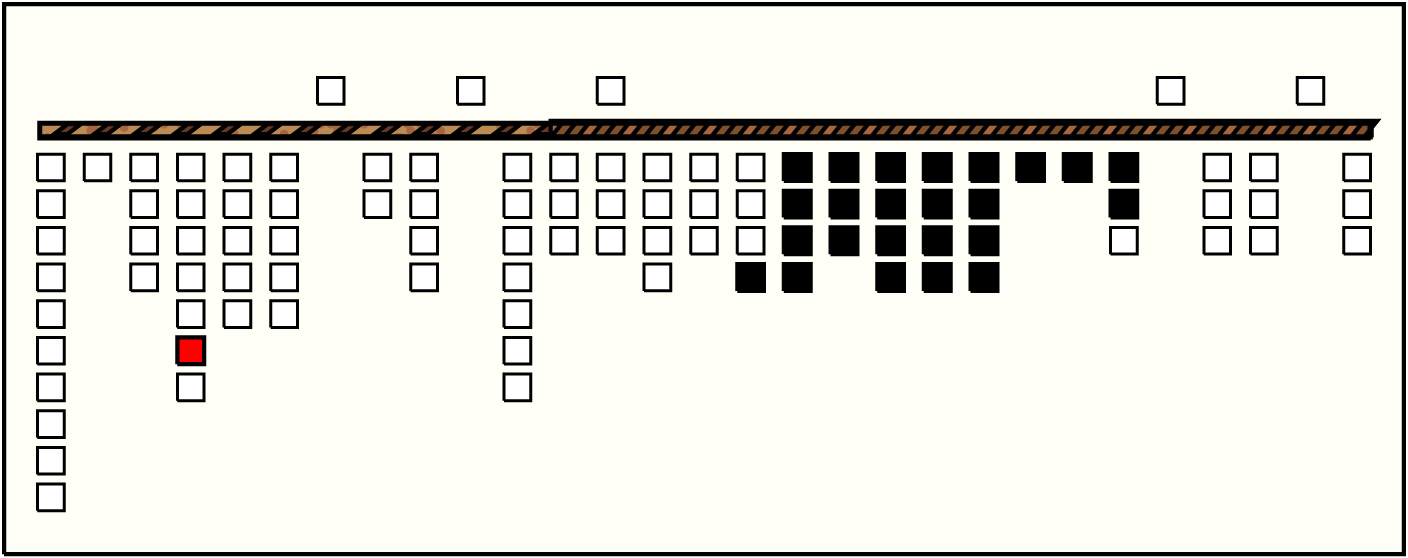

7	p21_{4, 6} : 201_YB	201	24	p65: 4_B + p66: 2_AB + p67: 15_AB + p68: 1_AB + p69: 1_BS + p70: 16_YB + p71: 13_YB + p72: 15_BS + p73: 1_MB + p74: 11_MB + p75: 1_MB + p76: 2_MB + p77: 1_BS + p78: 17_BS + p79: 1_BS + p80: 4_BS + p81: 1_YB:BS + p82: 19_YB:BS + p83: 5_YB:BS + p84: 7_YB:BS + p85: 4_YB:KB + p86: 12_YB:BS + p87: 25_BS + p88: 23_BS

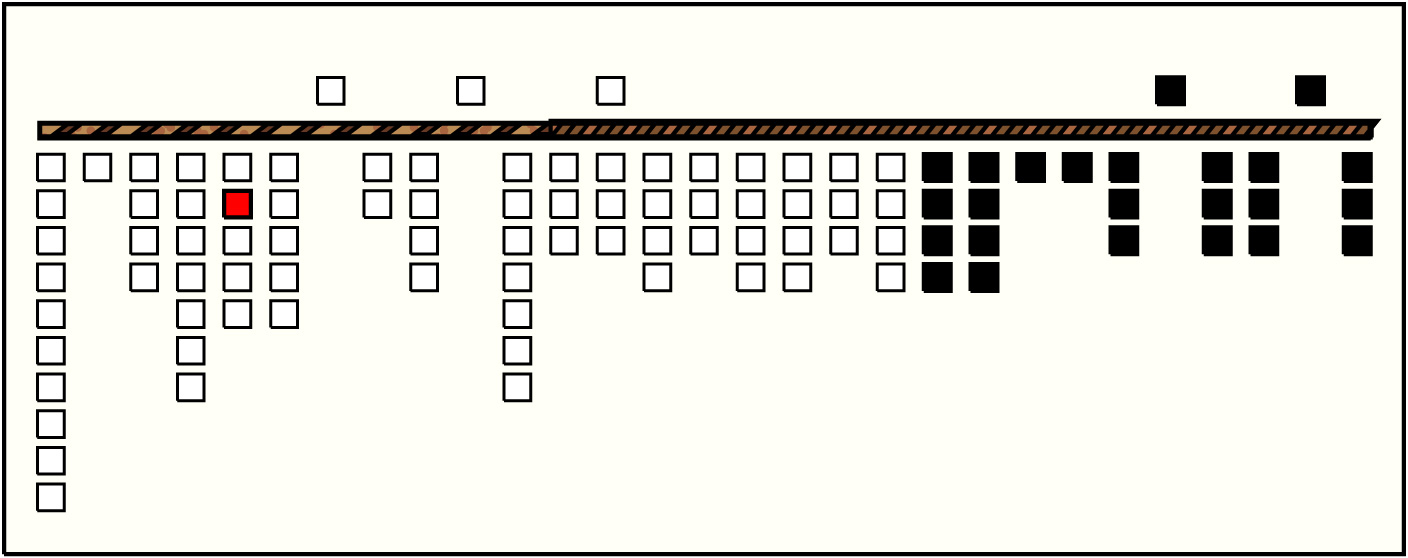

8	p24_{5, 2} : 600_AB	600	24	p77: 1_BS + p78: 17_BS + p79: 1_BS + p80: 4_BS + p81: 1_YB:BS + p82: 19_YB:BS + p83: 5_YB:BS + p84: 7_YB:BS + p85: 4_YB:KB + p86: 12_YB:BS + p87: 25_BS + p88: 23_BS + p89: 18_BS + p90: 143_YB + p91: 54_YB + p92: 7_YB + p93: 16_YB + p94: 30_BS + p95: 0_BS + p96: 16_BS + p97: 100_YB + p98: 69_YB + p99: 18_YB + p100: 10_YB

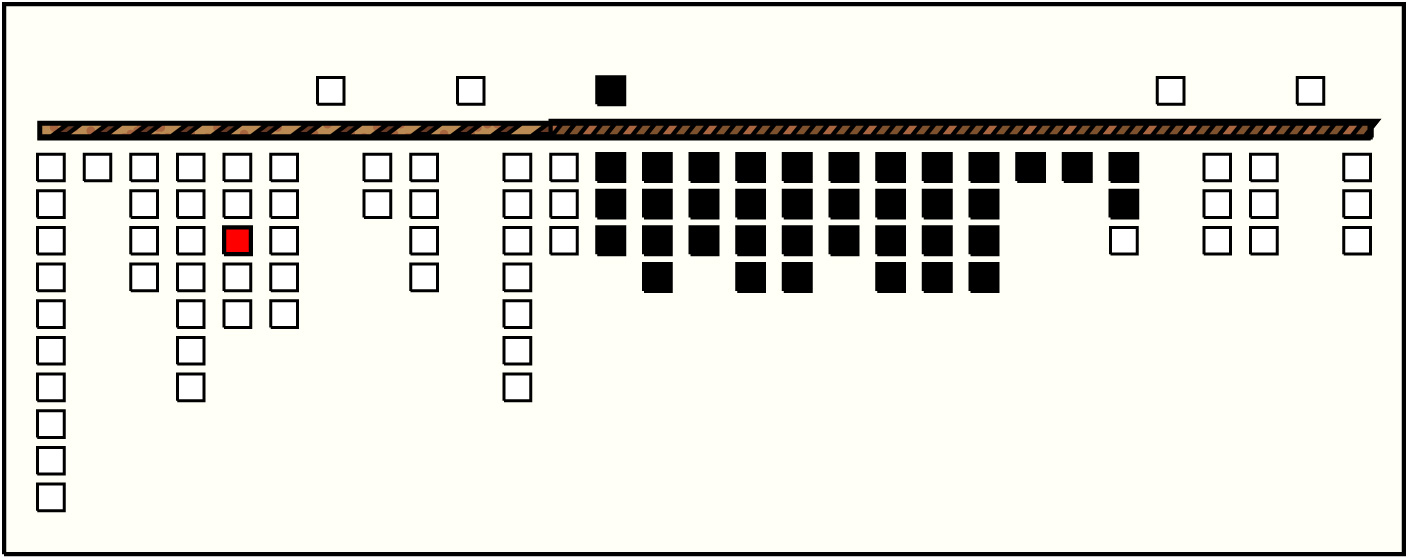

9	p25_{5, 3} : 502_BS	502	38	p51: 111_YB + p52: 47_BS + p53: 15_BS + p54: 12_BS + p55: 0_AB + p56: 10_AB + p57: 0_AB + p58: 0_AB + p59: 1_MB + p60: 0_YB:KB + p61: 0_YB:KB + p62: 1_B + p63: 103_B + p64: 1_B + p65: 4_B + p66: 2_AB + p67: 15_AB + p68: 1_AB + p69: 1_BS + p70: 16_YB + p71: 13_YB + p72: 15_BS + p73: 1_MB + p74: 11_MB + p75: 1_MB + p76: 2_MB + p77: 1_BS + p78: 17_BS + p79: 1_BS + p80: 4_BS + p81: 1_YB:BS + p82: 19_YB:BS + p83: 5_YB:BS + p84: 7_YB:BS + p85: 4_YB:KB + p86: 12_YB:BS + p87: 25_BS + p88: 23_BS

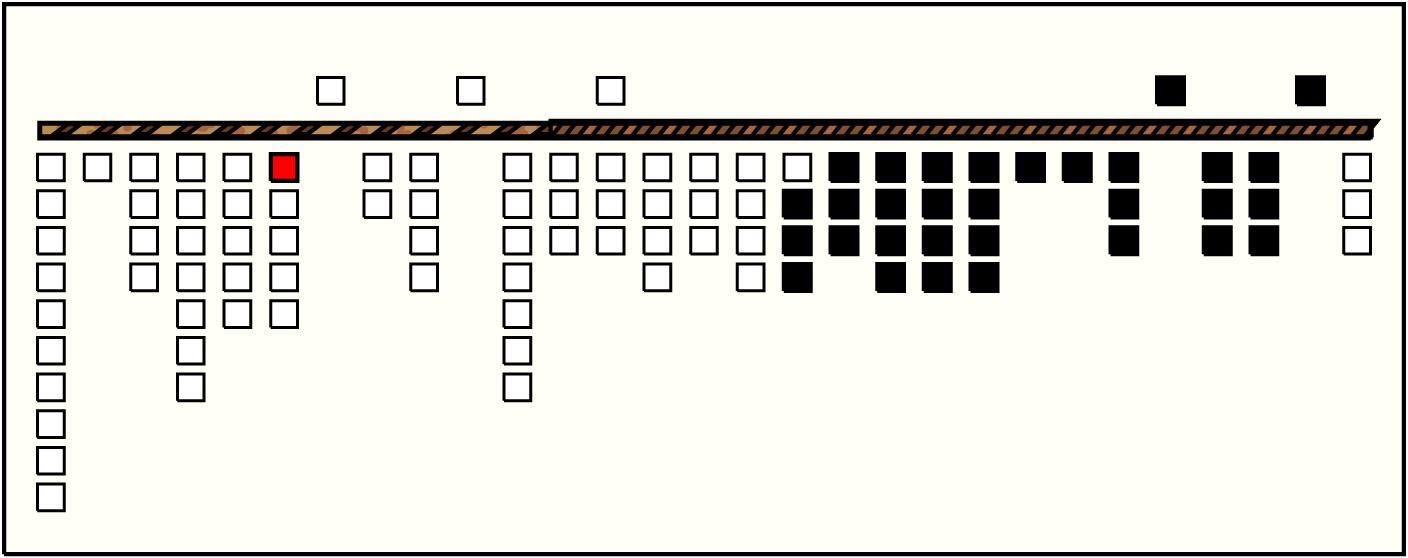

10	p28_{6, 1} : 579_MB	579	31	p67: 15_AB + p68: 1_AB + p69: 1_BS + p70: 16_YB + p71: 13_YB + p72: 15_BS + p73: 1_MB + p74: 11_MB + p75: 1_MB + p76: 2_MB + p77: 1_BS + p78: 17_BS + p79: 1_BS + p80: 4_BS + p81: 1_YB:BS + p82: 19_YB:BS + p83: 5_YB:BS + p84: 7_YB:BS + p85: 4_YB:KB + p86: 12_YB:BS + p87: 25_BS + p88: 23_BS + p89: 18_BS + p90: 143_YB + p91: 54_YB + p92: 7_YB + p93: 16_YB + p94: 30_BS + p95: 0_BS + p96: 16_BS + p97: 100_YB

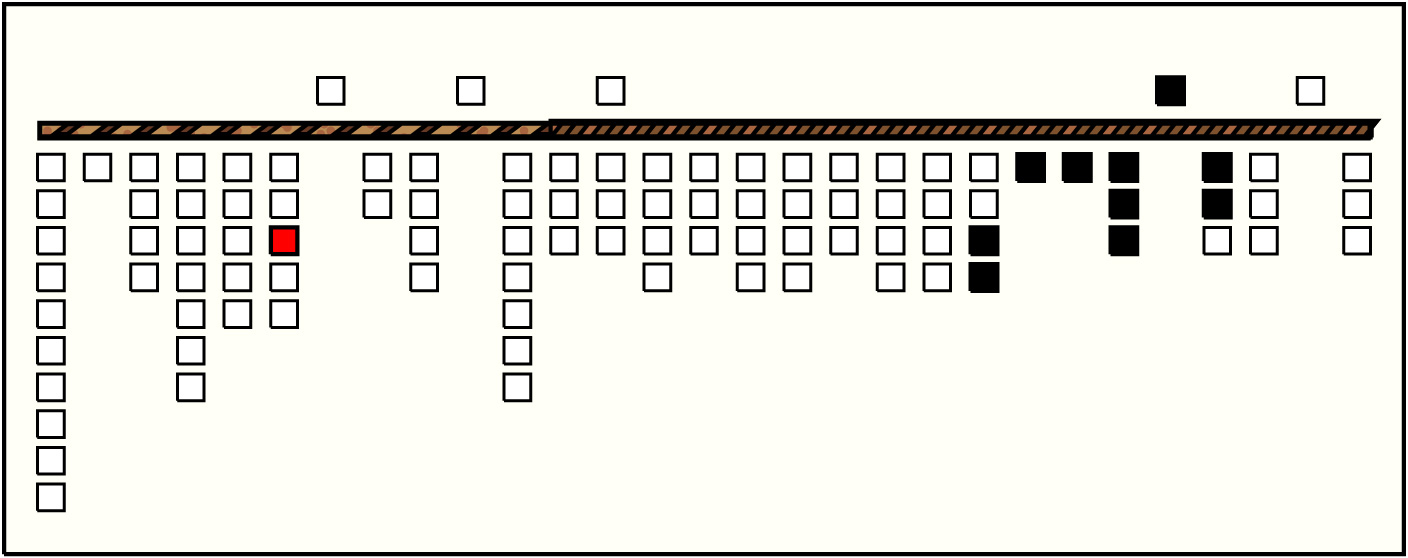

11	p30_{6, 3} : 298_AB	298	10	p83: 5_YB:BS + p84: 7_YB:BS + p85: 4_YB:KB + p86: 12_YB:BS + p87: 25_BS + p88: 23_BS + p89: 18_BS + p90: 143_YB + p91: 54_YB + p92: 7_YB
12	p35_{8, 2} : 190_GG	190	13	p52: 47_BS + p53: 15_BS + p54: 12_BS + p55: 0_AB + p56: 10_AB + p57: 0_AB + p58: 0_AB + p59: 1_MB + p60: 0_YB:KB + p61: 0_YB:KB + p62: 1_B + p63: 103_B + p64: 1_B

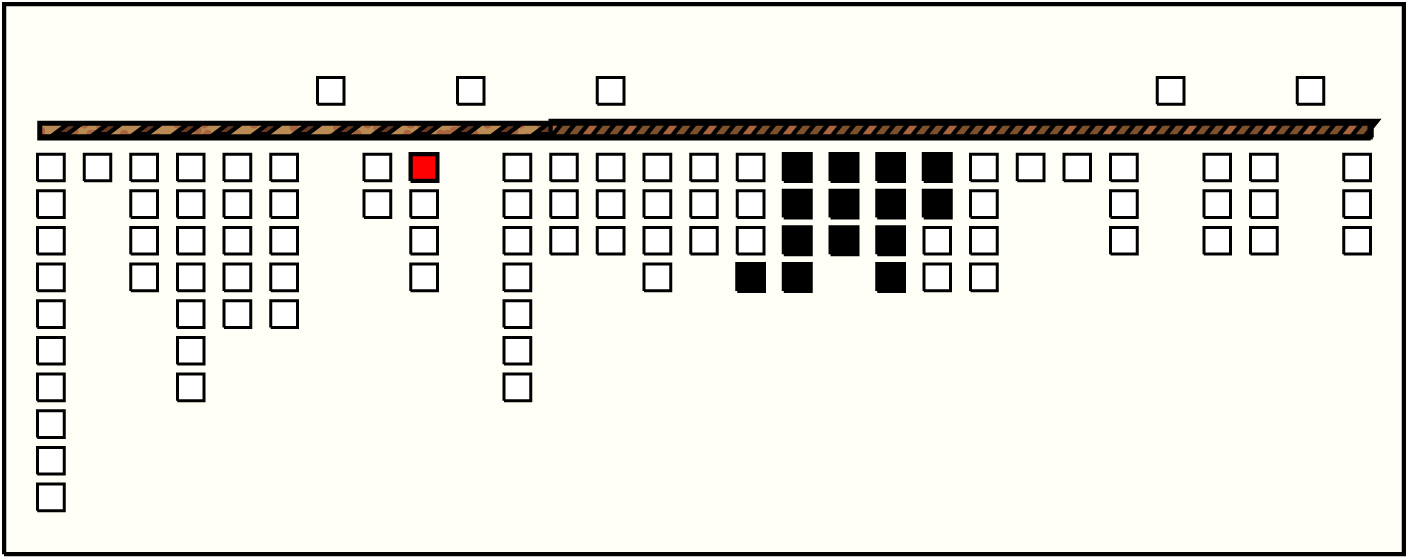

13	p36_{9, 1} : 100_MB	100	14	p65: 4_B + p66: 2_AB + p67: 15_AB + p68: 1_AB + p69: 1_BS + p70: 16_YB + p71: 13_YB + p72: 15_BS + p73: 1_MB + p74: 11_MB + p75: 1_MB + p76: 2_MB + p77: 1_BS + p78: 17_BS

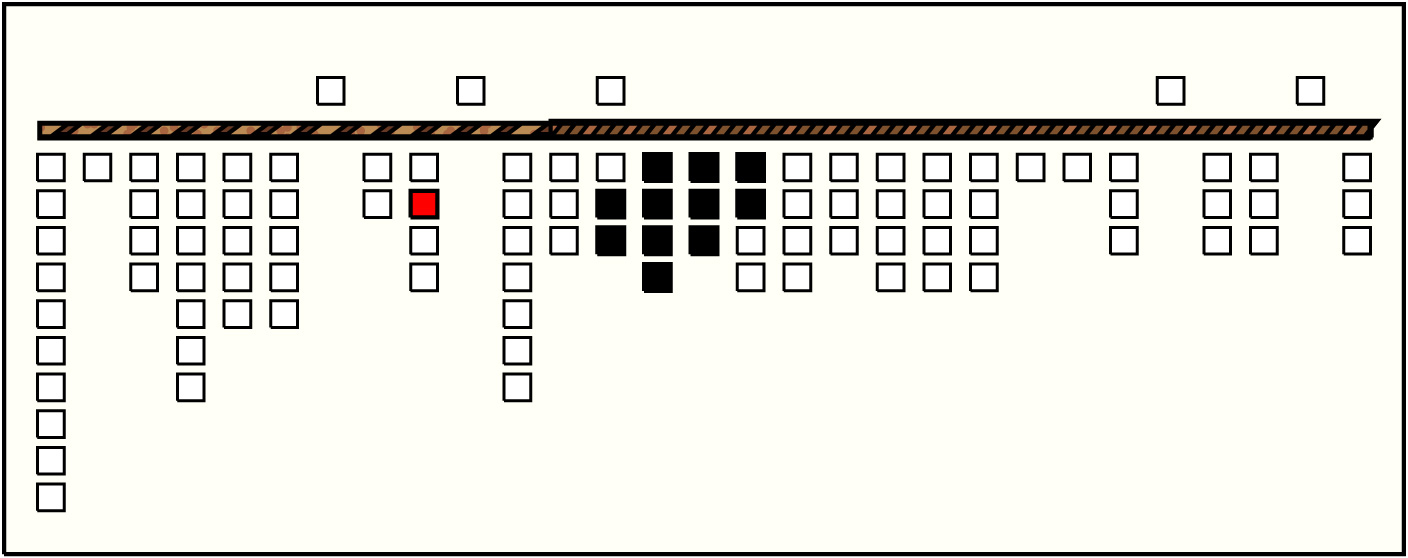

14	p37_{9, 2} : 142_MB	142	11	p53: 15_BS + p54: 12_BS + p55: 0_AB + p56: 10_AB + p57: 0_AB + p58: 0_AB + p59: 1_MB + p60: 0_YB:KB + p61: 0_YB:KB + p62: 1_B + p63: 103_B

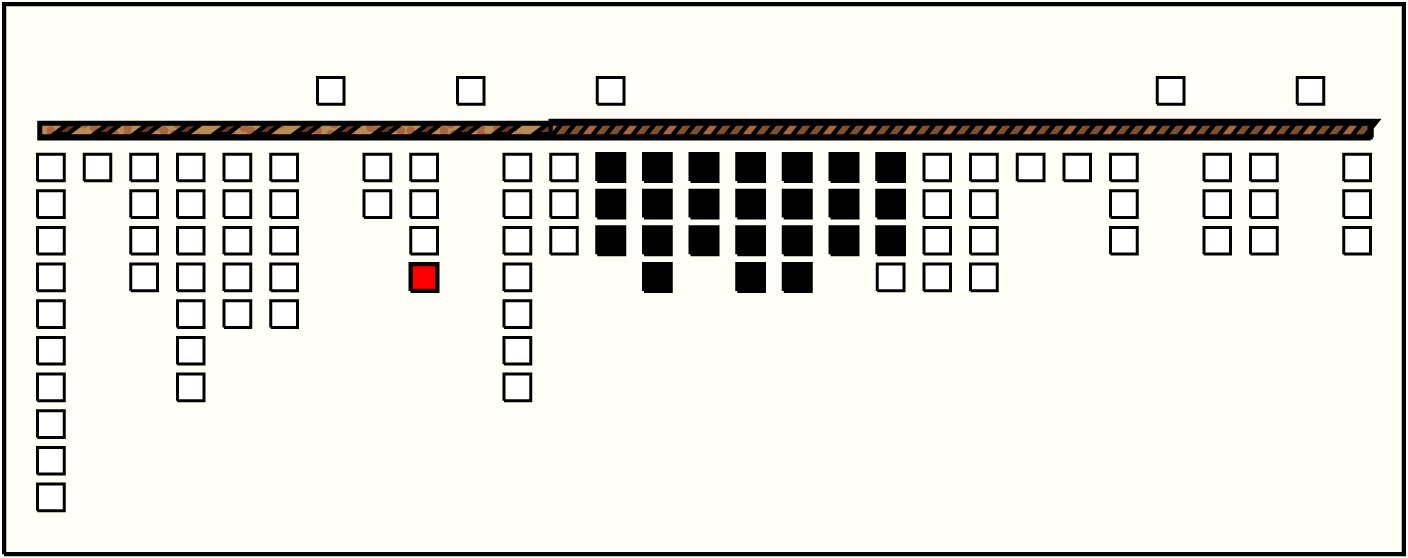

15	p39_{9, 4} : 270_YB	270	24	p52: 47_BS + p53: 15_BS + p54: 12_BS + p55: 0_AB + p56: 10_AB + p57: 0_AB + p58: 0_AB + p59: 1_MB + p60: 0_YB:KB + p61: 0_YB:KB + p62: 1_B + p63: 103_B + p64: 1_B + p65: 4_B + p66: 2_AB + p67: 15_AB + p68: 1_AB + p69: 1_BS + p70: 16_YB + p71: 13_YB + p72: 15_BS + p73: 1_MB + p74: 11_MB + p75: 1_MB
16	p43_{11, 3} : 56_BS	56	5	p70: 16_YB + p71: 13_YB + p72: 15_BS + p73: 1_MB + p74: 11_MB

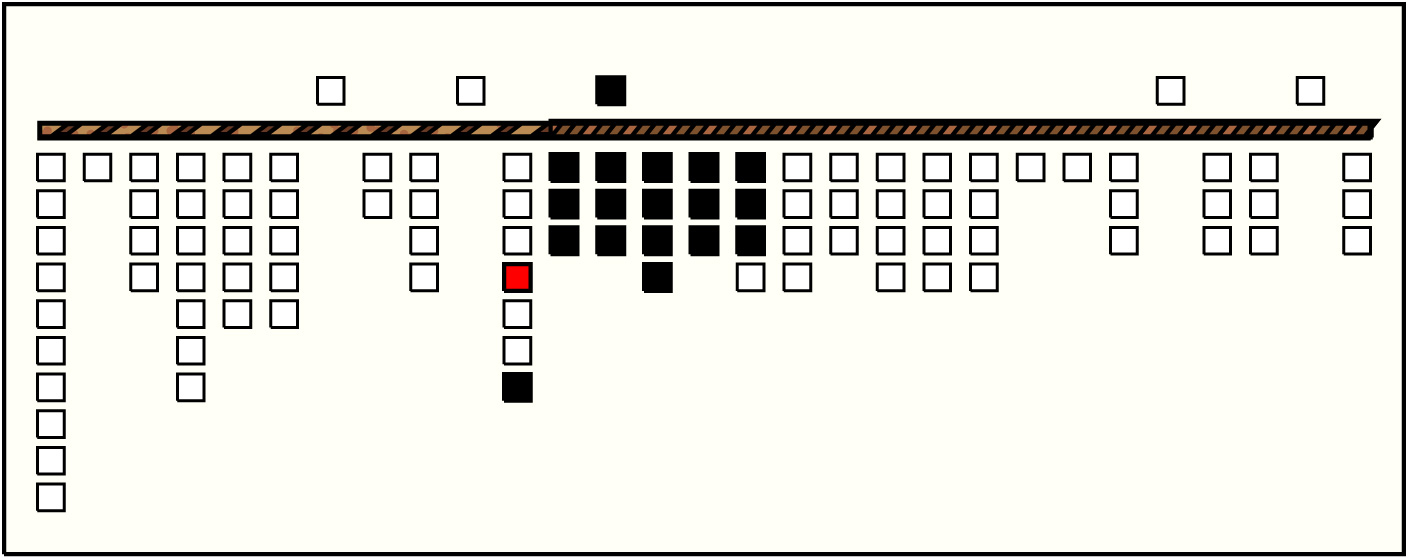

17	p44_{11, 4} : 2792_YB:BS	2792	18	p47: 2454_YB:MB + p48: 16_MB + p49: 14_MB + p50: 7_MB + p51: 111_YB + p52: 47_BS + p53: 15_BS + p54: 12_BS + p55: 0_AB + p56: 10_AB + p57: 0_AB + p58: 0_AB + p59: 1_MB + p60: 0_YB:KB + p61: 0_YB:KB + p62: 1_B + p63: 103_B + p64: 1_B

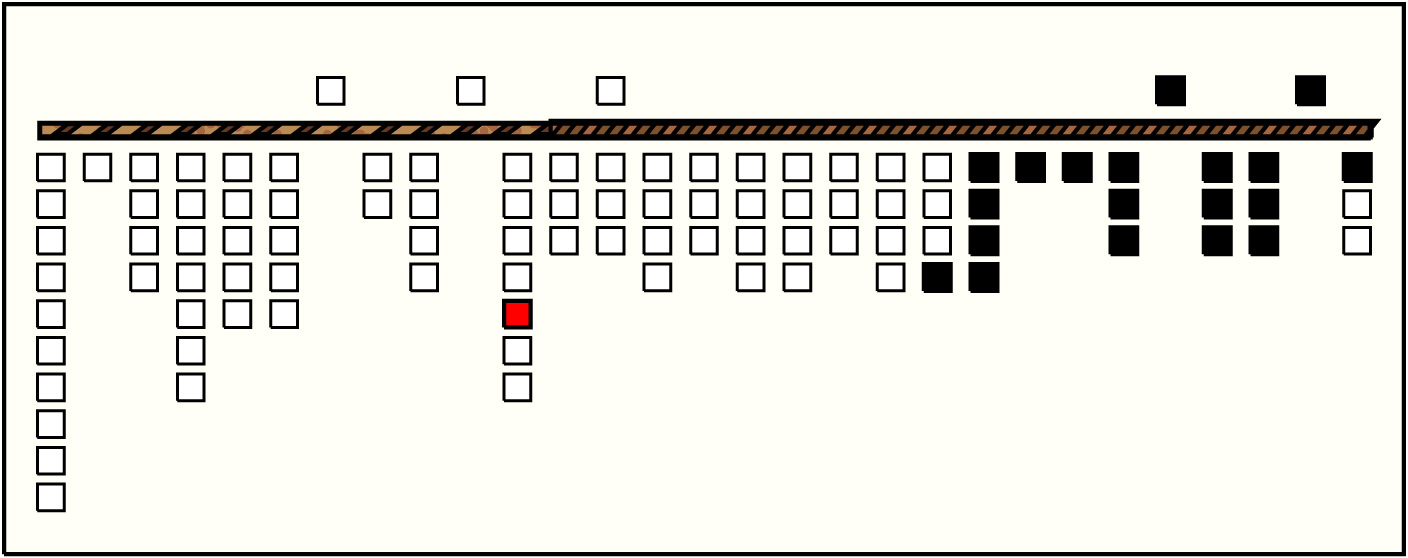

18	p45_{11, 5} : 553_BS	553	19	p80: 4_BS + p81: 1_YB:BS + p82: 19_YB:BS + p83: 5_YB:BS + p84: 7_YB:BS + p85: 4_YB:KB + p86: 12_YB:BS + p87: 25_BS + p88: 23_BS + p89: 18_BS + p90: 143_YB + p91: 54_YB + p92: 7_YB + p93: 16_YB + p94: 30_BS + p95: 0_BS + p96: 16_BS + p97: 100_YB + p98: 69_YB

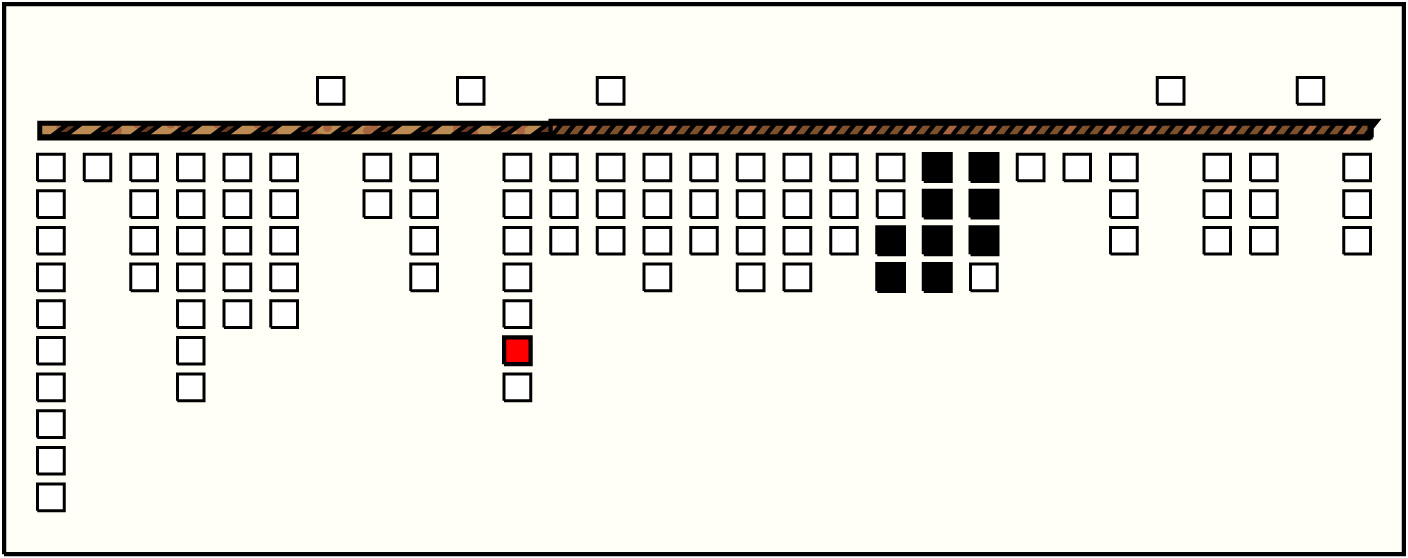

19	p46_{11, 6} : 51_YB	51	9	p75: 1_MB + p76: 2_MB + p77: 1_BS + p78: 17_BS + p79: 1_BS + p80: 4_BS + p81: 1_YB:BS + p82: 19_YB:BS + p83: 5_YB:BS

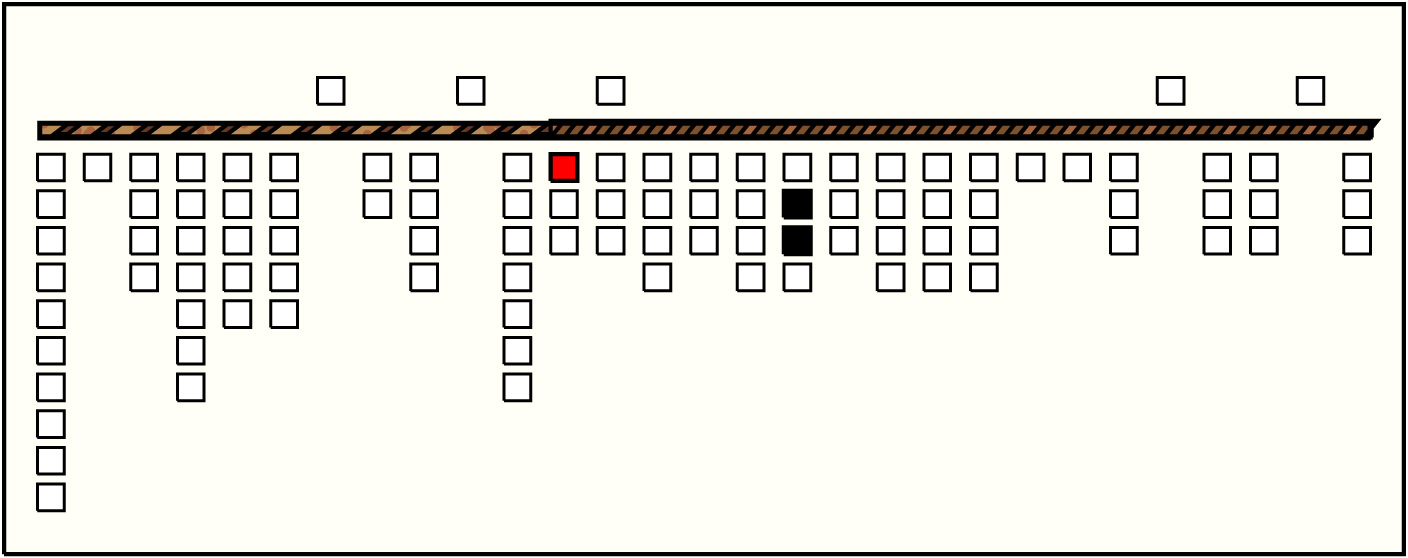

20	p48_{12, 1} : 16_MB	16	2	p67: 15_AB + p68: 1_AB

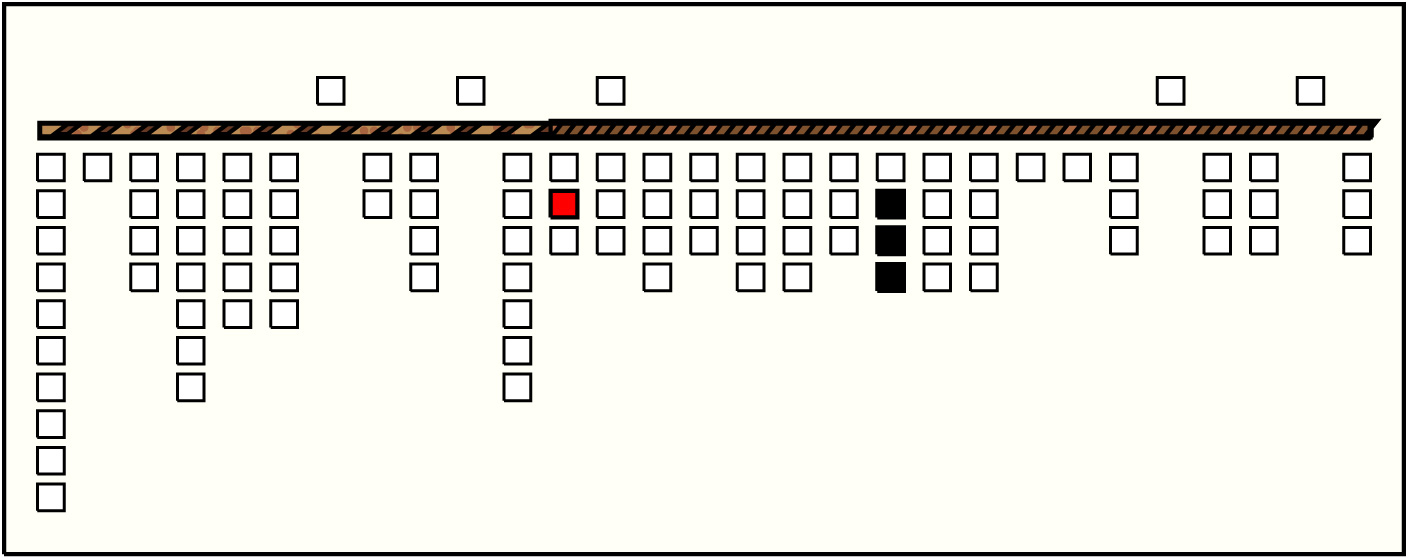

21	p49_{12, 2} : 14_MB	14	3	p74: 11_MB + p75: 1_MB + p76: 2_MB

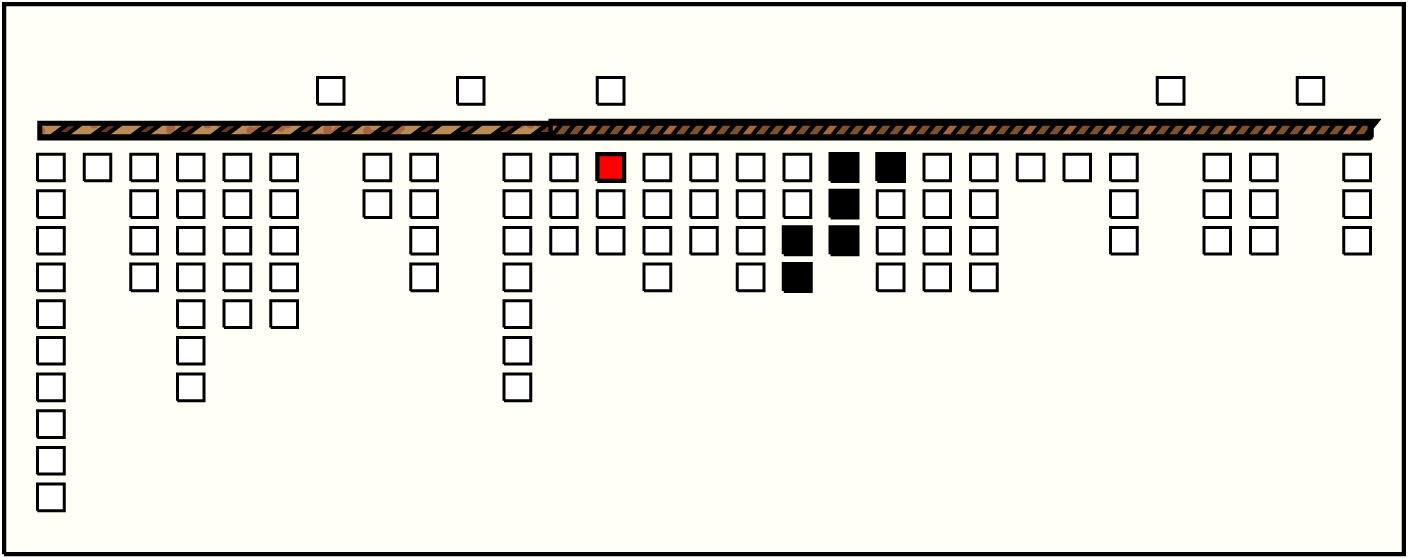

22	p52_{13, 2} : 47_BS	47	6	p68: 1_AB + p69: 1_BS + p70: 16_YB + p71: 13_YB + p72: 15_BS + p73: 1_MB

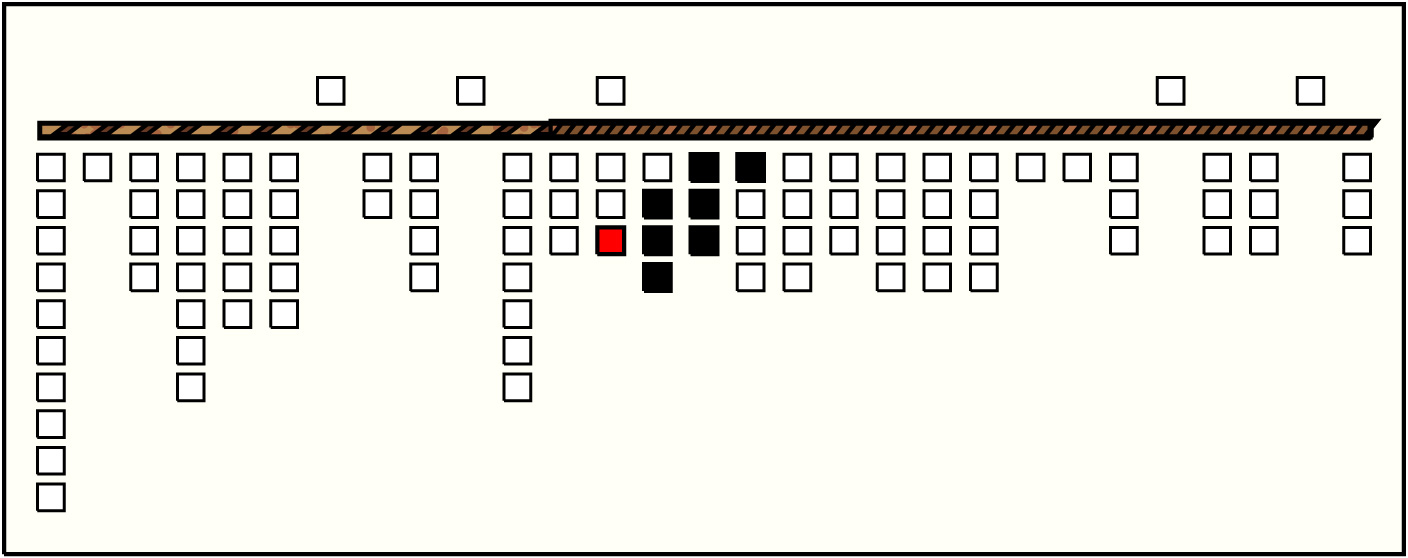

23	p54_{13, 4} : 12_BS	12	7	p56: 10_AB + p57: 0_AB + p58: 0_AB + p59: 1_MB + p60: 0_YB:KB + p61: 0_YB:KB + p62: 1_B
24	p63_{16, 2} : 103_B	103	14	p69: 1_BS + p70: 16_YB + p71: 13_YB + p72: 15_BS + p73: 1_MB + p74: 11_MB + p75: 1_MB + p76: 2_MB + p77: 1_BS + p78: 17_BS + p79: 1_BS + p80: 4_BS + p81: 1_YB:BS + p82: 19_YB:BS

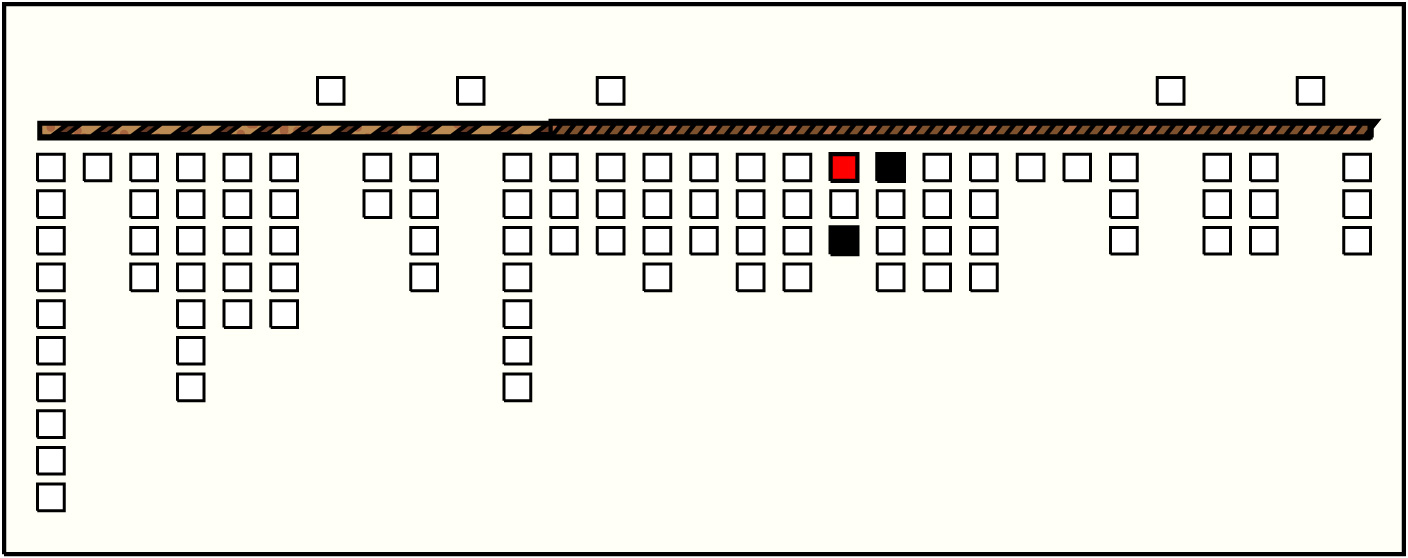

25	p70_{18, 1} : 16_YB	16	2	p72: 15_BS + p73: 1_MB

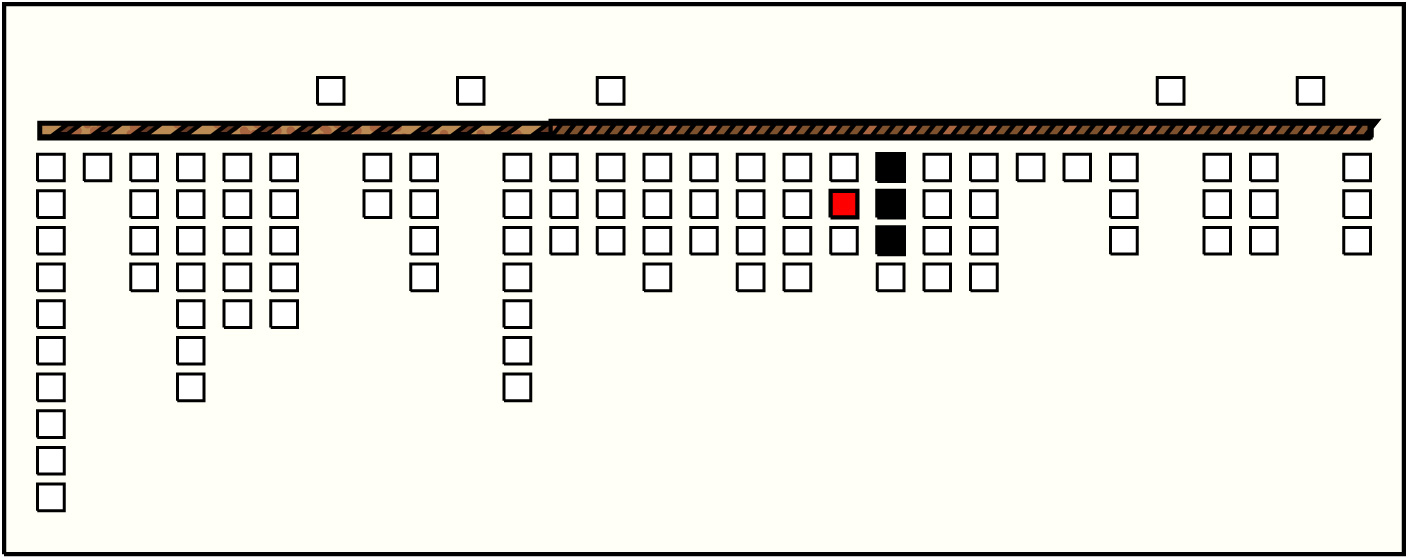

26	p71_{18, 2} : 13_YB	13	3	p73: 1_MB + p74: 11_MB + p75: 1_MB

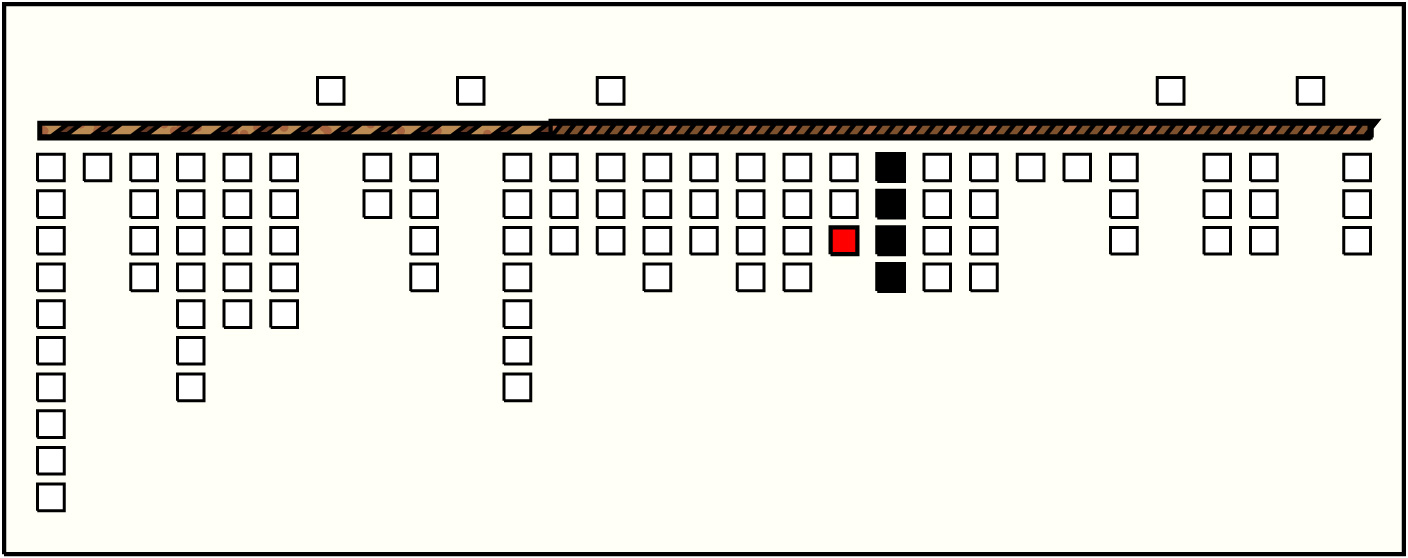

27	p72_{18, 3} : 15_BS	15	4	p73: 1_MB + p74: 11_MB + p75: 1_MB + p76: 2_MB

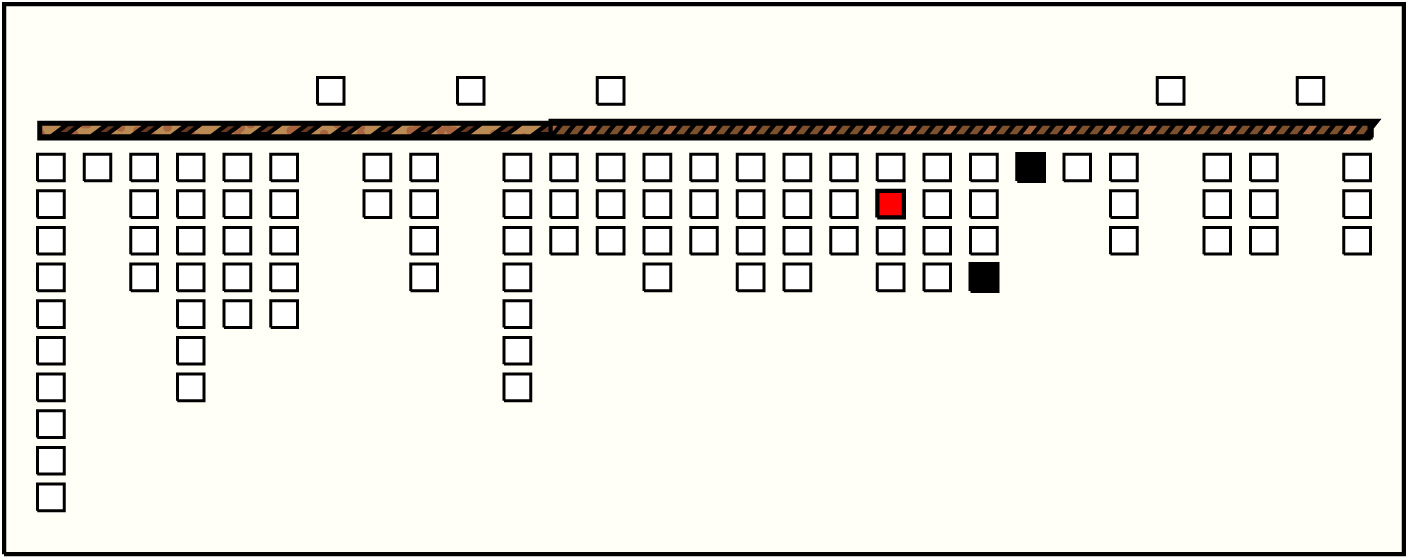

28	p74_{19, 2} : 11_MB	11	2	p84: 7_YB:BS + p85: 4_YB:KB

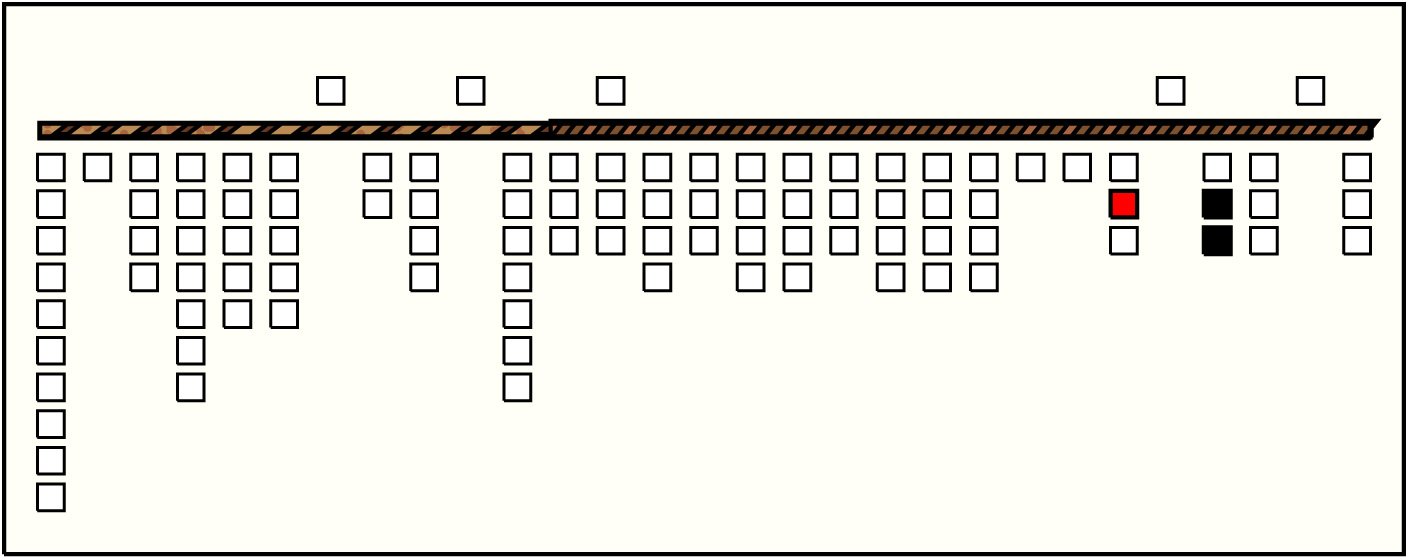

29	p88_{24, 2} : 23_BS	23	2	p92: 7_YB + p93: 16_YB

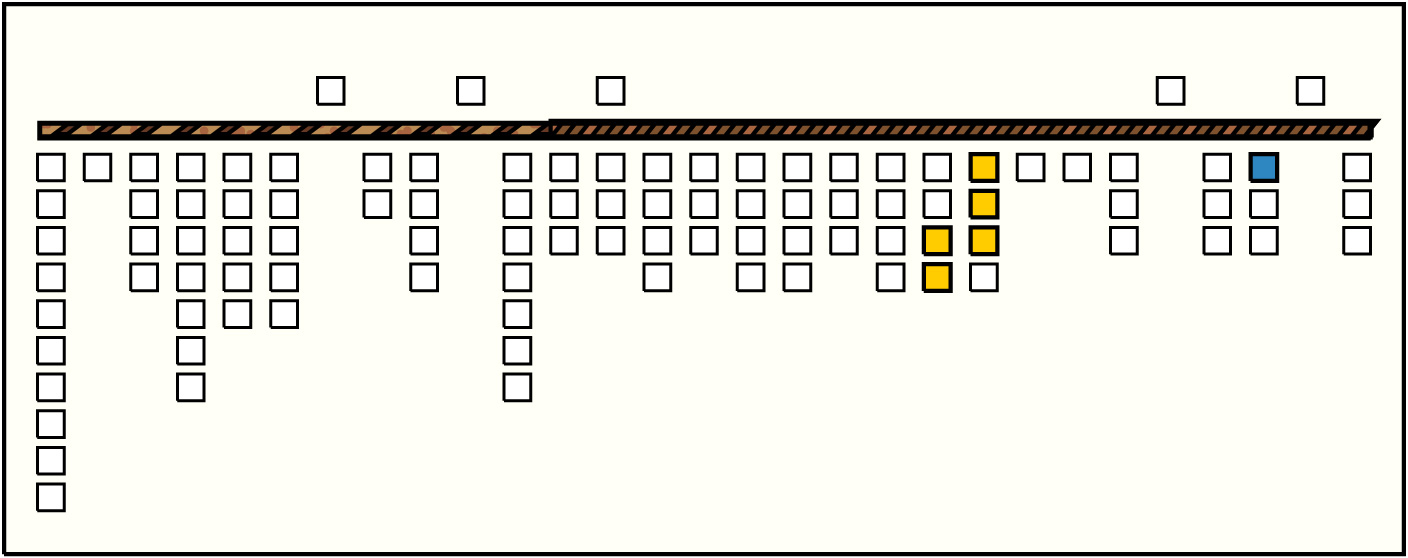

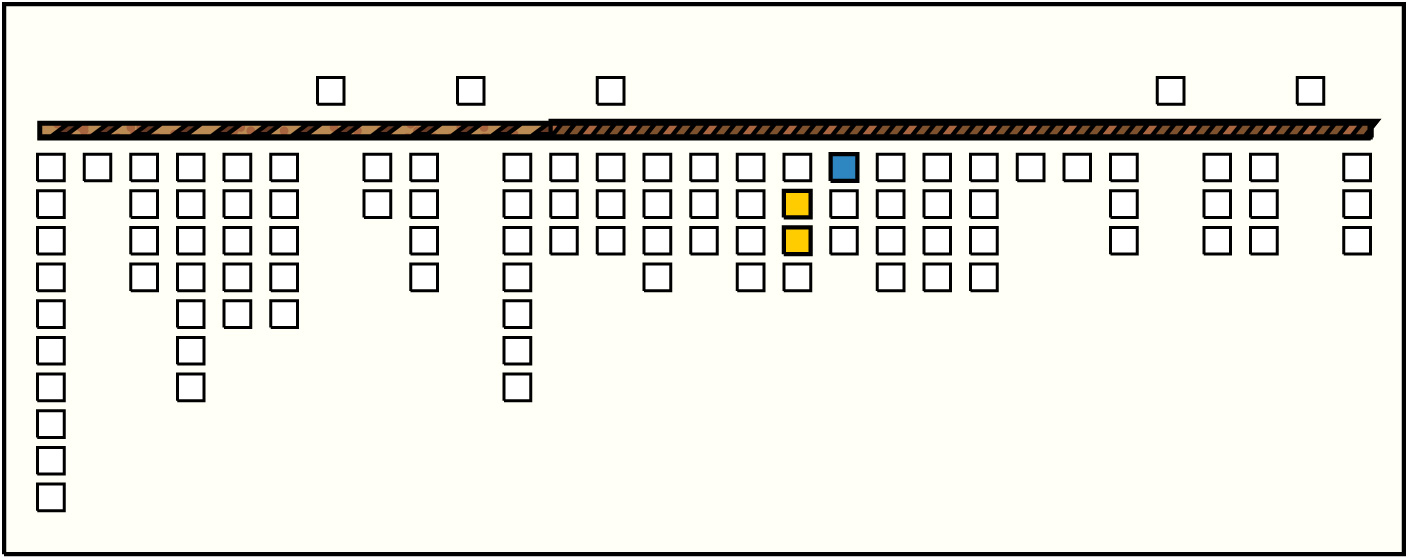

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p70_{18, 1} : 16_YB	16	2	p67: 15_AB + p68: 1_AB

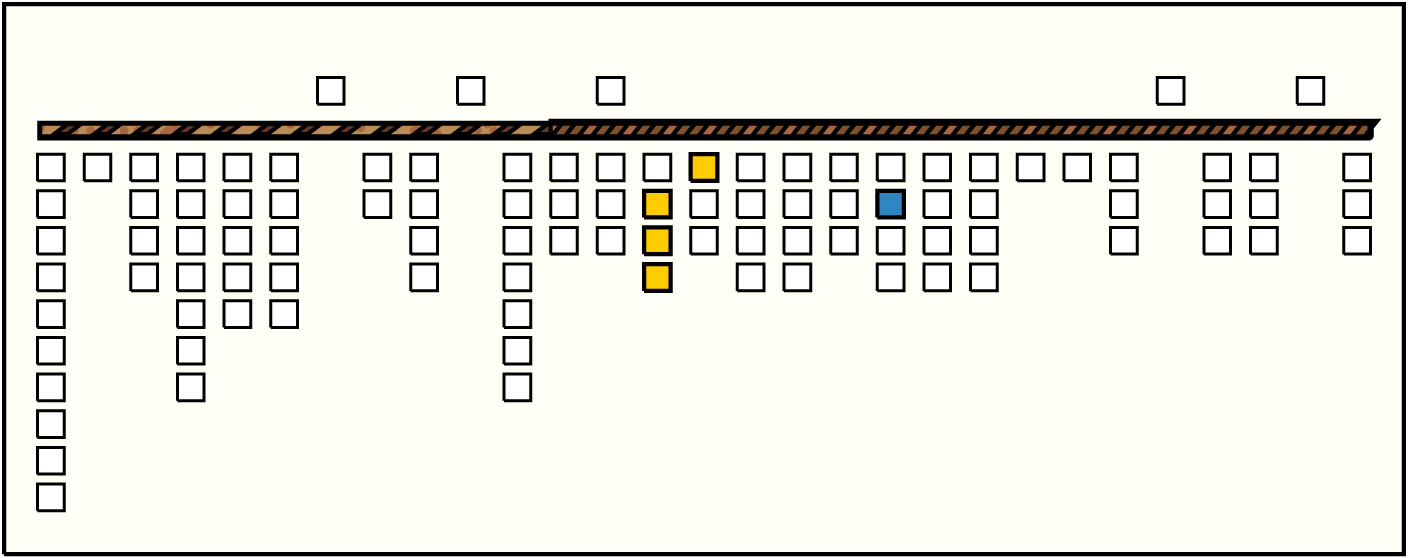

2	p74_{19, 2} : 11_MB	11	4	p56: 10_AB + p57: 0_AB + p58: 0_AB + p59: 1_MB

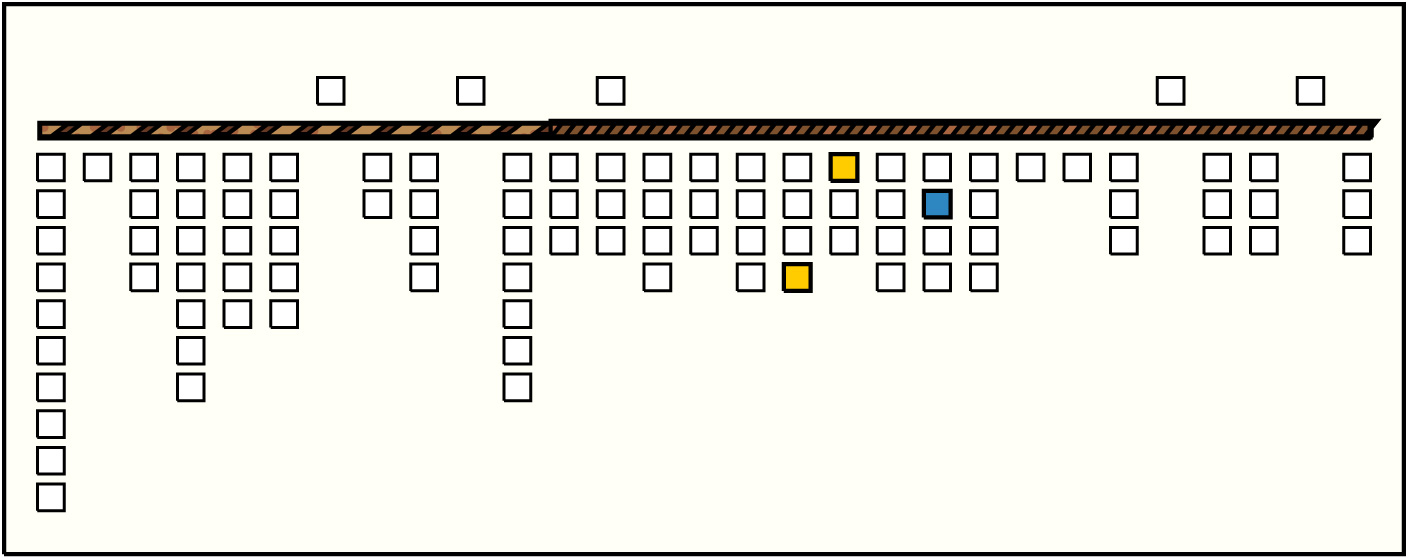

3	p78_{20, 2} : 17_BS	17	2	p69: 1_BS + p70: 16_YB
4	p82_{21, 2} : 19_YB:BS	19	3	p77: 1_BS + p78: 17_BS + p79: 1_BS

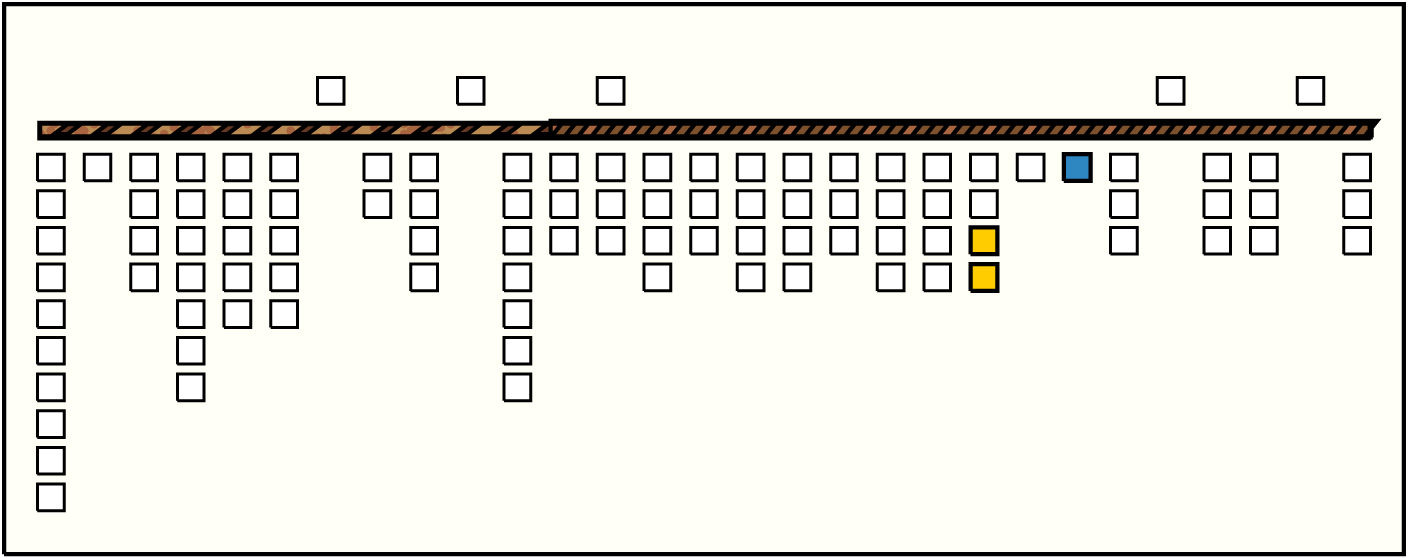

5	p86_{23, 1} : 12_YB:BS	12	2	p83: 5_YB:BS + p84: 7_YB:BS

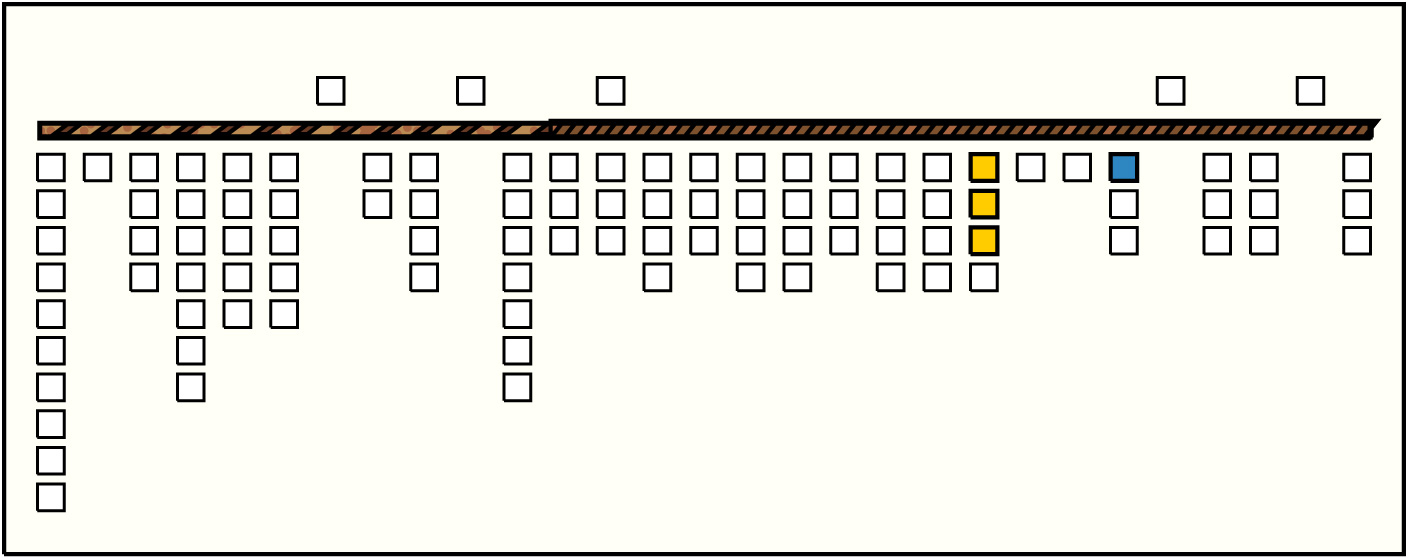

6	p87_{24, 1} : 25_BS	25	3	p81: 1_YB:BS + p82: 19_YB:BS + p83: 5_YB:BS
7	p88_{24, 2} : 23_BS	23	3	p84: 7_YB:BS + p85: 4_YB:KB + p86: 12_YB:BS

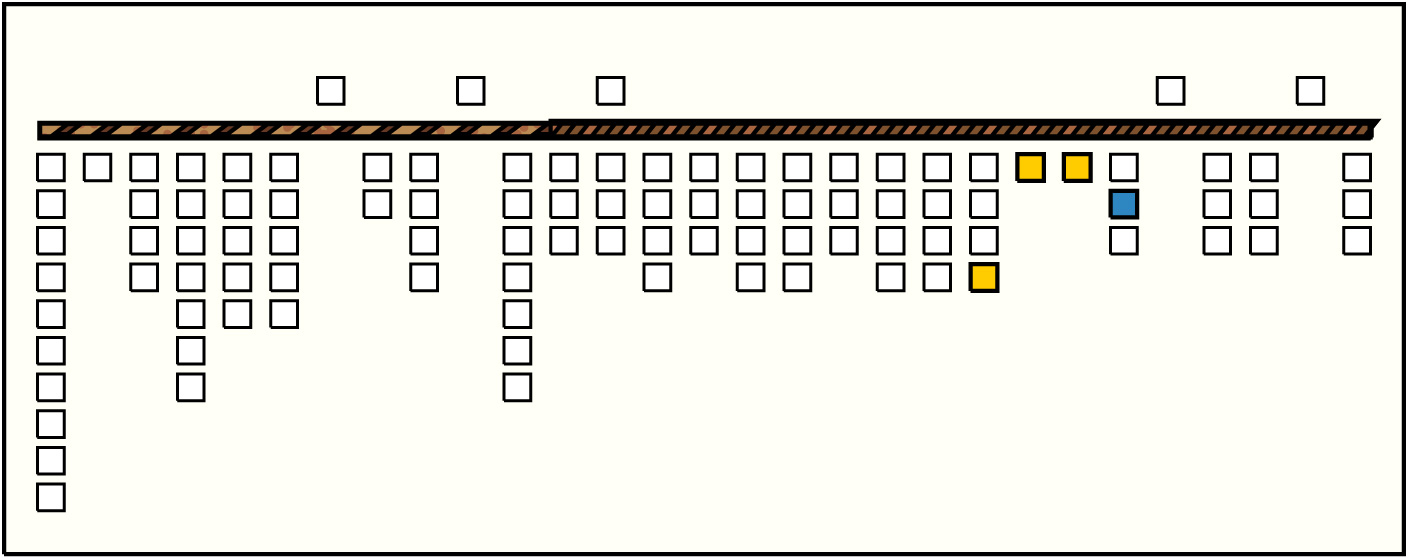

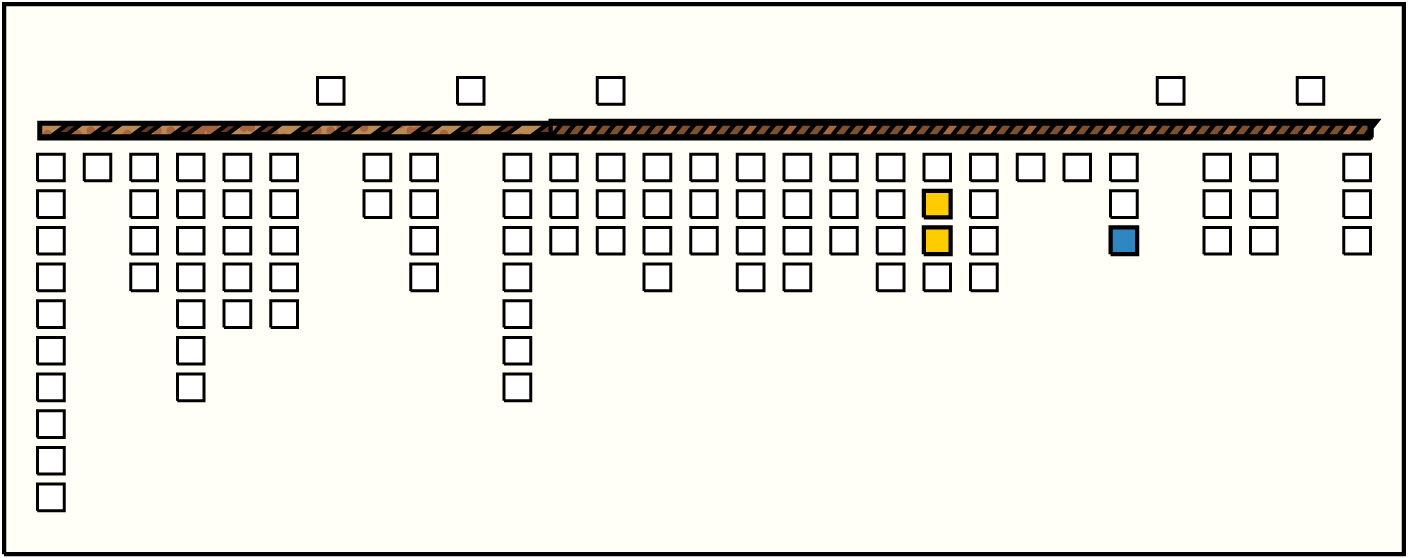

8	p89_{24, 3} : 18_BS	18	2	p78: 17_BS + p79: 1_BS

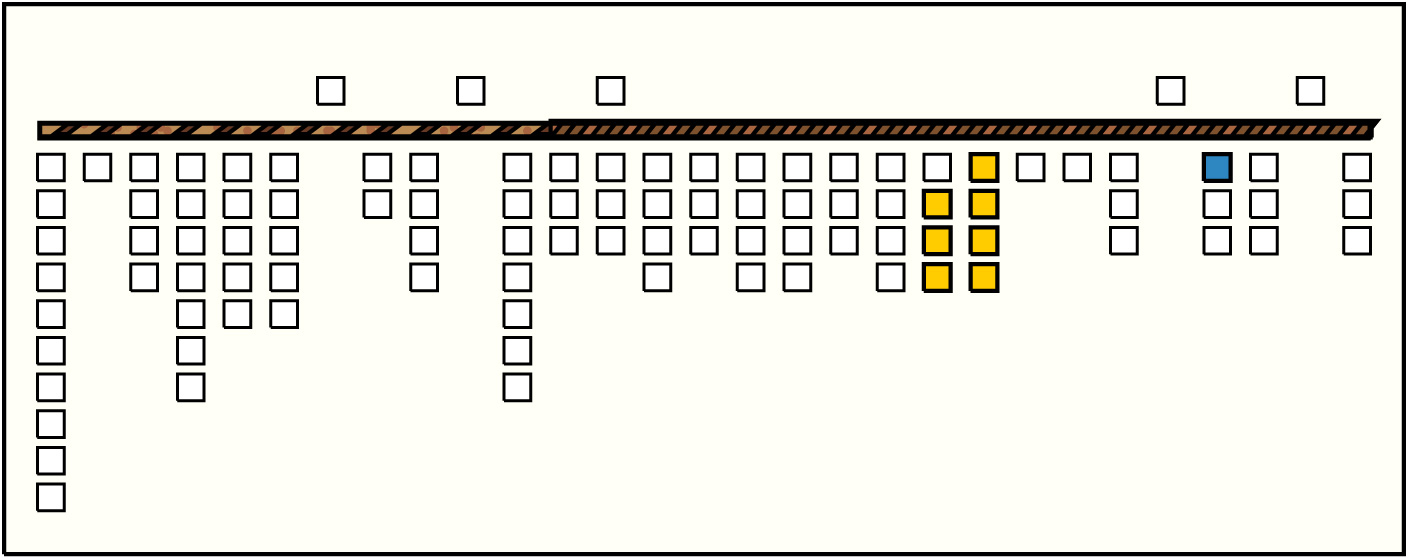

9	p91_{26, 1} : 54_YB	54	7	p78: 17_BS + p79: 1_BS + p80: 4_BS + p81: 1_YB:BS + p82: 19_YB:BS + p83: 5_YB:BS + p84: 7_YB:BS

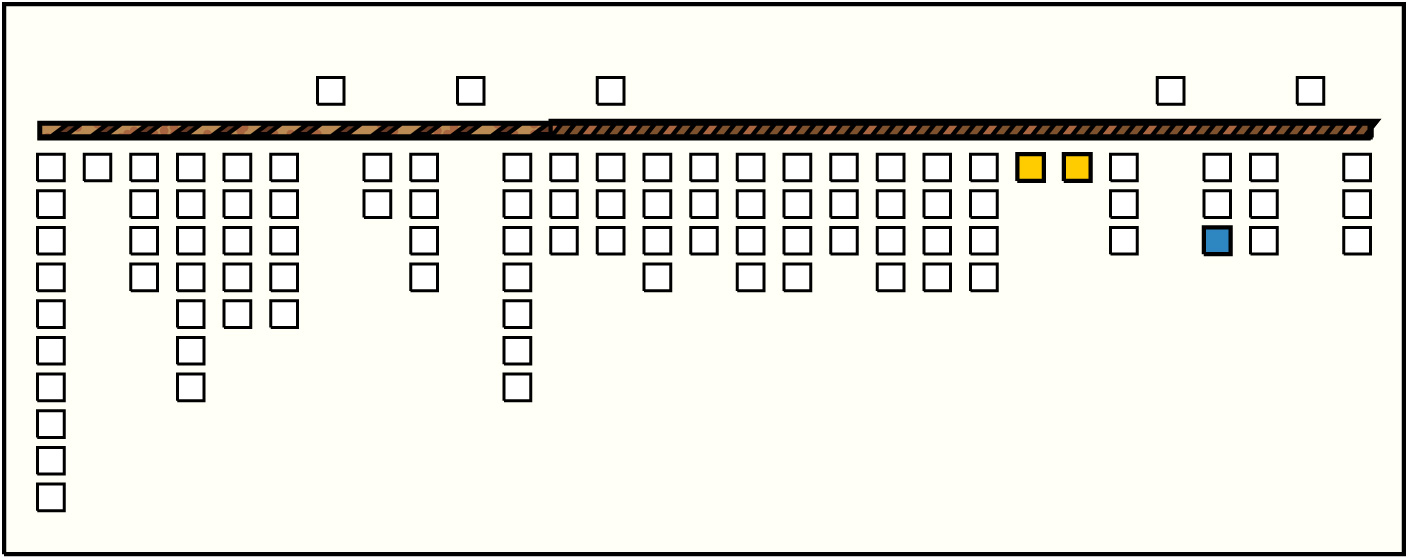

10	p93_{26, 3} : 16_YB	16	2	p85: 4_YB:KB + p86: 12_YB:BS
11	p94_{27, 1} : 30_BS	30	5	p79: 1_BS + p80: 4_BS + p81: 1_YB:BS + p82: 19_YB:BS + p83: 5_YB:BS

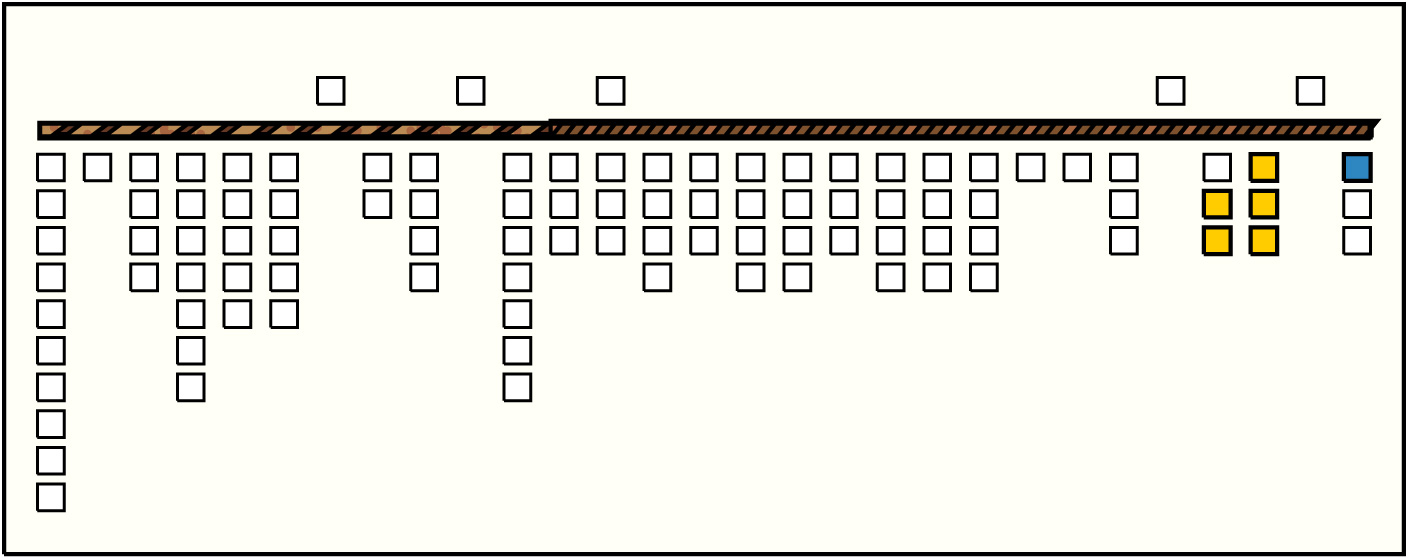

12	p98_{29, 1} : 69_YB	69	5	p92: 7_YB + p93: 16_YB + p94: 30_BS + p95: 0_BS + p96: 16_BS

Khipu Notes:

Wise Khipu T41299.18 (B373)
Fragmentary khipu with two main cords and top and subsidiary and tertiary cords
Two fragmentary main cords interlocked to make one khipu.
Constructed of cotton and plant fiber with indigo dye.

Primary Cord

Main cord is made up of two different cords:
Main A - S-plied md br and mottled lt br/lt tn. Measures 19.7 in/50 cm from severed end to plied end
Perhaps put together without planning to from start; the main cords are tied together by looping end of Main B through ply end of Main A and then securing with a knotted P46.
Main B - S-plied striped blue and light brown, with two parts blue to one part lt br. Measures 15.4 in/39 cm from plied end to severed right end (with 1 in/2.5 cm of cord folded back in the intersection with Main A).
Two main cords are interlocked: Main B's plied end is pulled whole through the ply loop of Main A and then folded back over itself with the first pendant of Main B securing it to itself by tying around the main cord.
Main A is technically read "backwards" here in comparison to other khipu because it starts with the loose end on the left and ends with plied end on right.

Cord Notes

Some top cords in this khipu are pulled down on the mount -- could maybe be repositioned?
In A3, the subsidiary and tertiary cord knot values are possibly higher than the pendant knot sum (if we have assigned decimal position correctly) -- this is unusual.
In A8, the top cord value is 512, matching the sum of the associated, looped pendants of 512.
The sum of pendant cords on Main A (excluding those that may be broken) is 16829. The last group on Main A values 8888, and the rest of the groups in Main A are 7941.
It is possible that Groups A1-A8 originally valued 8888 in knots as well, making Main A two "sections" of 8888 and totalling 17776.
It is also possible that they were meant to be similar values that changed over time or depending on who counted whatever was being recorded and they are recorded together to show both.
However, there don't seem to be any color patterns duplicated in Group 9 that were present in the preceding groups.
There are none of the unidentified plant fibers on Main A, they are all on Main B.
A lot of broken cords on Main B that may alter our interpretation of the knot values and placements.
p81-89? have repeated color combinations and both produce knot sums of 143, but with different combinations of numbers.
First group of p81-89? has a top cord of 143 that matches the sum of its pendants knots; Next groups top cord is 100, but is broken, so could have also read 143.
Total knot sum of Main B is 661, meaning that the entire khipu has a pendant knot value of 17490, plus whatever knots were lost in the fragments.
A3's subsidiary cords are attached at the half-hitch knot, rather than on the body of the pendant.
Pendant 19 in A4 might be a top cord; it seems to "stand" rather than "hang."
Some subsidiary cords are attached through one strand of the plied pendants rather than around entire pendant.
Some strands of unidentified plant fibers.
Inverted long knot in Sub B1-49E.
P85 is not attached to the main cords; where did it come from?
