UR010/KH0246 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

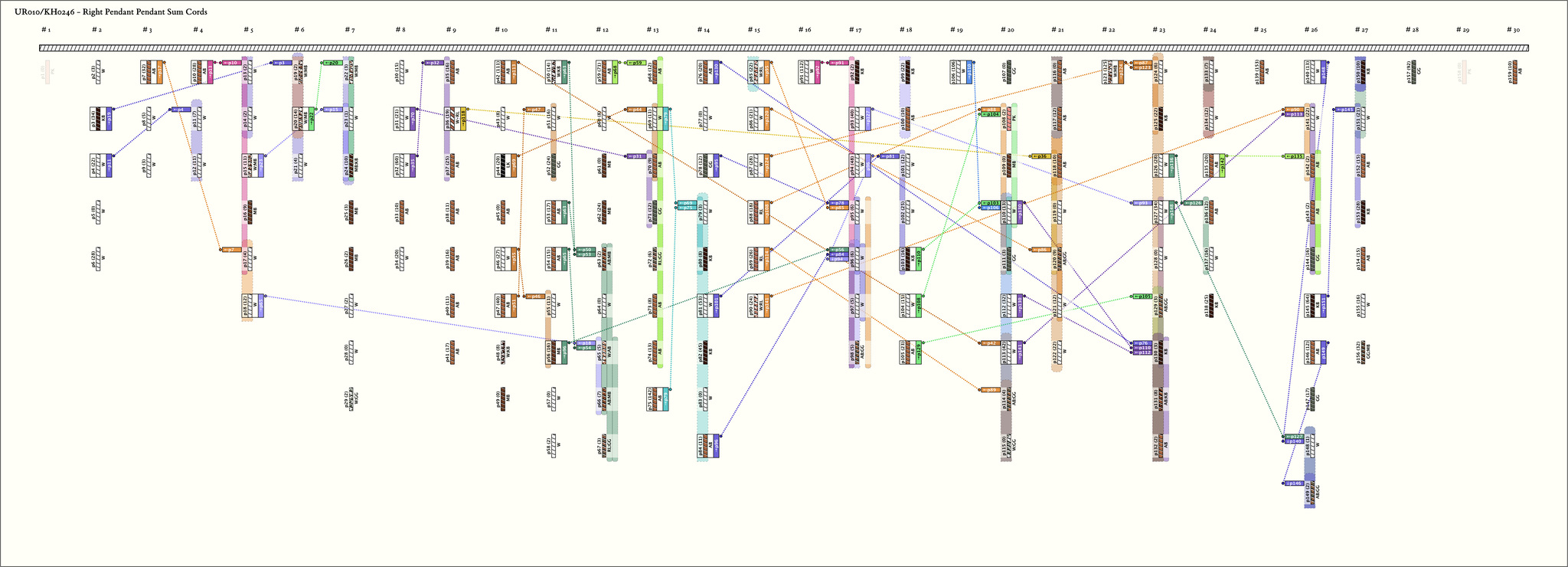

Right Handed Sums: # Sums = 48, Max # Summands = 11, (Min, Mean, Max) Sum Values = (11, 36, 142)
Click on Image to View Larger

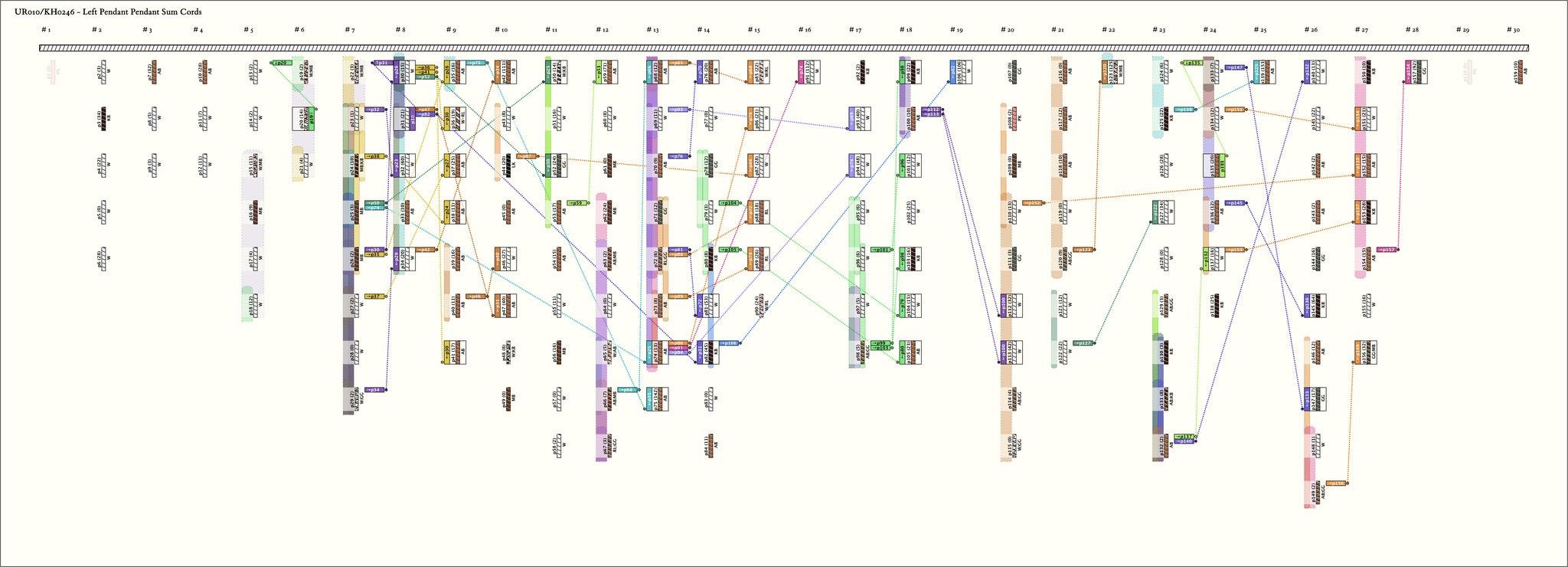

Left Handed Sums: # Sums = 51, Max # Summands = 13, (Min, Mean, Max) Sum Values = (11, 39, 153)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

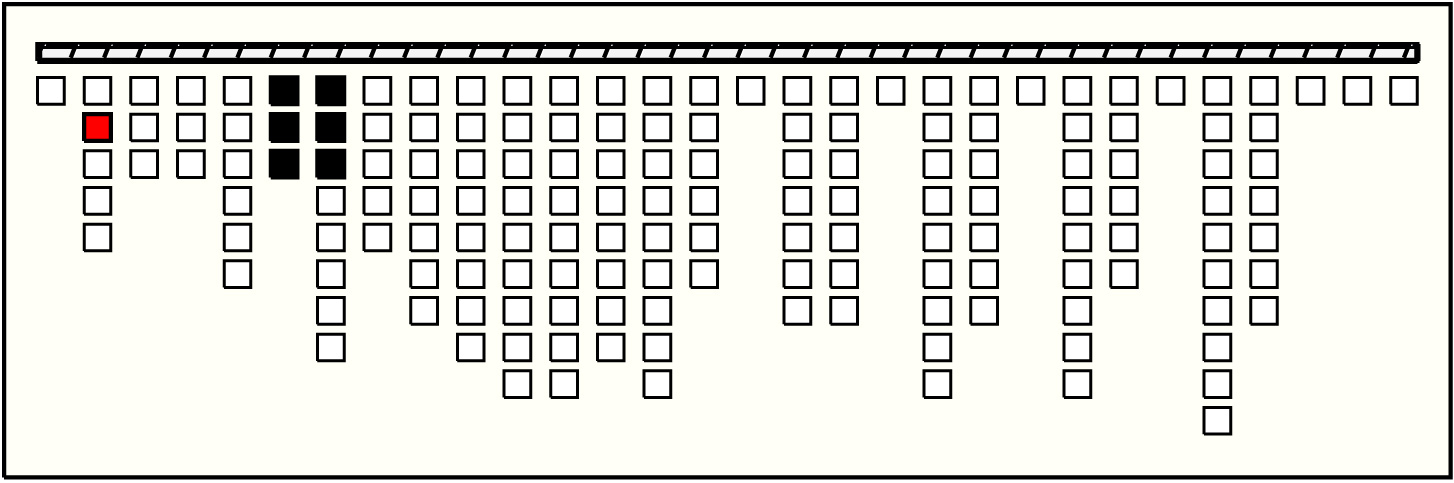

1	p3_{2, 2} : 34_KB	34	6	p19: 2_W:MB + p20: 14_W:MB + p21: 4_W + p22: 3_W:MB + p23: 1_W + p24: 10_MB:KB
2	p4_{2, 3} : 22_W	22	4	p11: 7_W + p12: 11_W + p13: 2_W + p14: 2_W
3	p7_{3, 1} : 32_AB	32	4	p17: 4_W + p18: 12_W + p19: 2_W:MB + p20: 14_W:MB

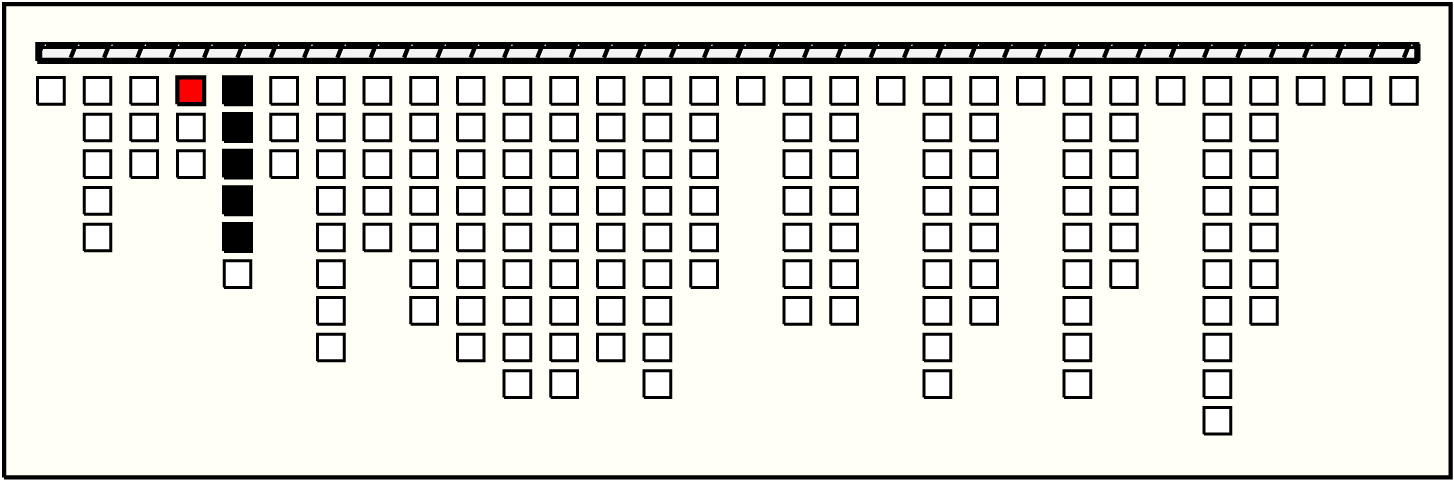

4	p10_{4, 1} : 28_AB	28	5	p13: 2_W + p14: 2_W + p15: 11_W:MB + p16: 9_MB + p17: 4_W

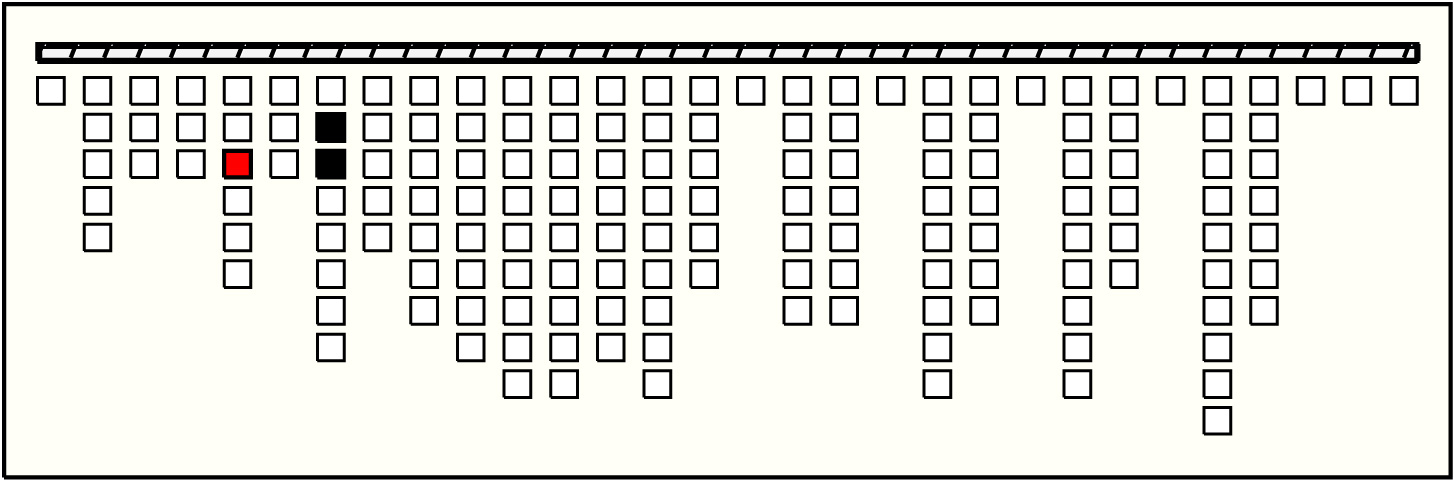

5	p15_{5, 3} : 11_W:MB	11	2	p23: 1_W + p24: 10_MB:KB
6	p18_{5, 6} : 12_W	12	2	p65: 5_W:AB + p66: 7_AB:MB

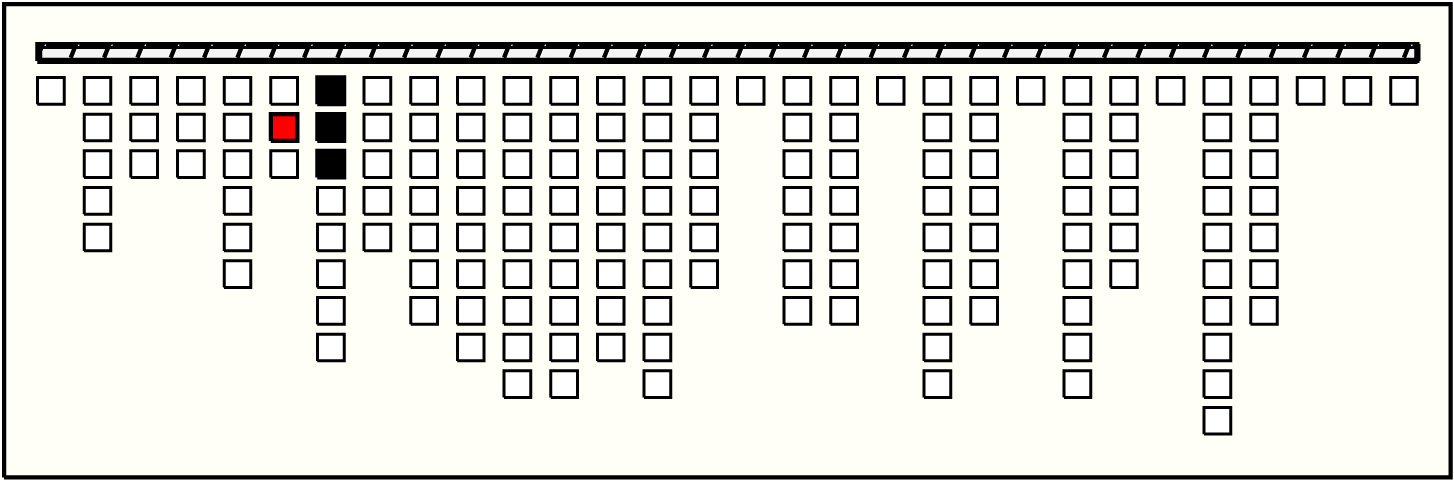

7	p20_{6, 2} : 14_W:MB	14	3	p22: 3_W:MB + p23: 1_W + p24: 10_MB:KB

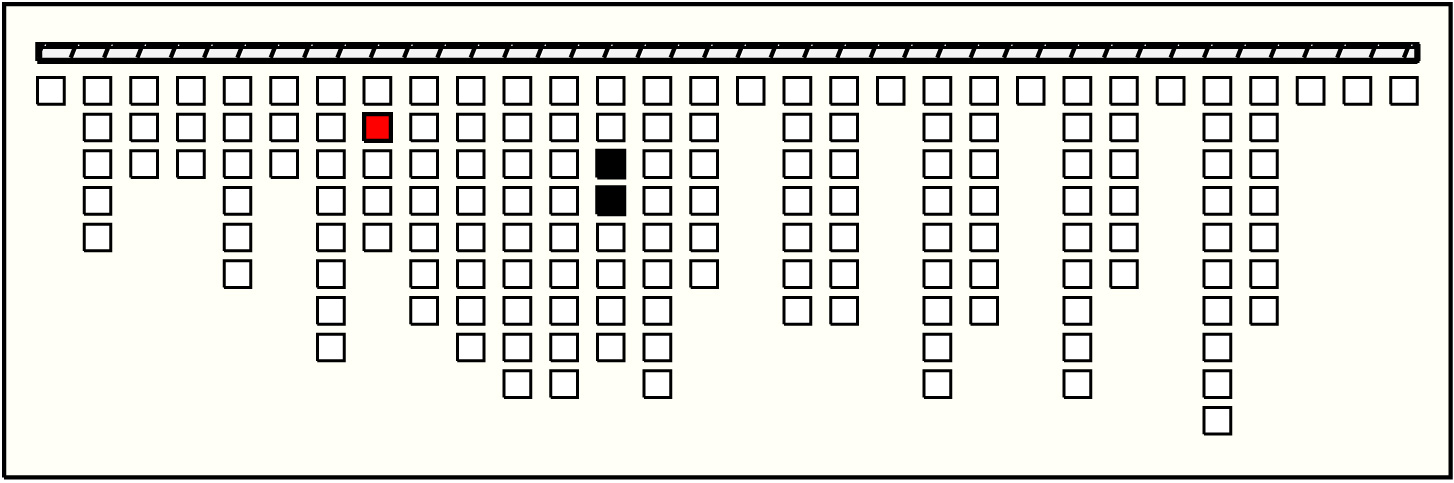

8	p31_{8, 2} : 21_W	21	2	p70: 9_AB + p71: 12_GG
9	p32_{8, 3} : 60_W	60	3	p35: 16_AB + p36: 19_W-RL + p37: 25_AB
10	p36_{9, 2} : 19_W-RL	19	3	p118: 10_AB + p119: 0_W + p120: 9_AB:GG

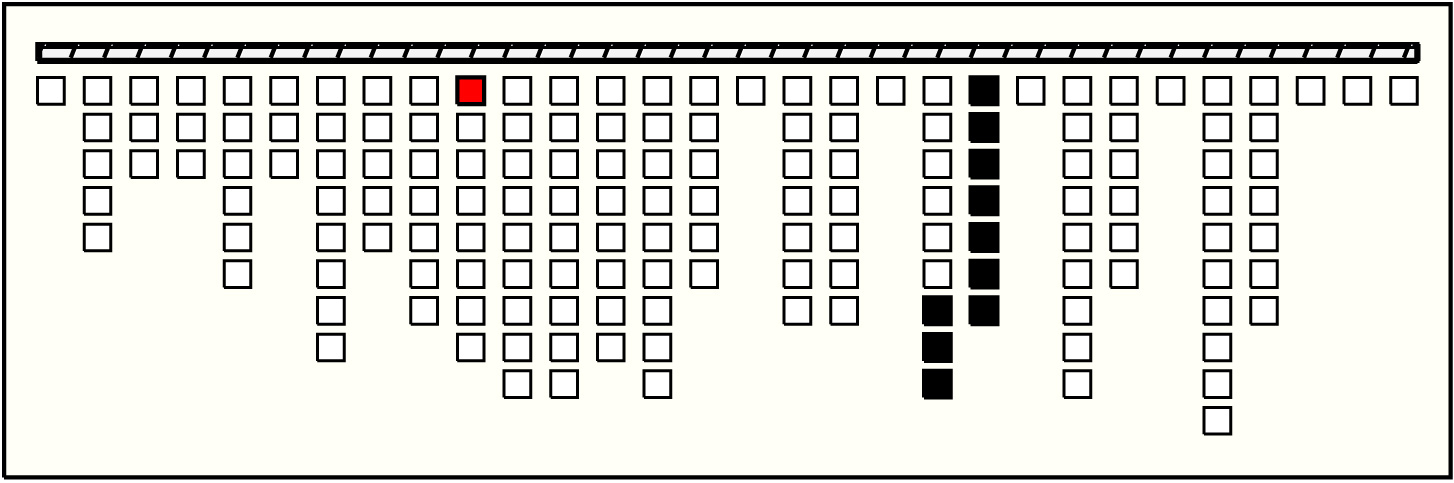

11	p42_{10, 1} : 111_AB	111	10	p113: 42_W + p114: 4_AB:GG + p115: 0_W:GG + p116: 0_AB + p117: 12_AB + p118: 10_AB + p119: 0_W + p120: 9_AB:GG + p121: 12_W + p122: 22_W
12	p44_{10, 3} : 20_LK	20	2	p69: 11_W + p70: 9_AB
13	p46_{10, 5} : 27_W	27	2	p55: 11_W + p56: 16_MB
14	p47_{10, 6} : 40_AB	40	2	p51: 16_W + p52: 24_GG

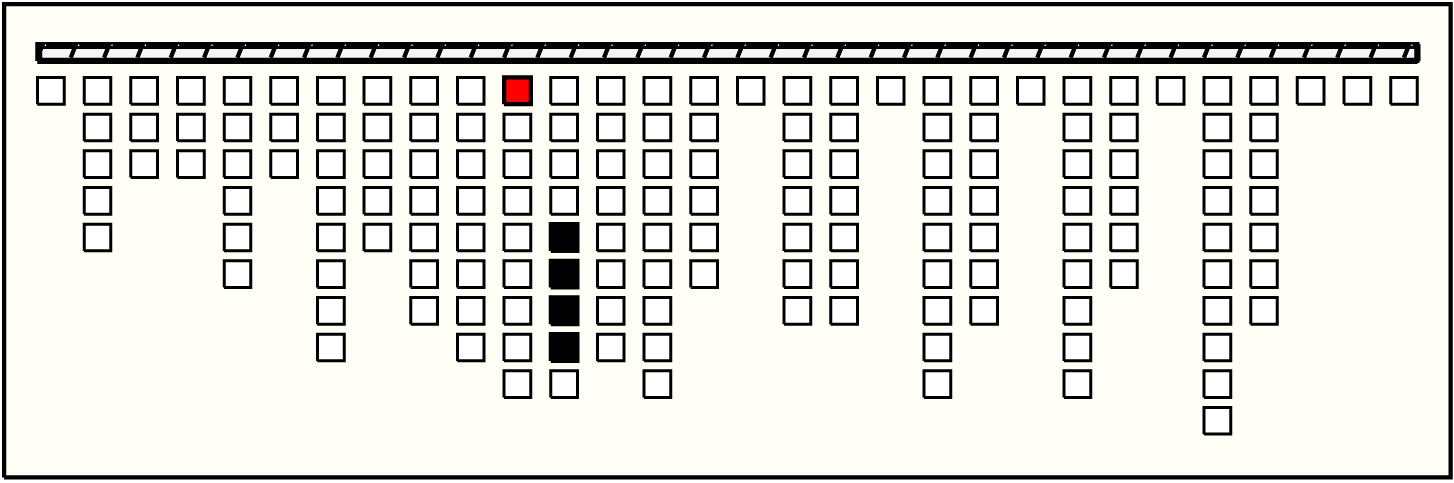

15	p50_{11, 1} : 14_W:KB	14	4	p63: 2_AB:MB + p64: 0_W + p65: 5_W:AB + p66: 7_AB:MB

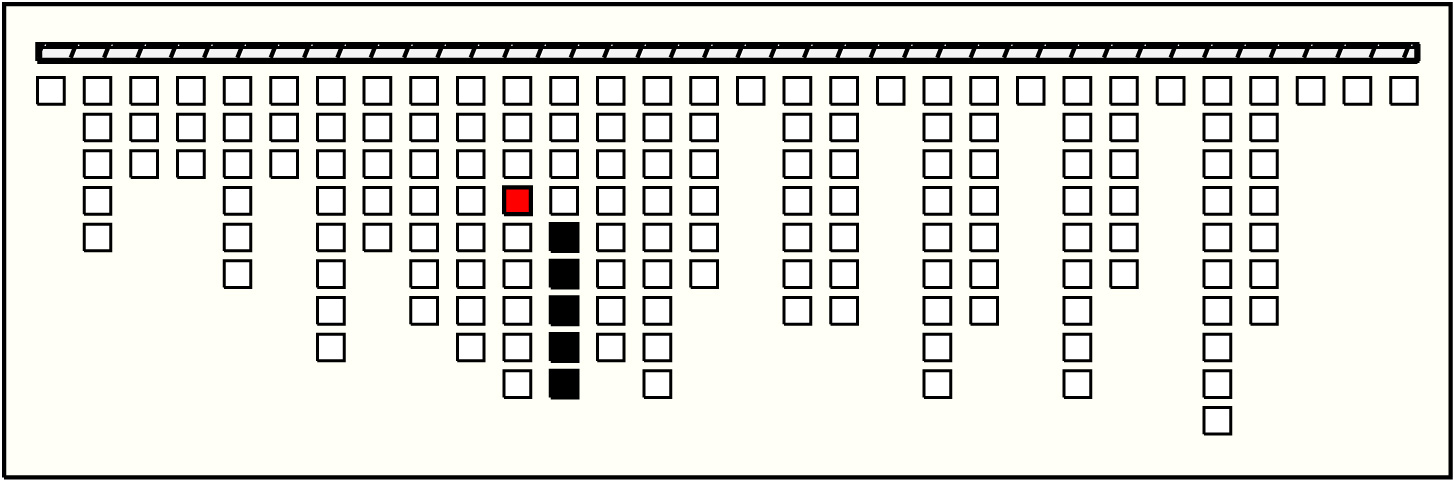

16	p53_{11, 4} : 17_AB	17	5	p63: 2_AB:MB + p64: 0_W + p65: 5_W:AB + p66: 7_AB:MB + p67: 3_RL:GG
17	p54_{11, 5} : 15_AB	15	3	p65: 5_W:AB + p66: 7_AB:MB + p67: 3_RL:GG

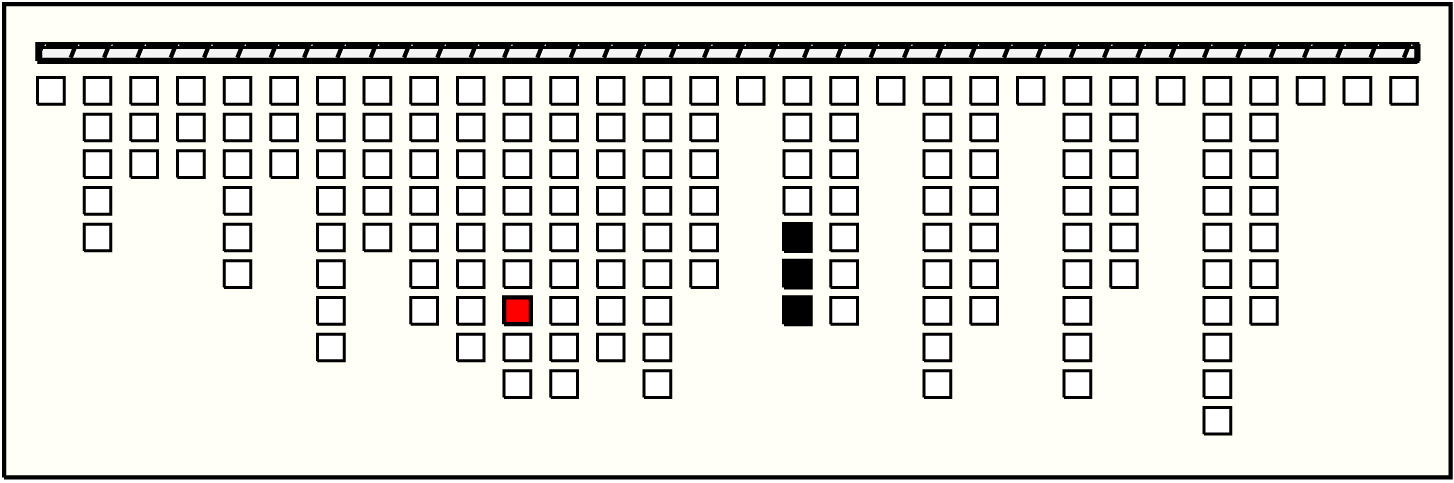

18	p56_{11, 7} : 16_MB	16	3	p96: 6_W + p97: 5_W + p98: 5_AB:GG

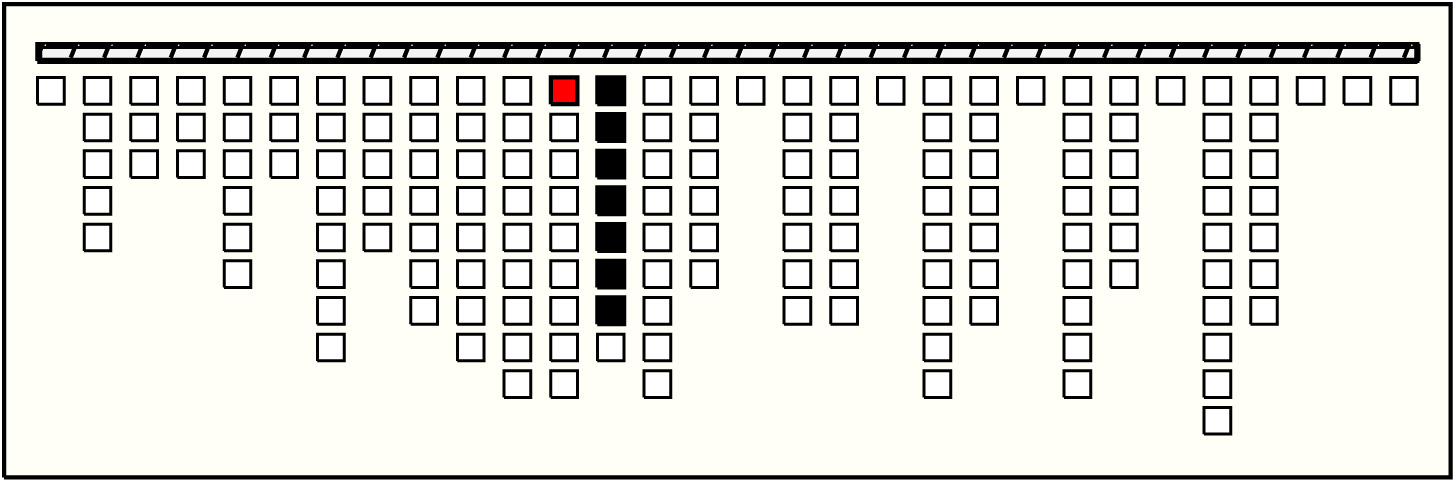

19	p59_{12, 1} : 71_AB	71	7	p68: 12_AB + p69: 11_W + p70: 9_AB + p71: 12_GG + p72: 6_RL:GG + p73: 8_AB + p74: 13_AB
20	p69_{13, 2} : 11_W	11	2	p79: 3_W + p80: 8_KB
21	p75_{13, 8} : 142_AB	142	7	p79: 3_W + p80: 8_KB + p81: 53_W + p82: 45_KB + p83: 0_W + p84: 11_AB + p85: 22_W:RL

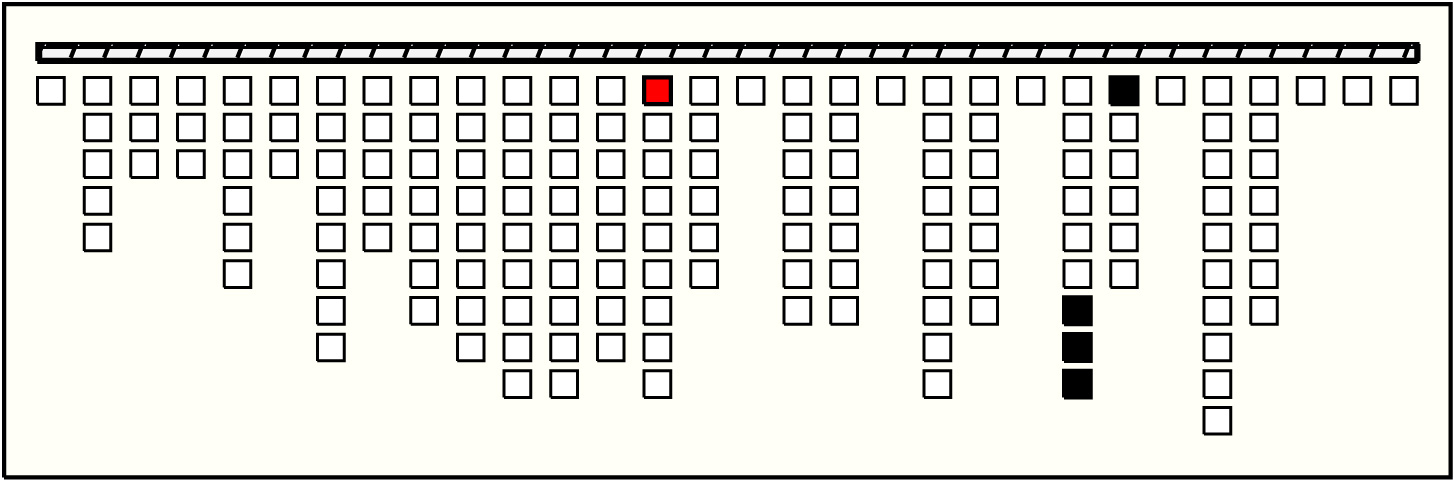

22	p76_{14, 1} : 20_AB	20	4	p130: 3_KB + p131: 8_AB:KB + p132: 2_AB + p133: 7_W
23	p78_{14, 3} : 12_GG	12	2	p95: 6_W + p96: 6_W
24	p81_{14, 6} : 53_W	53	3	p101: 12_W + p102: 25_W + p103: 16_KB

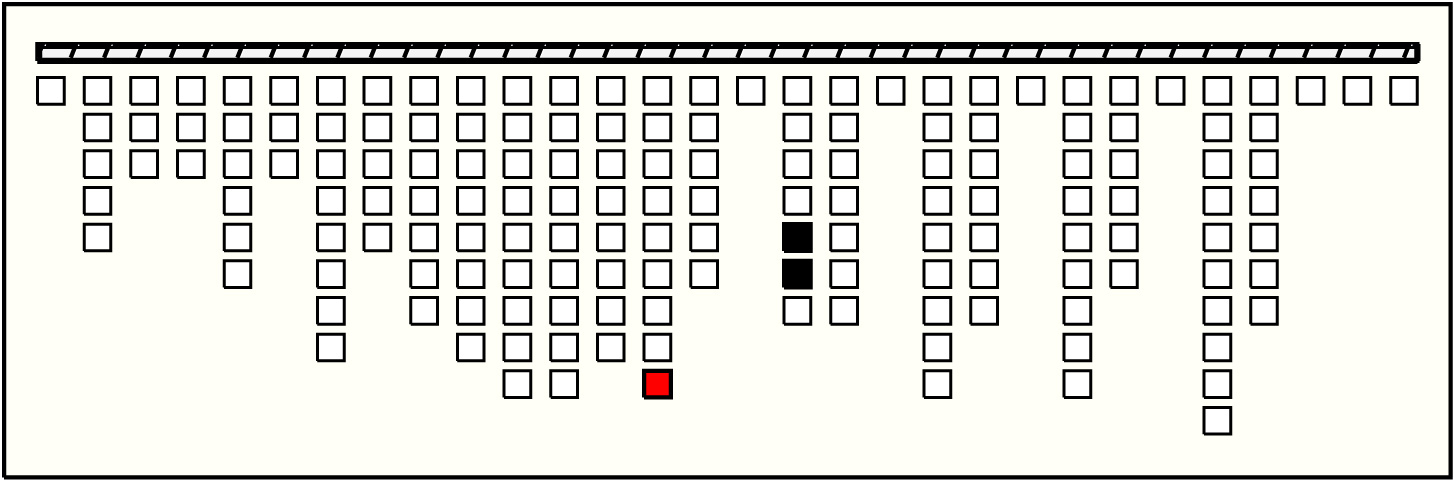

25	p84_{14, 9} : 11_AB	11	2	p96: 6_W + p97: 5_W
26	p85_{15, 1} : 22_W:RL	22	4	p95: 6_W + p96: 6_W + p97: 5_W + p98: 5_AB:GG
27	p86_{15, 2} : 21_W	21	2	p120: 9_AB:GG + p121: 12_W
28	p87_{15, 3} : 28_W	28	2	p124: 6_W + p125: 22_KB
29	p88_{15, 4} : 18_RL	18	4	p108: 2_PK + p109: 0_MB + p110: 13_W + p111: 3_GG

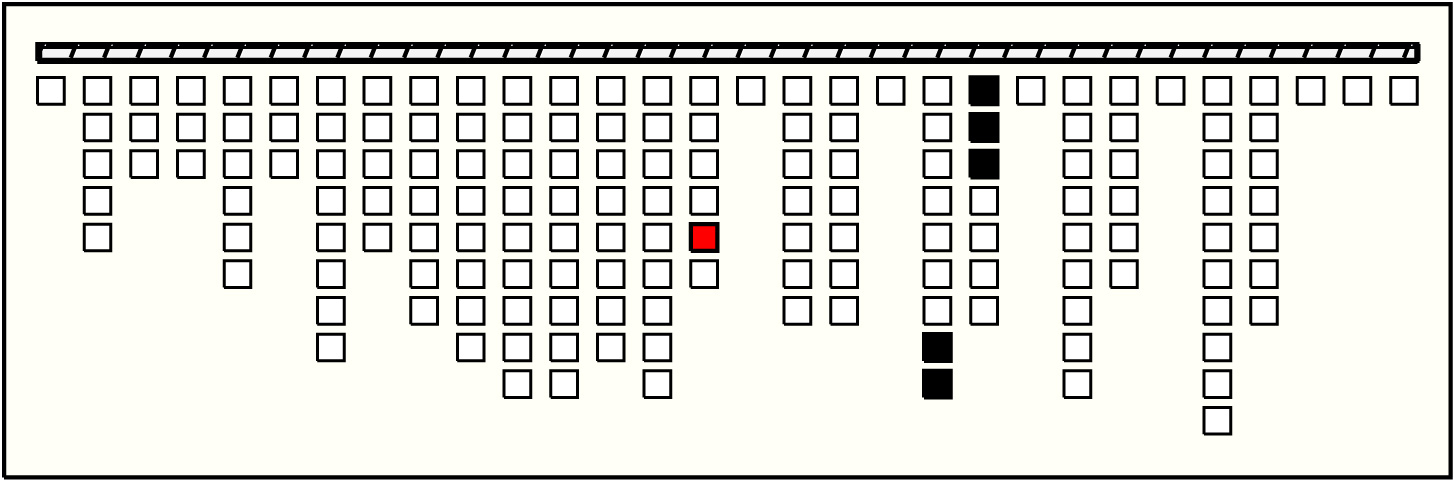

30	p89_{15, 5} : 26_RL	26	5	p114: 4_AB:GG + p115: 0_W:GG + p116: 0_AB + p117: 12_AB + p118: 10_AB
31	p90_{15, 6} : 24_W:RL	24	2	p141: 22_W + p142: 2_AB
32	p91_{16, 1} : 112_W	112	7	p92: 2_KB + p93: 40_W + p94: 48_W + p95: 6_W + p96: 6_W + p97: 5_W + p98: 5_AB:GG
33	p93_{17, 2} : 40_W	40	4	p127: 34_W + p128: 0_W + p129: 3_AB:GG + p130: 3_KB
34	p94_{17, 3} : 48_W	48	5	p96: 6_W + p97: 5_W + p98: 5_AB:GG + p99: 22_KB + p100: 10_AB
35	p103_{18, 5} : 16_KB	16	2	p110: 13_W + p111: 3_GG

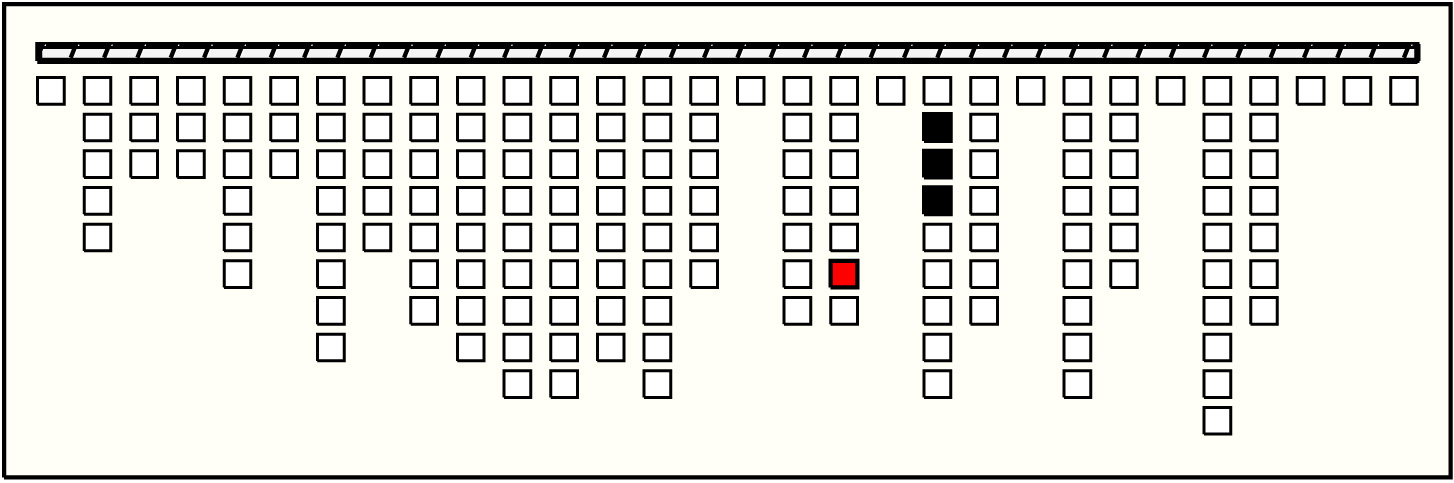

36	p104_{18, 6} : 15_W	15	3	p108: 2_PK + p109: 0_MB + p110: 13_W
37	p105_{18, 7} : 23_AB	23	5	p129: 3_AB:GG + p130: 3_KB + p131: 8_AB:KB + p132: 2_AB + p133: 7_W

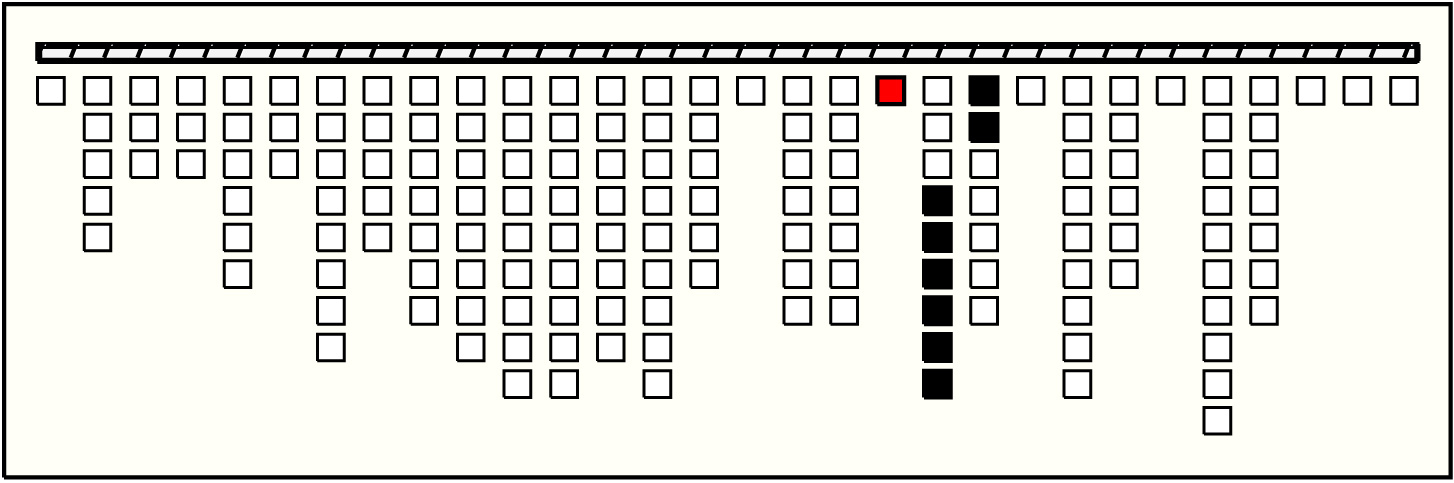

38	p106_{19, 1} : 106_W	106	8	p110: 13_W + p111: 3_GG + p112: 32_W + p113: 42_W + p114: 4_AB:GG + p115: 0_W:GG + p116: 0_AB + p117: 12_AB

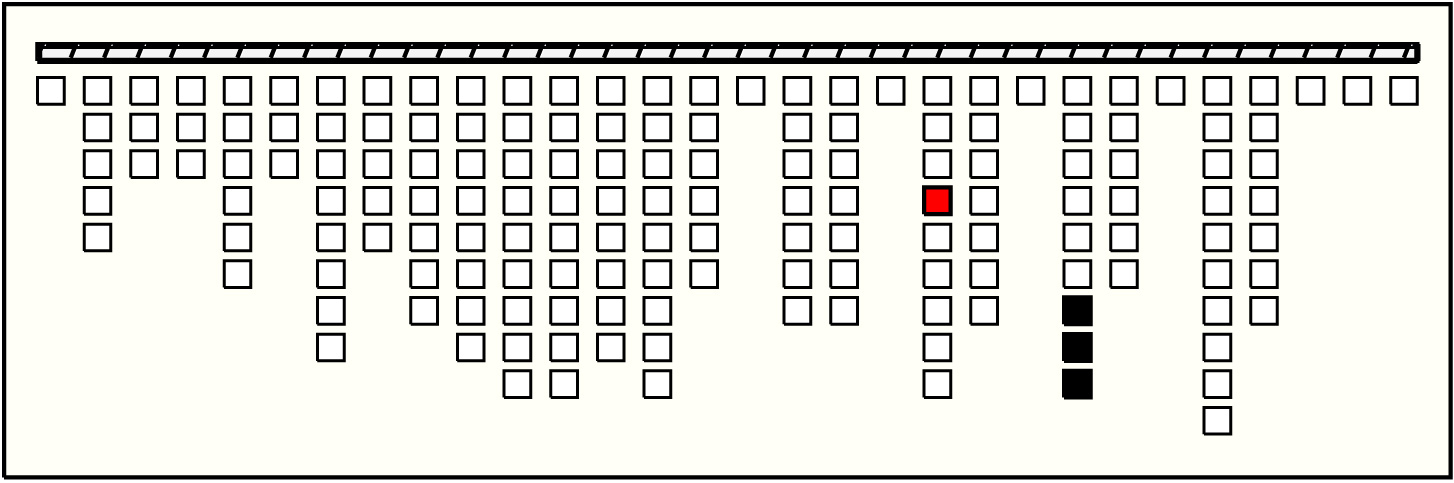

39	p110_{20, 4} : 13_W	13	3	p130: 3_KB + p131: 8_AB:KB + p132: 2_AB

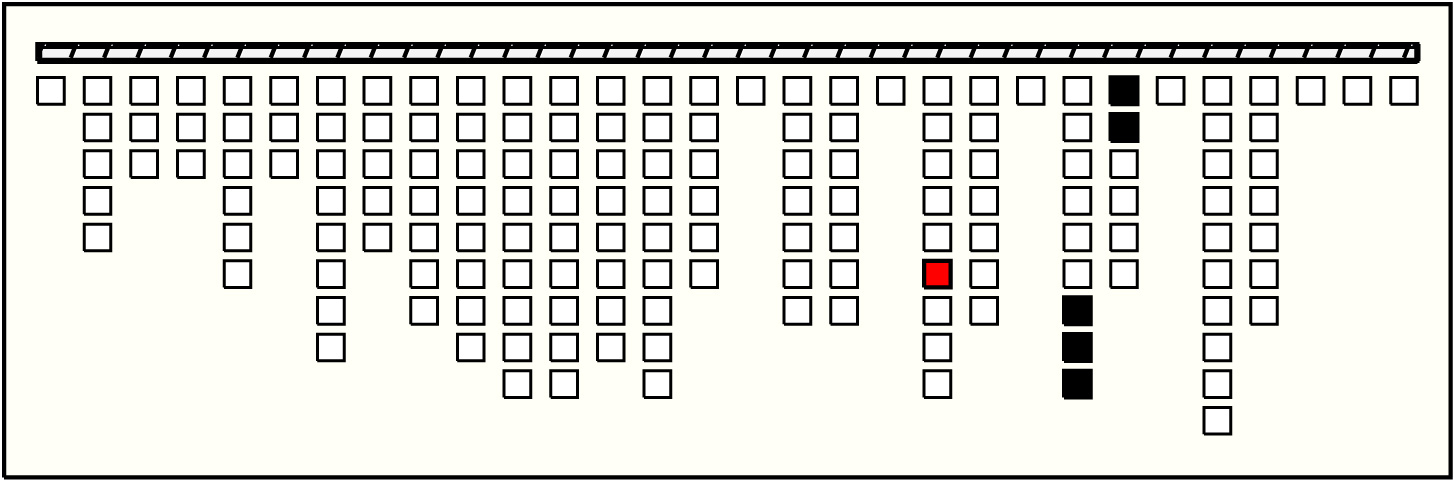

40	p112_{20, 6} : 32_W	32	5	p130: 3_KB + p131: 8_AB:KB + p132: 2_AB + p133: 7_W + p134: 12_W
41	p113_{20, 7} : 42_W	42	4	p141: 22_W + p142: 2_AB + p143: 2_AB + p144: 16_GG

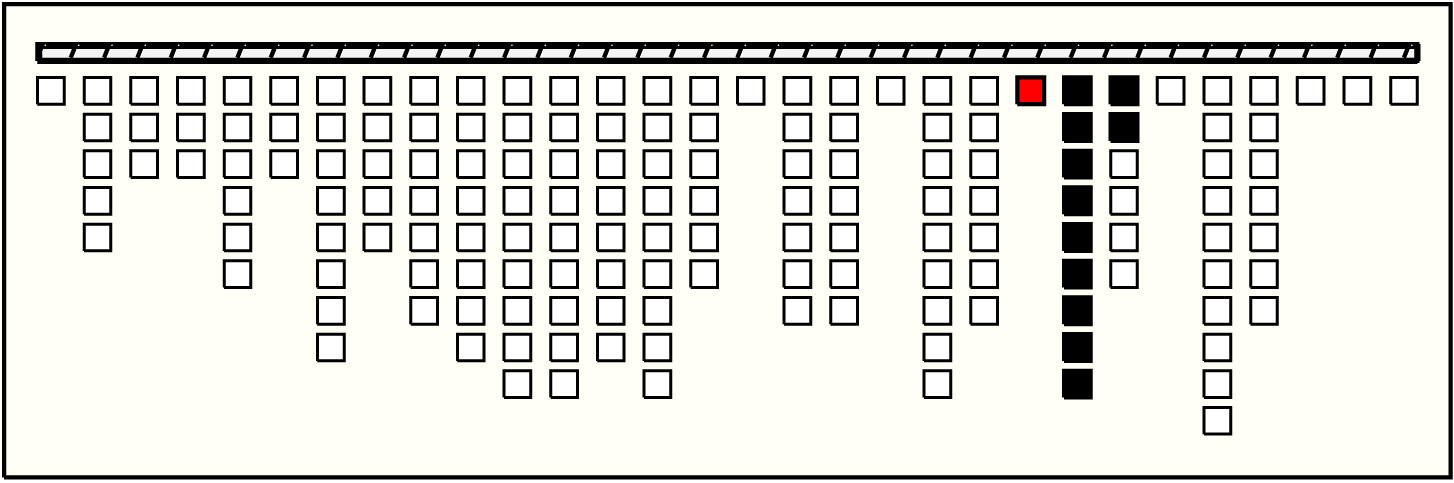

42	p123_{22, 1} : 125_W:MB	125	11	p124: 6_W + p125: 22_KB + p126: 28_W + p127: 34_W + p128: 0_W + p129: 3_AB:GG + p130: 3_KB + p131: 8_AB:KB + p132: 2_AB + p133: 7_W + p134: 12_W

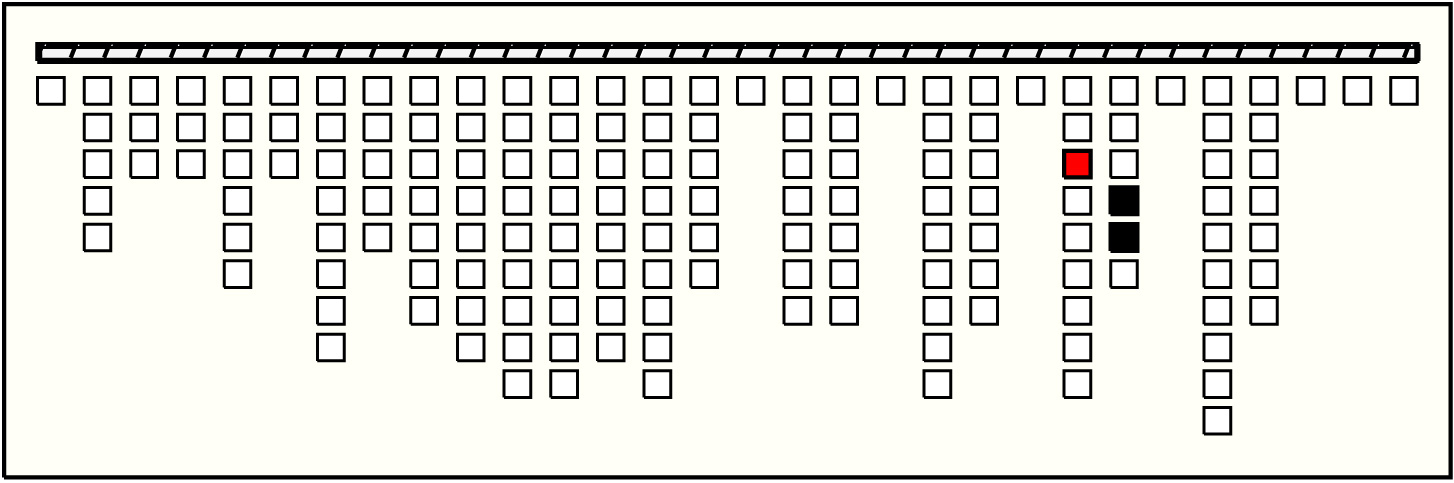

43	p126_{23, 3} : 28_W	28	2	p136: 12_AB + p137: 16_W

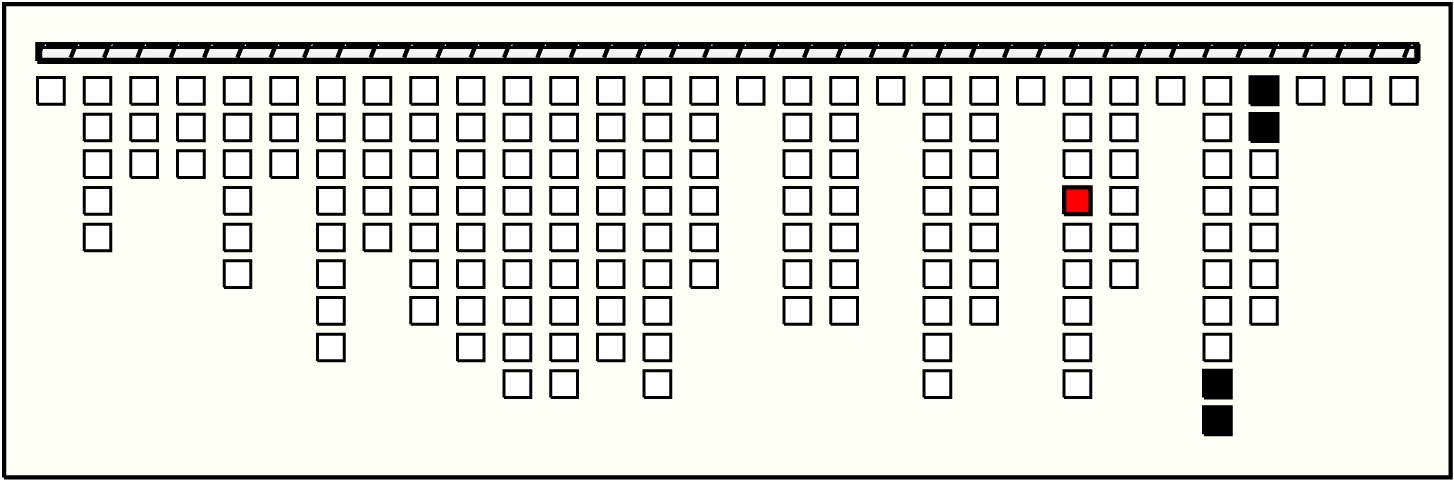

44	p127_{23, 4} : 34_W	34	4	p148: 1_W + p149: 2_AB:GG + p150: 10_KB + p151: 21_W
45	p135_{24, 3} : 20_AB	20	3	p142: 2_AB + p143: 2_AB + p144: 16_GG
46	p140_{26, 1} : 13_W	13	3	p148: 1_W + p149: 2_AB:GG + p150: 10_KB
47	p145_{26, 6} : 64_KB	64	3	p151: 21_W + p152: 15_AB + p153: 28_KB

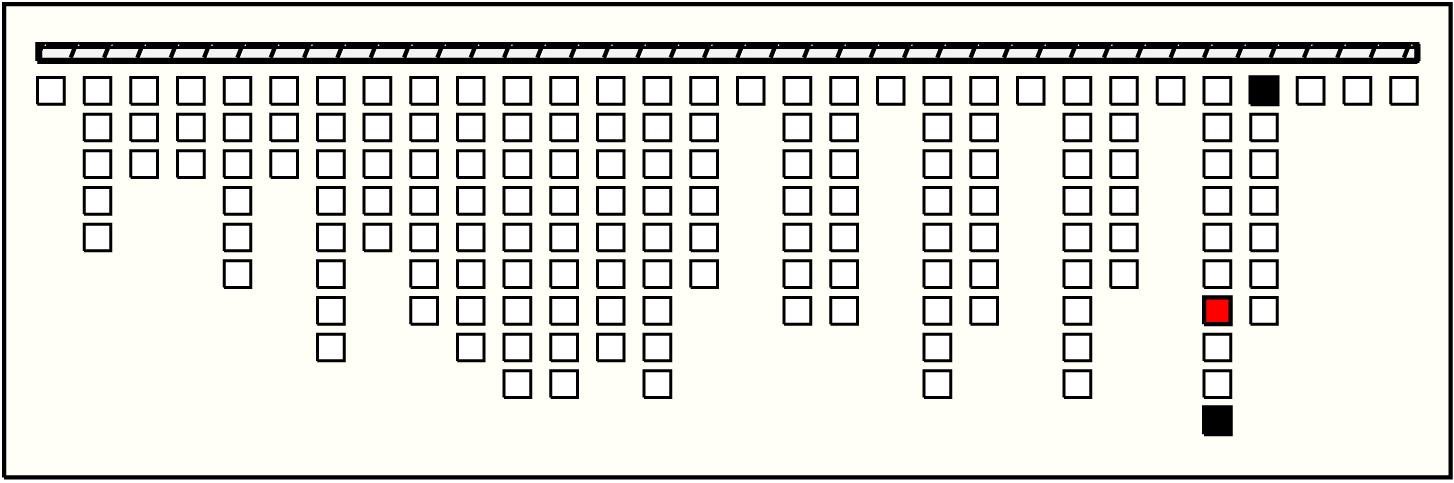

48	p146_{26, 7} : 12_AB	12	2	p149: 2_AB:GG + p150: 10_KB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

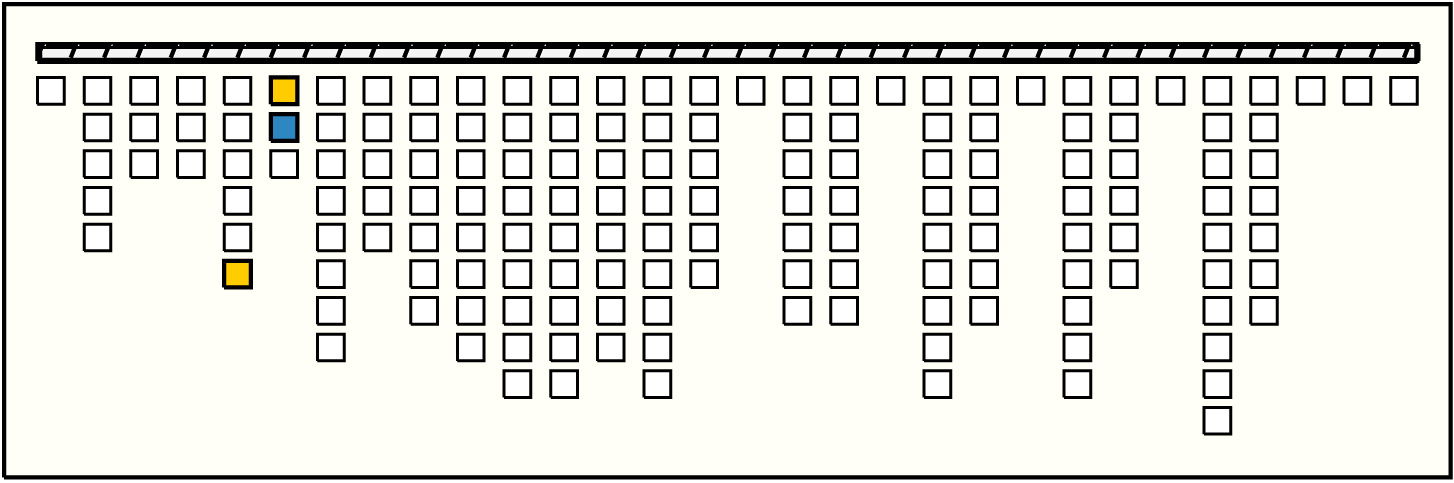

1	p20_{6, 2} : 14_W:MB	14	2	p18: 12_W + p19: 2_W:MB
2	p30_{8, 1} : 15_W	15	3	p24: 10_MB:KB + p25: 3_MB + p26: 2_MB
3	p31_{8, 2} : 21_W	21	5	p26: 2_MB + p27: 2_W + p28: 0_W + p29: 2_W:GG + p30: 15_W
4	p32_{8, 3} : 60_W	60	9	p15: 11_W:MB + p16: 9_MB + p17: 4_W + p18: 12_W + p19: 2_W:MB + p20: 14_W:MB + p21: 4_W + p22: 3_W:MB + p23: 1_W

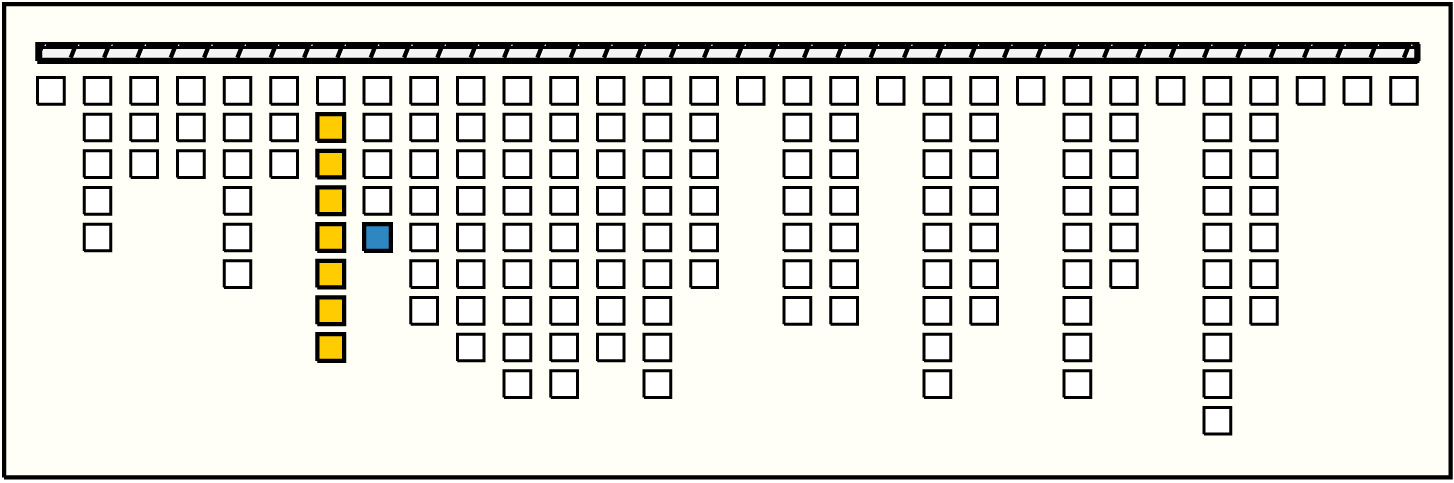

5	p34_{8, 5} : 20_W	20	7	p23: 1_W + p24: 10_MB:KB + p25: 3_MB + p26: 2_MB + p27: 2_W + p28: 0_W + p29: 2_W:GG
6	p35_{9, 1} : 16_AB	16	4	p23: 1_W + p24: 10_MB:KB + p25: 3_MB + p26: 2_MB
7	p36_{9, 2} : 19_W-RL	19	4	p27: 2_W + p28: 0_W + p29: 2_W:GG + p30: 15_W

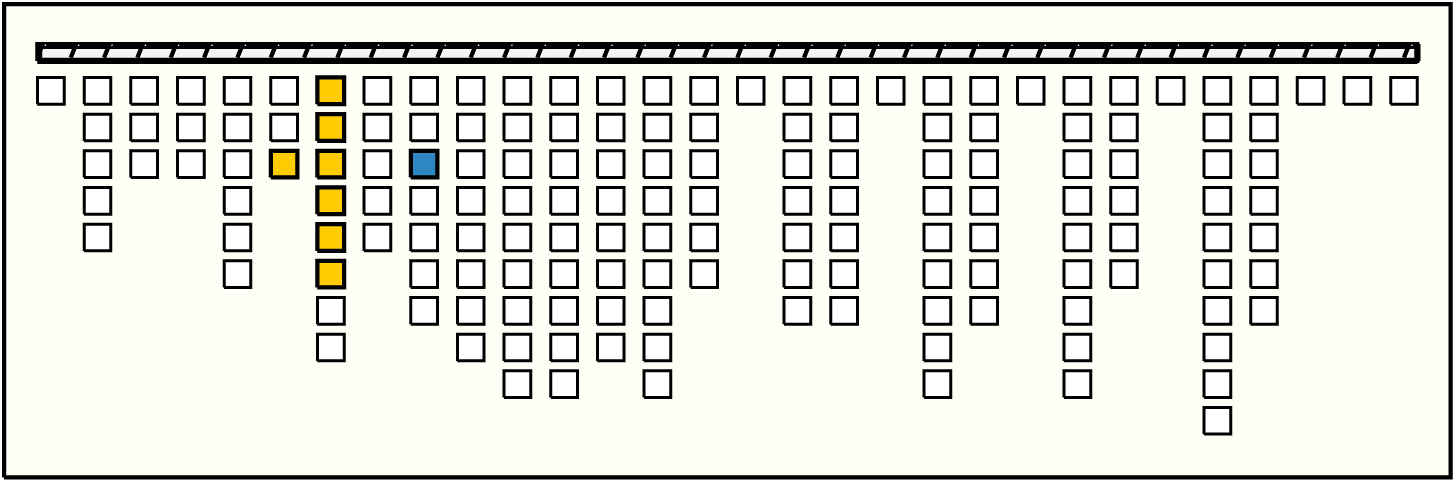

8	p37_{9, 3} : 25_AB	25	7	p21: 4_W + p22: 3_W:MB + p23: 1_W + p24: 10_MB:KB + p25: 3_MB + p26: 2_MB + p27: 2_W

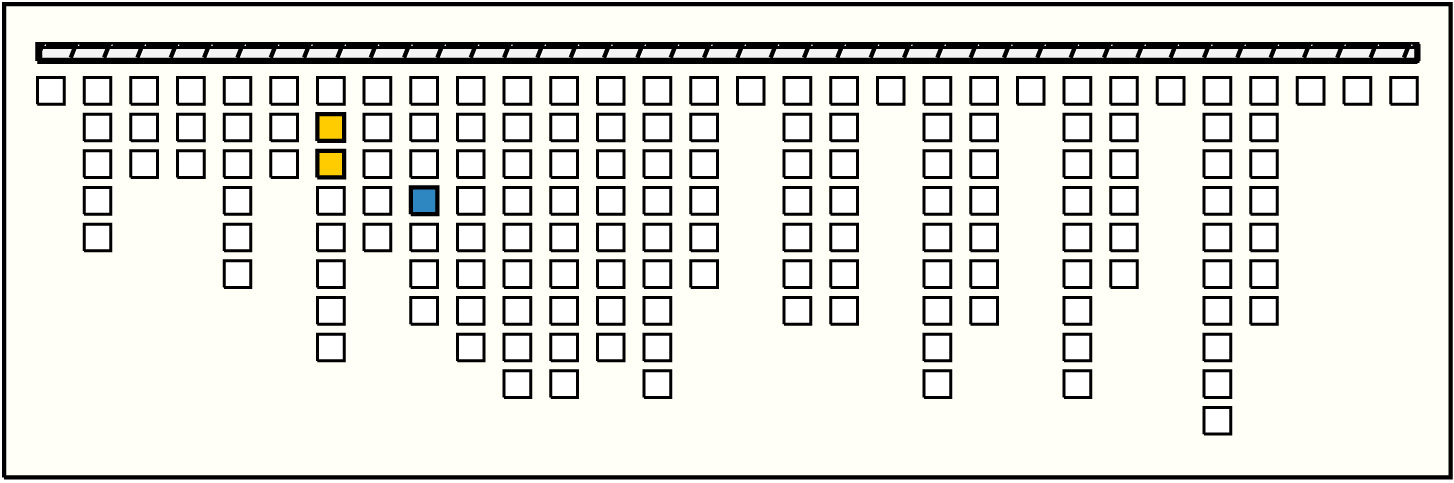

9	p38_{9, 4} : 11_AB	11	2	p23: 1_W + p24: 10_MB:KB
10	p41_{9, 7} : 17_AB	17	2	p29: 2_W:GG + p30: 15_W
11	p42_{10, 1} : 111_AB	111	4	p31: 21_W + p32: 60_W + p33: 10_AB + p34: 20_W
12	p46_{10, 5} : 27_W	27	2	p39: 16_AB + p40: 11_AB
13	p47_{10, 6} : 40_AB	40	5	p27: 2_W + p28: 0_W + p29: 2_W:GG + p30: 15_W + p31: 21_W
14	p50_{11, 1} : 14_W:KB	14	3	p23: 1_W + p24: 10_MB:KB + p25: 3_MB

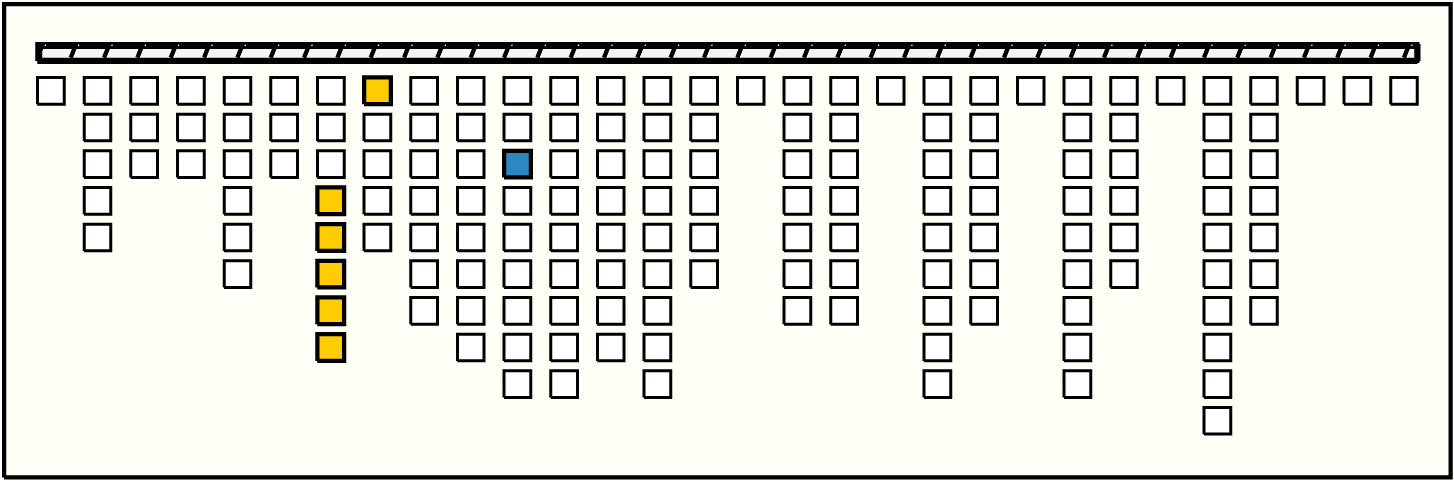

15	p52_{11, 3} : 24_GG	24	6	p25: 3_MB + p26: 2_MB + p27: 2_W + p28: 0_W + p29: 2_W:GG + p30: 15_W

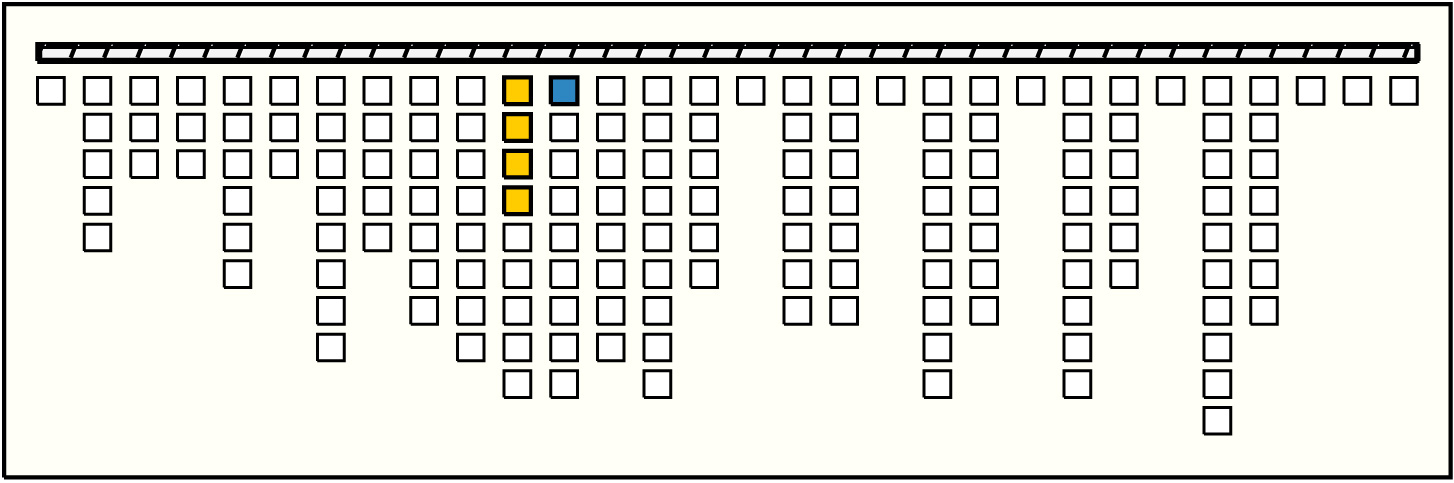

16	p59_{12, 1} : 71_AB	71	4	p50: 14_W:KB + p51: 16_W + p52: 24_GG + p53: 17_AB
17	p68_{13, 1} : 12_AB	12	2	p65: 5_W:AB + p66: 7_AB:MB

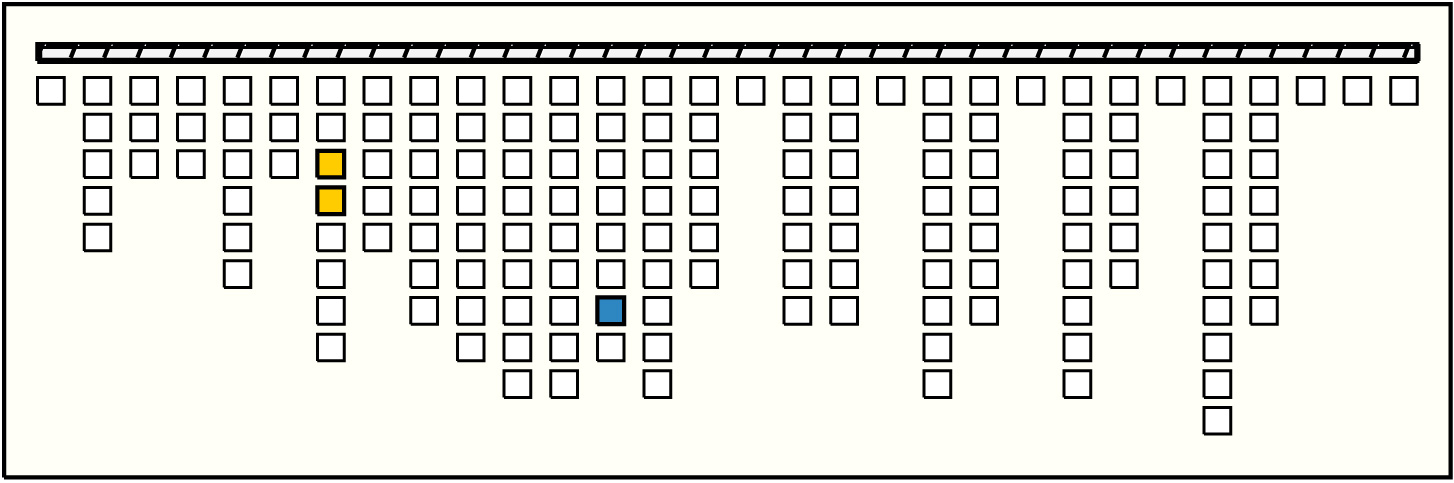

18	p74_{13, 7} : 13_AB	13	2	p24: 10_MB:KB + p25: 3_MB

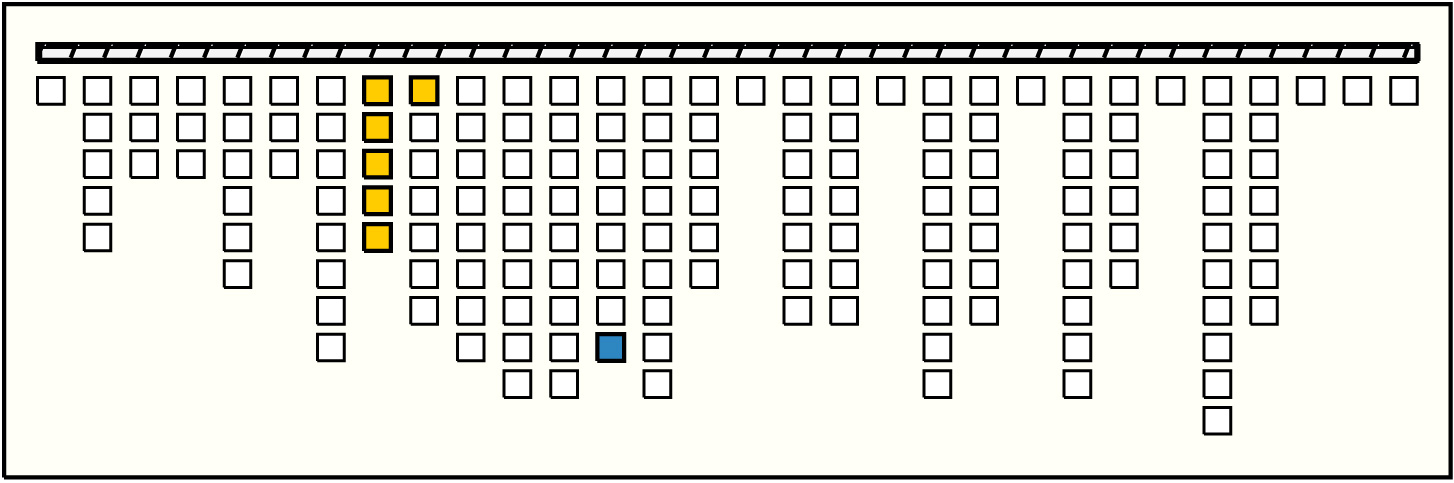

19	p75_{13, 8} : 142_AB	142	6	p30: 15_W + p31: 21_W + p32: 60_W + p33: 10_AB + p34: 20_W + p35: 16_AB

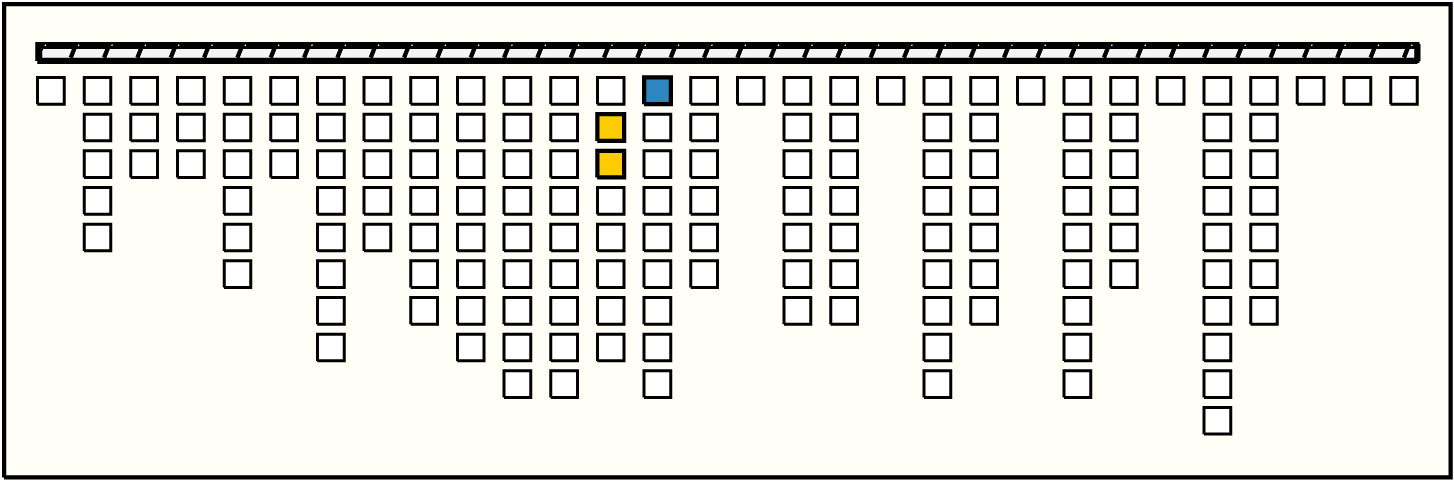

20	p76_{14, 1} : 20_AB	20	2	p69: 11_W + p70: 9_AB
21	p81_{14, 6} : 53_W	53	6	p67: 3_RL:GG + p68: 12_AB + p69: 11_W + p70: 9_AB + p71: 12_GG + p72: 6_RL:GG
22	p82_{14, 7} : 45_KB	45	7	p25: 3_MB + p26: 2_MB + p27: 2_W + p28: 0_W + p29: 2_W:GG + p30: 15_W + p31: 21_W
23	p85_{15, 1} : 22_W:RL	22	3	p66: 7_AB:MB + p67: 3_RL:GG + p68: 12_AB
24	p86_{15, 2} : 21_W	21	2	p73: 8_AB + p74: 13_AB

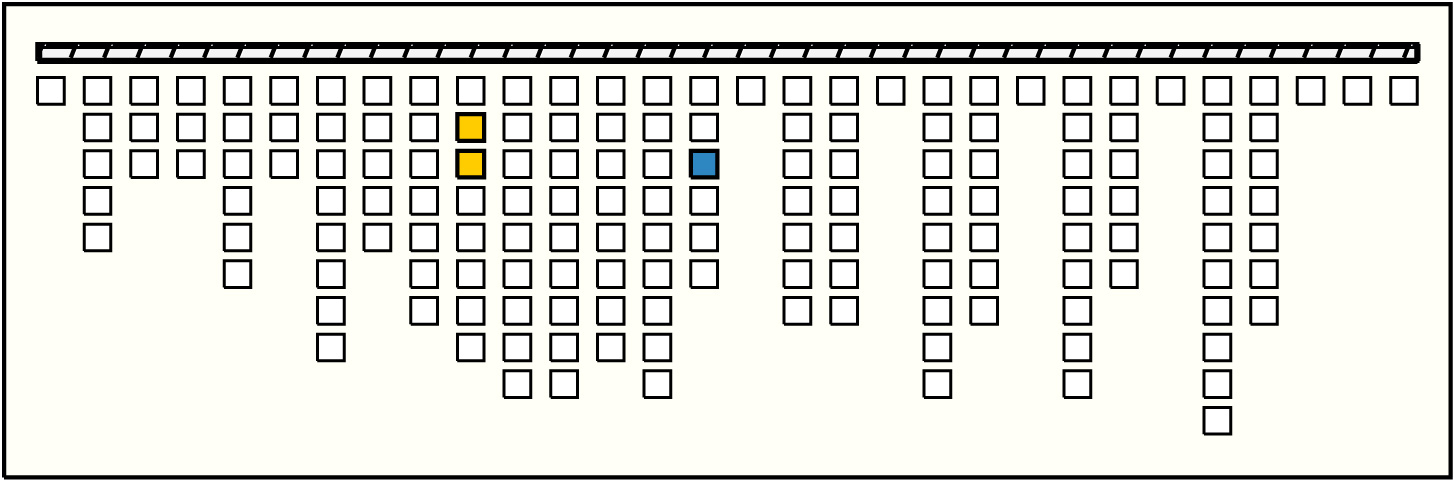

25	p87_{15, 3} : 28_W	28	2	p43: 8_W + p44: 20_LK

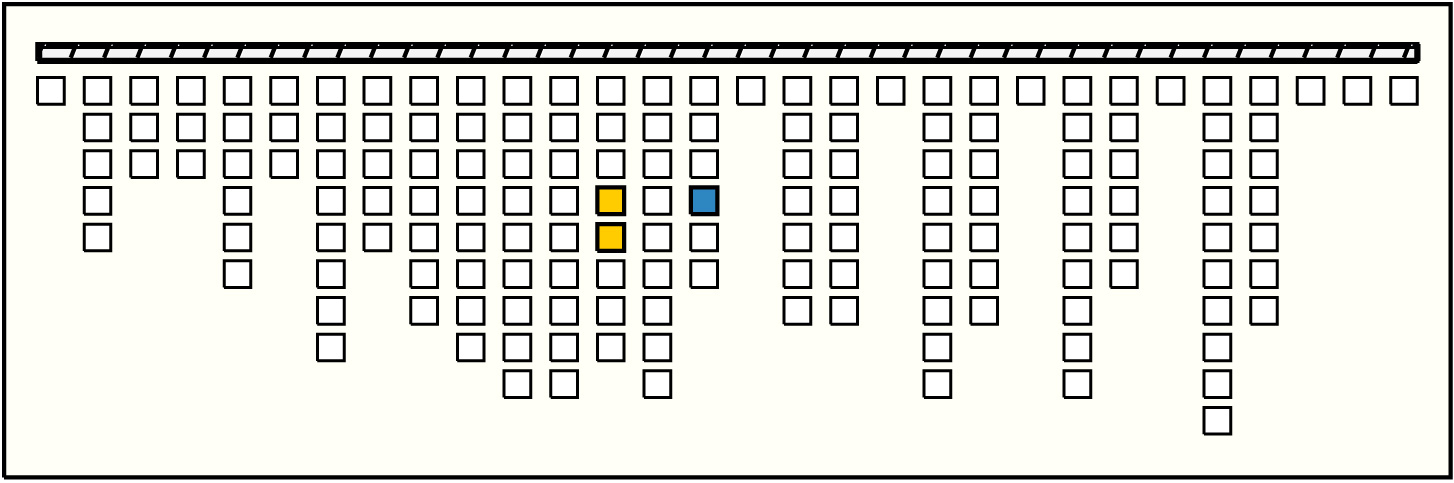

26	p88_{15, 4} : 18_RL	18	2	p71: 12_GG + p72: 6_RL:GG
27	p89_{15, 5} : 26_RL	26	3	p71: 12_GG + p72: 6_RL:GG + p73: 8_AB
28	p91_{16, 1} : 112_W	112	13	p62: 24_MB + p63: 2_AB:MB + p64: 0_W + p65: 5_W:AB + p66: 7_AB:MB + p67: 3_RL:GG + p68: 12_AB + p69: 11_W + p70: 9_AB + p71: 12_GG + p72: 6_RL:GG + p73: 8_AB + p74: 13_AB

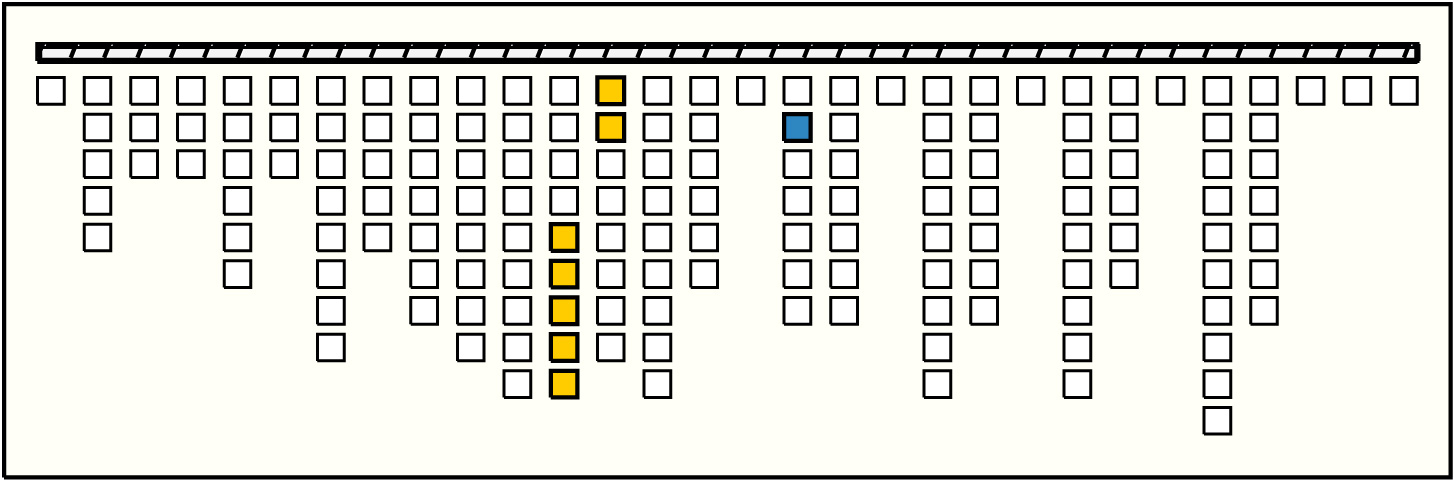

29	p93_{17, 2} : 40_W	40	7	p63: 2_AB:MB + p64: 0_W + p65: 5_W:AB + p66: 7_AB:MB + p67: 3_RL:GG + p68: 12_AB + p69: 11_W

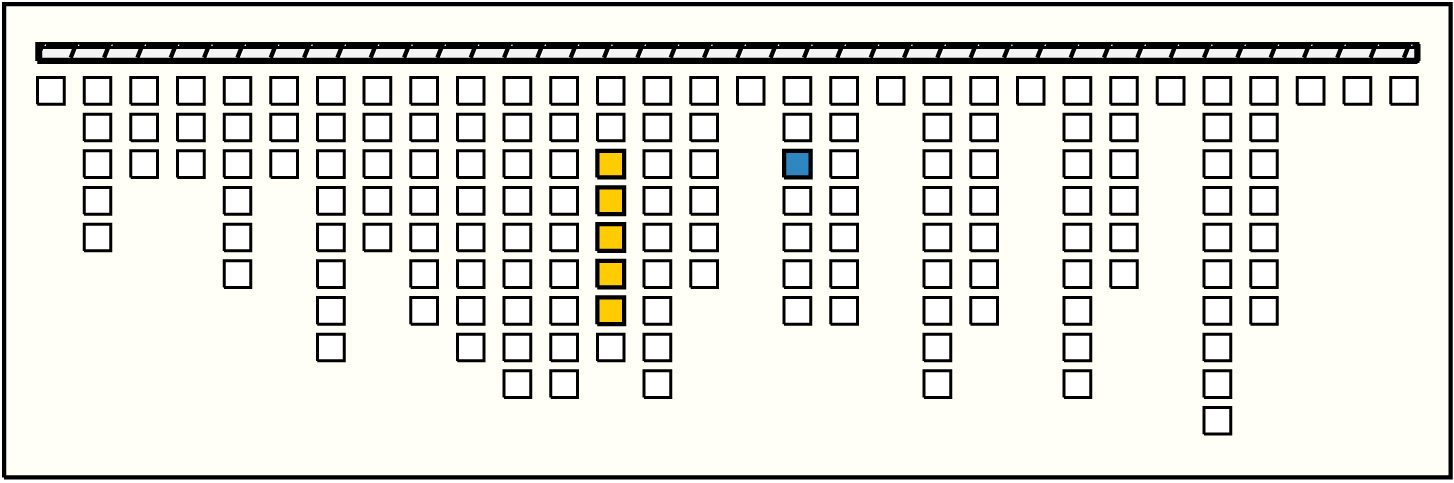

30	p94_{17, 3} : 48_W	48	5	p70: 9_AB + p71: 12_GG + p72: 6_RL:GG + p73: 8_AB + p74: 13_AB

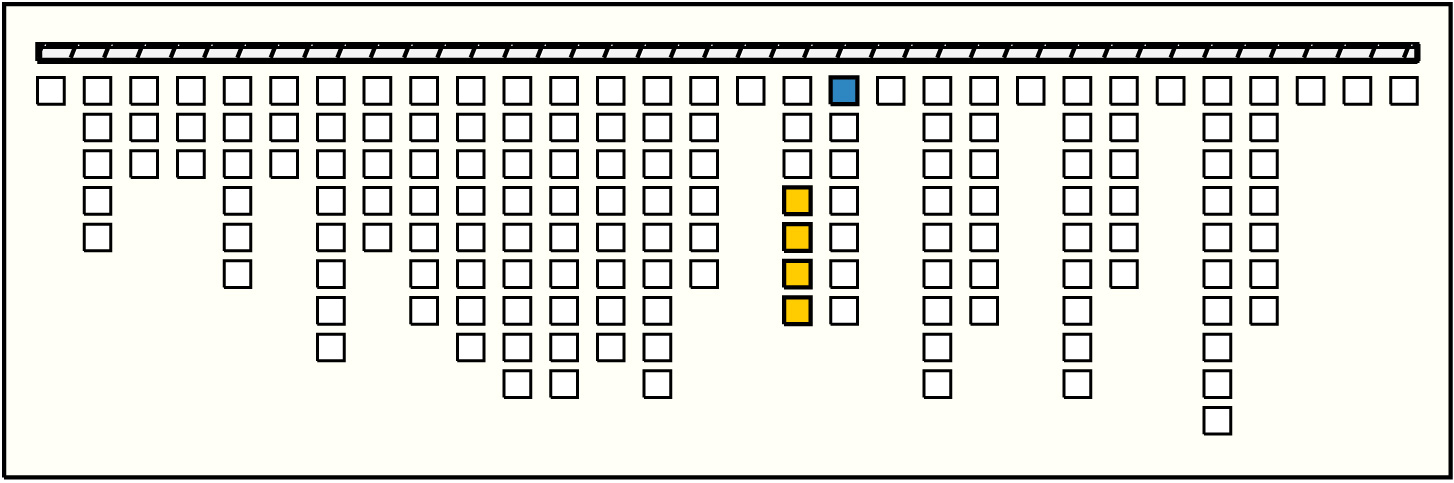

31	p99_{18, 1} : 22_KB	22	4	p95: 6_W + p96: 6_W + p97: 5_W + p98: 5_AB:GG

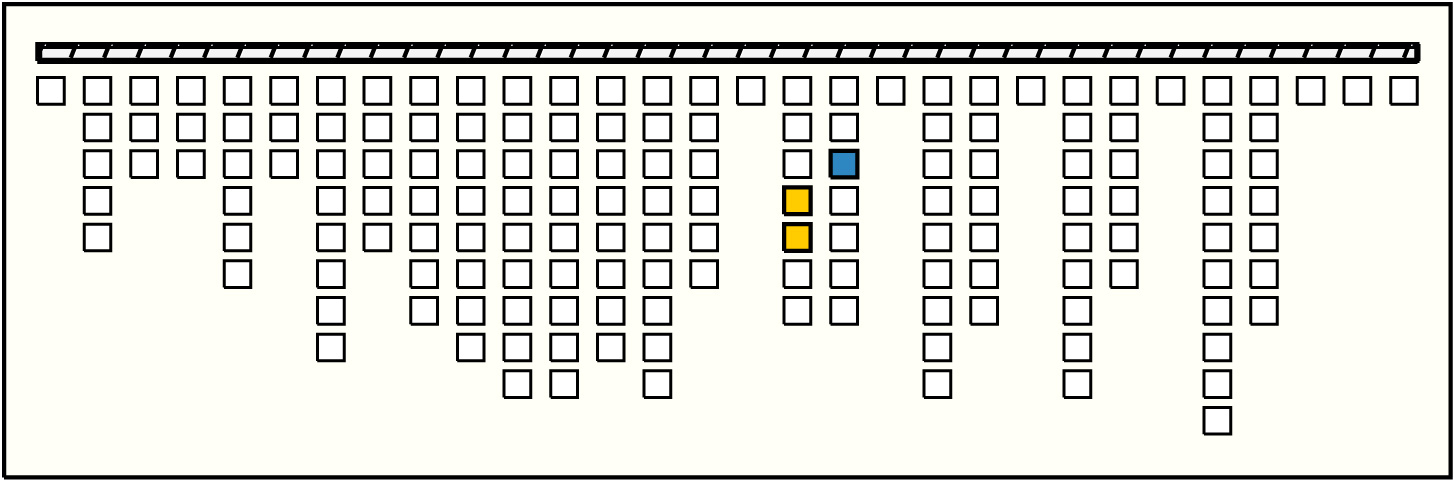

32	p101_{18, 3} : 12_W	12	2	p95: 6_W + p96: 6_W
33	p103_{18, 5} : 16_KB	16	3	p96: 6_W + p97: 5_W + p98: 5_AB:GG
34	p104_{18, 6} : 15_W	15	2	p78: 12_GG + p79: 3_W
35	p105_{18, 7} : 23_AB	23	3	p78: 12_GG + p79: 3_W + p80: 8_KB
36	p106_{19, 1} : 106_W	106	3	p80: 8_KB + p81: 53_W + p82: 45_KB
37	p112_{20, 6} : 32_W	32	2	p99: 22_KB + p100: 10_AB
38	p113_{20, 7} : 42_W	42	4	p97: 5_W + p98: 5_AB:GG + p99: 22_KB + p100: 10_AB
39	p123_{22, 1} : 125_W:MB	125	11	p110: 13_W + p111: 3_GG + p112: 32_W + p113: 42_W + p114: 4_AB:GG + p115: 0_W:GG + p116: 0_AB + p117: 12_AB + p118: 10_AB + p119: 0_W + p120: 9_AB:GG
40	p127_{23, 4} : 34_W	34	2	p121: 12_W + p122: 22_W
41	p135_{24, 3} : 20_AB	20	4	p130: 3_KB + p131: 8_AB:KB + p132: 2_AB + p133: 7_W
42	p137_{24, 5} : 16_W	16	4	p129: 3_AB:GG + p130: 3_KB + p131: 8_AB:KB + p132: 2_AB
43	p139_{25, 1} : 153_AB	153	3	p123: 125_W:MB + p124: 6_W + p125: 22_KB
44	p140_{26, 1} : 13_W	13	3	p130: 3_KB + p131: 8_AB:KB + p132: 2_AB
45	p145_{26, 6} : 64_KB	64	7	p130: 3_KB + p131: 8_AB:KB + p132: 2_AB + p133: 7_W + p134: 12_W + p135: 20_AB + p136: 12_AB
46	p147_{26, 8} : 17_GG	17	3	p131: 8_AB:KB + p132: 2_AB + p133: 7_W
47	p151_{27, 2} : 21_W	21	3	p132: 2_AB + p133: 7_W + p134: 12_W
48	p152_{27, 3} : 15_AB	15	3	p108: 2_PK + p109: 0_MB + p110: 13_W
49	p153_{27, 4} : 28_KB	28	2	p136: 12_AB + p137: 16_W
50	p156_{27, 7} : 32_GG:MB	32	4	p146: 12_AB + p147: 17_GG + p148: 1_W + p149: 2_AB:GG
51	p157_{28, 1} : 92_GG	92	7	p148: 1_W + p149: 2_AB:GG + p150: 10_KB + p151: 21_W + p152: 15_AB + p153: 28_KB + p154: 15_AB

Khipu Notes:

1. Los "senales rojos" mencionados en el registro se componen de un hilito de lana que se enlace entre de los hilos (doblados) del pendiente.
2. En pendiente #156 hay un pendiente suelto atado en la forma de un pendiente inmediatamente sobre el nudo largo (de 2). Las medidas de los dos extremos de esta pendiente son: 23.0, 11.5
3. Values reevaluated and changed 11/172004 by carrie brezine
