UR052/KH0282 - Pendant Pendant Sum

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Relationships	Right-Handed X-Ray
All Pendant Pendant Sum Relationships	Left-Handed X-Ray
This Khipu's Ascher Sum Relationships	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 12, Max # Summands = 5, (Min, Mean, Max) Sum Values = (11, 21, 29)
Click on Image to View Larger

Left Handed Sums: # Sums = 15, Max # Summands = 4, (Min, Mean, Max) Sum Values = (12, 23, 33)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p7_{2, 3} : 29_LK	29	3	p38: 14_PK + p39: 7_AB + p40: 8_AB
2	p9_{3, 1} : 26_LK	26	3	p41: 9_AB + p42: 13_AB + p43: 4_AB
3	p19_{5, 3} : 28_LK	28	5	p50: 7_AB + p51: 6_AB + p52: 4_AB + p53: 8_AB + p54: 3_AB
4	p20_{5, 4} : 21_LK	21	2	p38: 14_PK + p39: 7_AB

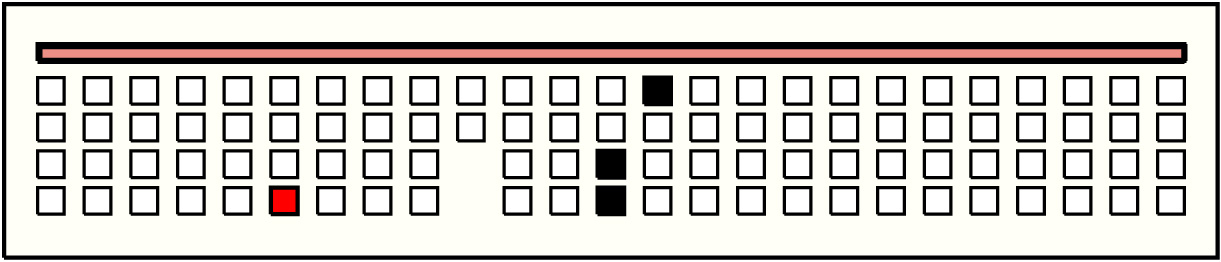

5	p24_{6, 4} : 18_LK	18	3	p49: 5_AB + p50: 7_AB + p51: 6_AB

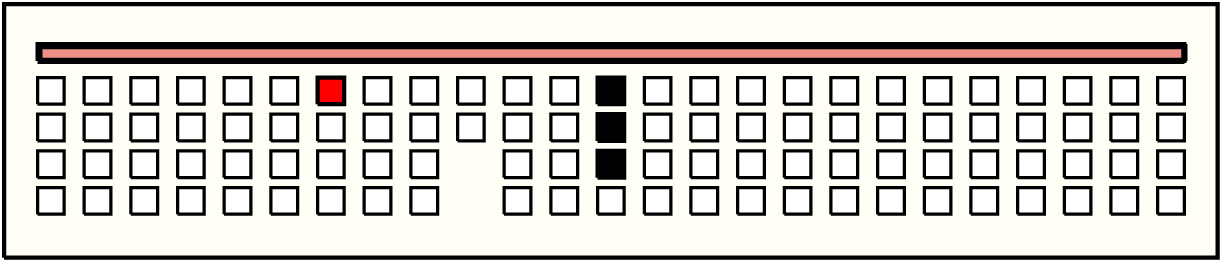

6	p25_{7, 1} : 25_LK	25	3	p47: 12_AB + p48: 8_AB + p49: 5_AB
7	p28_{7, 4} : 20_LK	20	3	p44: 9_AB + p45: 0_AB + p46: 11_AB
8	p32_{8, 4} : 24_LK	24	3	p39: 7_AB + p40: 8_AB + p41: 9_AB
9	p36_{9, 4} : 22_W	22	2	p41: 9_AB + p42: 13_AB

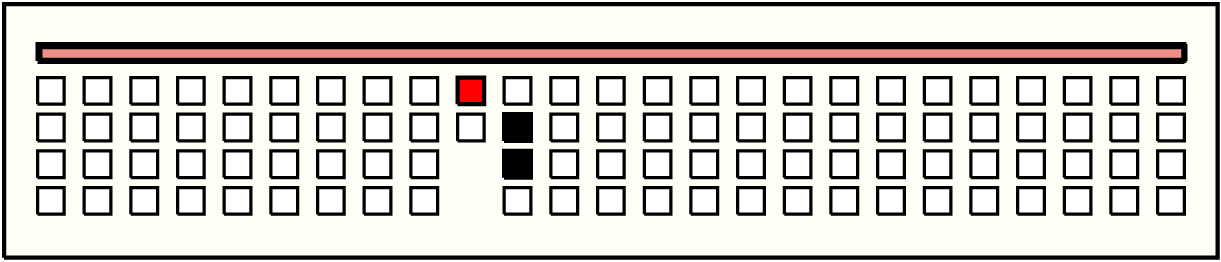

10	p37_{10, 1} : 17_PK	17	2	p40: 8_AB + p41: 9_AB

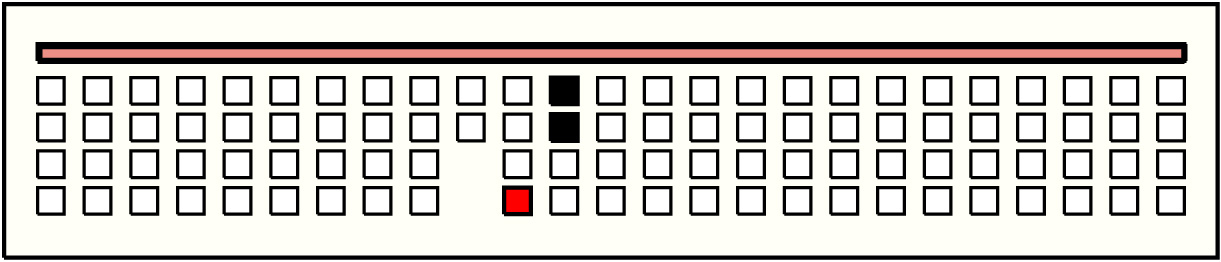

11	p42_{11, 4} : 13_AB	13	2	p43: 4_AB + p44: 9_AB
12	p46_{12, 4} : 11_AB	11	2	p53: 8_AB + p54: 3_AB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p61_{16, 3} : 26_LK	26	4	p48: 8_AB + p49: 5_AB + p50: 7_AB + p51: 6_AB

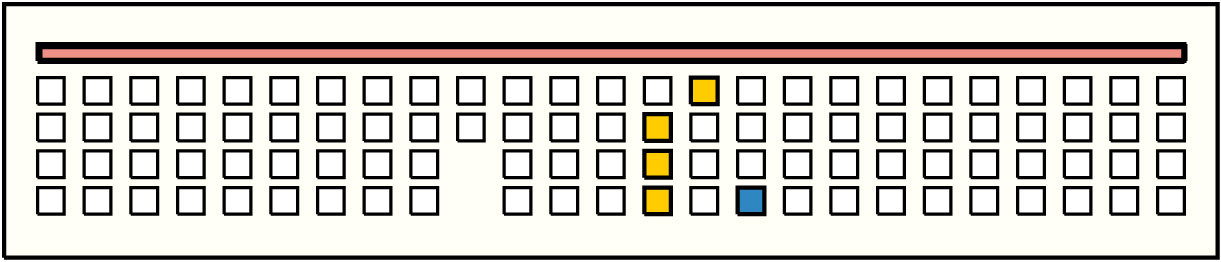

2	p62_{16, 4} : 22_LK	22	4	p52: 4_AB + p53: 8_AB + p54: 3_AB + p55: 7_AB
3	p63_{17, 1} : 25_LK	25	4	p50: 7_AB + p51: 6_AB + p52: 4_AB + p53: 8_AB

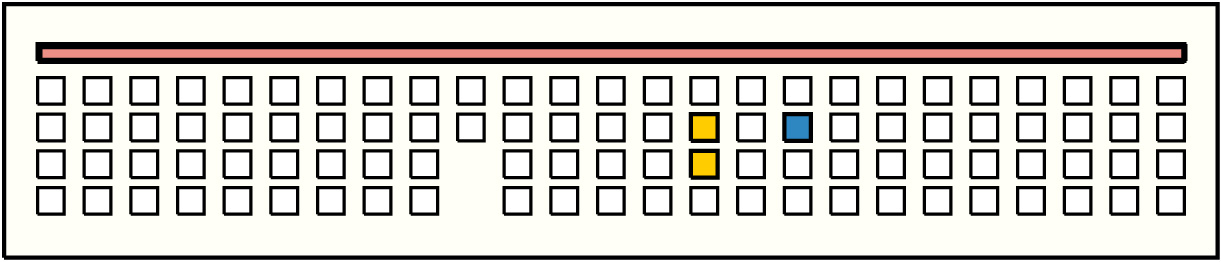

4	p64_{17, 2} : 23_LK	23	2	p56: 14_AB + p57: 9_AB
5	p67_{18, 1} : 15_LK	15	3	p52: 4_AB + p53: 8_AB + p54: 3_AB
6	p69_{18, 3} : 33_LK	33	4	p54: 3_AB + p55: 7_AB + p56: 14_AB + p57: 9_AB

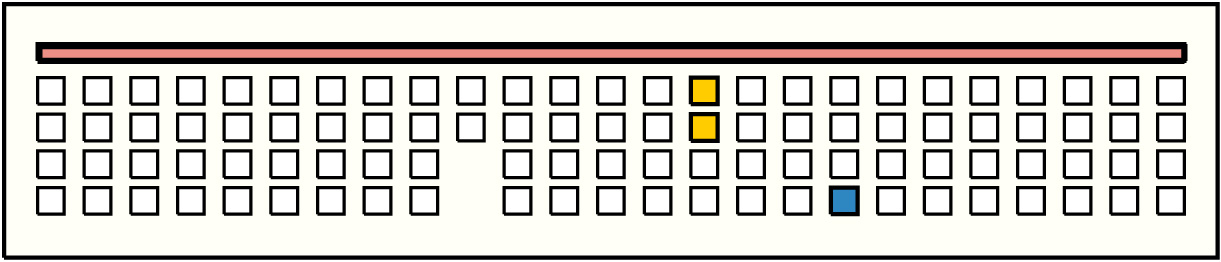

7	p70_{18, 4} : 21_LK	21	2	p55: 7_AB + p56: 14_AB
8	p72_{19, 2} : 18_LK	18	2	p57: 9_AB + p58: 9_AB
9	p79_{21, 1} : 32_LK	32	2	p74: 16_LK + p75: 16_LK
10	p81_{21, 3} : 28_LK	28	3	p58: 9_AB + p59: 0_PK + p60: 19_LK
11	p86_{22, 4} : 12_LK	12	2	p52: 4_AB + p53: 8_AB
12	p87_{23, 1} : 17_LK	17	3	p50: 7_AB + p51: 6_AB + p52: 4_AB
13	p91_{24, 1} : 24_LK	24	3	p54: 3_AB + p55: 7_AB + p56: 14_AB
14	p93_{24, 3} : 29_LK	29	2	p86: 12_LK + p87: 17_LK
15	p97_{25, 3} : 27_LK	27	2	p85: 15_LK + p86: 12_LK

Khipu Notes:

Most canuto groups are created by doubling cords over the primary cord and wrapping the bundle with colored camelid thread(called here canuto). Therefore at the primary cord there appear to be two pendant cords going around the primary cord. It is not possible to distinguish which pendants at B belong to which cords at A.
2. The groups at A are connected with three cords wrapped around primary cord; they are not doubled, so three plied cords show ar primary cord and there are only 3 cords coming out of canuto.
3. Fiber types:
4. Canuto ribs: end of the cord is doubled back on itself and wrapped with colored thread
** There are two diagrams in the notes
This is a canuto khipu, with all of its cords tied in bundles to the primary cord.
This khipu has been reconstructed using information from Jon Clindaniel's DASH thesis notes at Harvard. Cord cluster information is missing and has been defaulted to one cord per cluster.
