UR054/KH0288 - Pendant Pendant Sum

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Relationships	Right-Handed X-Ray
All Pendant Pendant Sum Relationships	Left-Handed X-Ray
This Khipu's Ascher Sum Relationships	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 8, Max # Summands = 2, (Min, Mean, Max) Sum Values = (13, 20, 24)
Click on Image to View Larger

Left Handed Sums: # Sums = 8, Max # Summands = 2, (Min, Mean, Max) Sum Values = (13, 20, 25)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p8_{8, 1} : 20_DB	20	2	p9: 10_DB + p10: 10_DB
2	p21_{21, 1} : 22_DB	22	2	p66: 11_DB + p67: 11_DB
3	p22_{22, 1} : 20_DB	20	2	p53: 9_DB + p54: 11_DB

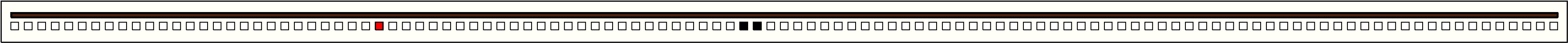

4	p28_{28, 1} : 19_DB	19	2	p55: 14_DB + p56: 5_DB

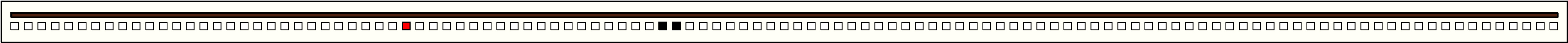

5	p30_{30, 1} : 21_DB	21	2	p49: 10_DB + p50: 11_DB

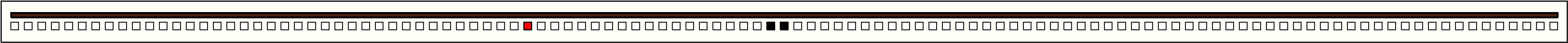

6	p39_{39, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB

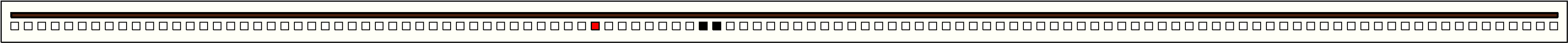

7	p44_{44, 1} : 24_DB	24	2	p52: 15_DB + p53: 9_DB

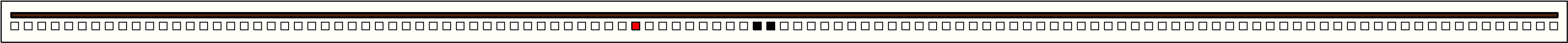

8	p47_{47, 1} : 13_DB	13	2	p56: 5_DB + p57: 8_DB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p22_{22, 1} : 20_DB	20	2	p9: 10_DB + p10: 10_DB

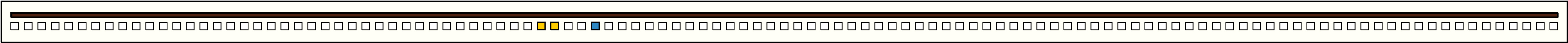

2	p44_{44, 1} : 24_DB	24	2	p40: 12_DB + p41: 12_DB
3	p70_{70, 1} : 18_DB	18	2	p57: 8_DB + p58: 10_DB

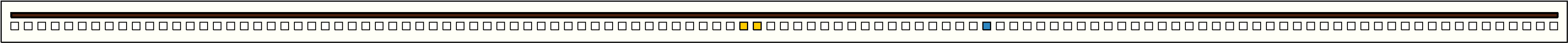

4	p73_{73, 1} : 19_DB	19	2	p55: 14_DB + p56: 5_DB
5	p76_{76, 1} : 20_DB	20	2	p53: 9_DB + p54: 11_DB
6	p78_{78, 1} : 13_DB	13	2	p56: 5_DB + p57: 8_DB
7	p85_{85, 1} : 24_DB	24	2	p62: 10_DB + p63: 14_DB
8	p96_{96, 1} : 25_DB	25	2	p54: 11_DB + p55: 14_DB

Khipu Notes:

This is a canuto khipu, with all of its cords tied in bundles to the primary cord.
This khipu has been reconstructed using information from Jon Clindaniel's DASH thesis notes at Harvard. Cord cluster information is missing and has been defaulted to one cord per cluster.
