UR1109/KH0123 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

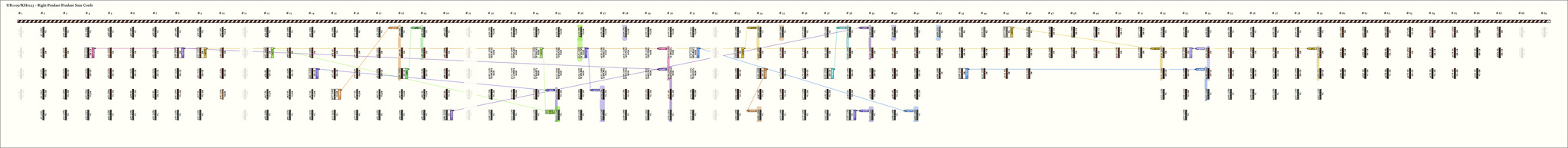

Right Handed Sums: # Sums = 19, Max # Summands = 3, (Min, Mean, Max) Sum Values = (120, 212, 400)
Click on Image to View Larger

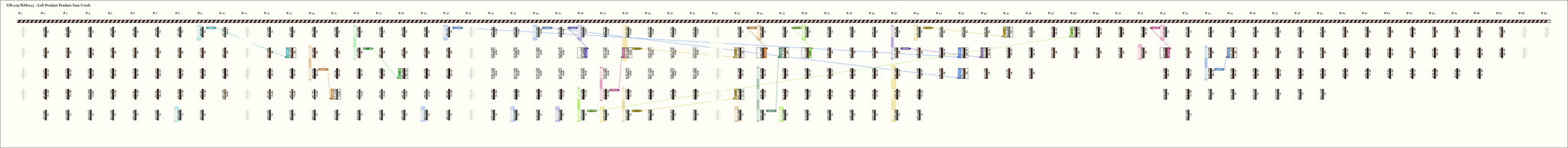

Left Handed Sums: # Sums = 17, Max # Summands = 4, (Min, Mean, Max) Sum Values = (120, 214, 330)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

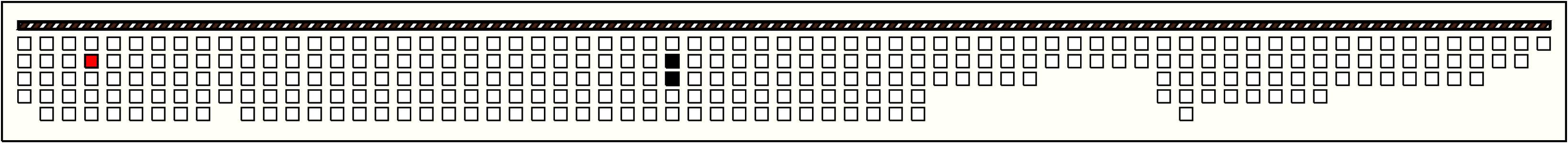

1	p16_{4, 2} : 213_DB-CB	213	2	p145: 110_W:DB + p146: 103_W:DB

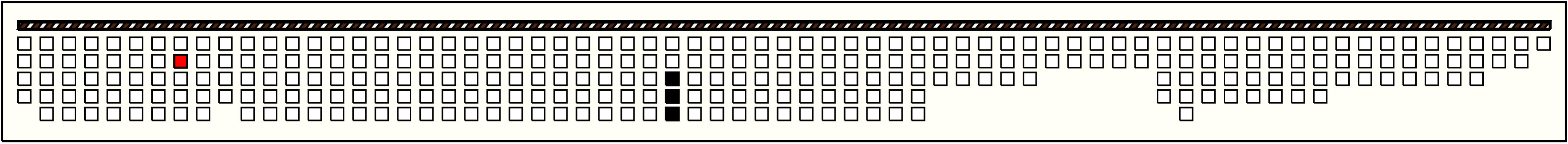

2	p36_{8, 2} : 204_DB	204	3	p146: 103_W:DB + p147: 0_YG-DB + p148: 101_YG
3	p41_{9, 2} : 152_DB	152	2	p259: 100_DB + p260: 52_DB-CB
4	p55_{12, 2} : 400_DB	400	3	p123: 110_YG + p124: 90_YG:DB + p125: 200_W:DB
5	p66_{14, 3} : 130_DB-CB	130	2	p122: 20_YG-DB + p123: 110_YG
6	p72_{15, 4} : 330_YG:DB	330	3	p84: 30_YG + p85: 0_DB + p86: 300_DB-CB

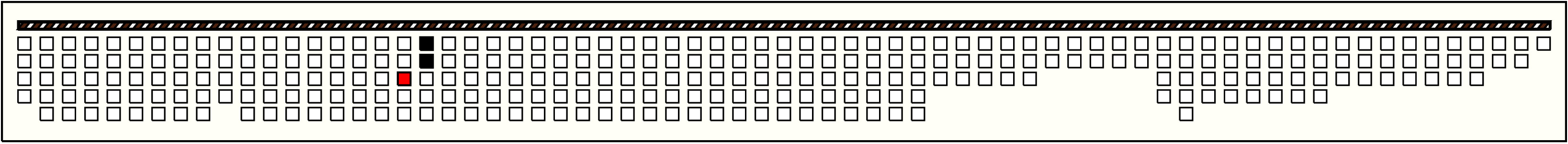

7	p86_{18, 3} : 300_DB-CB	300	2	p89: 100_YG + p90: 200_DB

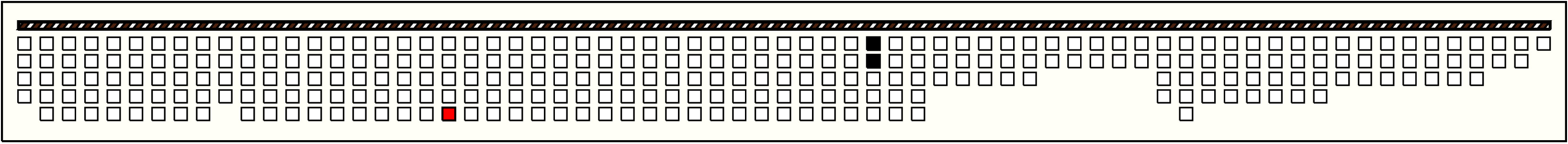

8	p98_{20, 5} : 125_YG	125	2	p189: 25_YG + p190: 100_DB
9	p115_{24, 2} : 200_W:DB	200	2	p123: 110_YG + p124: 90_YG:DB

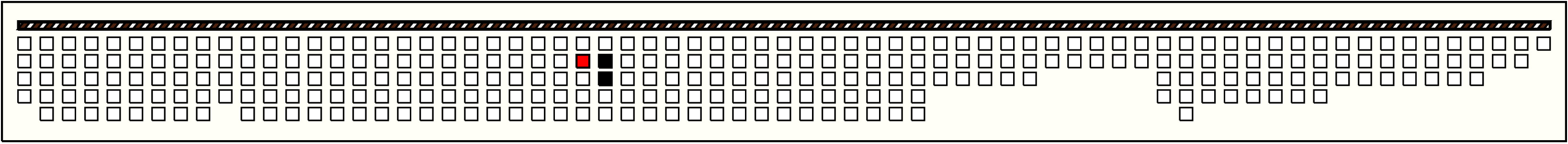

10	p125_{26, 2} : 200_W:DB	200	2	p130: 100_W:DB + p131: 100_W:DB
11	p128_{26, 5} : 120_YG	120	2	p131: 100_W:DB + p132: 20_YG-DB
12	p150_{31, 2} : 121_W:DB	121	2	p203: 100_YG + p204: 21_RG

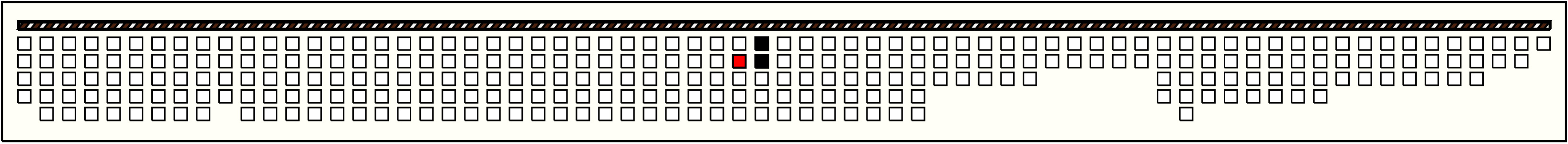

13	p160_{33, 2} : 300_DB	300	2	p164: 100_YG + p165: 200_DB

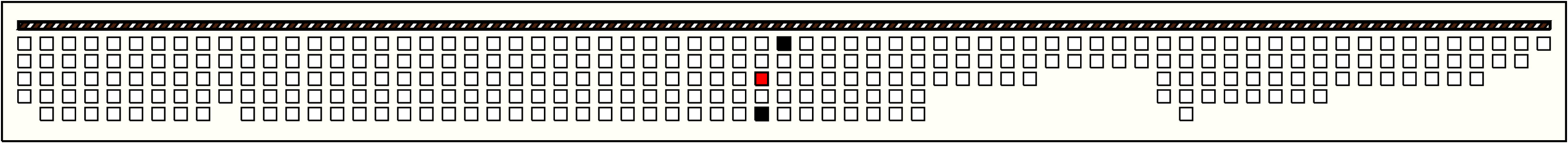

14	p166_{34, 3} : 200_DB-CB	200	2	p168: 100_YG + p169: 100_YG

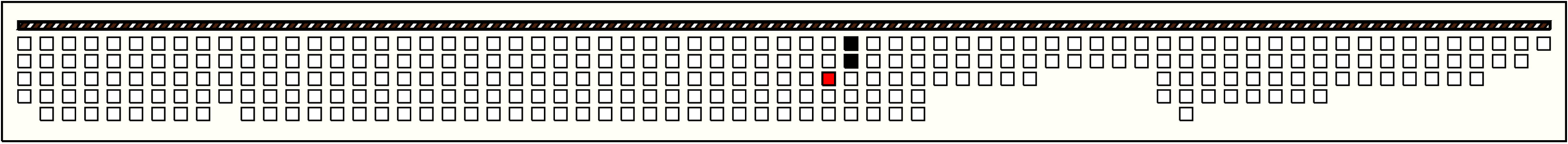

15	p181_{37, 3} : 200_DB-CB	200	2	p184: 100_YG + p185: 100_DB

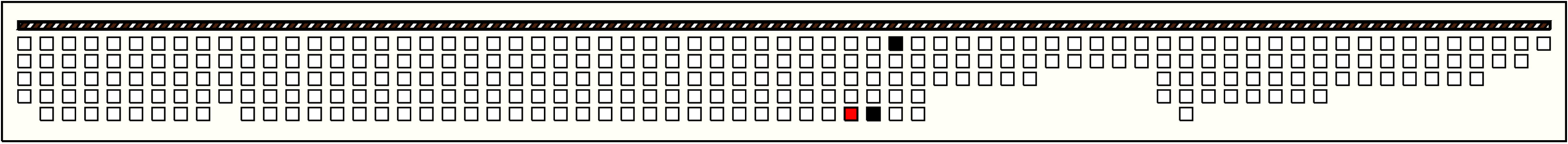

16	p188_{38, 5} : 130_YG	130	2	p193: 100_YG + p194: 30_YG
17	p209_{43, 3} : 210_DB	210	2	p240: 100_DB-CB + p241: 110_YG

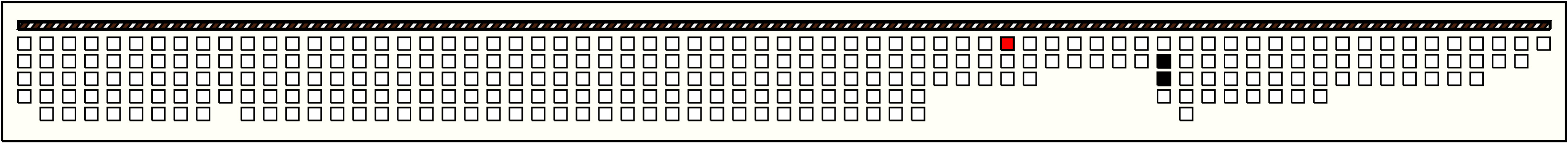

18	p213_{45, 1} : 300_RG	300	2	p230: 200_DB + p231: 100_DB-CB
19	p234_{53, 2} : 200_DB	200	2	p239: 100_DB + p240: 100_DB-CB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

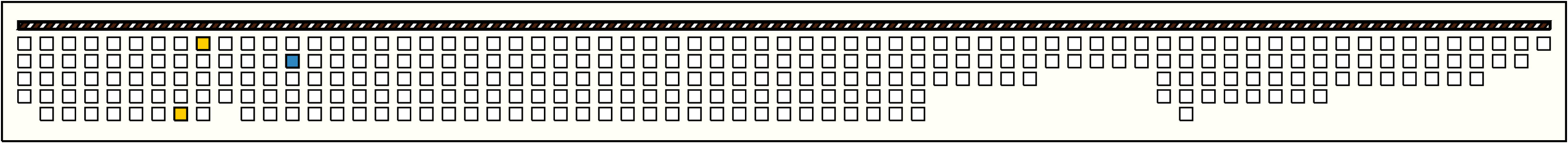

1	p60_{13, 2} : 200_DB	200	2	p39: 120_YG + p40: 80_YG

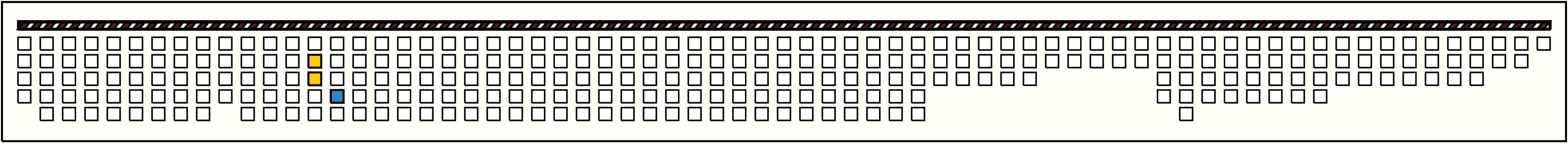

2	p72_{15, 4} : 330_YG:DB	330	2	p65: 200_DB + p66: 130_DB-CB
3	p86_{18, 3} : 300_DB-CB	300	2	p74: 100_YG + p75: 200_DB
4	p125_{26, 2} : 200_W:DB	200	2	p123: 110_YG + p124: 90_YG:DB
5	p135_{28, 2} : 120_W:DB	120	2	p131: 100_W:DB + p132: 20_YG-DB
6	p160_{33, 2} : 300_DB	300	3	p133: 110_YG + p134: 70_YG:DB + p135: 120_W:DB
7	p162_{33, 4} : 130_YG-DB	130	2	p137: 30_YG-DB + p138: 100_YG

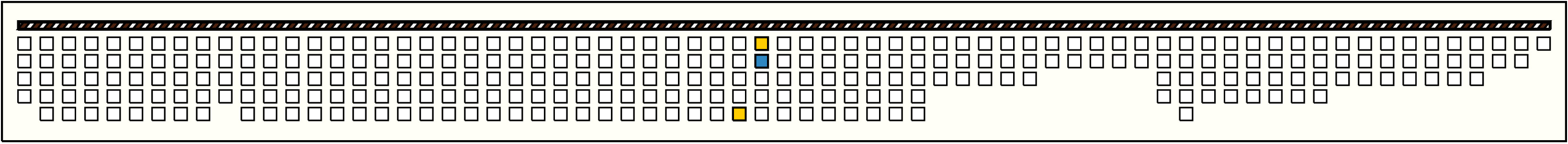

8	p165_{34, 2} : 200_DB	200	2	p163: 100_YG + p164: 100_YG
9	p170_{35, 2} : 300_DB	300	3	p166: 200_DB-CB + p167: 0_YG-DB + p168: 100_YG
10	p175_{36, 2} : 200_DB	200	2	p173: 100_YG + p174: 100_YG

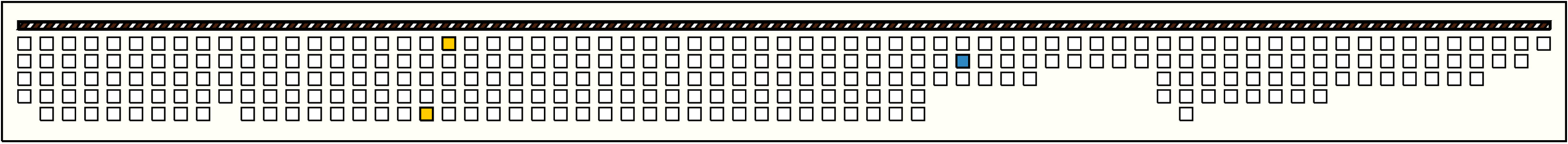

11	p208_{43, 2} : 150_DB-CB	150	2	p93: 125_YG + p94: 25_YG

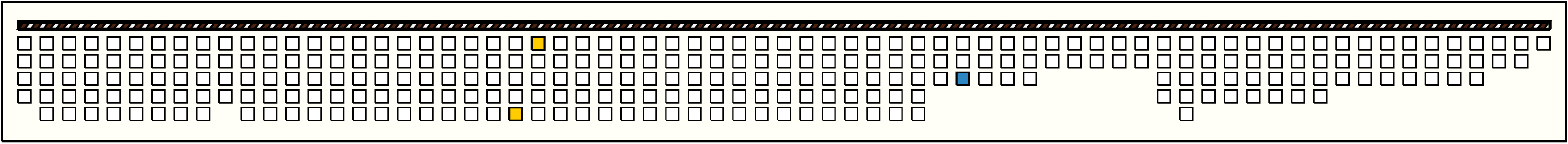

12	p209_{43, 3} : 210_DB	210	2	p113: 120_YG + p114: 90_YG:DB

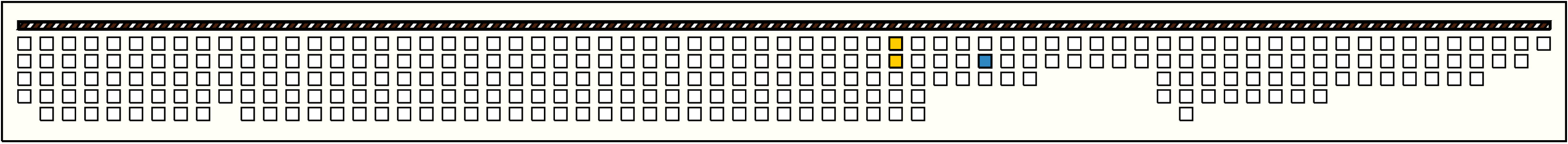

13	p211_{44, 2} : 130_DB-CB	130	2	p194: 30_YG + p195: 100_DB
14	p213_{45, 1} : 300_RG	300	4	p196: 100_DB-CB + p197: 0_YG-DB + p198: 100_YG + p199: 100_YG

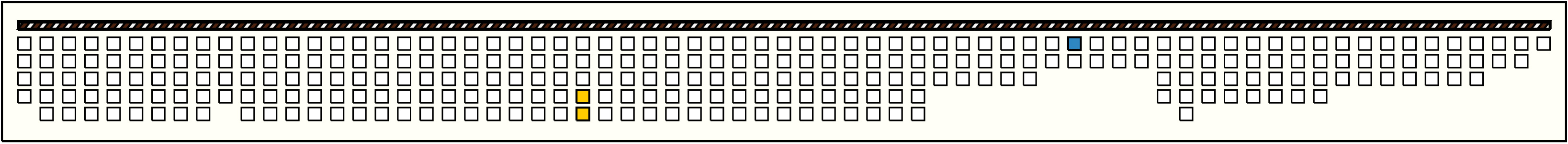

15	p221_{48, 1} : 160_DB-CB	160	2	p127: 40_YG-DB + p128: 120_YG
16	p230_{52, 2} : 200_DB	200	2	p228: 140_DB + p229: 60_YG
17	p243_{55, 2} : 200_DB	200	2	p239: 100_DB + p240: 100_DB-CB

Khipu Notes:

Ascher Databook Notes:

This is one of several khipus acquired by the Museum in 1907 with provenance Ica. For a list of them, see UR1100.
By spacing, the khipu is separated into 69 groups of 1-5 pendants each. By color patterning, the khipu is separable into 7 parts with 10, 11, 10, 10, 10, 8, and 10 groups respectively.
In part 1, with the exception of 2 pendants in the 10th group, each group has the 5 color pattern: YB, DB, DB-CB, DB-YG, YG. Where there are only 4 pendants in a group, it is the last position that is non-existent. The color pattern for part 2 is the same as for part 1 except that in the 4th position, the color is DB:YB instead of DB-YG. All groups in part 3 have the pattern: DB:YG, DB:W, DB:W, DB-YG, YG. Part 4 has the same color pattern as part 1. (Of these 10 groups, the only exception to the pattern is the 4th pendant in the first group.) Part 5 is 5 groups of 3 pendants each and then 5 groups of 2 pendants each. The 3 color pattern is RG, DB-CB, DB and where there are 2 pendants, it is always the first position that is non-existent. Part 6 has the 5 color pattern of parts 1 and 4. Seven of its 8 groups have only 4 pendants each and it is always the 4th position that is non-existent. The 10 groups of part 7 have 3, 2, or 1 pendants each. Where there are 3 pendants, they are positions 2-4 of the 5 color pattern shared by parts 1, 4, and 6 (the 4th group has 1 color out of order); the 2 pendant groups are positions 2-3 of the 5 color pattern; and the single pendant is the color of position 2.
1. In part 1, all pendants in the first group are zero-valued (or blank). Similarly, in parts 2 and 4, the first group is all zeroes (or blanks). In part 2, the last group also is all zeroes (or blanks).
2. Some groups in the same part have the same values in corresponding positions. In part 1, group 2 = group 3 and group 6 = group 7; in part 2, group 3 = group 6 = group 9; in part 3, group 2 = group 3 = group 5; in part 6, group 6 = group 7; and in part 7, groups 1-7 are all equal to each other.

When color patterns are aligned, the sums of values, position by position are similar for different parts. (We assume that the broken pendants Pl31, P138, P147, and P199 have values 103, 120, 30, and 100 respectively. These values are in keeping with the values in similar positions in neighboring groups.) Table 1 shows the sum of the values of all groups in each part, position by position.

TABLE 1

Part	Position 1	Position 2	Position 3	Position 4	Position 5
Part 1	(groups 1-10)	7	66	1572	1120
Part 2	(groups 1-21)	755	1501	1100	330
Part 3	(groups 22-31)	755	1501	1100	330
Part 4	(groups 32-41)	755	1501	1100	330
Part 5	(groups 42-51)	467 (note 467+533 below=1000)	1501	1100	--
Part 6	(groups 52-59)	533	1200	1052	112
Part 7	(groups 60-69)	--	1514	0	0
