UR1176/KH0193 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 36, Max # Summands = 48, (Min, Mean, Max) Sum Values = (13, 118, 554)
Click on Image to View Larger

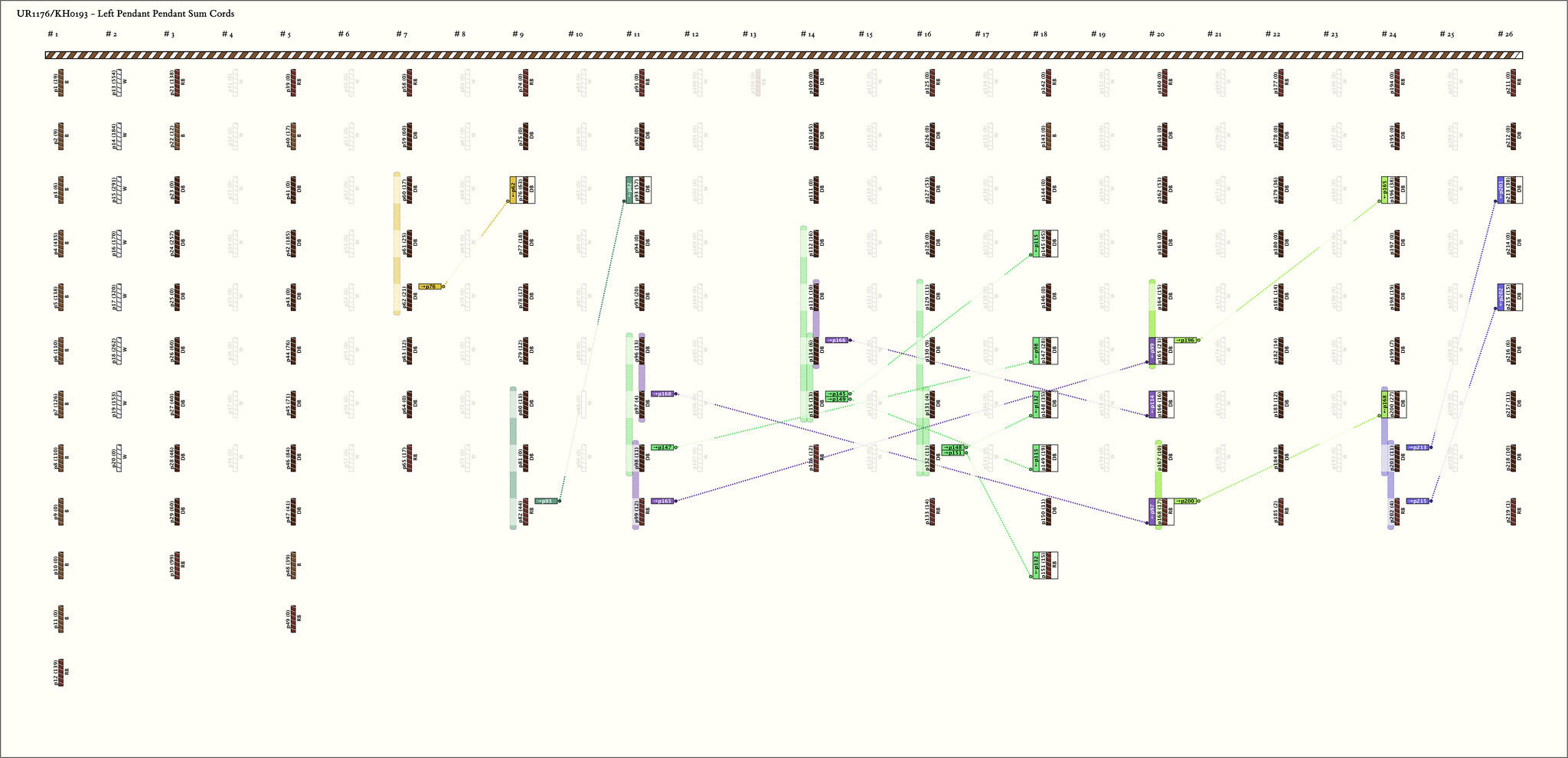

Left Handed Sums: # Sums = 14, Max # Summands = 4, (Min, Mean, Max) Sum Values = (15, 31, 63)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

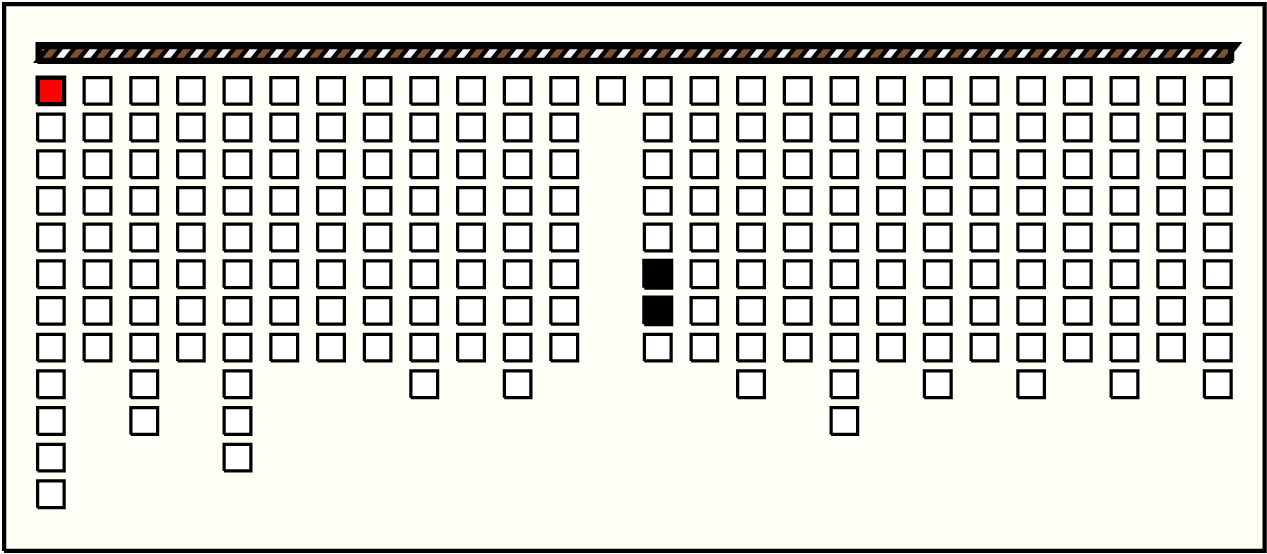

1	p1_{1, 1} : 19_B	19	2	p114: 6_DB + p115: 13_DB

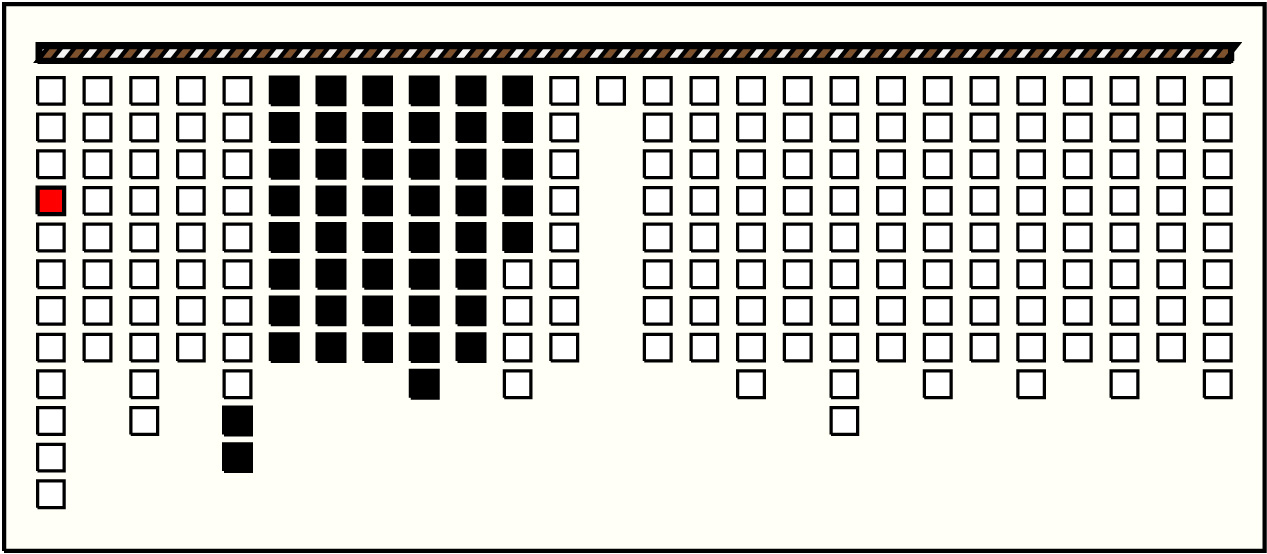

2	p4_{1, 4} : 435_B	435	48	p48: 39_B + p49: 0_RB + p50: 0_W + p51: 0_W + p52: 0_W + p53: 0_W + p54: 0_W + p55: 0_W + p56: 0_W + p57: 0_W + p58: 0_RB + p59: 60_DB + p60: 17_DB + p61: 25_DB + p62: 21_DB + p63: 12_DB + p64: 0_DB + p65: 17_RB + p66: 0_W + p67: 0_W + p68: 0_W + p69: 0_W + p70: 0_W + p71: 0_W + p72: 0_W + p73: 0_W + p74: 0_RB + p75: 0_DB + p76: 63_DB + p77: 18_DB + p78: 17_DB + p79: 12_DB + p80: 13_DB + p81: 0_DB + p82: 44_RB + p83: 0_W + p84: 0_W + p85: 0_W + p86: 0_W + p87: 0_W + p88: 0_W + p89: 0_W + p90: 0_W + p91: 0_RB + p92: 0_DB + p93: 57_DB + p94: 0_DB + p95: 20_DB

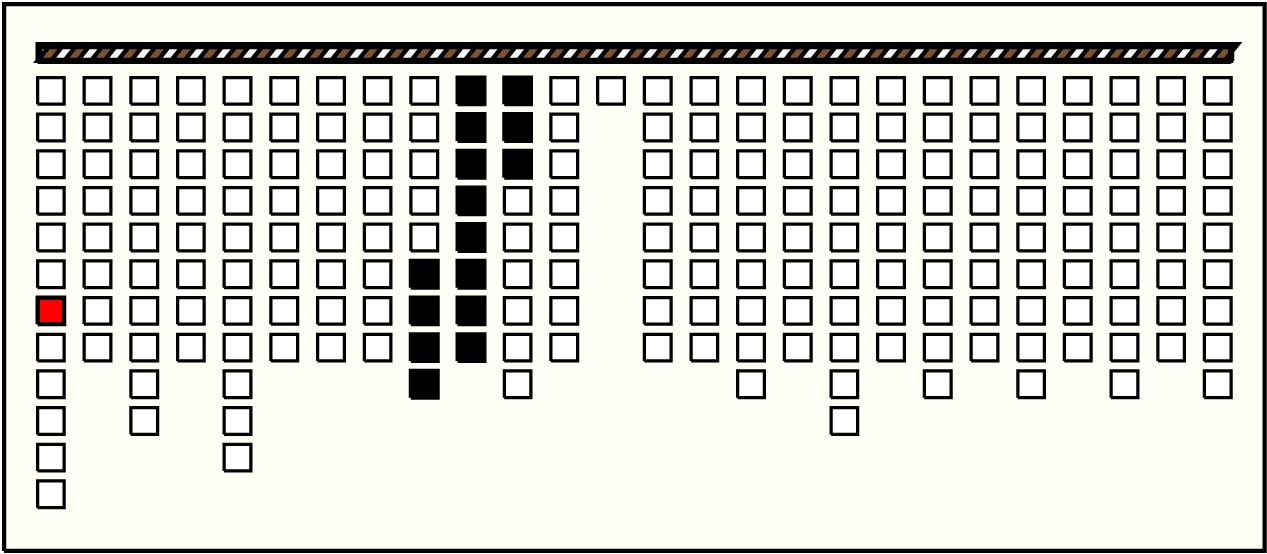

3	p7_{1, 7} : 126_B	126	15	p79: 12_DB + p80: 13_DB + p81: 0_DB + p82: 44_RB + p83: 0_W + p84: 0_W + p85: 0_W + p86: 0_W + p87: 0_W + p88: 0_W + p89: 0_W + p90: 0_W + p91: 0_RB + p92: 0_DB + p93: 57_DB

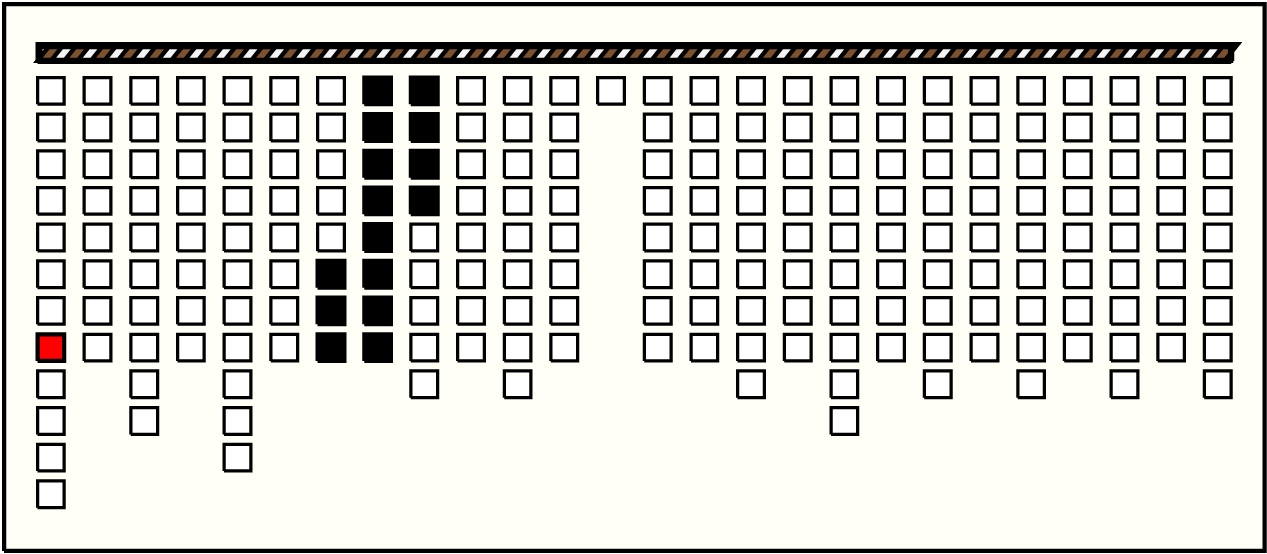

4	p8_{1, 8} : 110_B	110	15	p63: 12_DB + p64: 0_DB + p65: 17_RB + p66: 0_W + p67: 0_W + p68: 0_W + p69: 0_W + p70: 0_W + p71: 0_W + p72: 0_W + p73: 0_W + p74: 0_RB + p75: 0_DB + p76: 63_DB + p77: 18_DB

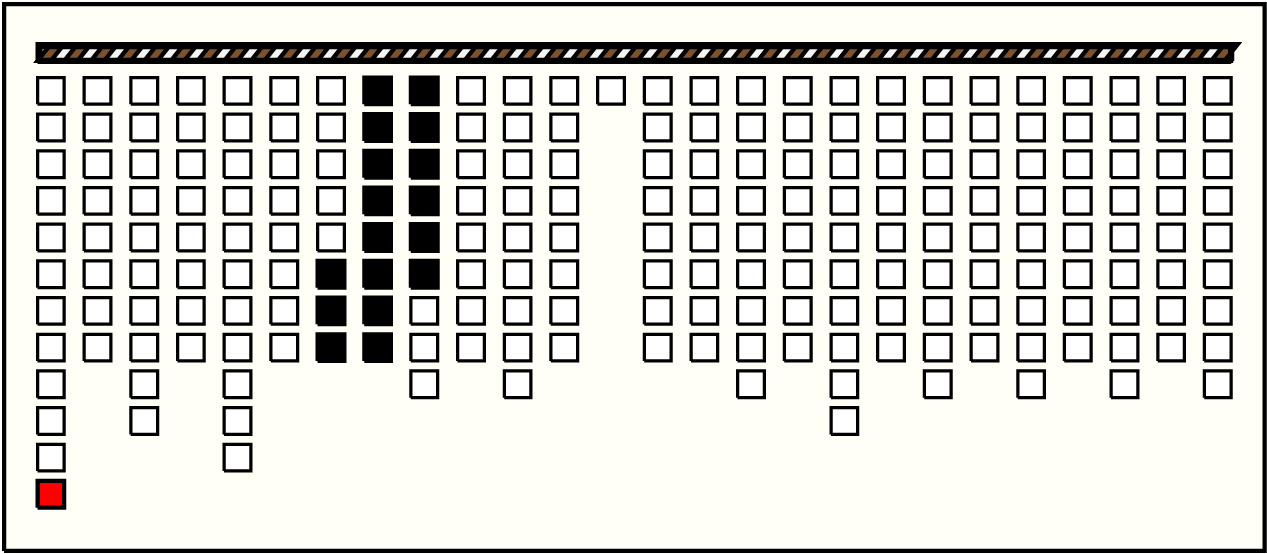

5	p12_{1, 12} : 139_RB	139	17	p63: 12_DB + p64: 0_DB + p65: 17_RB + p66: 0_W + p67: 0_W + p68: 0_W + p69: 0_W + p70: 0_W + p71: 0_W + p72: 0_W + p73: 0_W + p74: 0_RB + p75: 0_DB + p76: 63_DB + p77: 18_DB + p78: 17_DB + p79: 12_DB

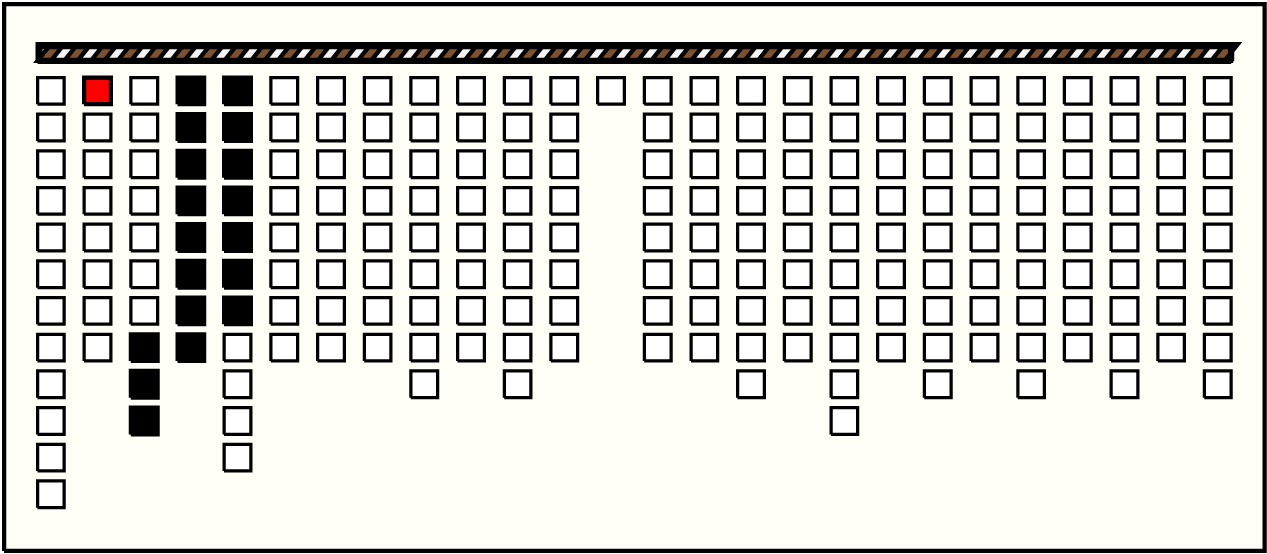

6	p13_{2, 1} : 554_W	554	18	p28: 46_DB + p29: 60_DB + p30: 99_RB + p31: 0_W + p32: 0_W + p33: 0_W + p34: 0_W + p35: 0_W + p36: 0_W + p37: 0_W + p38: 0_W + p39: 0_RB + p40: 17_B + p41: 0_DB + p42: 185_DB + p43: 0_DB + p44: 76_DB + p45: 71_DB
7	p14_{2, 2} : 184_W	184	18	p65: 17_RB + p66: 0_W + p67: 0_W + p68: 0_W + p69: 0_W + p70: 0_W + p71: 0_W + p72: 0_W + p73: 0_W + p74: 0_RB + p75: 0_DB + p76: 63_DB + p77: 18_DB + p78: 17_DB + p79: 12_DB + p80: 13_DB + p81: 0_DB + p82: 44_RB

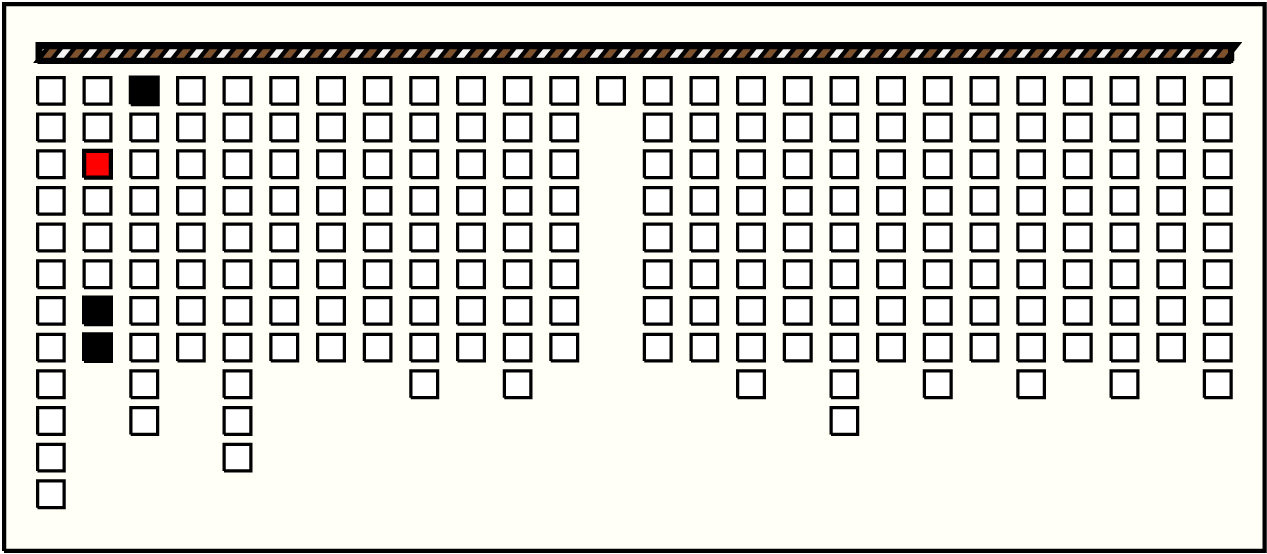

8	p15_{2, 3} : 291_W	291	3	p19: 153_W + p20: 0_W + p21: 138_RB

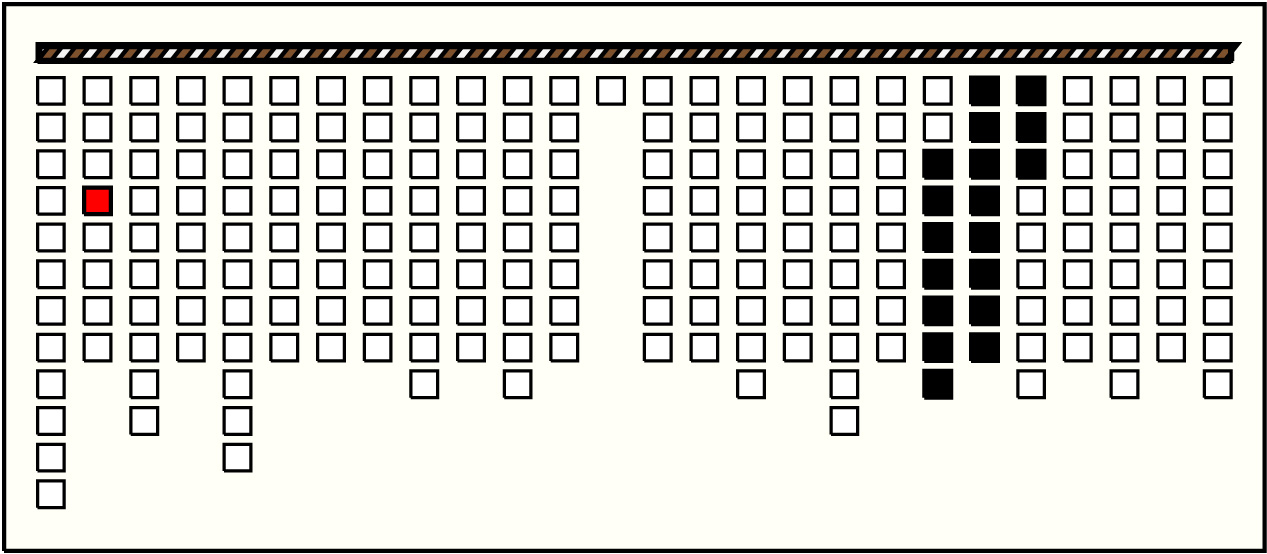

9	p16_{2, 4} : 170_W	170	18	p162: 53_DB + p163: 0_DB + p164: 15_DB + p165: 23_DB + p166: 16_DB + p167: 10_DB + p168: 17_RB + p169: 0_W + p170: 0_W + p171: 0_W + p172: 0_W + p173: 0_W + p174: 0_W + p175: 0_W + p176: 0_W + p177: 0_RB + p178: 0_DB + p179: 36_DB
10	p17_{2, 5} : 320_W	320	47	p116: 12_RB + p117: 0_W + p118: 0_W + p119: 0_W + p120: 0_W + p121: 0_W + p122: 0_W + p123: 0_W + p124: 0_W + p125: 0_RB + p126: 0_DB + p127: 53_DB + p128: 0_DB + p129: 11_DB + p130: 9_DB + p131: 4_DB + p132: 11_DB + p133: 14_RB + p134: 0_W + p135: 0_W + p136: 0_W + p137: 0_W + p138: 0_W + p139: 0_W + p140: 0_W + p141: 0_W + p142: 0_RB + p143: 0_B + p144: 0_DB + p145: 45_DB + p146: 0_DB + p147: 28_DB + p148: 35_DB + p149: 19_DB + p150: 11_DB + p151: 15_RB + p152: 0_W + p153: 0_W + p154: 0_W + p155: 0_W + p156: 0_W + p157: 0_W + p158: 0_W + p159: 0_W + p160: 0_RB + p161: 0_DB + p162: 53_DB
11	p18_{2, 6} : 262_W	262	14	p27: 40_DB + p28: 46_DB + p29: 60_DB + p30: 99_RB + p31: 0_W + p32: 0_W + p33: 0_W + p34: 0_W + p35: 0_W + p36: 0_W + p37: 0_W + p38: 0_W + p39: 0_RB + p40: 17_B
12	p19_{2, 7} : 153_W	153	7	p145: 45_DB + p146: 0_DB + p147: 28_DB + p148: 35_DB + p149: 19_DB + p150: 11_DB + p151: 15_RB

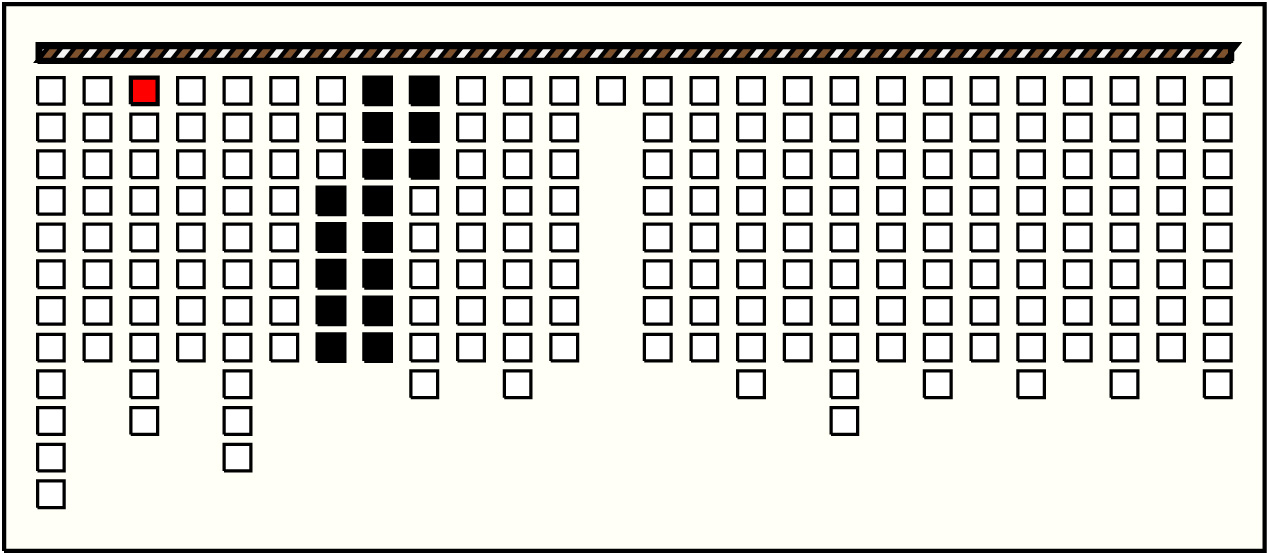

13	p21_{3, 1} : 138_RB	138	16	p61: 25_DB + p62: 21_DB + p63: 12_DB + p64: 0_DB + p65: 17_RB + p66: 0_W + p67: 0_W + p68: 0_W + p69: 0_W + p70: 0_W + p71: 0_W + p72: 0_W + p73: 0_W + p74: 0_RB + p75: 0_DB + p76: 63_DB

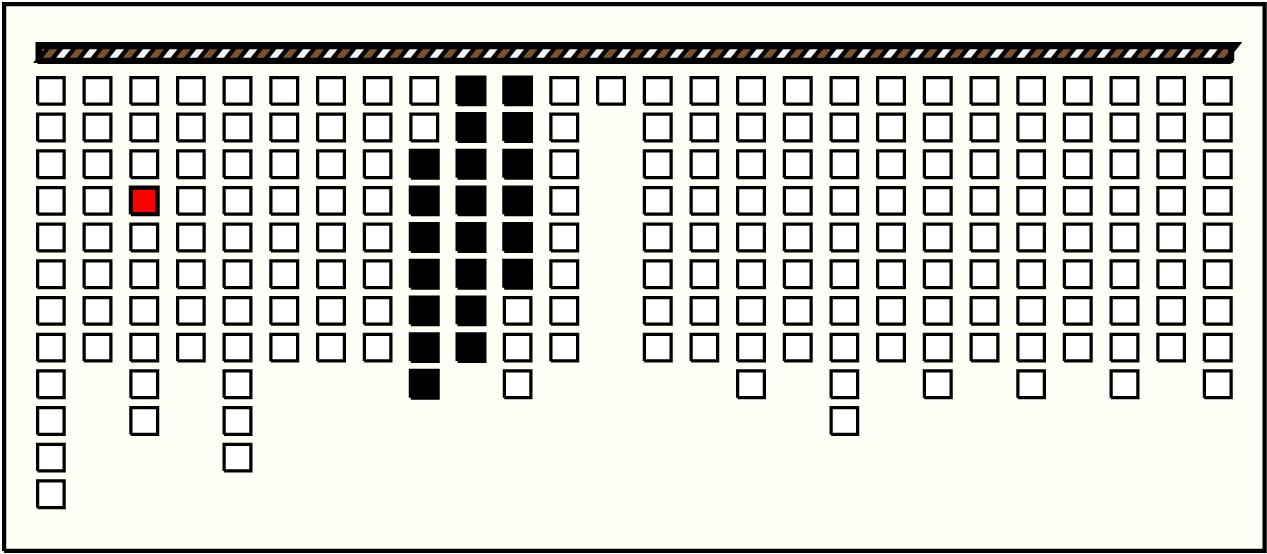

14	p24_{3, 4} : 257_DB	257	21	p76: 63_DB + p77: 18_DB + p78: 17_DB + p79: 12_DB + p80: 13_DB + p81: 0_DB + p82: 44_RB + p83: 0_W + p84: 0_W + p85: 0_W + p86: 0_W + p87: 0_W + p88: 0_W + p89: 0_W + p90: 0_W + p91: 0_RB + p92: 0_DB + p93: 57_DB + p94: 0_DB + p95: 20_DB + p96: 13_DB

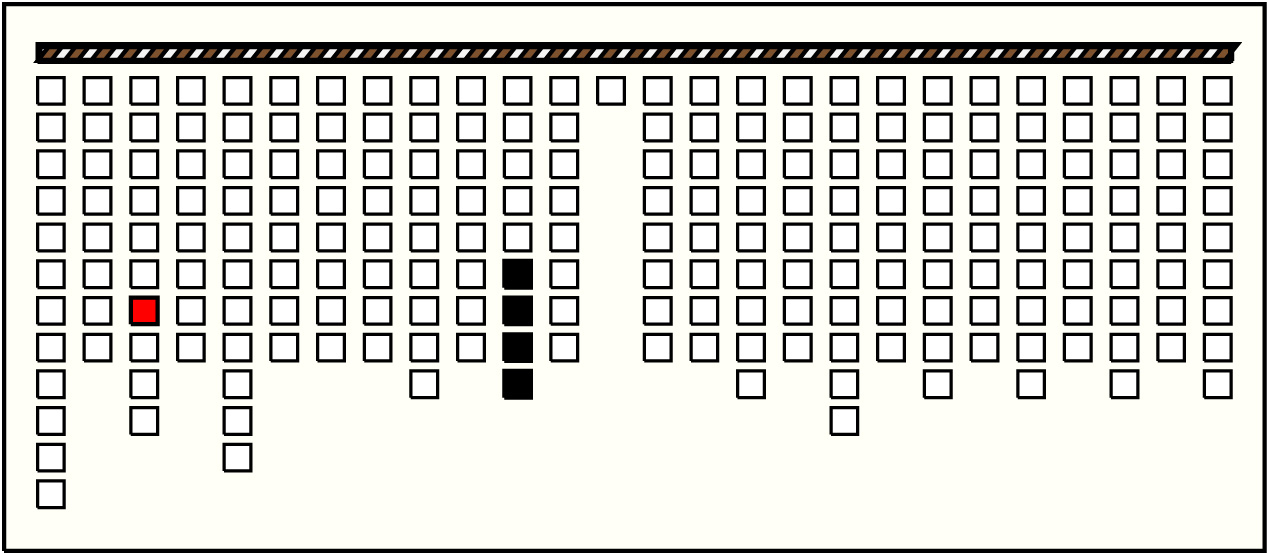

15	p27_{3, 7} : 40_DB	40	4	p96: 13_DB + p97: 4_DB + p98: 11_DB + p99: 12_RB

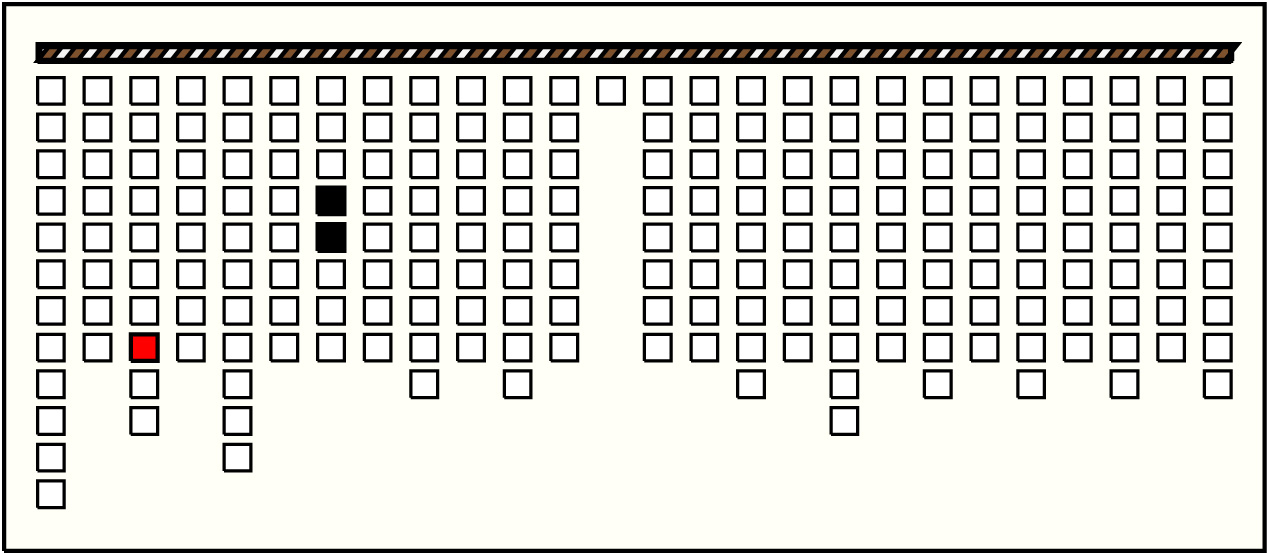

16	p28_{3, 8} : 46_DB	46	2	p61: 25_DB + p62: 21_DB

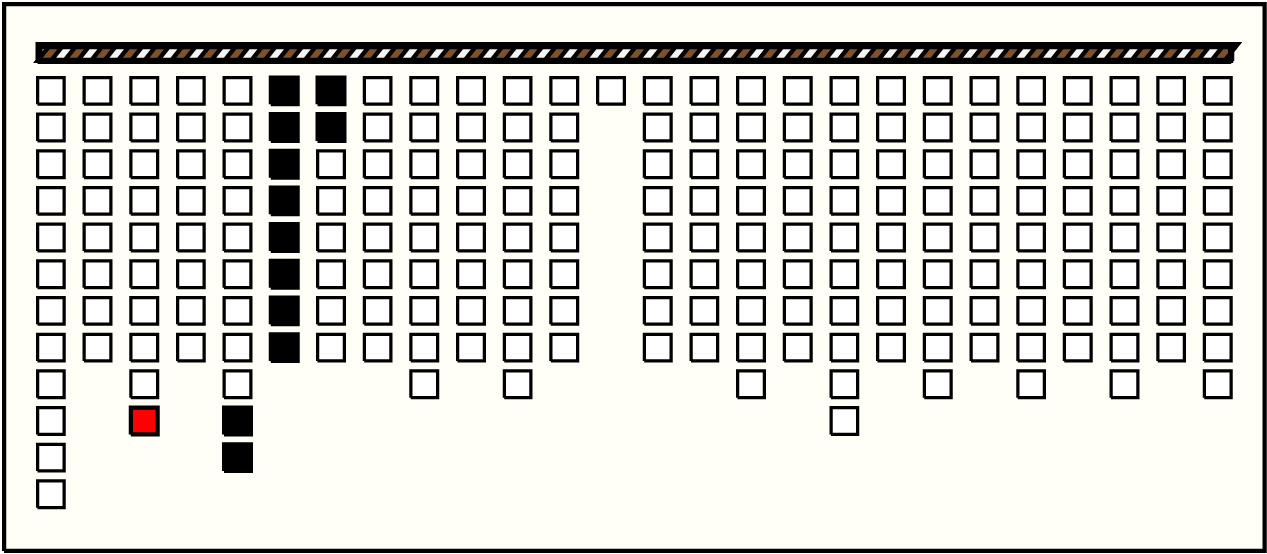

17	p30_{3, 10} : 99_RB	99	12	p48: 39_B + p49: 0_RB + p50: 0_W + p51: 0_W + p52: 0_W + p53: 0_W + p54: 0_W + p55: 0_W + p56: 0_W + p57: 0_W + p58: 0_RB + p59: 60_DB

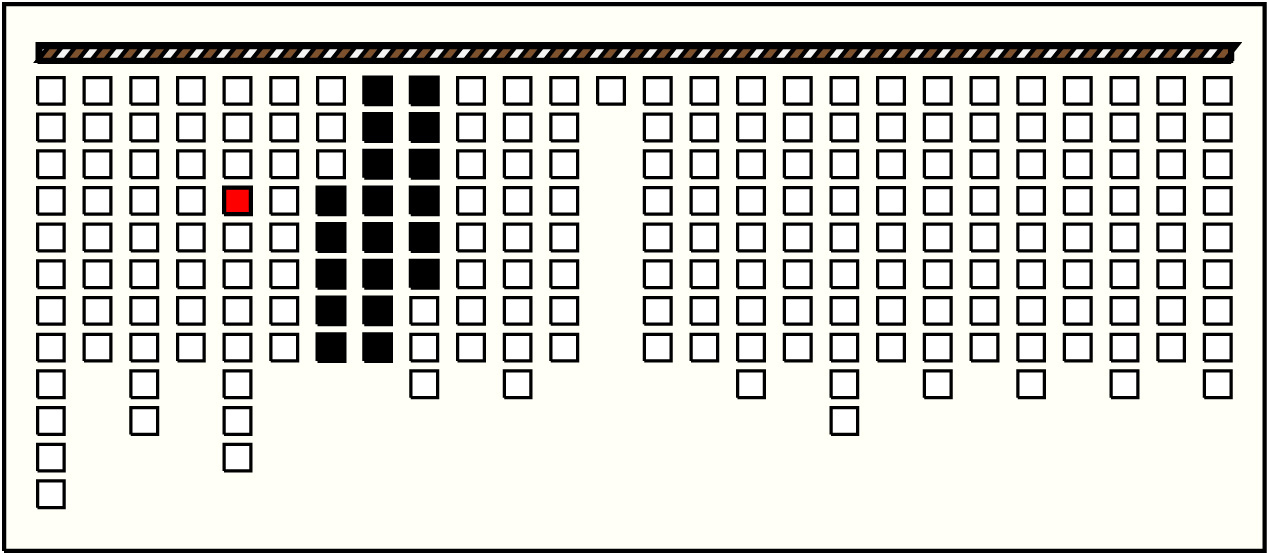

18	p42_{5, 4} : 185_DB	185	19	p61: 25_DB + p62: 21_DB + p63: 12_DB + p64: 0_DB + p65: 17_RB + p66: 0_W + p67: 0_W + p68: 0_W + p69: 0_W + p70: 0_W + p71: 0_W + p72: 0_W + p73: 0_W + p74: 0_RB + p75: 0_DB + p76: 63_DB + p77: 18_DB + p78: 17_DB + p79: 12_DB

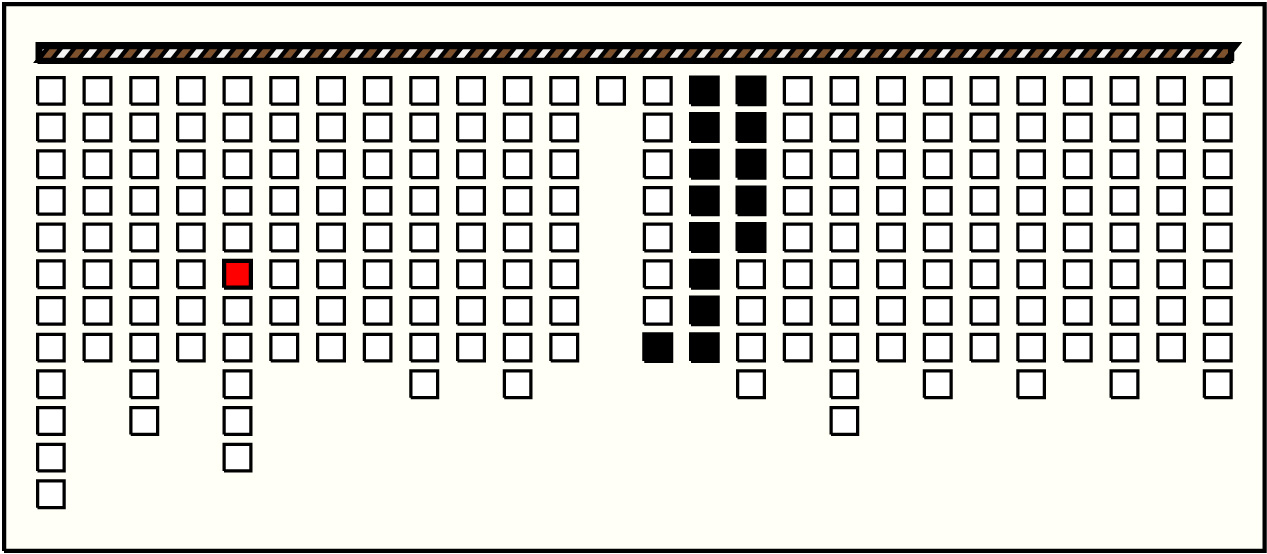

19	p44_{5, 6} : 76_DB	76	14	p116: 12_RB + p117: 0_W + p118: 0_W + p119: 0_W + p120: 0_W + p121: 0_W + p122: 0_W + p123: 0_W + p124: 0_W + p125: 0_RB + p126: 0_DB + p127: 53_DB + p128: 0_DB + p129: 11_DB
20	p45_{5, 7} : 71_DB	71	4	p110: 45_DB + p111: 0_DB + p112: 16_DB + p113: 10_DB

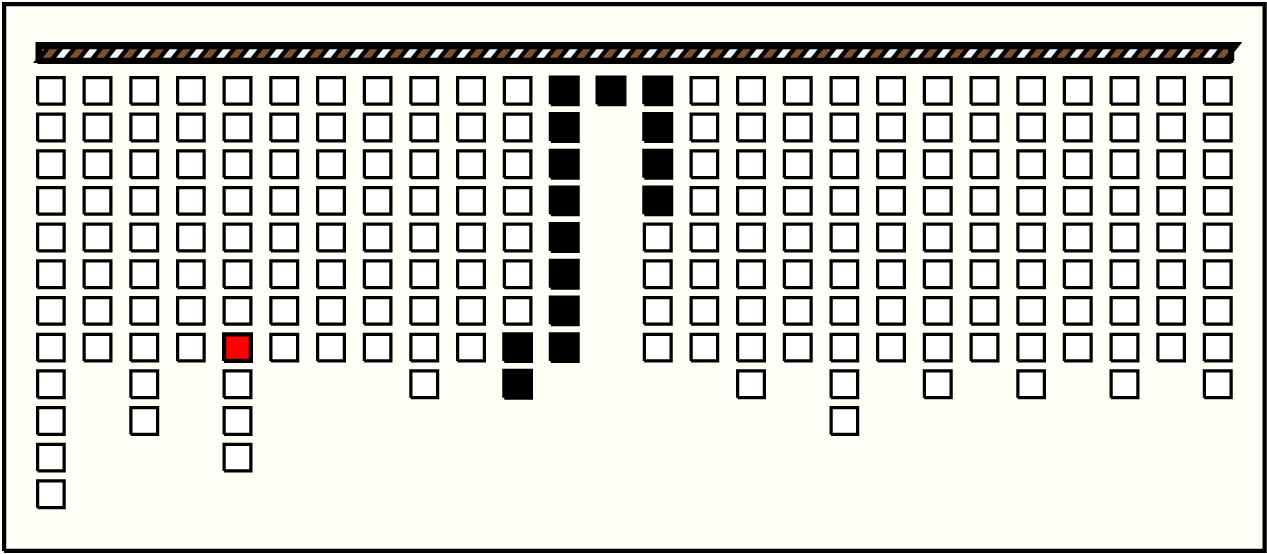

21	p46_{5, 8} : 84_DB	84	15	p98: 11_DB + p99: 12_RB + p100: 0_W + p101: 0_W + p102: 0_W + p103: 0_W + p104: 0_W + p105: 0_W + p106: 0_W + p107: 0_W + p108: 0_RB + p109: 0_DB + p110: 45_DB + p111: 0_DB + p112: 16_DB

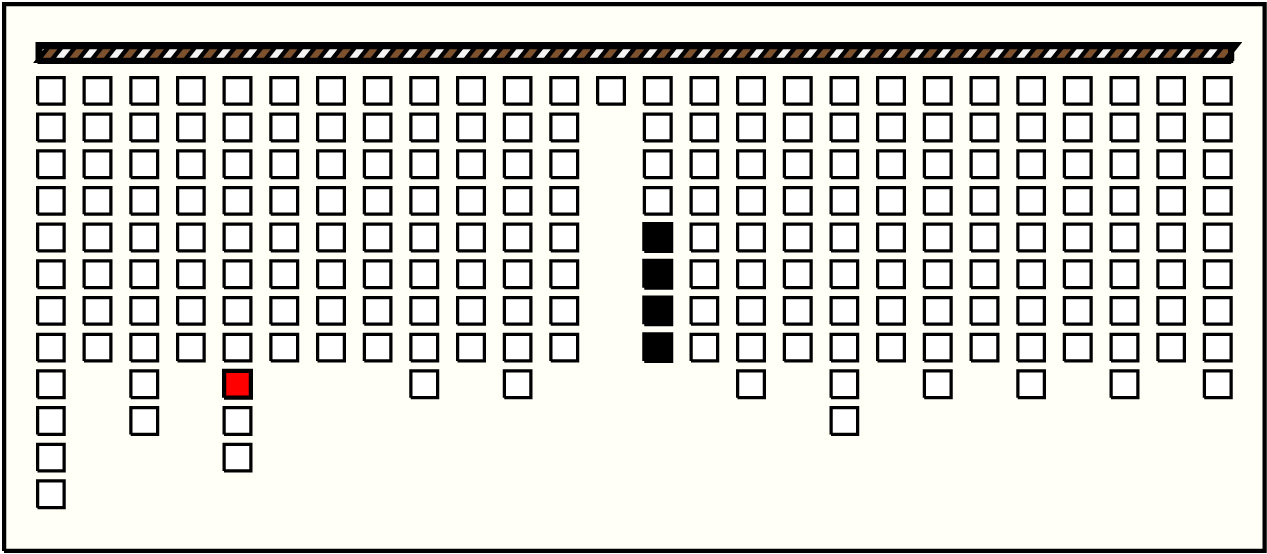

22	p47_{5, 9} : 41_DB	41	4	p113: 10_DB + p114: 6_DB + p115: 13_DB + p116: 12_RB
23	p48_{5, 10} : 39_B	39	2	p165: 23_DB + p166: 16_DB

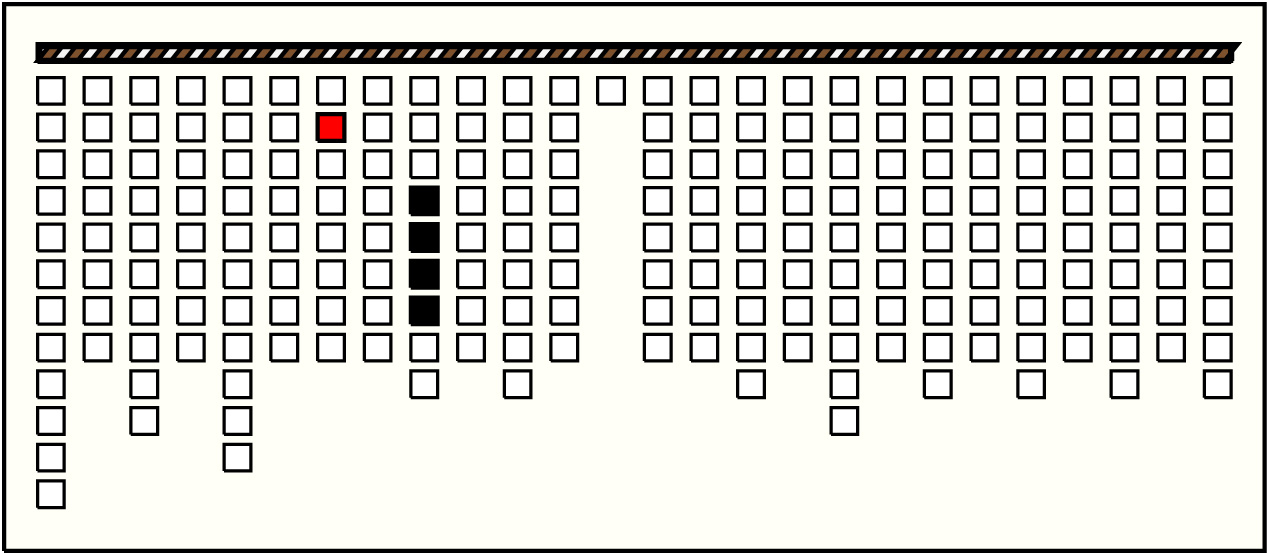

24	p59_{7, 2} : 60_DB	60	4	p77: 18_DB + p78: 17_DB + p79: 12_DB + p80: 13_DB

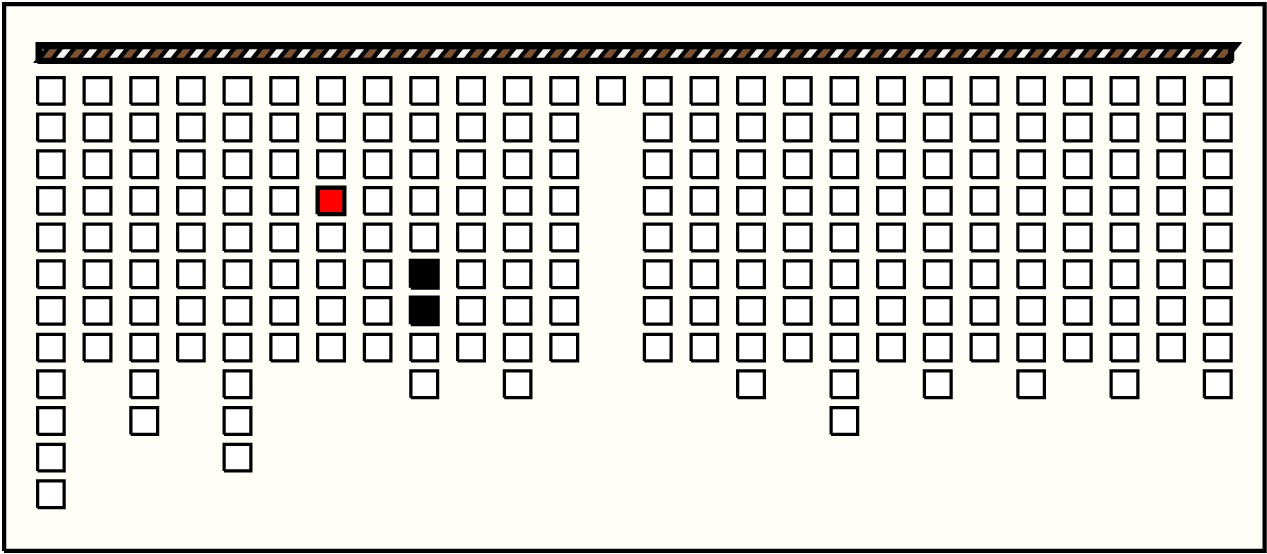

25	p61_{7, 4} : 25_DB	25	2	p79: 12_DB + p80: 13_DB

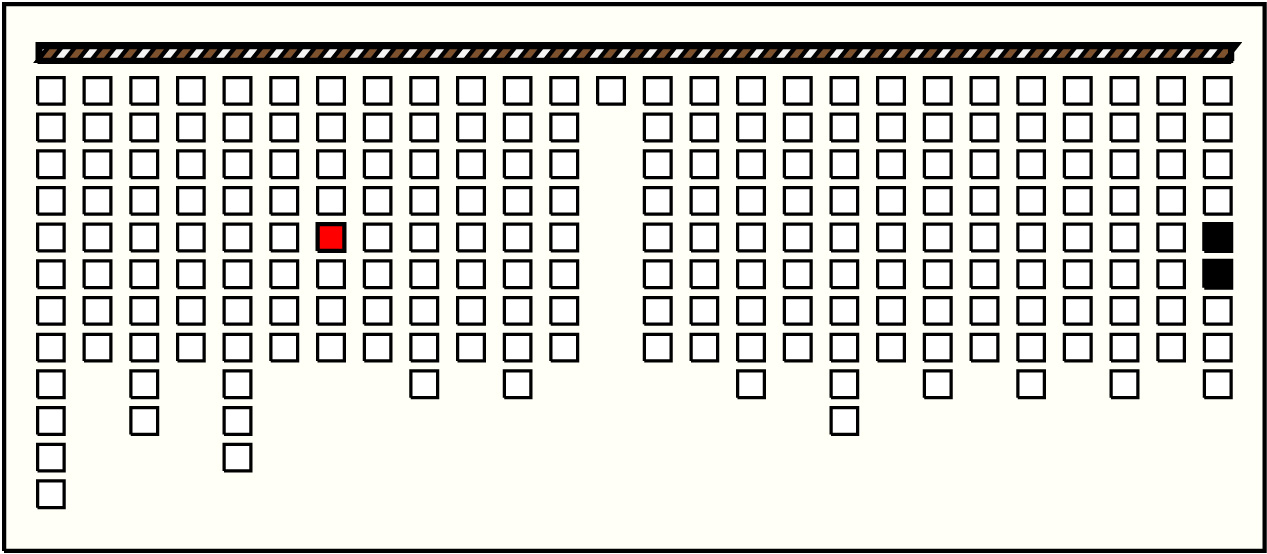

26	p62_{7, 5} : 21_DB	21	2	p215: 15_DB + p216: 6_DB

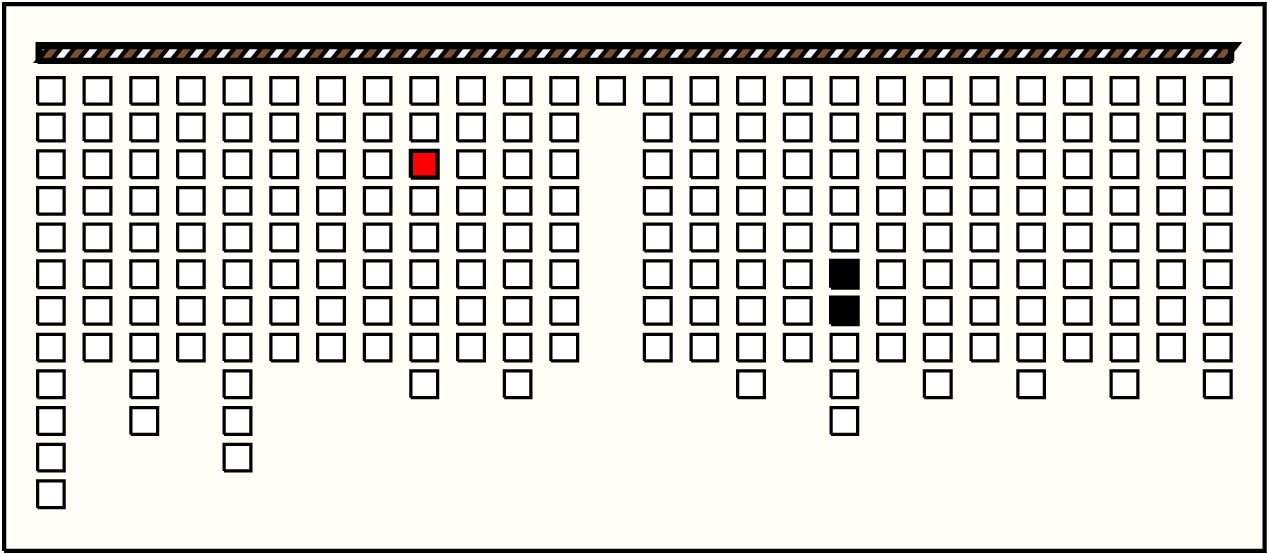

27	p76_{9, 3} : 63_DB	63	2	p147: 28_DB + p148: 35_DB

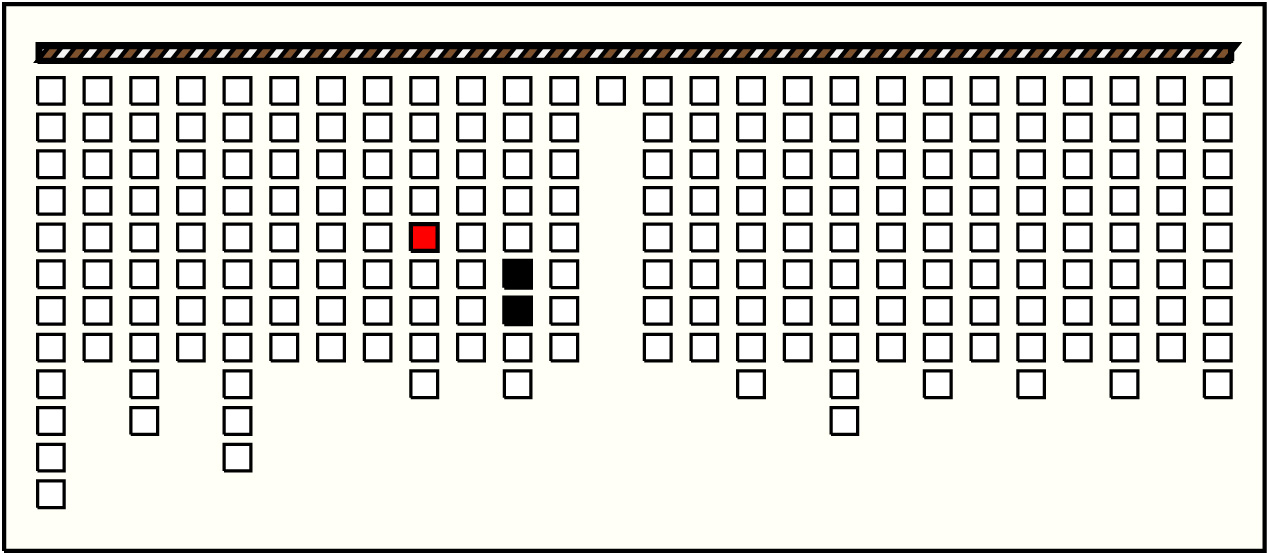

28	p78_{9, 5} : 17_DB	17	2	p96: 13_DB + p97: 4_DB

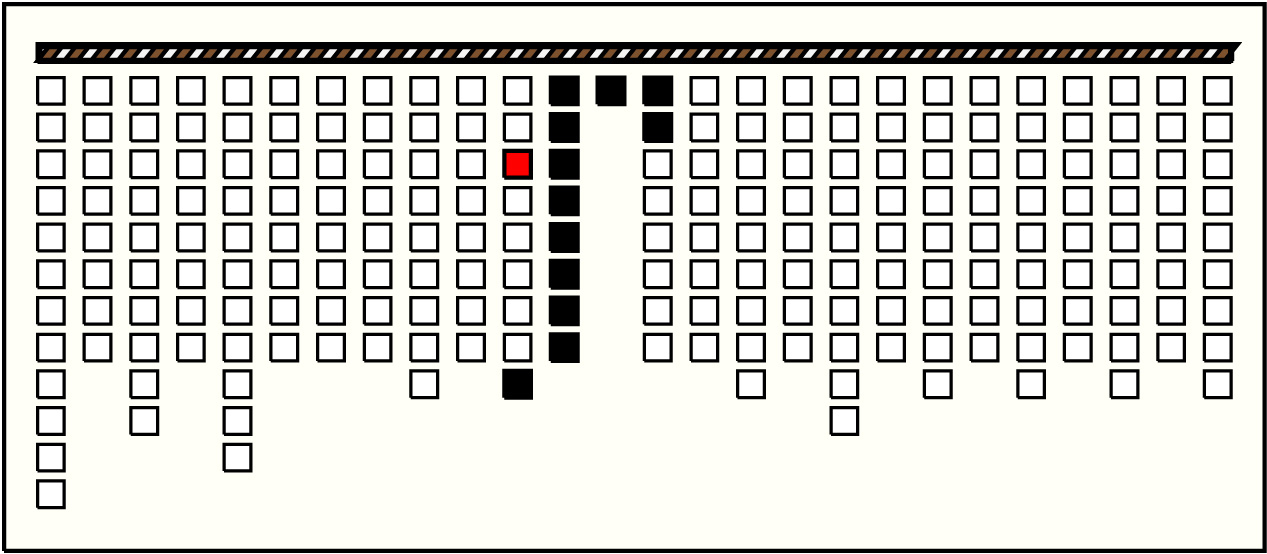

29	p93_{11, 3} : 57_DB	57	12	p99: 12_RB + p100: 0_W + p101: 0_W + p102: 0_W + p103: 0_W + p104: 0_W + p105: 0_W + p106: 0_W + p107: 0_W + p108: 0_RB + p109: 0_DB + p110: 45_DB

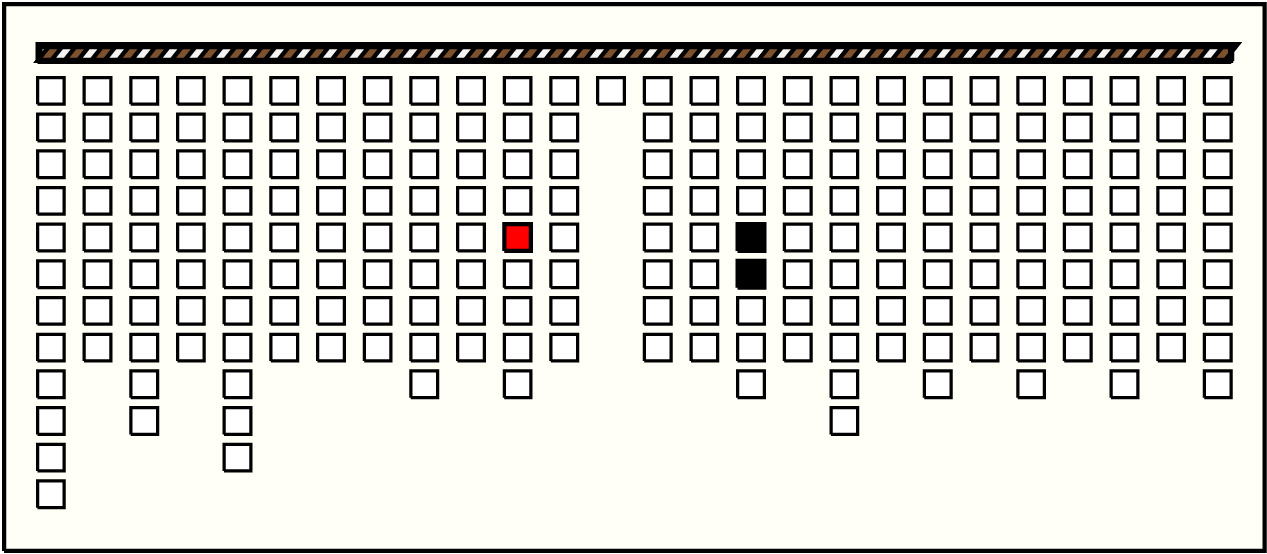

30	p95_{11, 5} : 20_DB	20	2	p129: 11_DB + p130: 9_DB
31	p115_{14, 7} : 13_DB	13	2	p130: 9_DB + p131: 4_DB

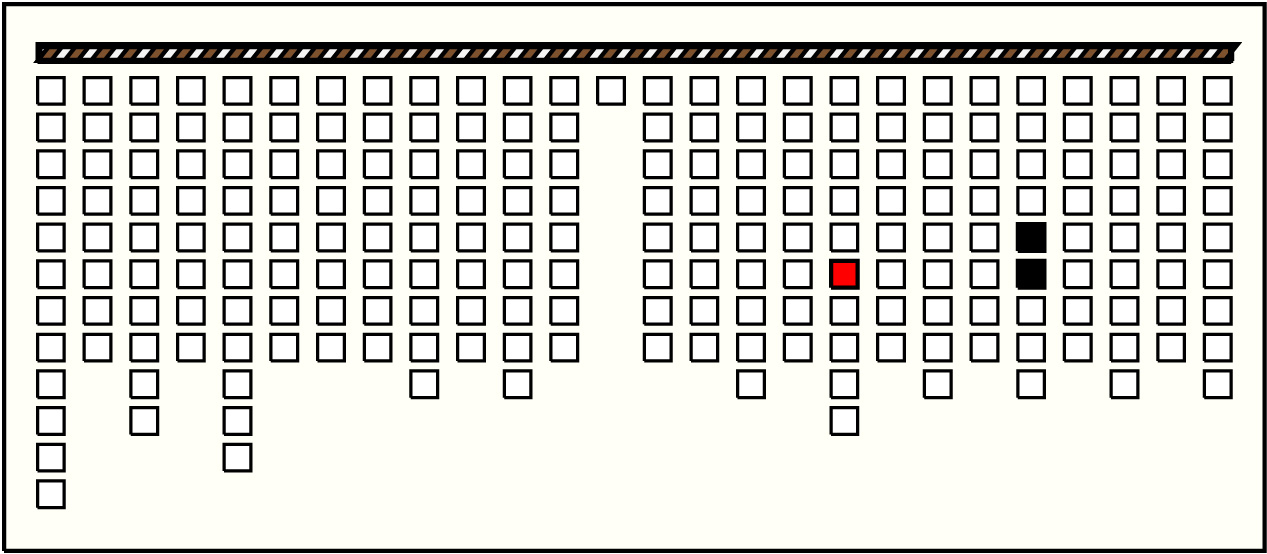

32	p147_{18, 6} : 28_DB	28	2	p181: 14_DB + p182: 14_DB

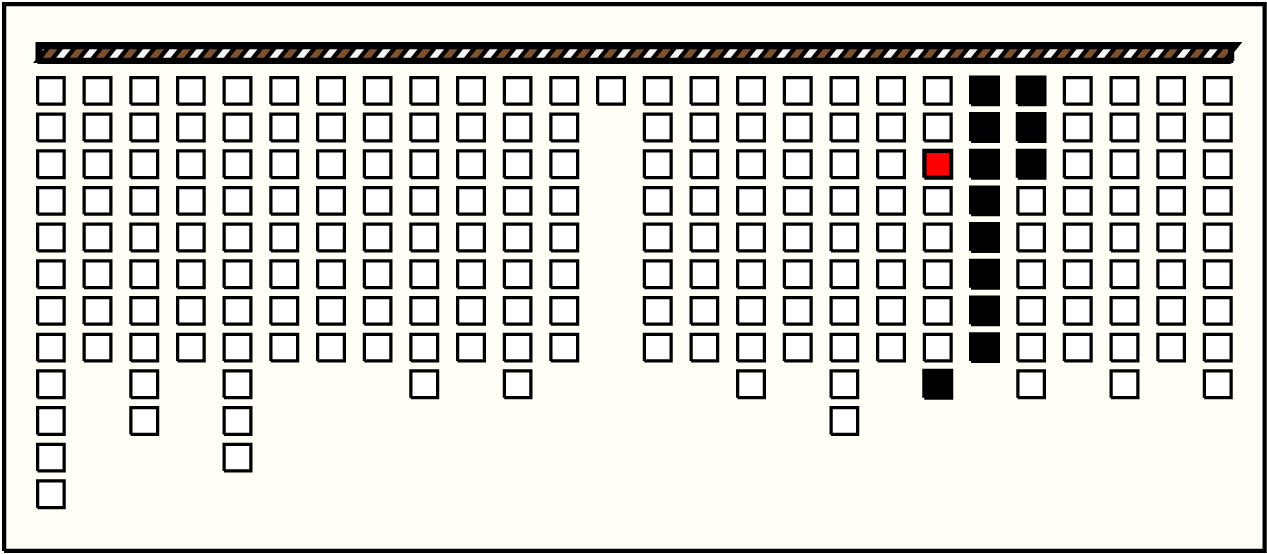

33	p162_{20, 3} : 53_DB	53	12	p168: 17_RB + p169: 0_W + p170: 0_W + p171: 0_W + p172: 0_W + p173: 0_W + p174: 0_W + p175: 0_W + p176: 0_W + p177: 0_RB + p178: 0_DB + p179: 36_DB
34	p164_{20, 5} : 15_DB	15	2	p201: 11_DB + p202: 4_RB
35	p168_{20, 9} : 17_RB	17	2	p216: 6_DB + p217: 11_DB

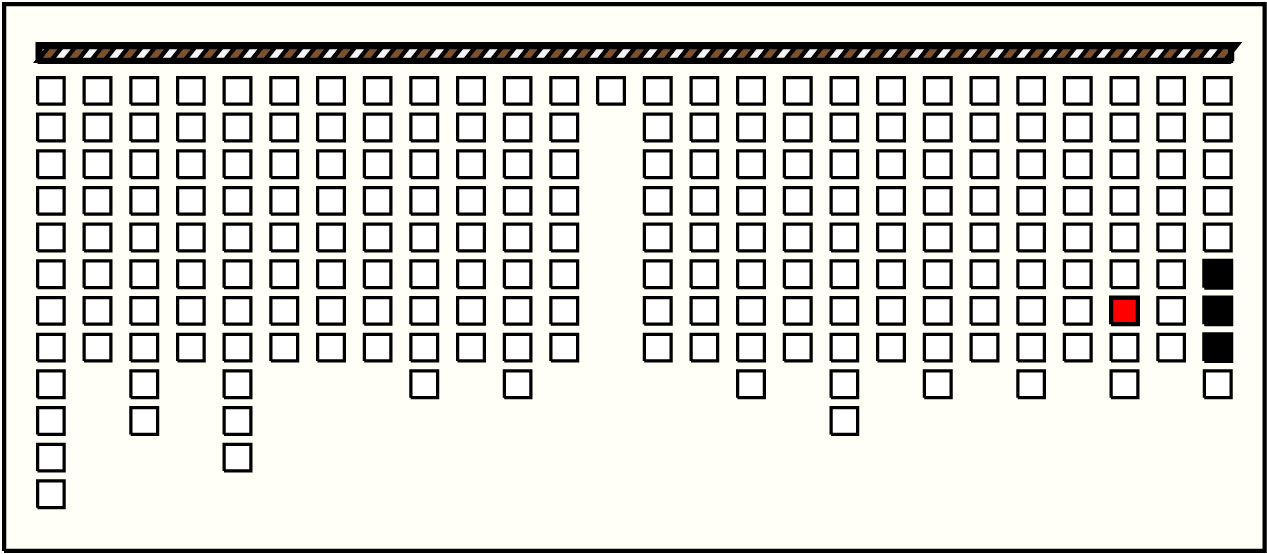

36	p200_{24, 7} : 27_DB	27	3	p216: 6_DB + p217: 11_DB + p218: 10_DB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

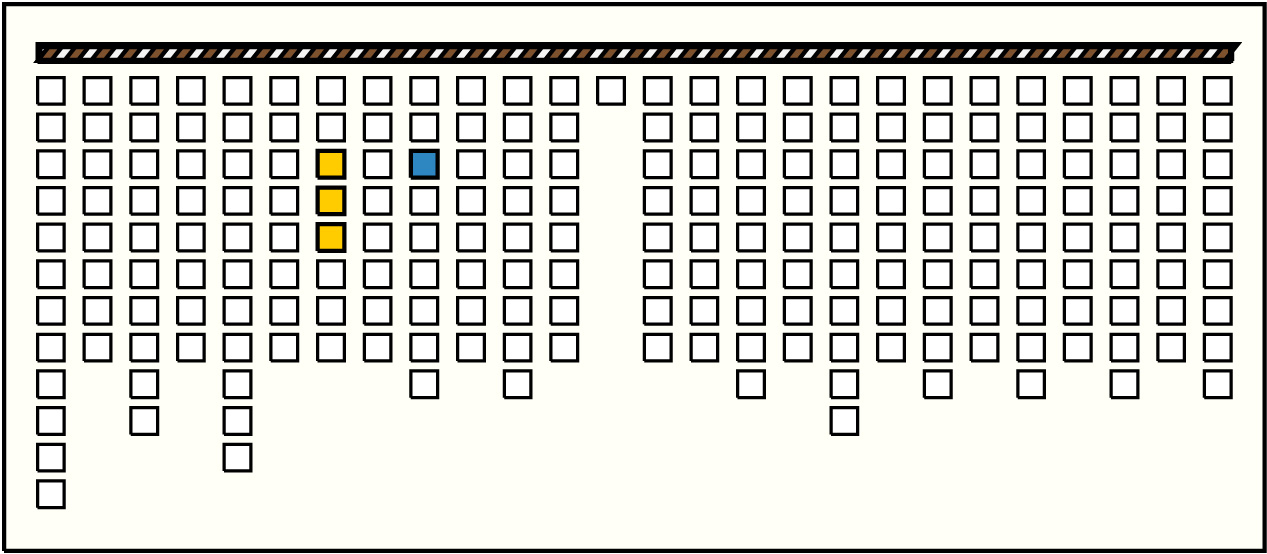

1	p76_{9, 3} : 63_DB	63	3	p60: 17_DB + p61: 25_DB + p62: 21_DB

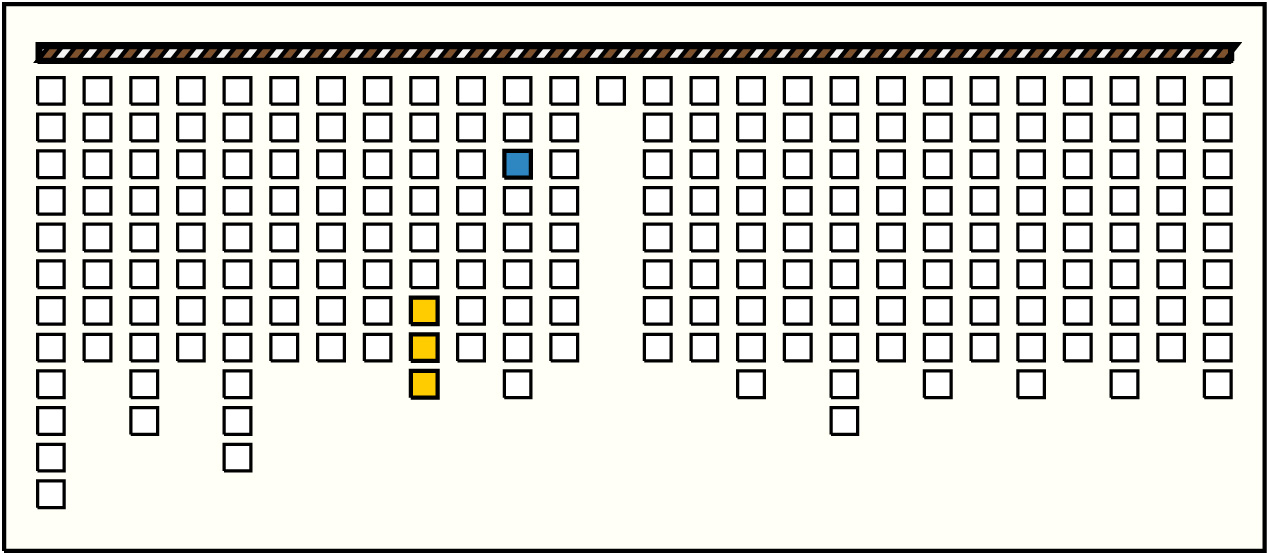

2	p93_{11, 3} : 57_DB	57	3	p80: 13_DB + p81: 0_DB + p82: 44_RB

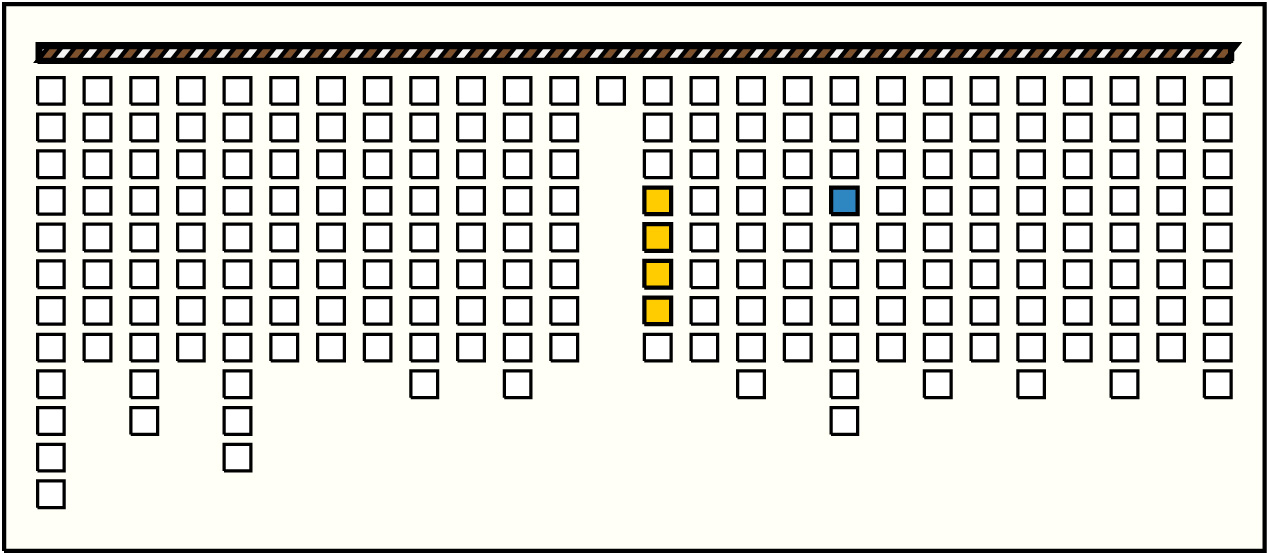

3	p145_{18, 4} : 45_DB	45	4	p112: 16_DB + p113: 10_DB + p114: 6_DB + p115: 13_DB
4	p147_{18, 6} : 28_DB	28	3	p96: 13_DB + p97: 4_DB + p98: 11_DB

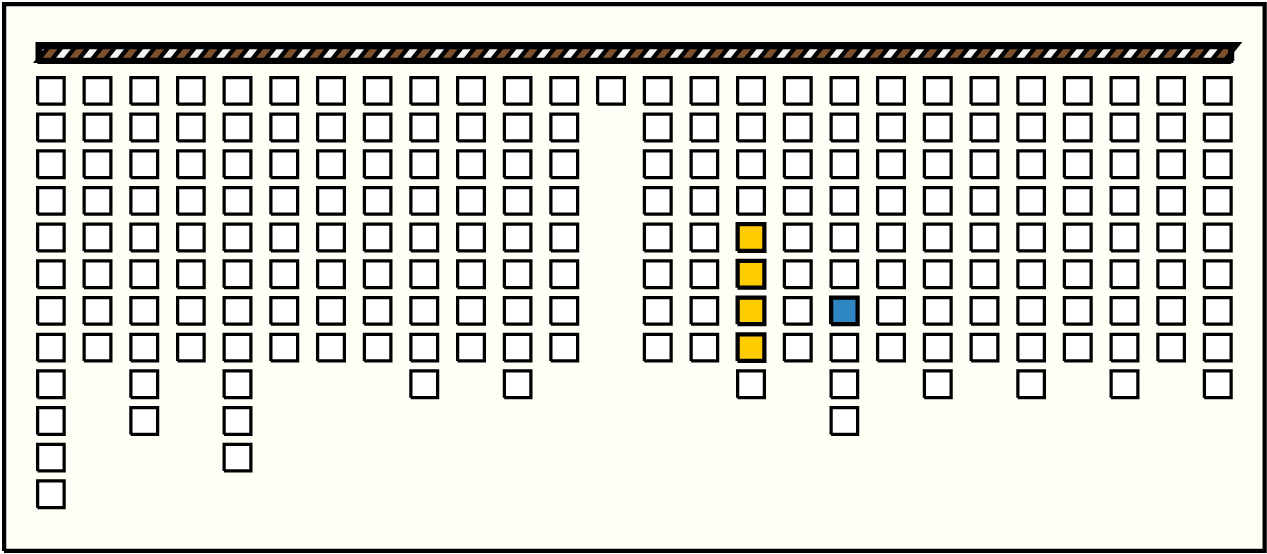

5	p148_{18, 7} : 35_DB	35	4	p129: 11_DB + p130: 9_DB + p131: 4_DB + p132: 11_DB
6	p149_{18, 8} : 19_DB	19	2	p114: 6_DB + p115: 13_DB
7	p151_{18, 10} : 15_RB	15	2	p131: 4_DB + p132: 11_DB
8	p165_{20, 6} : 23_DB	23	2	p98: 11_DB + p99: 12_RB

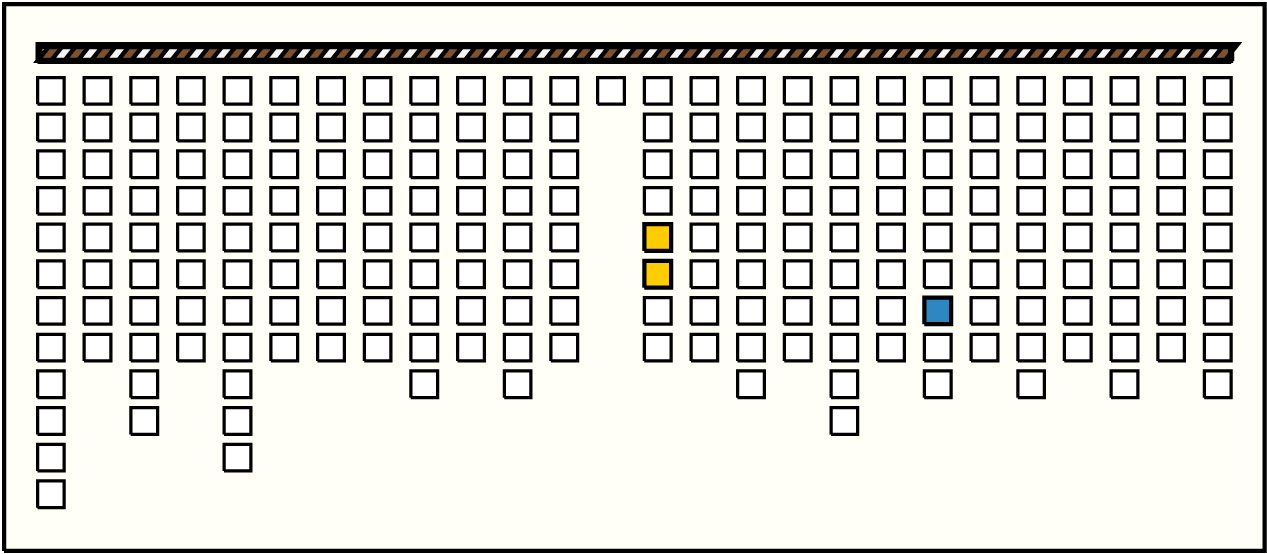

9	p166_{20, 7} : 16_DB	16	2	p113: 10_DB + p114: 6_DB
10	p168_{20, 9} : 17_RB	17	2	p96: 13_DB + p97: 4_DB

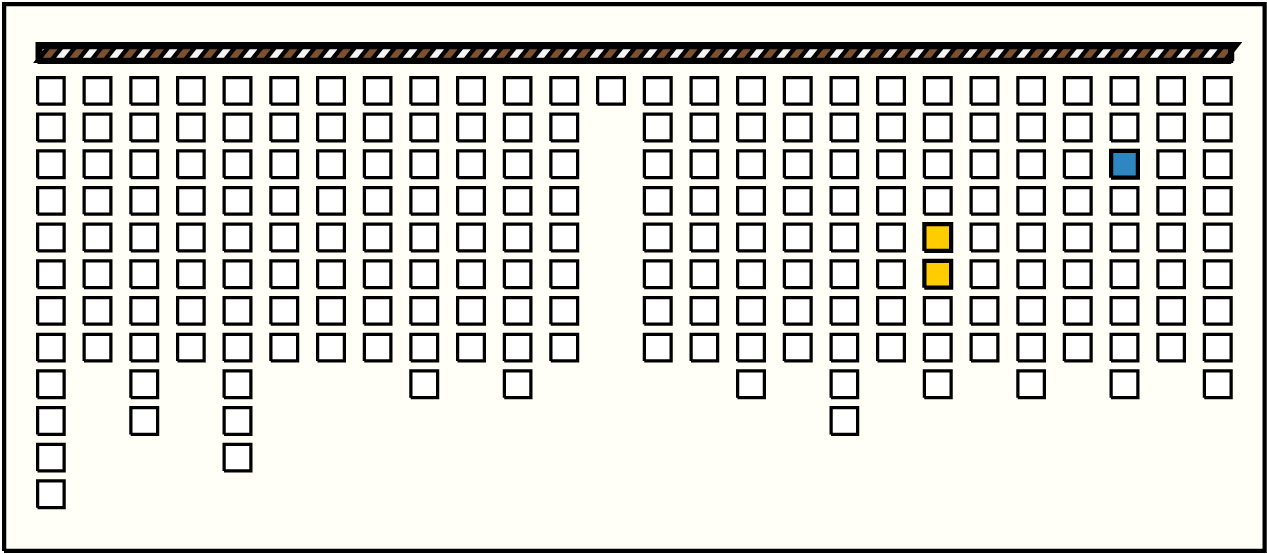

11	p196_{24, 3} : 38_DB	38	2	p164: 15_DB + p165: 23_DB

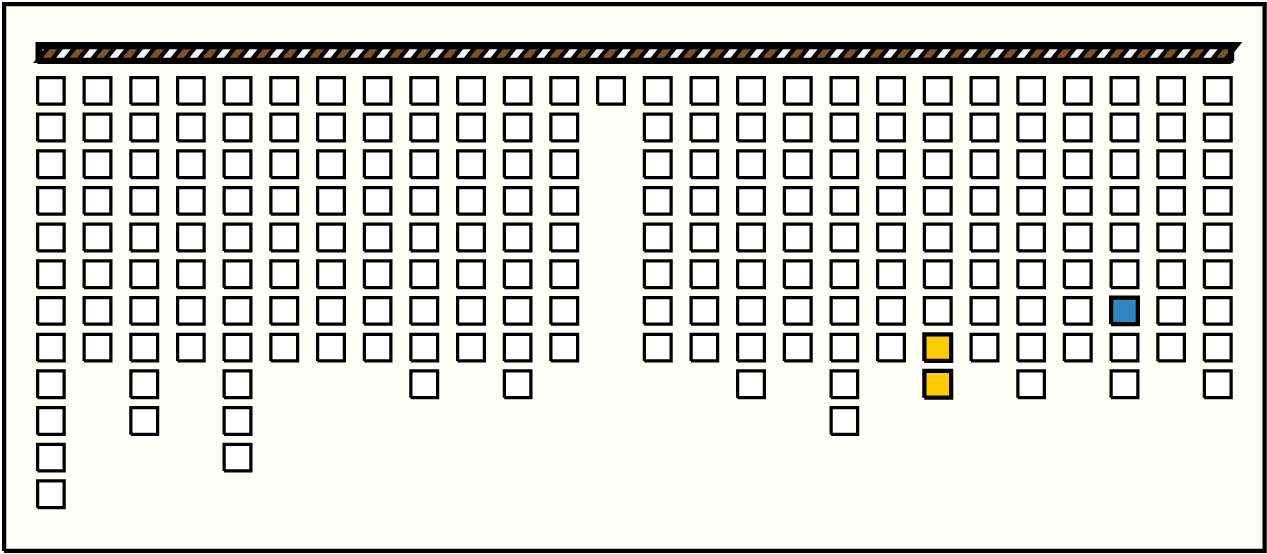

12	p200_{24, 7} : 27_DB	27	2	p167: 10_DB + p168: 17_RB
13	p213_{26, 3} : 38_DB	38	2	p200: 27_DB + p201: 11_DB

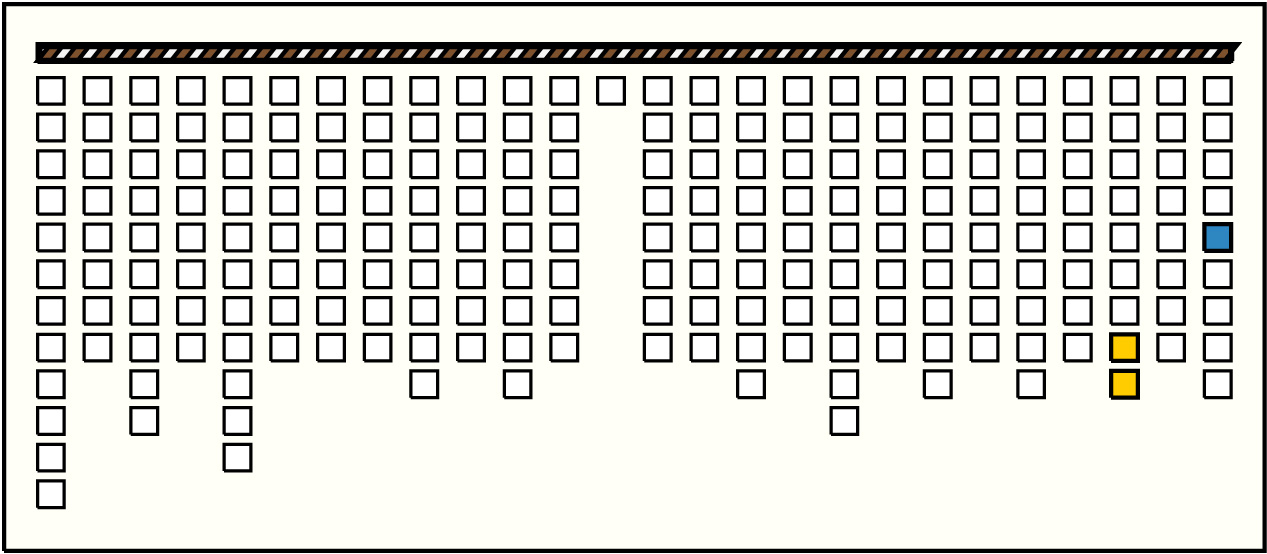

14	p215_{26, 5} : 15_DB	15	2	p201: 11_DB + p202: 4_RB

Khipu Notes:

Ascher Databook Notes:

A detached fragment of 9.0 cm. stored with the khipu has been assumed to be part of P5s3.
UR1127, AS128, and UR1176 were acquired by the Museum in 1933 with provenance Nazca.
By color, the khipu is separated in 25 groups. The first group is 12 pendants. Then there are 24 groups alternating in color pattern. Basically the pattern is a group of 8 pendants color W, followed by a group of 9 pendants colored RB, 7 DB, RB. (The exceptions t o the pattern are: groups 3, 5, and 17 each have an additional pendant between positions 1 and 2; groups 5, 7, and 9 each have an additional pendant between positions 8 and 9; in groups 7 and 9, position 4 is non-existent; and in group 7, position 2 is also non-existent. ) Starting with group 4, all groups of W pendants are of value 0 (or blank) and, in the alternate groups, all values in positions 1, 2, and 4 are 0 (or blank).
1. The values in group 3, position by position, are the sums of the values in corresponding positions in groups 7, 9, 11, 13, 15, while the values in group 5 are the sums of values in groups 17, 19, 21, 23, 25. These values include all the subsidiary values on each pendant. The sums are exact (or off by at most 2 in one digit) for only 14 of the 18 positions.
2. The values in group 1 are related to, but not exactly, the sums of values in groups 3 and 5, position by position. If at most one subsidiary is omitted when evaluating a position in group 1, then 8 of the 12 values in group 1 are the sums (+1 or 2) of the values in groups 3 and 5.
