KH0056/AS045 - Subsidiary Pendant Sums
Drawings:

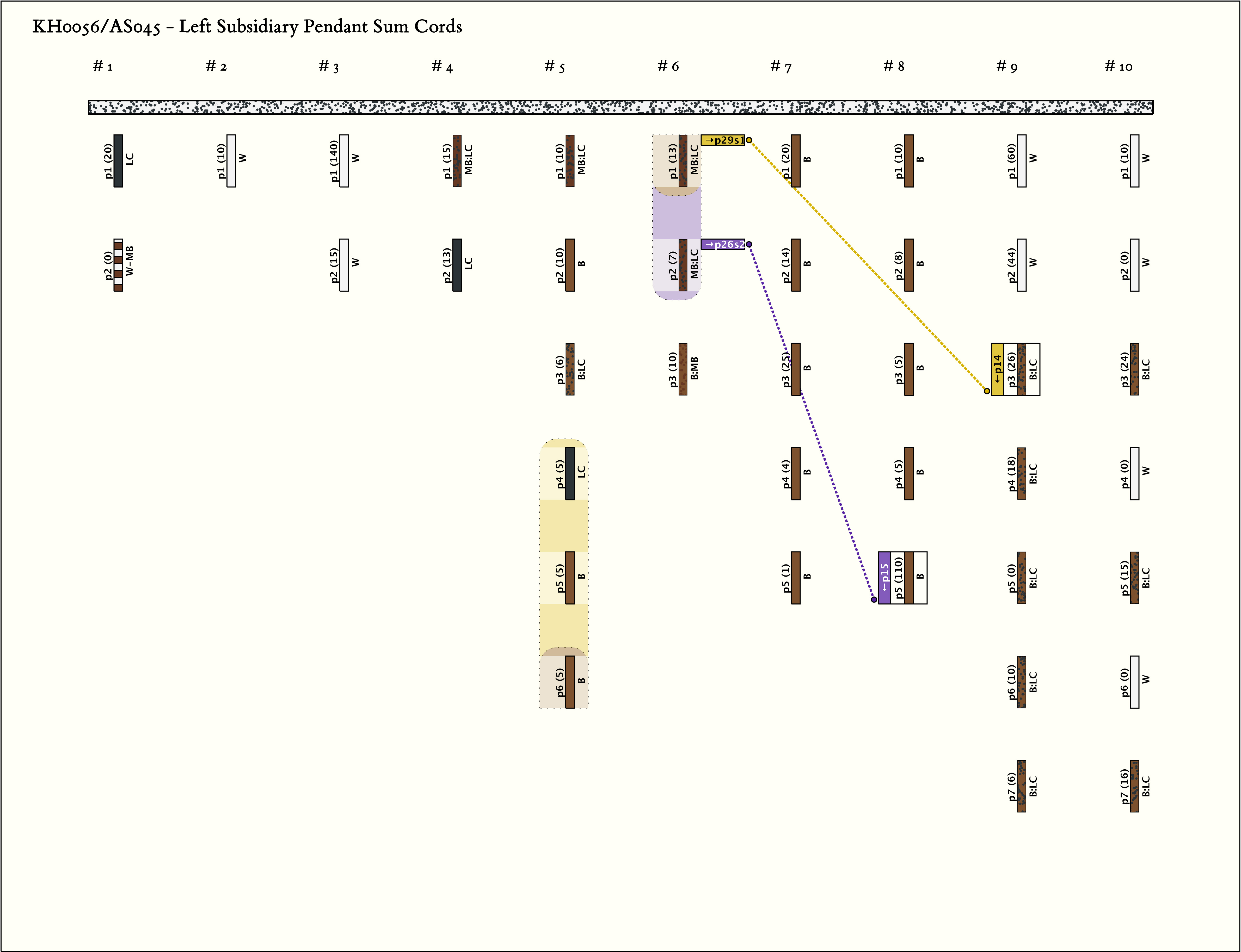

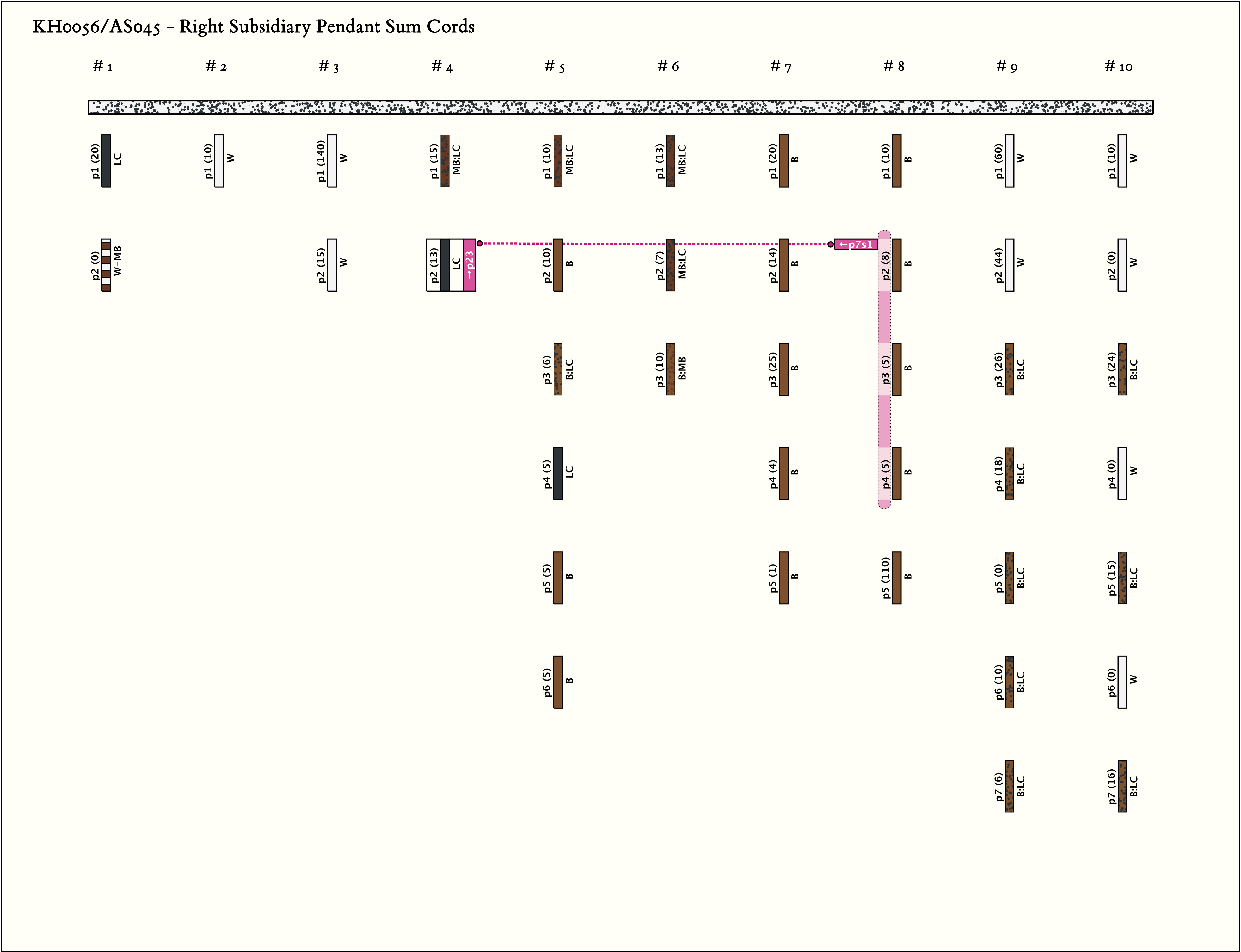

Sum NetGraph - Click on image to view larger
 |

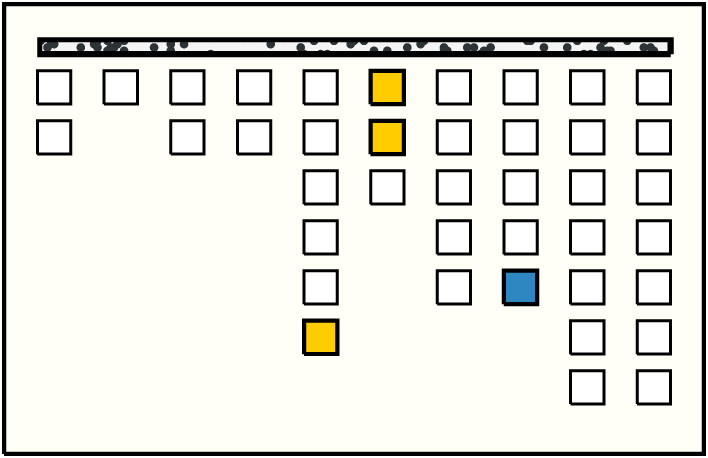

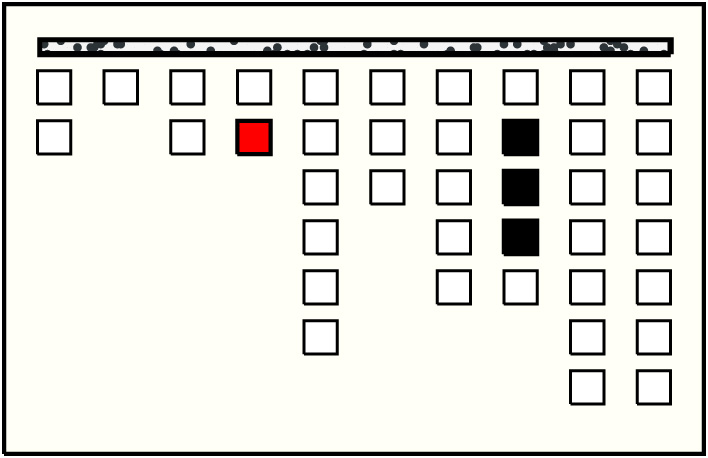

Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g4p2s1 : 18W | 18 | 3 | g8p2: 8B + g8p3: 5B + g8p4: 5B |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g8p5s2 : 25B | 25 | 3 | g5p6: 5B + g6p1: 13MB:LC + g6p2: 7MB:LC | |
| 2 |  | g9p3s1 : 28B | 28 | 4 | g5p4: 5LC + g5p5: 5B + g5p6: 5B + g6p1: 13MB:LC |
