KH0183/UR1166, AS166 - Subsidiary Pendant Sums
Drawings:

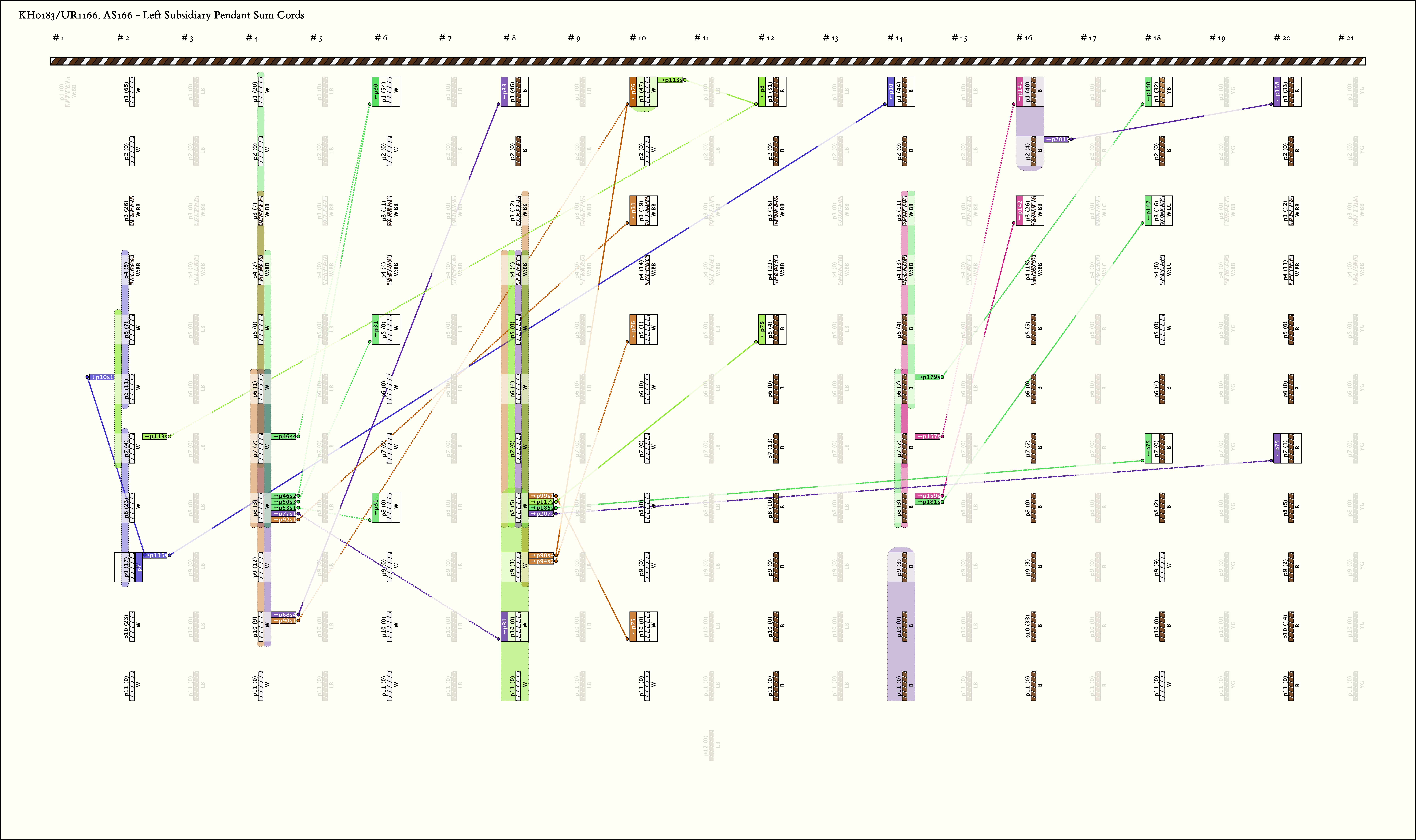

Sum NetGraph - Click on image to view larger
 |

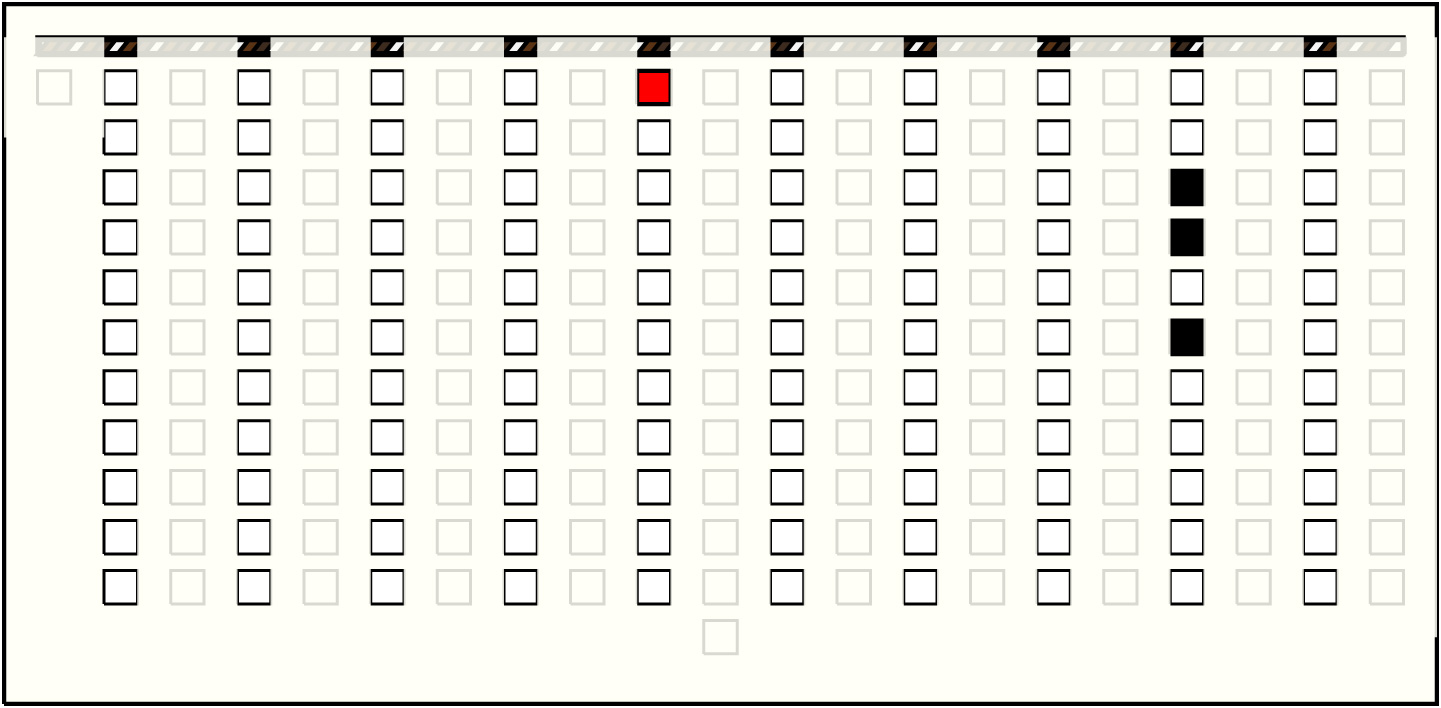

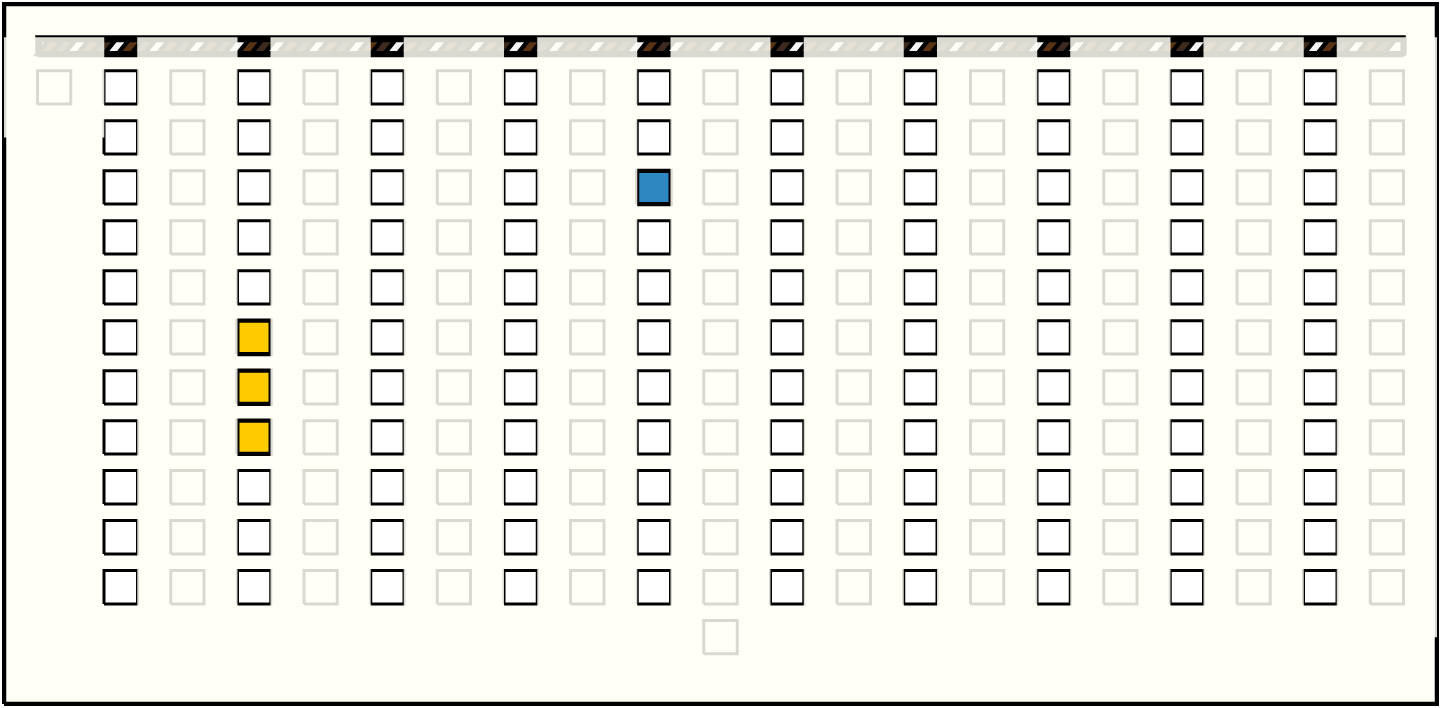

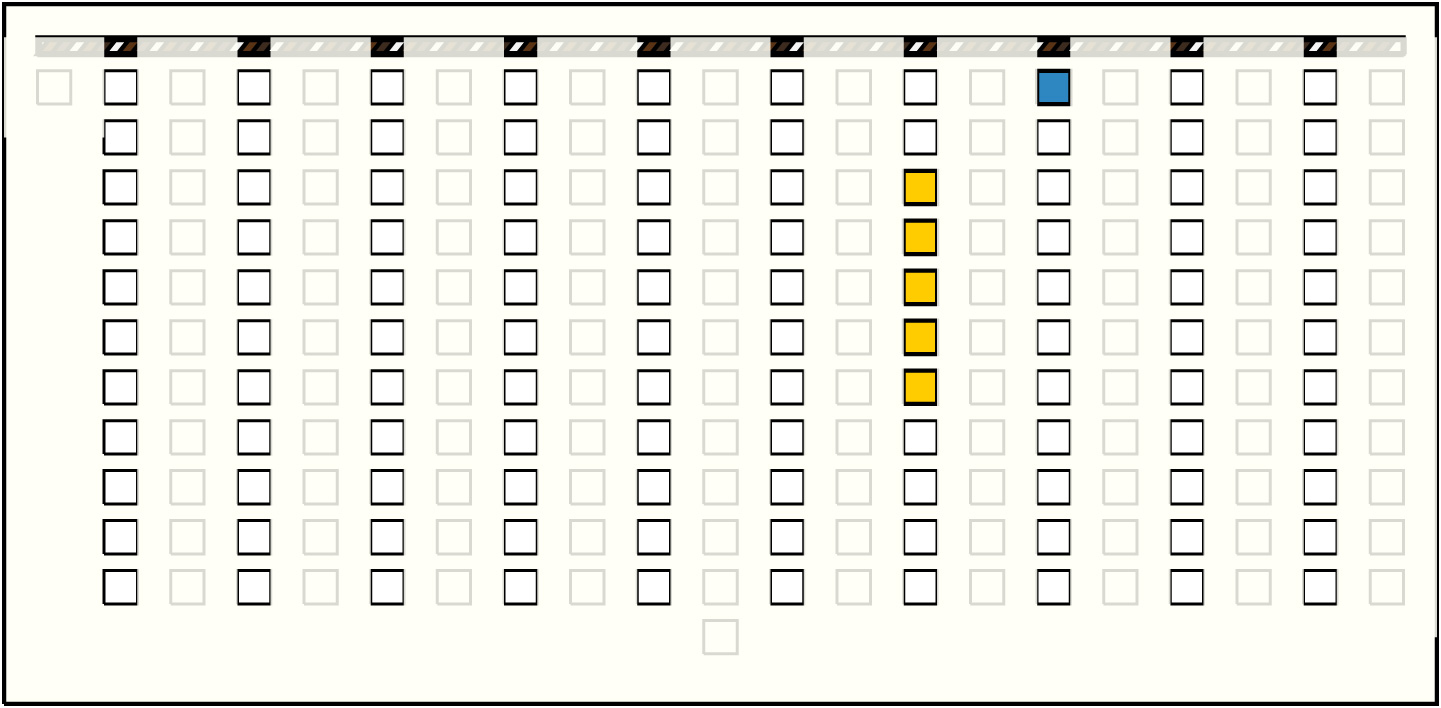

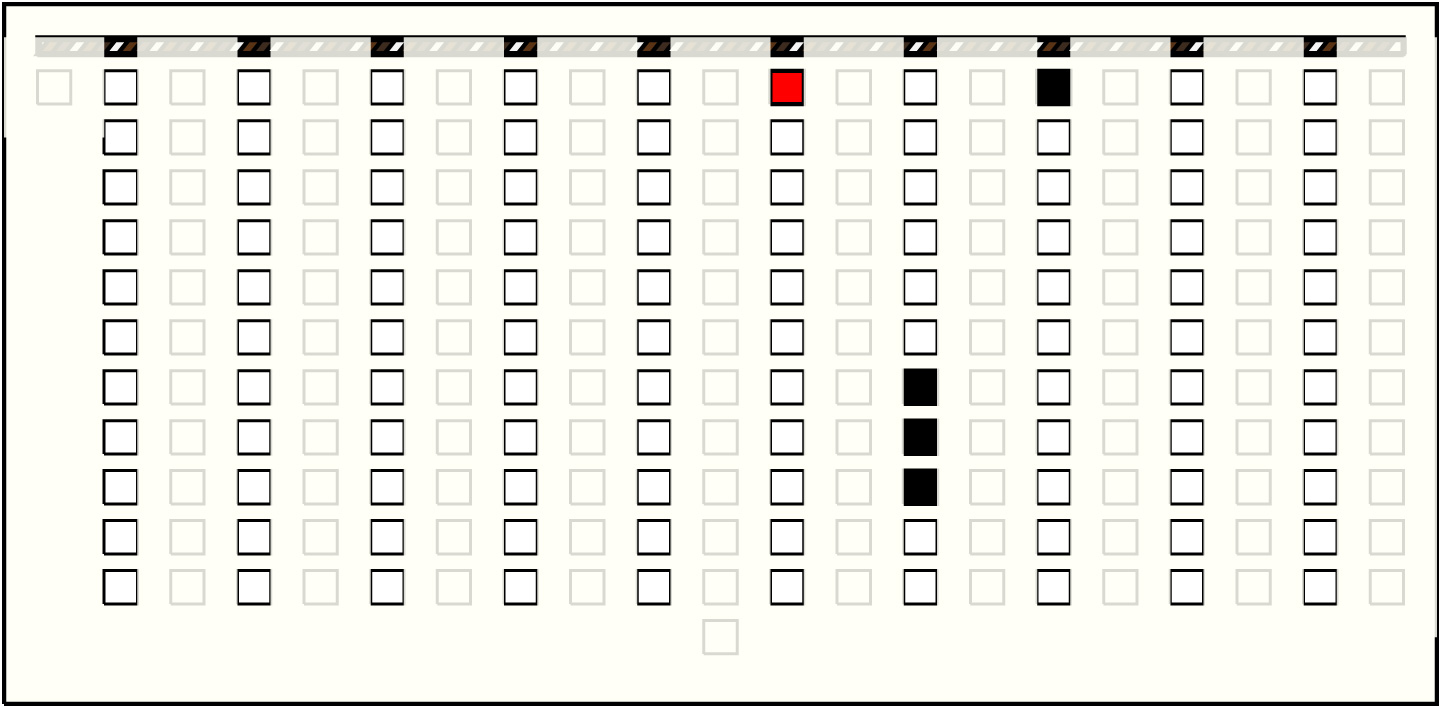

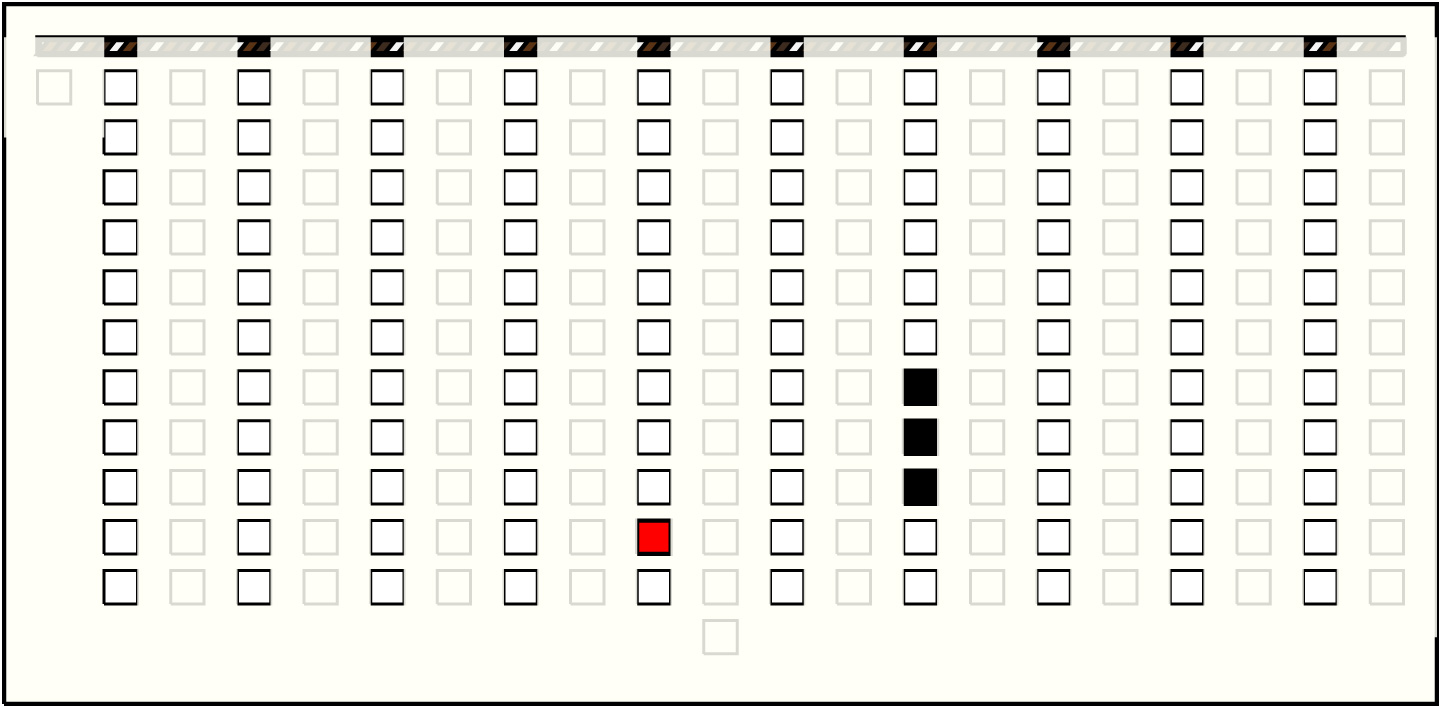

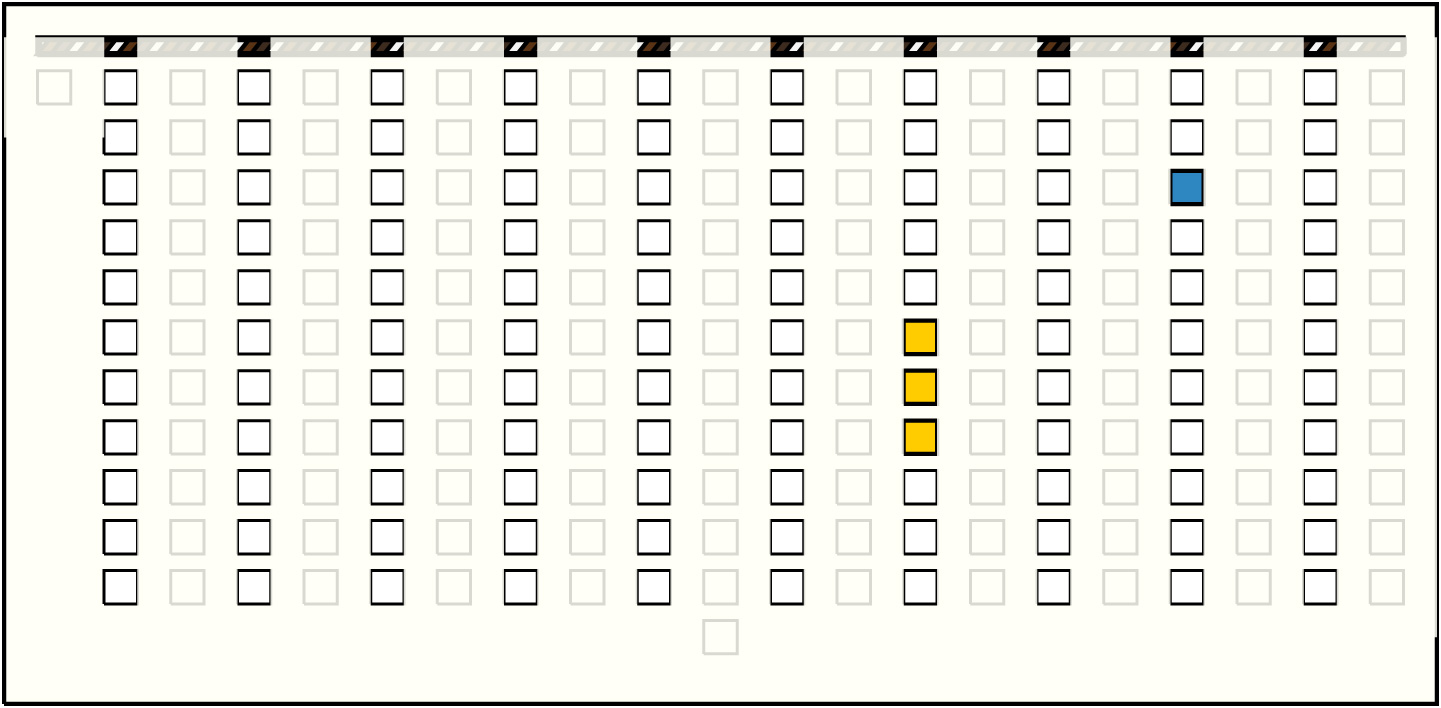

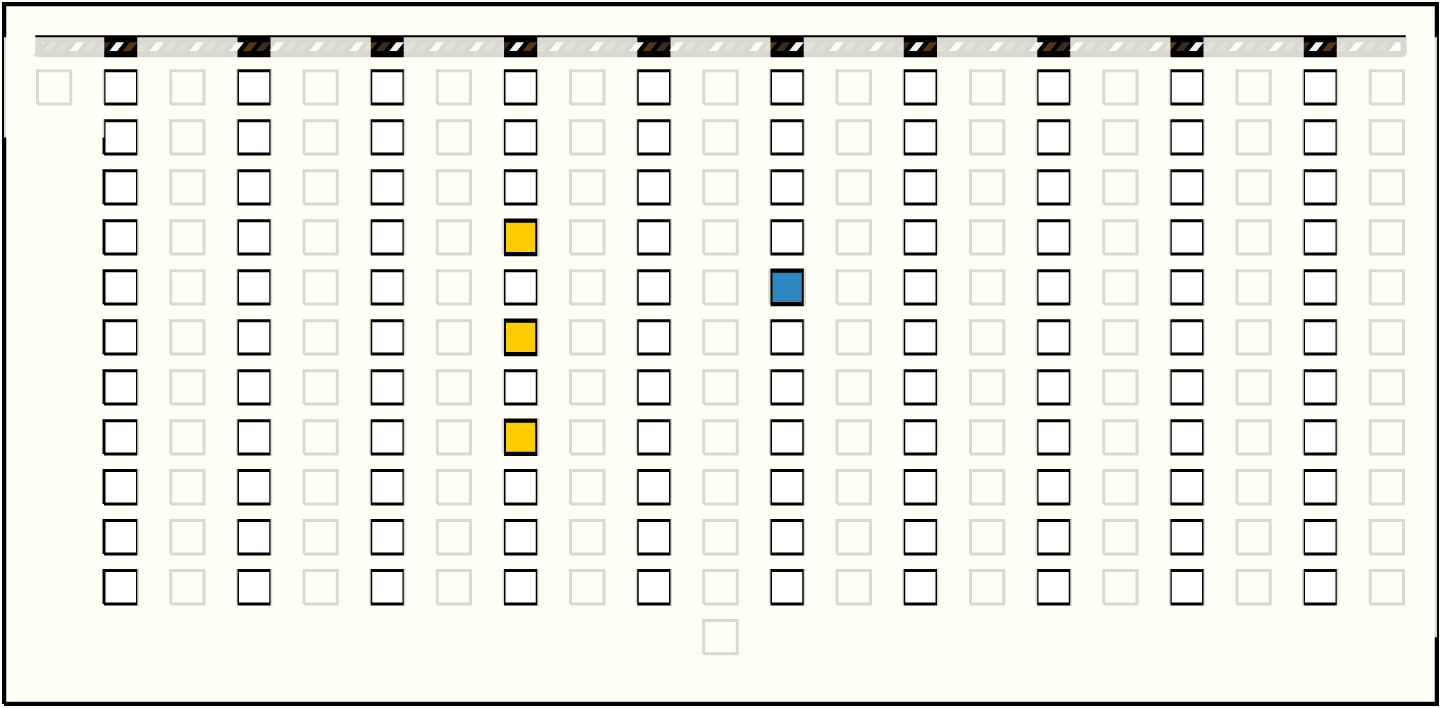

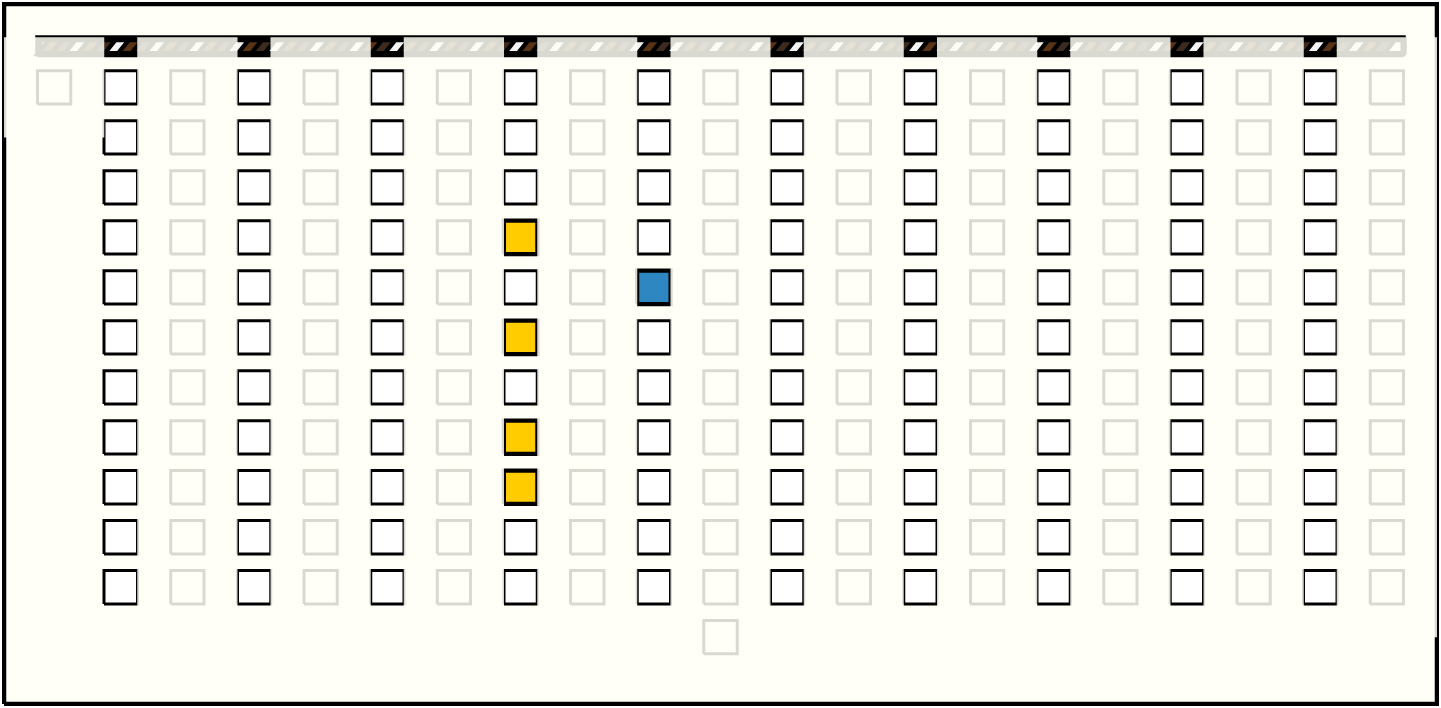

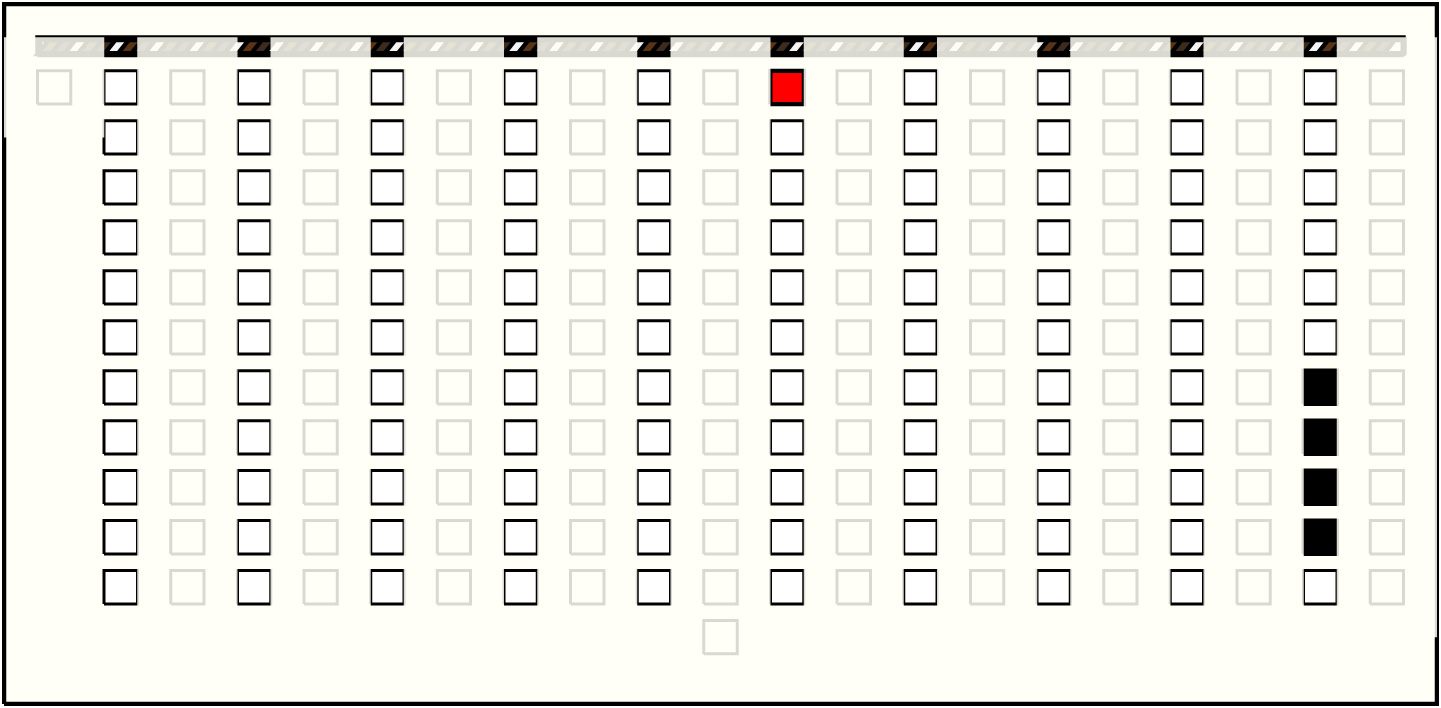

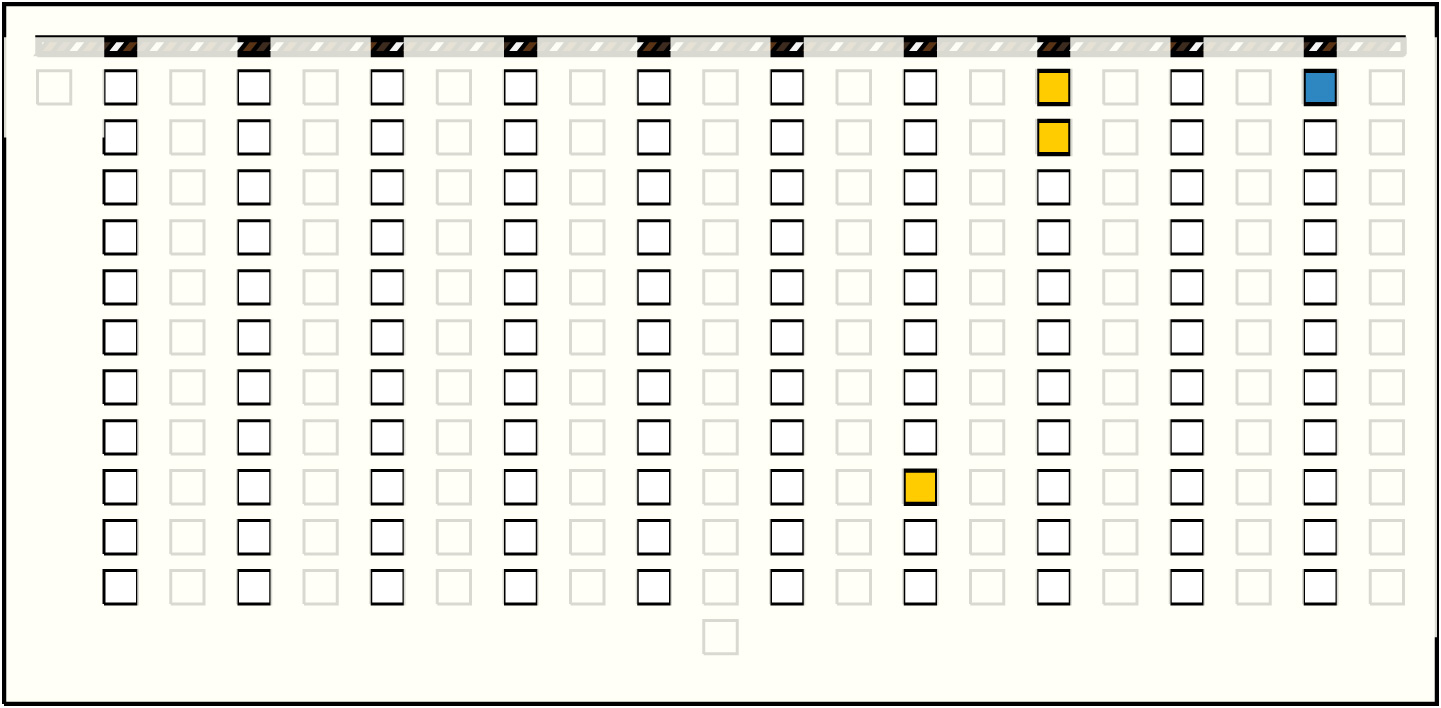

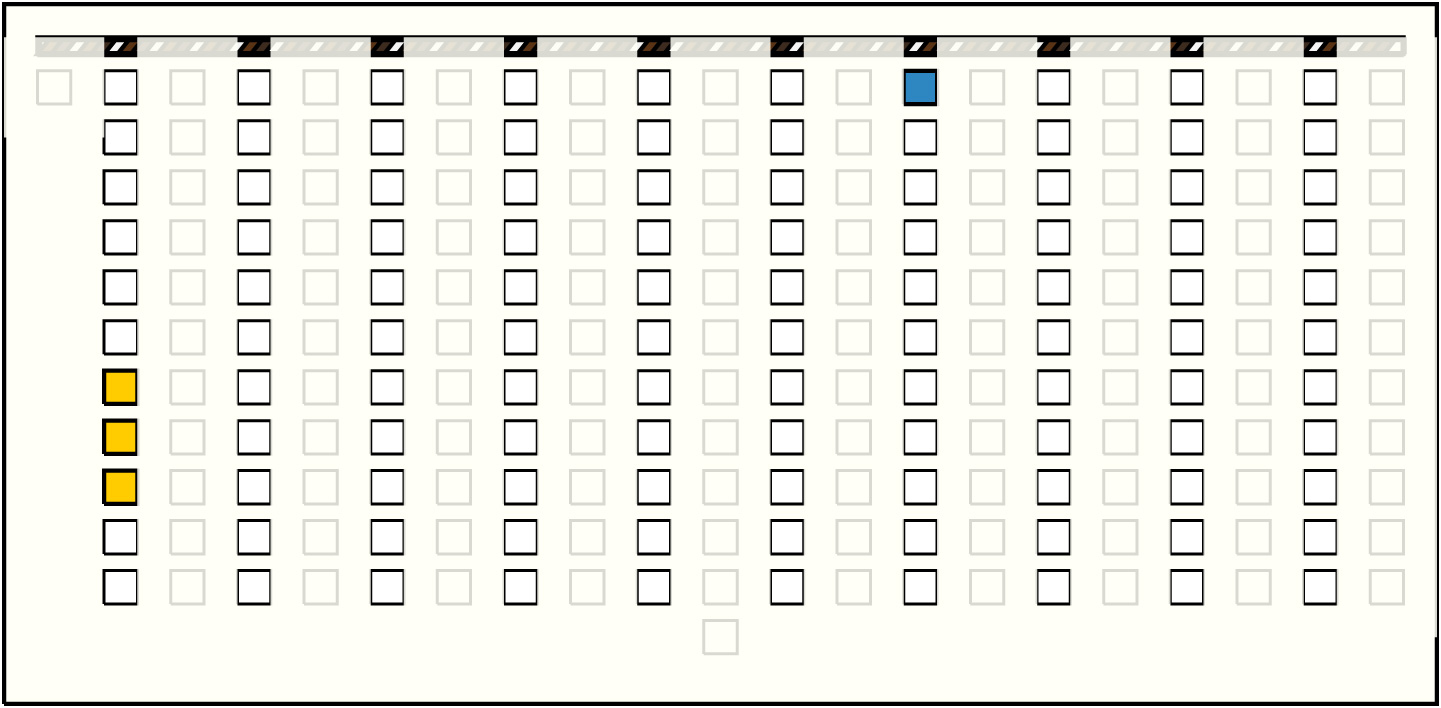

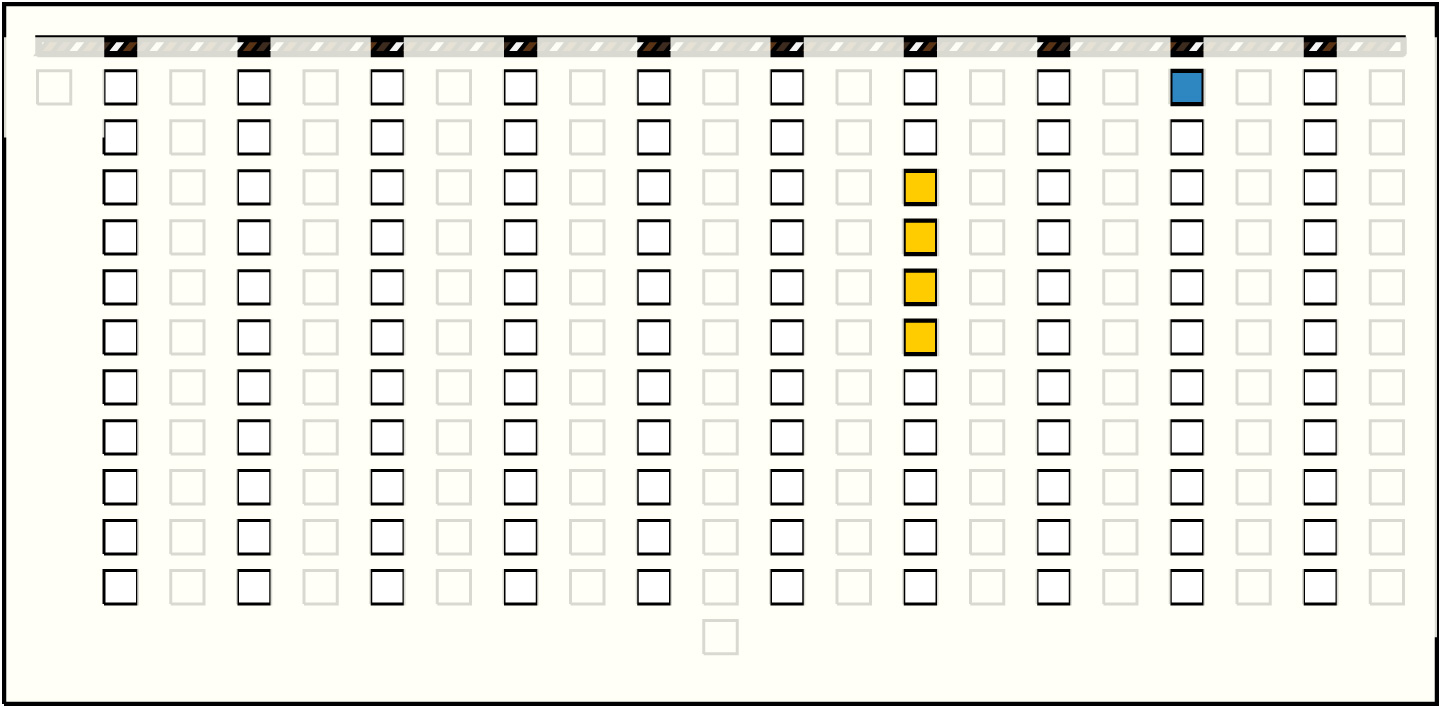

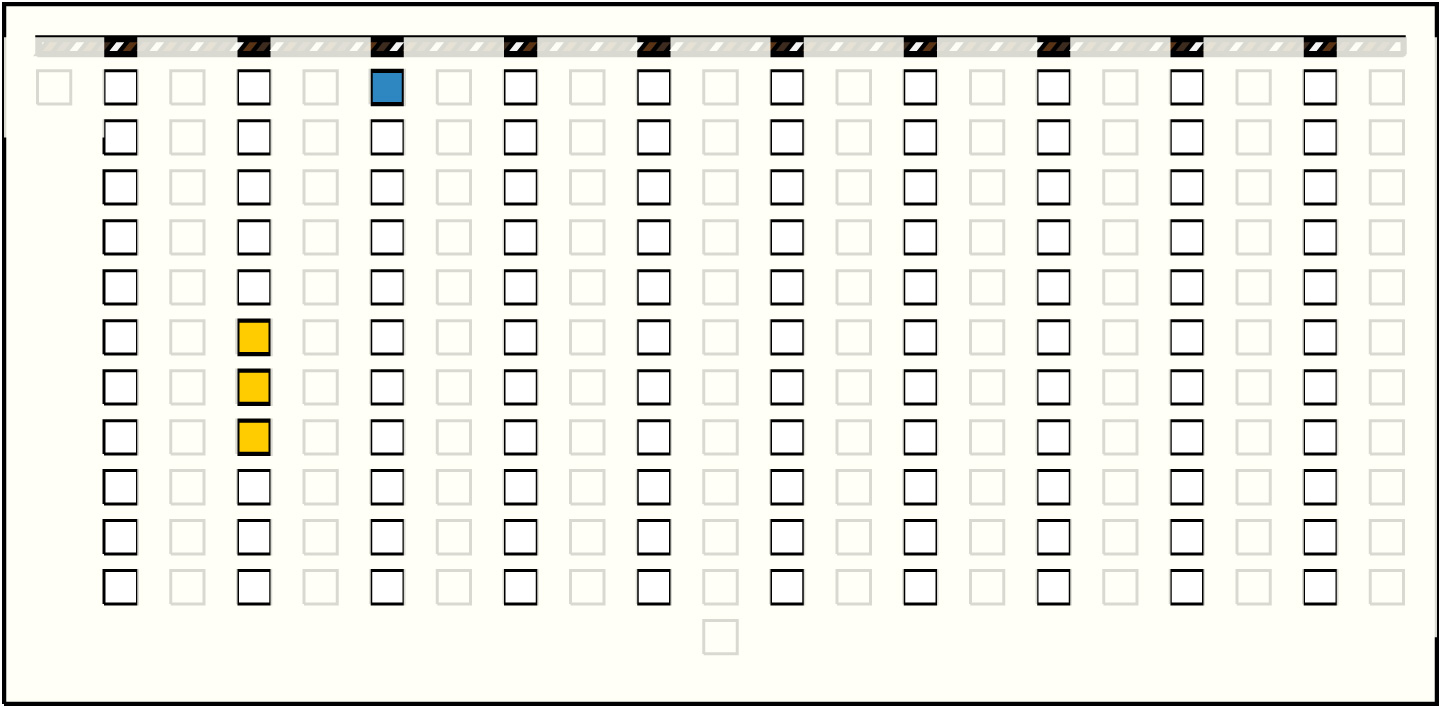

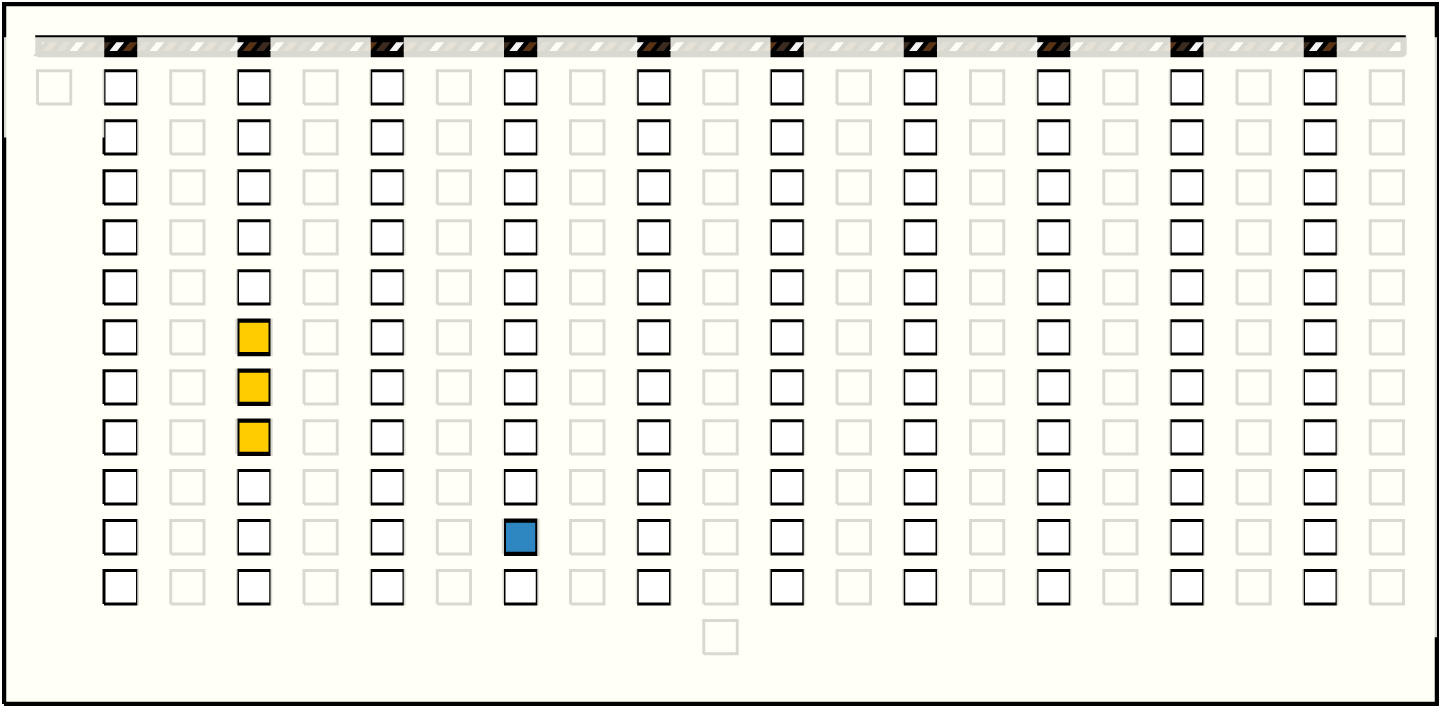

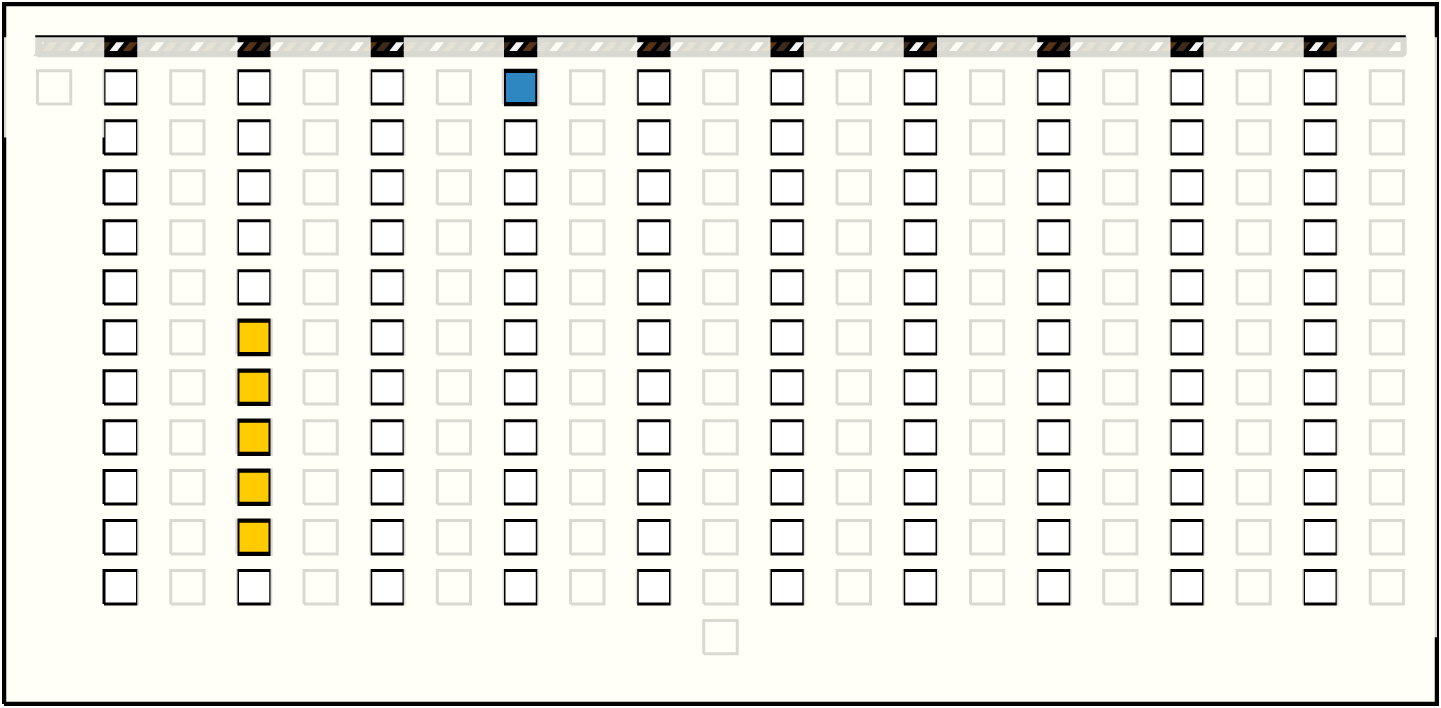

Sum Map - Click on image to view larger
 |

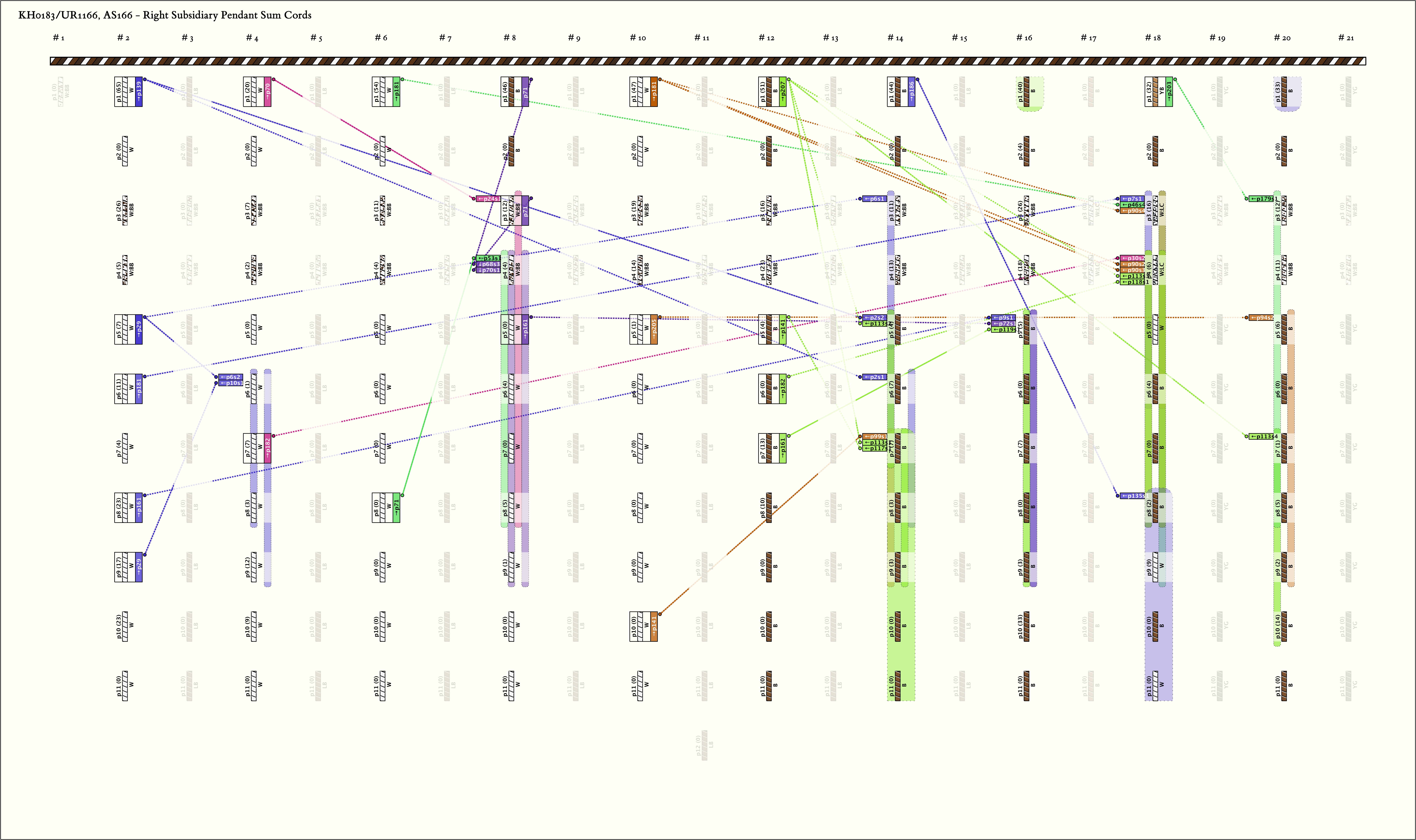

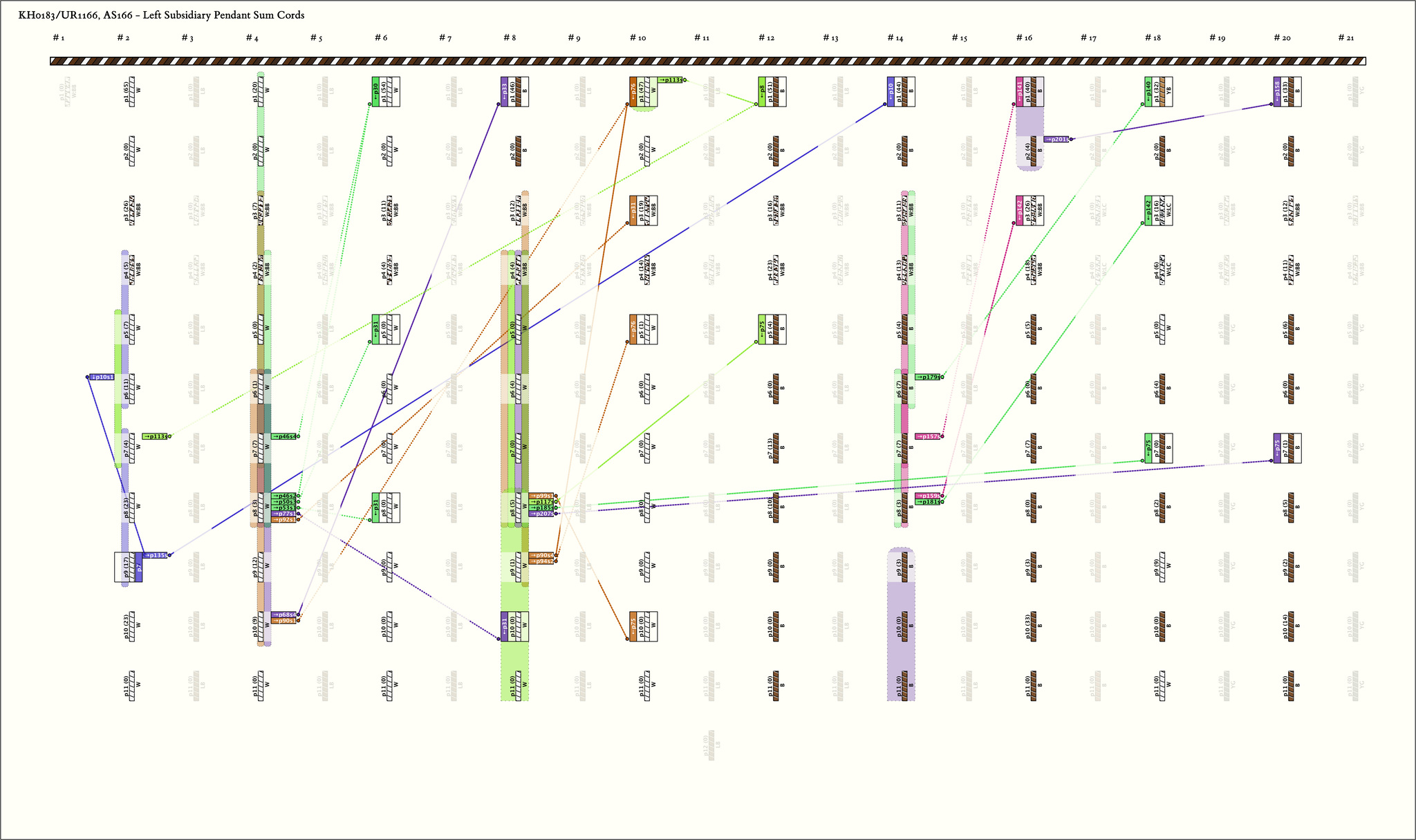

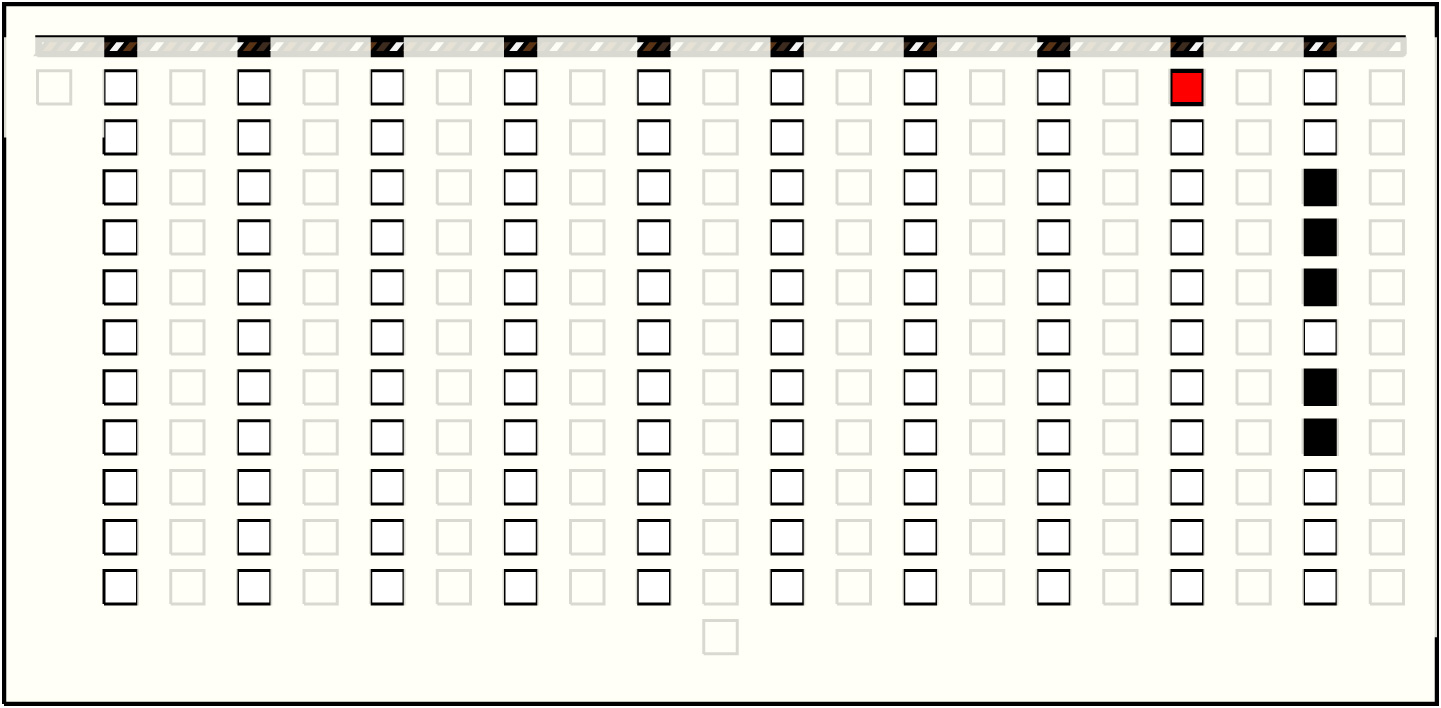

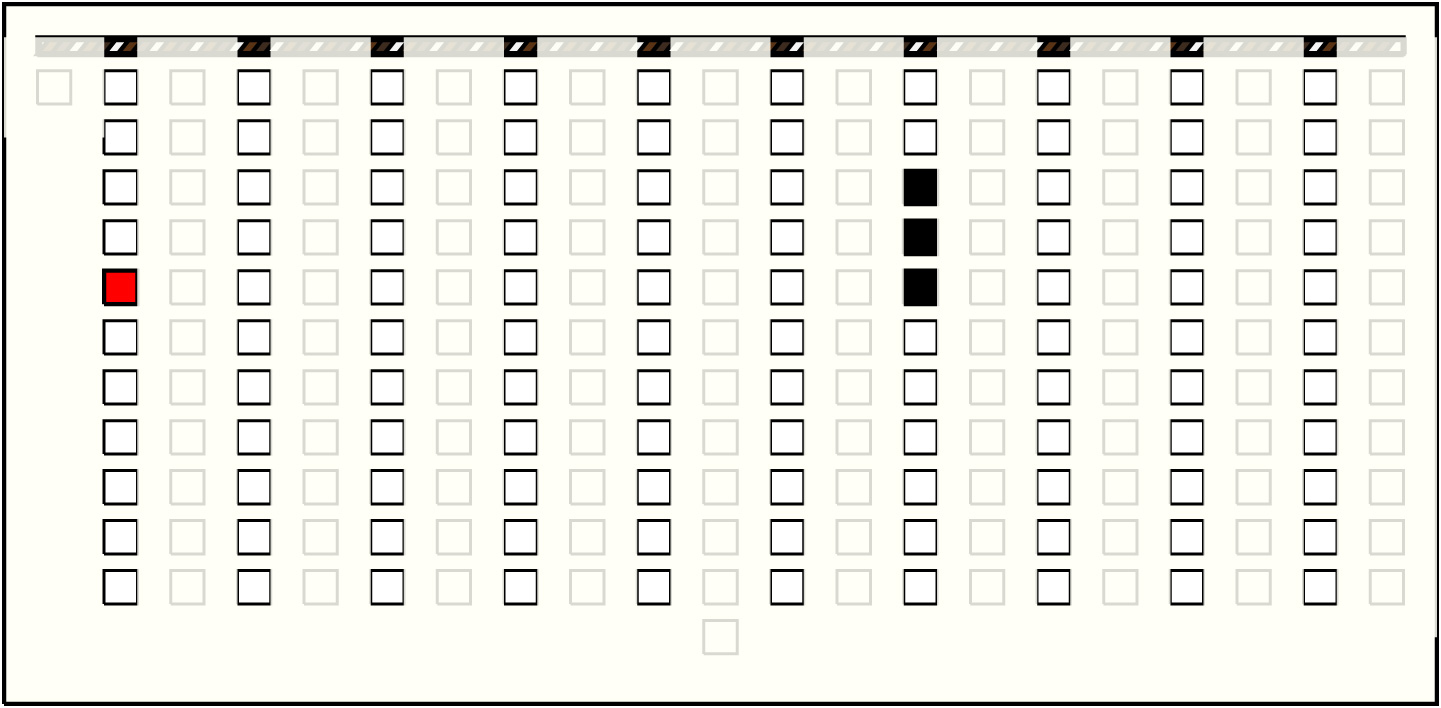

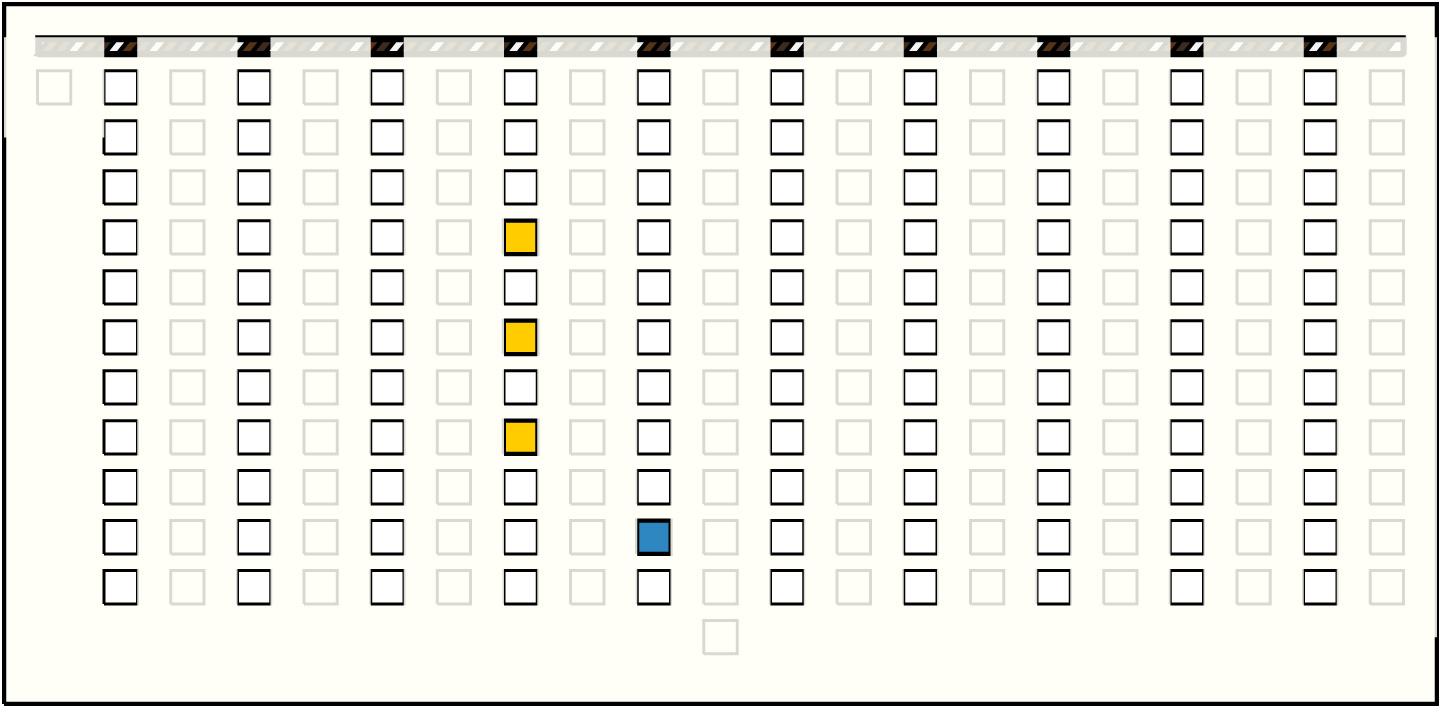

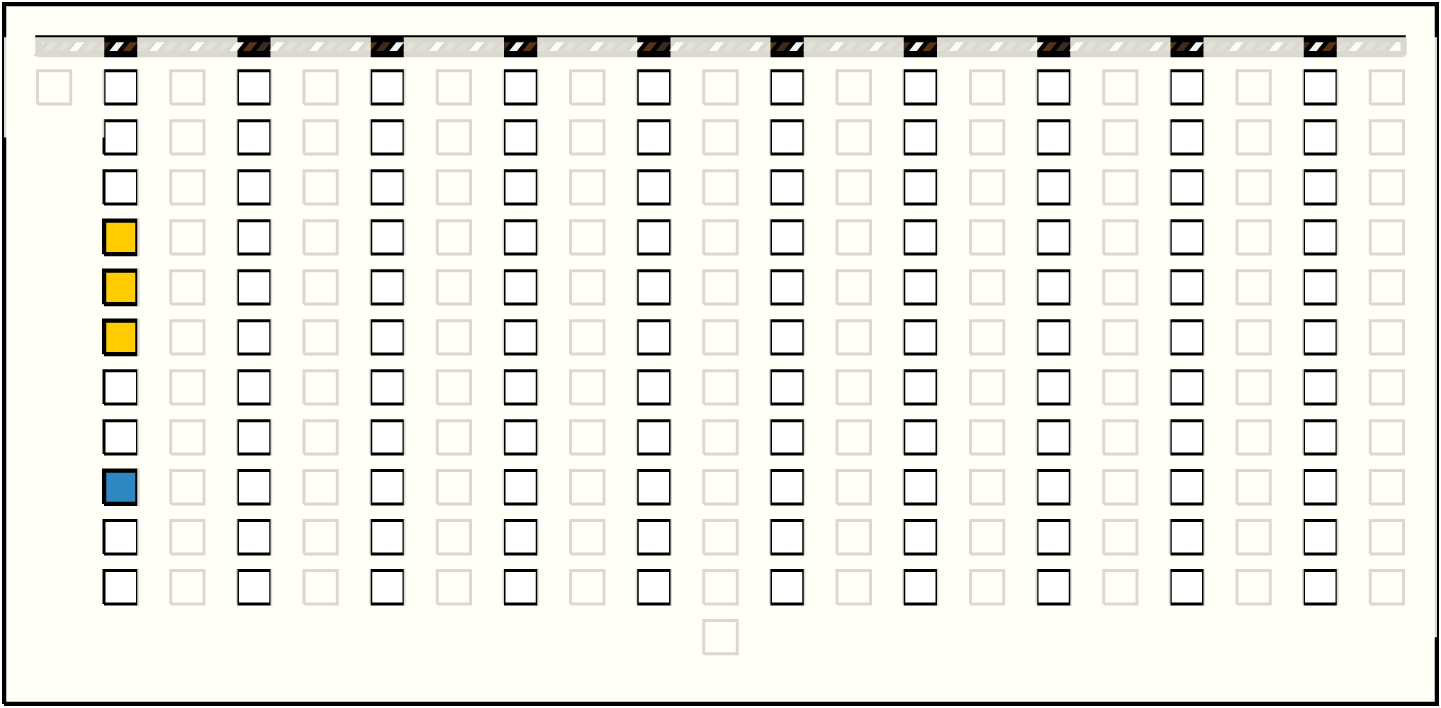

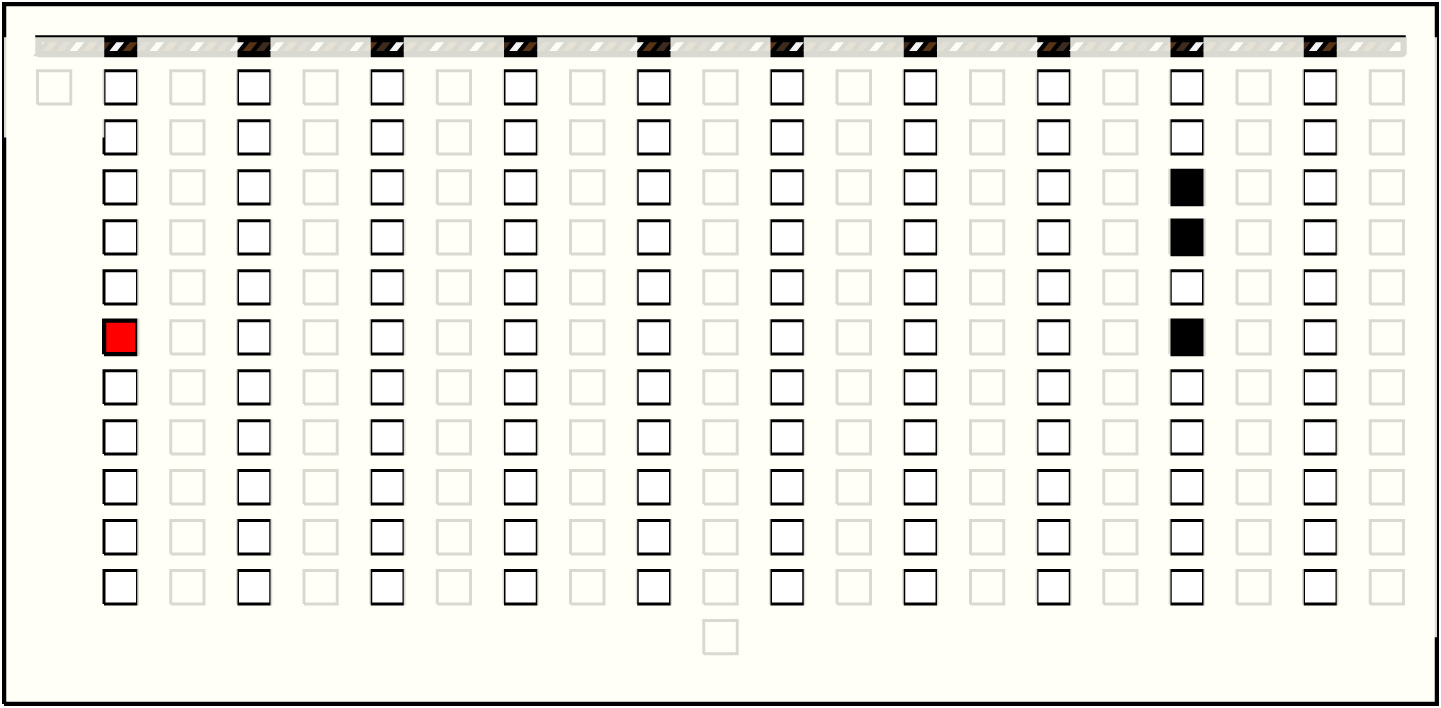

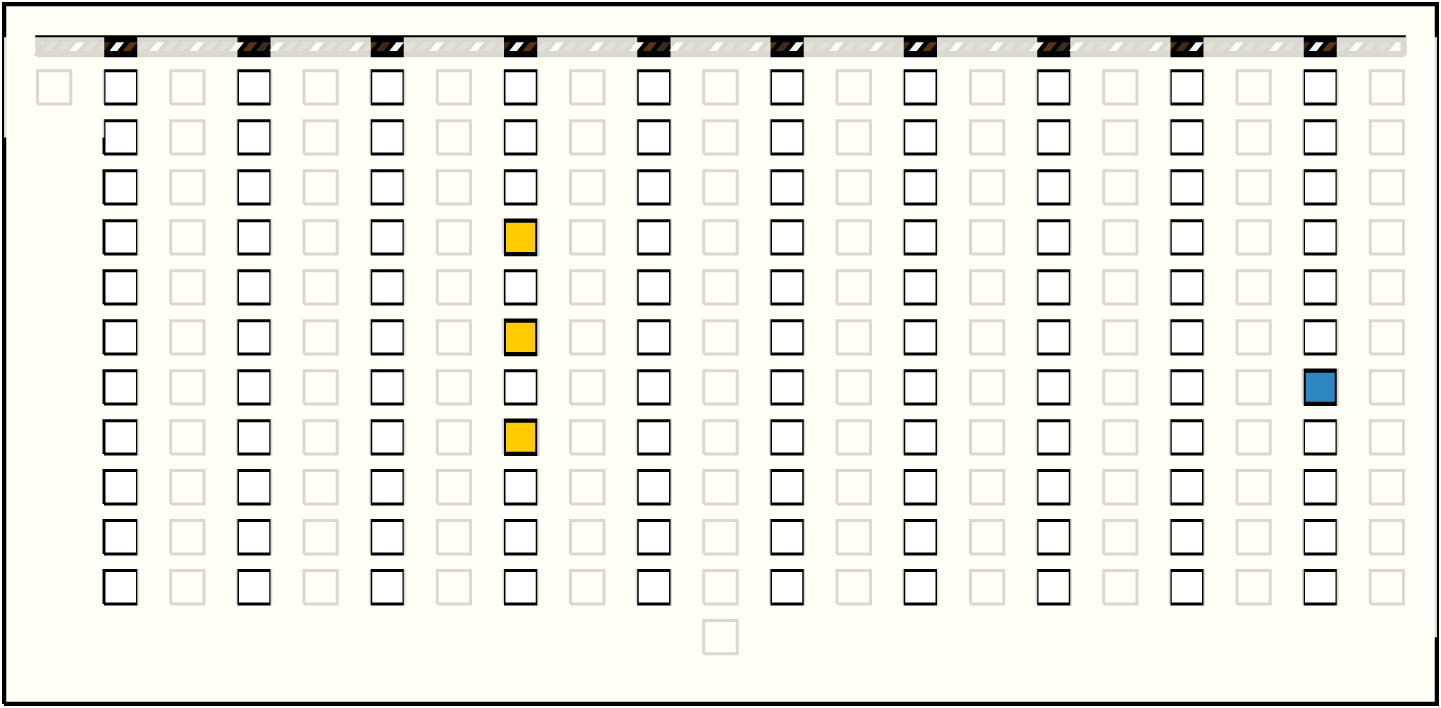

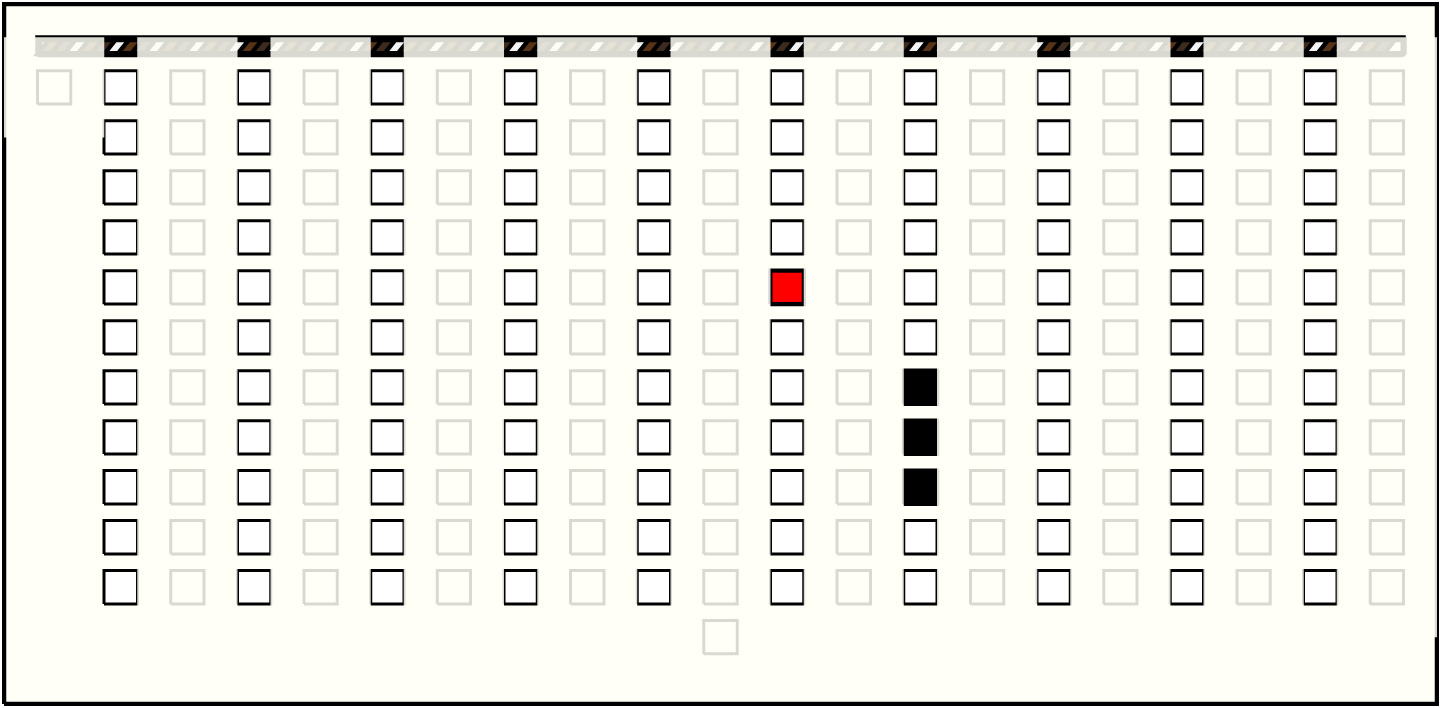

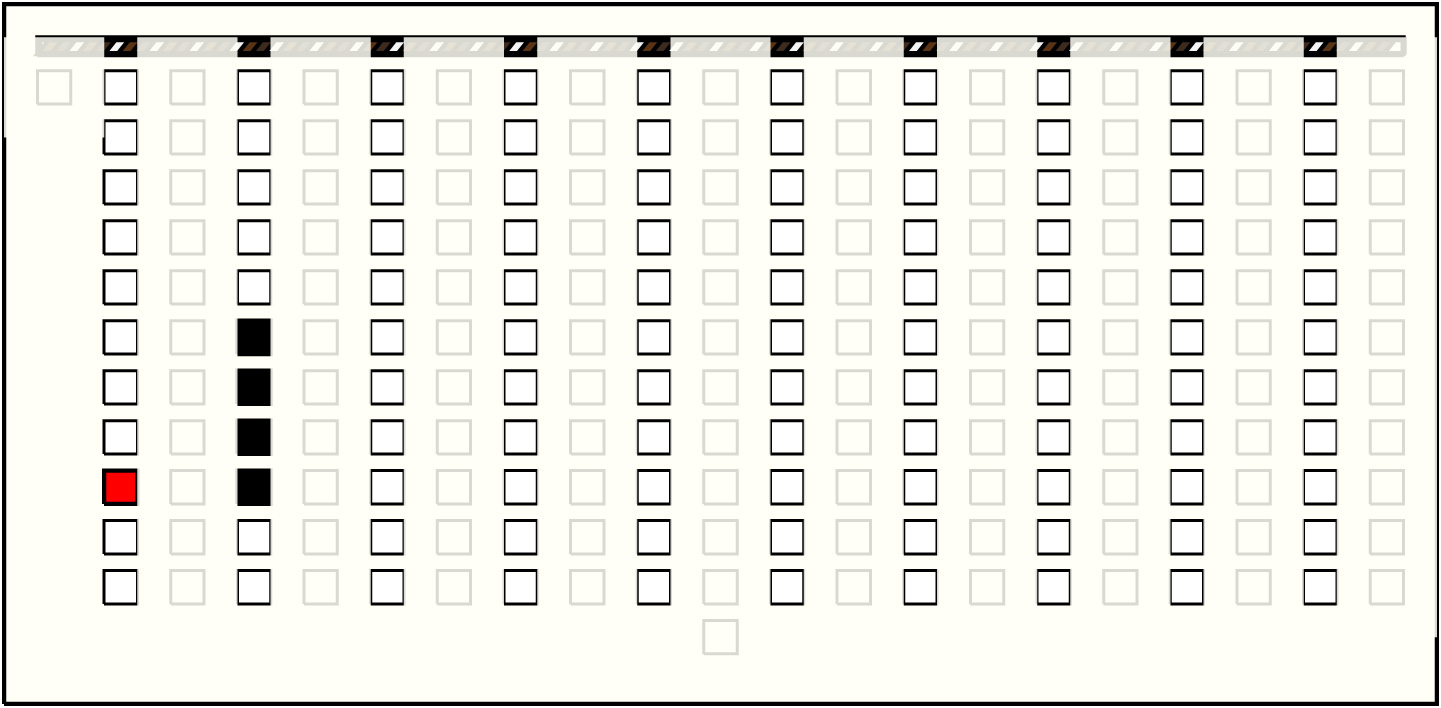

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

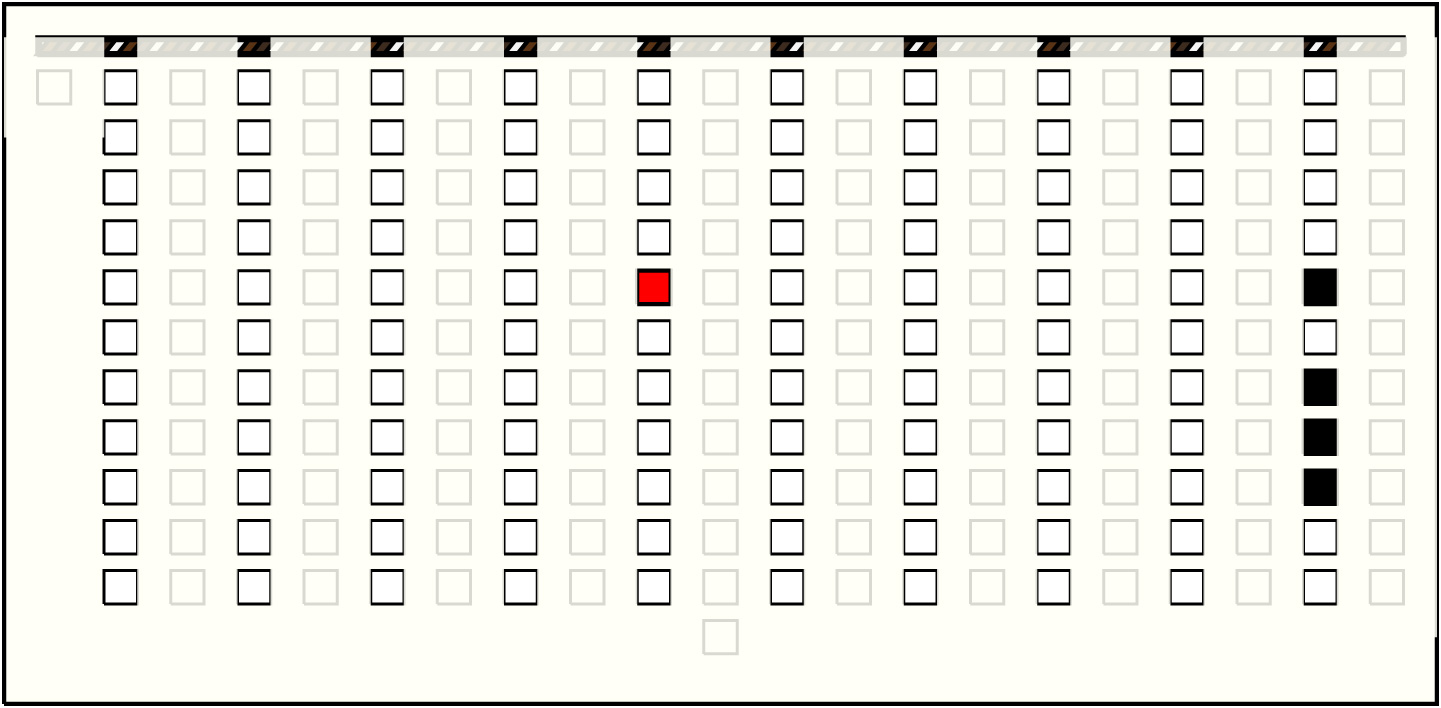

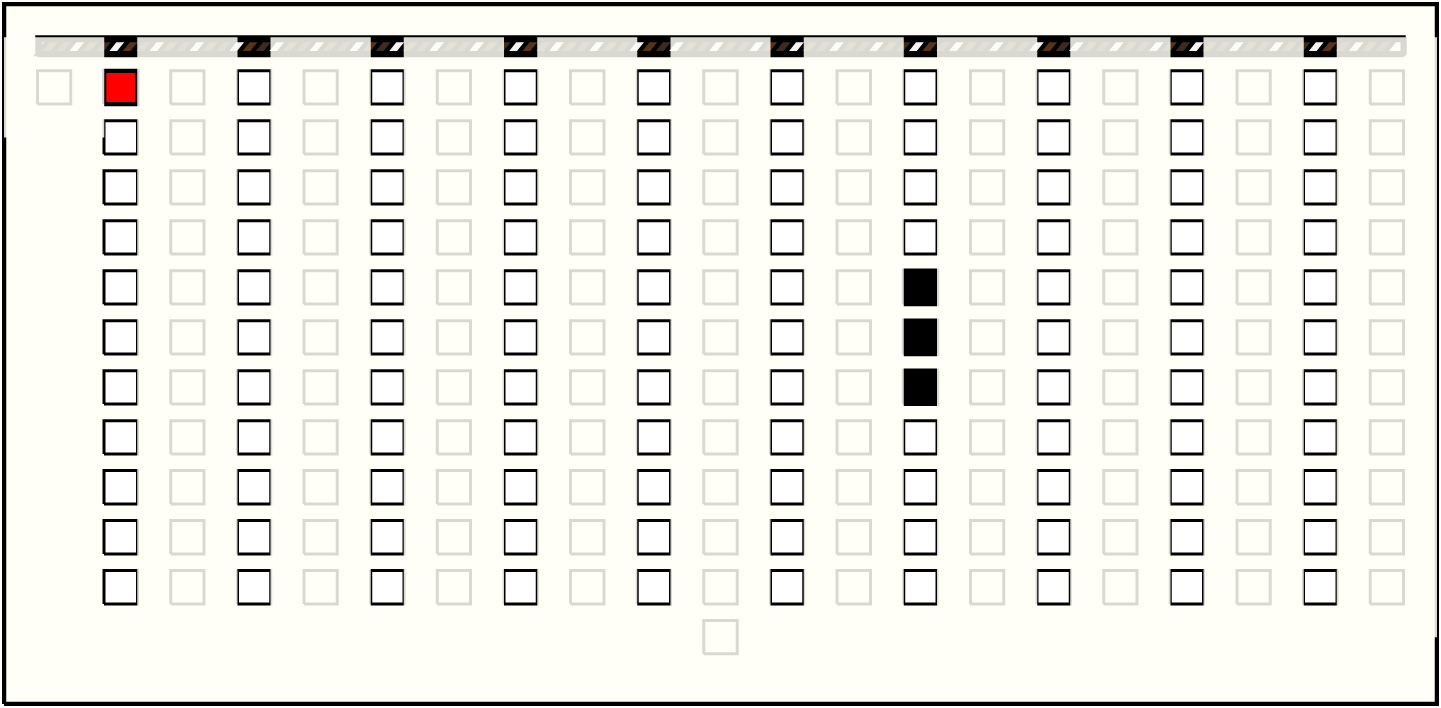

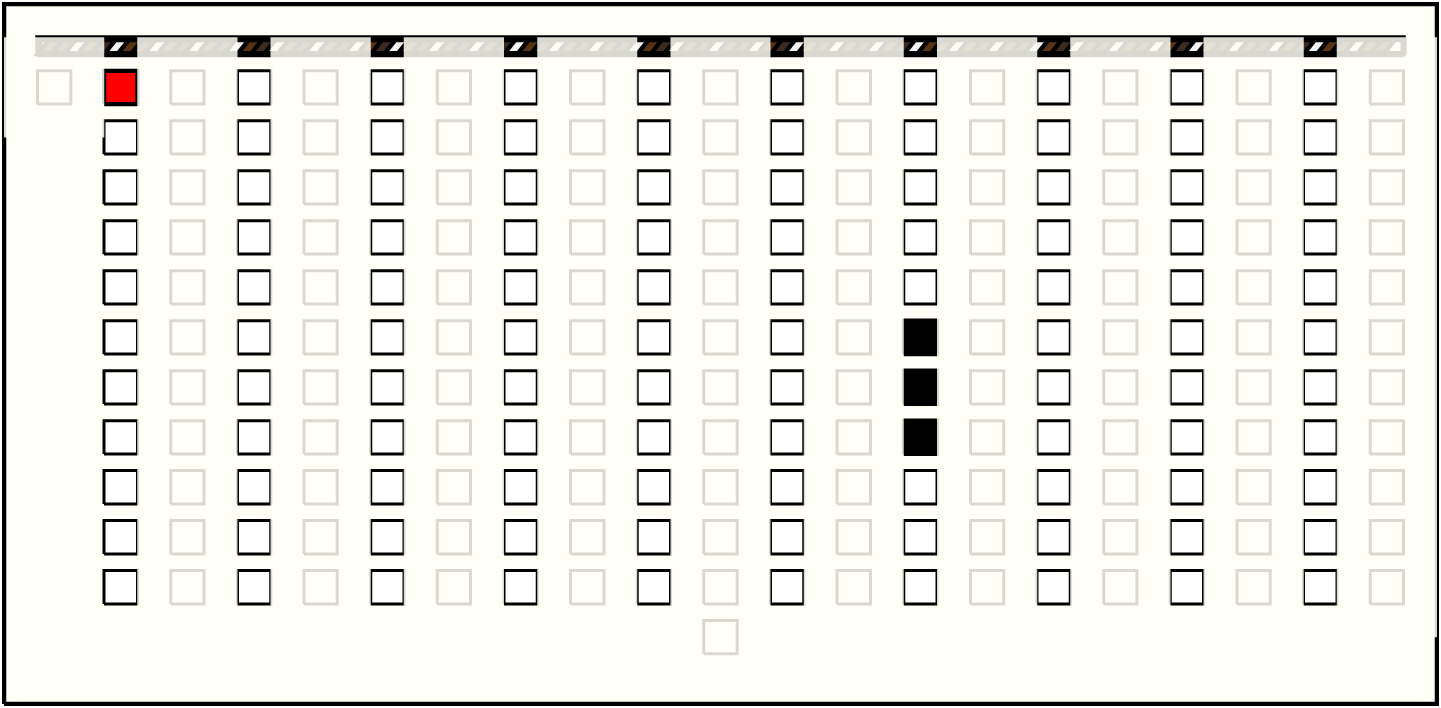

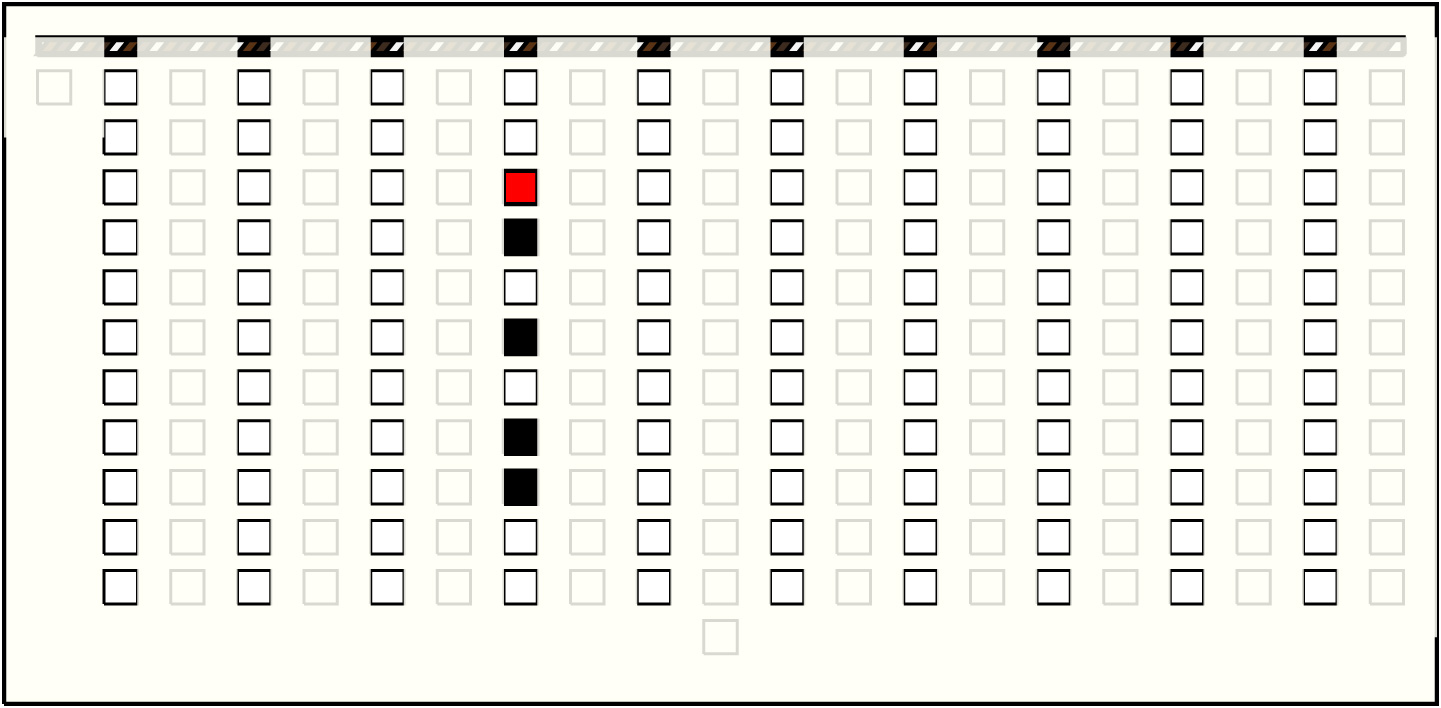

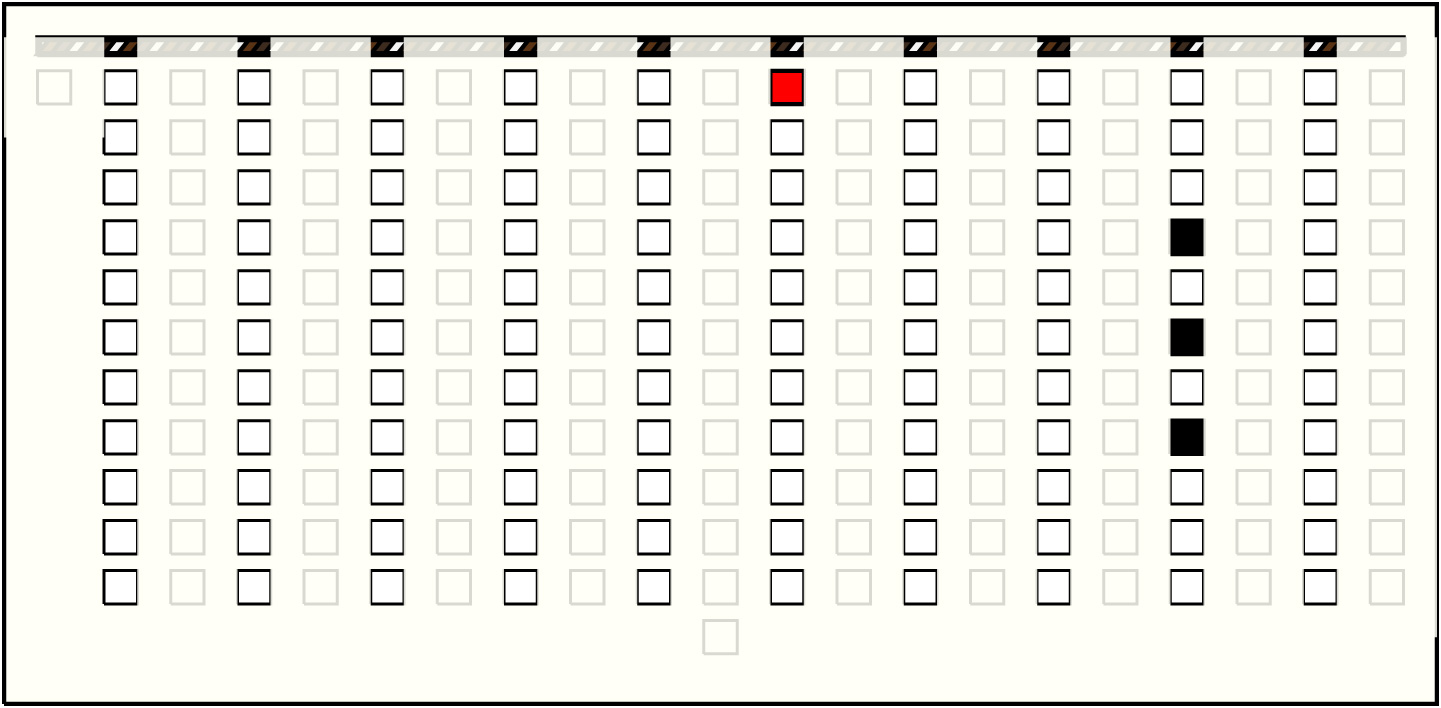

Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g2p1s1 : 17YB | 17 | 3 | g14p6: 7B + g14p7: 7B + g14p8: 3B | |
| 2 |  | g2p5s1 : 28AB | 28 | 3 | ❽g14p3: 11W:BB + g14p4: 13W:BB + g14p5: 4B | |
| 3 |  | g2p6s1 : 26W:LB | 26 | 3 | g18p3: 16W:LC + g18p4: 6W:LC + g18p6: 4B | |
| 4 |  | g2p8s1 : 15W:AB | 15 | 3 | g16p5: 5B + g16p7: 7B + g16p9: 3B | |
| 5 |  | g2p9s1 : 23LB | 23 | 4 | ❽g4p6: 1W + g4p7: 7W + g4p8: 3W + ∞g4p9: 12W | |
| 6 |  | g2p1s2 : 18B | 18 | 3 | g14p5: 4B + g14p6: 7B + g14p7: 7B | |
| 7 |  | g2p5s2 : 11YB | 11 | 3 | ❽g4p6: 1W + g4p7: 7W + g4p8: 3W❽ | |
| 8 |  | g4p1s1 : 25YB | 25 | 4 | g8p3: 12W:BB + g8p4: 4W:BB + g8p6: 4W + g8p8: 5W∞ | |
| 9 |  | g4p7s2 : 12YB | 12 | 3 | g18p4: 6W:LC + g18p6: 4B + g18p8: 2B | |
| 10 |  | g6p8s1 : 13W:AB | 13 | 3 | g8p4: 4W:BB + g8p6: 4W + g8p8: 5W∞ | |
| 11 |  | g6p1s4 : 37YB | 37 | 5 | g18p3: 16W:LC + g18p4: 6W:LC + g18p6: 4B + g18p8: 2B + g18p9: 9W | |
| 12 |  | g8p3s1 : 14W | 14 | 4 | g8p4: 4W:BB + g8p6: 4W + g8p8: 5W + g8p9: 1W❽ | |
| 13 |  | g8p5s1 : 15W:B:BB | 15 | 3 | g16p5: 5B + g16p7: 7B + g16p9: 3B | |
| 14 |  | g8p1s3 : 14YG | 14 | 4 | g8p4: 4W:BB + g8p6: 4W + g8p8: 5W + g8p9: 1W❽ | |
| 15 |  | g10p10s1 : 13EB | 13 | 3 | g14p7: 7B + g14p8: 3B + g14p9: 3B | |
| 16 |  | g10p1s2 : 12LB | 12 | 3 | g18p4: 6W:LC + g18p6: 4B + g18p8: 2B | |
| 17 |  | g10p5s2 : 14W:AB | 14 | 4 | ∞g20p5: 6B + g20p7: 1B + g20p8: 5B + g20p9: 2B | |
| 18 |  | g10p1s3 : 12BD | 12 | 3 | g18p4: 6W:LC + g18p6: 4B + g18p8: 2B | |
| 19 |  | g10p1s4 : 26AB | 26 | 3 | g18p3: 16W:LC + g18p4: 6W:LC + g18p6: 4B | |
| 20 |  | g12p1s1 : 53W | 53 | 4 | g14p7: 7B + g14p8: 3B + g14p9: 3B + g16p1: 40B | |
| 21 |  | g12p5s1 : 13AB | 13 | 3 | g14p7: 7B + g14p8: 3B + g14p9: 3B | |
| 22 |  | g12p6s1 : 12YG | 12 | 3 | g18p4: 6W:LC + g18p6: 4B + g18p8: 2B | |
| 23 |  | g12p7s1 : 15W | 15 | 3 | g16p5: 5B + g16p7: 7B + g16p9: 3B | |
| 24 |  | g12p1s2 : 18BB | 18 | 3 | g14p5: 4B + g14p6: 7B + g14p7: 7B | |
| 25 |  | g12p1s3 : 12BD | 12 | 3 | g18p4: 6W:LC + g18p6: 4B + g18p8: 2B | |
| 26 |  | g12p1s4 : 22G0 | 22 | 4 | ❽g20p7: 1B + g20p8: 5B + g20p9: 2B + g20p10: 14B | |
| 27 |  | g14p1s1 : 44YB | 44 | 3 | g18p8: 2B + g18p9: 9W + g20p1: 33B | |
| 28 |  | g18p1s1 : 35YB | 35 | 5 | g20p3: 12W:BB∞ + g20p4: 11W:BB + g20p5: 6B + g20p7: 1B + ∞g20p8: 5B |

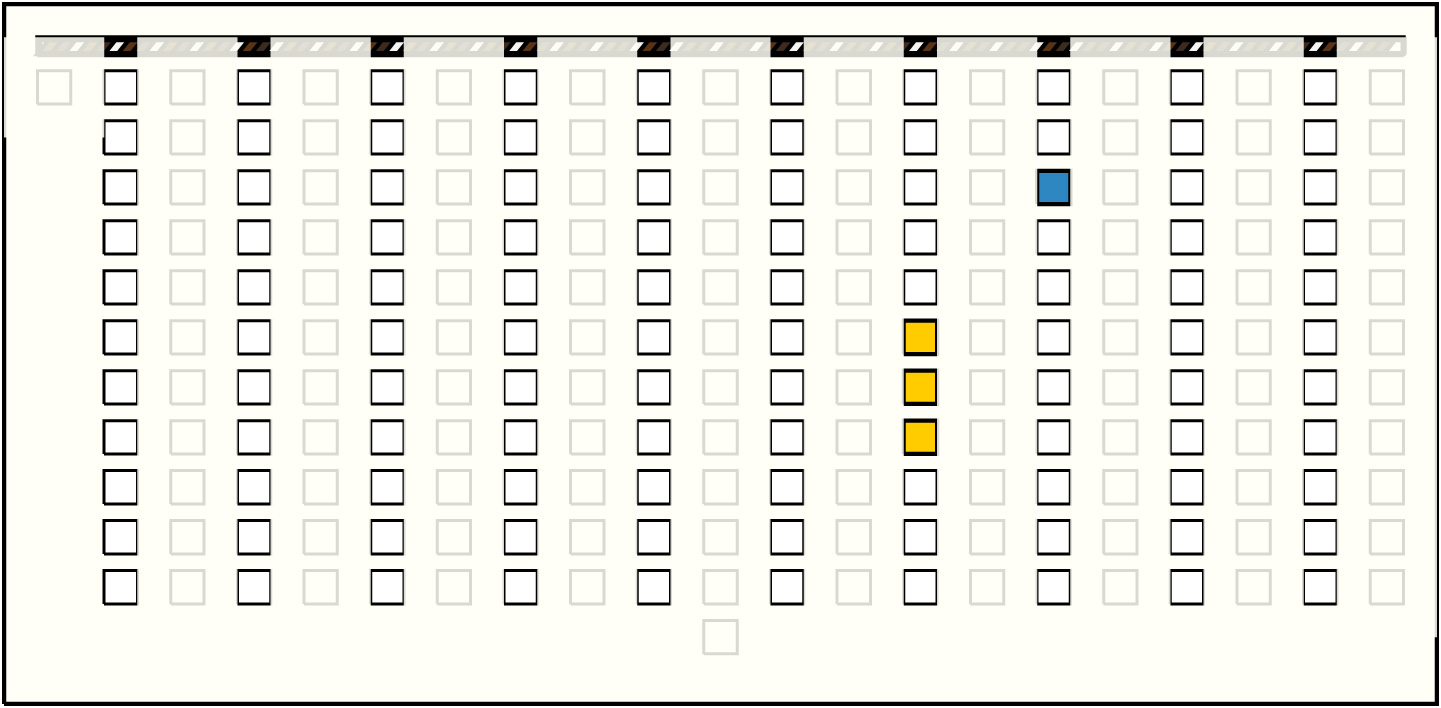

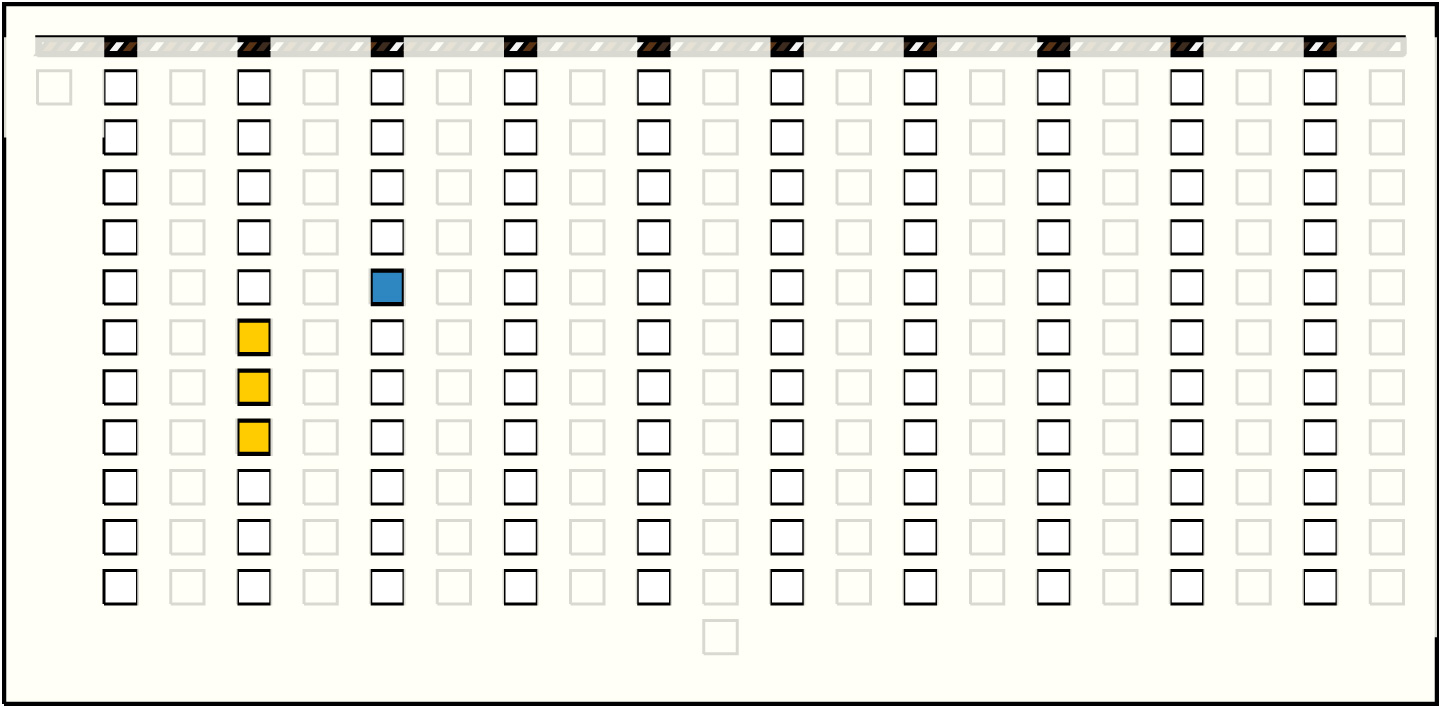

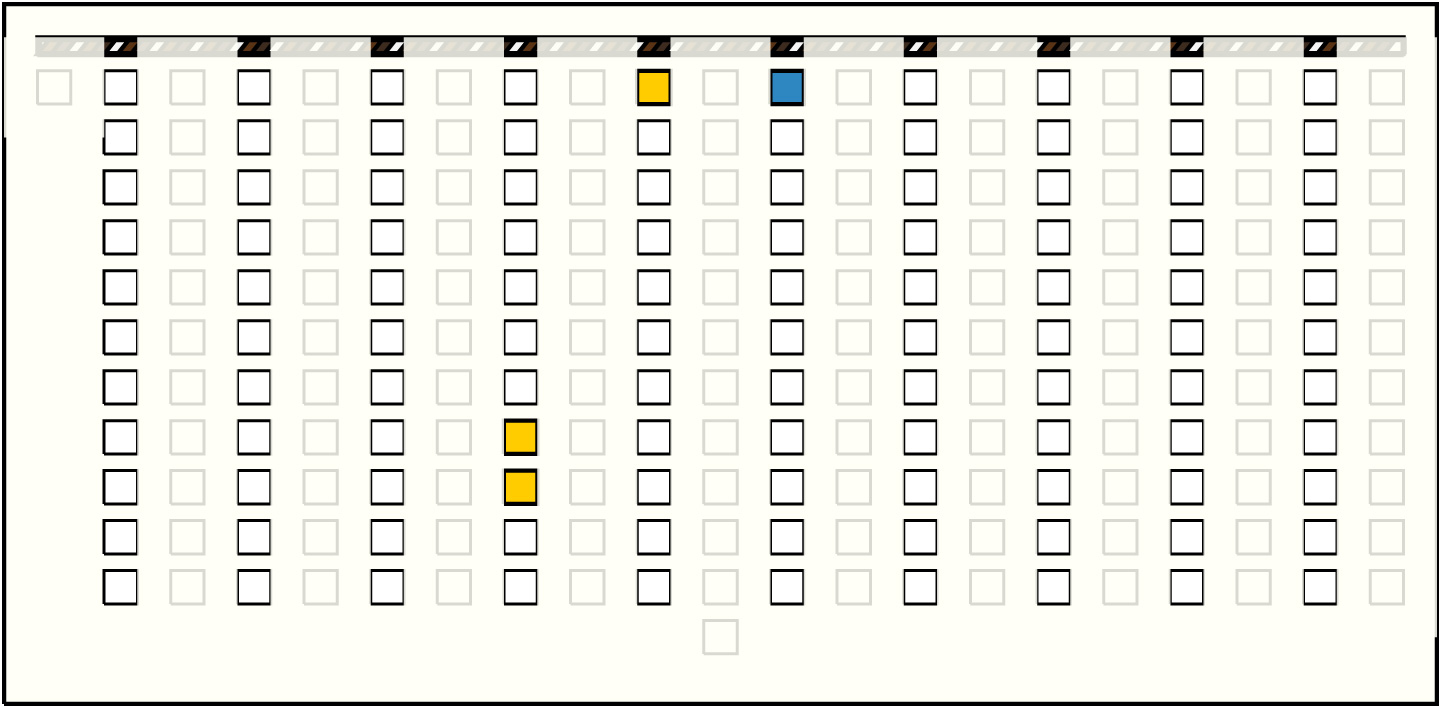

Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g2p9s1 : 23LB | 23 | 3 | g2p4: 5W:BB∞ + g2p5: 7W + g2p6: 11W❽ | |
| 2 |  | g6p8s1 : 13W:AB | 13 | 4 | g4p4: 2W:BB∞ + g4p6: 1W + g4p7: 7W + g4p8: 3W❽ | |
| 3 |  | g6p1s2 : 11BD | 11 | 3 | ❽g4p6: 1W + g4p7: 7W + g4p8: 3W❽ | |
| 4 |  | g6p5s3 : 11W:B:BB | 11 | 3 | ❽g4p6: 1W + g4p7: 7W + g4p8: 3W❽ | |
| 5 |  | g6p1s4 : 37YB | 37 | 5 | ❽g4p1: 20W + g4p3: 7W:BB + g4p4: 2W:BB + g4p6: 1W + ∞g4p7: 7W∞ | |
| 6 |  | g8p10s1 : 11EB | 11 | 3 | ❽g4p6: 1W + g4p7: 7W + g4p8: 3W❽ | |
| 7 |  | g8p1s4 : 32W | 32 | 5 | ❽g4p6: 1W + g4p7: 7W + g4p8: 3W + g4p9: 12W + g4p10: 9W | |
| 8 |  | g10p1s1 : 41YB | 41 | 7 | g4p3: 7W:BB + g4p4: 2W:BB + g4p6: 1W + g4p7: 7W + g4p8: 3W + g4p9: 12W + g4p10: 9W | |
| 9 |  | g10p3s1 : 11W | 11 | 3 | ❽g4p6: 1W + g4p7: 7W + g4p8: 3W❽ | |
| 10 |  | g10p10s1 : 13EB | 13 | 3 | g8p4: 4W:BB + g8p6: 4W + g8p8: 5W∞ | |
| 11 |  | g10p5s2 : 14W:AB | 14 | 4 | g8p4: 4W:BB + g8p6: 4W + g8p8: 5W + g8p9: 1W❽ | |
| 12 |  | g10p1s4 : 26AB | 26 | 5 | g8p3: 12W:BB + g8p4: 4W:BB + g8p6: 4W + g8p8: 5W + g8p9: 1W❽ | |
| 13 |  | g12p1s1 : 53W | 53 | 3 | g8p8: 5W∞ + g8p9: 1W + g10p1: 47W❽ | |
| 14 |  | g12p5s1 : 13AB | 13 | 3 | g8p4: 4W:BB + g8p6: 4W + g8p8: 5W∞ | |
| 15 |  | g12p1s4 : 22G0 | 22 | 3 | ❽g2p5: 7W + g2p6: 11W + ∞g2p7: 4W | |
| 16 |  | g14p1s1 : 44YB | 44 | 3 | ∞g2p7: 4W + g2p8: 23W + g2p9: 17W∞ | |
| 17 |  | g16p1s1 : 42YB | 42 | 5 | ❽g14p3: 11W:BB + g14p4: 13W:BB + g14p5: 4B + g14p6: 7B + g14p7: 7B | |
| 18 |  | g16p3s1 : 17W | 17 | 3 | g14p6: 7B + g14p7: 7B + g14p8: 3B | |
| 19 |  | g18p1s1 : 35YB | 35 | 4 | ❽g14p3: 11W:BB + g14p4: 13W:BB + g14p5: 4B + g14p6: 7B | |
| 20 |  | g18p3s1 : 17W | 17 | 3 | g14p6: 7B + g14p7: 7B + g14p8: 3B | |
| 21 |  | g18p7s2 : 13LB | 13 | 3 | g8p4: 4W:BB + g8p6: 4W + g8p8: 5W∞ | |
| 22 |  | g20p1s1 : 47YB | 47 | 3 | g14p9: 3B + g16p1: 40B + g16p2: 4B | |
| 23 |  | g20p7s1 : 13AB | 13 | 3 | g8p4: 4W:BB + g8p6: 4W + g8p8: 5W∞ |
Khipu Notes:
Ascher Databook Notes:
- Construction note: The twisted ends of the main cord and first cord are linked together. Cord 1 is shorter than the other pendants and bound with thread at its end. 2.Construction note: Subsidiaries attached to the first subsidiary on pendants 2, 24, 135, 157, 179, and 201 are attached in a non-standard way. They are looped around both the pendant and subsidiary to which they are connected.
- This is one of several khipus acquired by the Museum in 1907 with provenance Ica. For a list of them, see KH00110.
- Assuming that the first pendant and the last pendant in the 10th group are markers, the khipu is separated, by markers and spacing, into 2 parts of 10 groups each. Each group has 11 pendants.
- With the exception of groups 7 and 17 (the 7 th group in each part), each group has the same patterning of colors: 2X, 2Y, 7X, Y is BB: W in all groups except groups 16 and 17 in which it is LC:W. The X varies so that the group colors alternate. In the first part (with the exception of 2 pendants in group 7), X is W in groups 1, 3, 5, 7, and 9 and it is LB in groups 2, 4, 6, 8, 10, In the second part: X is B in groups 11, 13, 15, 19; LB in 12, 14, 16; and YG in 18 and 20.
- In every even group (groups 2, 4, 6, ..., 18, 20), all pendants are zero-valued (or blank) and there are no subsidiaries.
- In every odd group (groups 1, 3, 5,..., 17, 19):
- Positions 4 and 11 have no subsidiaries; position 3 has 1 W subsidiary; and position 1 has 3-6 subsidiaries or subsidiaries of subsidiaries. The unusual attachment noted in #2 above only occurs in the first position. Other positions vary from 0-3 subsidiaries from group to group.
- Pendant 11 is always zero-valued (or blank).
- The value in position 1 is the maximum.
