KH0441/UR203 - Subsidiary Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |

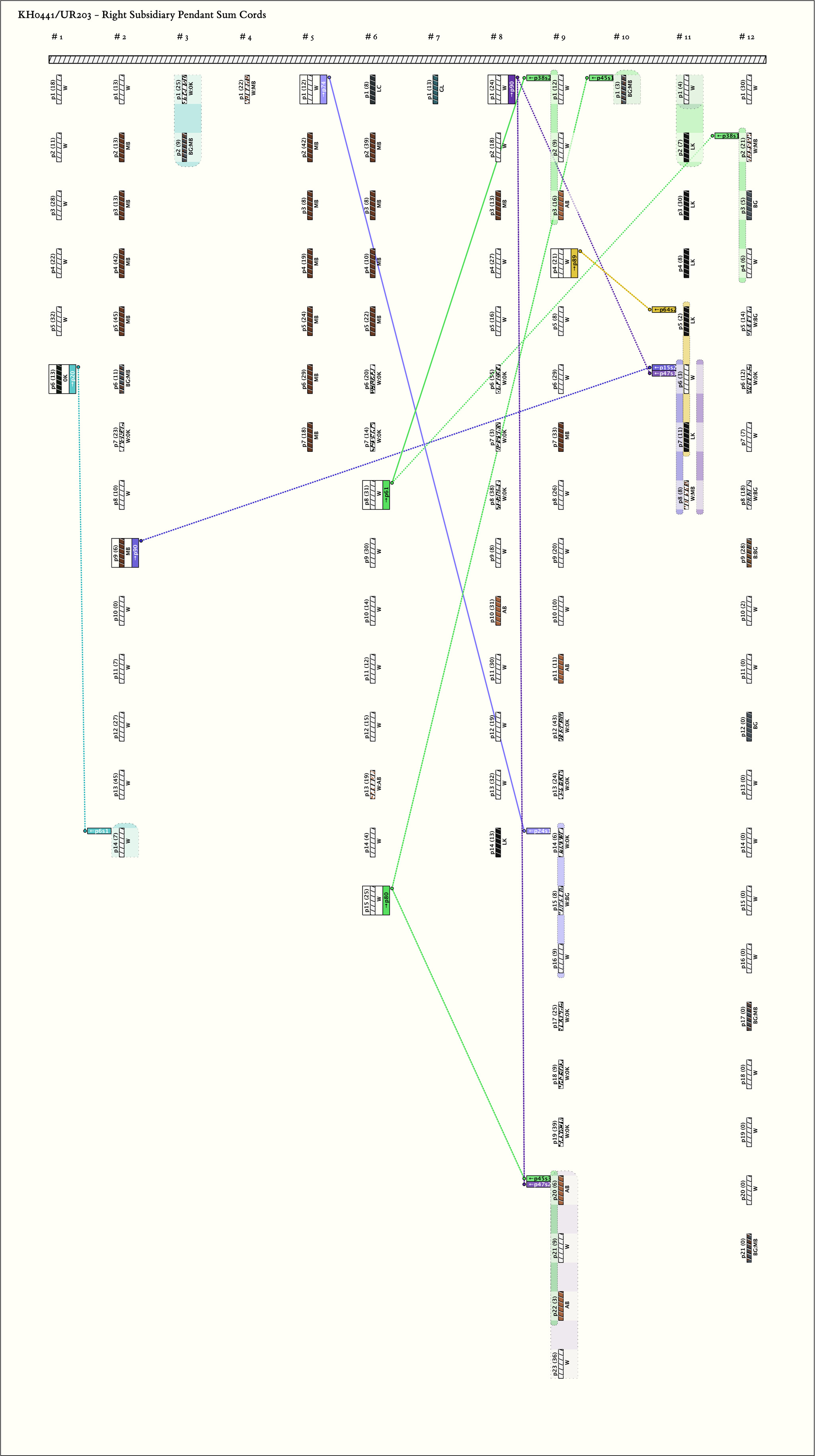

Sum Map - Click on image to view larger
 |
Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

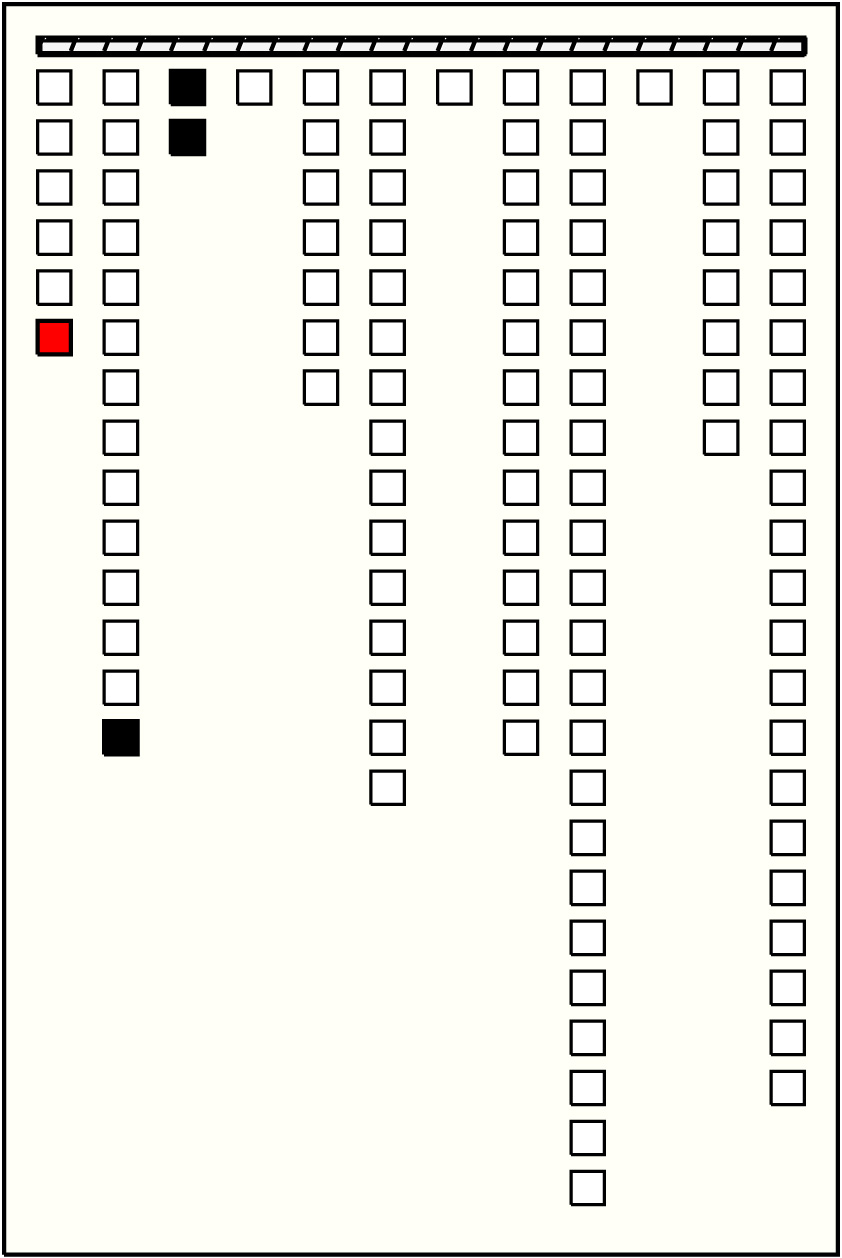

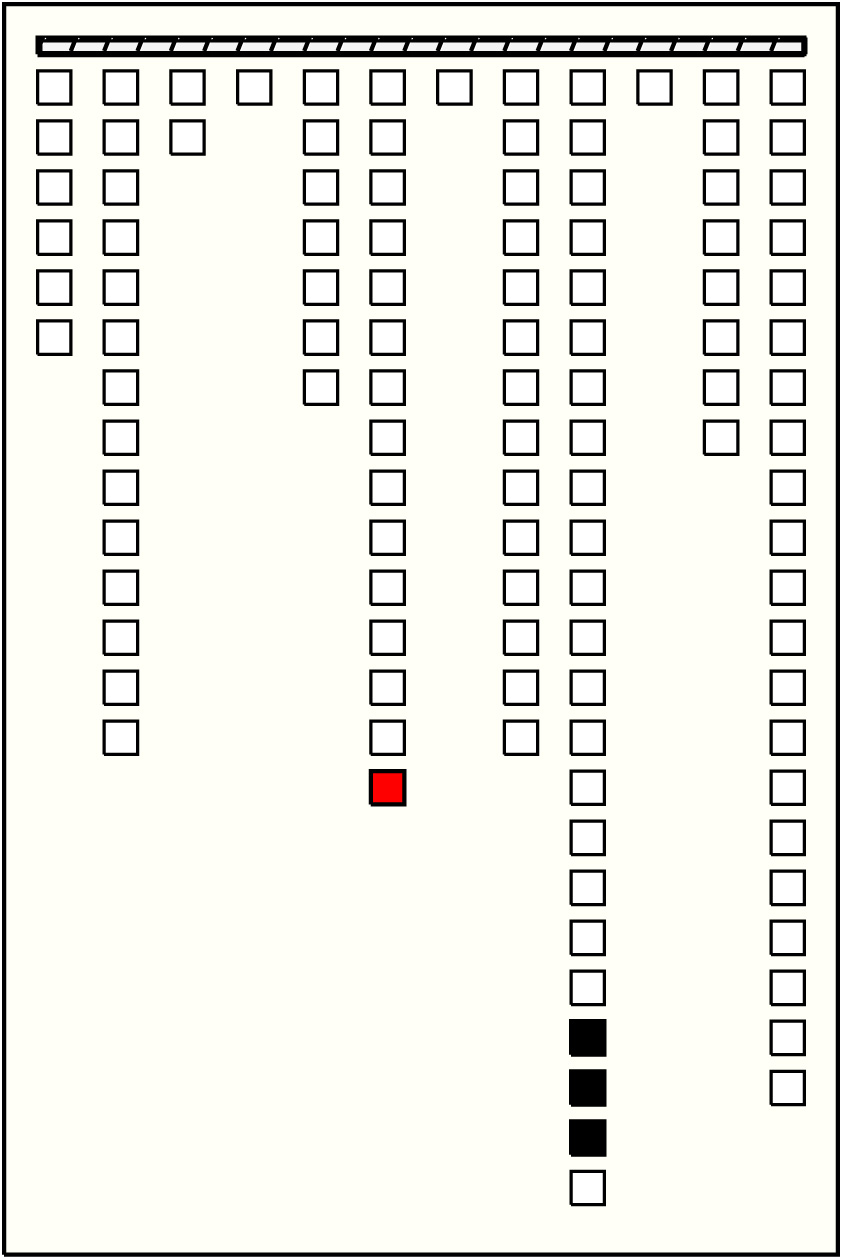

Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g1p6s1 : 41MB | 41 | 3 | ∞g2p14: 7W + g3p1: 25W:0K + g3p2: 9BG:MB∞ | |
| 2 |  | g2p9s2 : 22W:MB | 22 | 3 | ❽g11p6: 3W + g11p7: 11LK + g11p8: 8W:MB❽ | |
| 3 |  | g5p1s1 : 23MB | 23 | 3 | ❽g9p14: 6W:0K + g9p15: 8W:BG + g9p16: 9W❽ | |
| 4 |  | g6p8s1 : 32LC | 32 | 3 | ❽g12p2: 21W:MB + g12p3: 5BG + g12p4: 6W∞ | |
| 5 |  | g6p15s1 : 14AB | 14 | 3 | ❽g10p1: 3BG:MB + g11p1: 4W + g11p2: 7LK❽ | |
| 6 |  | g6p8s2 : 37W | 37 | 3 | ❽g9p1: 12W + g9p2: 9W + g9p3: 16AB❽ | |
| 7 |  | g6p15s3 : 18MB | 18 | 3 | ❽g9p20: 6AB + g9p21: 9W + g9p22: 3AB❽ | |
| 8 |  | g8p1s2 : 61W:MB | 61 | 6 | ❽g9p20: 6AB + g9p21: 9W + g9p22: 3AB + g9p23: 36W + g10p1: 3BG:MB + g11p1: 4W❽ | |
| 9 |  | g8p1s3 : 22W:0K | 22 | 3 | ❽g11p6: 3W + g11p7: 11LK + g11p8: 8W:MB❽ | |
| 10 |  | g9p4s2 : 16W:AB | 16 | 3 | ∞g11p5: 2LK∞ + g11p6: 3W + g11p7: 11LK❽ |

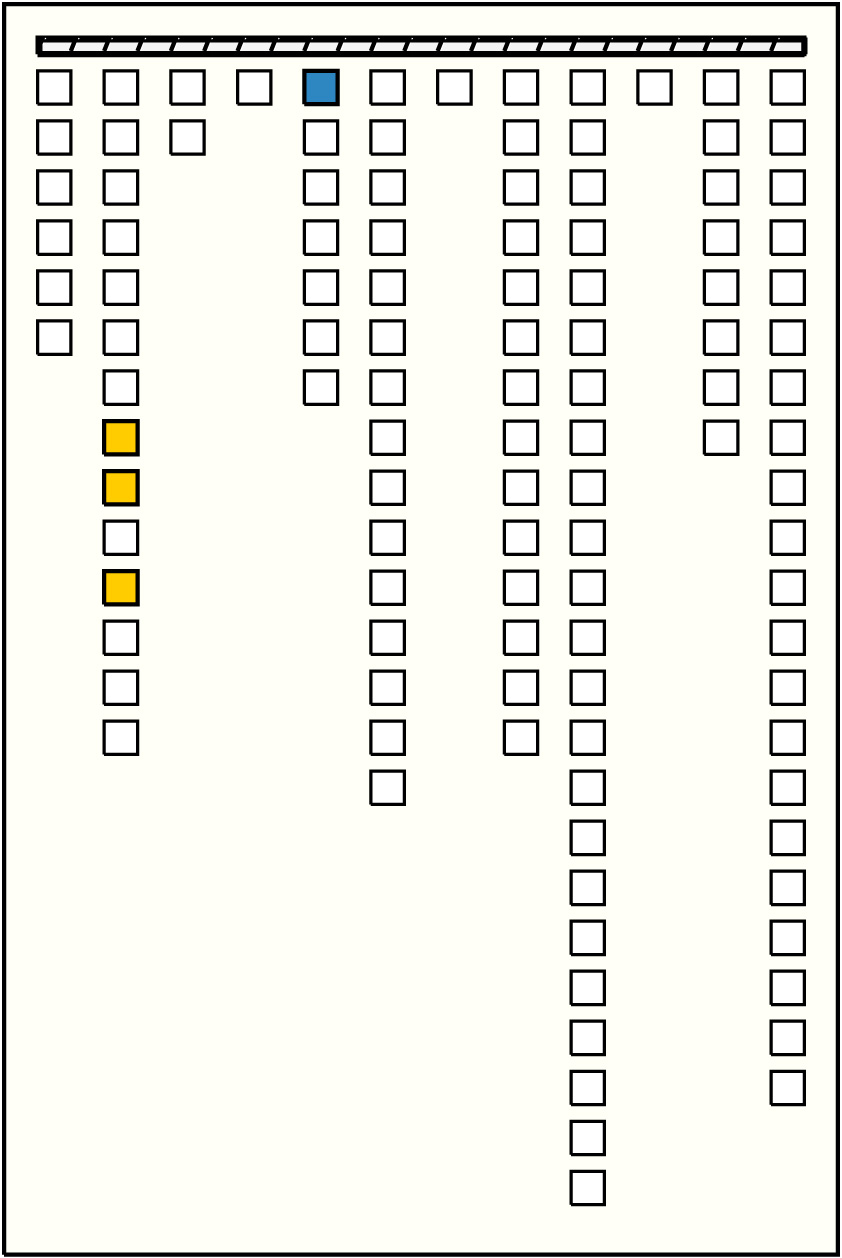

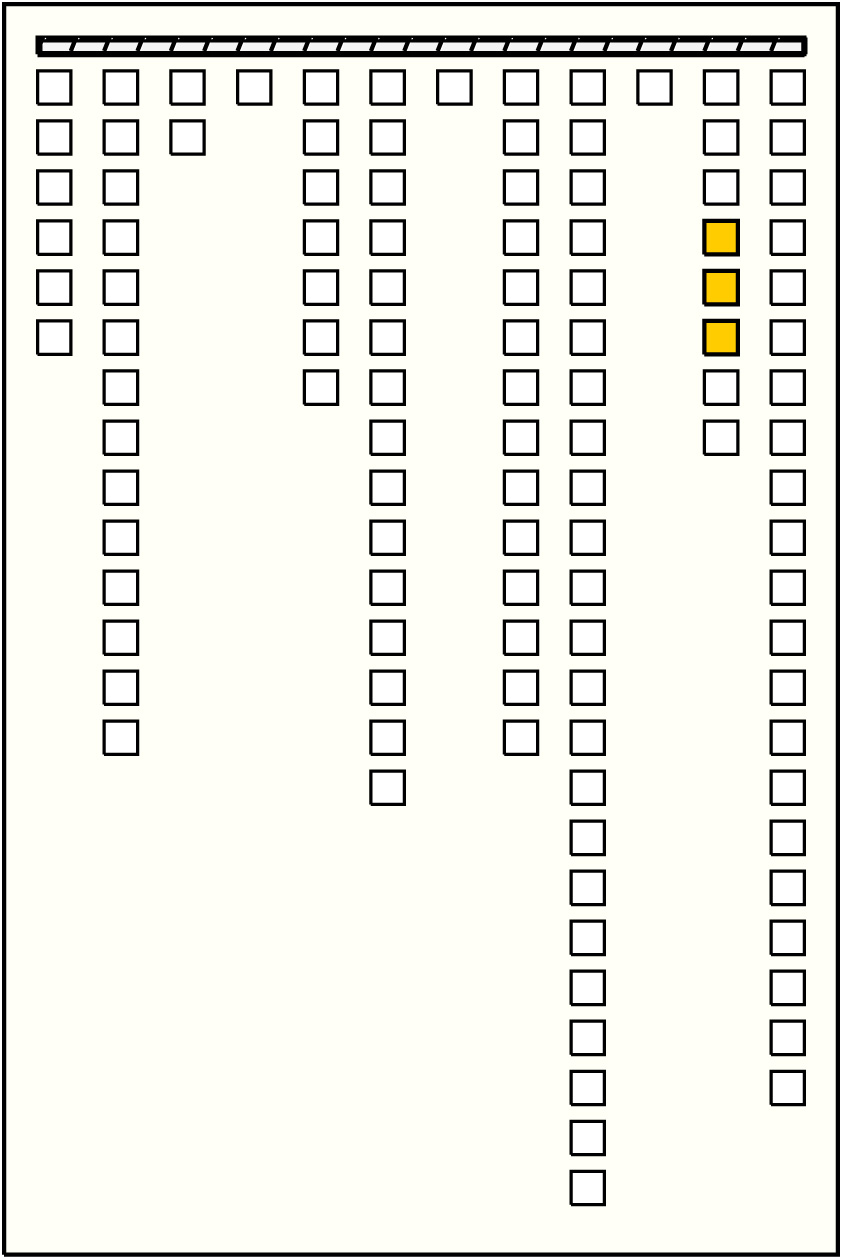

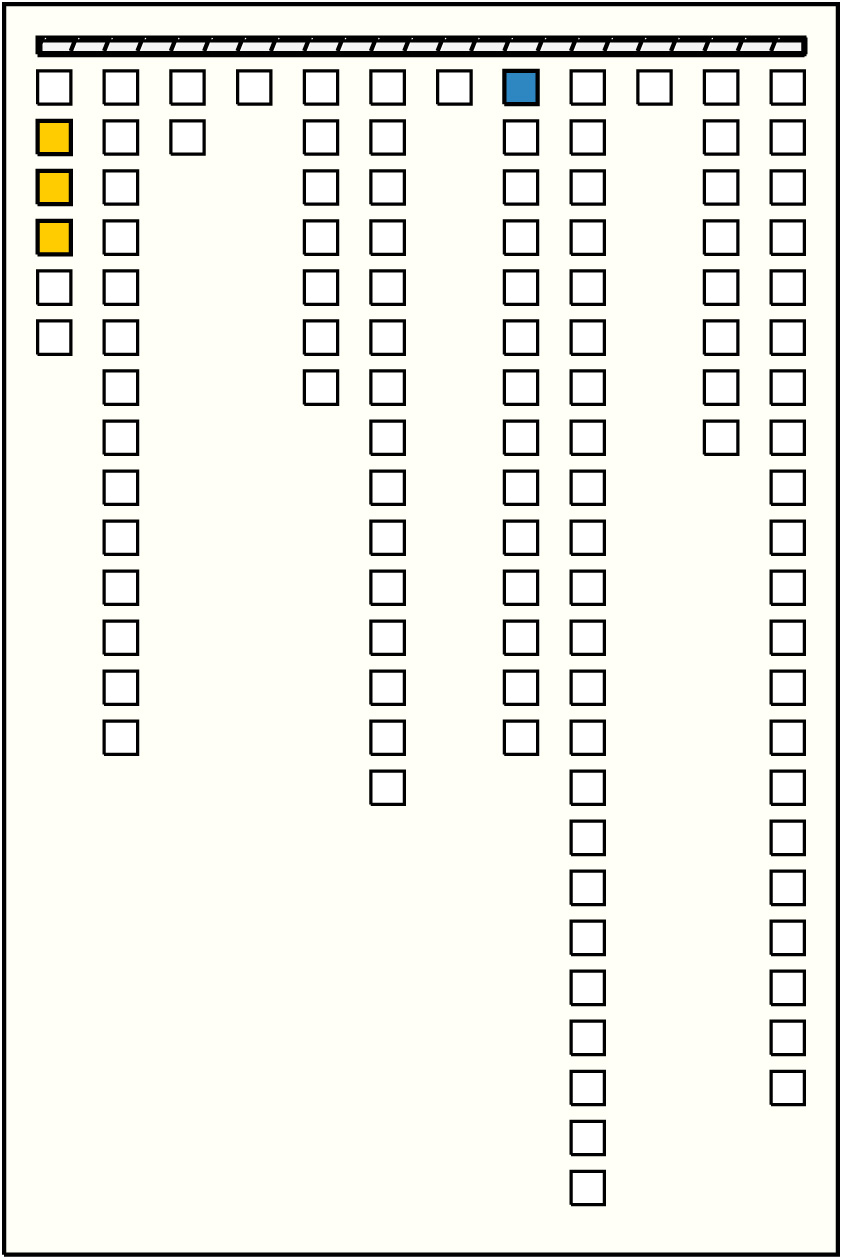

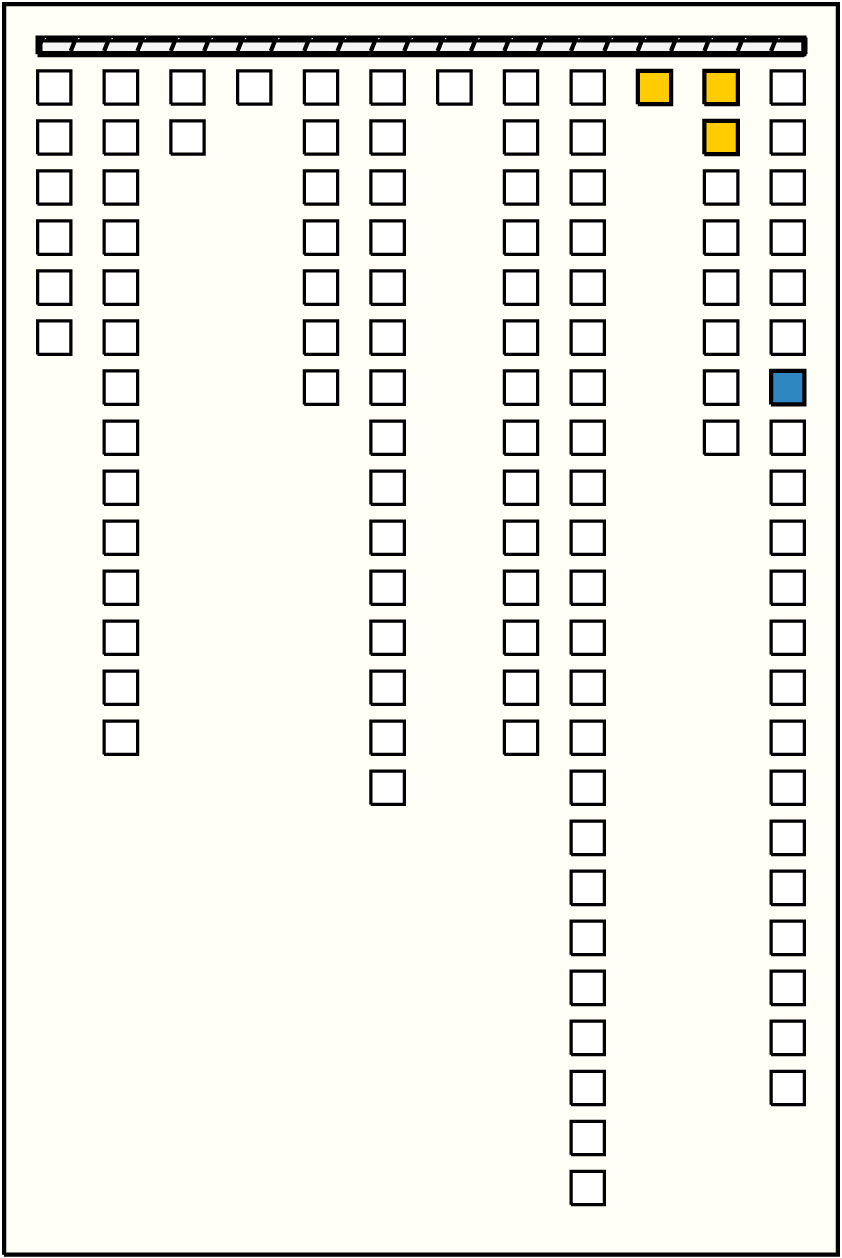

Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g5p1s1 : 23MB | 23 | 3 | g2p8: 10W∞ + g2p9: 6MB + g2p11: 7W❽ | |
| 2 |  | g8p1s2 : 61W:MB | 61 | 3 | ❽g1p2: 11W + g1p3: 28W + g1p4: 22W❽ | |
| 3 |  | g11p6s1 : 13BG | 13 | 3 | ❽g11p4: 8LK + g11p5: 2LK + g11p6: 3W❽ | |
| 4 |  | g12p7s1 : 14W:0K | 14 | 3 | ❽g10p1: 3BG:MB + g11p1: 4W + g11p2: 7LK❽ |
Khipu Notes:
1) "spiral knots" are knots like those descripted for KH0431. There are two types:
