KH0665/BA001 - Subsidiary Pendant Sums
Drawings:
Sum NetGraph - Click on image to view larger
 |
Sum Map - Click on image to view larger
 |

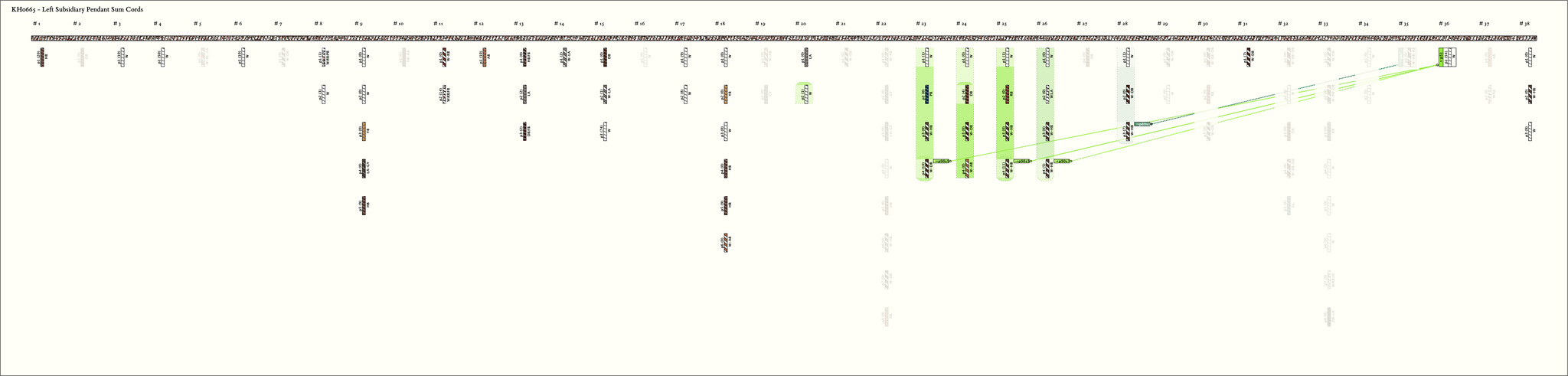

Sum Overlay: - Click on Image to View Large. Right-click and Save Image for Slide Presentations

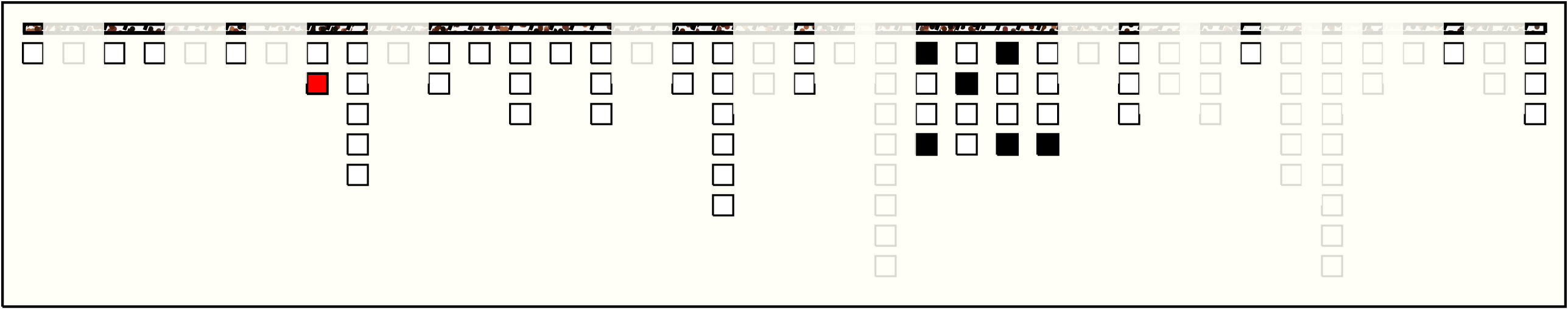

Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|
| 1 |  | g8p2s12 : 32W | 32 | 6 | ❽g23p1: 1W + g23p4: 10W-DB + g24p2: 4DB + g25p1: 1W + g25p4: 11W-HB + g26p4: 5W-HB❽ | |

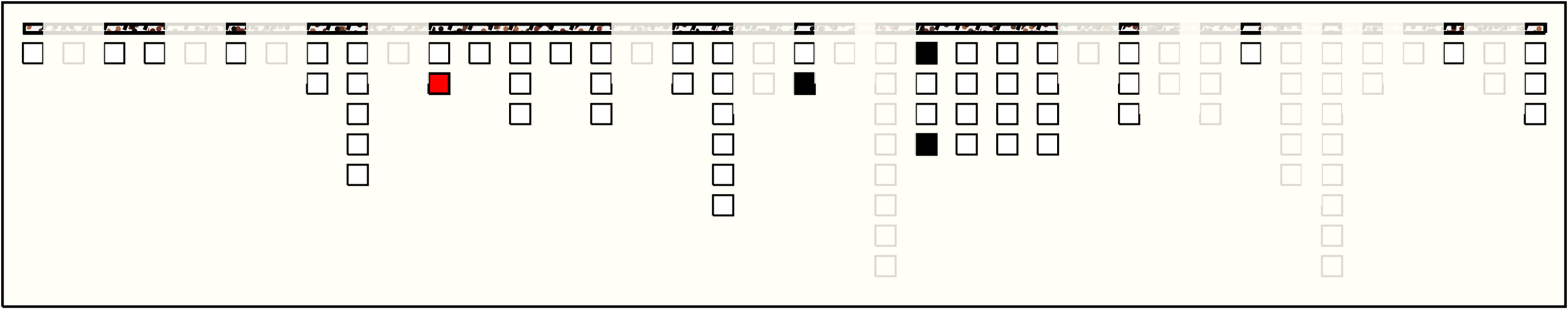

| 2 |  | g11p2s10 : 12W | 12 | 3 | ❽g20p2: 1W + g23p1: 1W + g23p4: 10W-DB❽ |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

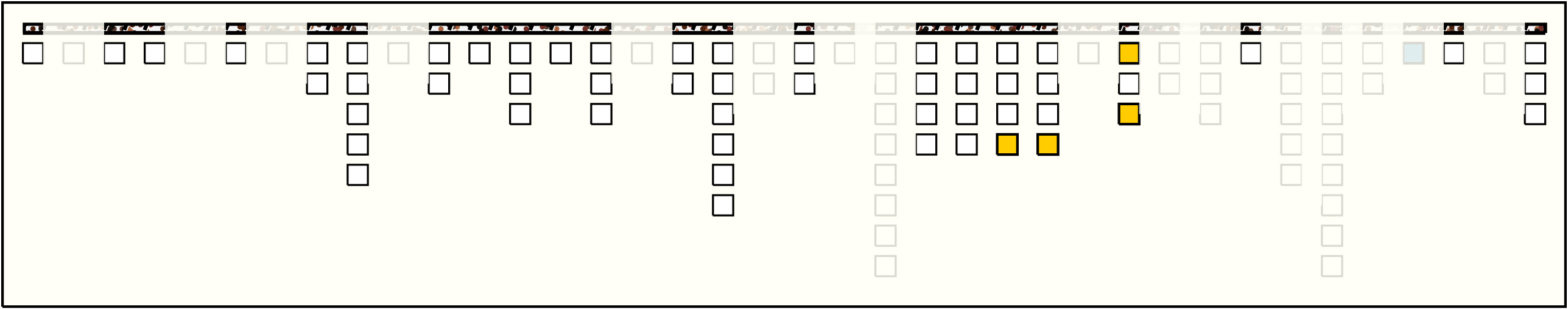

| 1 |  | g35p1s1 : 24LA | 24 | 4 | ❽g25p4: 11W-HB + g26p4: 5W-HB + g28p1: 1W + g28p3: 7W-HB❽ | |

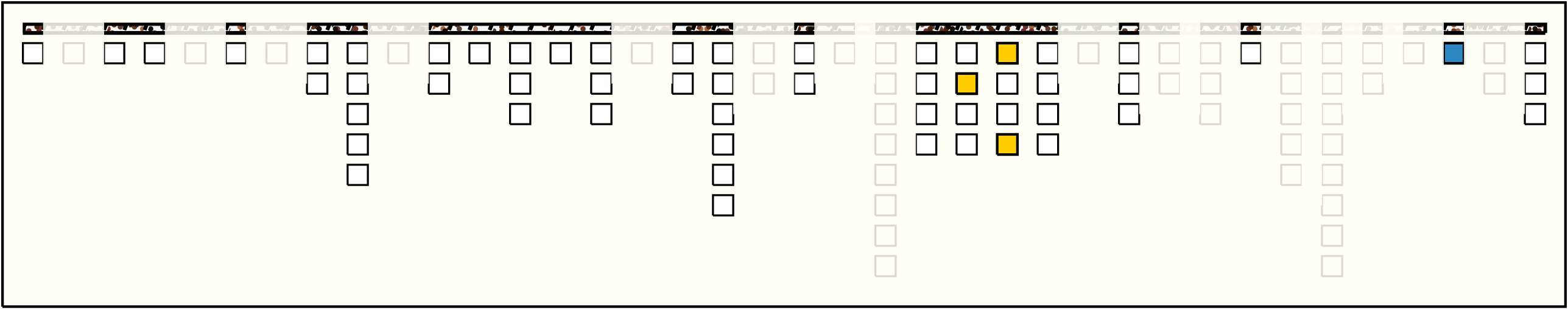

| 2 |  | g36p1s5 : 16W:YB | 16 | 3 | g24p2: 4DB + g25p1: 1W + g25p4: 11W-HB❽ | |

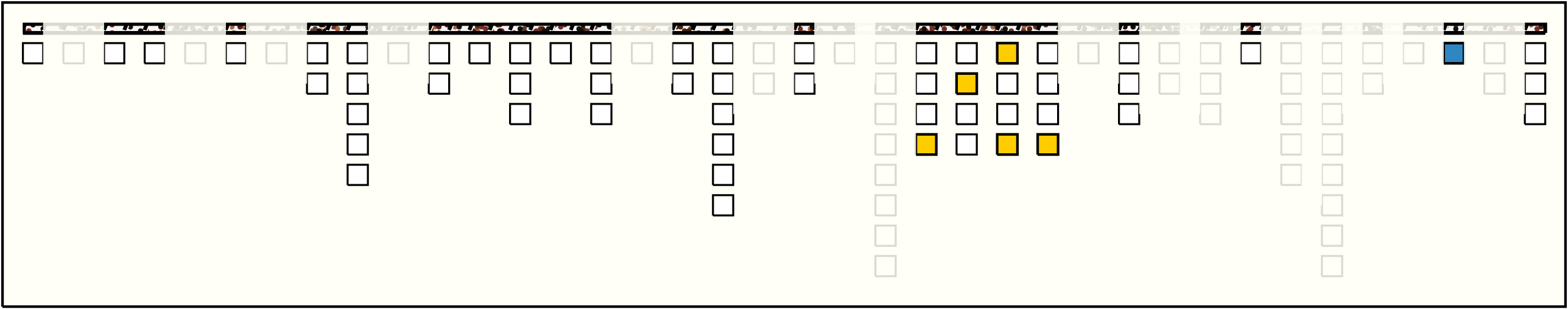

| 3 |  | g36p1s7 : 31W:BG | 31 | 5 | ❽g23p4: 10W-DB + g24p2: 4DB + g25p1: 1W + g25p4: 11W-HB + g26p4: 5W-HB❽ | |

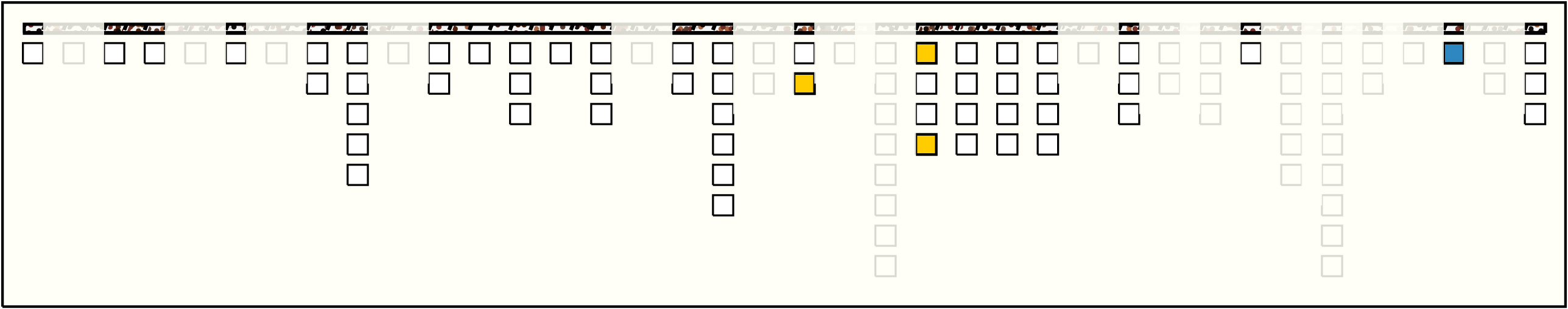

| 4 |  | g36p1s9 : 12W:RB | 12 | 3 | ❽g20p2: 1W + g23p1: 1W + g23p4: 10W-DB❽ |
