UR1034/KH0042 - Subsidiary Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Subsidiary Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Sum Overlay
This Khipu's Drawing	Right-Handed Sum Detail
	Left-Handed Sum Detail

Right Handed Sums: # Sums = 8, Max # Summands = 4, (Min, Mean, Max) Sum Values = (11, 14, 22)
Click on Image to View Larger

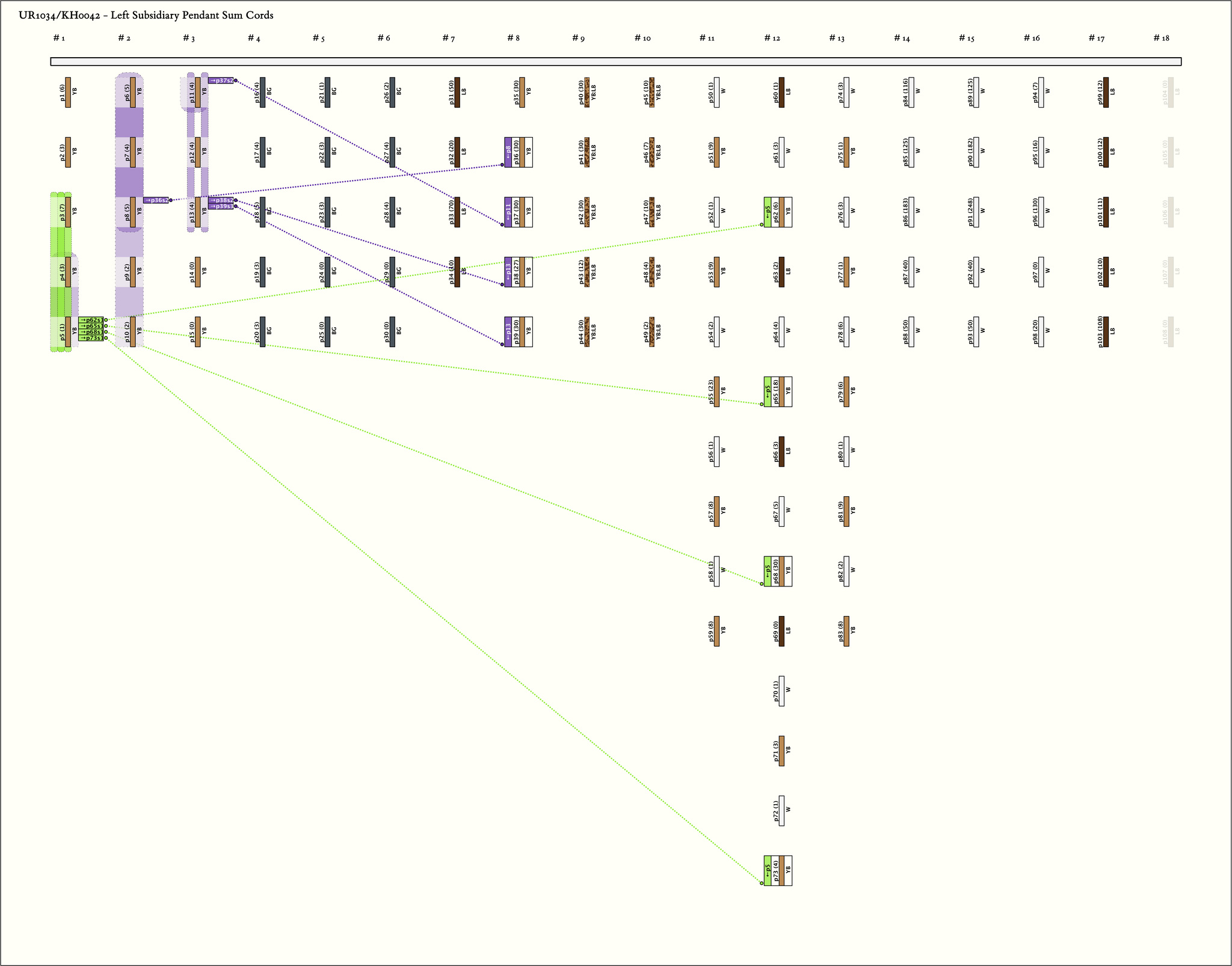

Left Handed Sums: # Sums = 8, Max # Summands = 6, (Min, Mean, Max) Sum Values = (11, 14, 22)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p36s2_{8, 2, 2} : 18_YB	18	4	p56: 1_W + p57: 8_YB + p58: 1_W + p59: 8_YB
2	p37s2_{8, 3, 2} : 22_YB	22	4	p78: 6_W + p79: 6_YB + p80: 1_W + p81: 9_YB
3	p38s2_{8, 4, 2} : 12_YB	12	3	p49: 2_YB:LB + p50: 1_W + p51: 9_YB
4	p39s3_{8, 5, 3} : 12_YB	12	3	p49: 2_YB:LB + p50: 1_W + p51: 9_YB
5	p62s1_{12, 3, 1} : 11_YB	11	4	p71: 3_YB + p72: 1_W + p73: 4_YB + p74: 3_W
6	p65s1_{12, 6, 1} : 11_YB	11	4	p71: 3_YB + p72: 1_W + p73: 4_YB + p74: 3_W
7	p68s1_{12, 9, 1} : 11_YB	11	4	p71: 3_YB + p72: 1_W + p73: 4_YB + p74: 3_W
8	p73s1_{12, 14, 1} : 11_YB	11	4	p75: 1_YB + p76: 3_W + p77: 1_YB + p78: 6_W

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p36s2_{8, 2, 2} : 18_YB	18	5	p4: 3_YB + p5: 1_YB + p6: 5_YB + p7: 4_YB + p8: 5_YB
2	p37s2_{8, 3, 2} : 22_YB	22	6	p6: 5_YB + p7: 4_YB + p8: 5_YB + p9: 2_YB + p10: 2_YB + p11: 4_YB
3	p38s2_{8, 4, 2} : 12_YB	12	3	p11: 4_YB + p12: 4_YB + p13: 4_YB
4	p39s3_{8, 5, 3} : 12_YB	12	3	p11: 4_YB + p12: 4_YB + p13: 4_YB
5	p62s1_{12, 3, 1} : 11_YB	11	3	p3: 7_YB + p4: 3_YB + p5: 1_YB
6	p65s1_{12, 6, 1} : 11_YB	11	3	p3: 7_YB + p4: 3_YB + p5: 1_YB
7	p68s1_{12, 9, 1} : 11_YB	11	3	p3: 7_YB + p4: 3_YB + p5: 1_YB
8	p73s1_{12, 14, 1} : 11_YB	11	3	p3: 7_YB + p4: 3_YB + p5: 1_YB
