UR1166/KH0183 - Subsidiary Pendant Sums
Drawings:

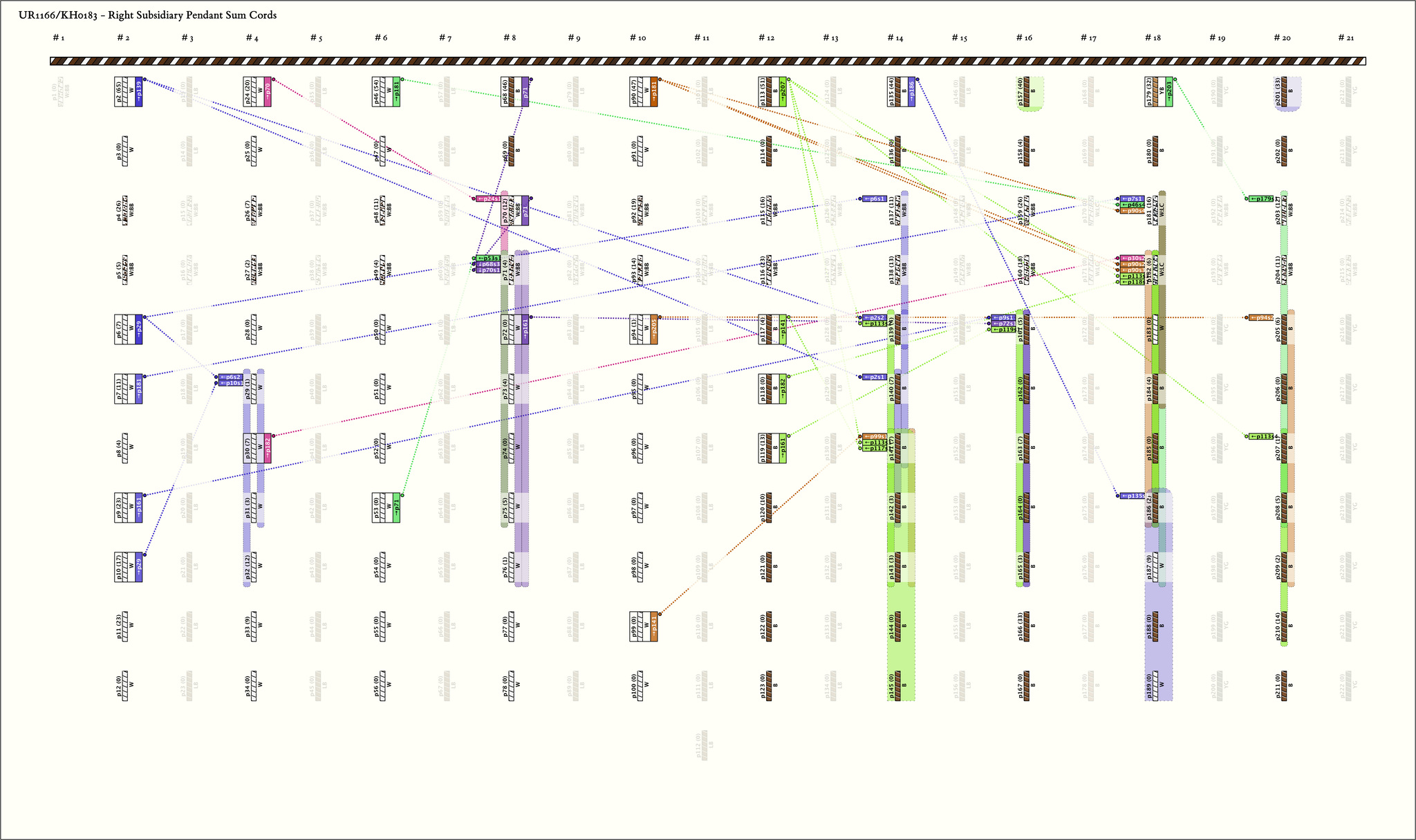

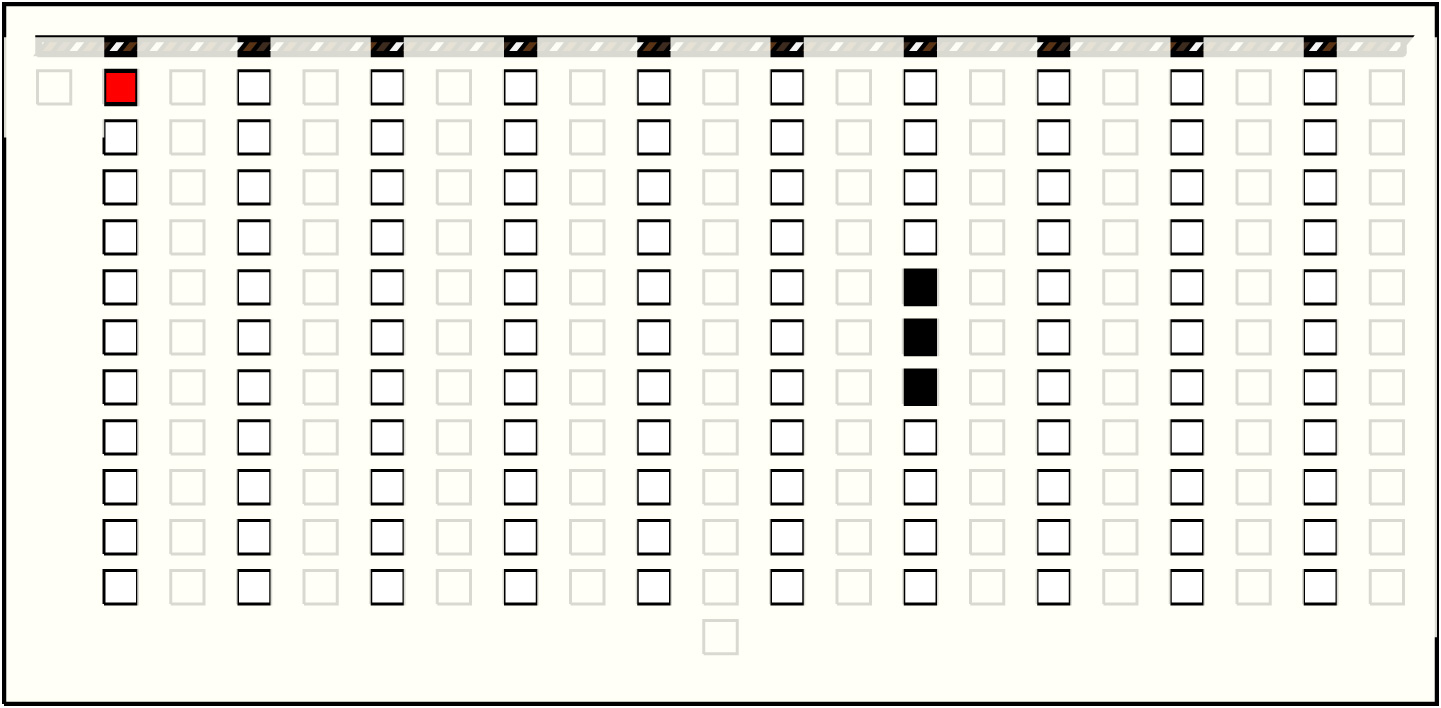

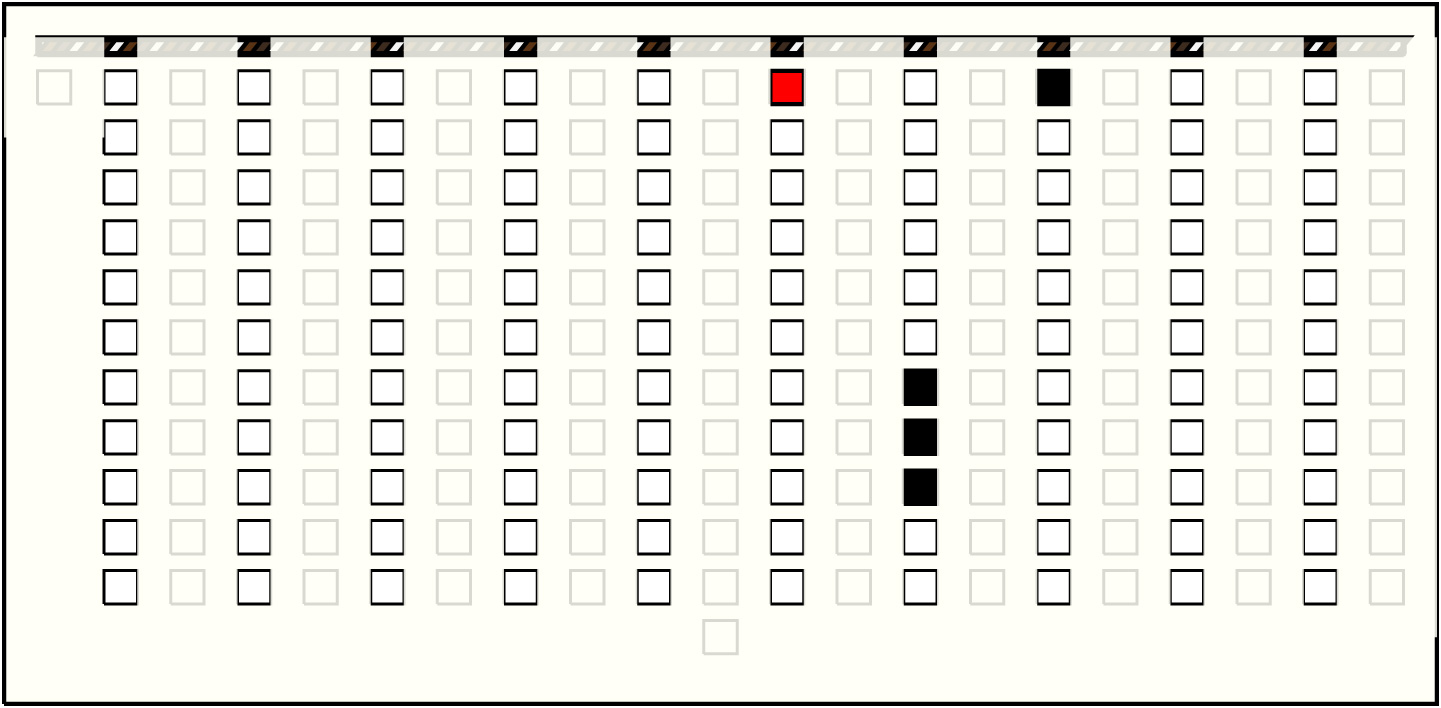

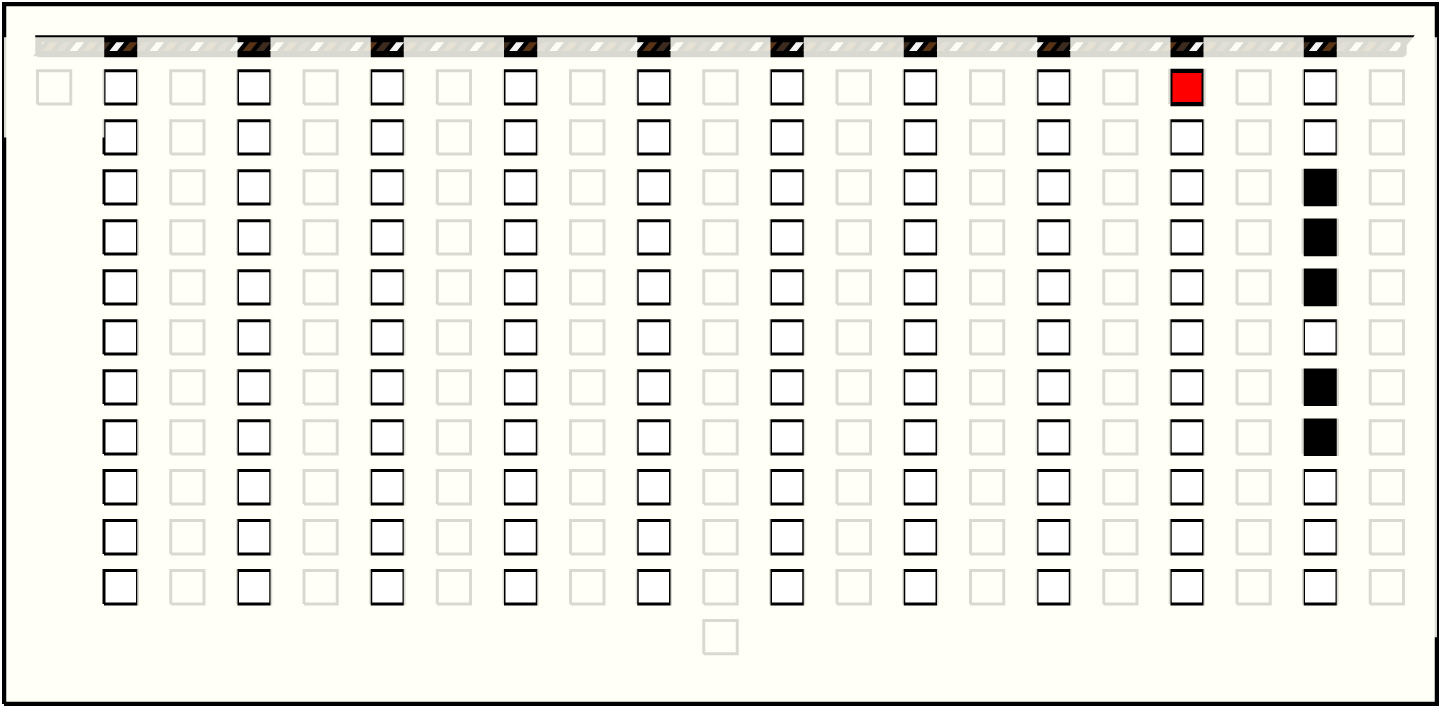

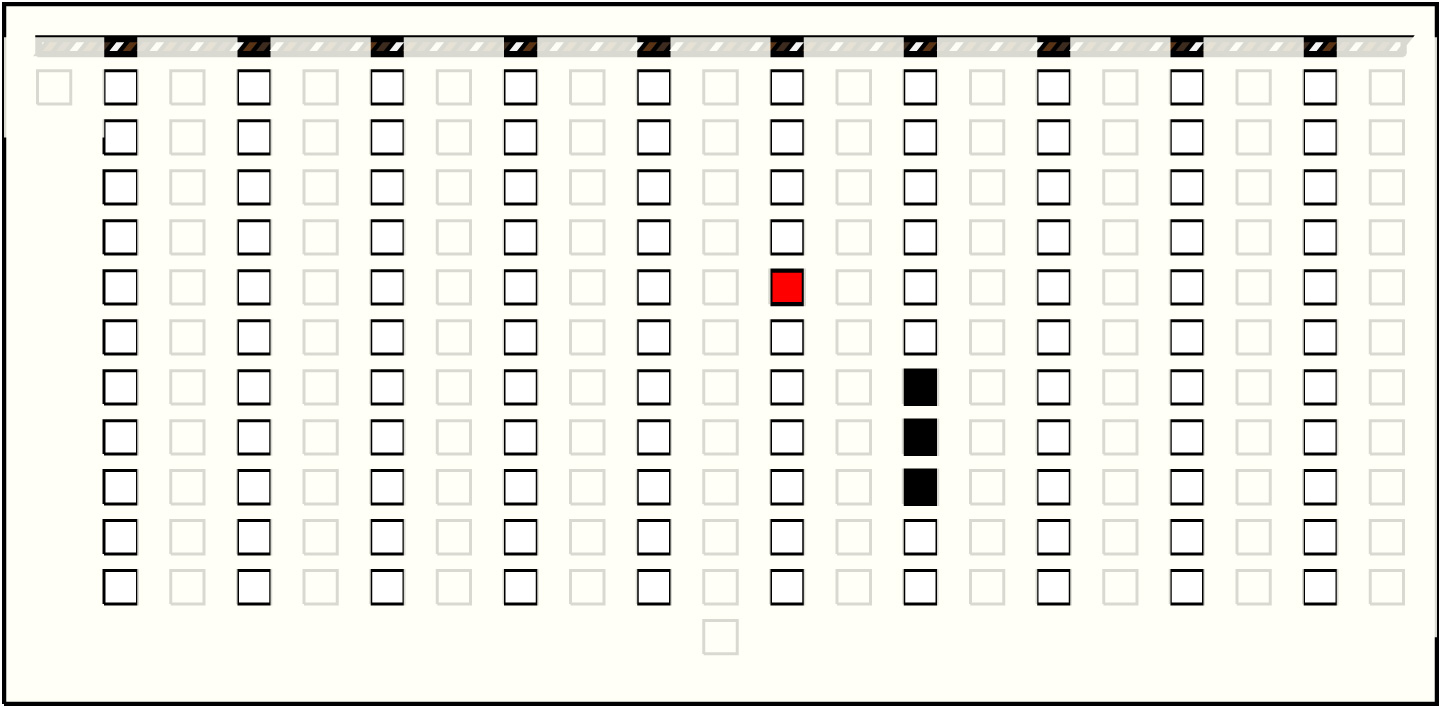

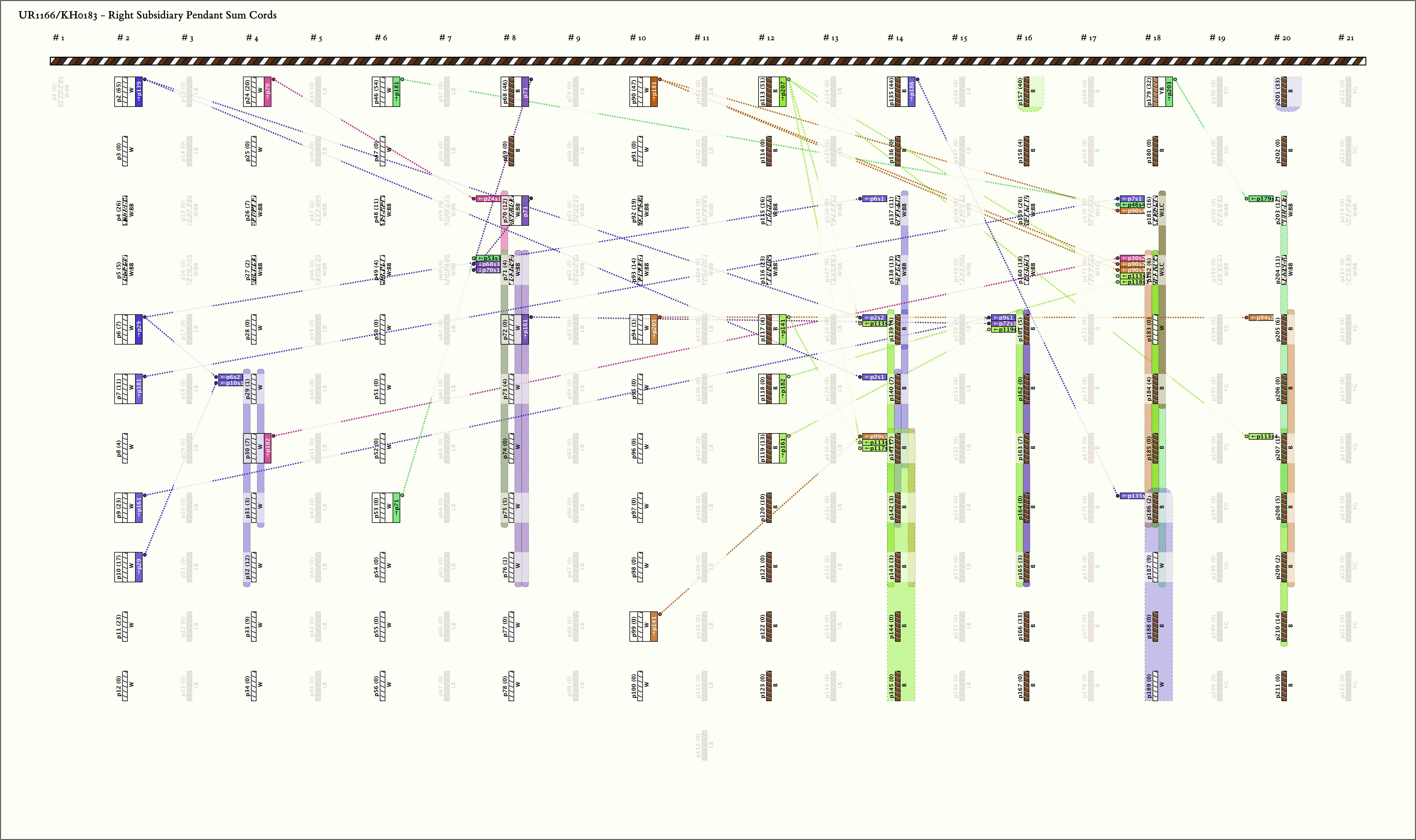

Right Handed Sums: # Sums = 27, Max # Summands = 5, (Min, Mean, Max) Sum Values = (12, 21, 53)
Click on Image to View Larger
Note! Duplicate right subsidiary pendant sums exist on one pendant - ['p10s1', 'p113s1', 'p113s2', 'p113s3', 'p113s4', 'p117s1', 'p118s1', 'p119s1', 'p135s1', 'p179s1', 'p24s1', 'p2s1', 'p2s2', 'p46s4', 'p4s1', 'p53s1', 'p68s3', 'p6s1', 'p70s1', 'p72s1', 'p7s1', 'p90s2', 'p90s3', 'p90s4', 'p94s2', 'p99s1', 'p9s1']

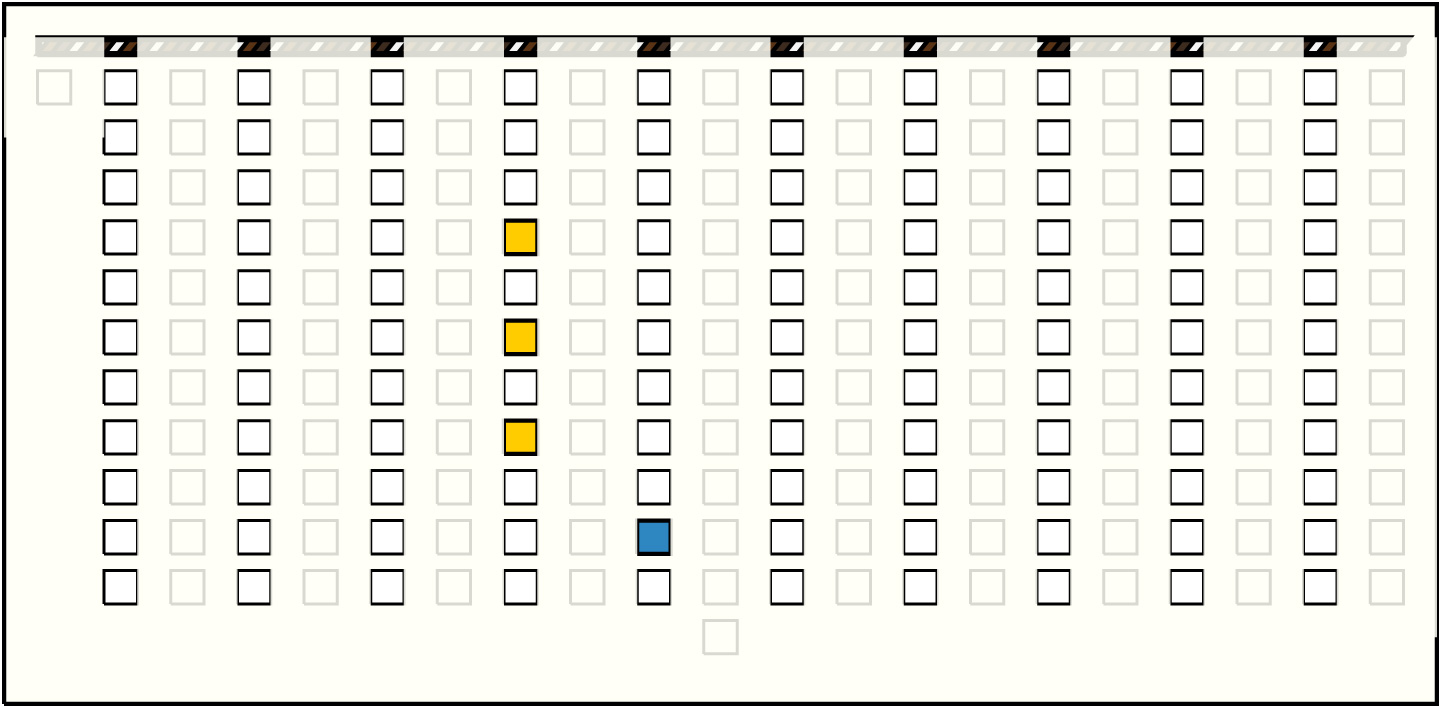

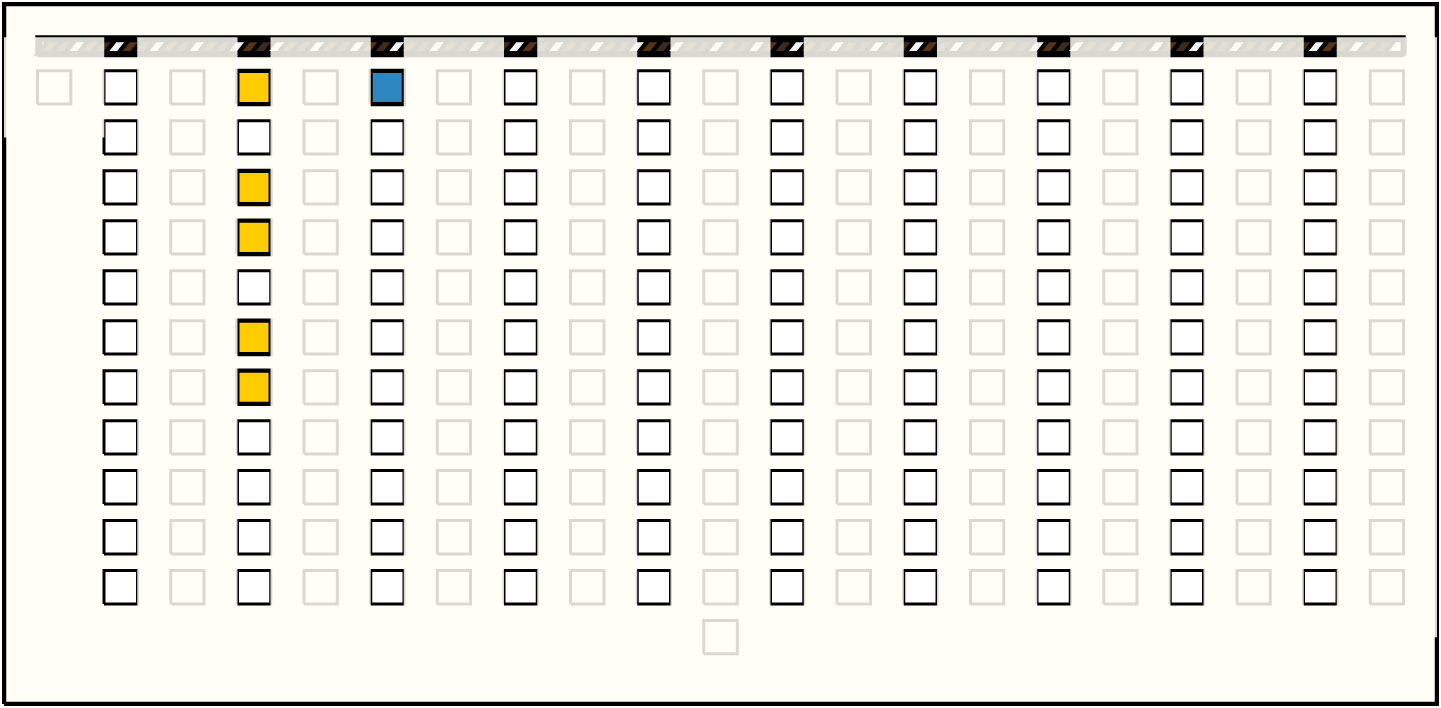

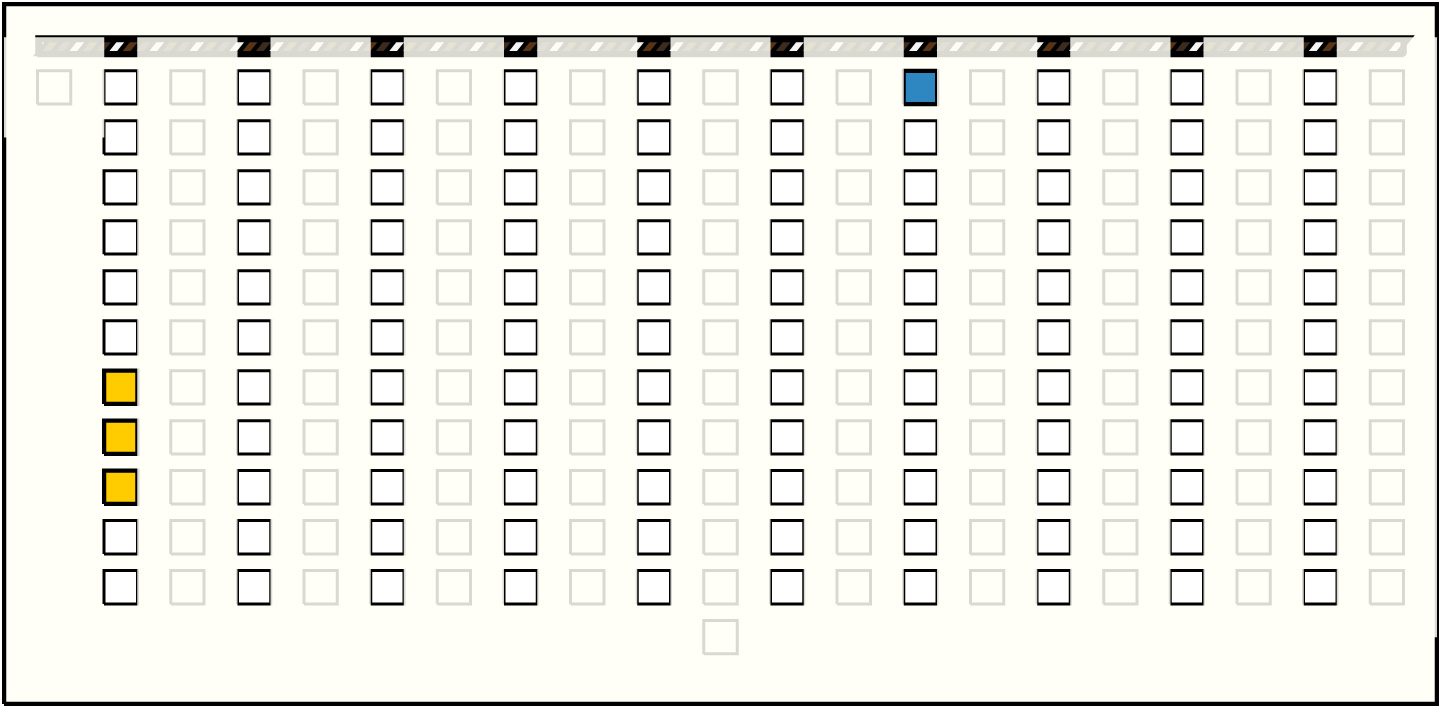

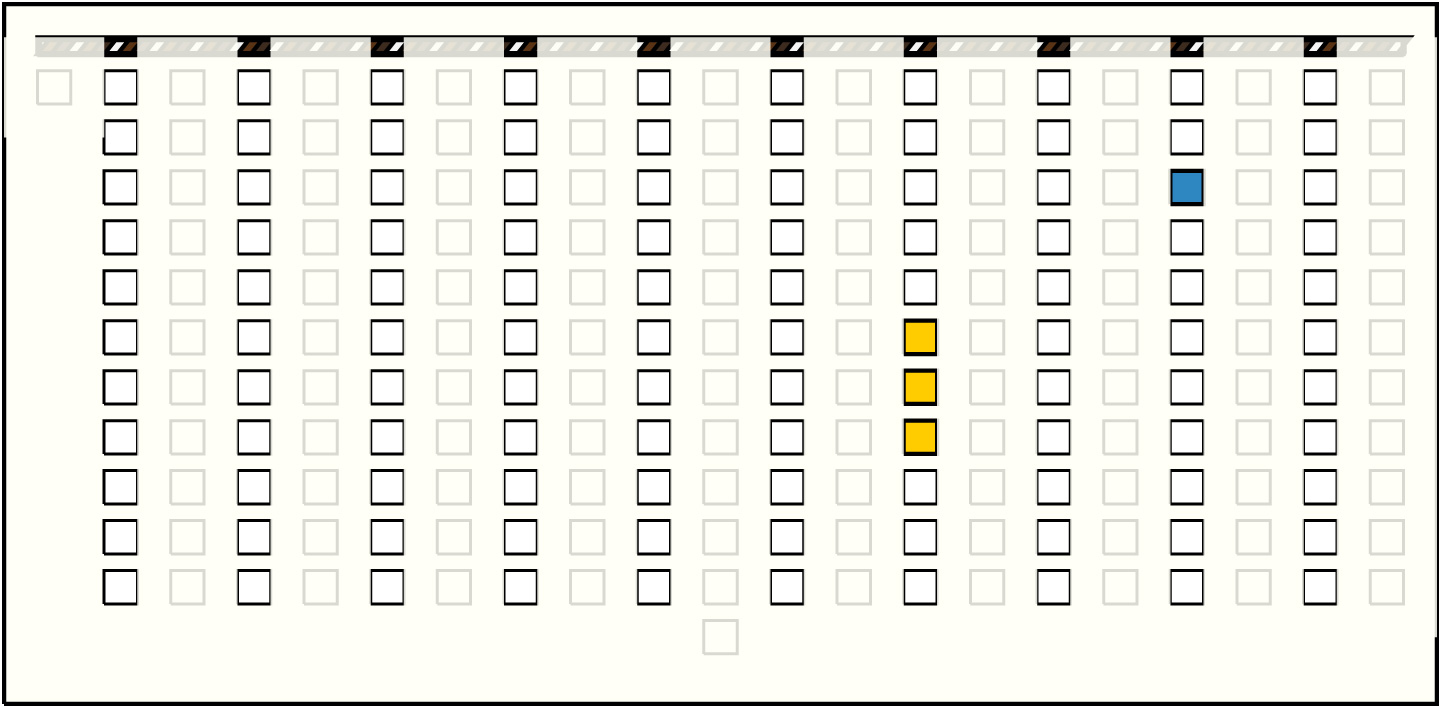

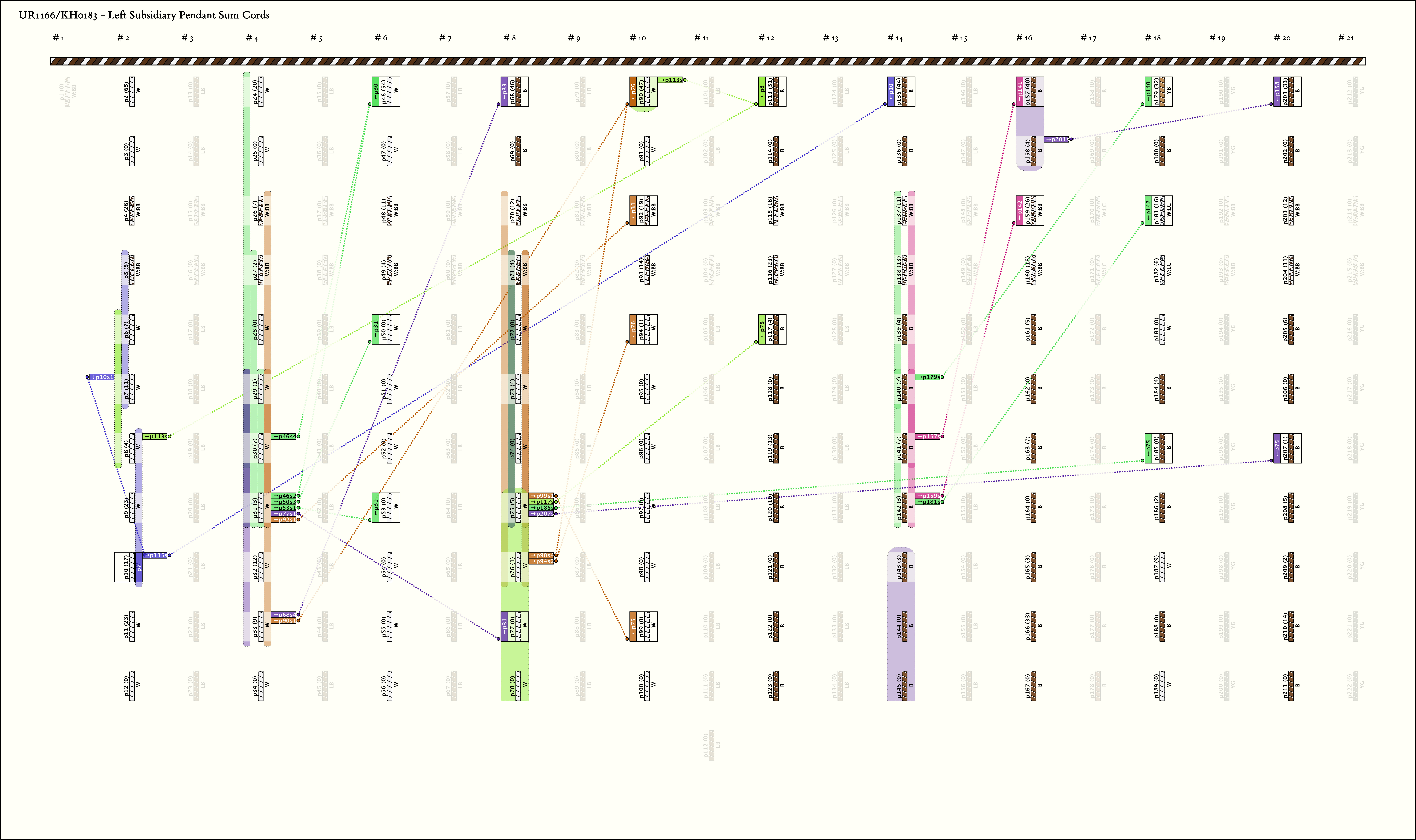

Left Handed Sums: # Sums = 18, Max # Summands = 5, (Min, Mean, Max) Sum Values = (13, 27, 53)
Click on Image to View Larger
Note! Duplicate left subsidiary pendant sums exist on one pendant - ['p10s1', 'p113s1', 'p113s4', 'p117s1', 'p135s1', 'p157s1', 'p159s1', 'p179s1', 'p181s1', 'p183s2', 'p185s2', 'p201s1', 'p207s1', 'p68s4', 'p90s1', 'p90s4', 'p94s2', 'p99s1']
Right Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

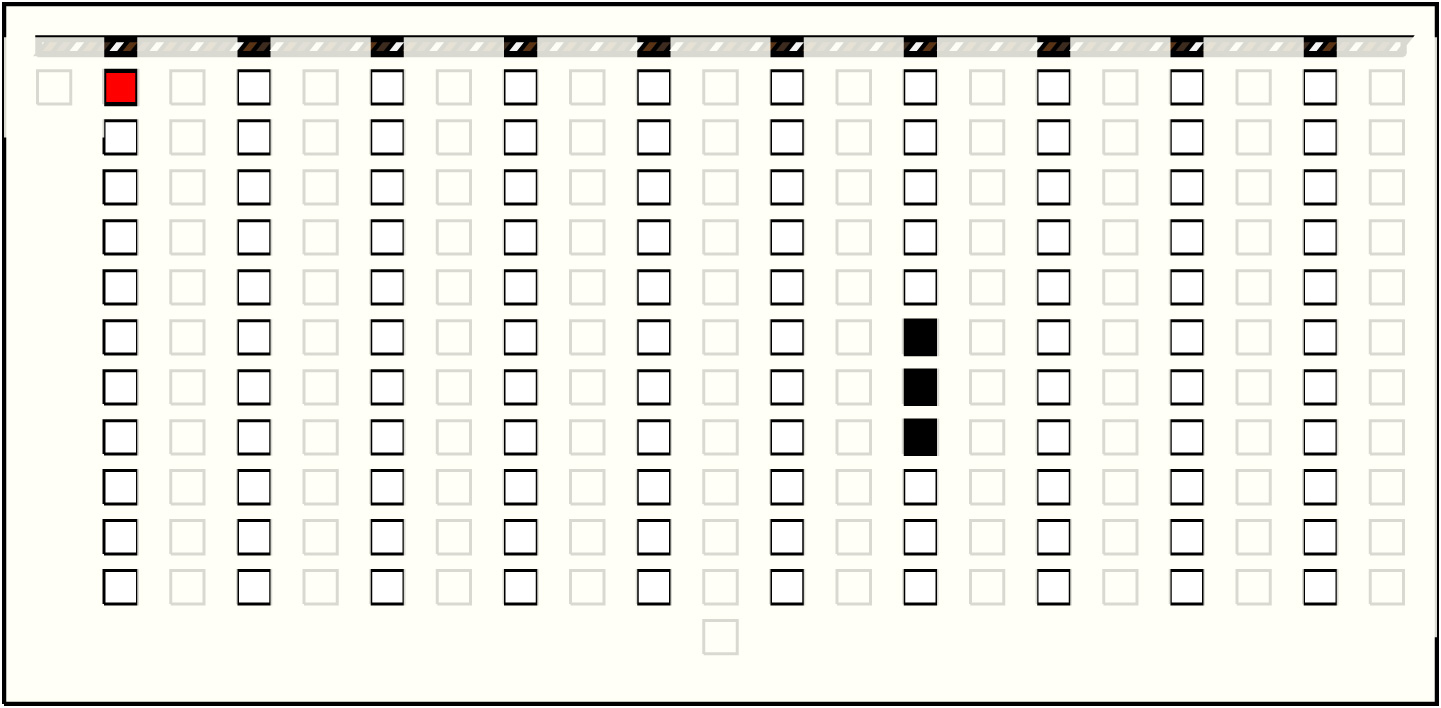

| 1 |  | p2s12, 1, 1 : 17YB | 17 | 3 | p140: 7B + p141: 7B + p142: 3B | |
| 2 |  | p4s12, 3, 1 : 19W | 19 | 3 | p26: 7W:BB + p27: 2W:BB + p29: 10W | |

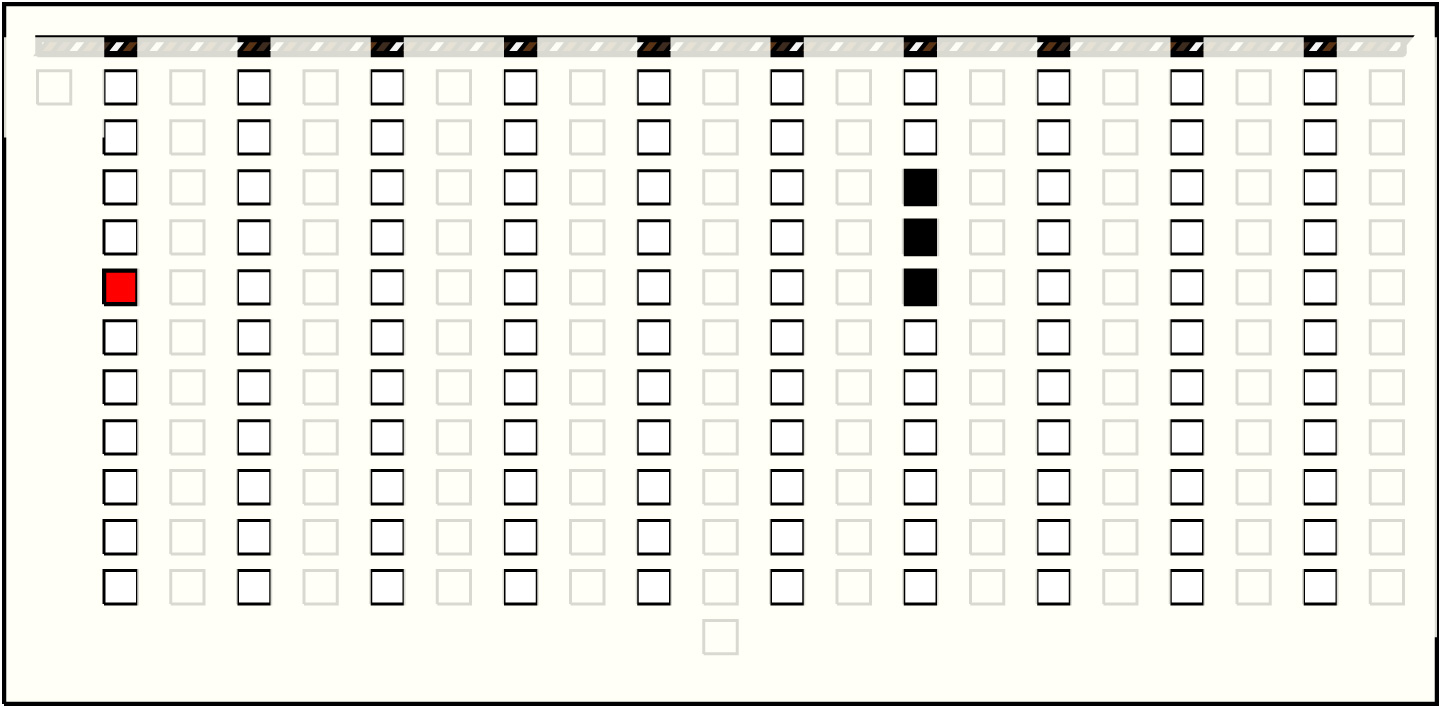

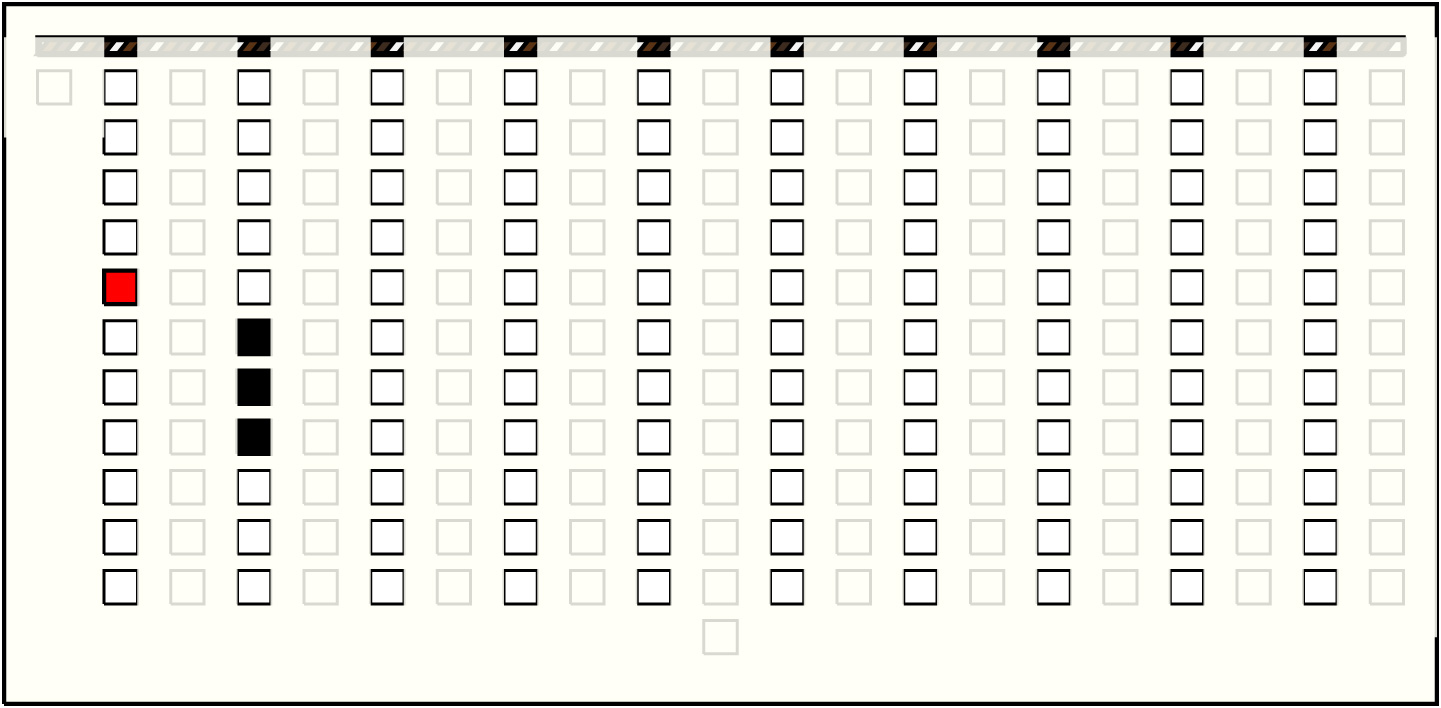

| 3 |  | p6s12, 5, 1 : 28AB | 28 | 3 | p137: 11W:BB + p138: 13W:BB + p139: 4B | |

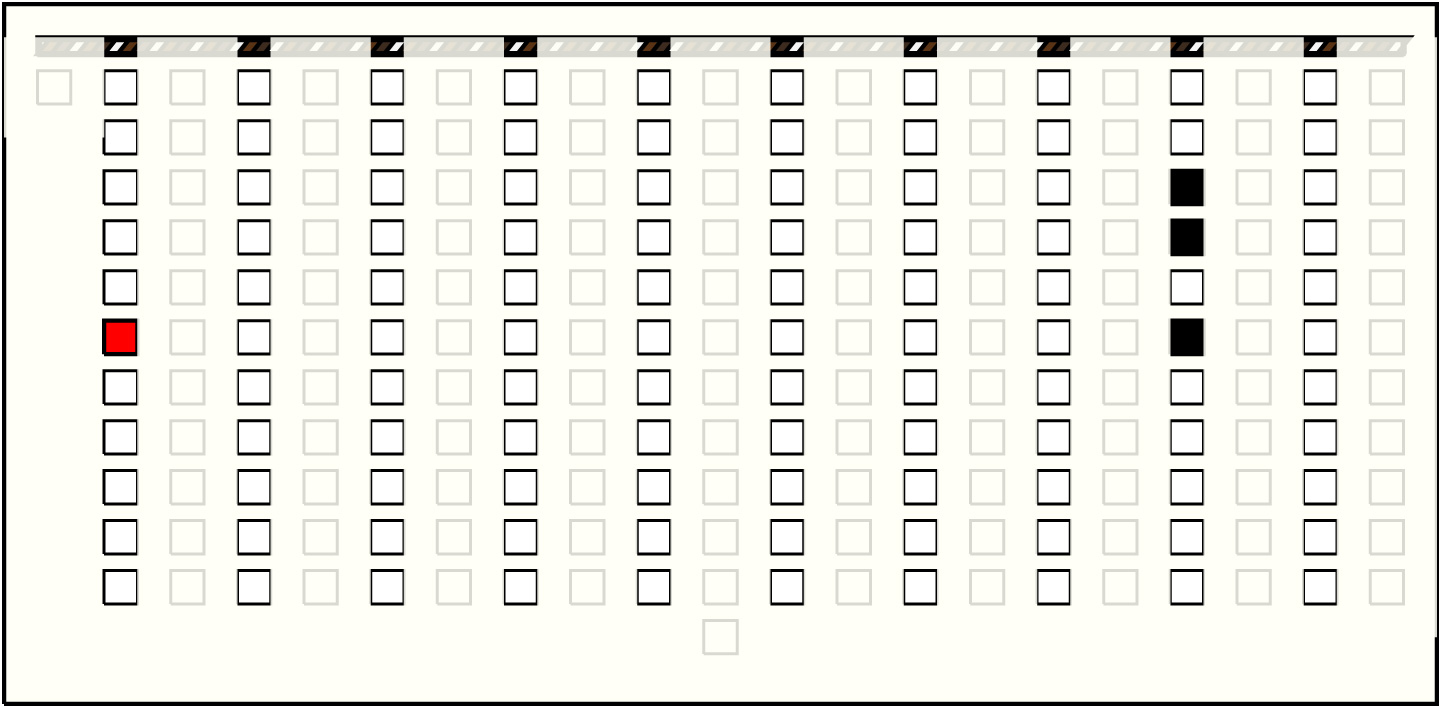

| 4 |  | p7s12, 6, 1 : 26W:LB | 26 | 3 | p181: 16W:LC + p182: 6W:LC + p184: 4B | |

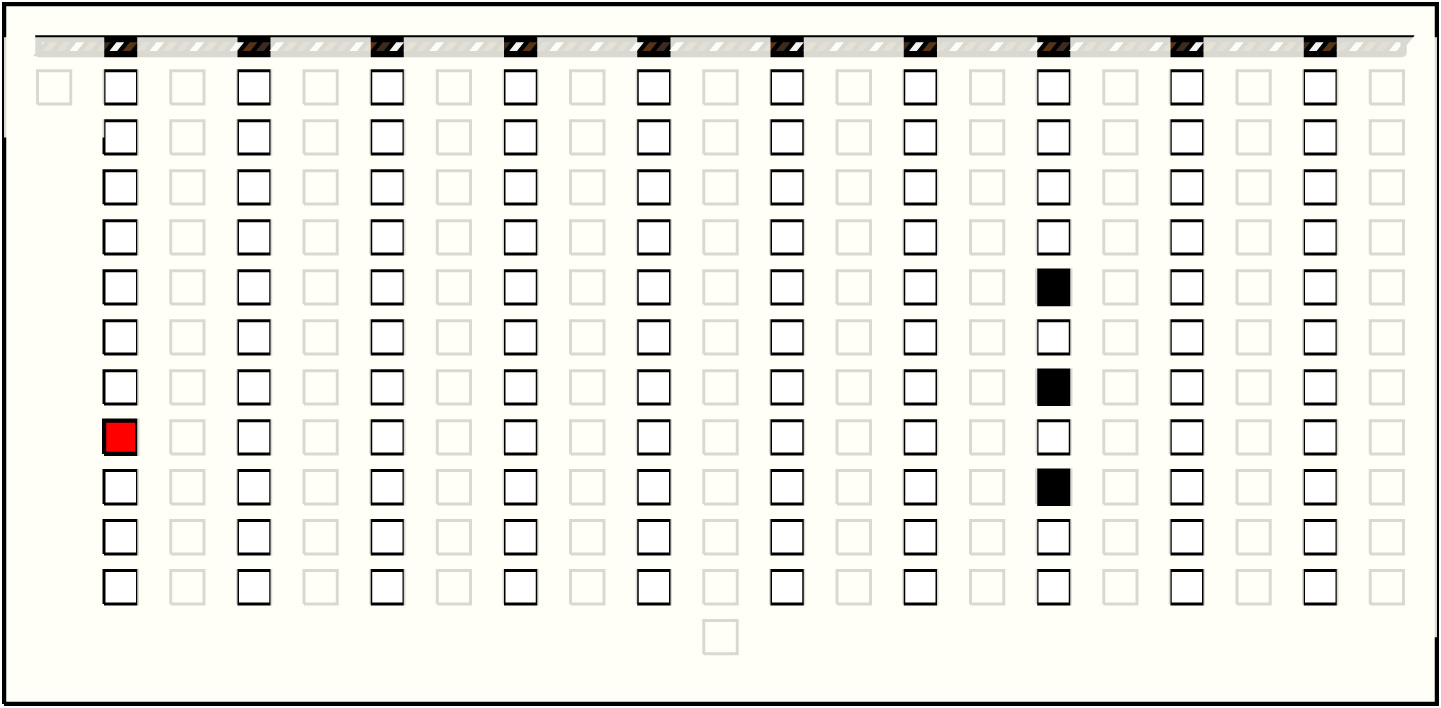

| 5 |  | p9s12, 8, 1 : 15W:AB | 15 | 3 | p161: 5B + p163: 7B + p165: 3B | |

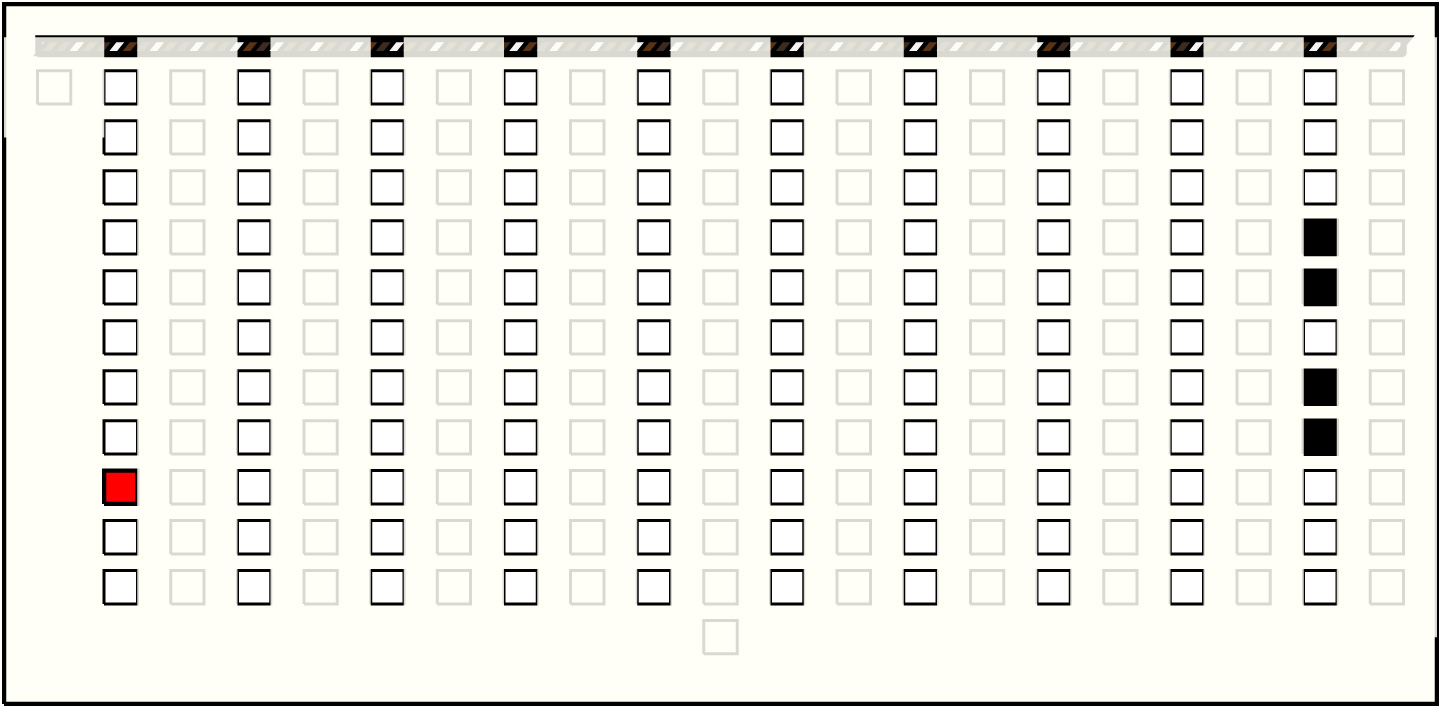

| 6 |  | p10s12, 9, 1 : 23LB | 23 | 4 | p204: 11W:BB + p205: 6B + p207: 1B + p208: 5B | |
| 7 |  | p2s22, 1, 2 : 18B | 18 | 3 | p139: 4B + p140: 7B + p141: 7B | |

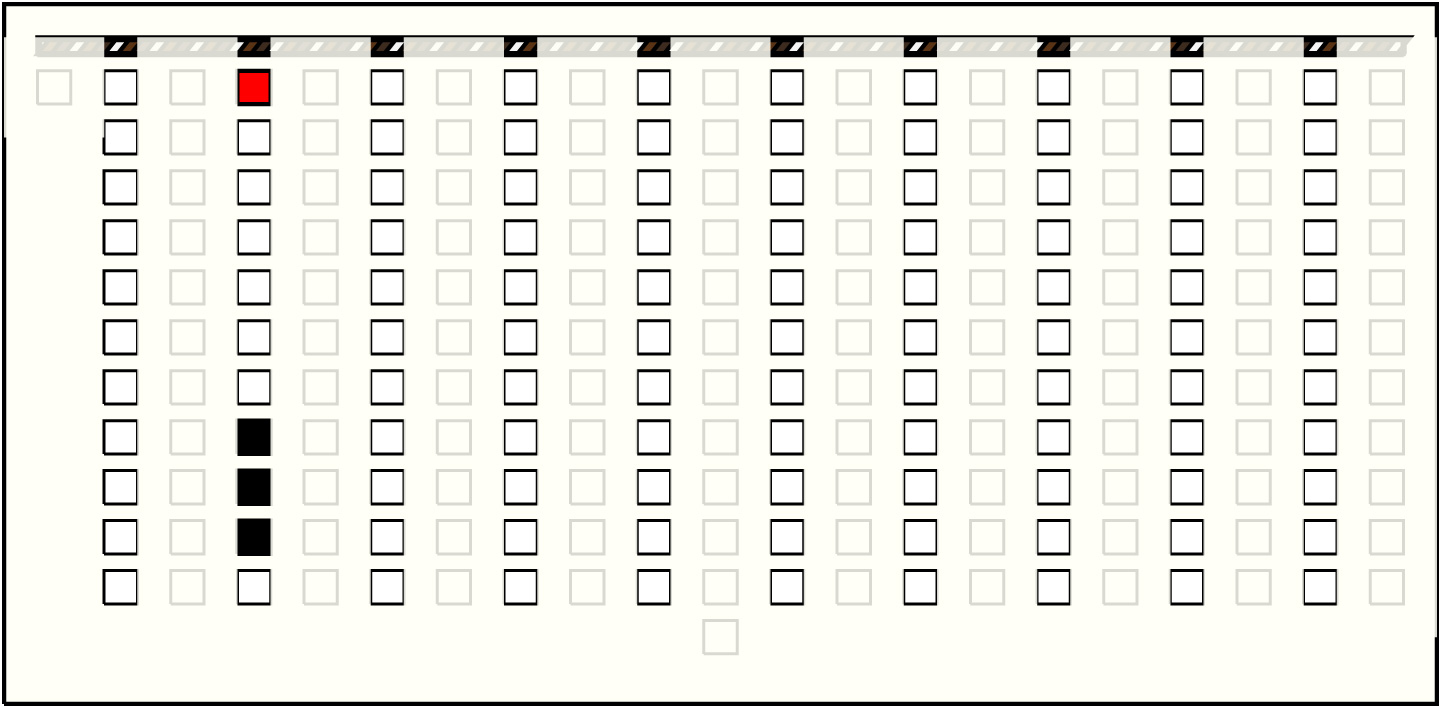

| 8 |  | p24s14, 1, 1 : 25YB | 25 | 3 | p31: 12W + p32: 1W + p33: 12W | |

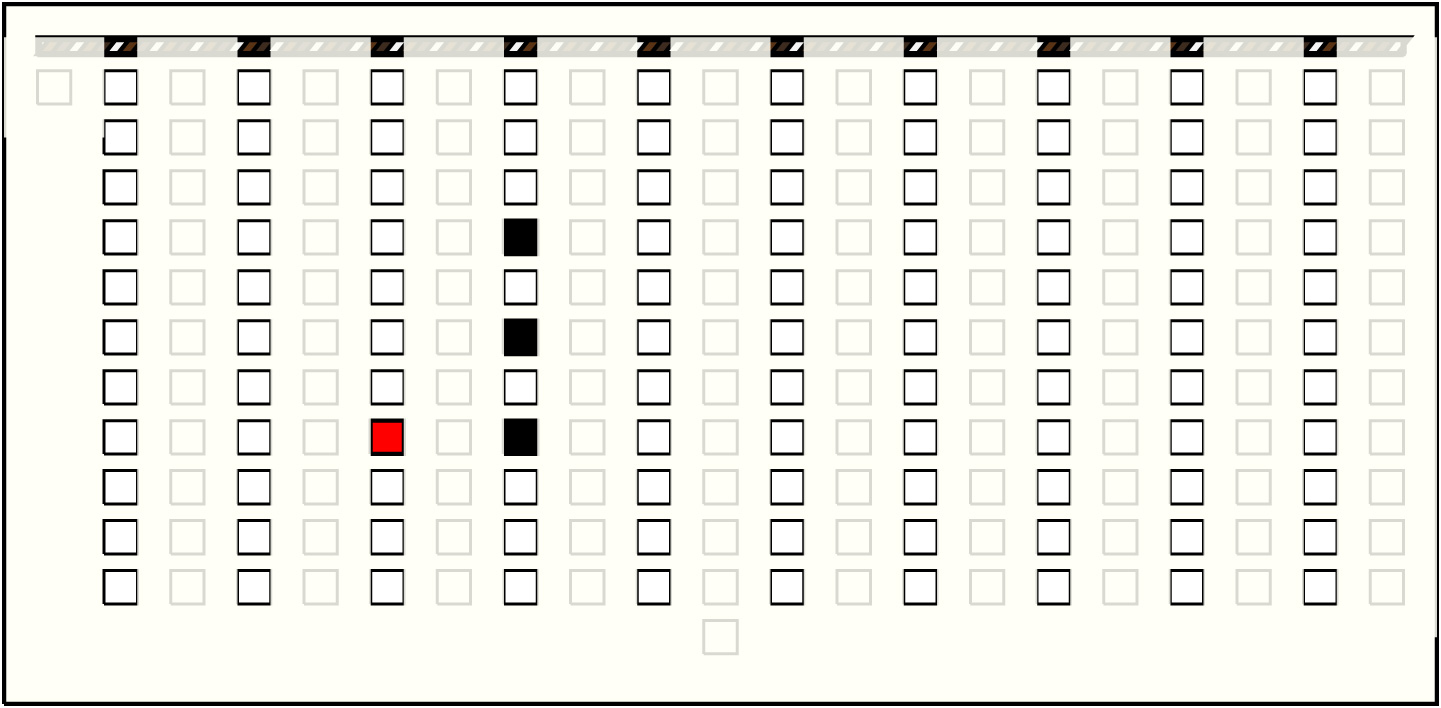

| 9 |  | p53s16, 8, 1 : 13W:AB | 13 | 3 | p71: 4W:BB + p73: 4W + p75: 5W | |

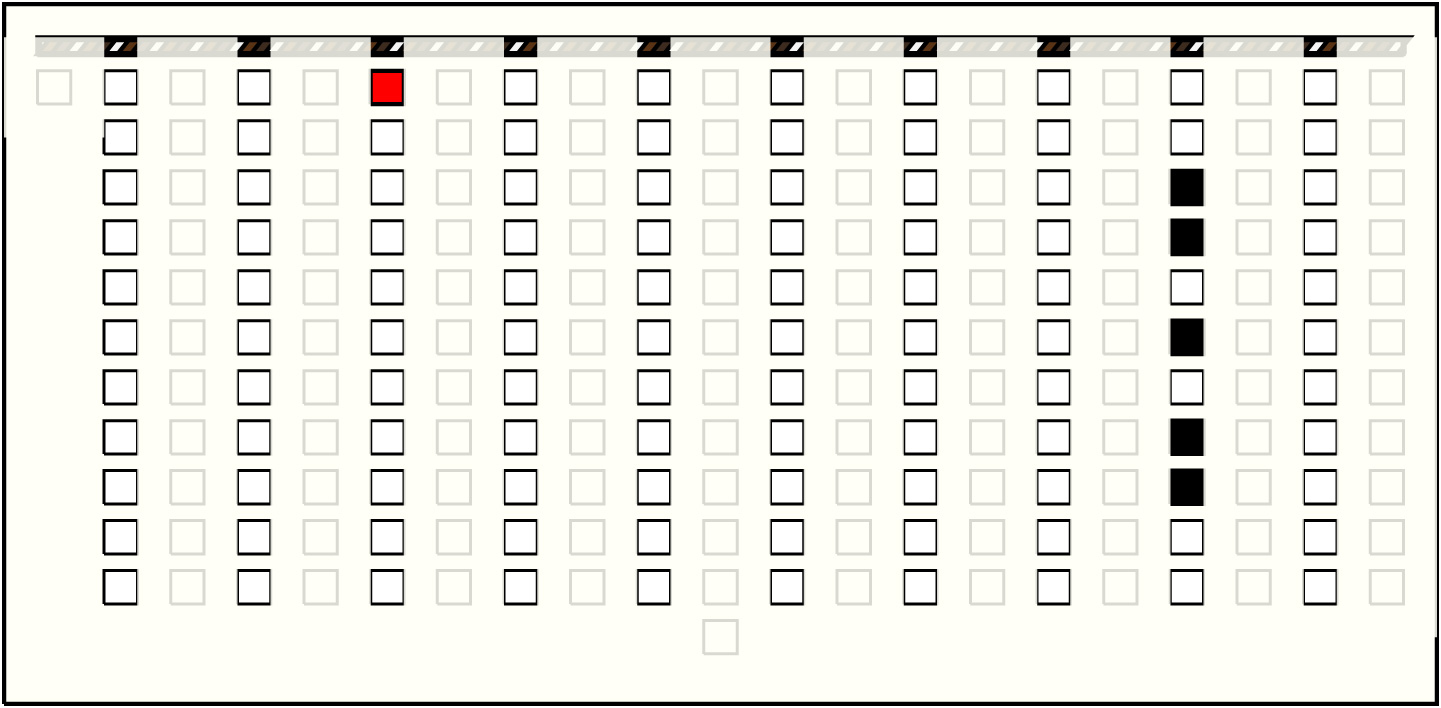

| 10 |  | p46s46, 1, 4 : 37YB | 37 | 5 | p181: 16W:LC + p182: 6W:LC + p184: 4B + p186: 2B + p187: 9W | |

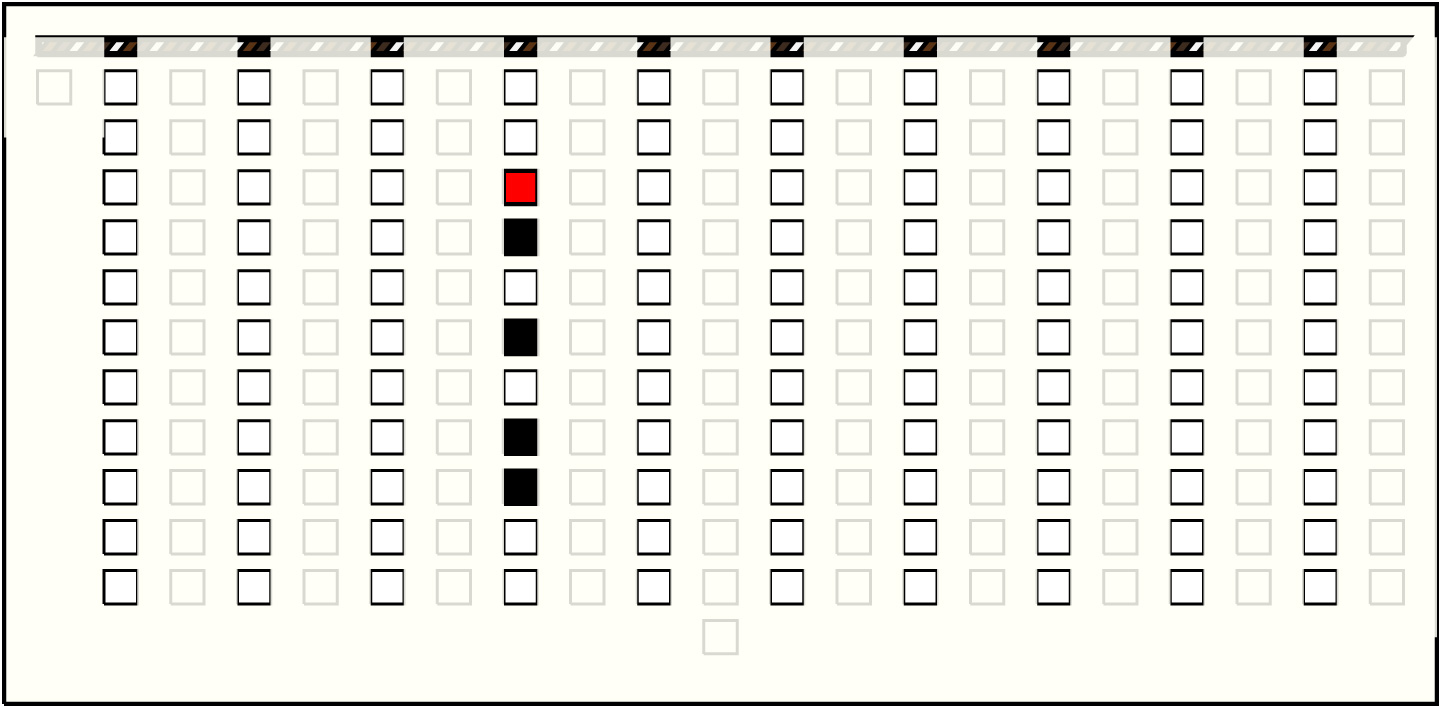

| 11 |  | p70s18, 3, 1 : 14W | 14 | 4 | p71: 4W:BB + p73: 4W + p75: 5W + p76: 1W | |

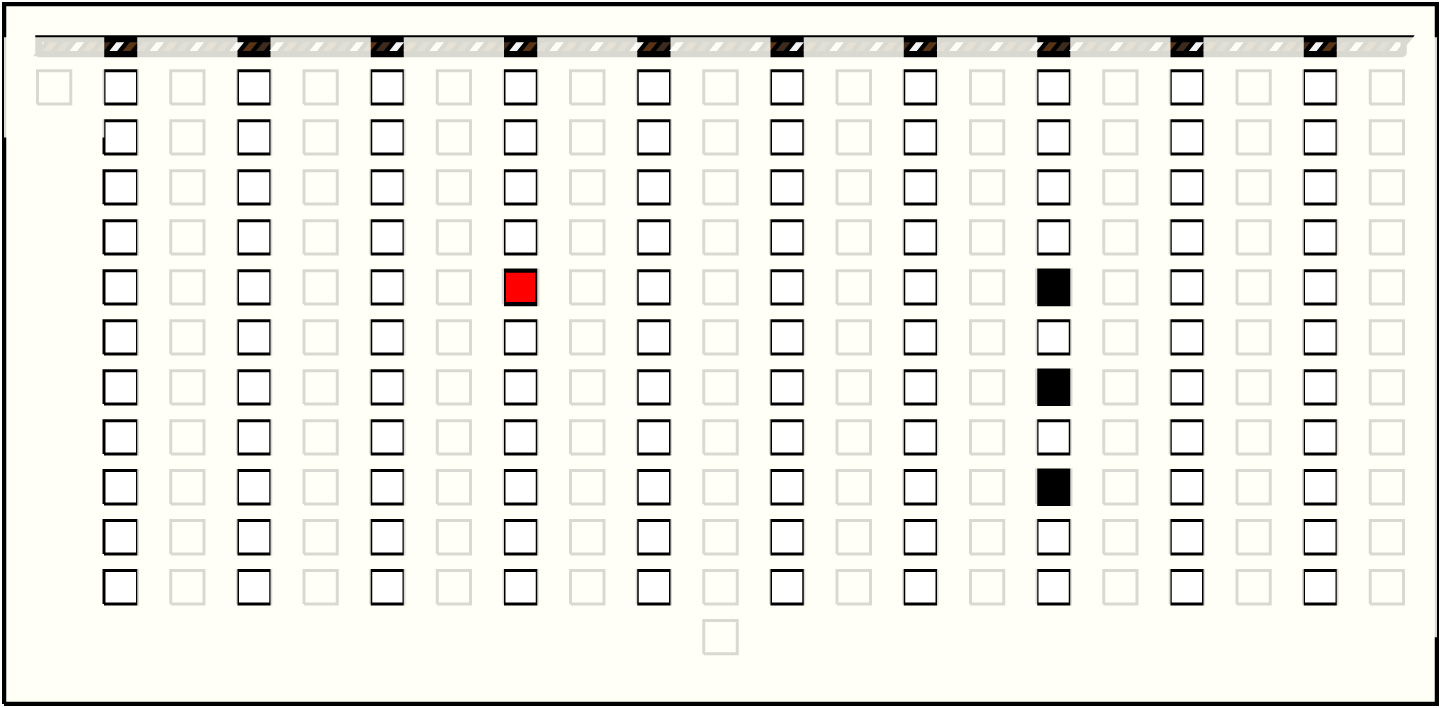

| 12 |  | p72s18, 5, 1 : 15W:B:BB | 15 | 3 | p161: 5B + p163: 7B + p165: 3B | |

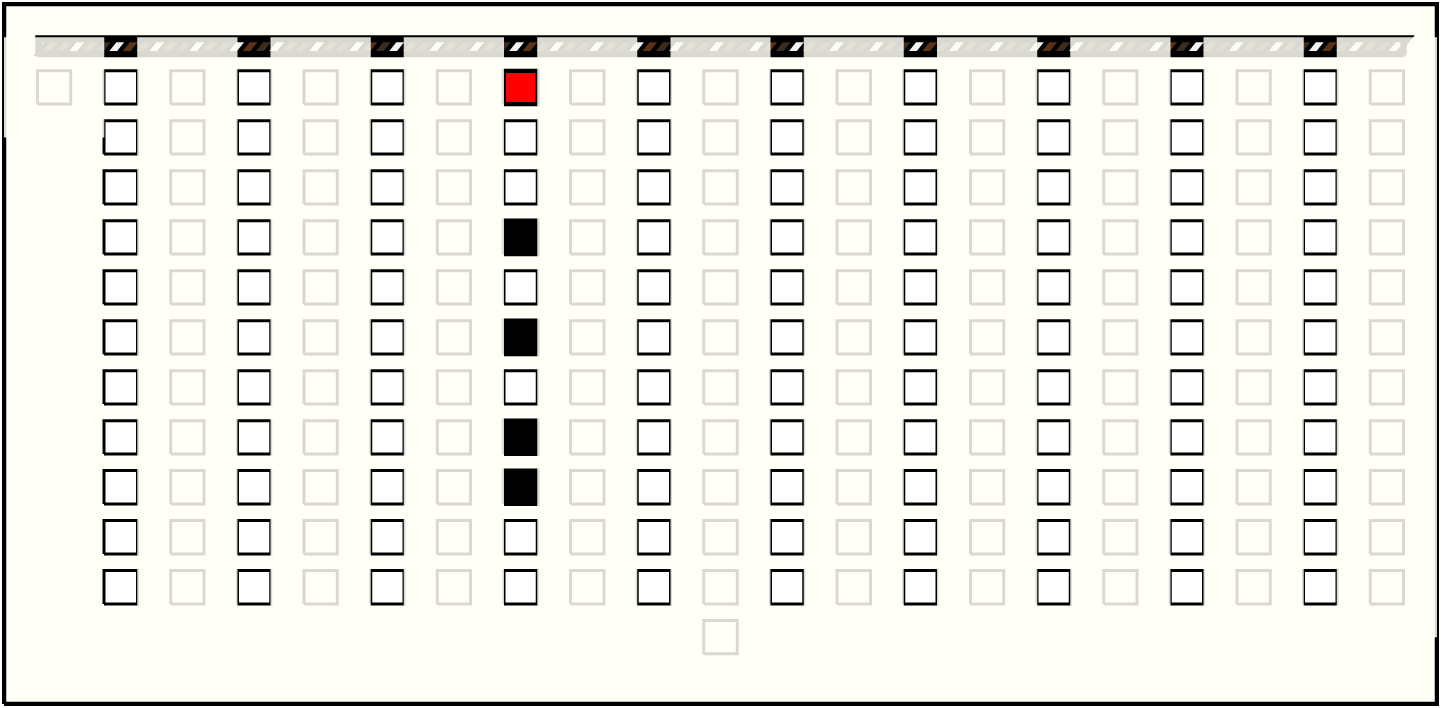

| 13 |  | p68s38, 1, 3 : 14YG | 14 | 4 | p71: 4W:BB + p73: 4W + p75: 5W + p76: 1W | |

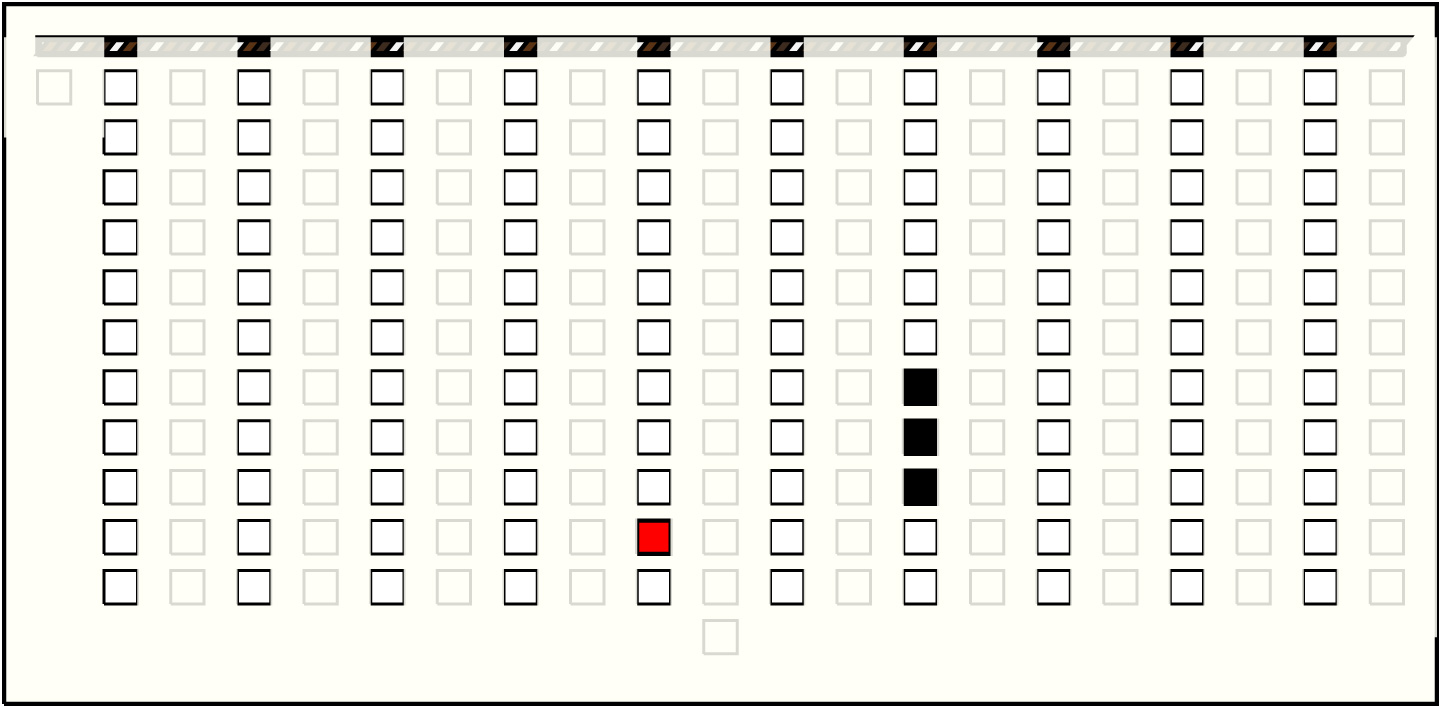

| 14 |  | p99s110, 10, 1 : 13EB | 13 | 3 | p141: 7B + p142: 3B + p143: 3W | |

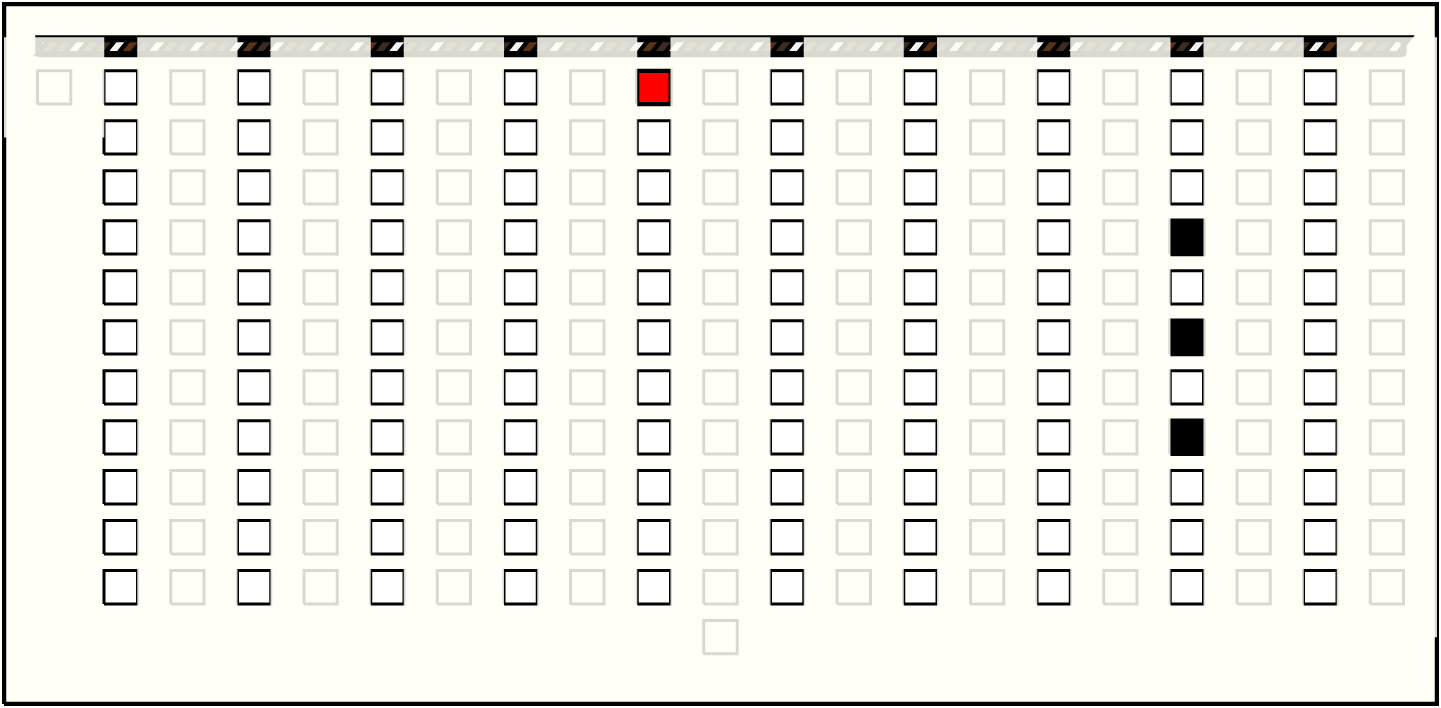

| 15 |  | p90s210, 1, 2 : 12LB | 12 | 3 | p182: 6W:LC + p184: 4B + p186: 2B | |

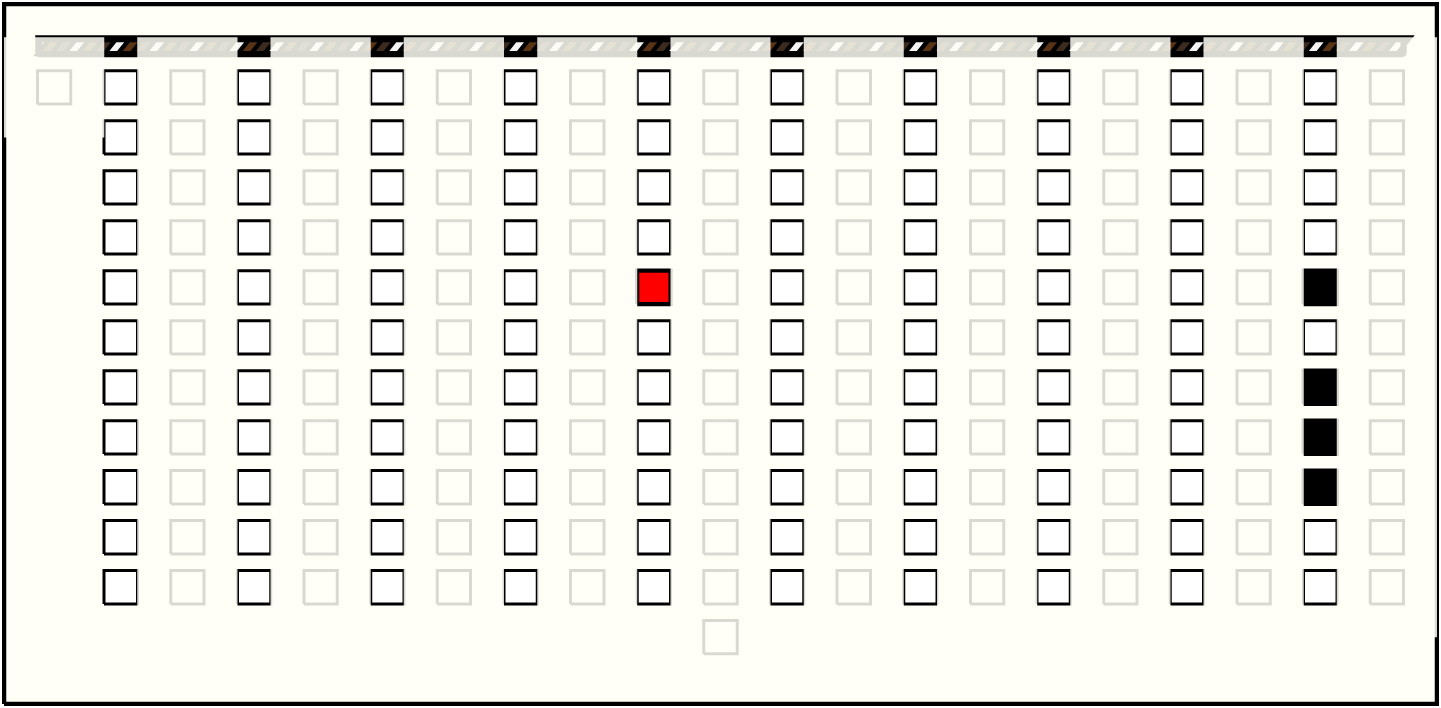

| 16 |  | p94s210, 5, 2 : 14W:AB | 14 | 4 | p205: 6B + p207: 1B + p208: 5B + p209: 2B | |
| 17 |  | p90s310, 1, 3 : 12BD | 12 | 3 | p182: 6W:LC + p184: 4B + p186: 2B | |

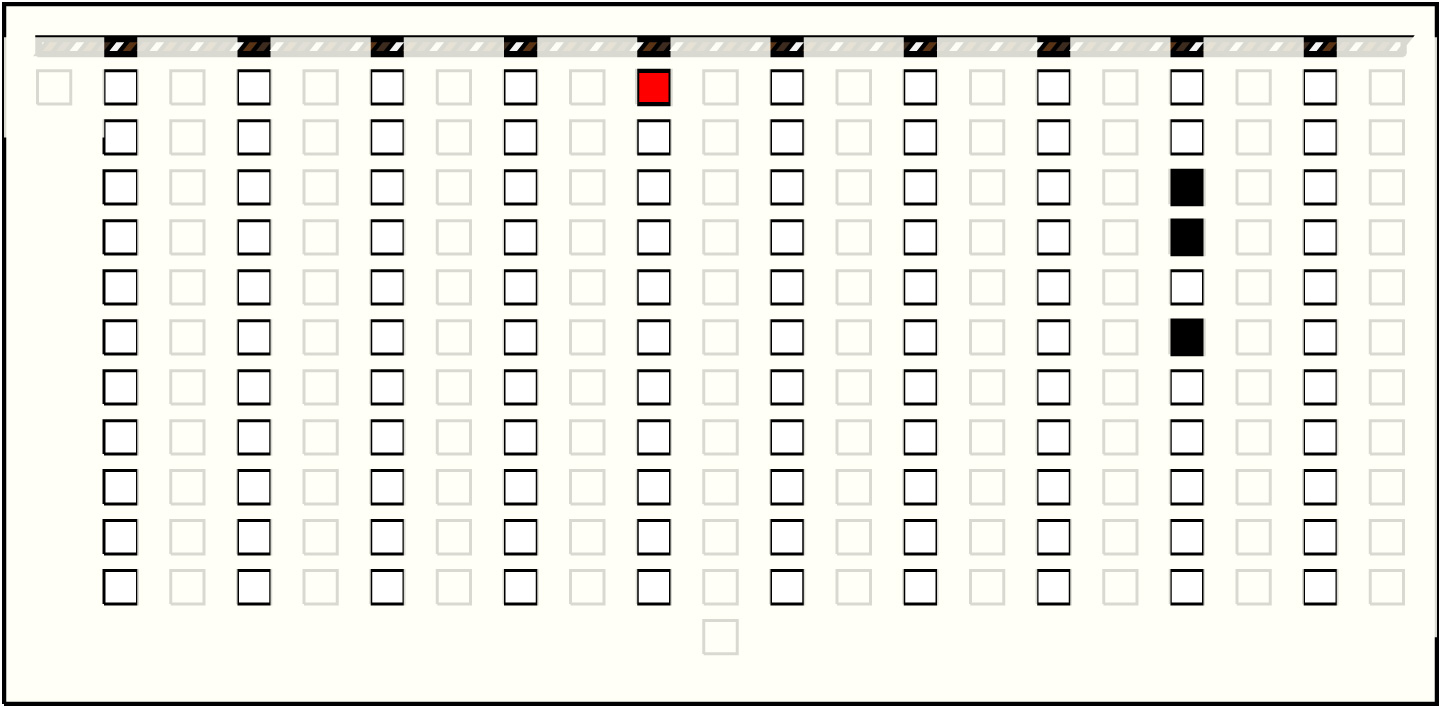

| 18 |  | p90s410, 1, 4 : 26AB | 26 | 3 | p181: 16W:LC + p182: 6W:LC + p184: 4B | |
| 19 |  | p113s112, 1, 1 : 53W | 53 | 4 | p141: 7B + p142: 3B + p143: 3W + p157: 40B | |
| 20 |  | p117s112, 5, 1 : 13AB | 13 | 3 | p141: 7B + p142: 3B + p143: 3W | |

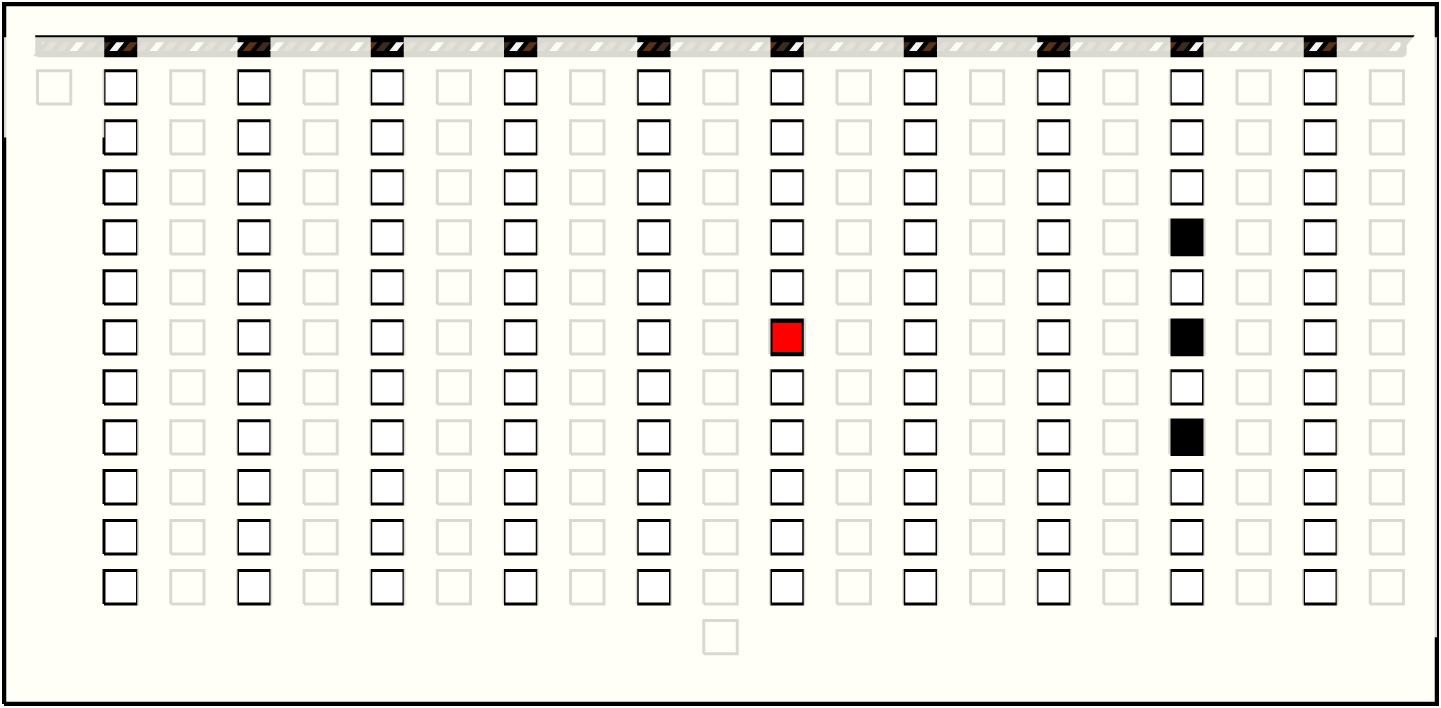

| 21 |  | p118s112, 6, 1 : 12YG | 12 | 3 | p182: 6W:LC + p184: 4B + p186: 2B | |

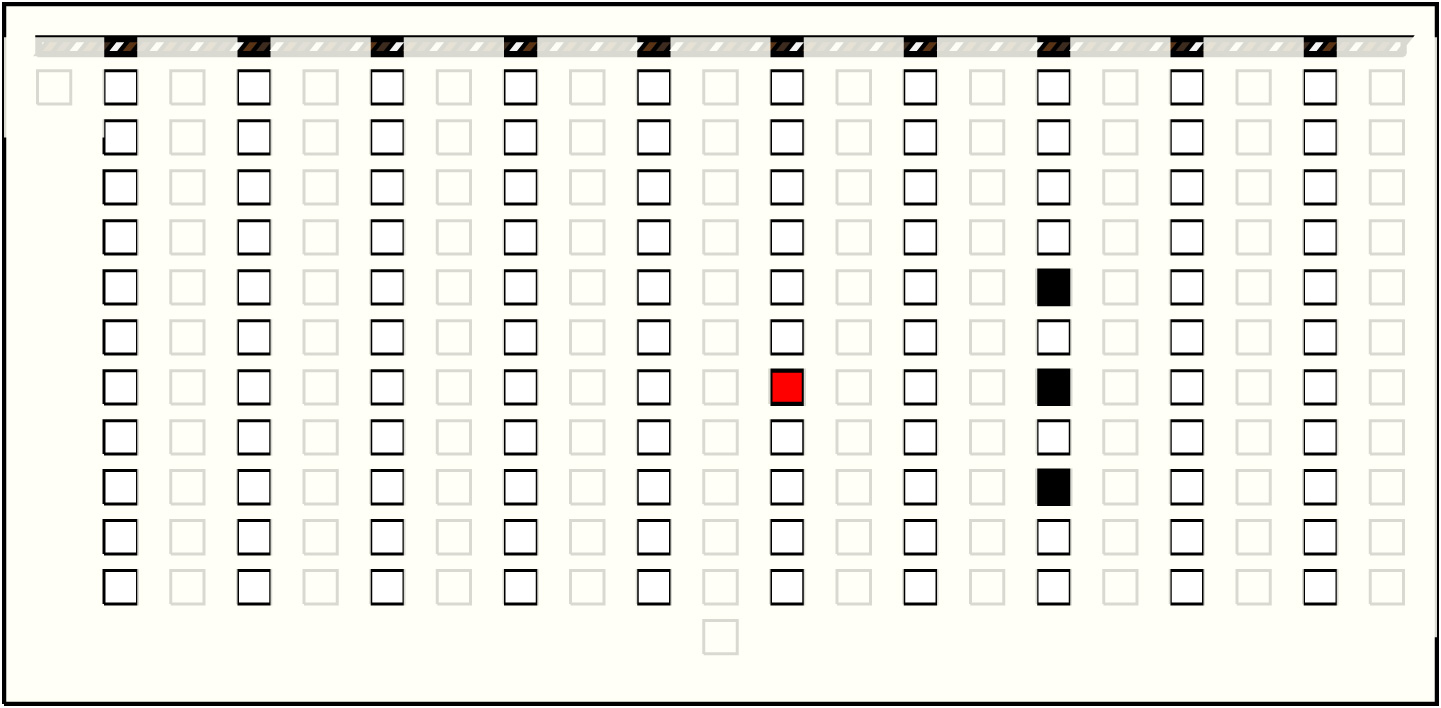

| 22 |  | p119s112, 7, 1 : 15W | 15 | 3 | p161: 5B + p163: 7B + p165: 3B | |

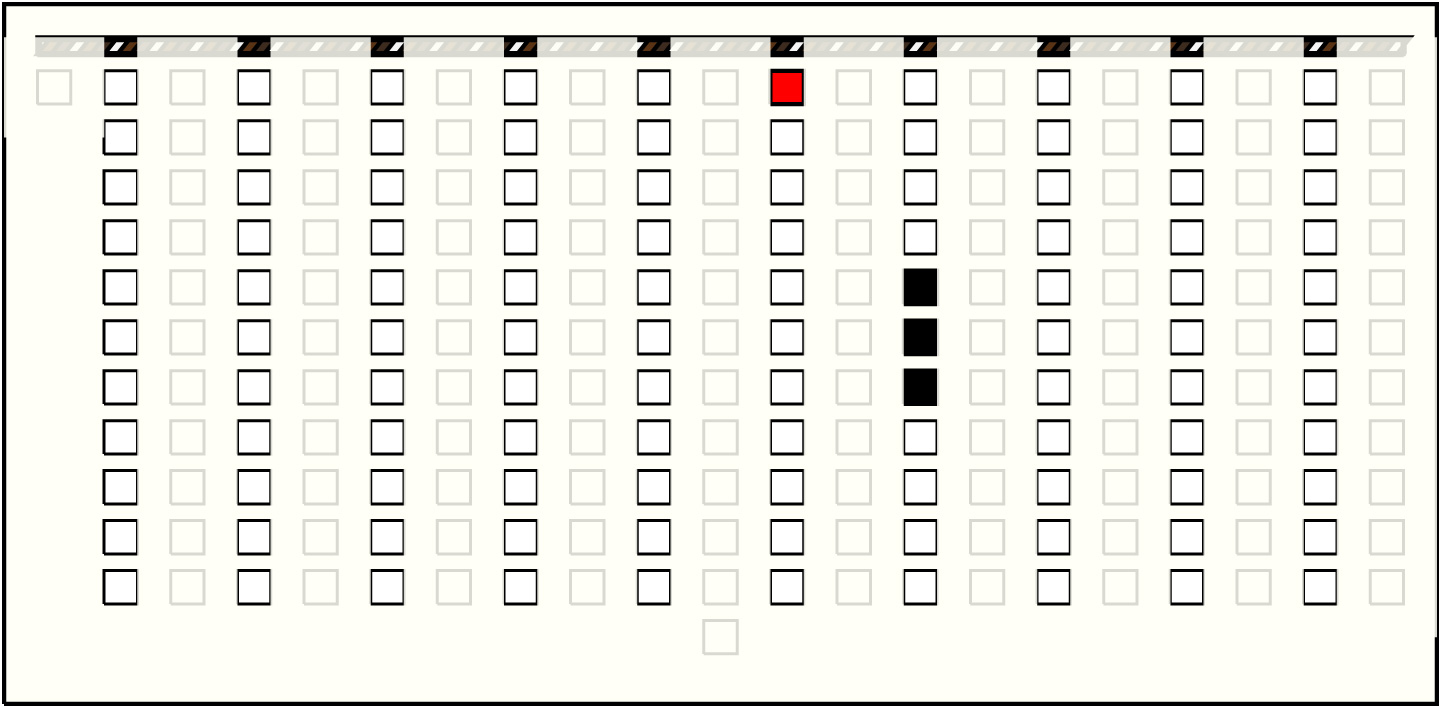

| 23 |  | p113s212, 1, 2 : 18BB | 18 | 3 | p139: 4B + p140: 7B + p141: 7B | |

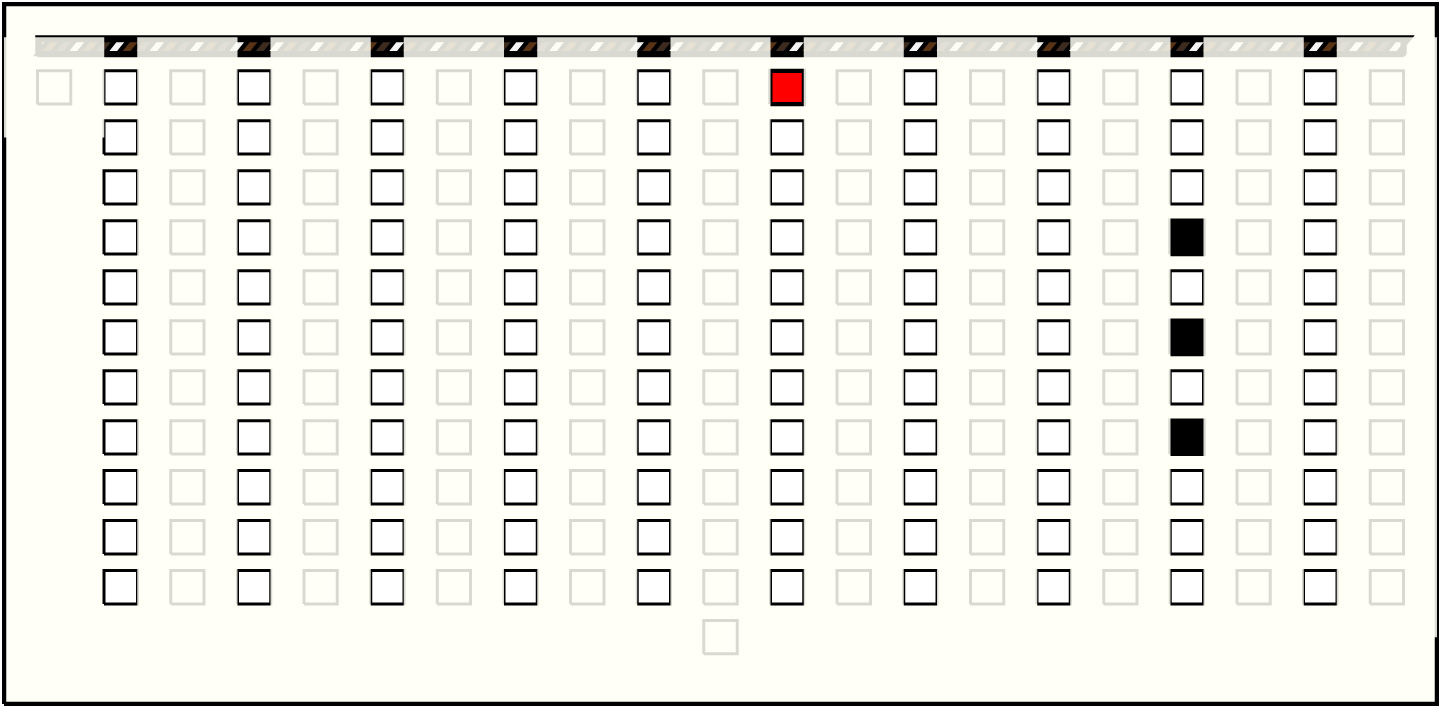

| 24 |  | p113s312, 1, 3 : 12BD | 12 | 3 | p182: 6W:LC + p184: 4B + p186: 2B | |

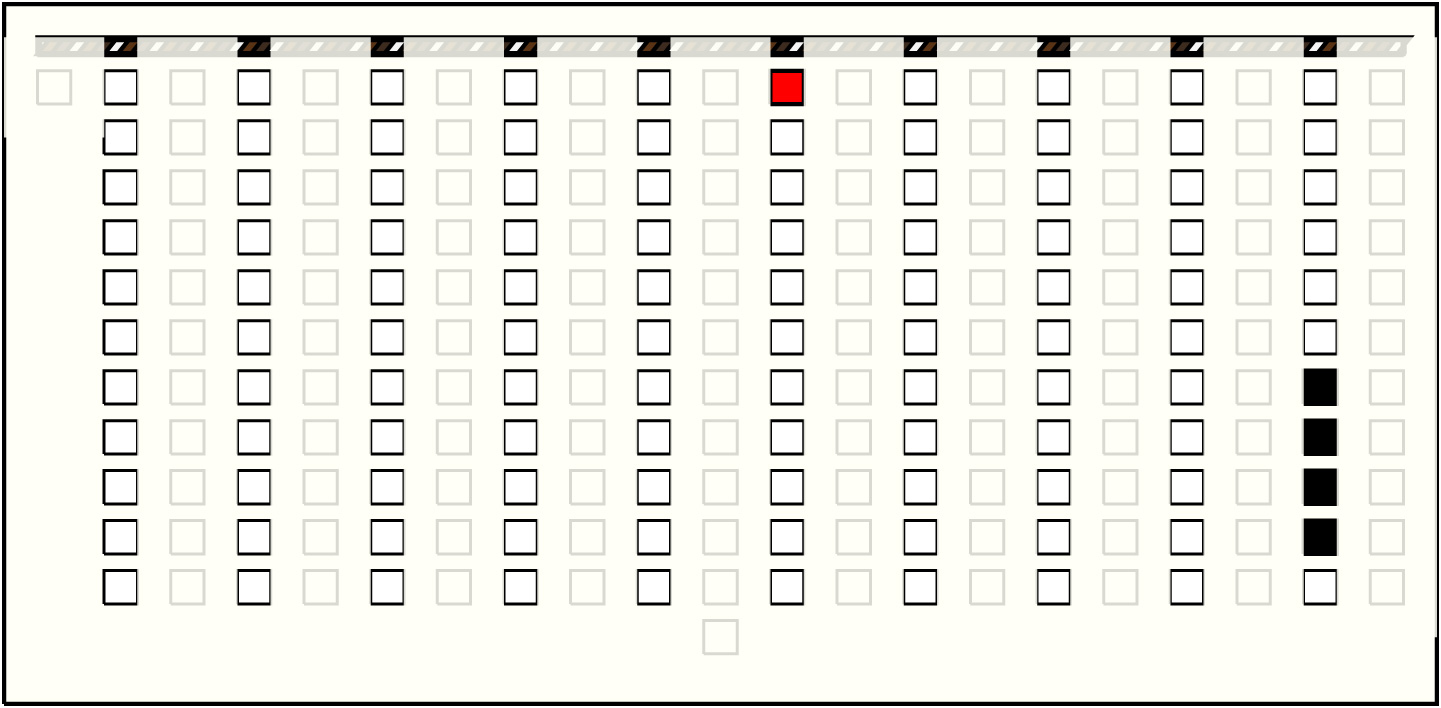

| 25 |  | p113s412, 1, 4 : 22G0 | 22 | 4 | p207: 1B + p208: 5B + p209: 2B + p210: 14B | |

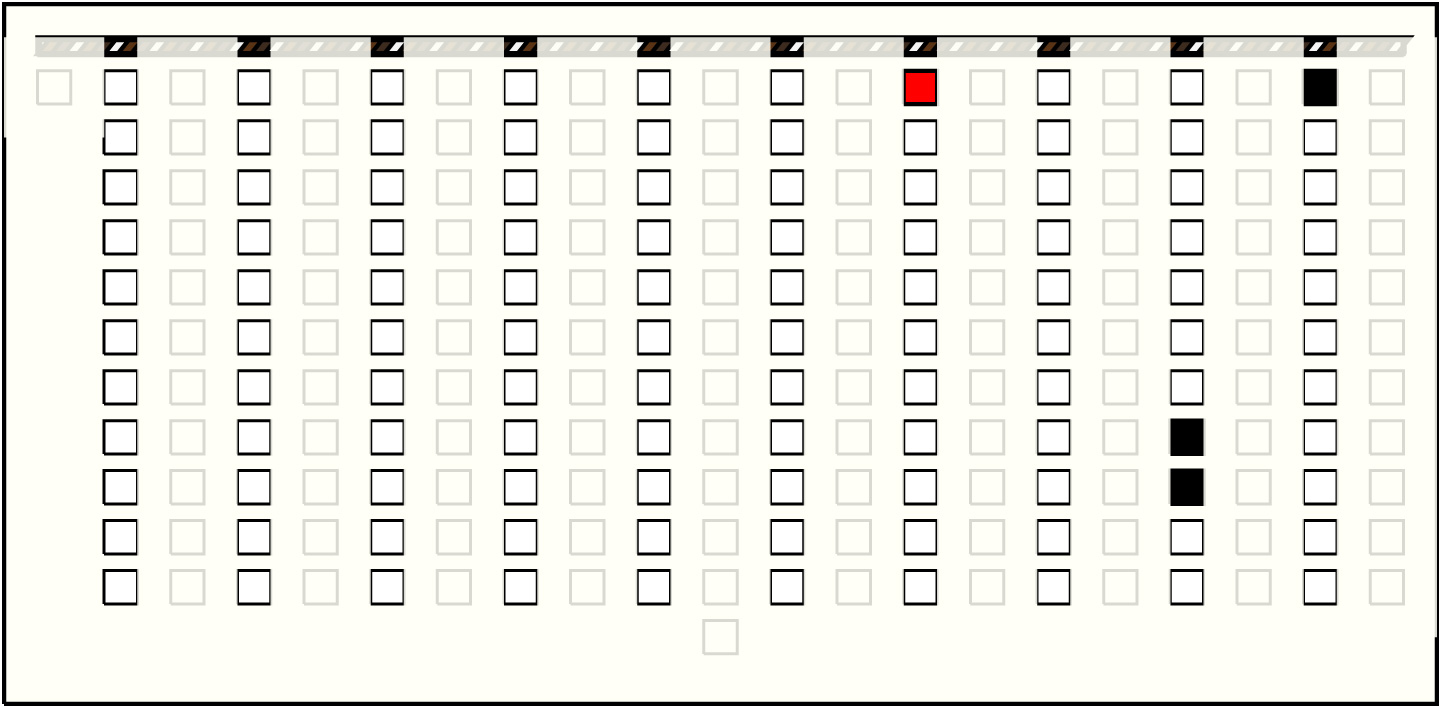

| 26 |  | p135s114, 1, 1 : 44YB | 44 | 3 | p186: 2B + p187: 9W + p201: 33B | |
| 27 |  | p179s118, 1, 1 : 35YB | 35 | 5 | p203: 12W:BB + p204: 11W:BB + p205: 6B + p207: 1B + p208: 5B |
Left Handed Sum Detail: - Click on column name to sort
| # | Color | Sum Schema | Sum Cord | Sum Cord Value | # Summands | Summands |
|---|---|---|---|---|---|---|

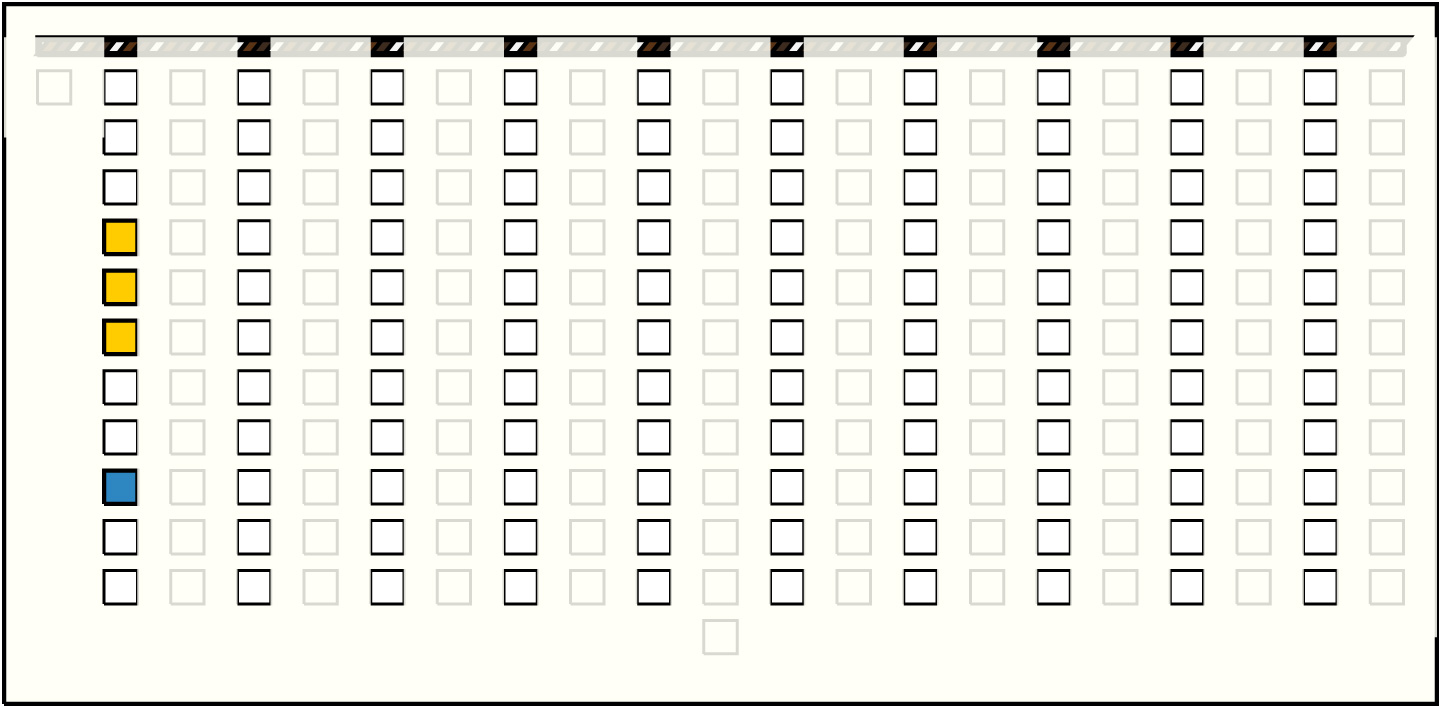

| 1 |  | p10s12, 9, 1 : 23LB | 23 | 3 | p5: 5W:BB + p6: 7W + p7: 11W | |

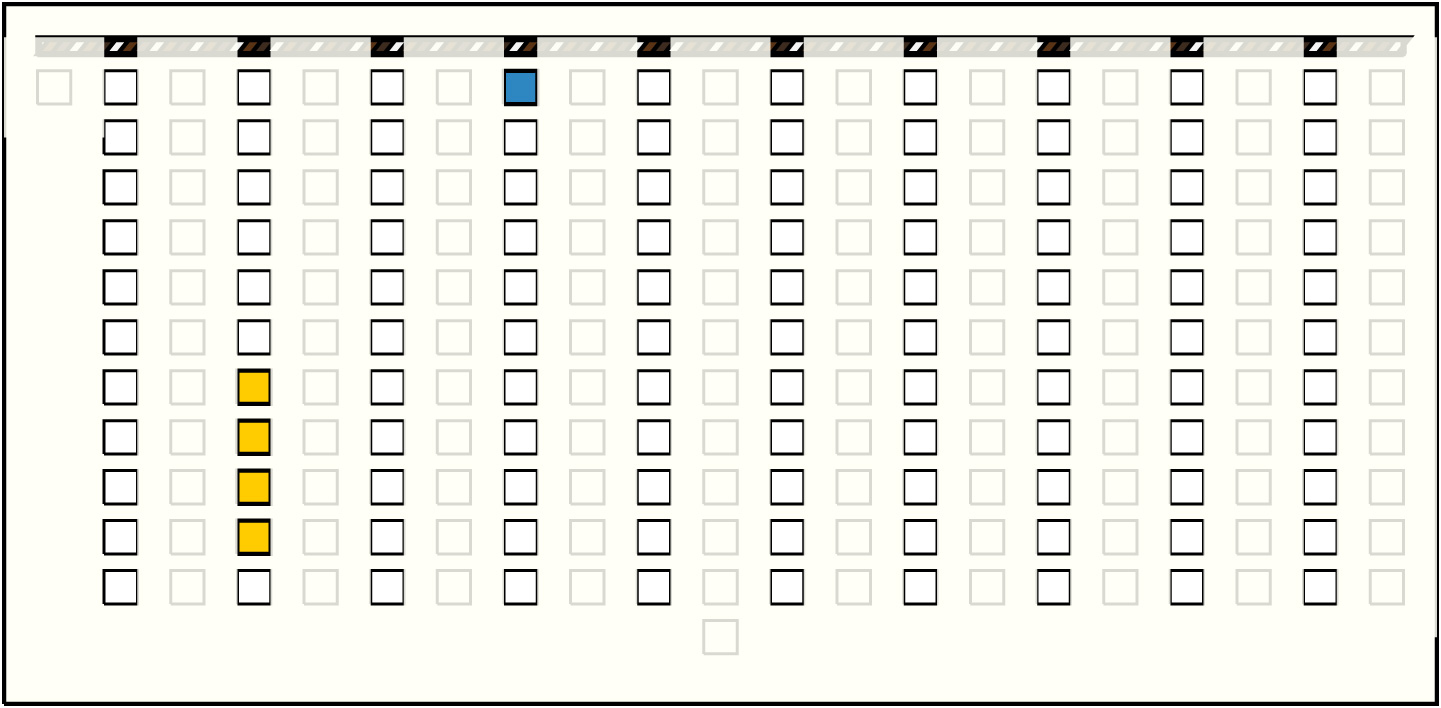

| 2 |  | p68s48, 1, 4 : 32W | 32 | 4 | p30: 7W + p31: 12W + p32: 1W + p33: 12W | |

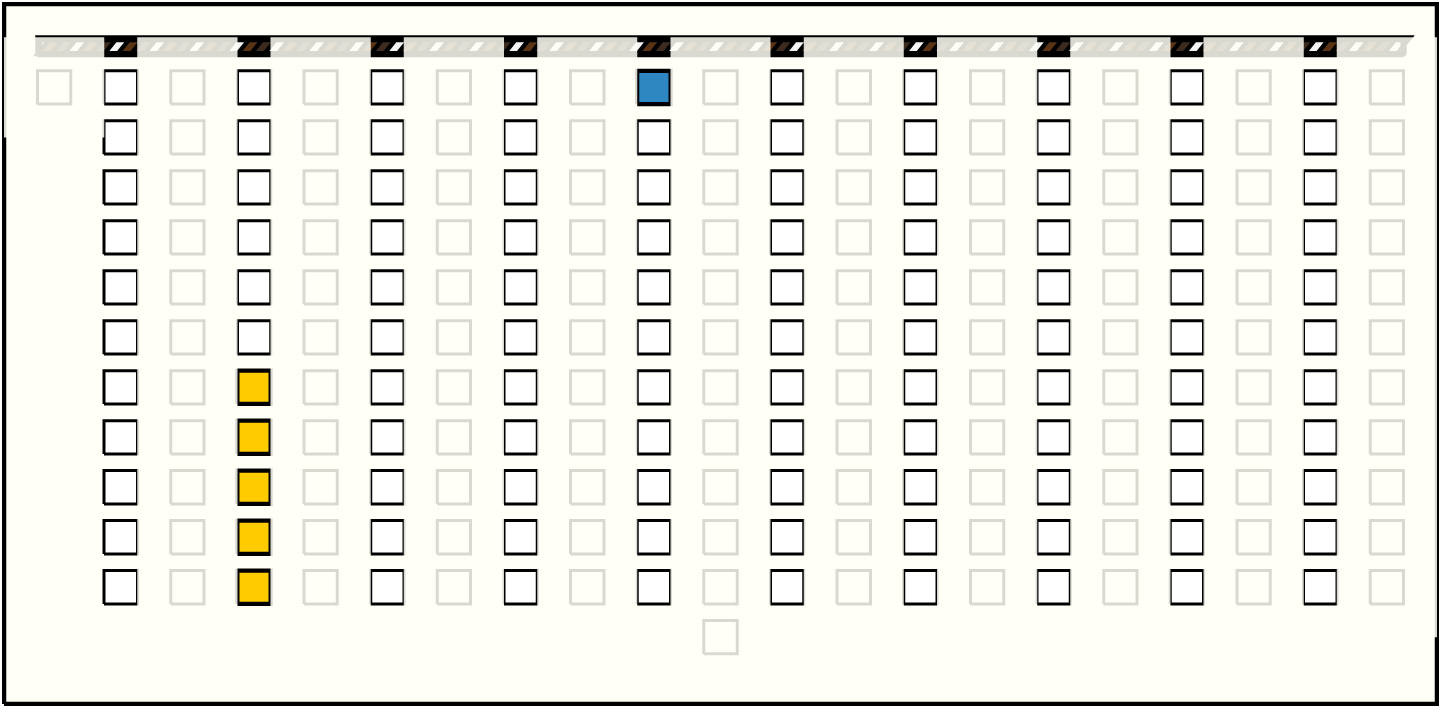

| 3 |  | p90s110, 1, 1 : 41YB | 41 | 5 | p30: 7W + p31: 12W + p32: 1W + p33: 12W + p34: 9W | |
| 4 |  | p99s110, 10, 1 : 13EB | 13 | 3 | p71: 4W:BB + p73: 4W + p75: 5W | |

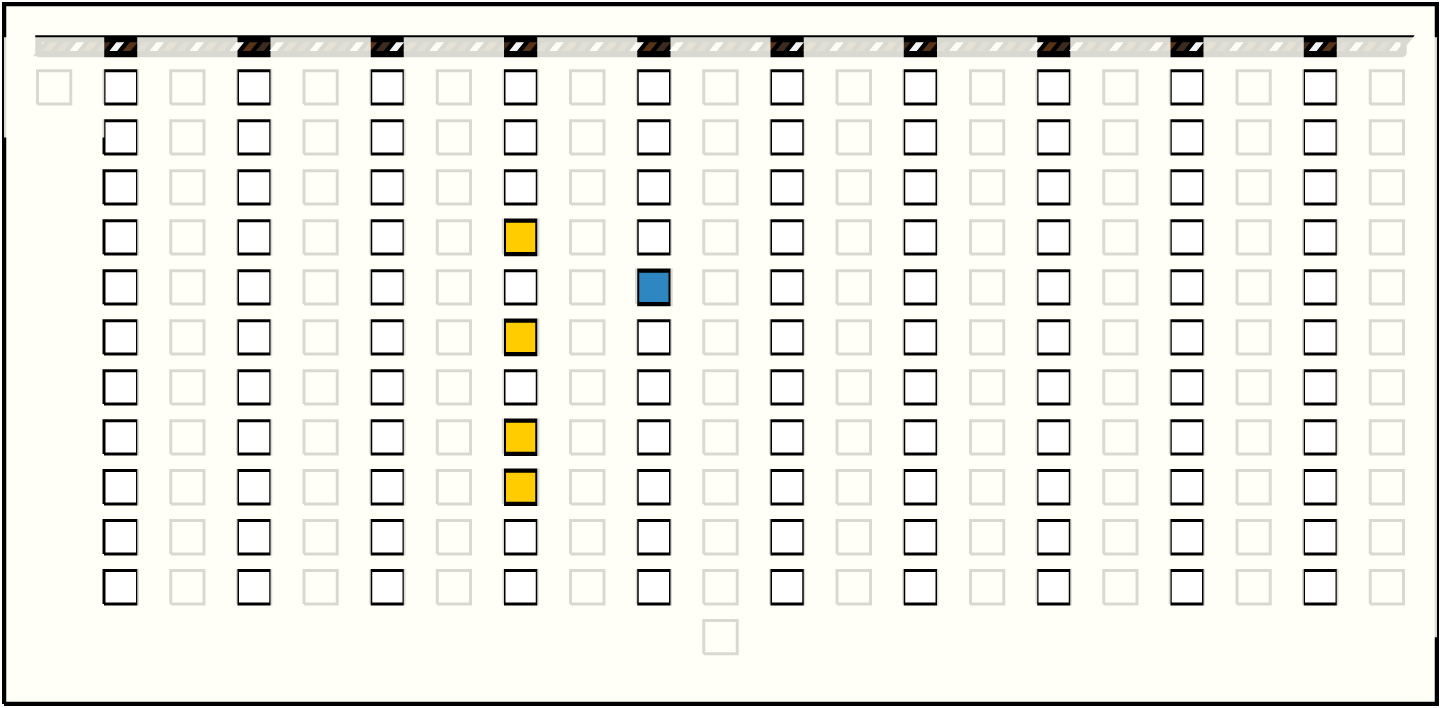

| 5 |  | p94s210, 5, 2 : 14W:AB | 14 | 4 | p71: 4W:BB + p73: 4W + p75: 5W + p76: 1W | |

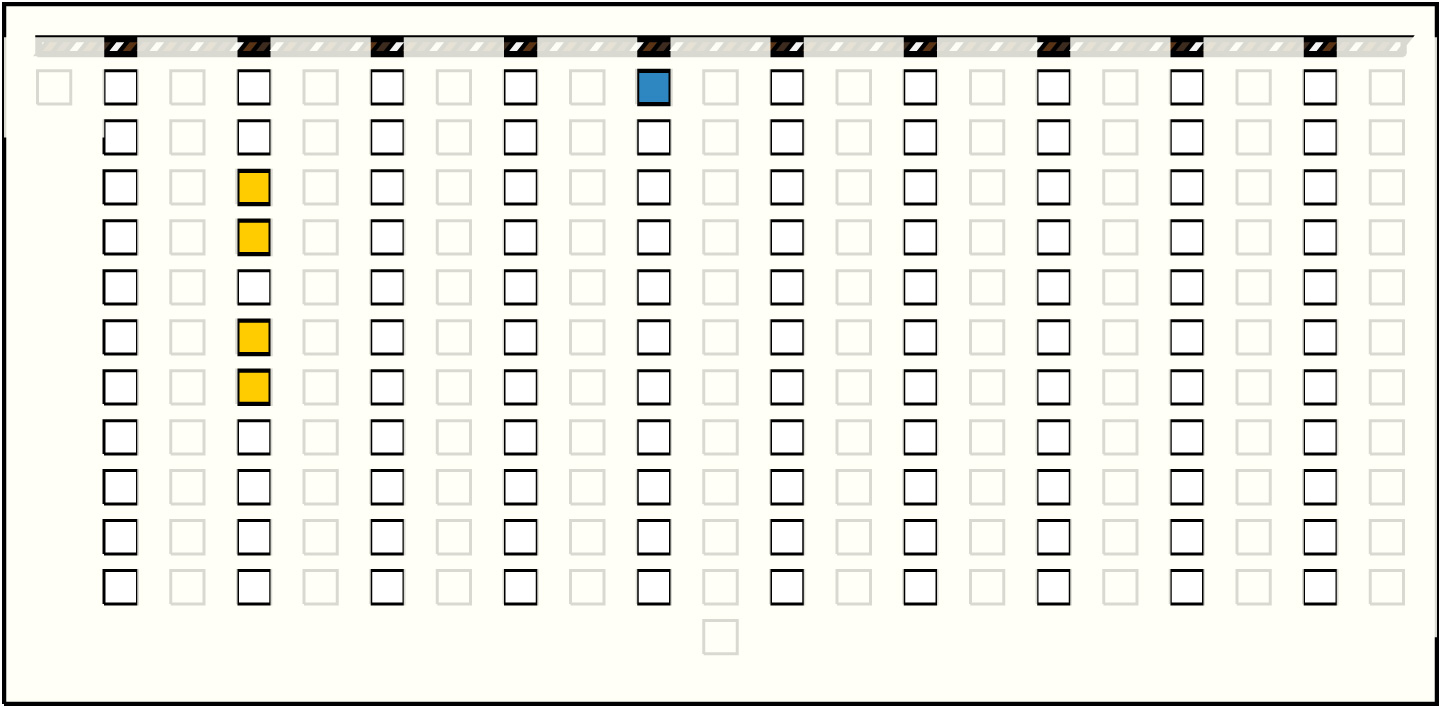

| 6 |  | p90s410, 1, 4 : 26AB | 26 | 4 | p26: 7W:BB + p27: 2W:BB + p29: 10W + p30: 7W | |

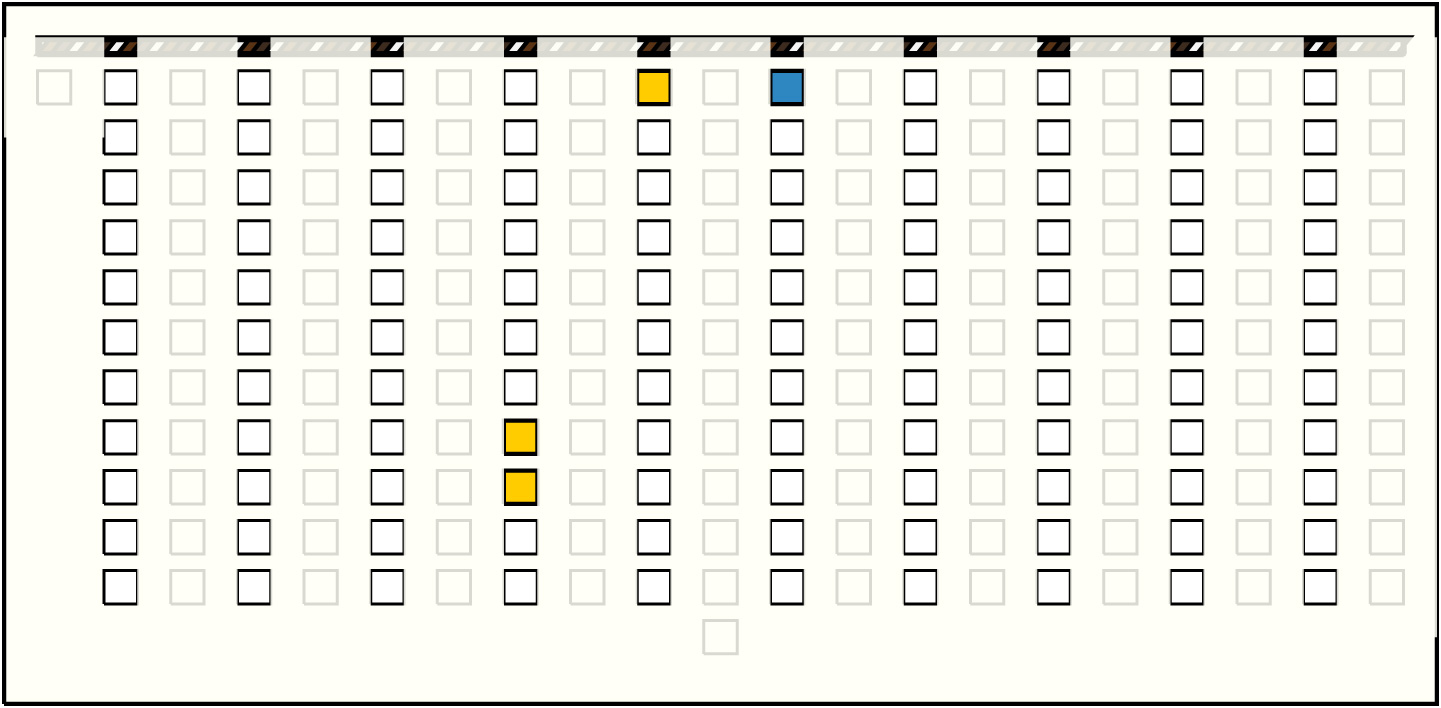

| 7 |  | p113s112, 1, 1 : 53W | 53 | 3 | p75: 5W + p76: 1W + p90: 47W | |

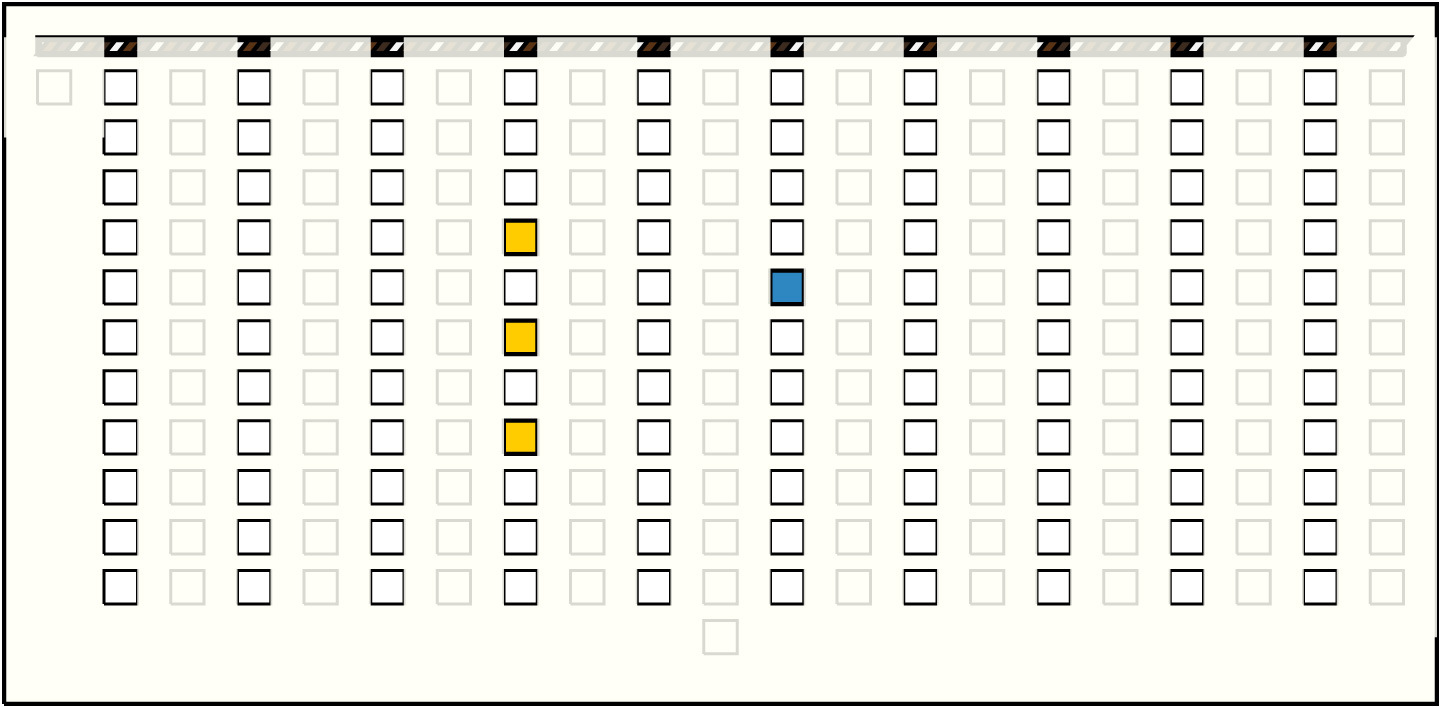

| 8 |  | p117s112, 5, 1 : 13AB | 13 | 3 | p71: 4W:BB + p73: 4W + p75: 5W | |

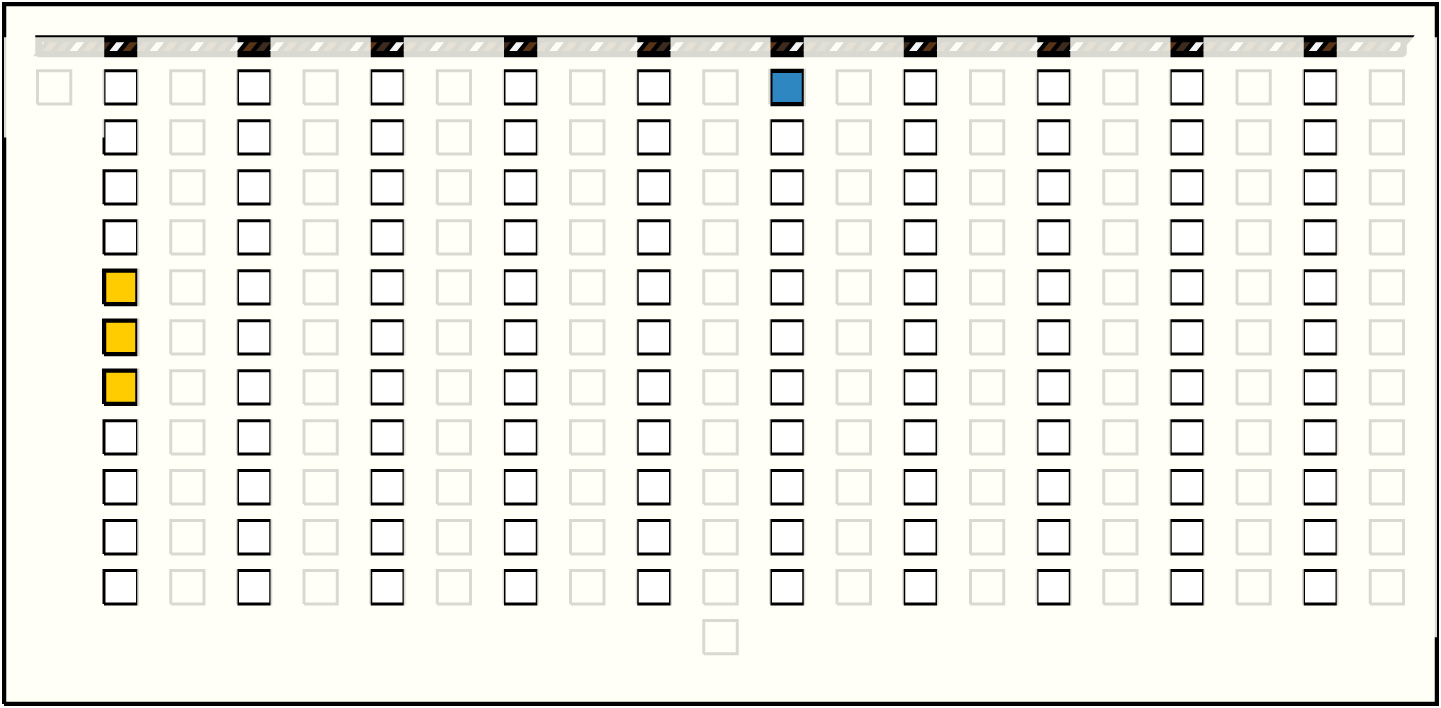

| 9 |  | p113s412, 1, 4 : 22G0 | 22 | 3 | p6: 7W + p7: 11W + p8: 4W | |
| 10 |  | p135s114, 1, 1 : 44YB | 44 | 3 | p8: 4W + p9: 23W + p10: 17W | |

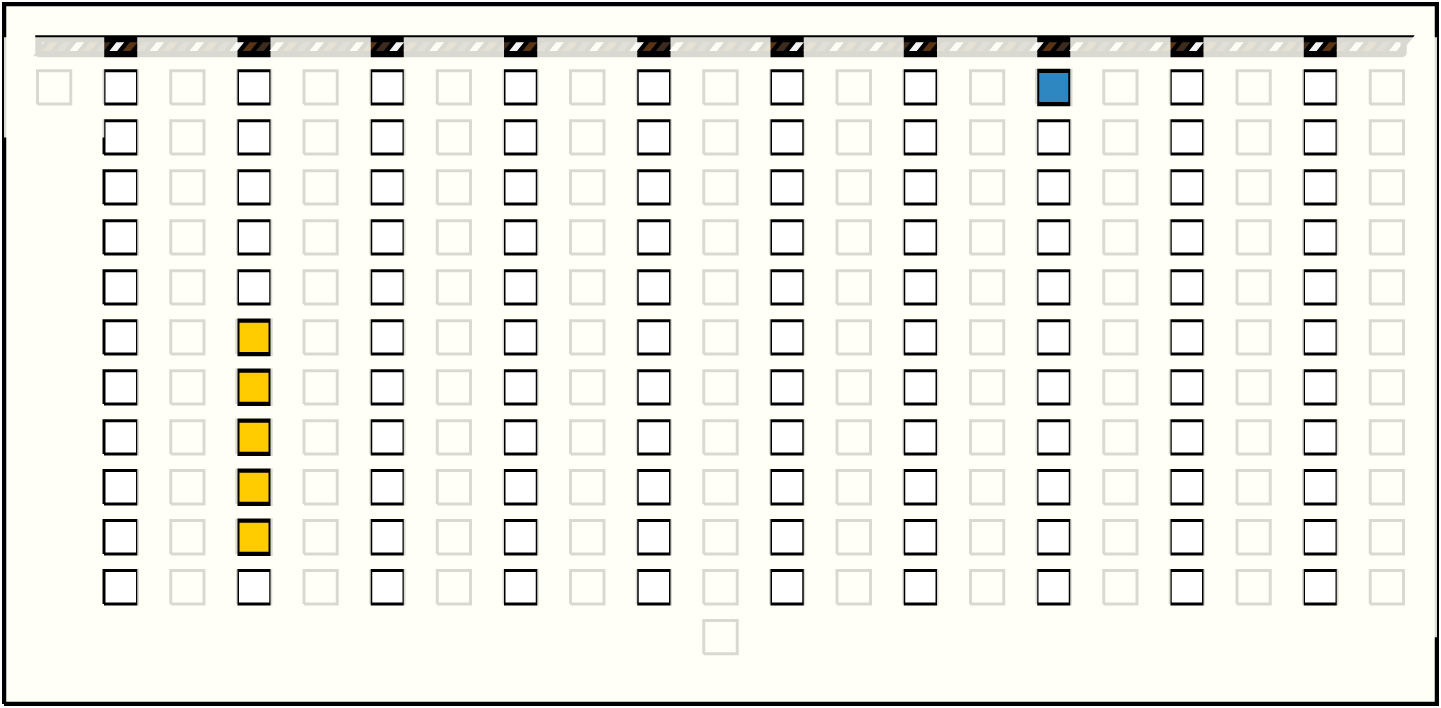

| 11 |  | p157s116, 1, 1 : 42YB | 42 | 5 | p29: 10W + p30: 7W + p31: 12W + p32: 1W + p33: 12W | |

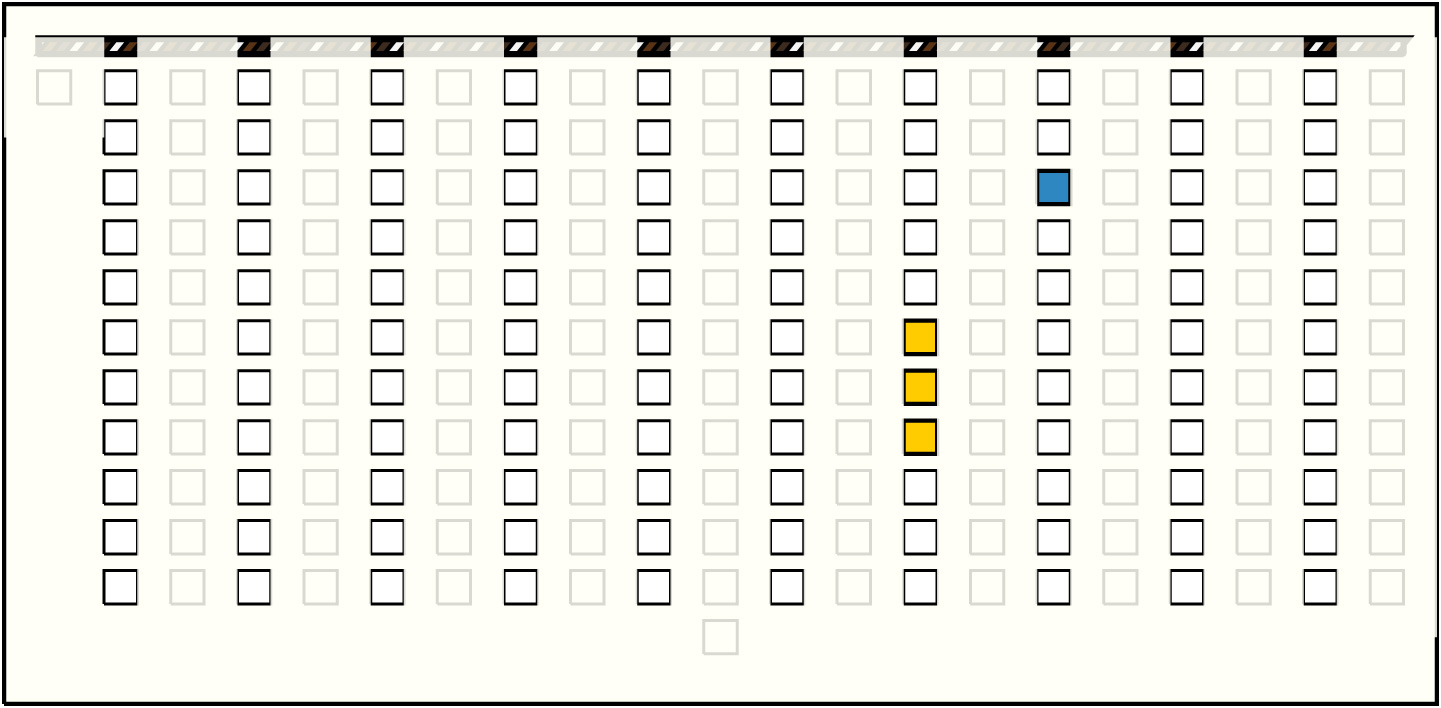

| 12 |  | p159s116, 3, 1 : 17W | 17 | 3 | p140: 7B + p141: 7B + p142: 3B | |

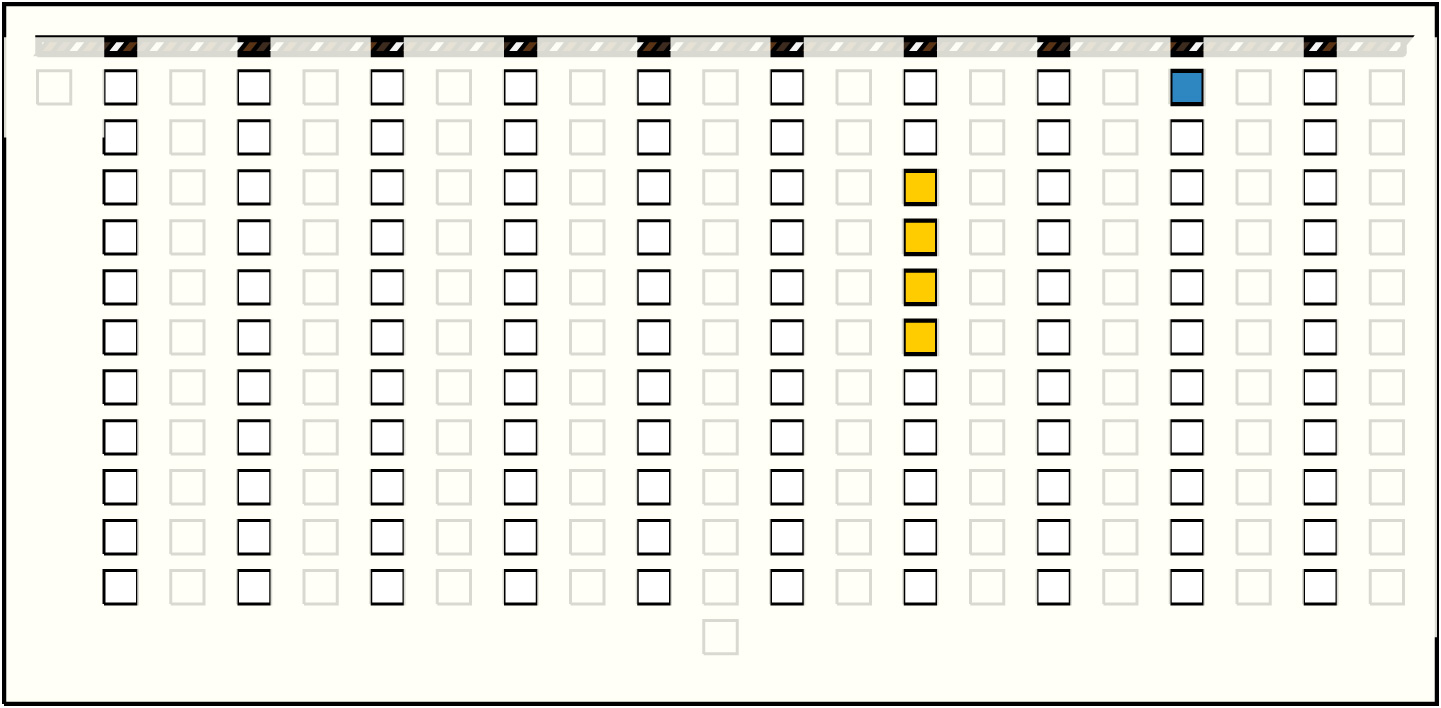

| 13 |  | p179s118, 1, 1 : 35YB | 35 | 4 | p137: 11W:BB + p138: 13W:BB + p139: 4B + p140: 7B | |
| 14 |  | p181s118, 3, 1 : 17W | 17 | 3 | p140: 7B + p141: 7B + p142: 3B | |
| 15 |  | p183s218, 5, 2 : 19W | 19 | 3 | p26: 7W:BB + p27: 2W:BB + p29: 10W | |

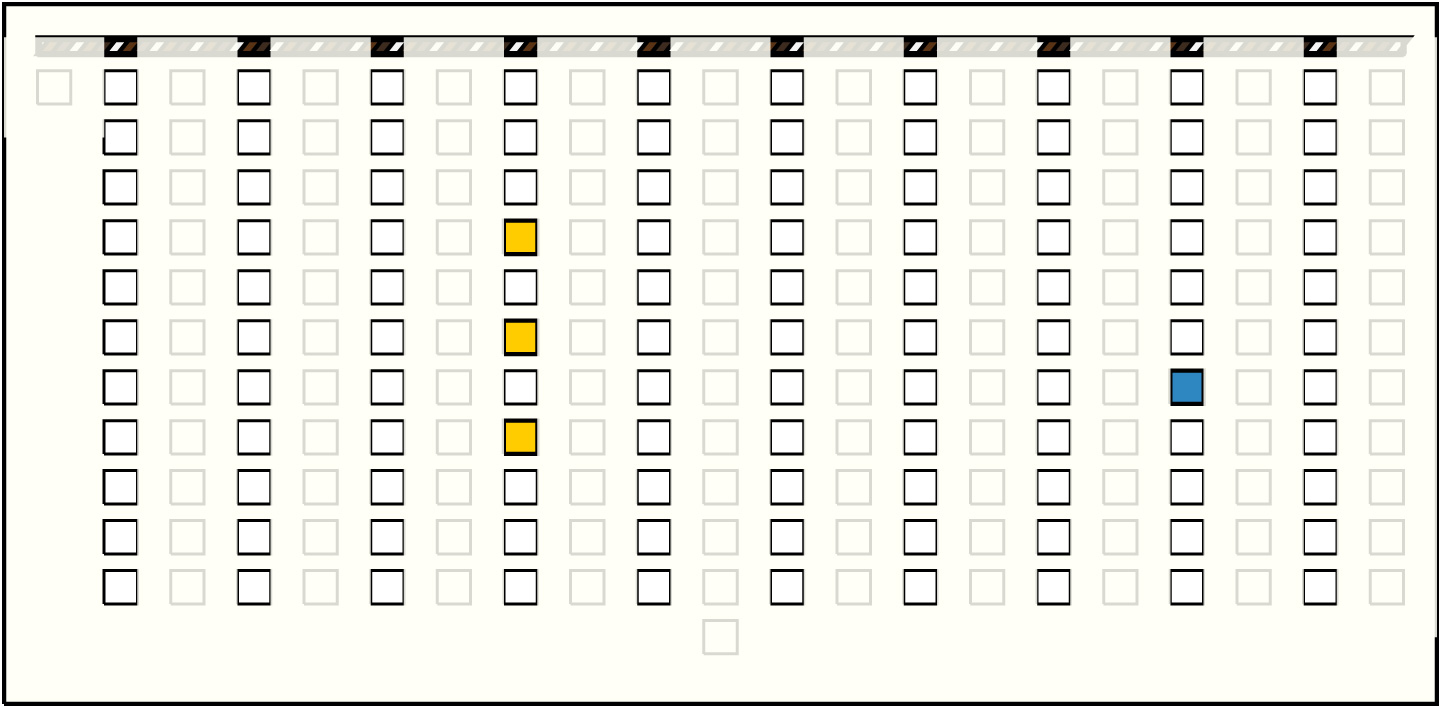

| 16 |  | p185s218, 7, 2 : 13LB | 13 | 3 | p71: 4W:BB + p73: 4W + p75: 5W | |

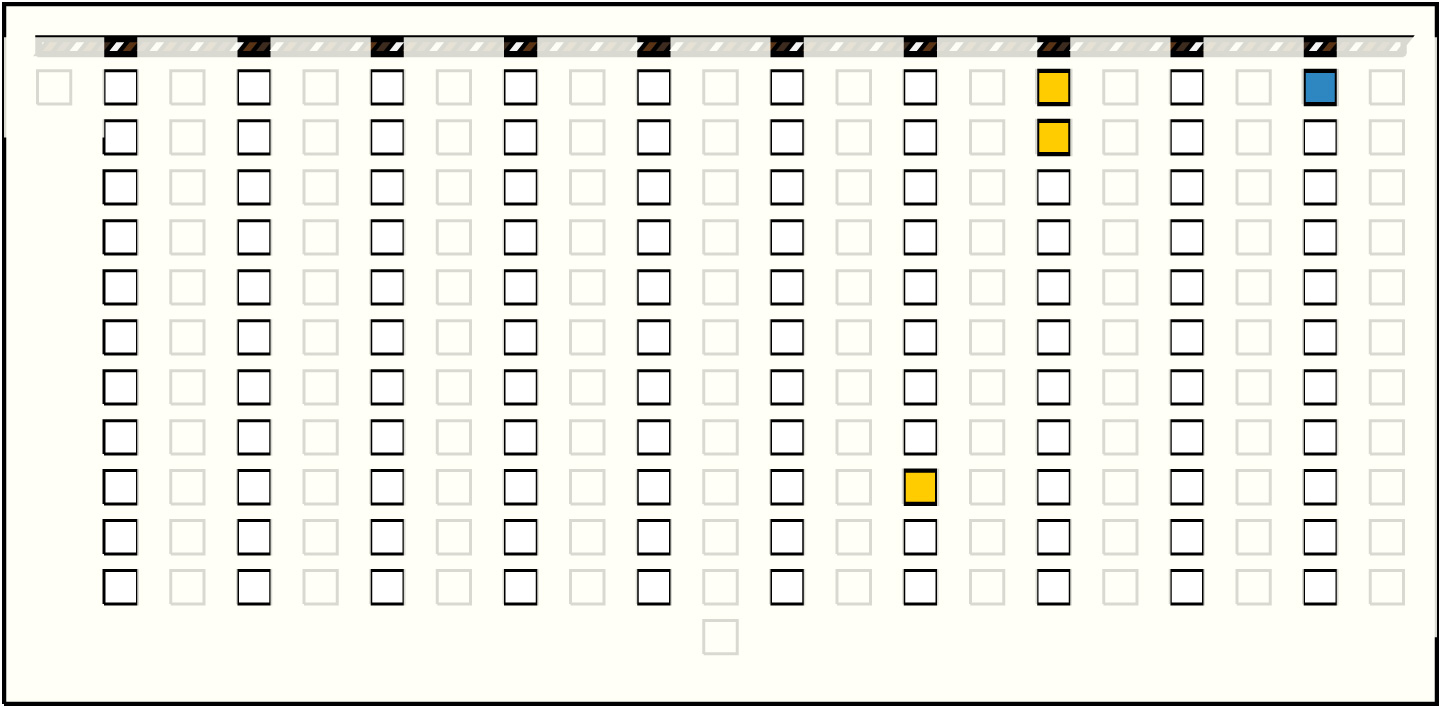

| 17 |  | p201s120, 1, 1 : 47YB | 47 | 3 | p143: 3W + p157: 40B + p158: 4B | |

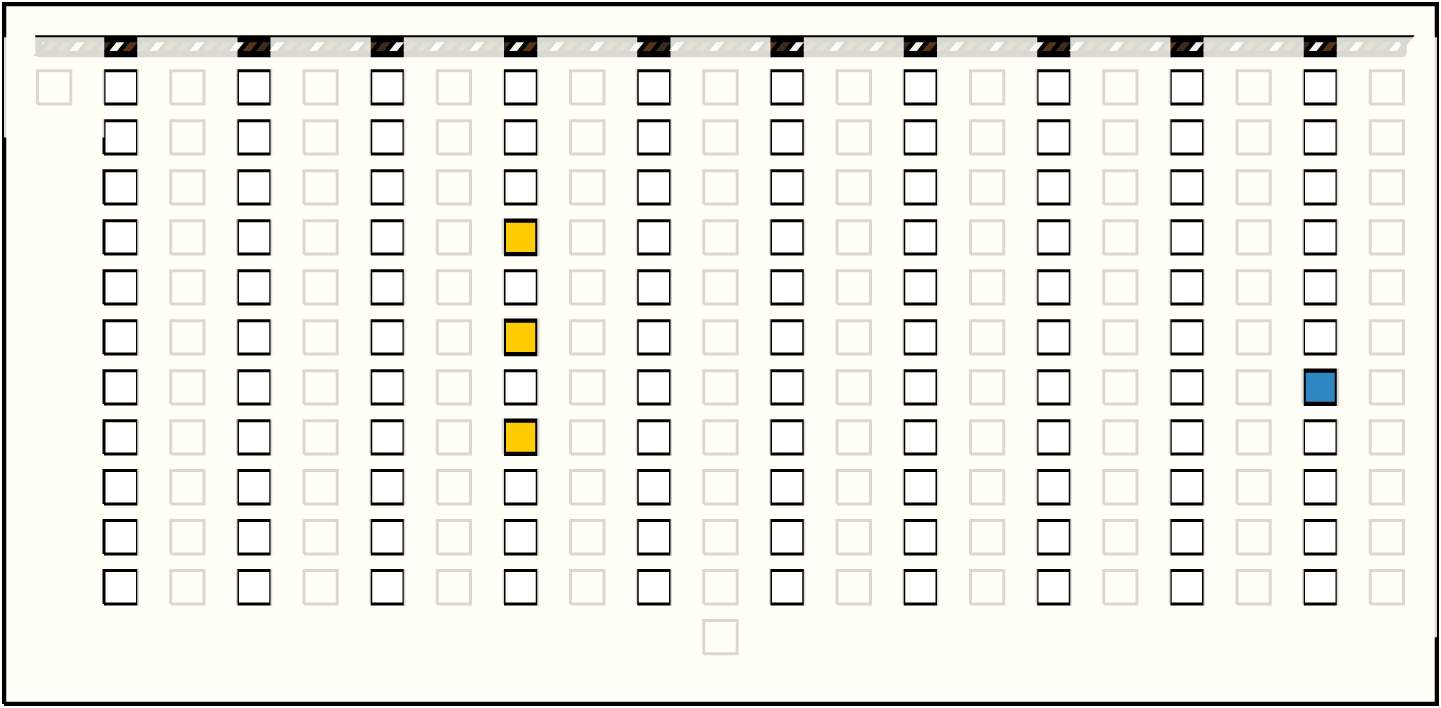

| 18 |  | p207s120, 7, 1 : 13AB | 13 | 3 | p71: 4W:BB + p73: 4W + p75: 5W |
Khipu Notes:
Ascher Databook Notes:
- Construction note: The twisted ends of the main cord and first cord are linked together. Cord 1 is shorter than the other pendants and bound with thread at its end. 2.Construction note: Subsidiaries attached to the first subsidiary on pendants 2, 24, 135, 157, 179, and 201 are attached in a non-standard way. They are looped around both the pendant and subsidiary to which they are connected.
- This is one of several khipus acquired by the Museum in 1907 with provenance Ica. For a list of them, see UR1100.
- Assuming that the first pendant and the last pendant in the 10th group are markers, the khipu is separated, by markers and spacing, into 2 parts of 10 groups each. Each group has 11 pendants.
- With the exception of groups 7 and 17 (the 7 th group in each part), each group has the same patterning of colors: 2X, 2Y, 7X, Y is BB: W in all groups except groups 16 and 17 in which it is LC:W. The X varies so that the group colors alternate. In the first part (with the exception of 2 pendants in group 7), X is W in groups 1, 3, 5, 7, and 9 and it is LB in groups 2, 4, 6, 8, 10, In the second part: X is B in groups 11, 13, 15, 19; LB in 12, 14, 16; and YG in 18 and 20.
- In every even group (groups 2, 4, 6, ..., 18, 20), all pendants are zero-valued (or blank) and there are no subsidiaries.
- In every odd group (groups 1, 3, 5,..., 17, 19):
- Positions 4 and 11 have no subsidiaries; position 3 has 1 W subsidiary; and position 1 has 3-6 subsidiaries or subsidiaries of subsidiaries. The unusual attachment noted in #2 above only occurs in the first position. Other positions vary from 0-3 subsidiaries from group to group.
- Pendant 11 is always zero-valued (or blank).
- The value in position 1 is the maximum.
