UR177/KH0415 - Subsidiary Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Subsidiary Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Sum Overlay
This Khipu's Drawing	Right-Handed Sum Detail
	Left-Handed Sum Detail

Right Handed Sums: # Sums = 14, Max # Summands = 5, (Min, Mean, Max) Sum Values = (12, 13, 15)
Click on Image to View Larger
Note! Duplicate right subsidiary pendant sums exist on one pendant - ['p12s1', 'p13s1', 'p15s1', 'p16s1', 'p19s2', 'p1s1', 'p2s1', 'p3s1', 'p4s1', 'p6s1', 'p8s1', 'p8s2', 'p9s1', 'p9s2']

Left Handed Sums: # Sums = 5, Max # Summands = 5, (Min, Mean, Max) Sum Values = (12, 13, 16)
Click on Image to View Larger
Note! Duplicate left subsidiary pendant sums exist on one pendant - ['p23s1', 'p28s1', 'p29s1', 'p29s2', 'p31s1']

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p1s1_{1, 1, 1} : 13_AB-KB	13	5	p16: 2_W:MB + p17: 4_W + p18: 2_AB + p19: 2_AB + p20: 3_AB

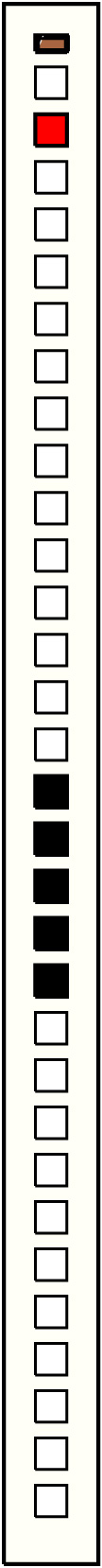

2	p2s1_{1, 2, 1} : 13_W	13	5	p16: 2_W:MB + p17: 4_W + p18: 2_AB + p19: 2_AB + p20: 3_AB

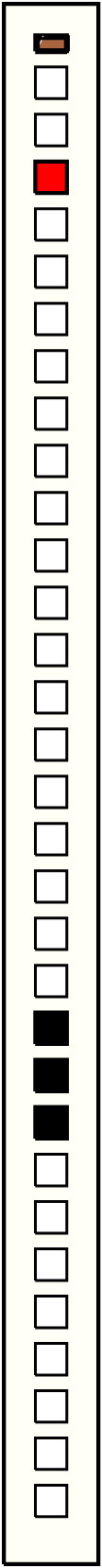

3	p3s1_{1, 3, 1} : 12_W	12	3	p21: 5_W + p22: 2_AB + p23: 5_W
4	p4s1_{1, 4, 1} : 13_AB:GG	13	5	p16: 2_W:MB + p17: 4_W + p18: 2_AB + p19: 2_AB + p20: 3_AB

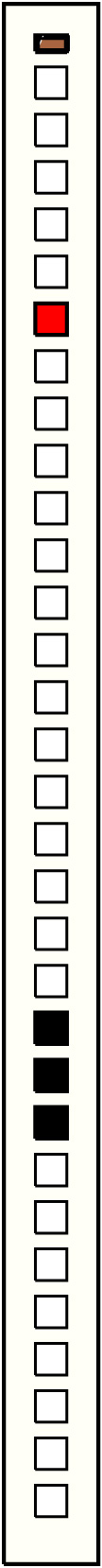

5	p6s1_{1, 6, 1} : 12_AB-0K	12	3	p21: 5_W + p22: 2_AB + p23: 5_W

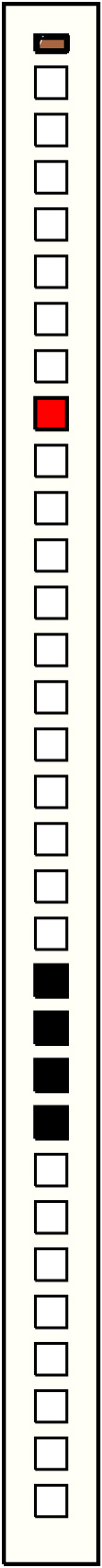

6	p8s1_{1, 8, 1} : 15_AB-DG	15	4	p20: 3_AB + p21: 5_W + p22: 2_AB + p23: 5_W

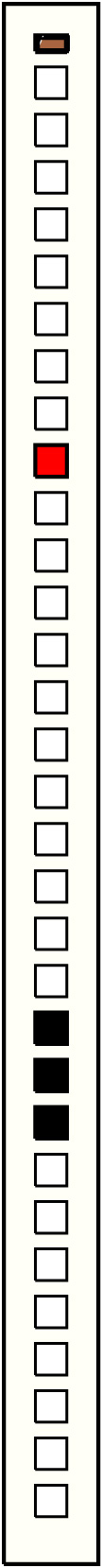

7	p9s1_{1, 9, 1} : 12_W:DG	12	3	p21: 5_W + p22: 2_AB + p23: 5_W
8	p12s1_{1, 12, 1} : 13_MB:DG	13	5	p16: 2_W:MB + p17: 4_W + p18: 2_AB + p19: 2_AB + p20: 3_AB
9	p13s1_{1, 13, 1} : 12_GG-MB	12	3	p21: 5_W + p22: 2_AB + p23: 5_W
10	p15s1_{1, 15, 1} : 12_W	12	3	p21: 5_W + p22: 2_AB + p23: 5_W

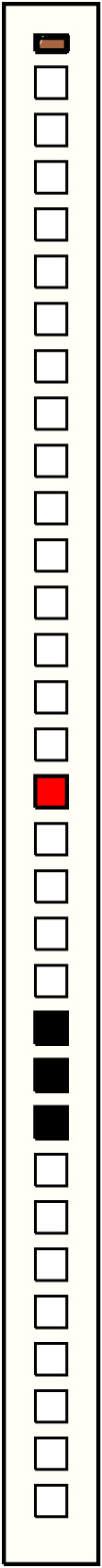

11	p16s1_{1, 16, 1} : 12_W	12	3	p21: 5_W + p22: 2_AB + p23: 5_W

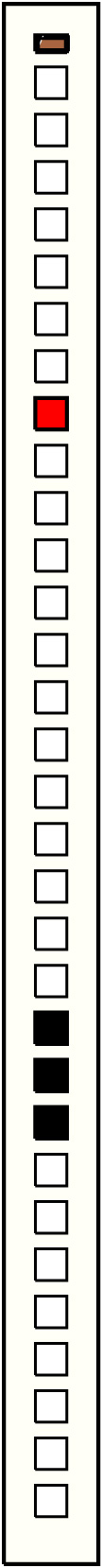

12	p8s2_{1, 8, 2} : 12_W	12	3	p21: 5_W + p22: 2_AB + p23: 5_W
13	p9s2_{1, 9, 2} : 13_MB:DG	13	5	p16: 2_W:MB + p17: 4_W + p18: 2_AB + p19: 2_AB + p20: 3_AB
14	p19s2_{1, 19, 2} : 15_MB:DG	15	4	p20: 3_AB + p21: 5_W + p22: 2_AB + p23: 5_W

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

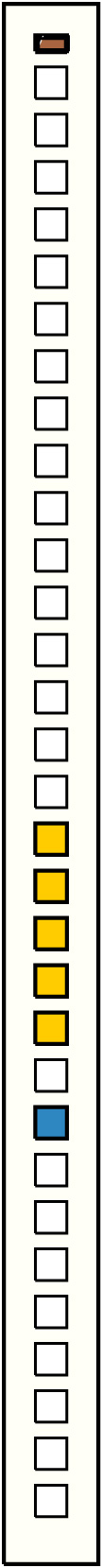

1	p23s1_{1, 23, 1} : 16_MB	16	5	p17: 4_W + p18: 2_AB + p19: 2_AB + p20: 3_AB + p21: 5_W
2	p28s1_{1, 28, 1} : 12_MB:DG	12	3	p21: 5_W + p22: 2_AB + p23: 5_W
3	p29s1_{1, 29, 1} : 15_MB:DG	15	4	p20: 3_AB + p21: 5_W + p22: 2_AB + p23: 5_W
4	p31s1_{1, 31, 1} : 12_W	12	3	p21: 5_W + p22: 2_AB + p23: 5_W

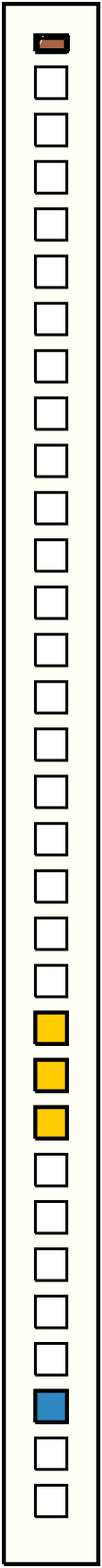

5	p29s2_{1, 29, 2} : 12_W:AB	12	3	p21: 5_W + p22: 2_AB + p23: 5_W
