UR1151/KH0167 - Ascher Decreasing Group


Drawings:
Overview Detail View
All Khipus' Ascher Sum RelationshipsAscher Decreasing Group XRay
All Ascher Decreasing Group RelationshipsAscher Decreasing Group Detail
This Khipu's Ascher Sum RelationshipsKhipu Notes

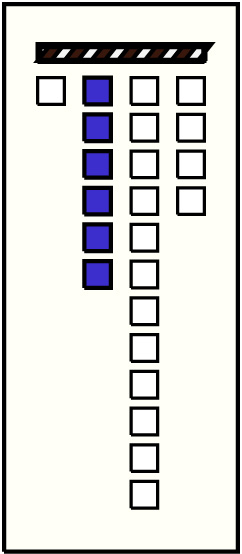

This Khipu's Drawing

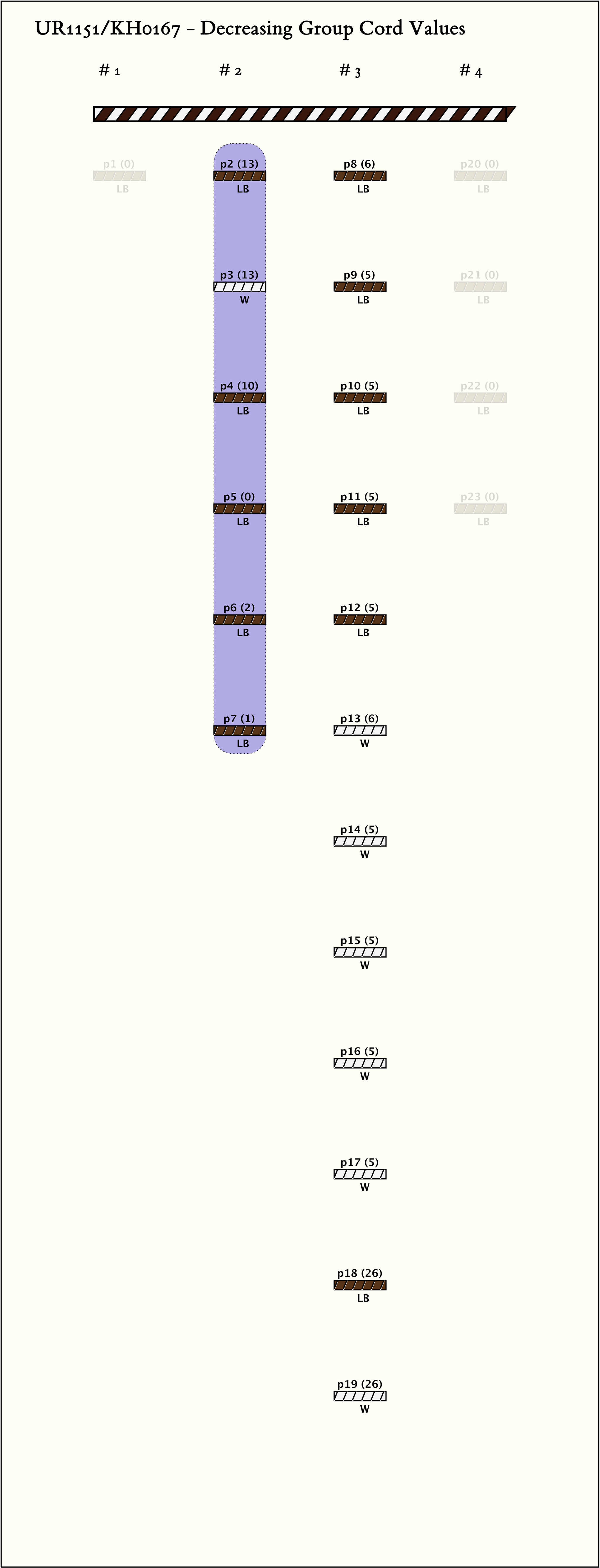

Ascher Decreasing Group:
Click on Image to View Larger

Individual Ascher Decreasing Groups: - Click on column name to sort
# Decreasing Group Schema Group Position
1 Based Index		 # Cords in Group Decreasing Cord Values
0
26LB@[2, 1]:13 + W@[2, 2]:13 + LB@[2, 3]:10 + LB@[2, 4]:0 + LB@[2, 5]:2 + LB@[2, 6]:1

Khipu Notes:
Ascher Databook Notes:
  1. This is one of several khipus acquired by the Museum in 1907 with provenance Pachacamac. For a list of them, see UR1097.
  2. By spacing, the khipu is separated into 4 groups of 1, 6, 12, and 4 pendants respectively.
    1. The pendant in group 1 and the pendants in group 4 are LB and zero-valued (or blank). The subsidiaries in group 1 are W and non-zero.
    2. The 6 pendants of group 2 are one pair of pendants LB, Wand then 4 LB pendants each with a W subsidiary. Each of the values in the first pair is 13; the 4 LB pendant values sum to 13; and 4 W sub_sidiaries sum to 13.
    3. The 12 pendants of group 3 are 5 LB pendants with LB subsidiaries, then 5 W pendants with W subsidiaries, and then 1 pair of pendants LB, W each with a subsidiary of the same color. The first 5 LB pendant values sum to 26; then the 5 W pendant values sum to 26; and each of values in the last pair is 26. Excluding subsidiaries suspended from subsidiaries rather than from pendants, the subsidiaries also sum to 26.
    4. With the exception of the subsidiaries of subsidiaries of group 3, all the values in groups 2 and 3 are summarized in Table 1.

      Table 1

      Group Color LB Color W
      Group 2
      P21 = 13
      \[ \sum\limits_{i=3}^{6} P_{2i}\;=\;13 \]
      P22 = 13
      \[ \sum\limits_{i=3}^{6} P_{2i}\;subsidiaries\;=\;13 \]
      Group 3
      P3,11 = 26
      \[ \sum\limits_{i=1}^{5} P_{3i}\; = \;26 \]
      \[ \sum\limits_{i=1}^{5} P_{3i}\;\;subsidiaries\; = \;P_{3,11}\;subsidiary \]
      P3,12 = 26
      \[ \sum\limits_{i=6}^{10} P_{3i}\; = \;26 \]
      \[ \sum\limits_{i=1}^{5} P_{3i}\;\;subsidiaries\; = \;P_{3,12}\;subsidiary \]
      Group 3
      \[ \sum\limits_{i=1}^{10} P_{3i}\;\;subsidiaries\; = \;P_{3,11}\;subsidiary + P_{3,12}\;subsidiary = 26 \]
