MM019 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 13, Max # Summands = 40, (Min, Mean, Max) Sum Values = (14, 42, 201)
Click on Image to View Larger

Left Handed Sums: # Sums = 7, Max # Summands = 12, (Min, Mean, Max) Sum Values = (14, 25, 45)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p1_{1, 1} : 201_W	201	40	p9: 1_W + p10: 2_W + p11: 2_W + p12: 2_W + p13: 2_W + p14: 2_W + p16: 9_W + p17: 9_W + p18: 7_W + p19: 7_W + p20: 7_W + p21: 7_W + p23: 9_W + p24: 1_W + p25: 6_W + p27: 45_W + p31: 14_W + p32: 2_W + p33: 2_W + p34: 2_W + p40: 2_W + p43: 2_W + p44: 2_W + p50: 2_W + p54: 2_W + p55: 2_W + p61: 2_W + p65: 2_W + p66: 2_W + p72: 2_W + p76: 2_W + p77: 2_W + p83: 2_W + p87: 2_W + p88: 2_W + p94: 2_W + p97: 2_W + p98: 2_W + p104: 2_W + p108: 25_W

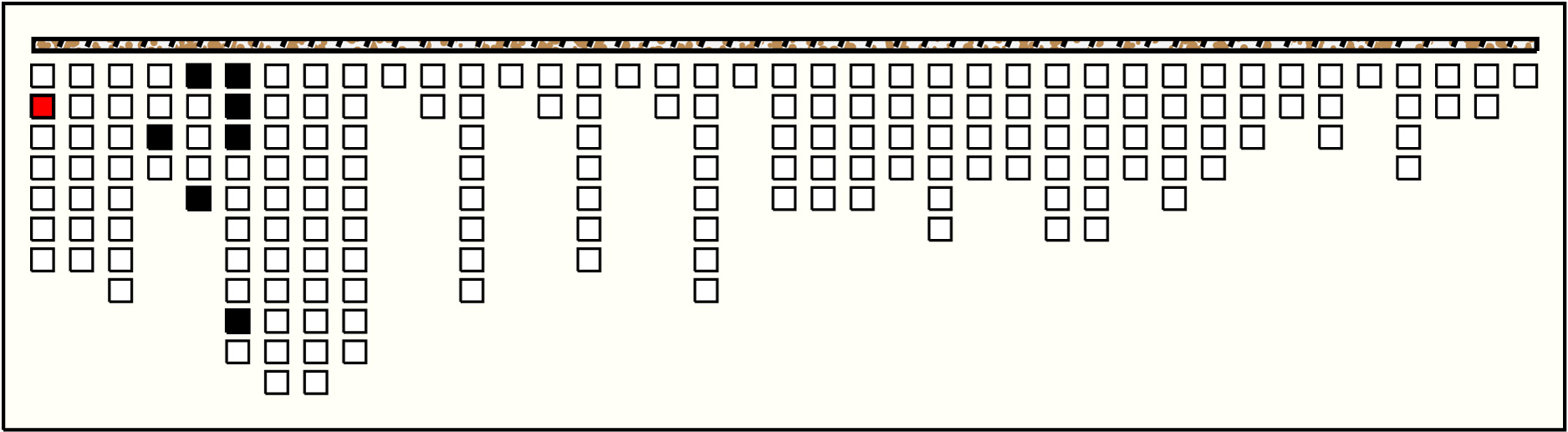

2	p2_{1, 2} : 73_W	73	7	p25: 6_W + p27: 45_W + p31: 14_W + p32: 2_W + p33: 2_W + p34: 2_W + p40: 2_W
3	p4_{1, 4} : 55_R	55	8	p100: 2_R + p110: 24_R + p115: 6_R + p120: 4_R + p124: 4_R + p130: 6_R + p134: 4_R + p138: 5_R

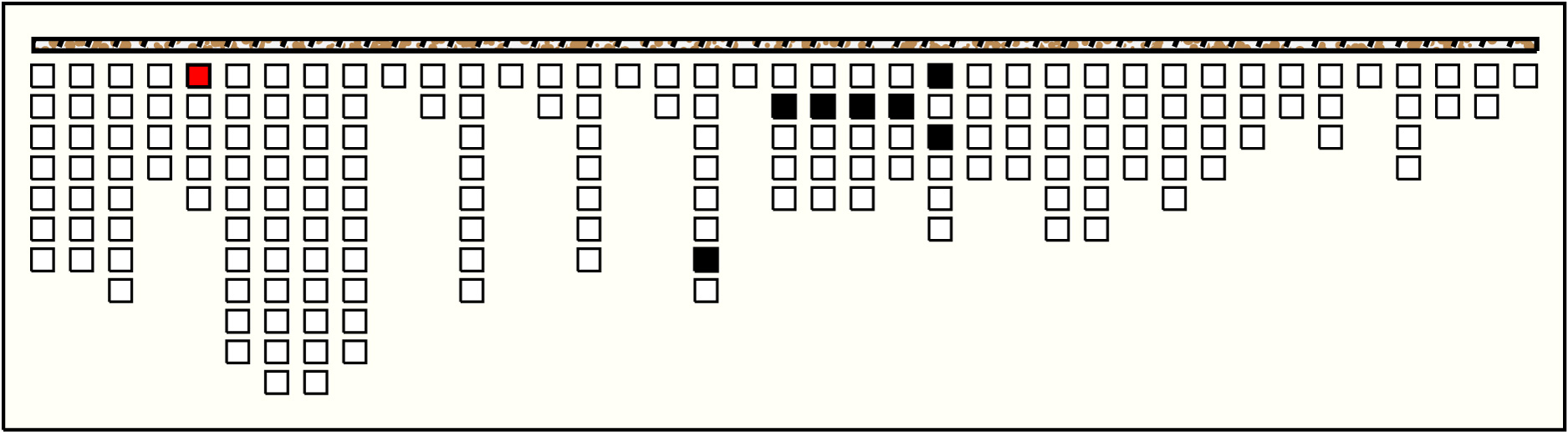

4	p27_{5, 1} : 45_W	45	7	p104: 2_W + p108: 25_W + p113: 4_W + p118: 4_W + p123: 4_W + p126: 2_W + p128: 4_W
5	p28_{5, 2} : 26_R	26	13	p35: 2_R + p36: 2_R + p45: 2_R + p46: 2_R + p56: 2_R + p57: 2_R + p67: 2_R + p68: 2_R + p78: 2_R + p79: 2_R + p89: 2_R + p90: 2_R + p99: 2_R

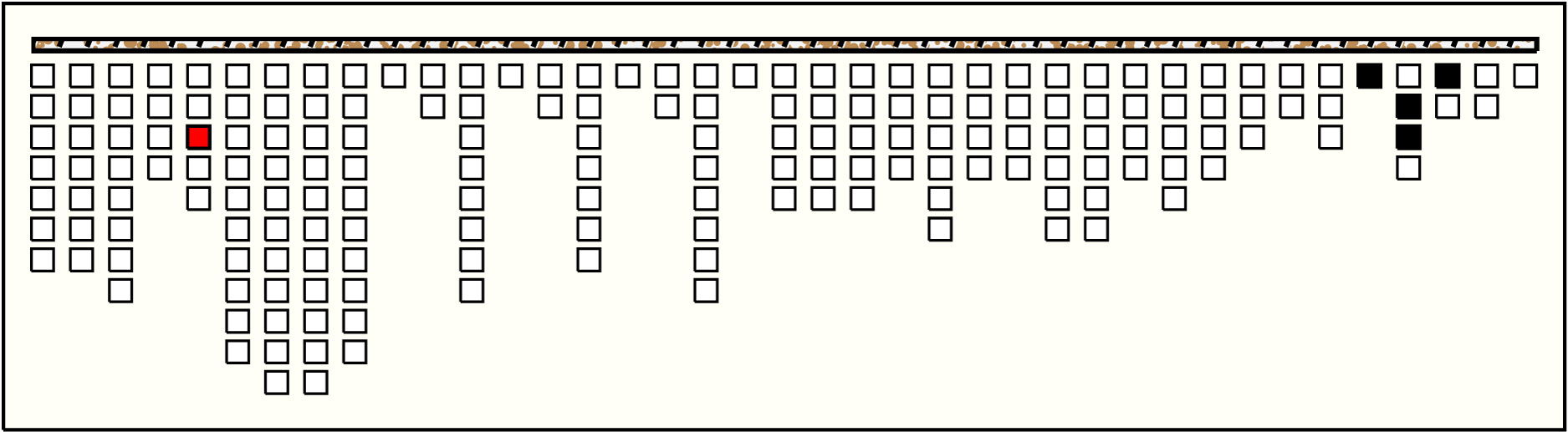

6	p29_{5, 3} : 14_YB	14	4	p173: 2_YB + p175: 5_YB + p176: 2_YB + p178: 5_YB

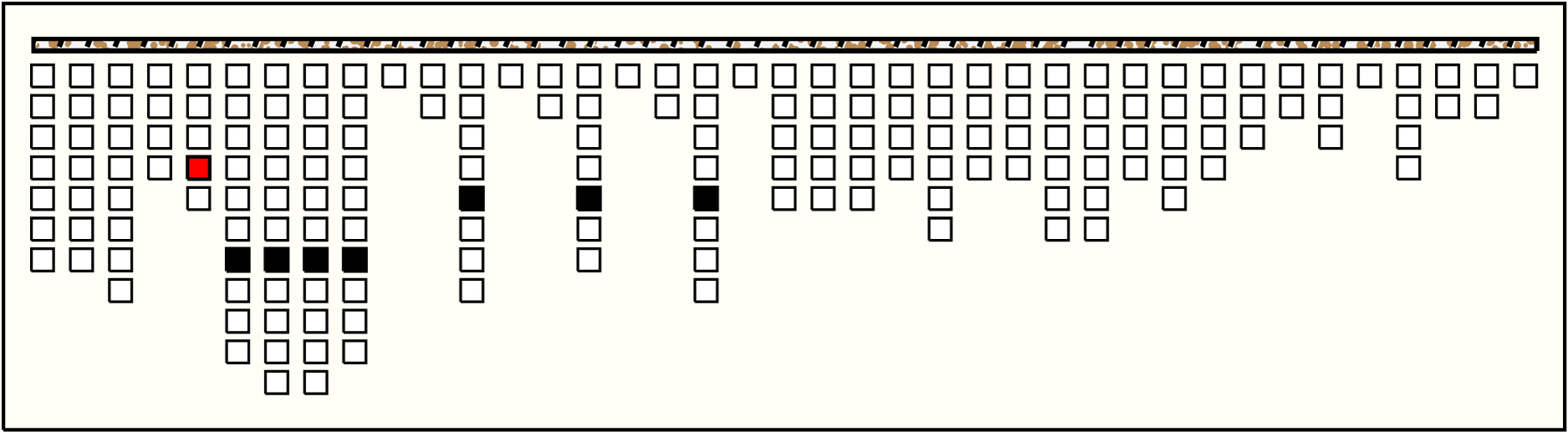

7	p30_{5, 4} : 14_YB-KB	14	7	p38: 2_YB-KB + p48: 2_YB-KB + p59: 2_YB-KB + p70: 2_YB-KB + p81: 2_YB-KB + p92: 2_YB-KB + p102: 2_YB-KB

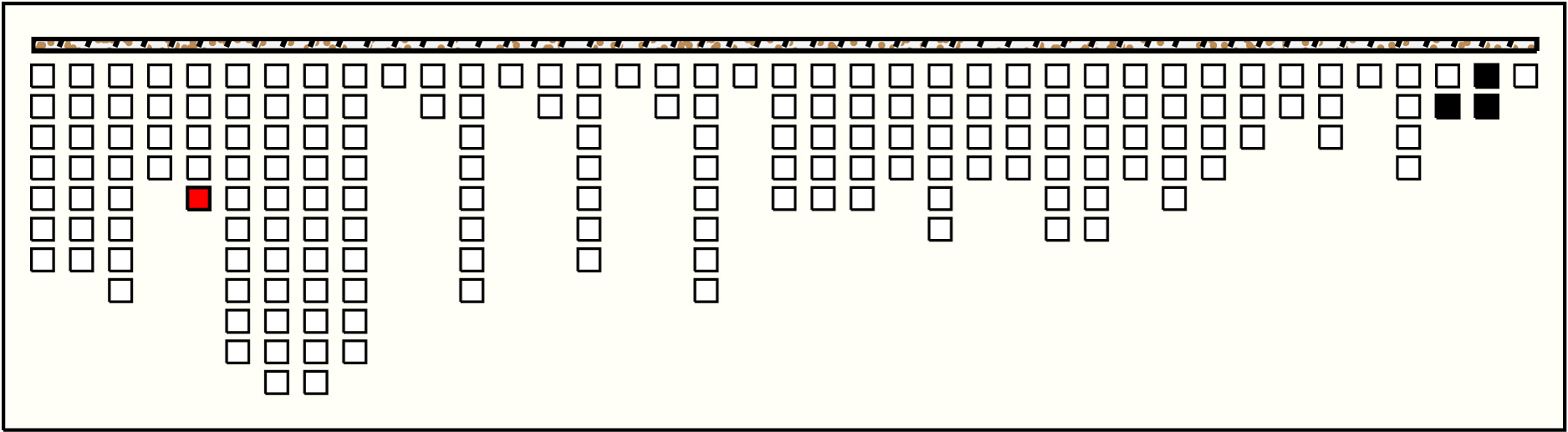

8	p31_{5, 5} : 14_W	14	3	p179: 7_W + p180: 6_W + p181: 1_W
9	p108_{20, 2} : 25_W	25	5	p132: 1_W + p133: 4_W + p136: 2_W + p137: 2_W + p141: 16_W

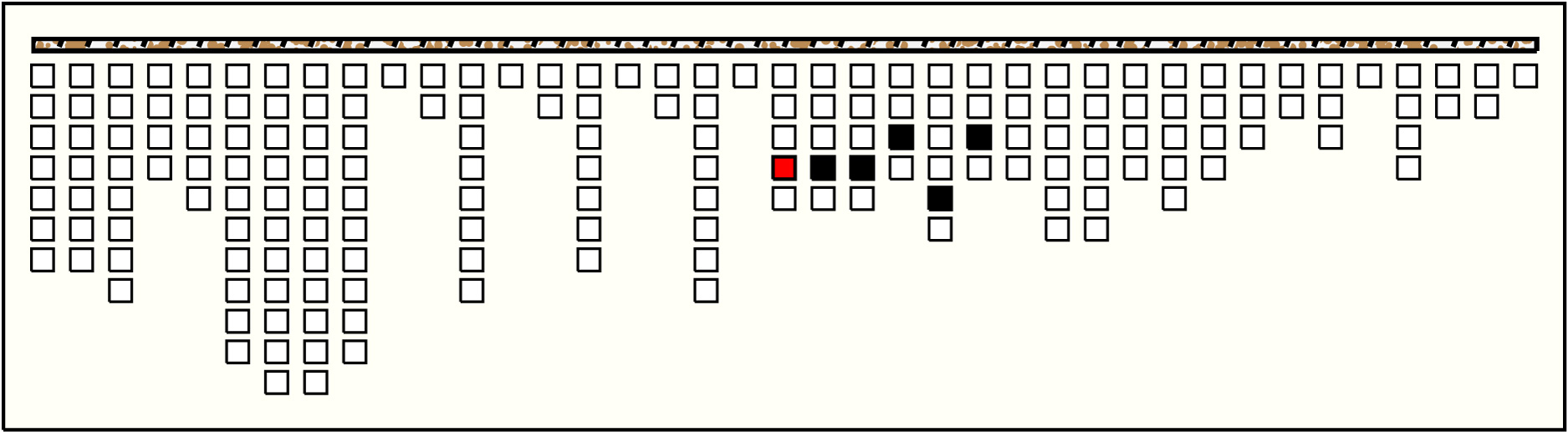

10	p110_{20, 4} : 24_R	24	5	p115: 6_R + p120: 4_R + p124: 4_R + p130: 6_R + p134: 4_R
11	p111_{20, 5} : 24_YB	24	3	p139: 4_YB + p142: 14_YB + p144: 6_YB
12	p141_{27, 2} : 16_W	16	4	p174: 2_W + p179: 7_W + p180: 6_W + p181: 1_W

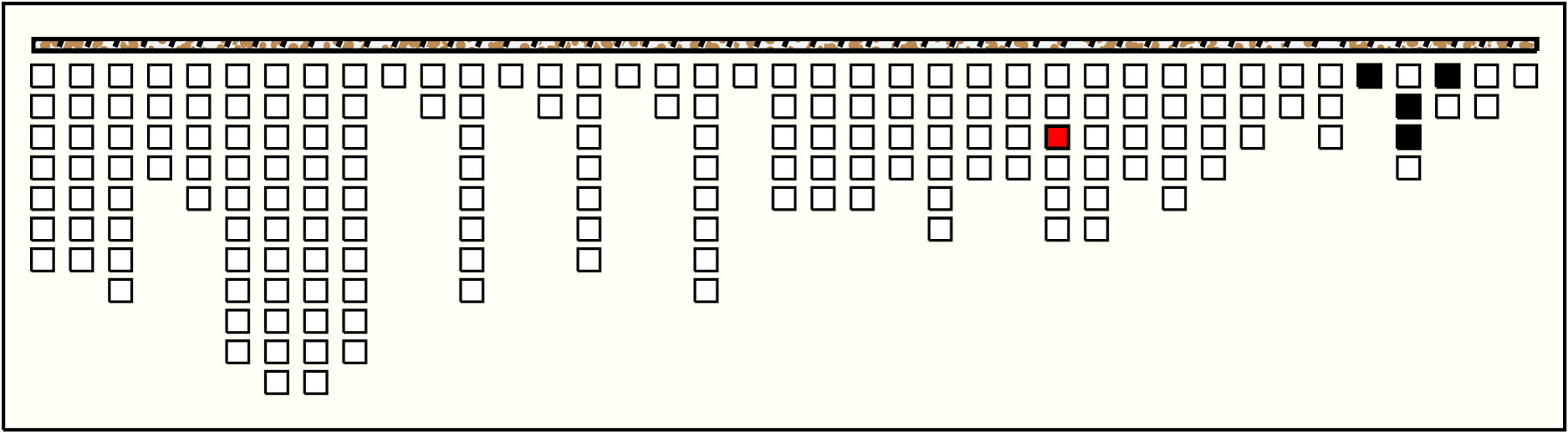

13	p142_{27, 3} : 14_YB	14	4	p173: 2_YB + p175: 5_YB + p176: 2_YB + p178: 5_YB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

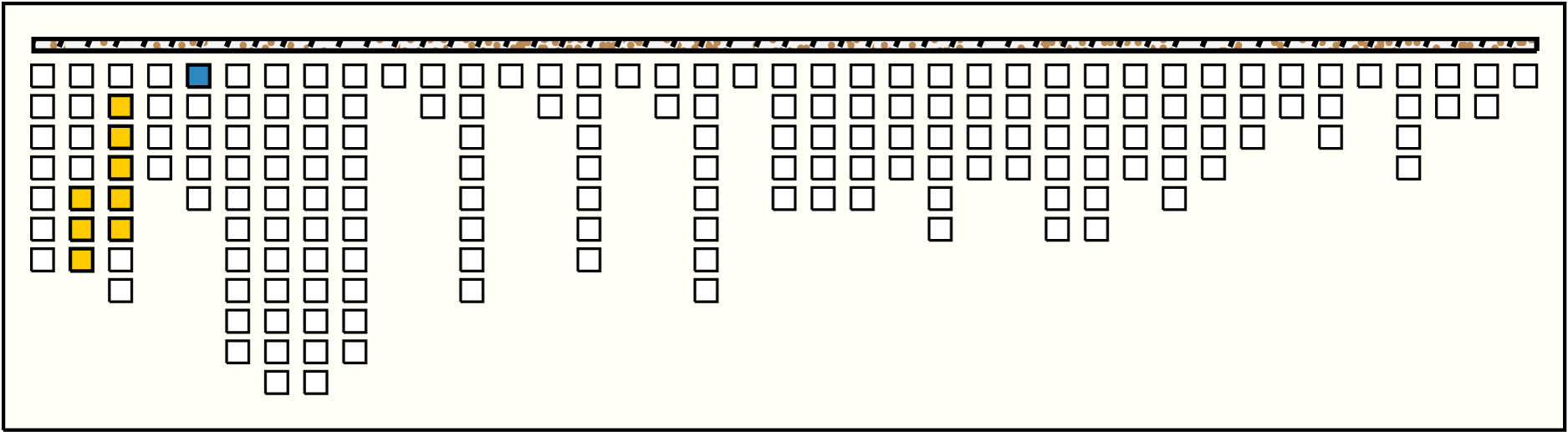

1	p27_{5, 1} : 45_W	45	8	p12: 2_W + p13: 2_W + p14: 2_W + p16: 9_W + p17: 9_W + p18: 7_W + p19: 7_W + p20: 7_W

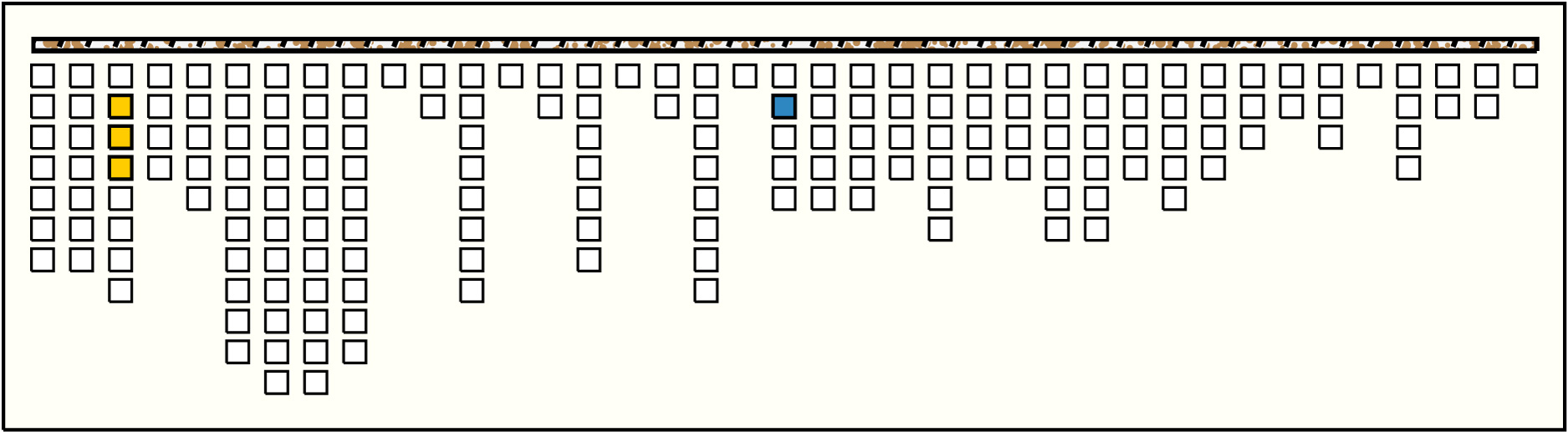

2	p108_{20, 2} : 25_W	25	3	p16: 9_W + p17: 9_W + p18: 7_W

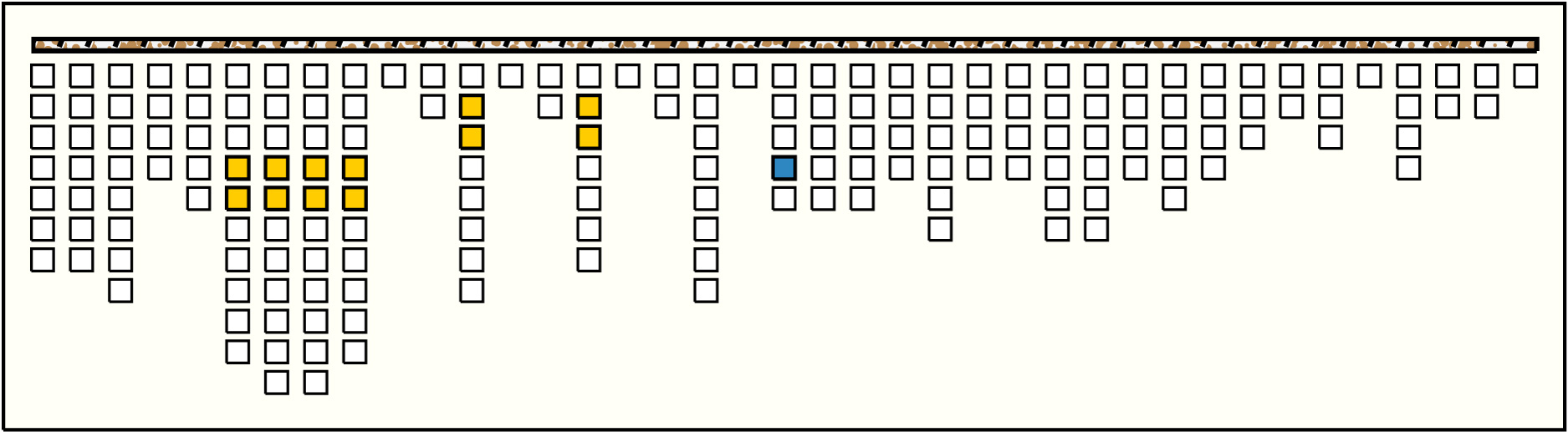

3	p110_{20, 4} : 24_R	24	12	p35: 2_R + p36: 2_R + p45: 2_R + p46: 2_R + p56: 2_R + p57: 2_R + p67: 2_R + p68: 2_R + p78: 2_R + p79: 2_R + p89: 2_R + p90: 2_R

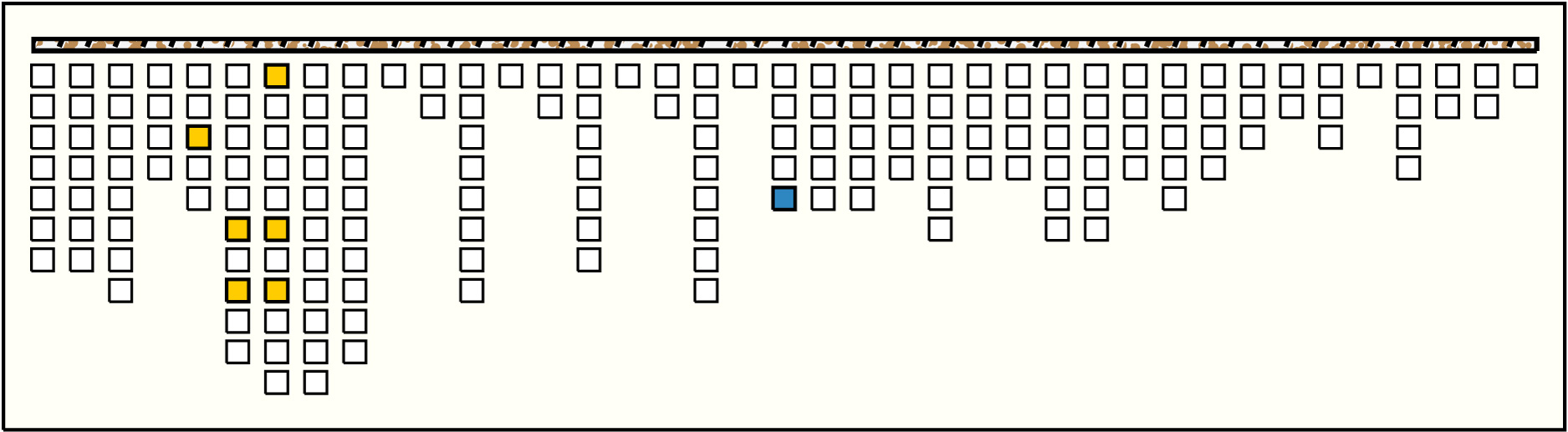

4	p111_{20, 5} : 24_YB	24	6	p29: 14_YB + p37: 2_YB + p39: 2_YB + p42: 2_YB + p47: 2_YB + p49: 2_YB

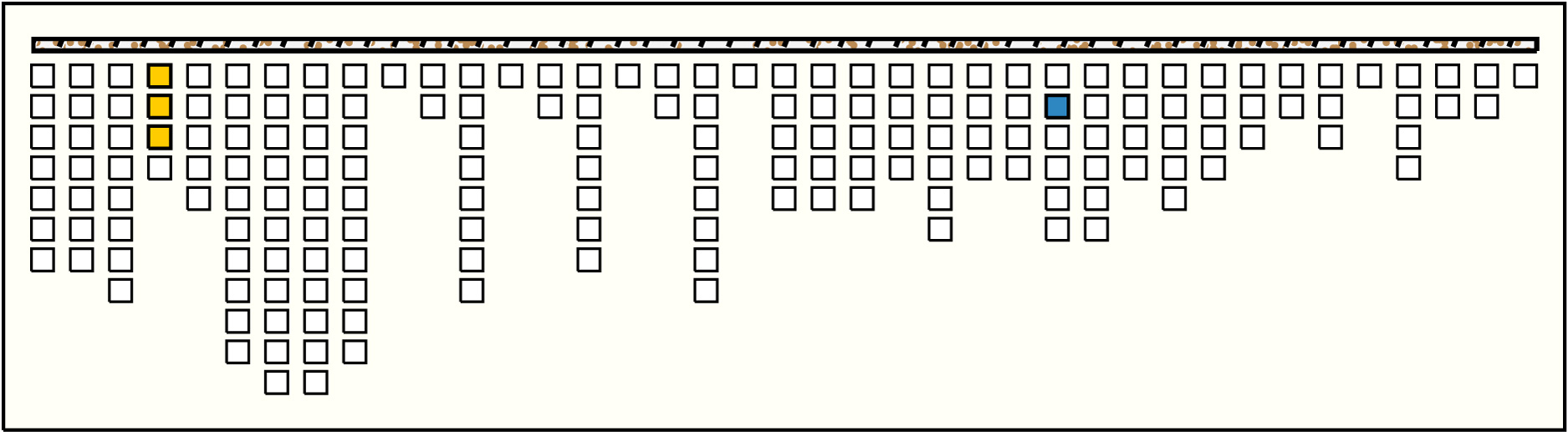

5	p141_{27, 2} : 16_W	16	3	p23: 9_W + p24: 1_W + p25: 6_W
6	p142_{27, 3} : 14_YB	14	7	p37: 2_YB + p39: 2_YB + p42: 2_YB + p47: 2_YB + p49: 2_YB + p53: 2_YB + p58: 2_YB

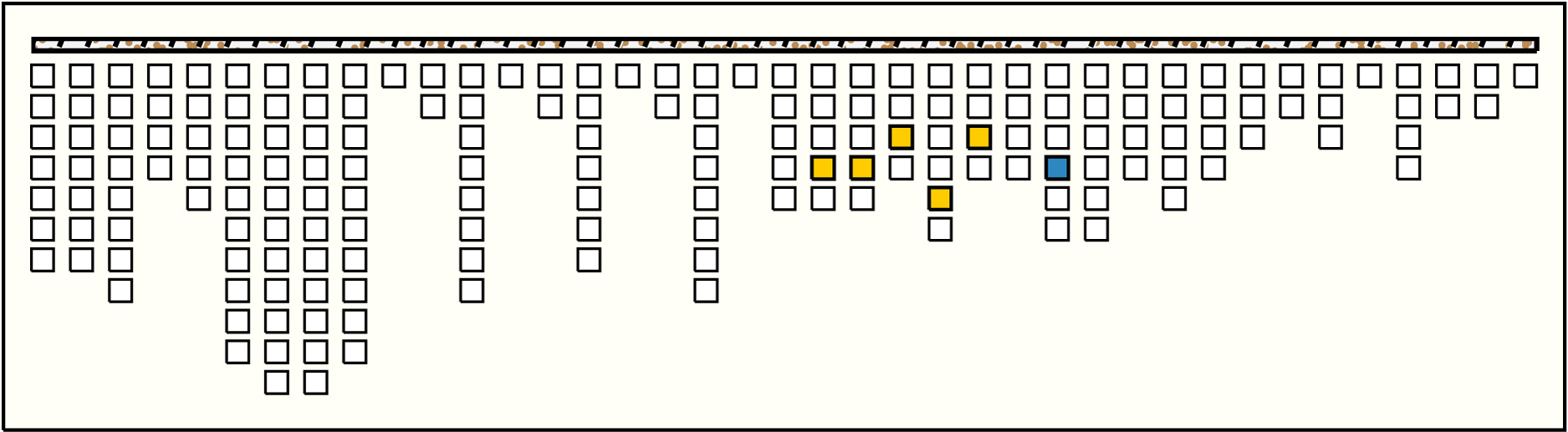

7	p143_{27, 4} : 24_R	24	5	p115: 6_R + p120: 4_R + p124: 4_R + p130: 6_R + p134: 4_R

Khipu Notes:

Primary Cord Thread Wrappings

SR wrapping 7.25-7.5cm and 8.0-8.75cm
LG wrapping 18.25-19.0cm
R wrapping 19.0-19.75cm
BL wrapping 128.5-130.5cm

Cord Notes and Obeservations for Khipu MM019

6: KB mottled thread introduced in long knot
13s2: MB wrapping around pendant from 43.0-44.0cm
31: color changes in 1S knot
69: barber pole portion of cord is quite deteriorated and fragile
109: GG thread tied around pendant at 34.0cm
114: PG thread tied around pendant at 36.0cm
119: YB thread tied around pendant at 34.5cm
129: PG thread tied around pendant at 34.5cm
140: cord broken in first turn of unidentifiable knot
141: color changes in single knot
151: YB thread tied around pendant at 38.5cm
159: traces of YB-KB in attachment knot
175: R thread tied around pendant at 0.5cm
176: cord raveled 33.0-45.0cm
178: R thread tied around pendant between 0.5-2.0cm
181: SR thread inserted following p181 attachment knot; p181 also has an anomalous figure eight knot
All khipus I have studied are currently designated "MM", following convention in the field (and until a more suitable replacement convention is agreed upon). Manuel Medrano.
