MM022 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

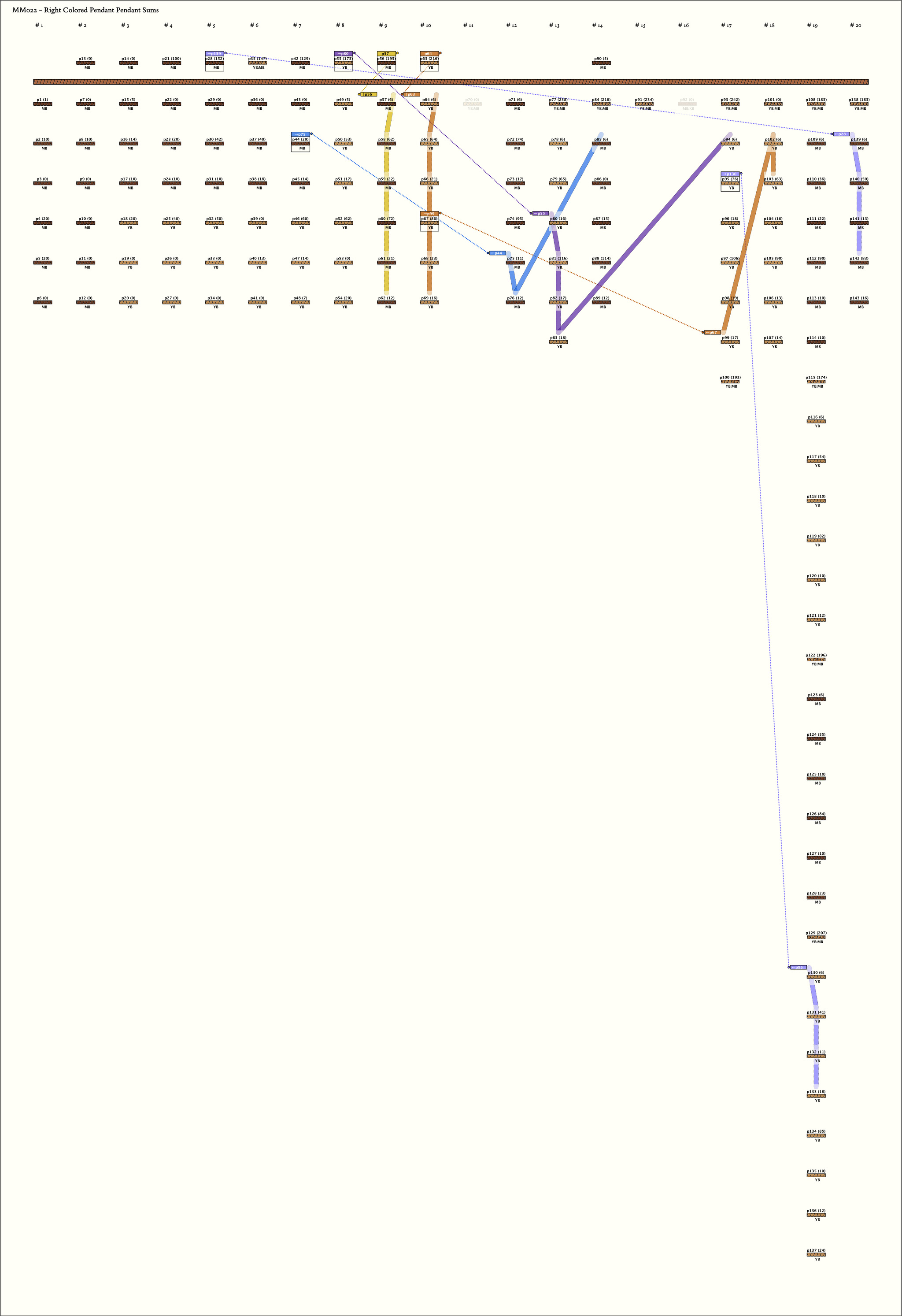

Right Handed Sums: # Sums = 7, Max # Summands = 6, (Min, Mean, Max) Sum Values = (29, 132, 216)
Click on Image to View Larger

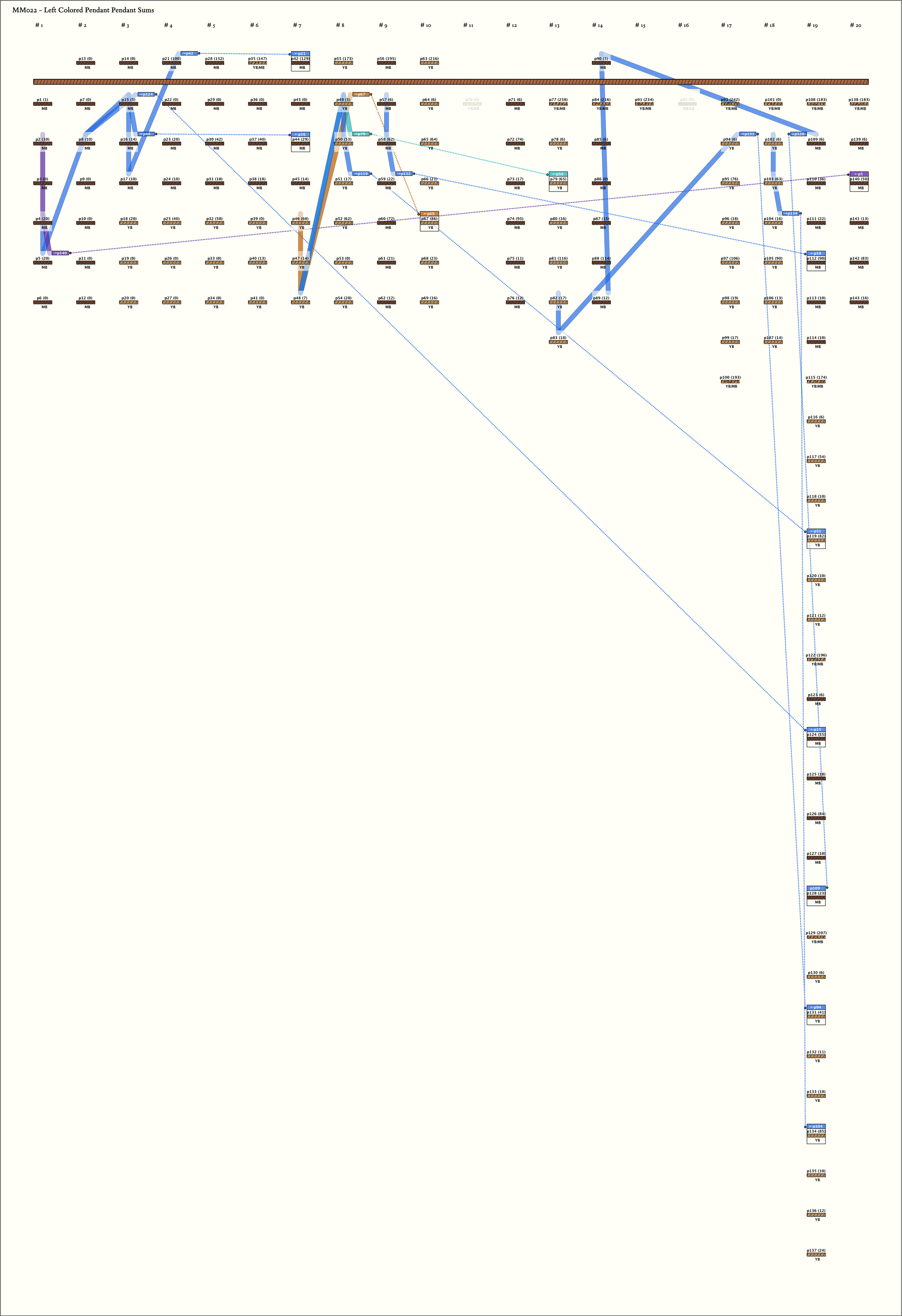

Left Handed Sums: # Sums = 11, Max # Summands = 4, (Min, Mean, Max) Sum Values = (23, 67, 129)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

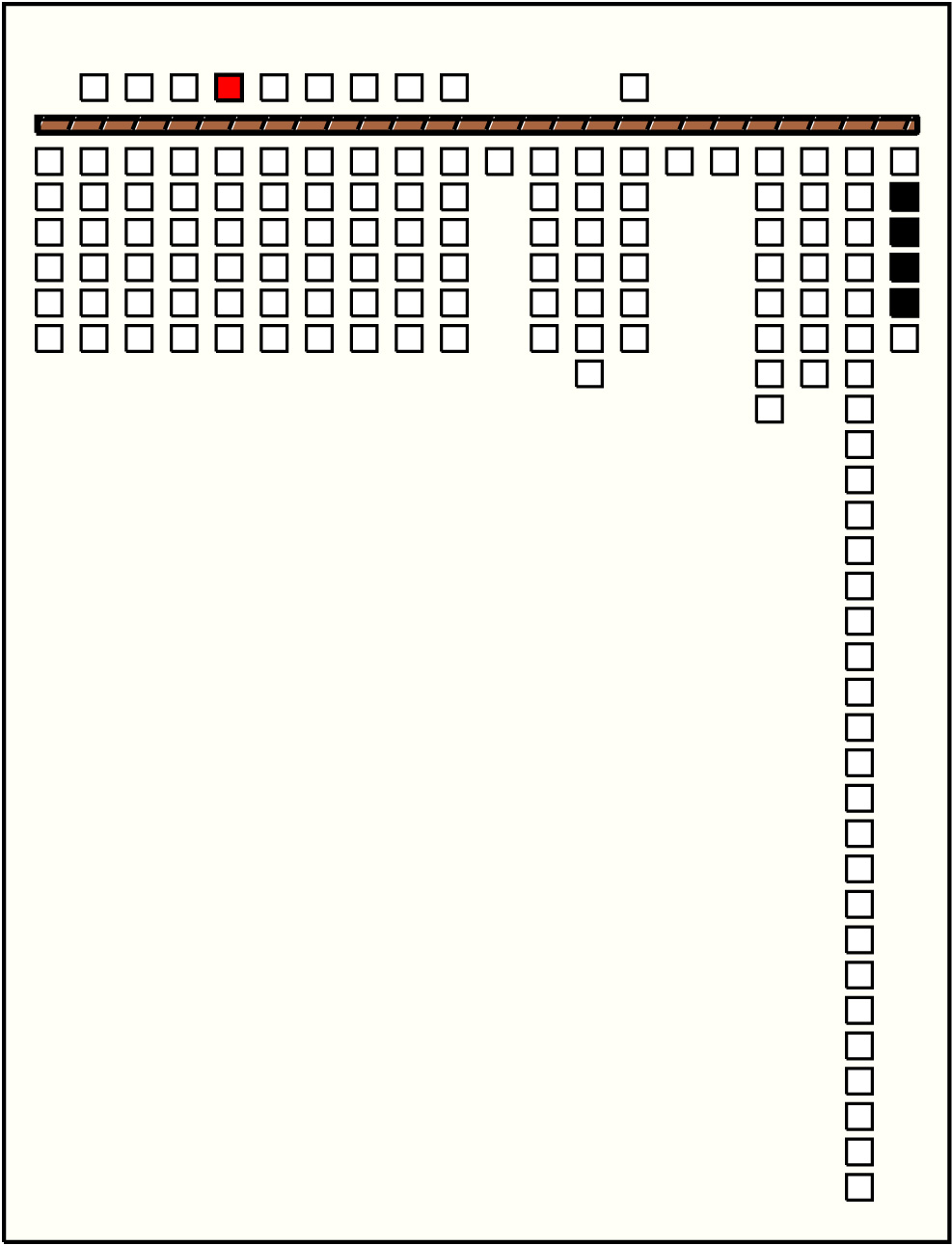

1	p28_{5, 1} : 152_MB	152	4	p139: 6_MB + p140: 50_MB + p141: 13_MB + p142: 83_MB

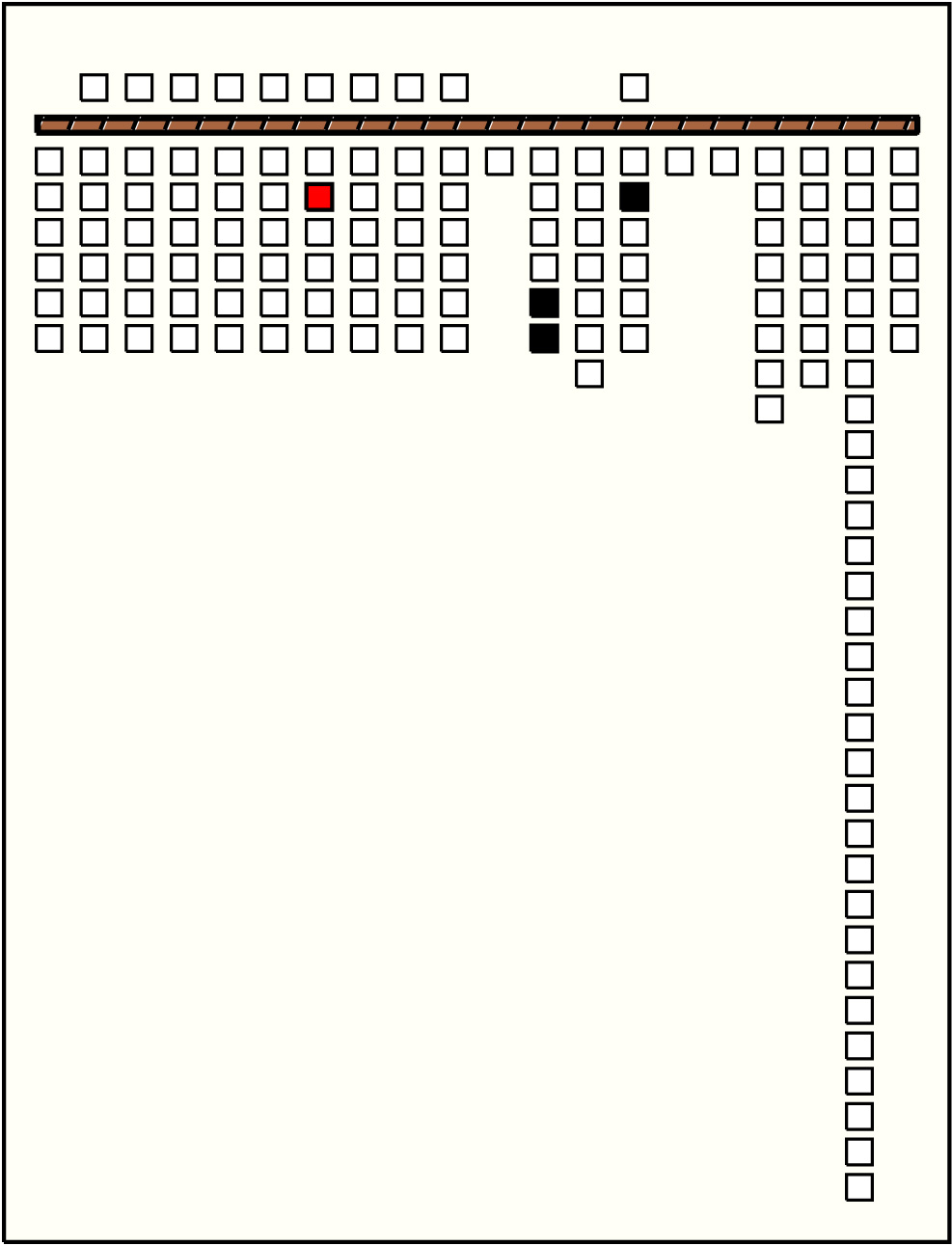

2	p44_{7, 3} : 29_MB	29	3	p75: 11_MB + p76: 12_MB + p85: 6_MB

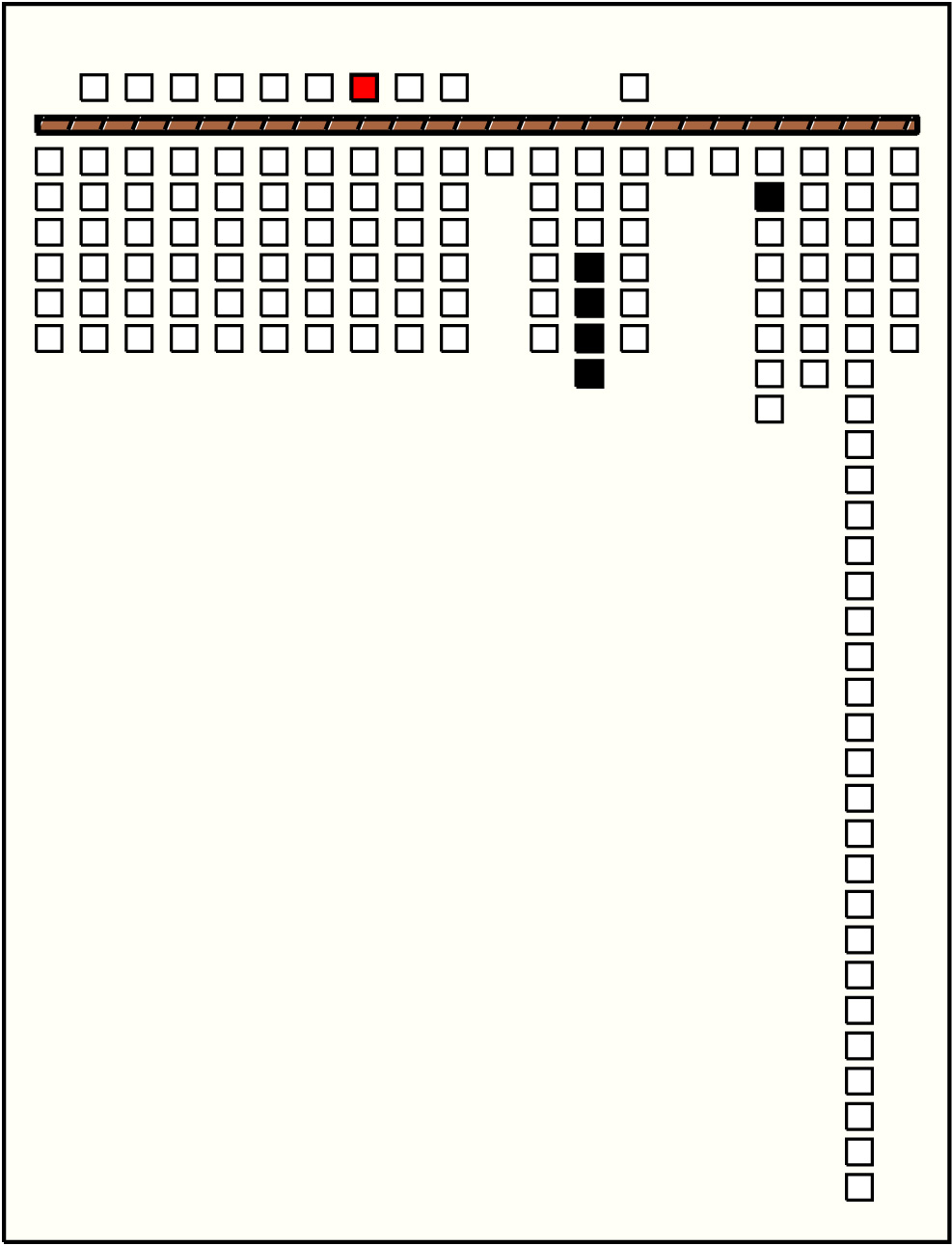

3	p55_{8, 7} : 173_YB	173	5	p80: 16_YB + p81: 116_YB + p82: 17_YB + p83: 18_YB + p94: 6_YB

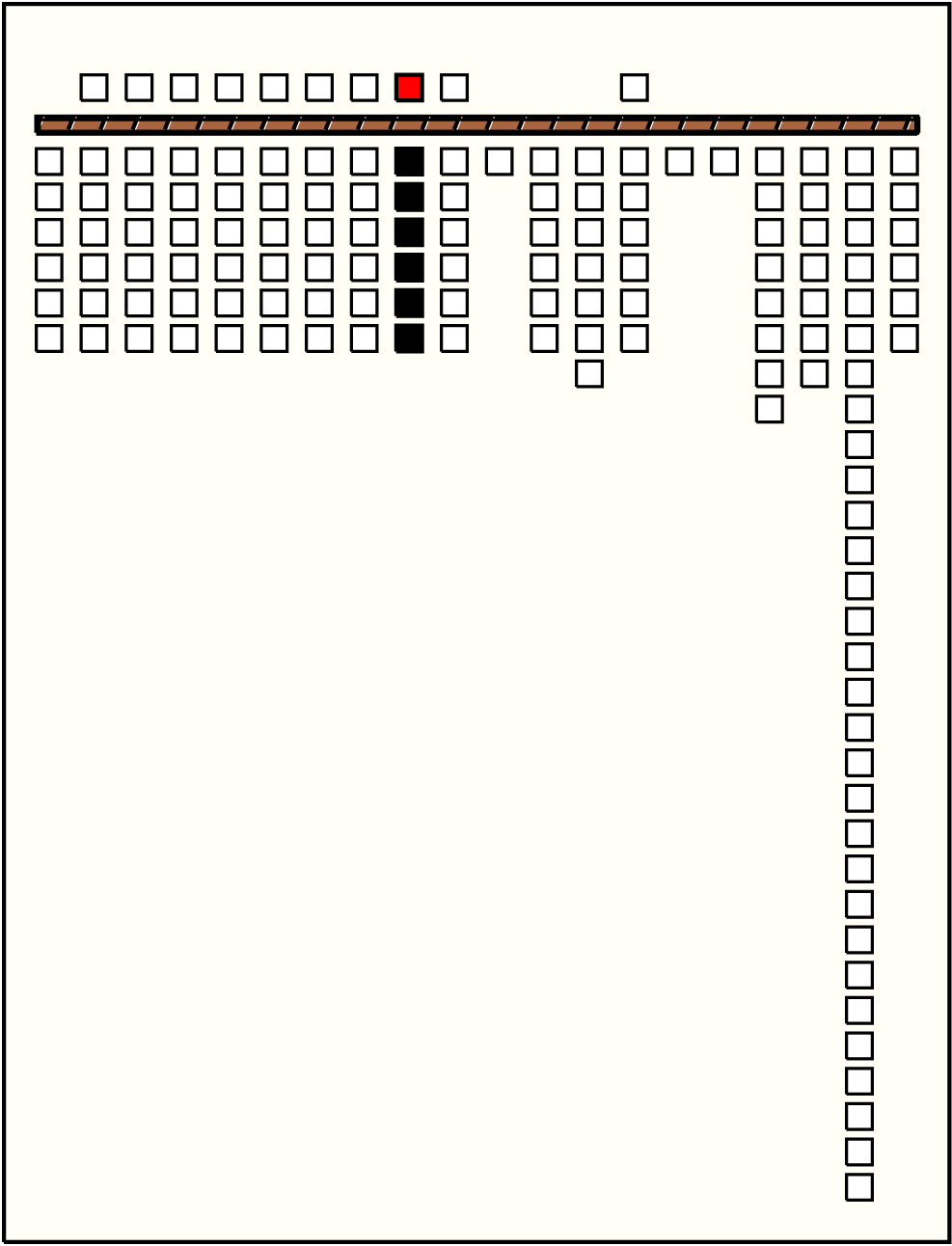

4	p56_{9, 1} : 195_MB	195	6	p57: 6_MB + p58: 62_MB + p59: 22_MB + p60: 72_MB + p61: 21_MB + p62: 12_MB

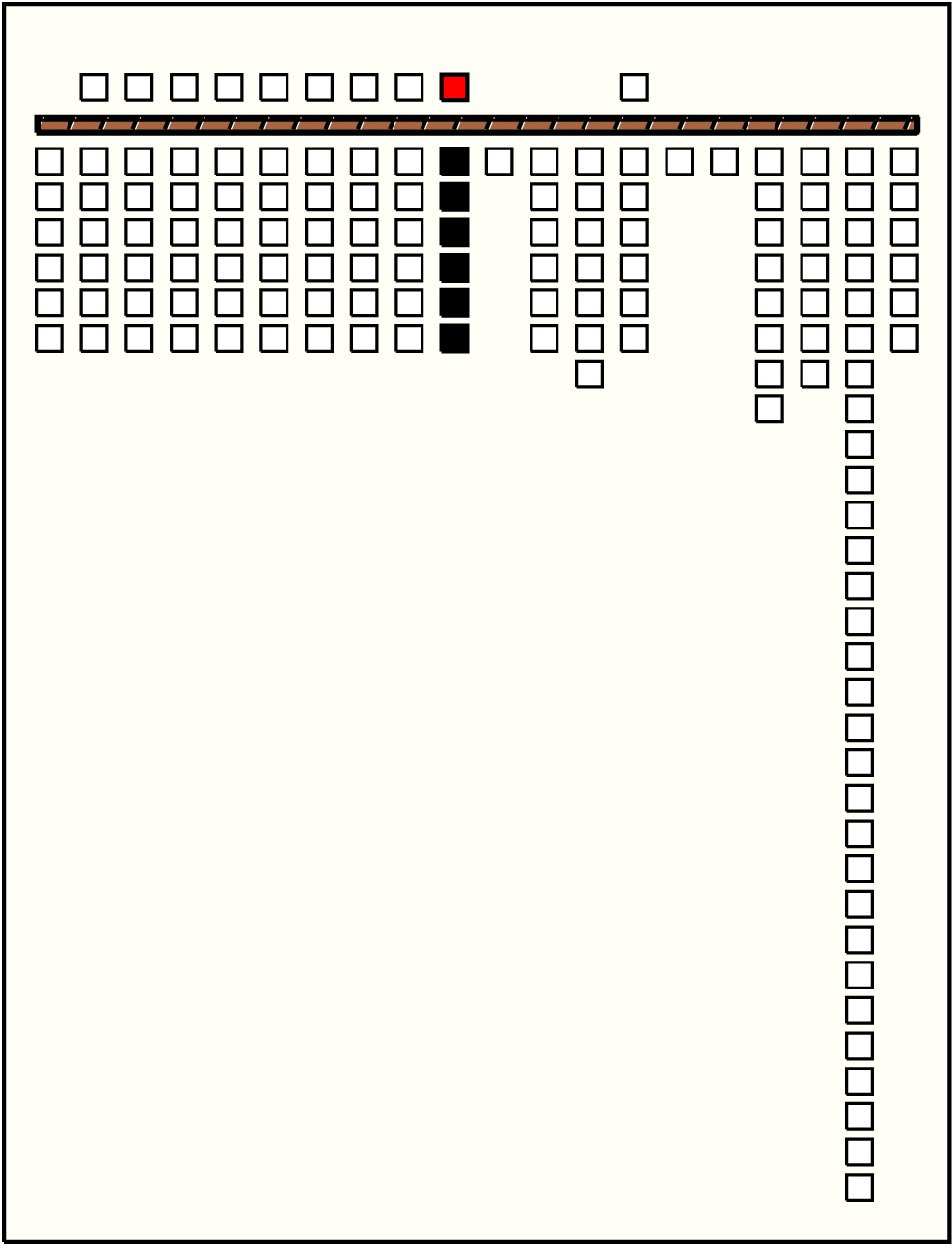

5	p63_{10, 1} : 216_YB	216	6	p64: 6_YB + p65: 64_YB + p66: 21_YB + p67: 86_YB + p68: 23_YB + p69: 16_YB

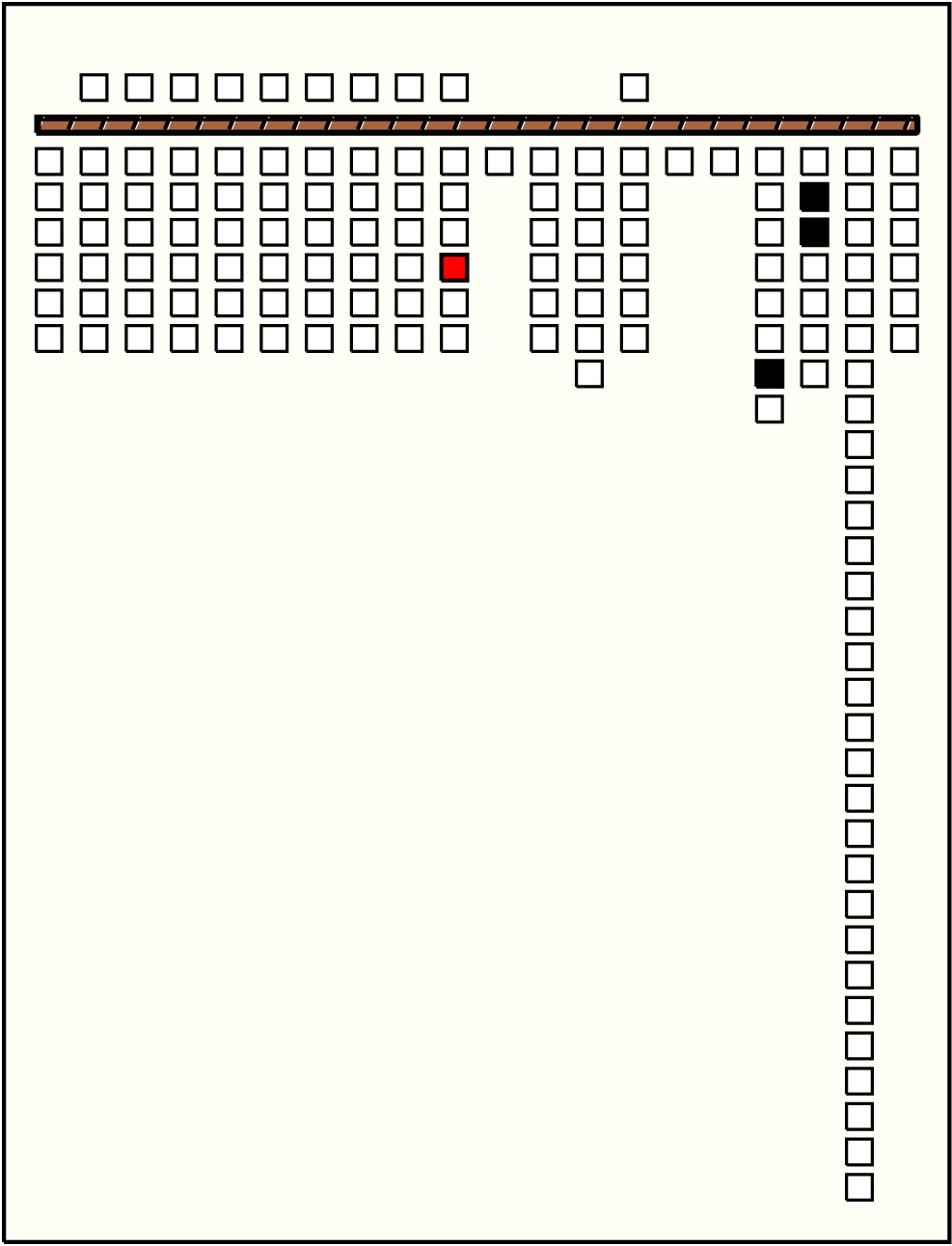

6	p67_{10, 5} : 86_YB	86	3	p99: 17_YB + p102: 6_YB + p103: 63_YB

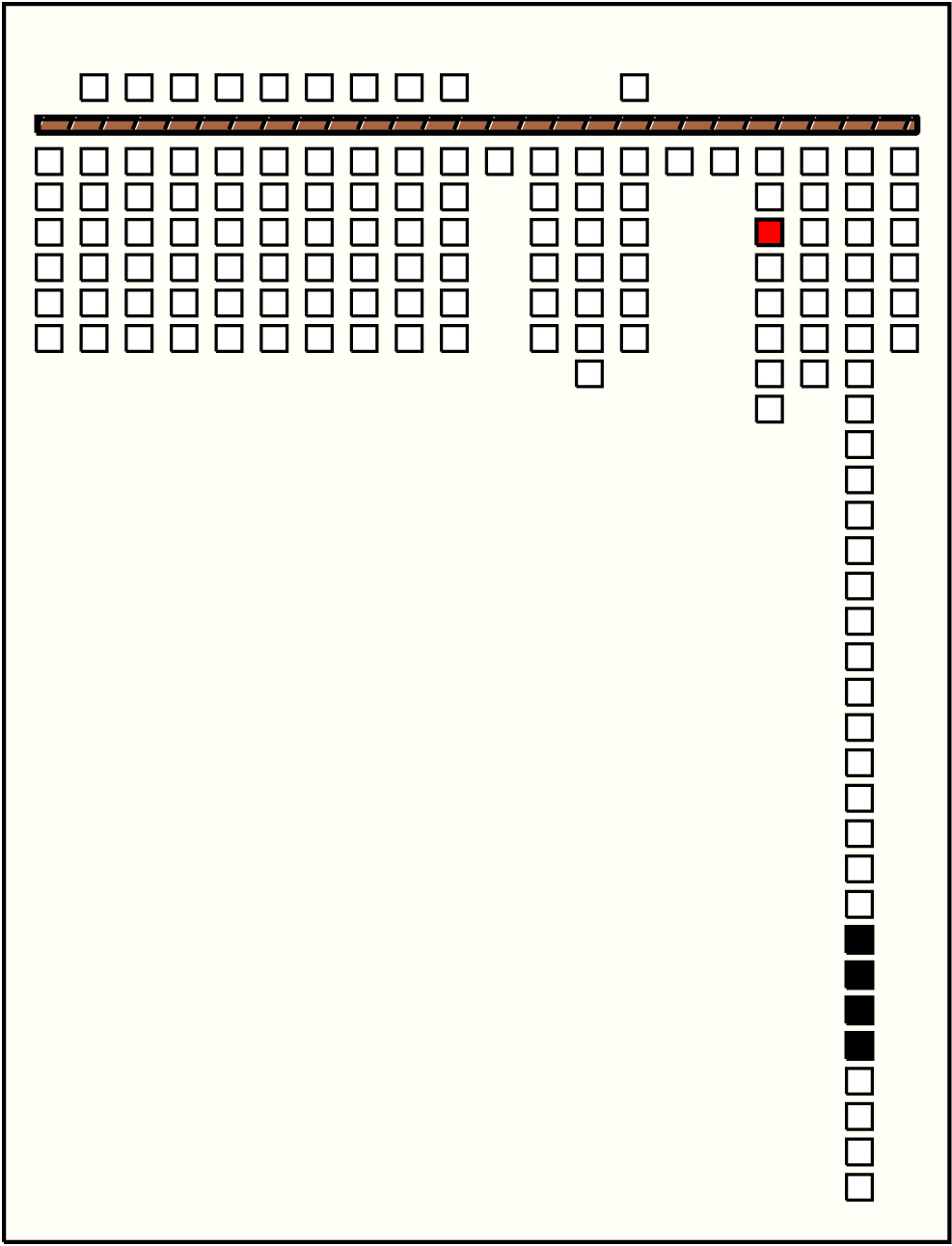

7	p95_{17, 3} : 76_YB	76	4	p130: 6_YB + p131: 41_YB + p132: 11_YB + p133: 18_YB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p42_{7, 1} : 129_MB	129	4	p15: 5_MB + p16: 14_MB + p17: 10_MB + p21: 100_MB

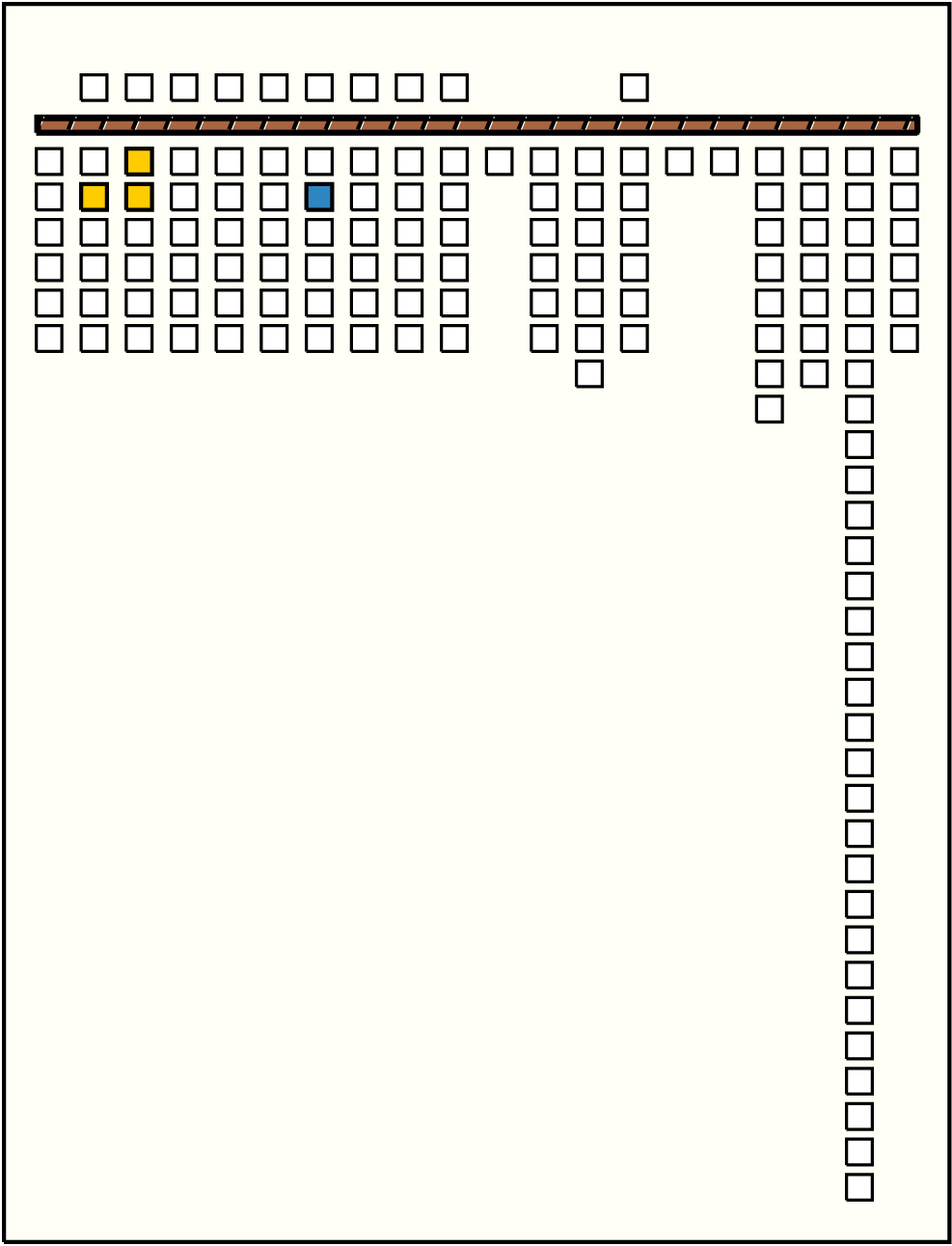

2	p44_{7, 3} : 29_MB	29	3	p8: 10_MB + p15: 5_MB + p16: 14_MB

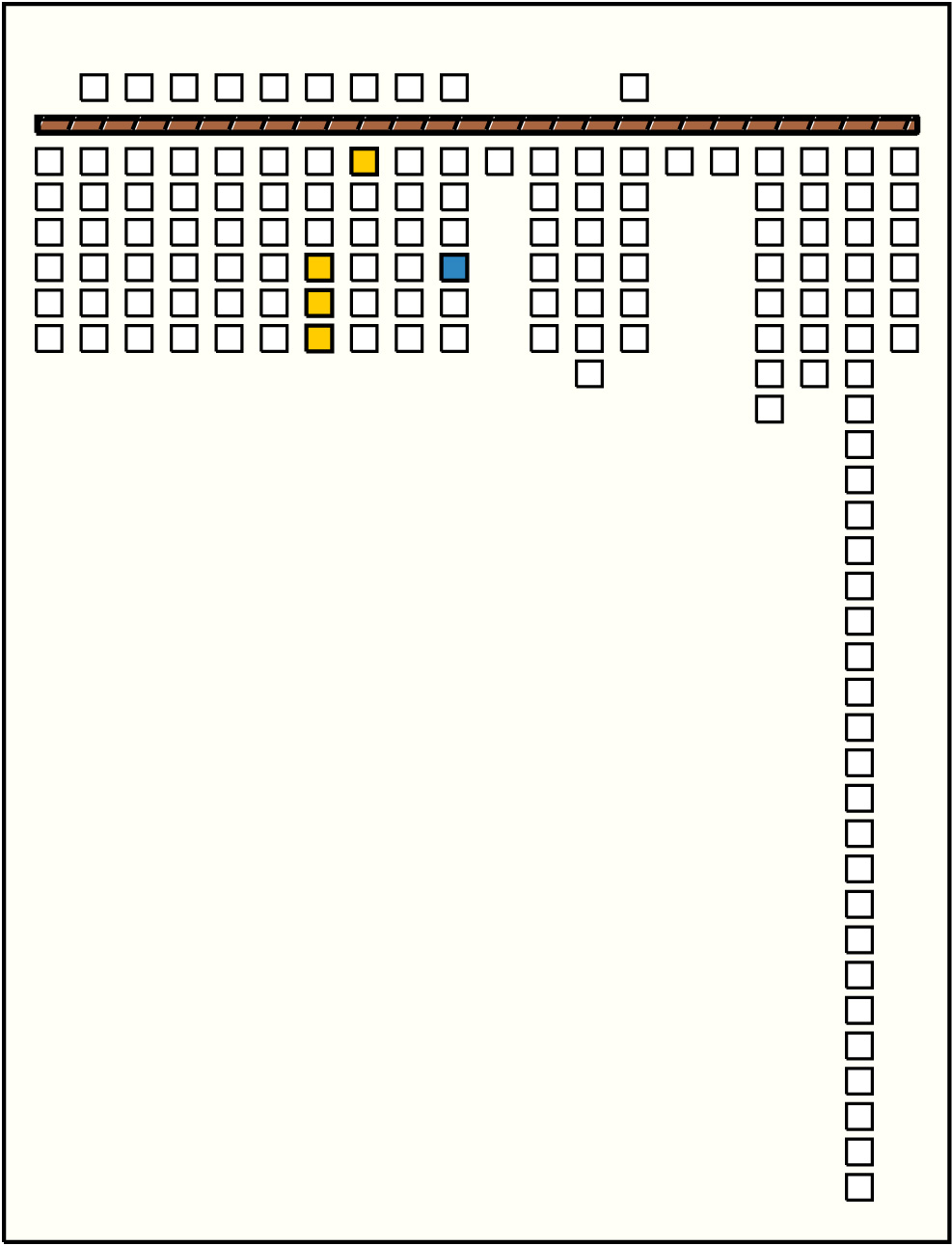

3	p67_{10, 5} : 86_YB	86	4	p46: 60_YB + p47: 14_YB + p48: 7_YB + p49: 5_YB
4	p79_{13, 3} : 65_YB	65	3	p48: 7_YB + p49: 5_YB + p50: 53_YB

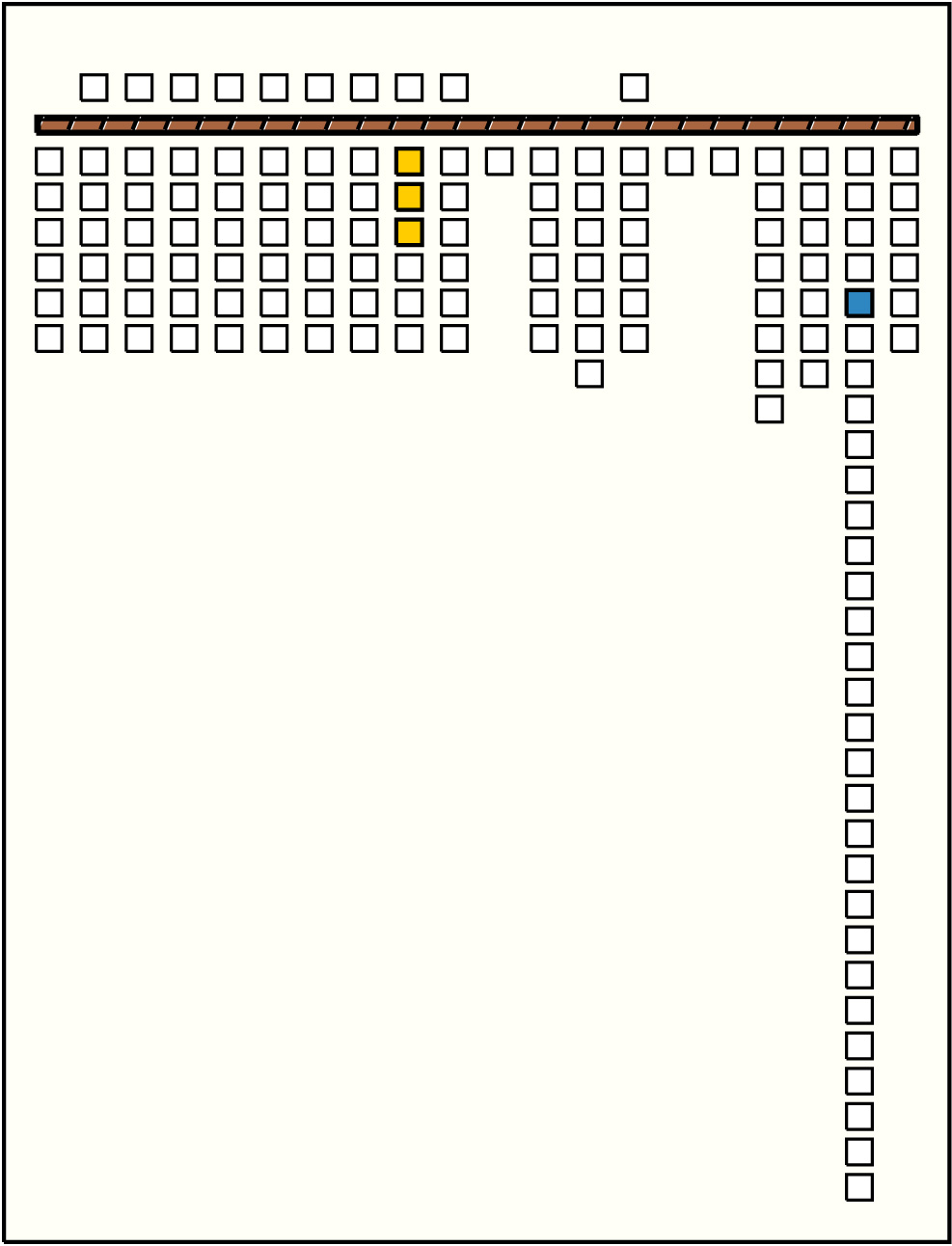

5	p112_{19, 5} : 90_MB	90	3	p57: 6_MB + p58: 62_MB + p59: 22_MB

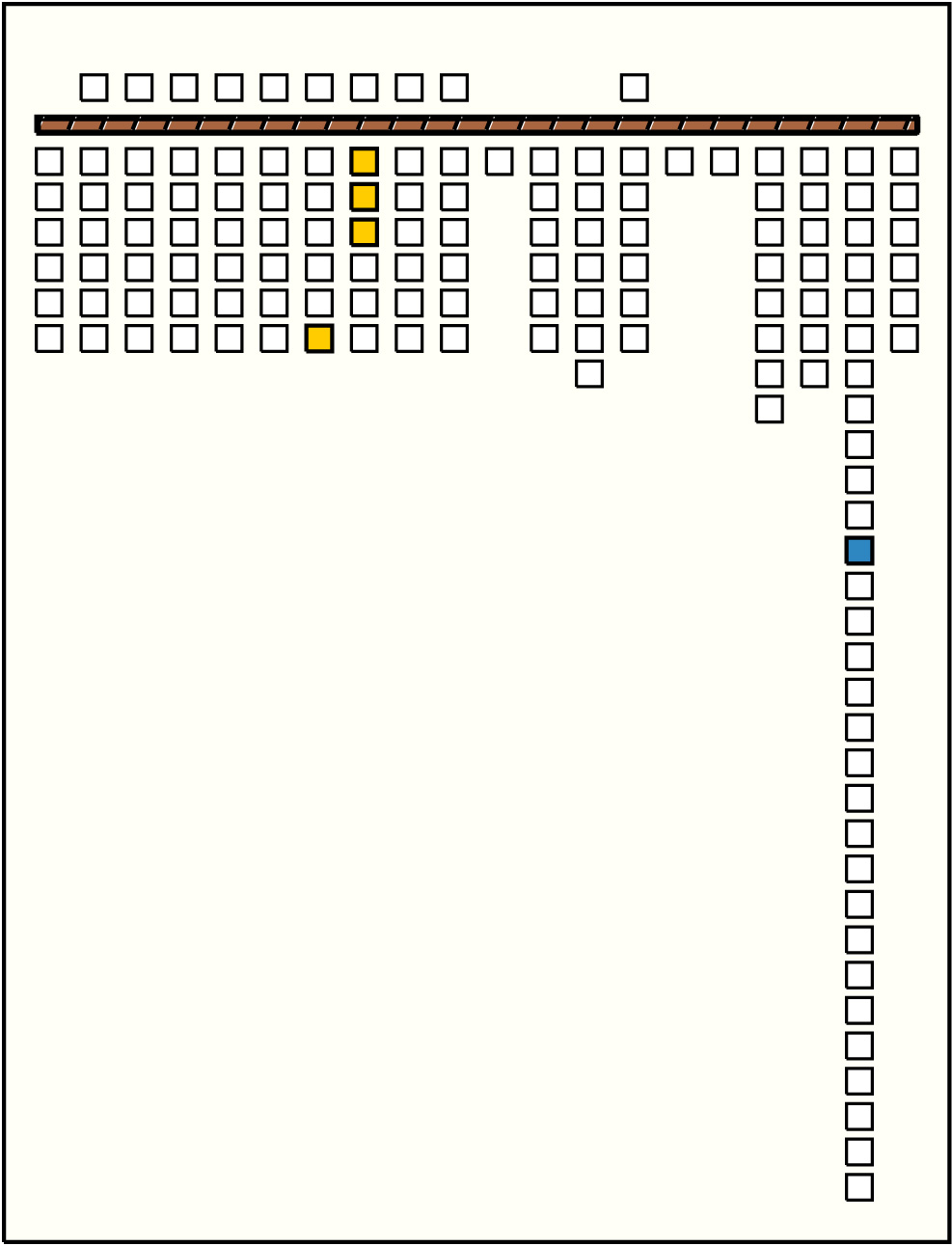

6	p119_{19, 12} : 82_YB	82	4	p48: 7_YB + p49: 5_YB + p50: 53_YB + p51: 17_YB

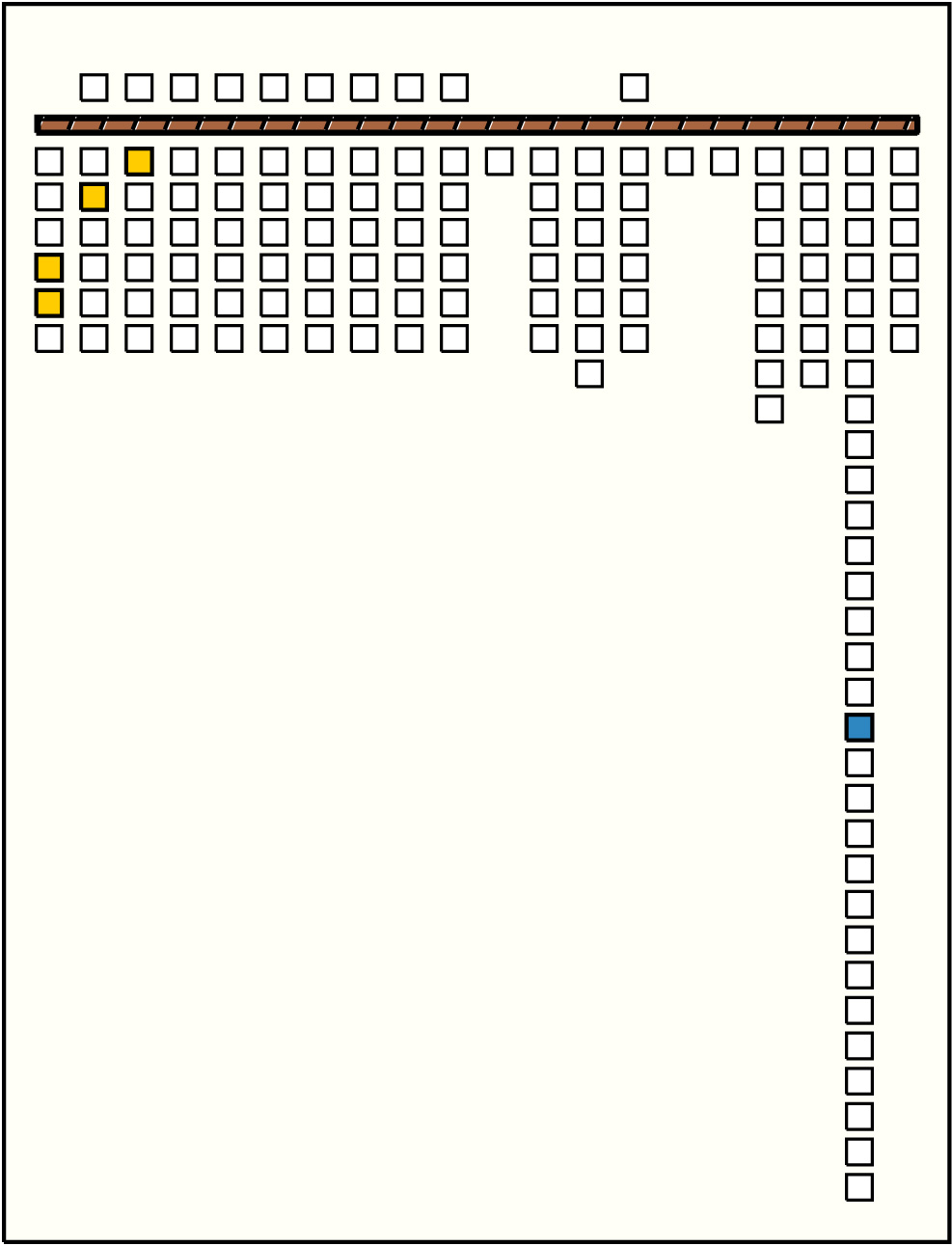

7	p124_{19, 17} : 55_MB	55	4	p4: 20_MB + p5: 20_MB + p8: 10_MB + p15: 5_MB

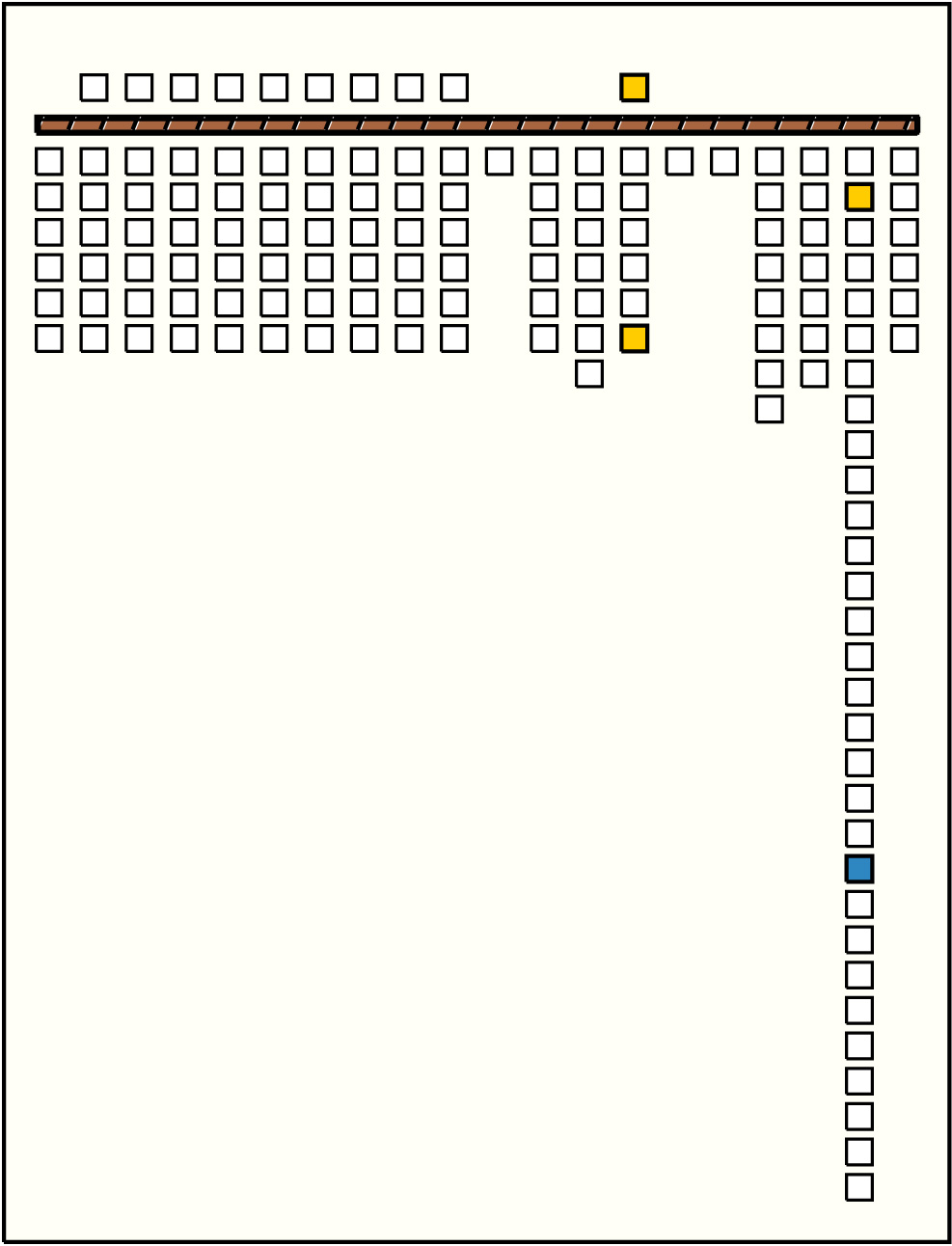

8	p128_{19, 21} : 23_MB	23	3	p89: 12_MB + p90: 5_MB + p109: 6_MB

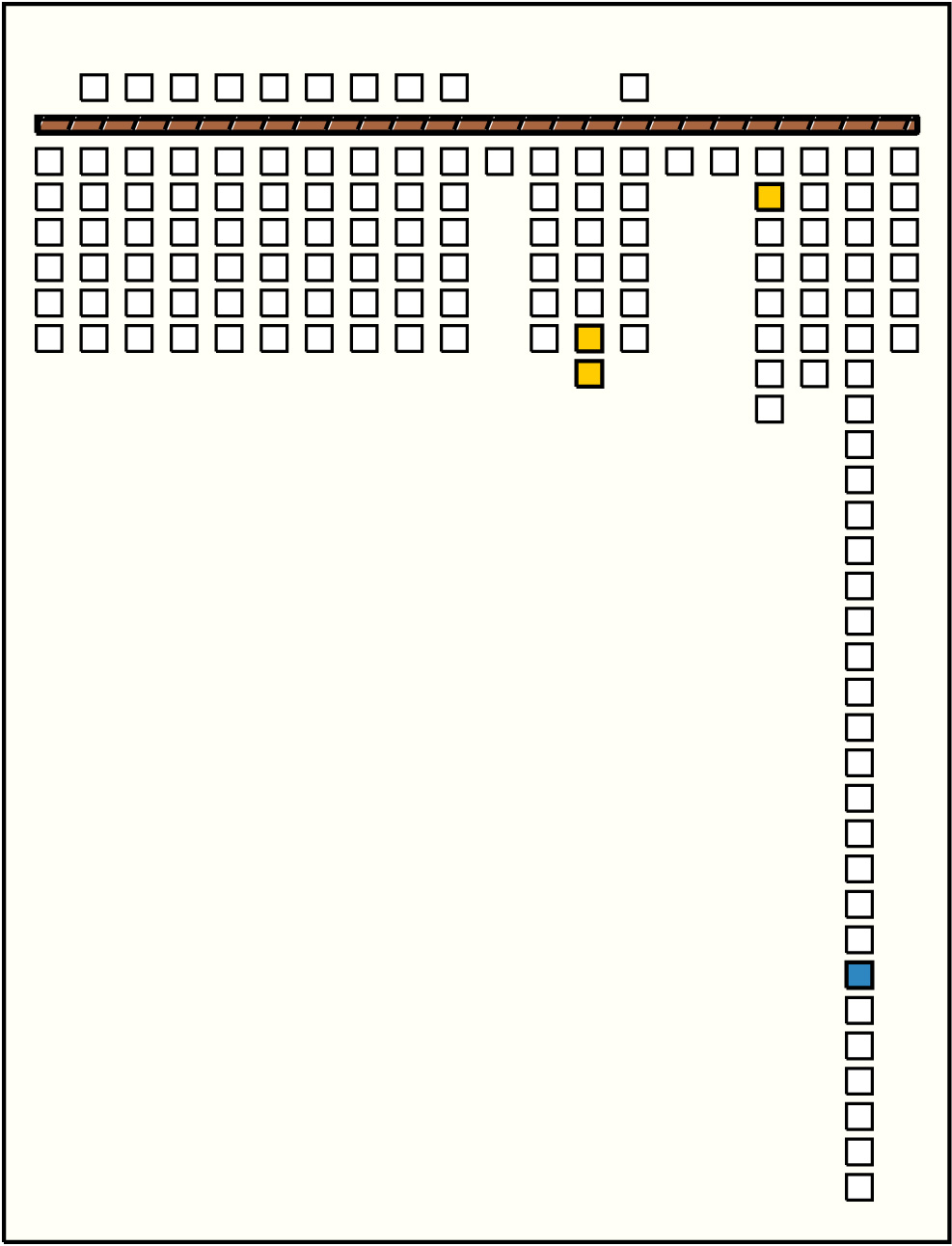

9	p131_{19, 24} : 41_YB	41	3	p82: 17_YB + p83: 18_YB + p94: 6_YB

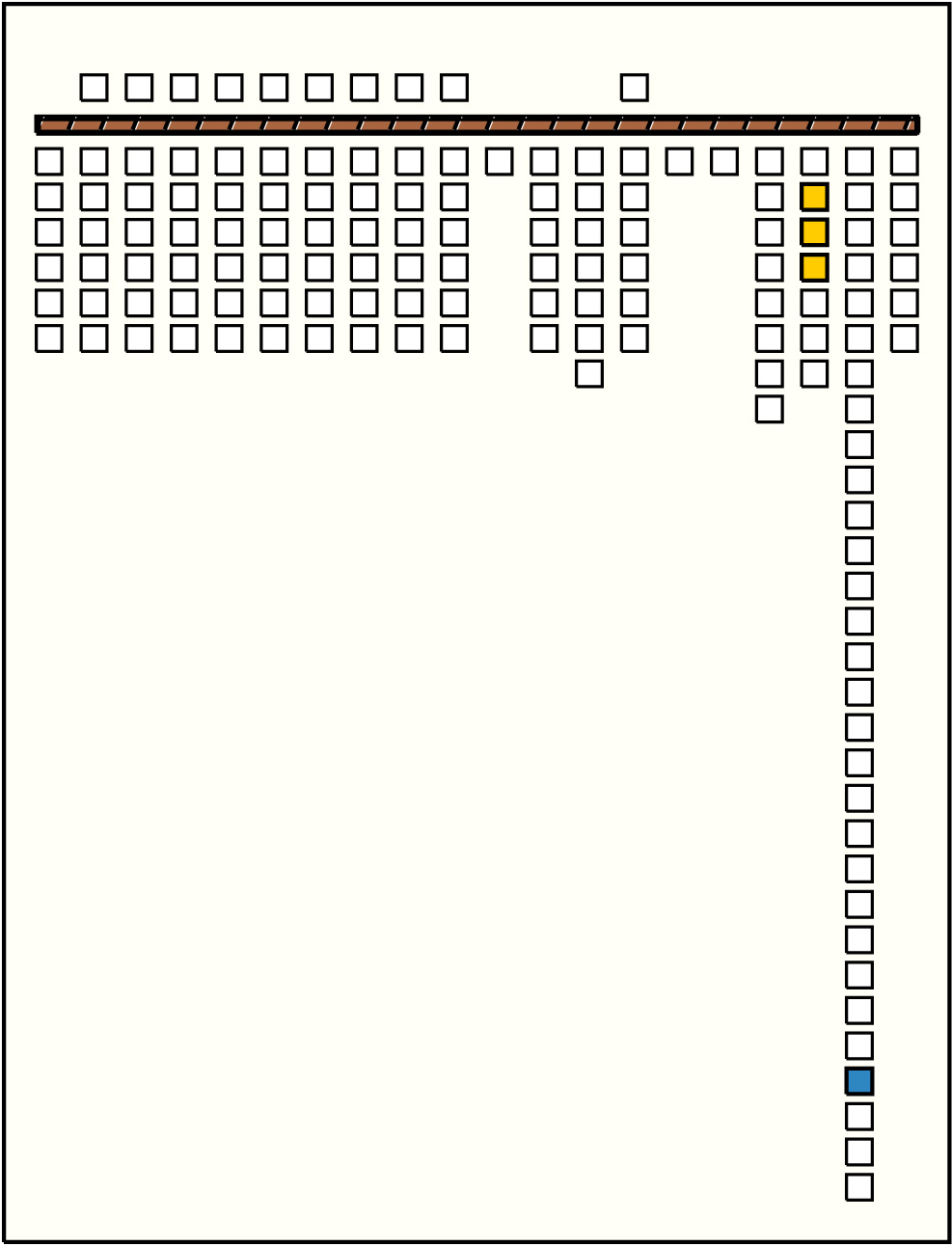

10	p134_{19, 27} : 85_YB	85	3	p102: 6_YB + p103: 63_YB + p104: 16_YB
11	p140_{20, 3} : 50_MB	50	3	p2: 10_MB + p4: 20_MB + p5: 20_MB

Khipu Notes:

Notes and Obeservations for Khipu MM022

45s3: broken ≥2L knot (unidentifiable) on end of string
T10: this is not a loop-through top cord like the others; it attaches one primary cord to the other
100: fragile; string held together by a single fraying thread
109s2: highly-damaged 1E knot, knot direction uncertain
114s2: broken and unraveling long knot; number of turns uncertain
128s2: might be 8L (very tight long knot)
130s1: at 2.0cm single thread holding this pendant together

Primary Cord Notes

Notes: ***Read from left to right as mounted. Note that this khipu consists of two primary cords tied together. Primary cord 1 has one string attached to it and was recorded separately. This is the record for primary cord 2.
All khipus I have studied are currently designated "MM", following convention in the field (and until a more suitable replacement convention is agreed upon) - Manuel Medrano
