QU002/KH0590 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

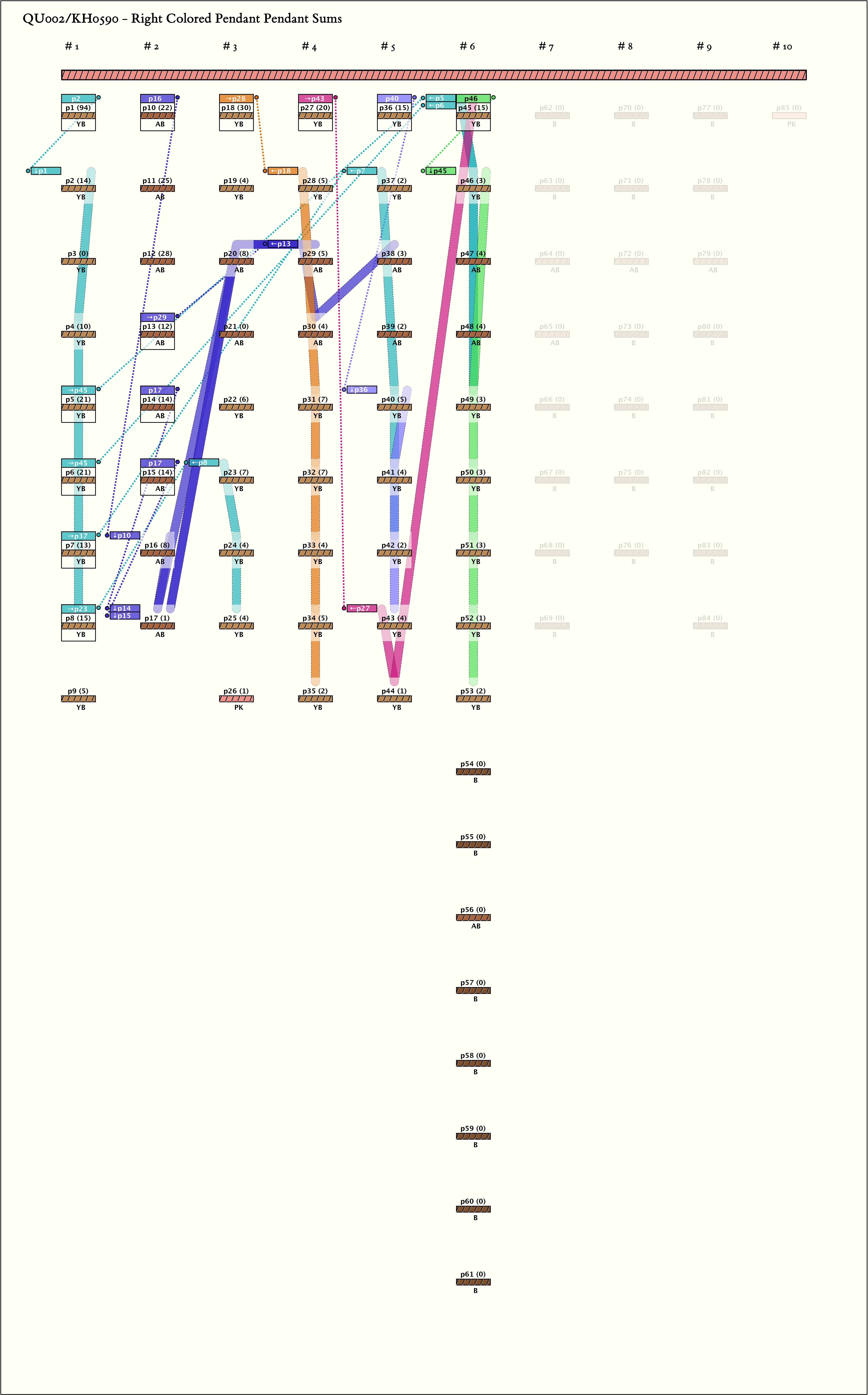

Right Handed Sums: # Sums = 13, Max # Summands = 6, (Min, Mean, Max) Sum Values = (12, 24, 94)
Click on Image to View Larger

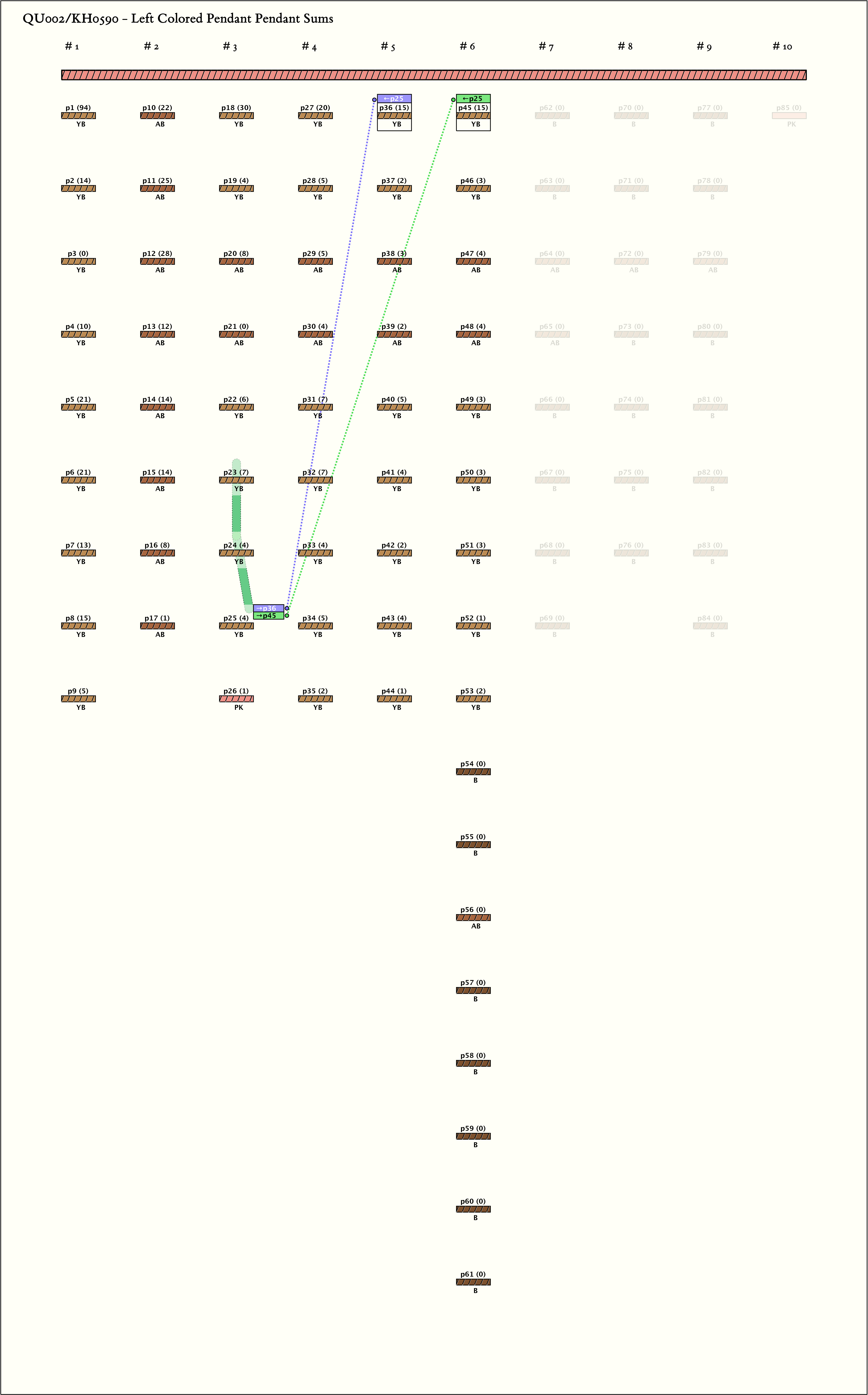

Left Handed Sums: # Sums = 2, Max # Summands = 3, (Min, Mean, Max) Sum Values = (15, 15, 15)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

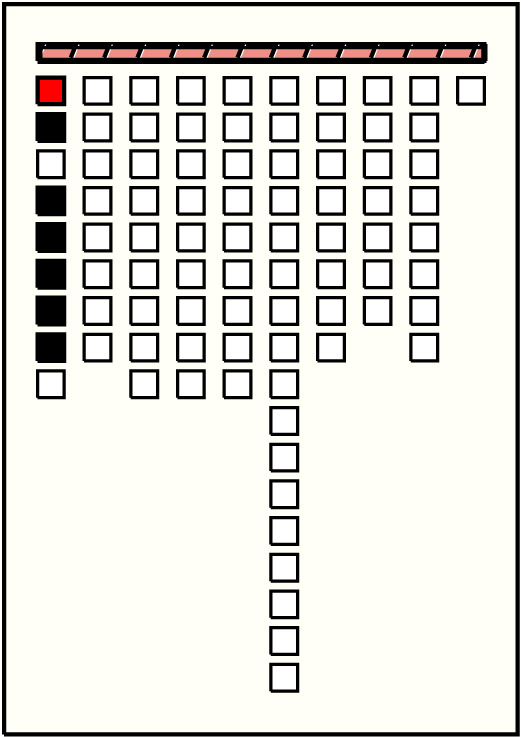

1	p1_{1, 1} : 94_YB	94	6	p2: 14_YB + p4: 10_YB + p5: 21_YB + p6: 21_YB + p7: 13_YB + p8: 15_YB
2	p5_{1, 5} : 21_YB	21	3	p45: 15_YB + p46: 3_YB + p49: 3_YB

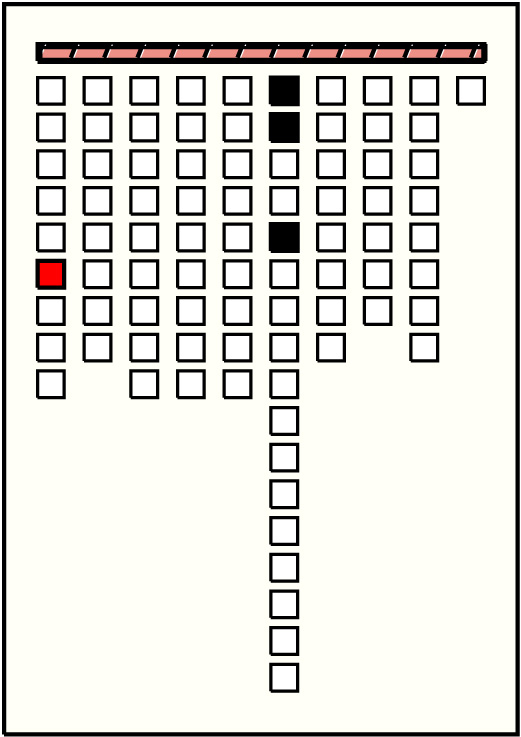

3	p6_{1, 6} : 21_YB	21	3	p45: 15_YB + p46: 3_YB + p49: 3_YB

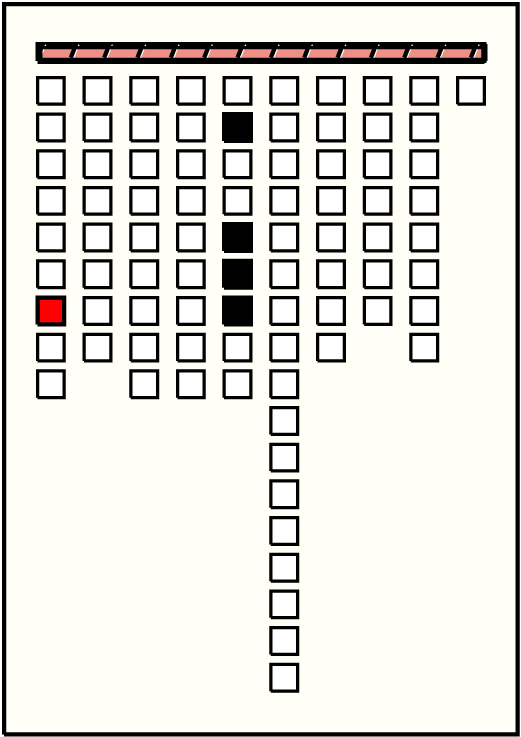

4	p7_{1, 7} : 13_YB	13	4	p37: 2_YB + p40: 5_YB + p41: 4_YB + p42: 2_YB

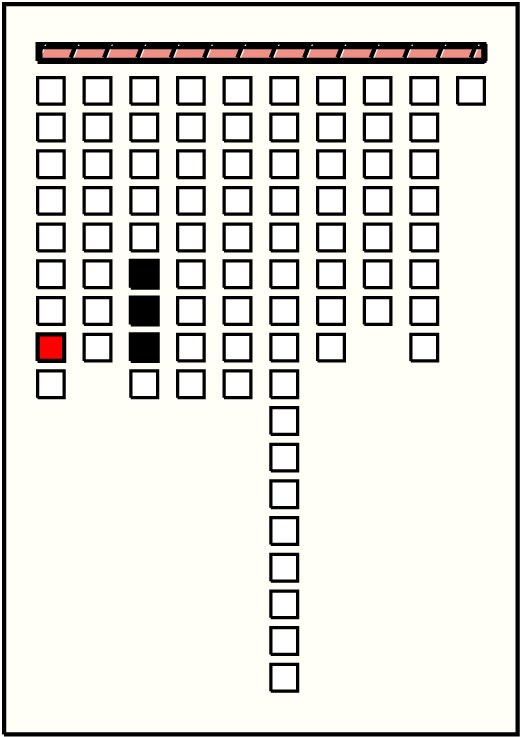

5	p8_{1, 8} : 15_YB	15	3	p23: 7_YB + p24: 4_YB + p25: 4_YB

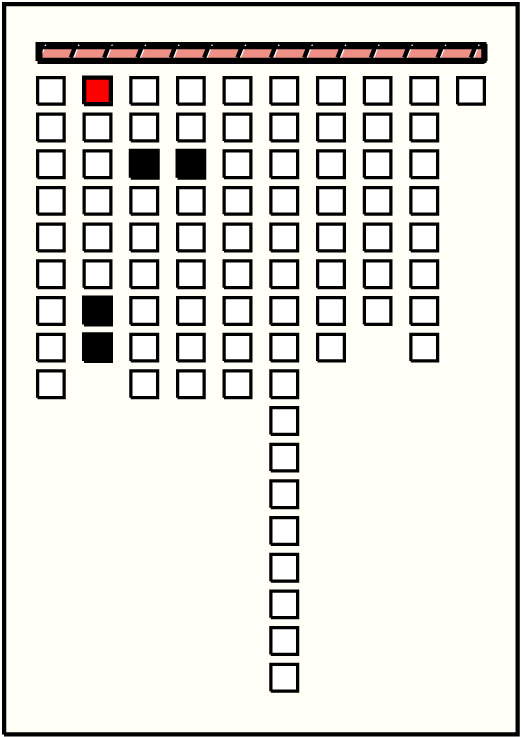

6	p10_{2, 1} : 22_AB	22	4	p16: 8_AB + p17: 1_AB + p20: 8_AB + p29: 5_AB

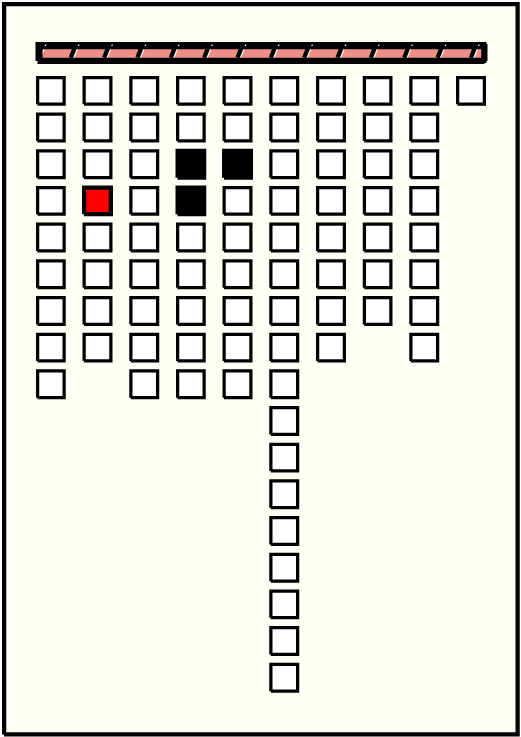

7	p13_{2, 4} : 12_AB	12	3	p29: 5_AB + p30: 4_AB + p38: 3_AB

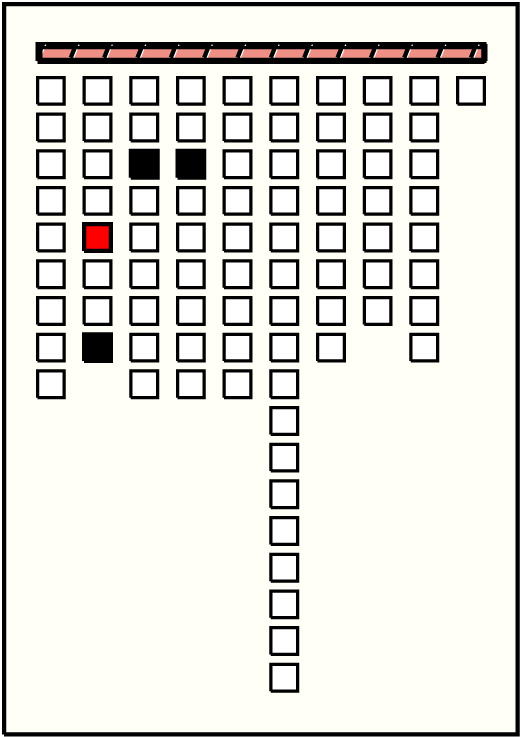

8	p14_{2, 5} : 14_AB	14	3	p17: 1_AB + p20: 8_AB + p29: 5_AB

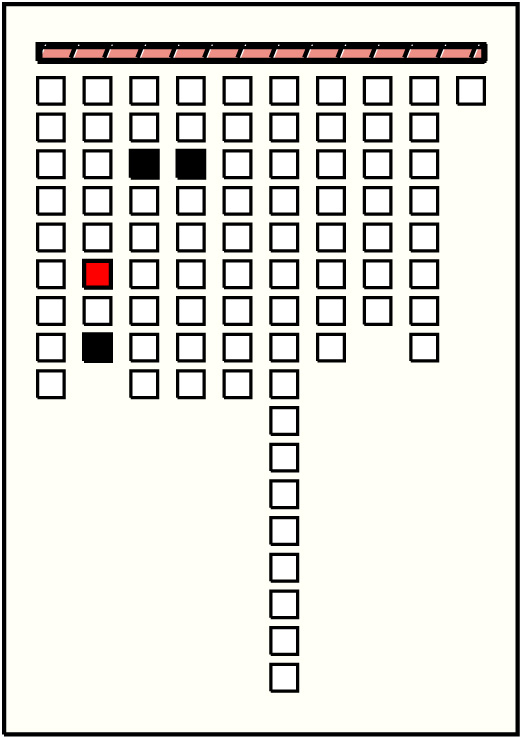

9	p15_{2, 6} : 14_AB	14	3	p17: 1_AB + p20: 8_AB + p29: 5_AB

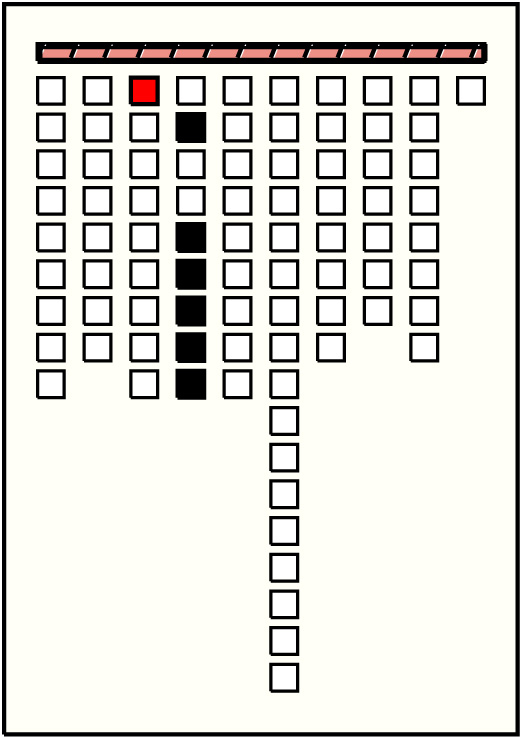

10	p18_{3, 1} : 30_YB	30	6	p28: 5_YB + p31: 7_YB + p32: 7_YB + p33: 4_YB + p34: 5_YB + p35: 2_YB

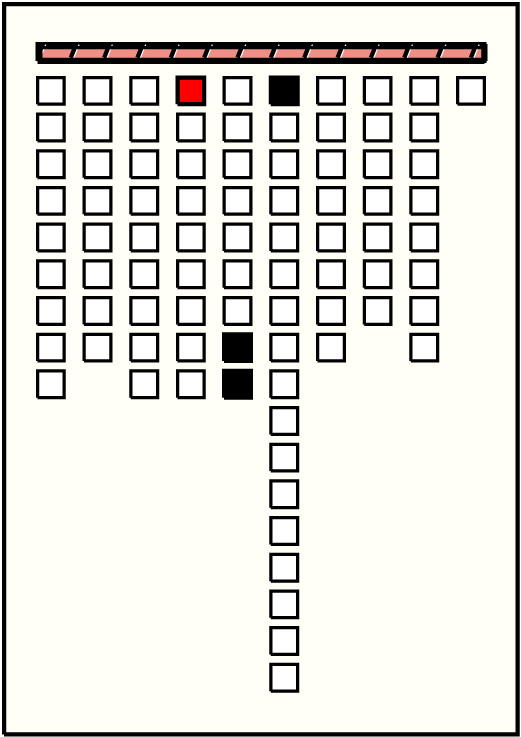

11	p27_{4, 1} : 20_YB	20	3	p43: 4_YB + p44: 1_YB + p45: 15_YB

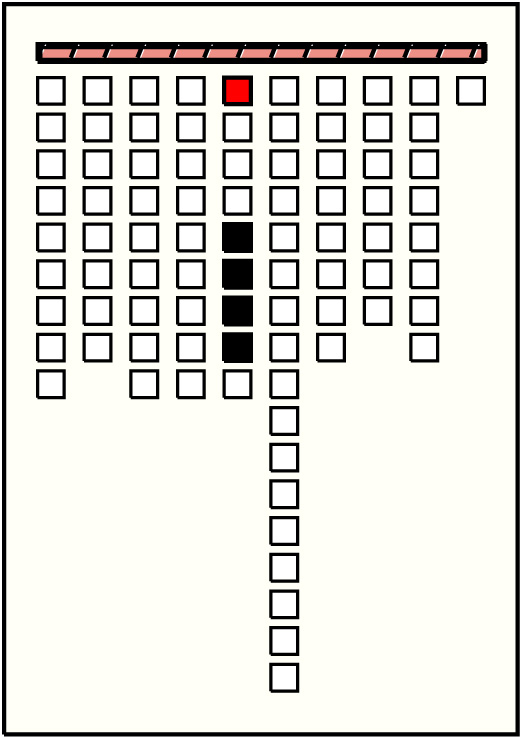

12	p36_{5, 1} : 15_YB	15	4	p40: 5_YB + p41: 4_YB + p42: 2_YB + p43: 4_YB

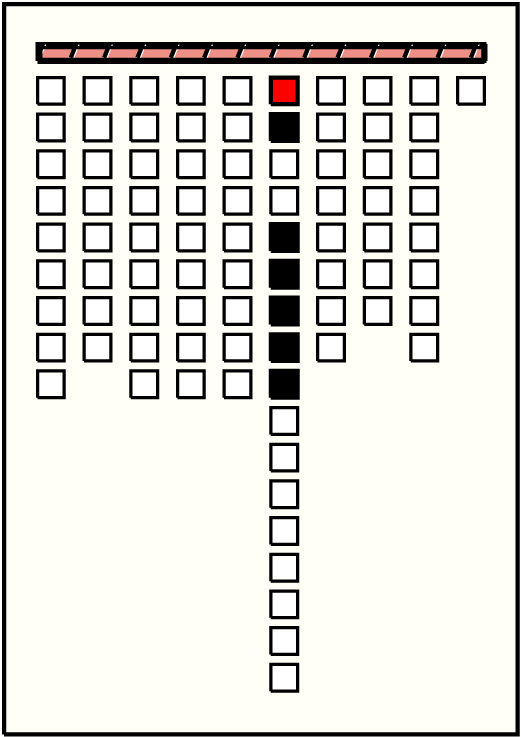

13	p45_{6, 1} : 15_YB	15	6	p46: 3_YB + p49: 3_YB + p50: 3_YB + p51: 3_YB + p52: 1_YB + p53: 2_YB

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

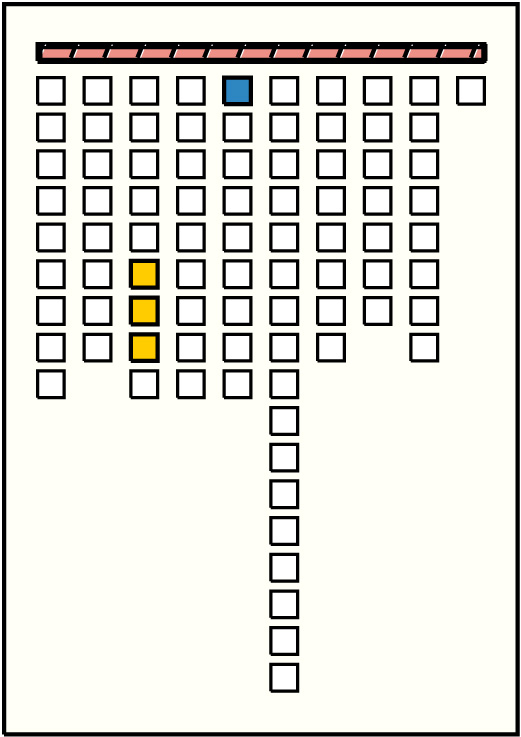

1			p36_{5, 1} : 15_YB	15	3	p23: 7_YB + p24: 4_YB + p25: 4_YB

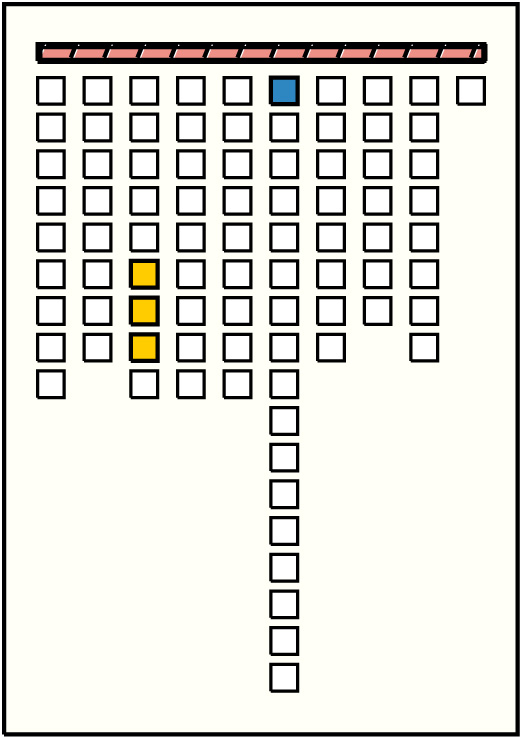

2			p45_{6, 1} : 15_YB	15	3	p23: 7_YB + p24: 4_YB + p25: 4_YB

Khipu Notes:

Beginning with Pendant 73, the cords seem to be in a position where they would not hang below main cord but rather "stand" like a top cord.
First pendant in every group has two decimals and a knot value higher than any of its pendants except Group 2.
Lowest knot value cord is always last in group except in Group 6.
Groups 5 and 6 both have knot total of 38. Total knot values from Group 1 to Group 6 get progressively greater. 218, 125, 69, 59, 38, 38.
Groups 3, 4, and 5 share a color pattern: 2 YB 2 AB, 5 YB.
