UR1091/KH0104 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

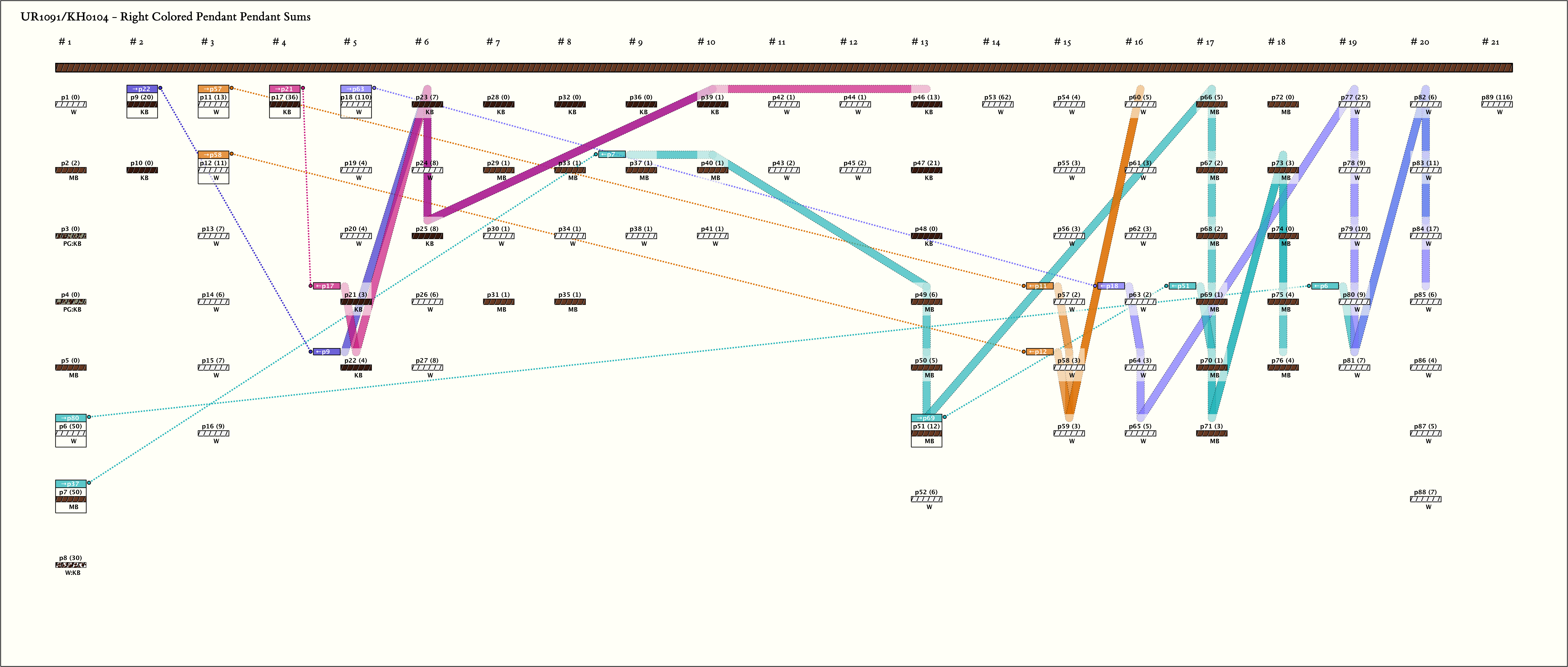

Right Handed Sums: # Sums = 8, Max # Summands = 14, (Min, Mean, Max) Sum Values = (11, 38, 110)
Click on Image to View Larger

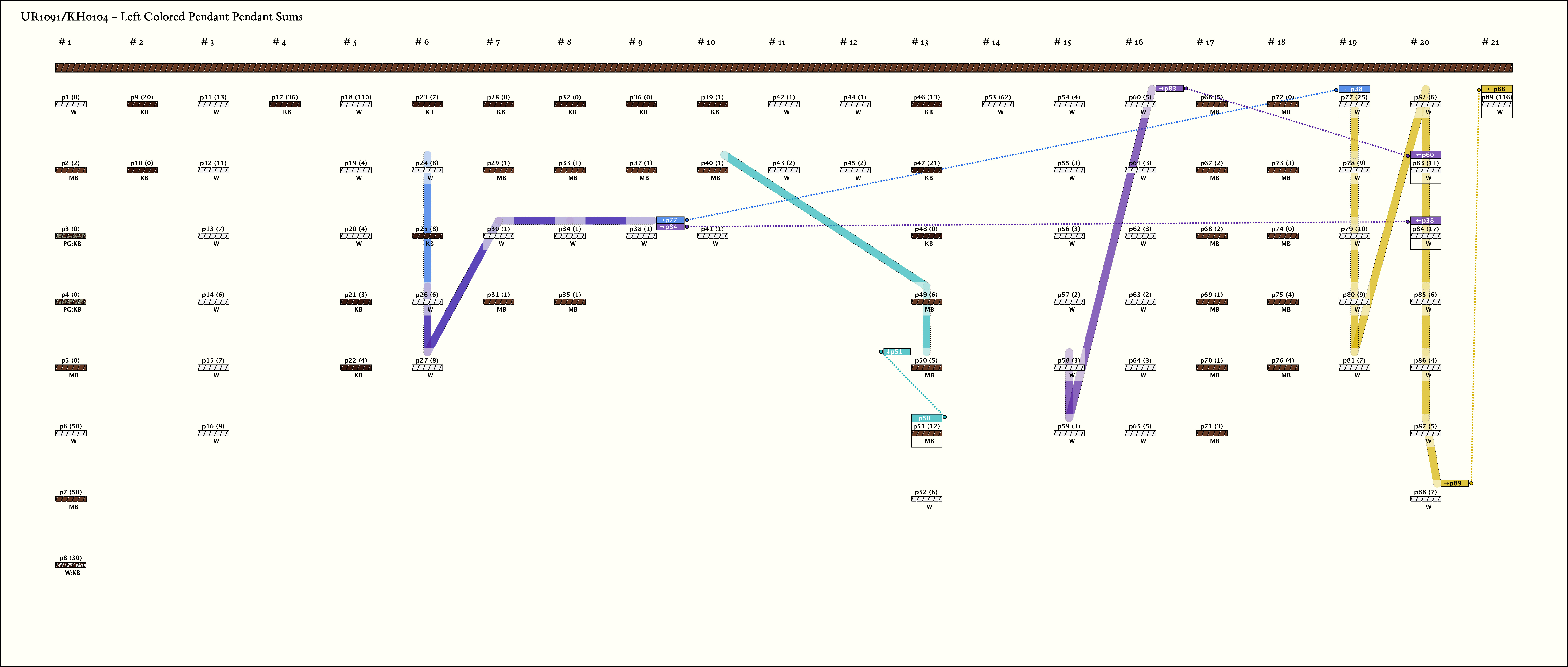

Left Handed Sums: # Sums = 5, Max # Summands = 12, (Min, Mean, Max) Sum Values = (11, 36, 116)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

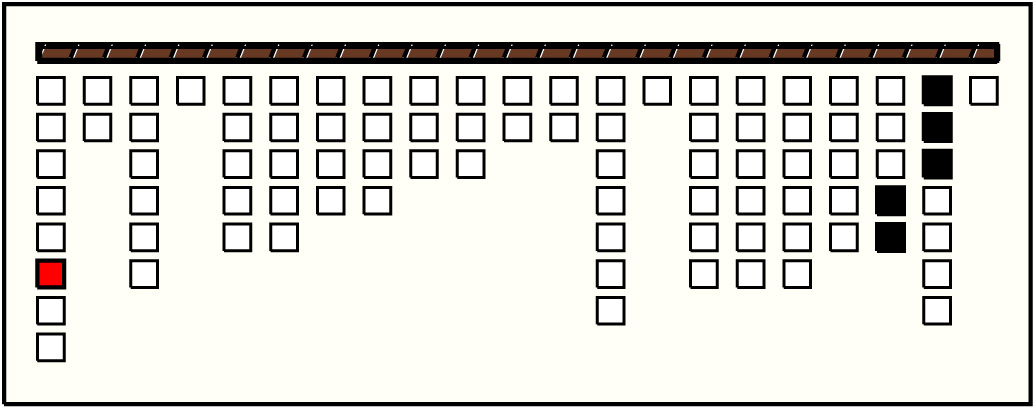

1	p6_{1, 6} : 50_W	50	5	p80: 9_W + p81: 7_W + p82: 6_W + p83: 11_W + p84: 17_W
2	p7_{1, 7} : 50_MB	50	14	p37: 1_MB + p40: 1_MB + p49: 6_MB + p50: 5_MB + p51: 12_MB + p66: 5_MB + p67: 2_MB + p68: 2_MB + p69: 1_MB + p70: 1_MB + p71: 3_MB + p73: 3_MB + p75: 4_MB + p76: 4_MB
3	p9_{2, 1} : 20_KB	20	4	p22: 4_KB + p23: 7_KB + p25: 8_KB + p39: 1_KB
4	p11_{3, 1} : 13_W	13	4	p57: 2_W + p58: 3_W + p59: 3_W + p60: 5_W

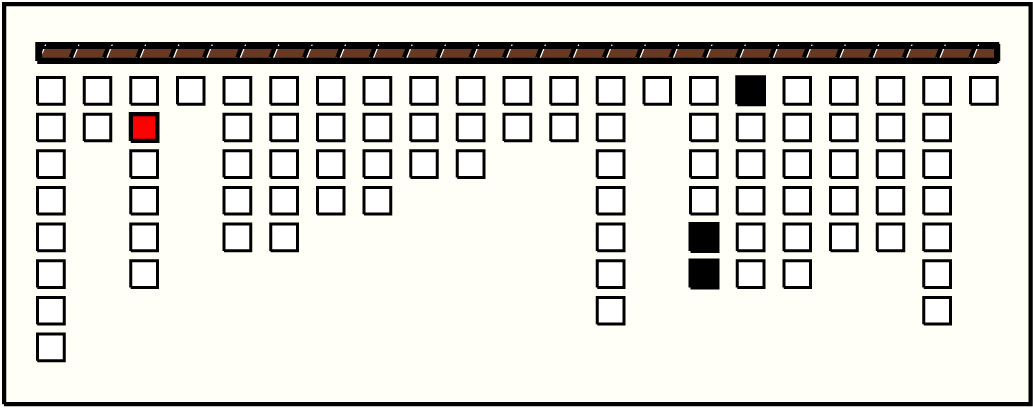

5	p12_{3, 2} : 11_W	11	3	p58: 3_W + p59: 3_W + p60: 5_W

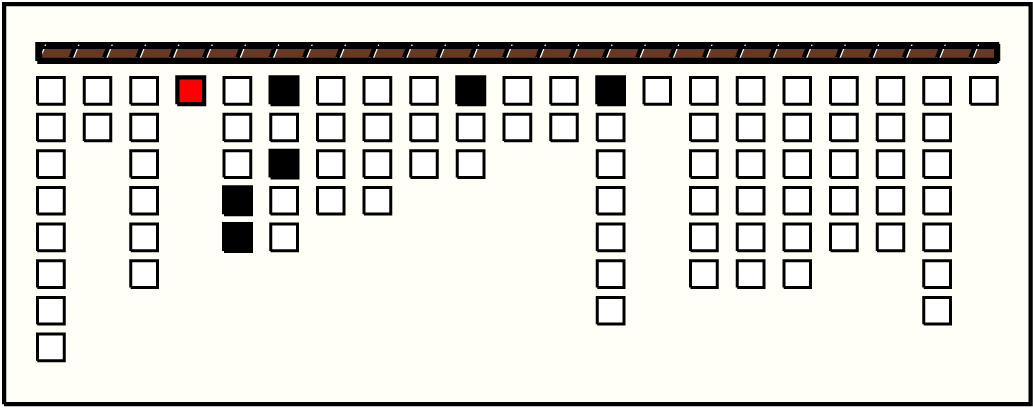

6	p17_{4, 1} : 36_KB	36	6	p21: 3_KB + p22: 4_KB + p23: 7_KB + p25: 8_KB + p39: 1_KB + p46: 13_KB
7	p18_{5, 1} : 110_W	110	12	p63: 2_W + p64: 3_W + p65: 5_W + p77: 25_W + p78: 9_W + p79: 10_W + p80: 9_W + p81: 7_W + p82: 6_W + p83: 11_W + p84: 17_W + p85: 6_W

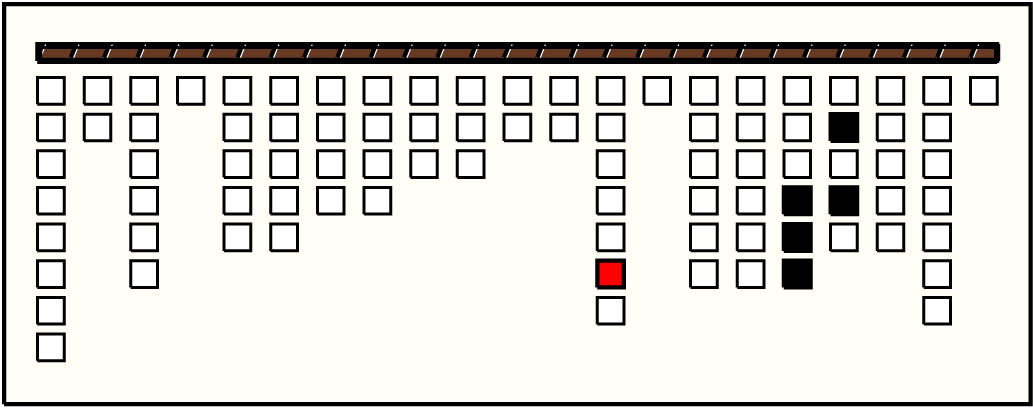

8	p51_{13, 6} : 12_MB	12	5	p69: 1_MB + p70: 1_MB + p71: 3_MB + p73: 3_MB + p75: 4_MB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p51_{13, 6} : 12_MB	12	3	p40: 1_MB + p49: 6_MB + p50: 5_MB
2	p77_{19, 1} : 25_W	25	6	p24: 8_W + p26: 6_W + p27: 8_W + p30: 1_W + p34: 1_W + p38: 1_W
3	p83_{20, 2} : 11_W	11	3	p58: 3_W + p59: 3_W + p60: 5_W

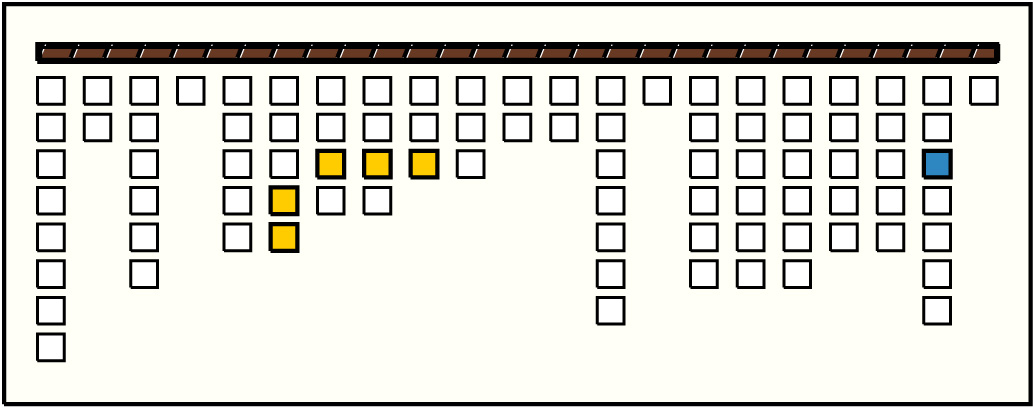

4	p84_{20, 3} : 17_W	17	5	p26: 6_W + p27: 8_W + p30: 1_W + p34: 1_W + p38: 1_W

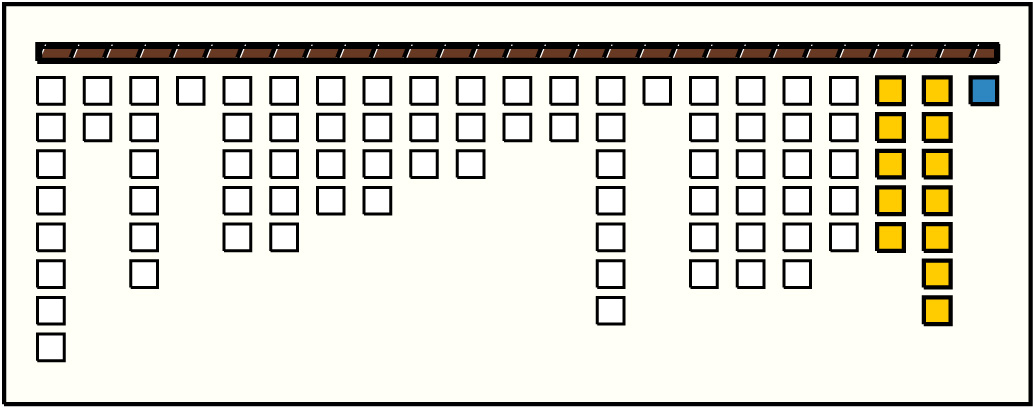

5	p89_{21, 1} : 116_W	116	12	p77: 25_W + p78: 9_W + p79: 10_W + p80: 9_W + p81: 7_W + p82: 6_W + p83: 11_W + p84: 17_W + p85: 6_W + p86: 4_W + p87: 5_W + p88: 7_W

Khipu Notes:

Ascher Databook Notes:

By spacing, there are 3 groups followed by a single pendant, then 9 groups followed by a single pendant, then 6 groups followed by a single pendant.
Groups 4-11 are paired in size and color. The number of pendants per group are 5, 5, 4, 4, 3, 3, 2, 2 respectively. The first 2 of these groups each have 3W and 2KB cords but in different orders; then 2 groups have the color pattern KB, MB, W, MB; the next 2 groups continue this pattern but without the final color (KB, MB, W); and the last 2 groups are both all W. Groups 13-18 are also paired in color: 2 groups are W; then 2 are MB; and then 2 are W.
Many of the pendants contain multiple values. For example, we interpret the value of pendant 11 as 5&8, and the value of pendant 7 7 as 16&9. With this interpretation, the values of the 12 pendants in groups 15 and 16 sum to the value of the single pendant that follows them.
