UR1113/KH0127 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

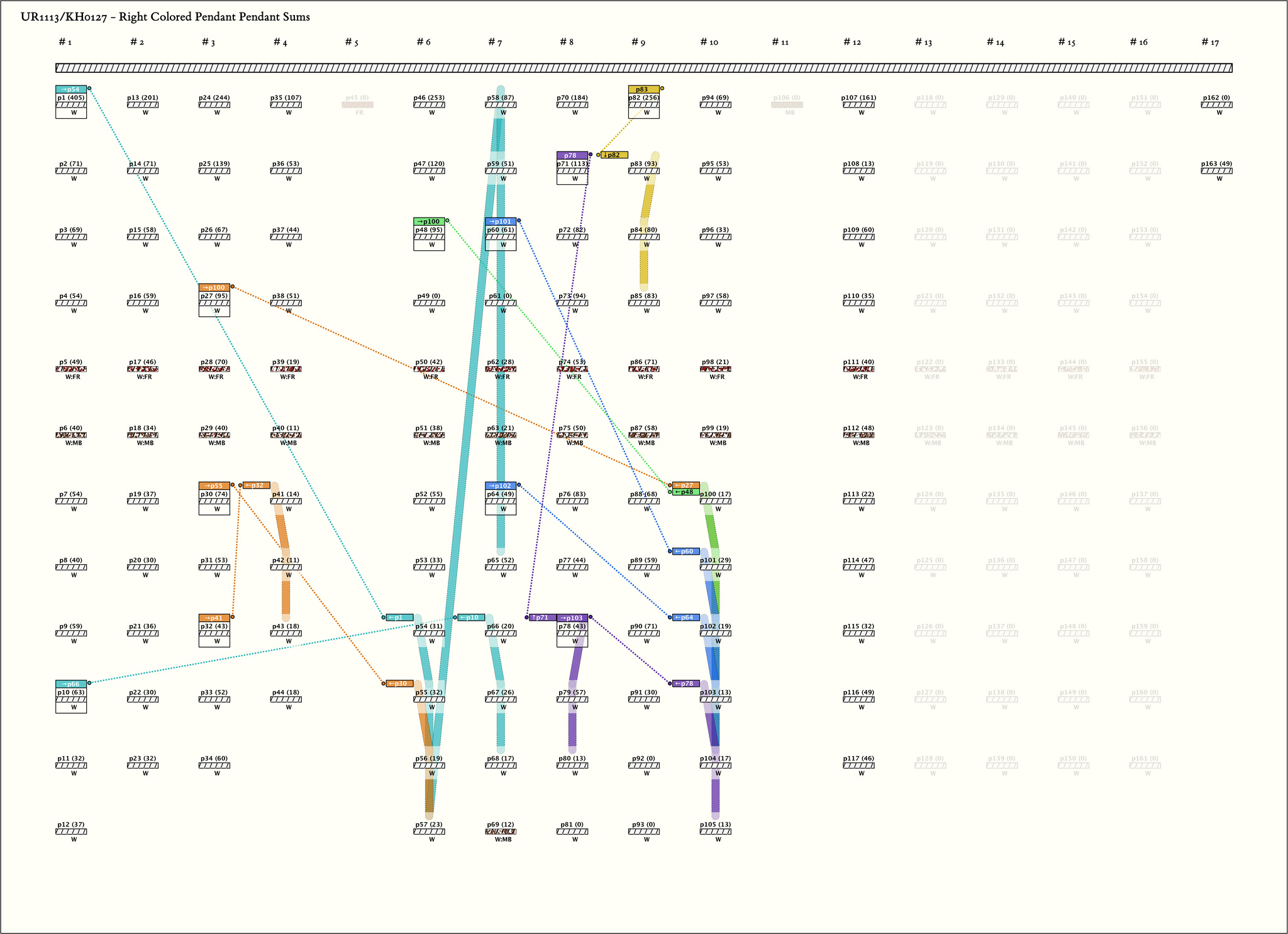

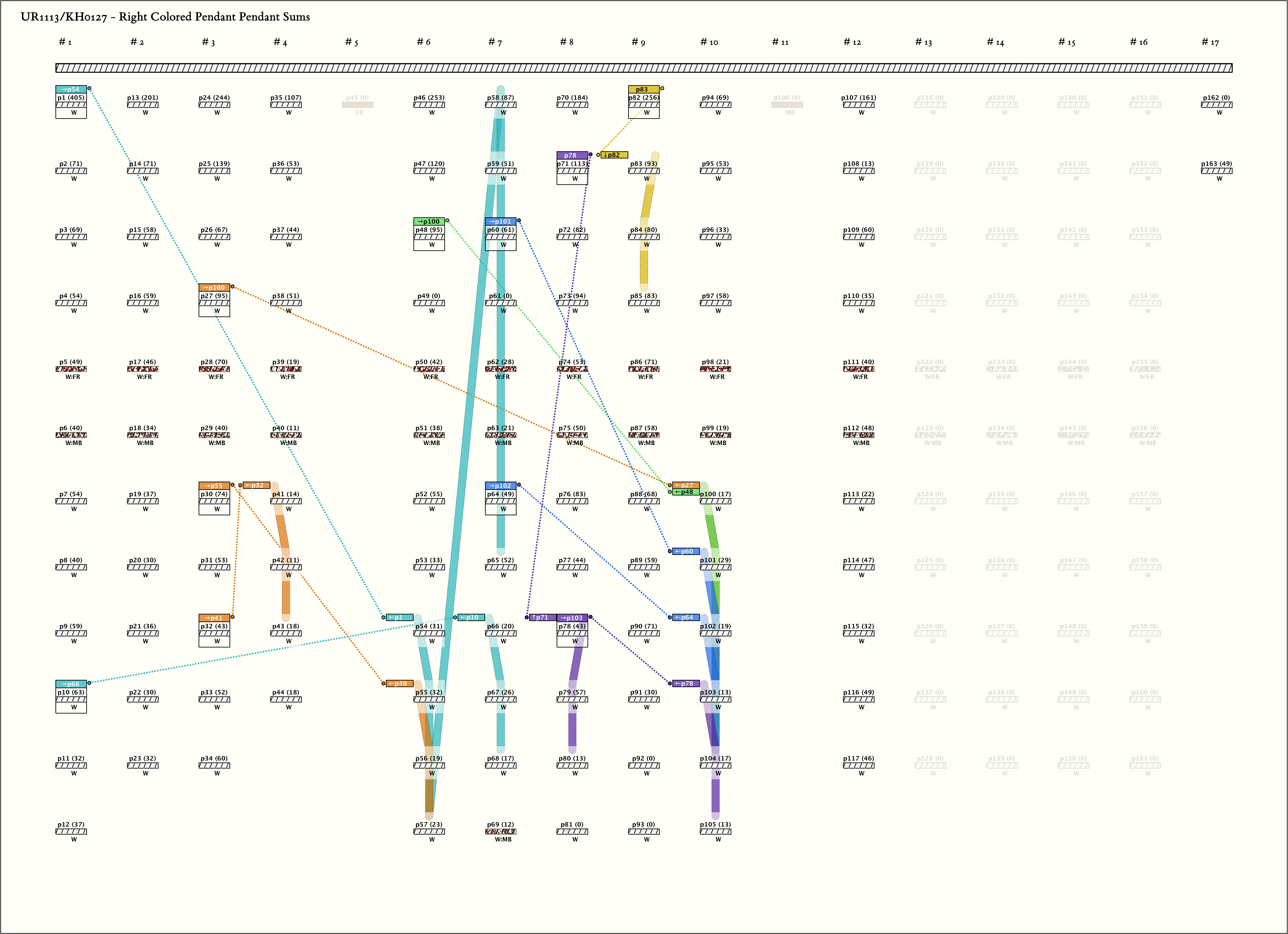

Right Handed Sums: # Sums = 11, Max # Summands = 9, (Min, Mean, Max) Sum Values = (43, 118, 405)
Click on Image to View Larger

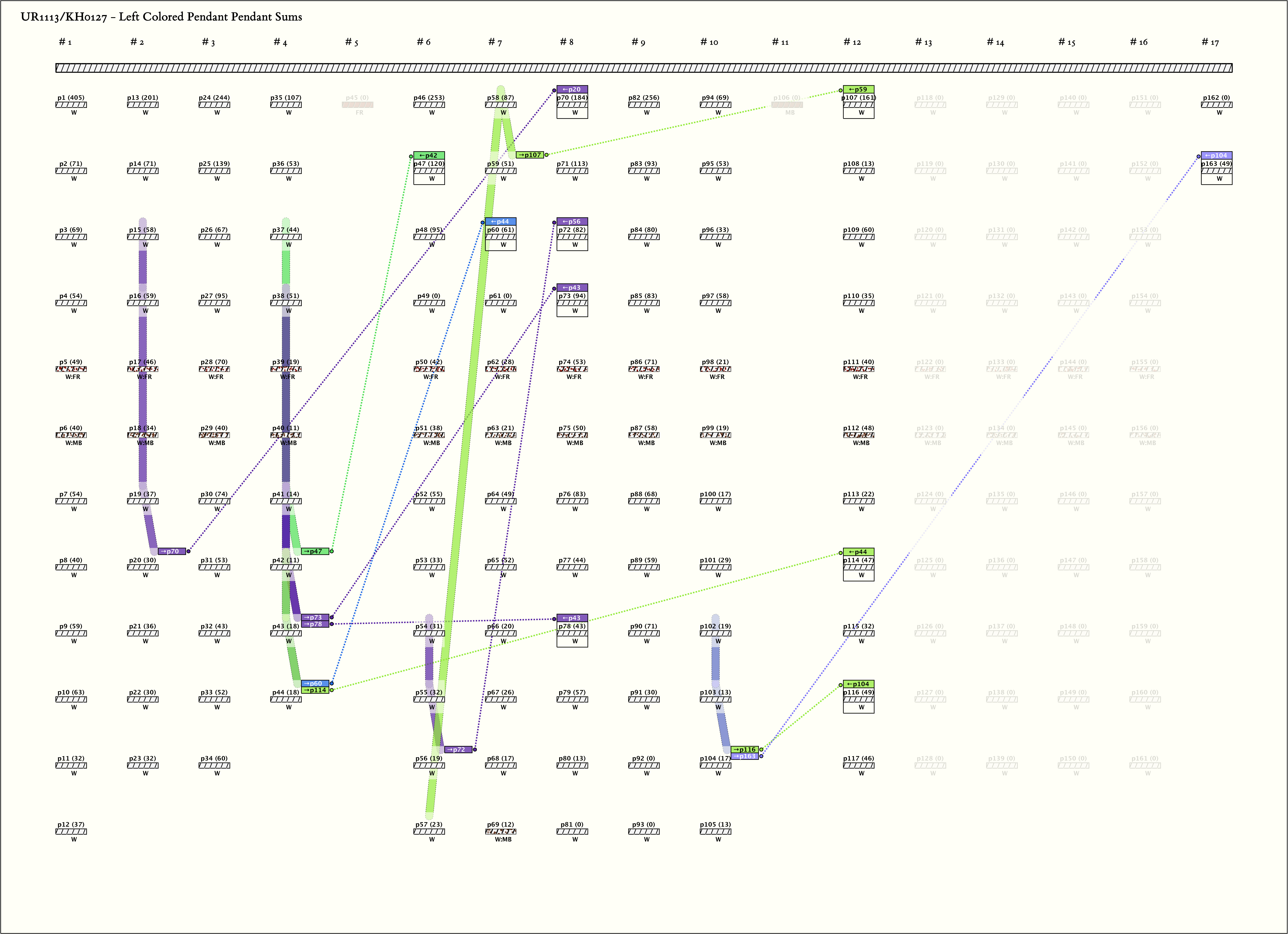

Left Handed Sums: # Sums = 10, Max # Summands = 4, (Min, Mean, Max) Sum Values = (43, 89, 184)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

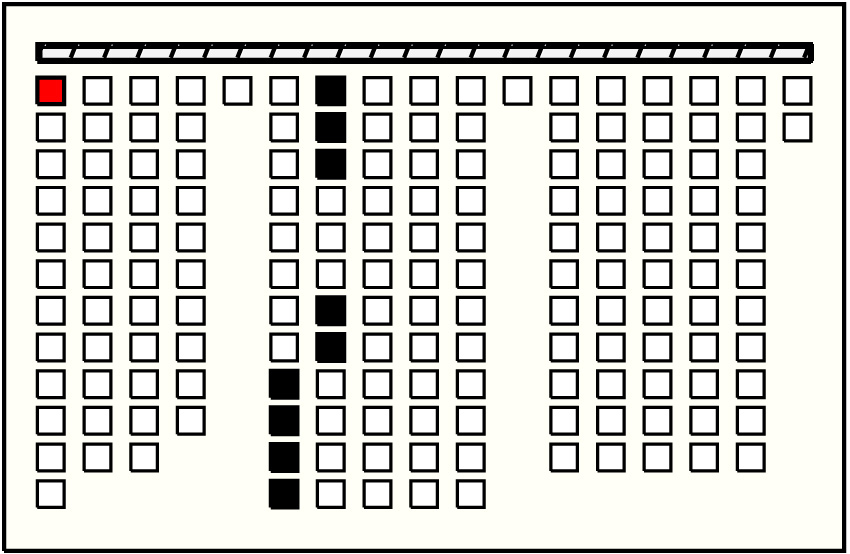

1	p1_{1, 1} : 405_W	405	9	p54: 31_W + p55: 32_W + p56: 19_W + p57: 23_W + p58: 87_W + p59: 51_W + p60: 61_W + p64: 49_W + p65: 52_W

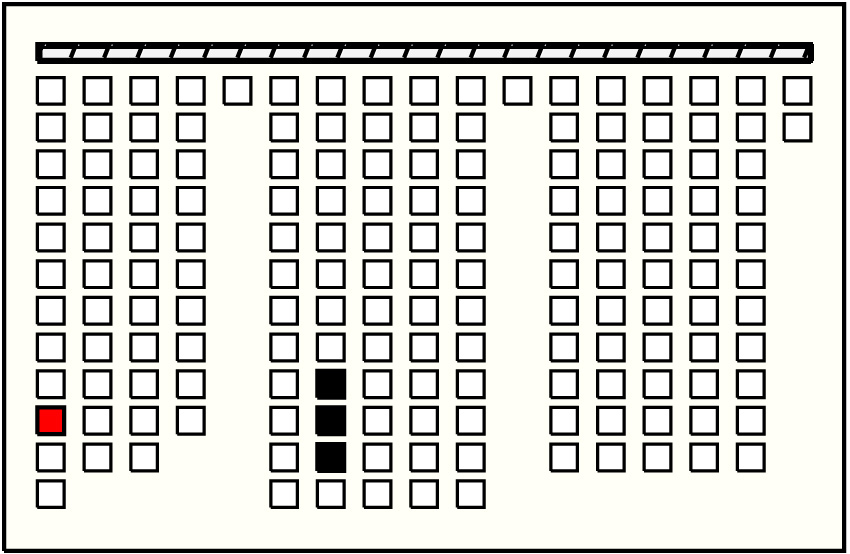

2	p10_{1, 10} : 63_W	63	3	p66: 20_W + p67: 26_W + p68: 17_W

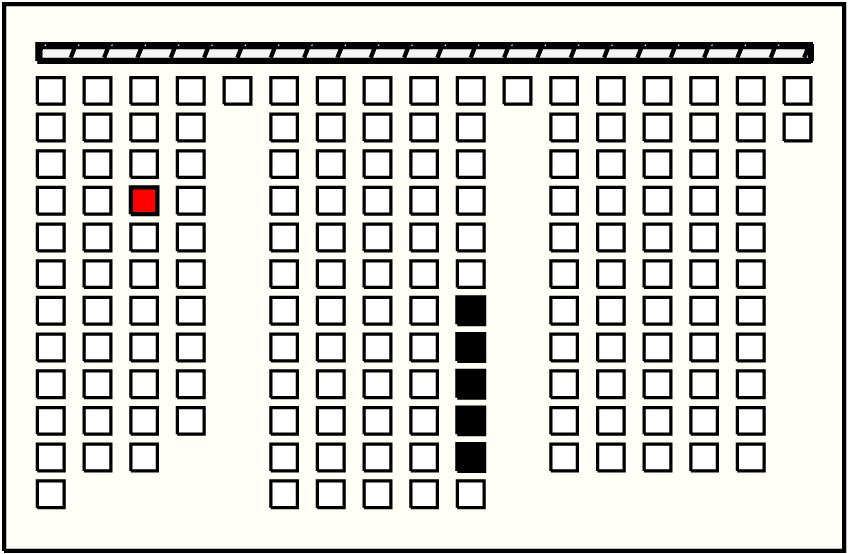

3	p27_{3, 4} : 95_W	95	5	p100: 17_W + p101: 29_W + p102: 19_W + p103: 13_W + p104: 17_W

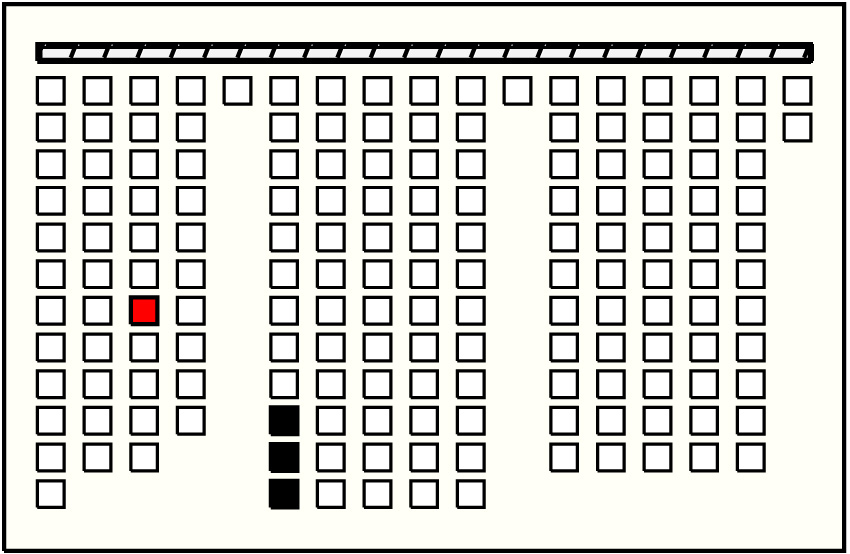

4	p30_{3, 7} : 74_W	74	3	p55: 32_W + p56: 19_W + p57: 23_W

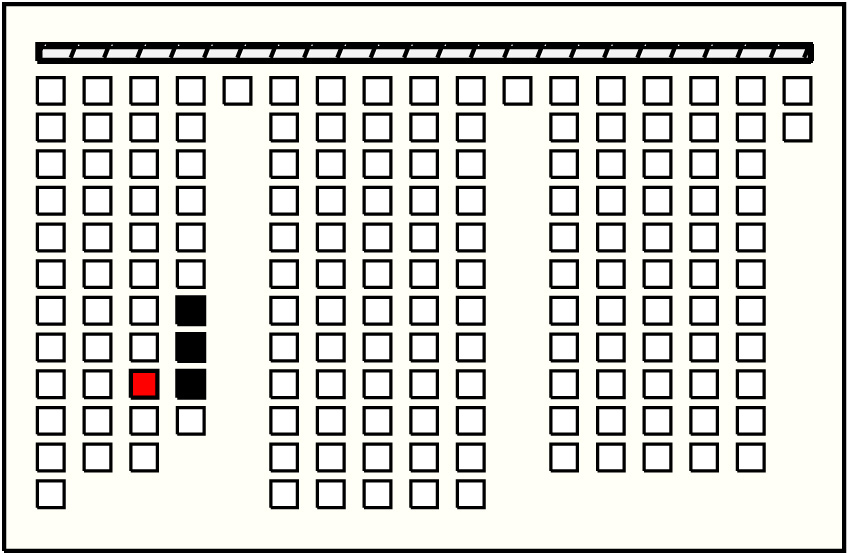

5	p32_{3, 9} : 43_W	43	3	p41: 14_W + p42: 11_W + p43: 18_W

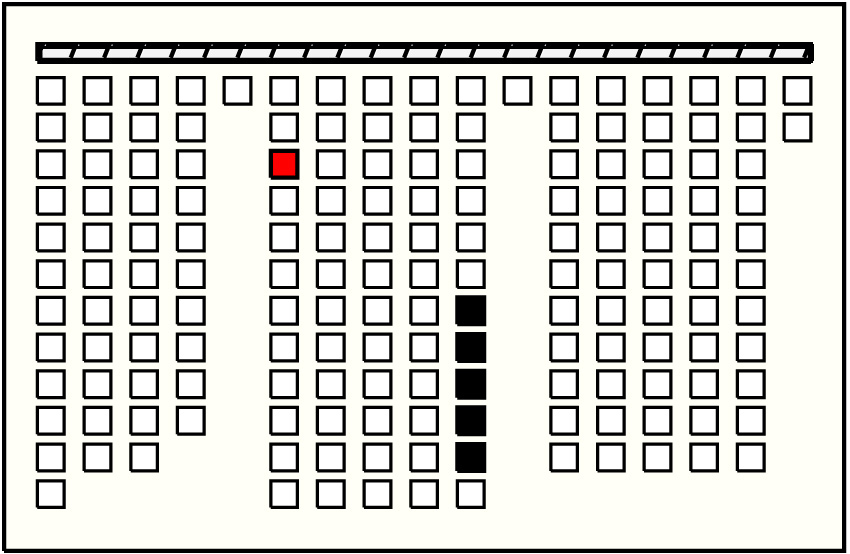

6	p48_{6, 3} : 95_W	95	5	p100: 17_W + p101: 29_W + p102: 19_W + p103: 13_W + p104: 17_W
7	p60_{7, 3} : 61_W	61	3	p101: 29_W + p102: 19_W + p103: 13_W

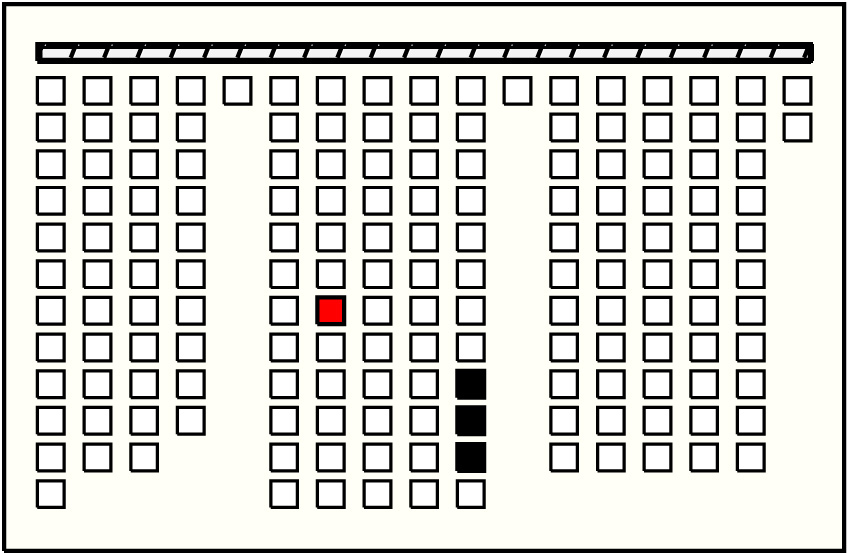

8	p64_{7, 7} : 49_W	49	3	p102: 19_W + p103: 13_W + p104: 17_W

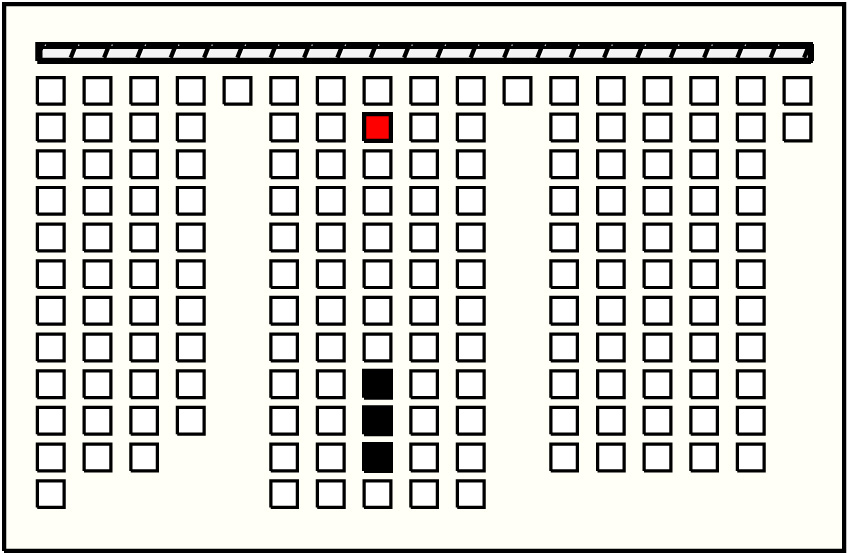

9	p71_{8, 2} : 113_W	113	3	p78: 43_W + p79: 57_W + p80: 13_W
10	p78_{8, 9} : 43_W	43	3	p103: 13_W + p104: 17_W + p105: 13_W
11	p82_{9, 1} : 256_W	256	3	p83: 93_W + p84: 80_W + p85: 83_W

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

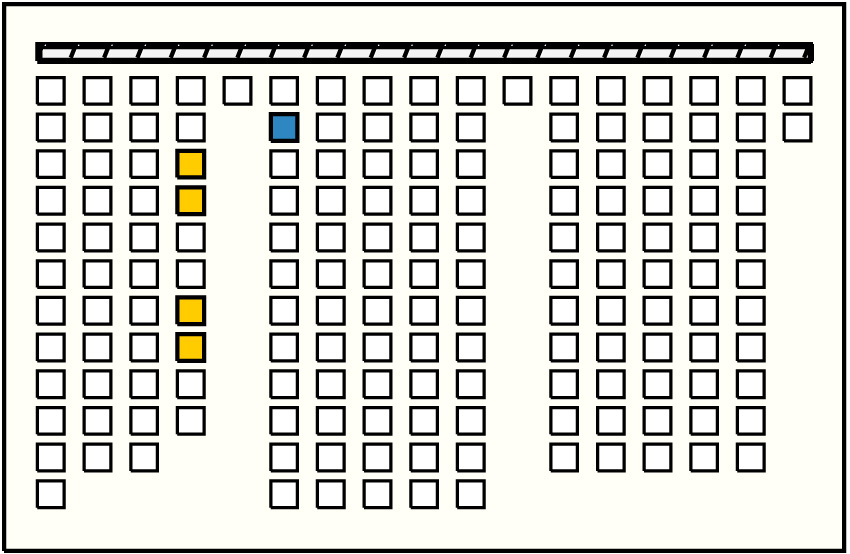

1	p47_{6, 2} : 120_W	120	4	p37: 44_W + p38: 51_W + p41: 14_W + p42: 11_W

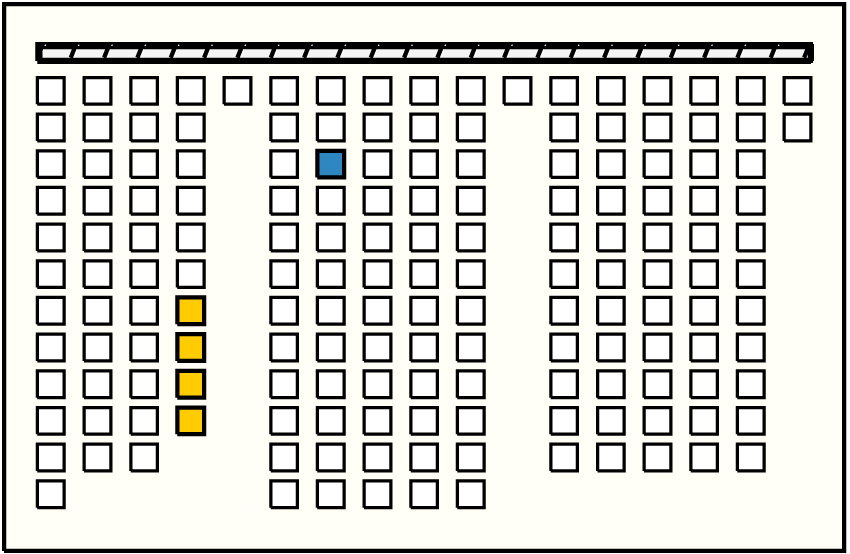

2	p60_{7, 3} : 61_W	61	4	p41: 14_W + p42: 11_W + p43: 18_W + p44: 18_W
3	p70_{8, 1} : 184_W	184	4	p15: 58_W + p16: 59_W + p19: 37_W + p20: 30_W
4	p72_{8, 3} : 82_W	82	3	p54: 31_W + p55: 32_W + p56: 19_W
5	p73_{8, 4} : 94_W	94	4	p38: 51_W + p41: 14_W + p42: 11_W + p43: 18_W
6	p78_{8, 9} : 43_W	43	3	p41: 14_W + p42: 11_W + p43: 18_W
7	p107_{12, 1} : 161_W	161	3	p57: 23_W + p58: 87_W + p59: 51_W

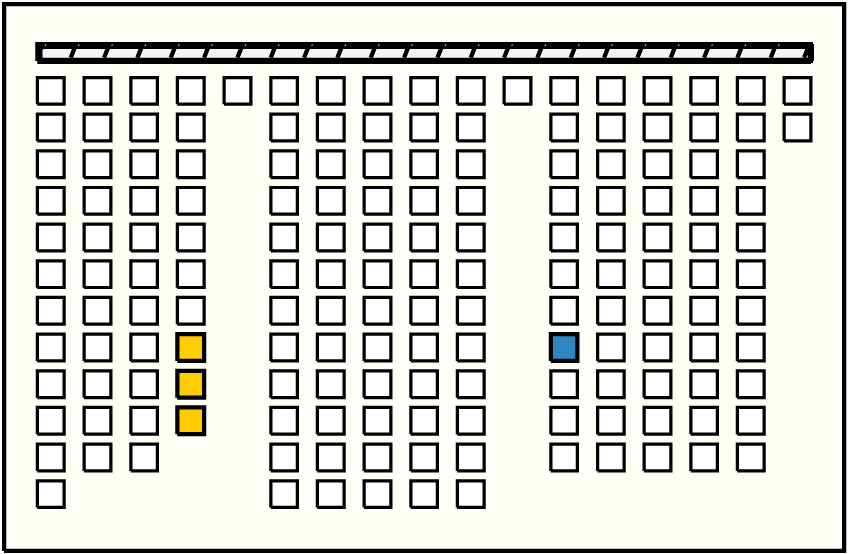

8	p114_{12, 8} : 47_W	47	3	p42: 11_W + p43: 18_W + p44: 18_W
9	p116_{12, 10} : 49_W	49	3	p102: 19_W + p103: 13_W + p104: 17_W
10	p163_{17, 2} : 49_W	49	3	p102: 19_W + p103: 13_W + p104: 17_W

Khipu Notes:

Ascher Databook Notes:

This khipu is one of several acquired by the Museum in 1904 with provenance between Ica and Pisco. For a discussion of them, see UR1098.
By markers and spacing, the khipu is separated into 4 parts. Part 1 is 4 groups of 12, 11, 11, 10 pendants, respectively; part 2 is 5 groups of 12 pendants each; part 3 is 5 groups of 11 pendants each; and part 4 is 1 pair of pendants.
Each of the 14 groups in parts 1, 2, and 3 have the same color pattern. The pattern is 4W, FB: W, MB: W, and then as many W as needed to complete the group.
All pendant values in the last 4 groups of part 3 are zero-valued (or blank). In all 10 preceding groups, the pendant in position 1 has maximum value.
