UR1124/KH0138 - Colored Pendant Sums


Drawings:
Overview Detail View
All Khipus' Ascher Sum FieldmarksRight-Handed XRay
All Colored Pendant Sum RelationshipsLeft-Handed XRay
This Khipu's Fieldmark CatalogRight-Handed Sum Detail
This Khipu's DrawingLeft-Handed Sum Detail

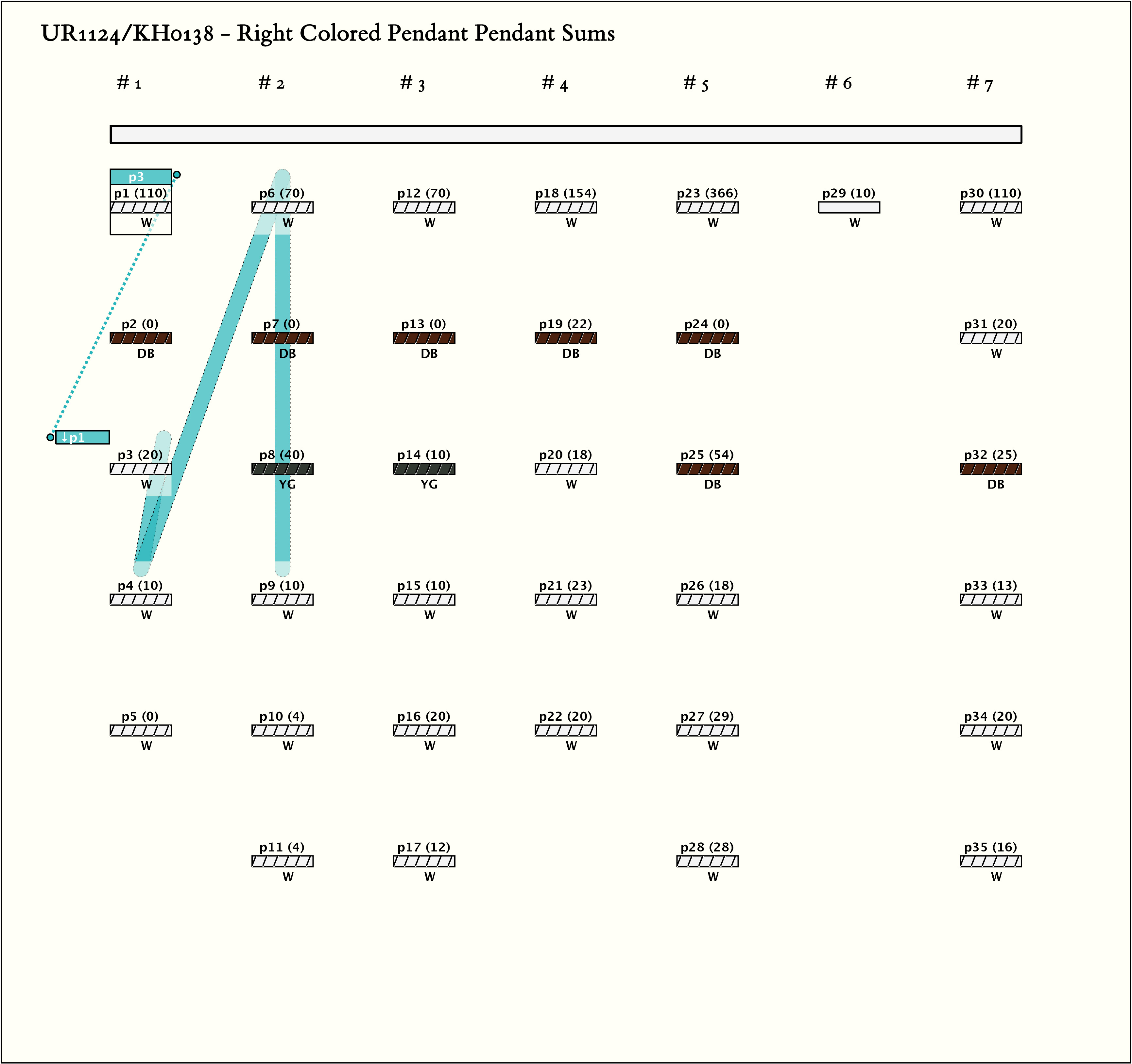

Right Handed Sums:     # Sums = 1,  Max # Summands = 4,   (Min, Mean, Max) Sum Values = (110, 110, 110)
Click on Image to View Larger

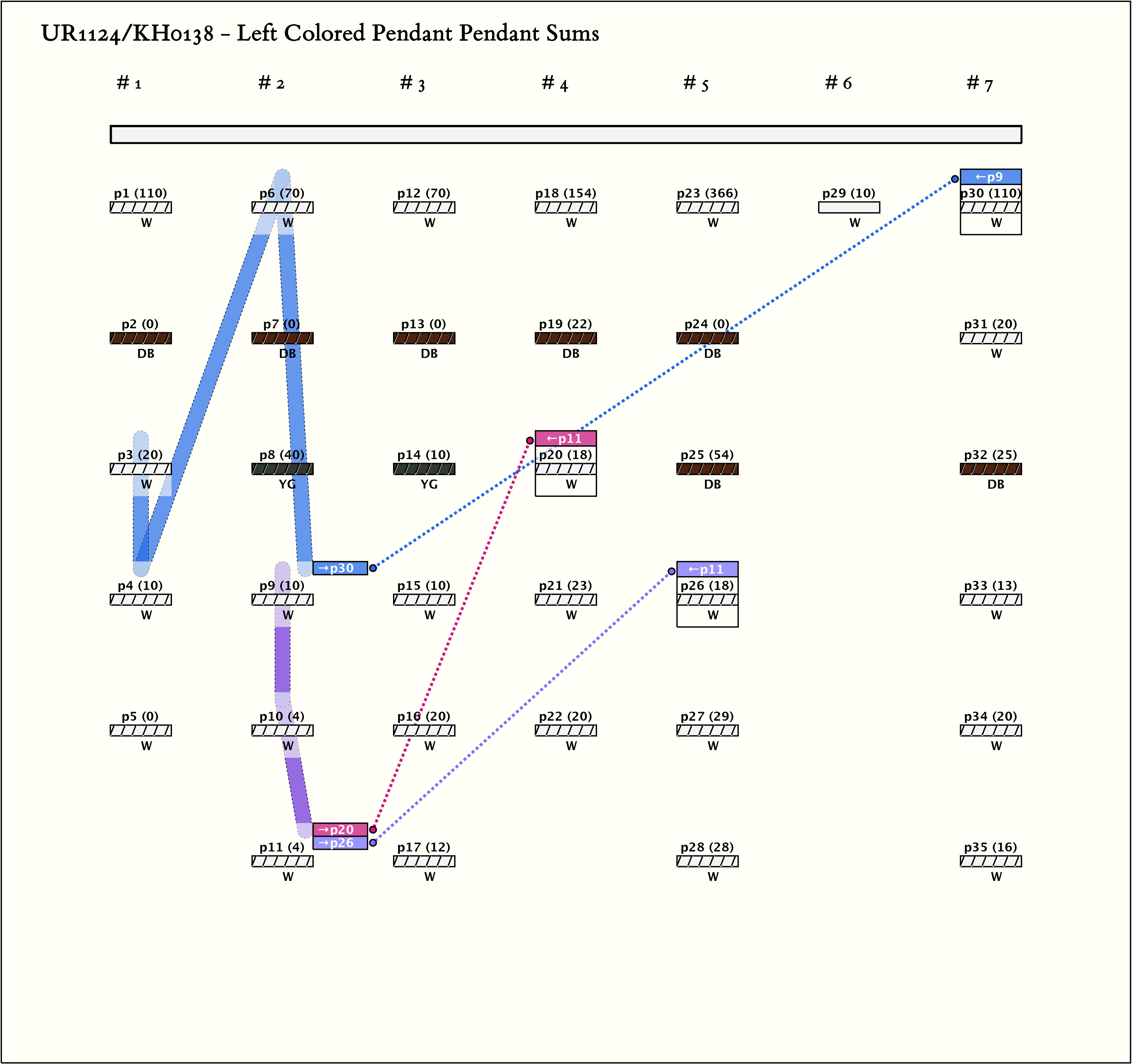

Left Handed Sums:     # Sums = 3,  Max # Summands = 4,   (Min, Mean, Max) Sum Values = (18, 49, 110)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1

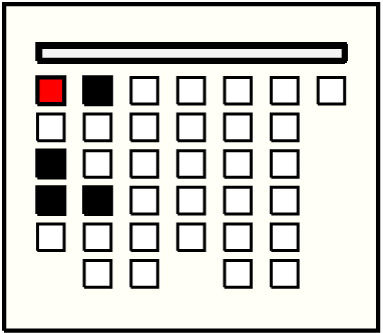

p11, 1 : 110W1104p3: 20W + p4: 10W + p6: 70W + p9: 10W

Left Handed Sum Detail: - Click on column name to sort
# Color Sum Schema Sum Cord Sum Cord Value # Summands Summands
1

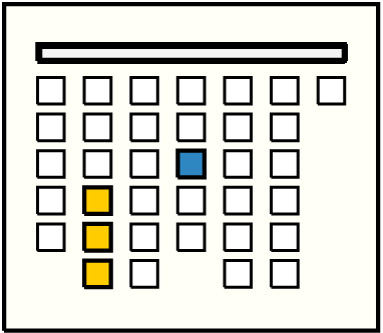

p204, 3 : 18W183p9: 10W + p10: 4W + p11: 4W
2

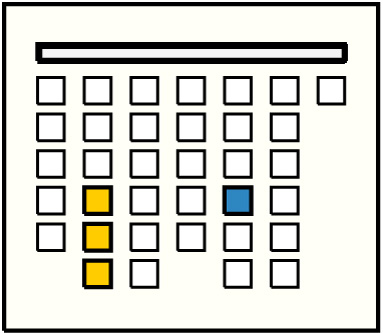

p265, 4 : 18W183p9: 10W + p10: 4W + p11: 4W
3

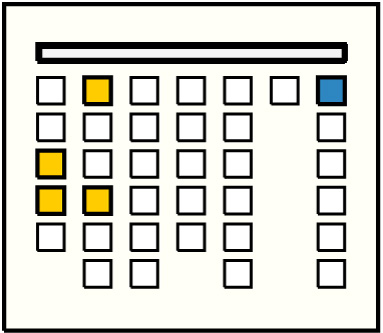

p296, 1 : 110W1104p3: 20W + p4: 10W + p6: 70W + p9: 10W

Khipu Notes:
Ascher Databook Notes:
  1. The khipu is attached to a carved piece of wood. The wood has 8 holes through which the khipu is threaded. Figure 1 shows the way in which the khipu is attached. Figure 2 shows details of the carving.
  2. This is one of several khipus acquired by the Museum in 1899 with provenance Marquez. This group includes UR1106, UR1107, UR1124, AS132, and AS133. For acomparison of them, see UR1106.
  3. On the portion of the khipu threaded through the wood:
    1. Each group contains 5 or 6 pendants. In all groups, the first pendant and the last 3 pendants are W and, with the exception of the last group, the second pendant is DB.
    2. In all groups, the value on the first pendant is the largest.
  4. Both the khipu threaded through the wood and the khipu appended to it (labeled Detail 1) are made of the same color cords: W, DB, and YG.
