UR1176/KH0193 - Colored Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Colored Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

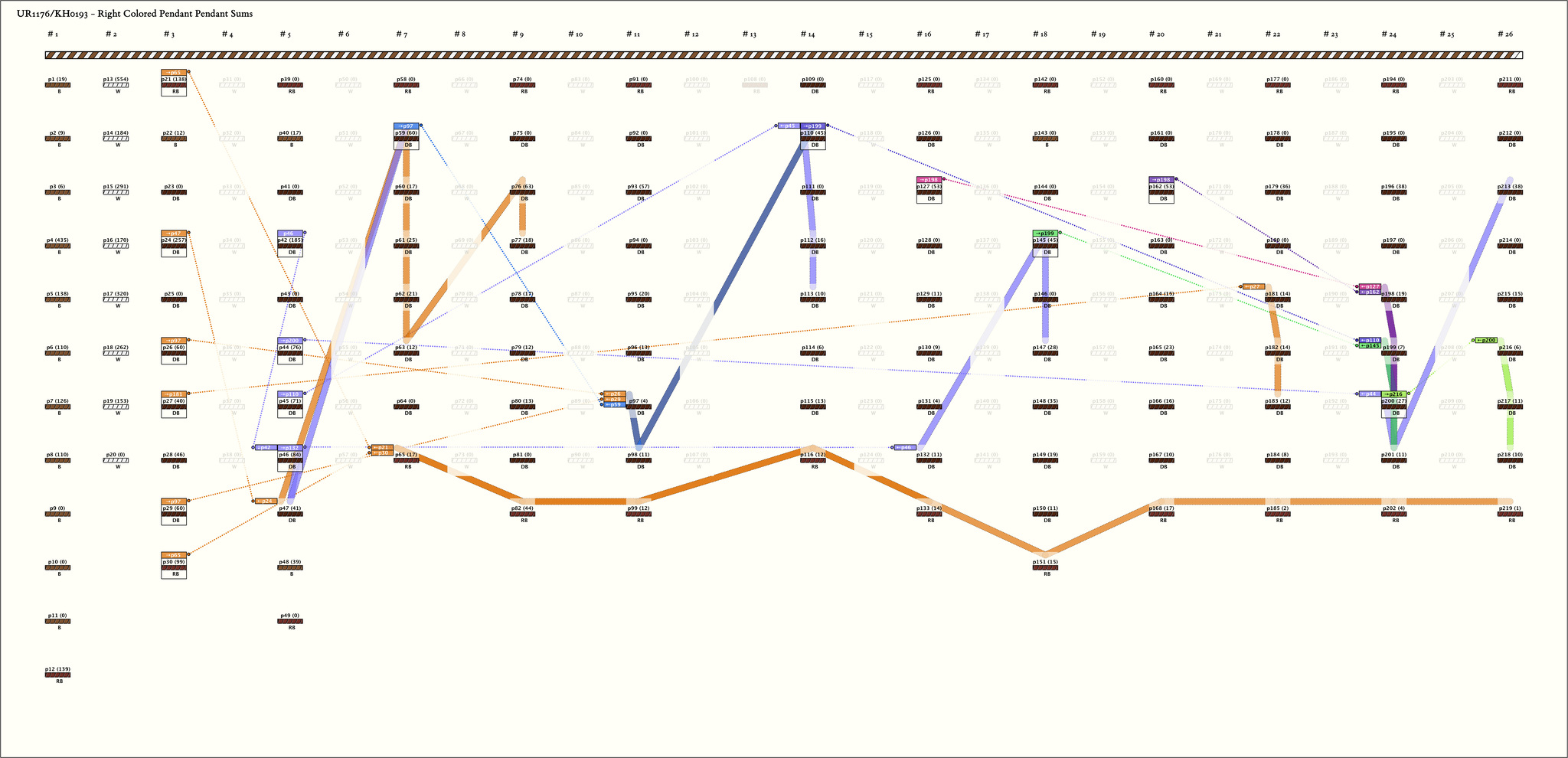

Right Handed Sums: # Sums = 16, Max # Summands = 10, (Min, Mean, Max) Sum Values = (27, 85, 257)
Click on Image to View Larger

Left Handed Sums: # Sums = 4, Max # Summands = 4, (Min, Mean, Max) Sum Values = (28, 43, 63)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p21_{3, 1} : 138_RB	138	10	p65: 17_RB + p82: 44_RB + p99: 12_RB + p116: 12_RB + p133: 14_RB + p151: 15_RB + p168: 17_RB + p185: 2_RB + p202: 4_RB + p219: 1_RB

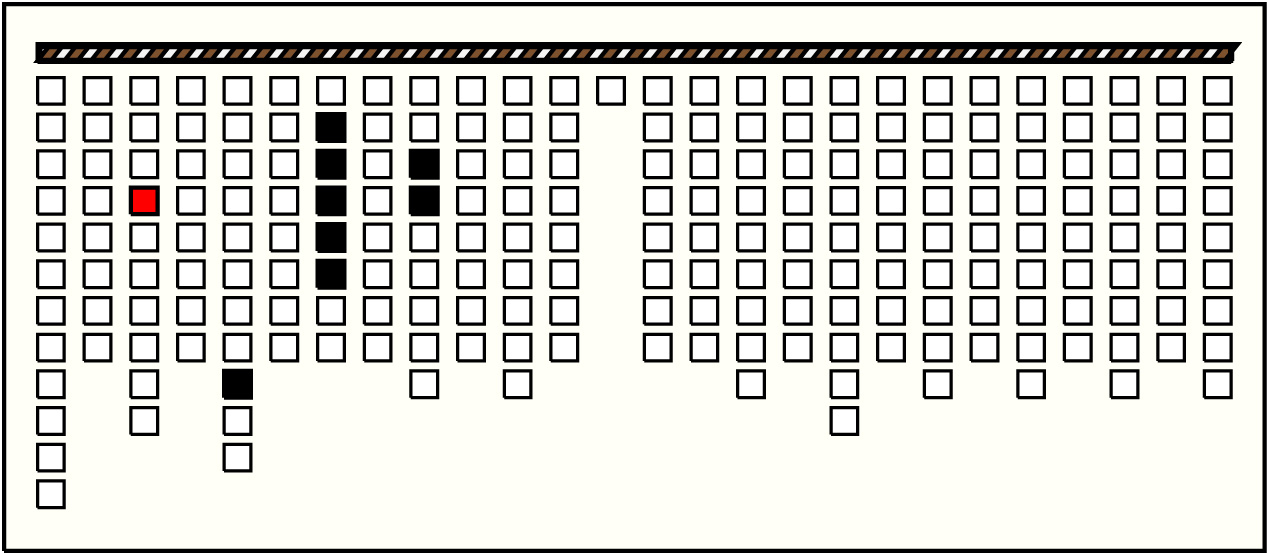

2	p24_{3, 4} : 257_DB	257	8	p47: 41_DB + p59: 60_DB + p60: 17_DB + p61: 25_DB + p62: 21_DB + p63: 12_DB + p76: 63_DB + p77: 18_DB

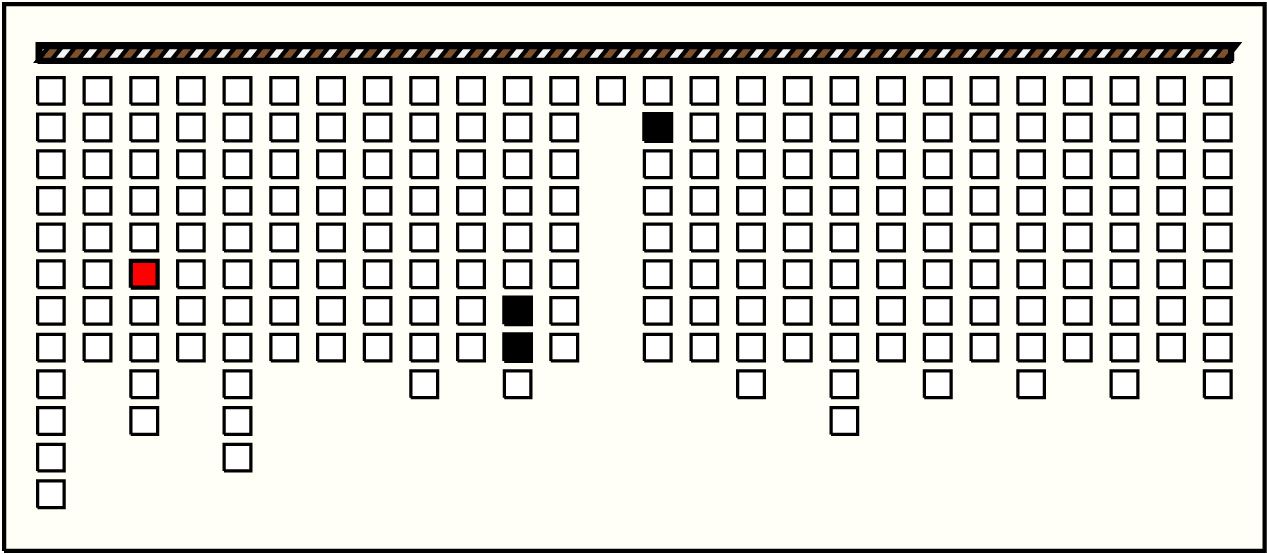

3	p26_{3, 6} : 60_DB	60	3	p97: 4_DB + p98: 11_DB + p110: 45_DB
4	p27_{3, 7} : 40_DB	40	3	p181: 14_DB + p182: 14_DB + p183: 12_DB

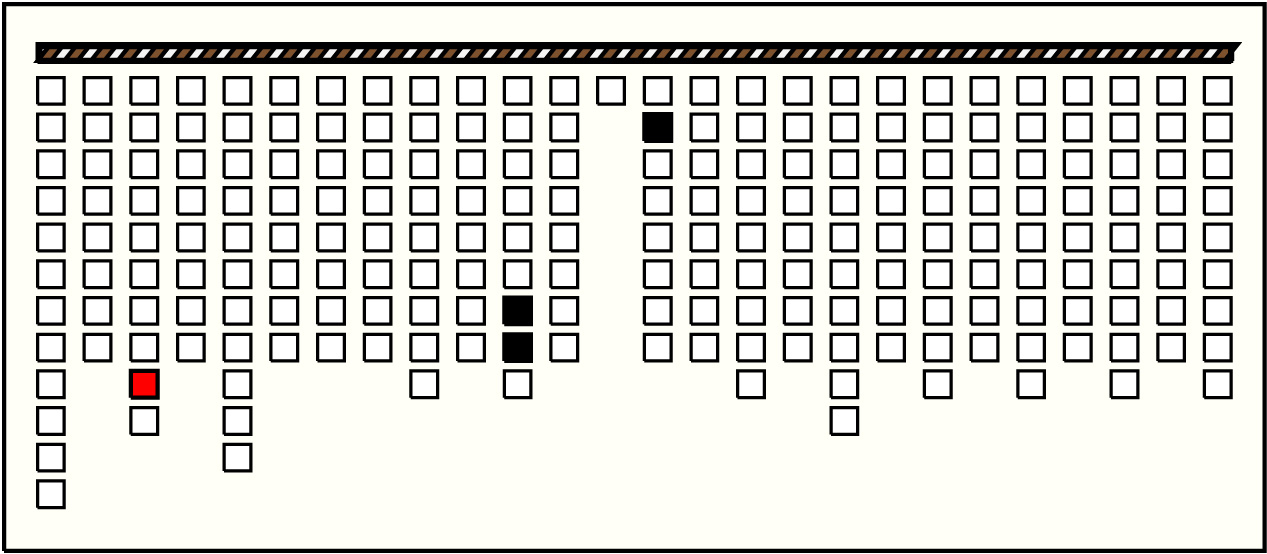

5	p29_{3, 9} : 60_DB	60	3	p97: 4_DB + p98: 11_DB + p110: 45_DB

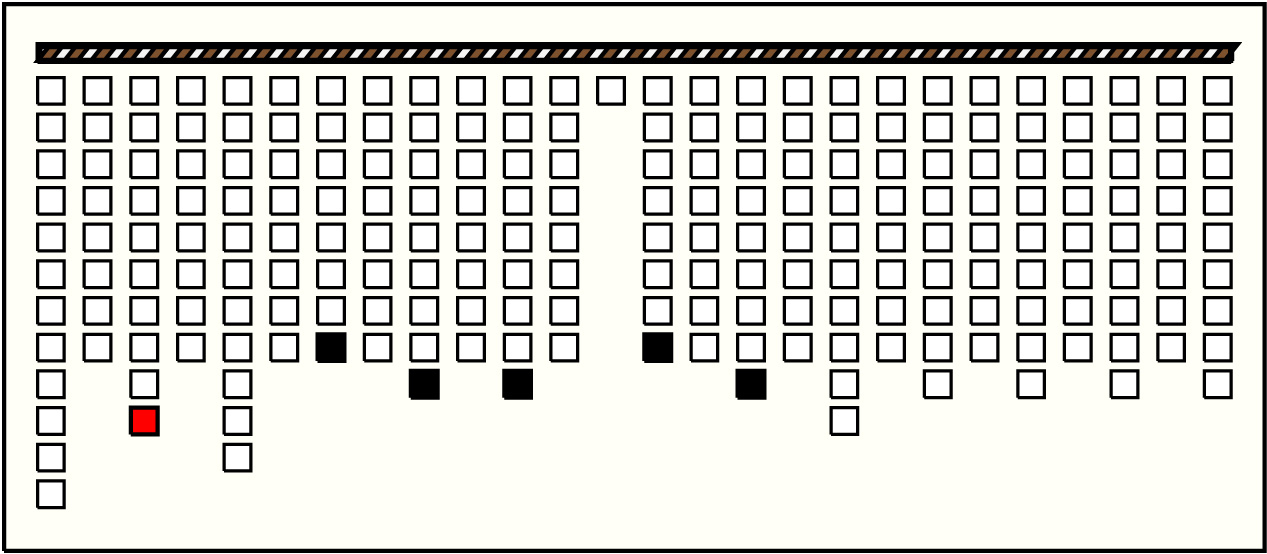

6	p30_{3, 10} : 99_RB	99	5	p65: 17_RB + p82: 44_RB + p99: 12_RB + p116: 12_RB + p133: 14_RB

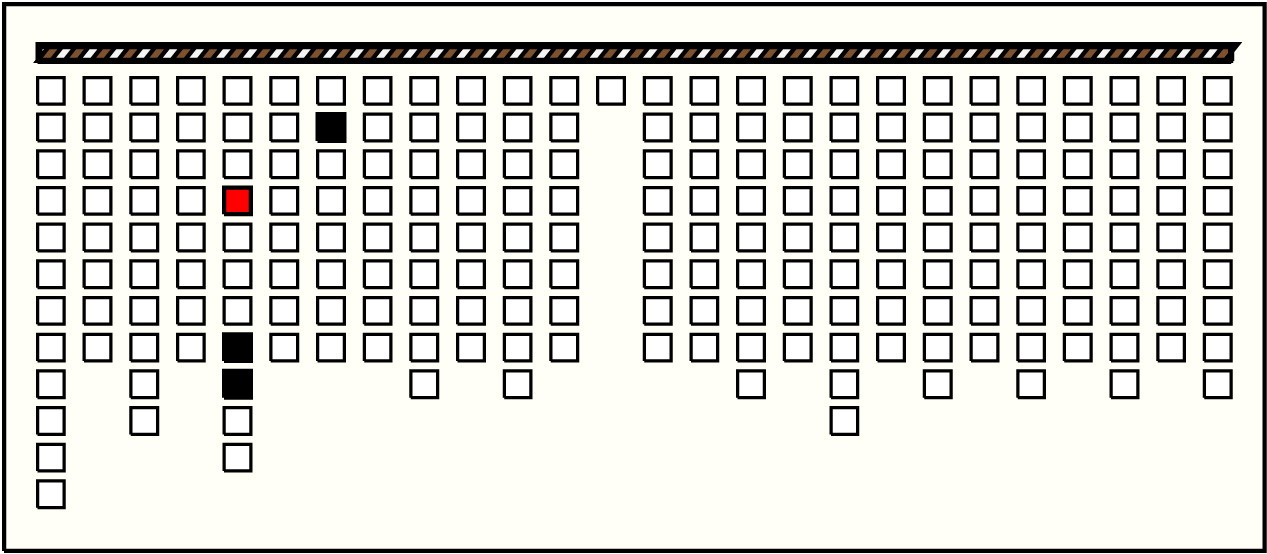

7	p42_{5, 4} : 185_DB	185	3	p46: 84_DB + p47: 41_DB + p59: 60_DB

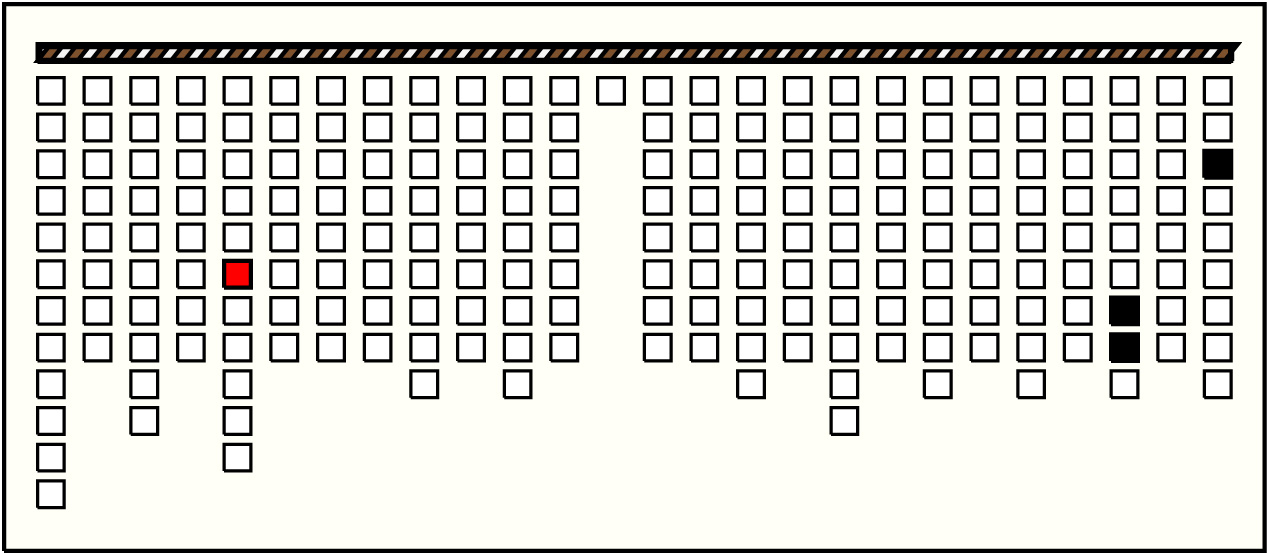

8	p44_{5, 6} : 76_DB	76	3	p200: 27_DB + p201: 11_DB + p213: 38_DB
9	p45_{5, 7} : 71_DB	71	3	p110: 45_DB + p112: 16_DB + p113: 10_DB

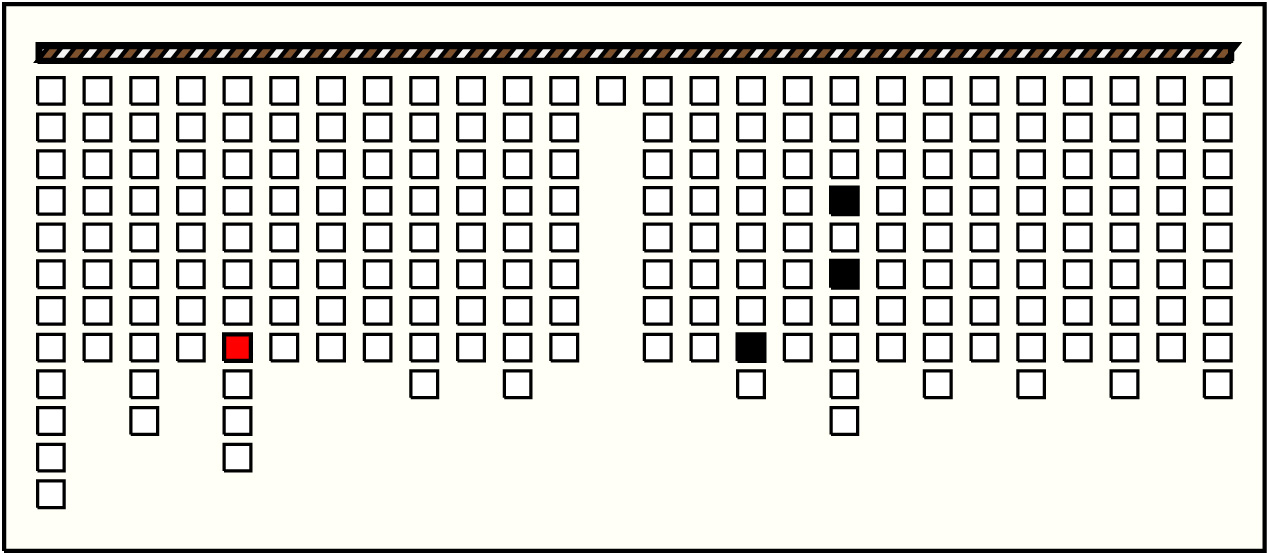

10	p46_{5, 8} : 84_DB	84	3	p132: 11_DB + p145: 45_DB + p147: 28_DB

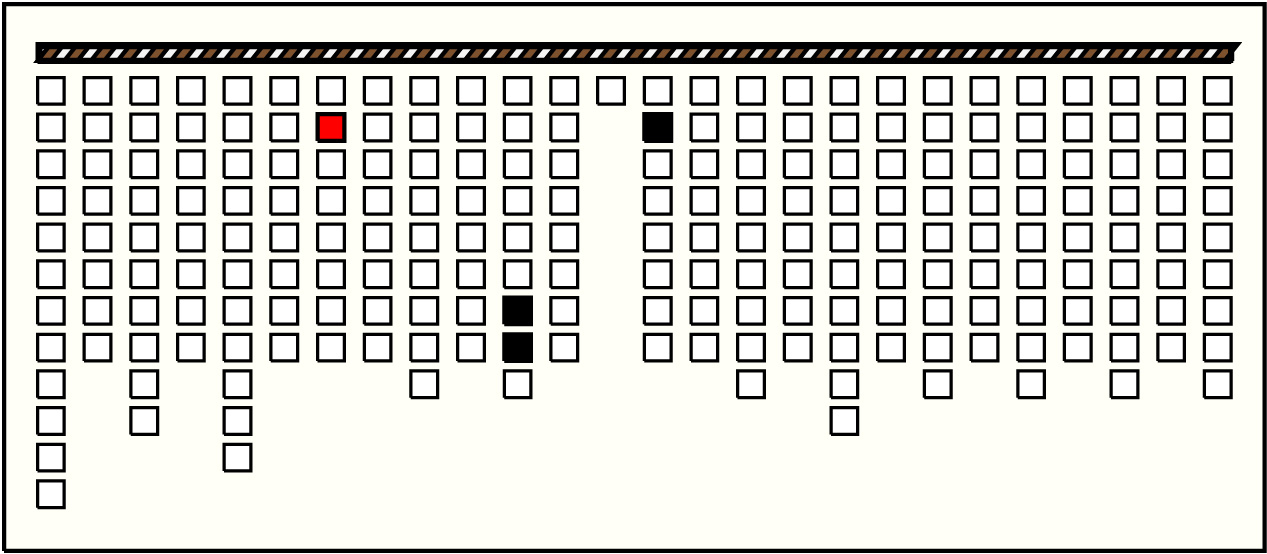

11	p59_{7, 2} : 60_DB	60	3	p97: 4_DB + p98: 11_DB + p110: 45_DB

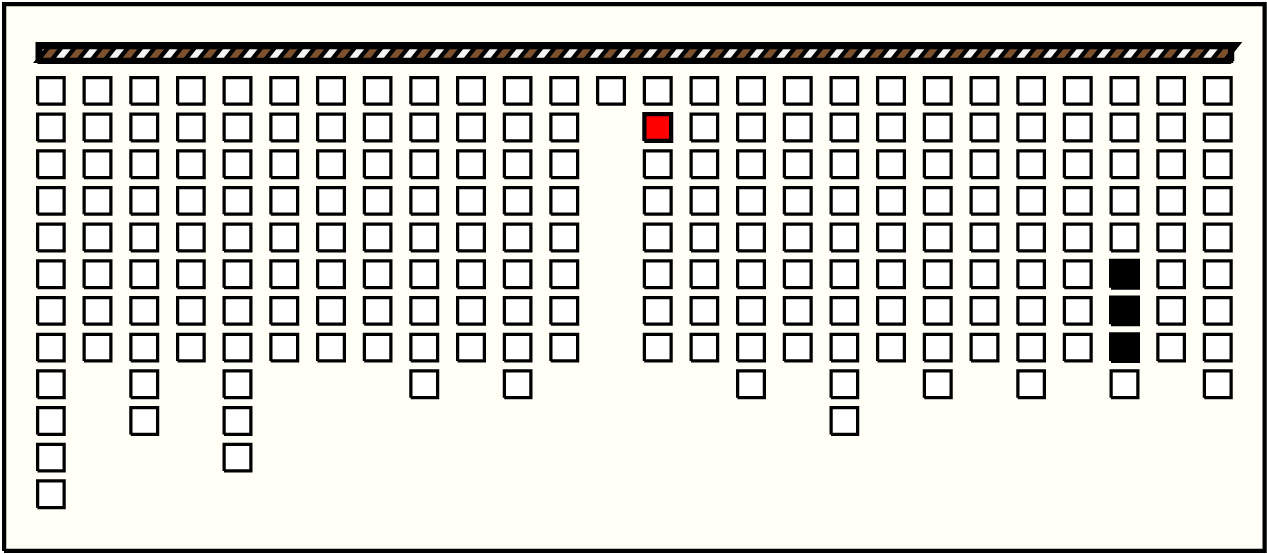

12	p110_{14, 2} : 45_DB	45	3	p199: 7_DB + p200: 27_DB + p201: 11_DB

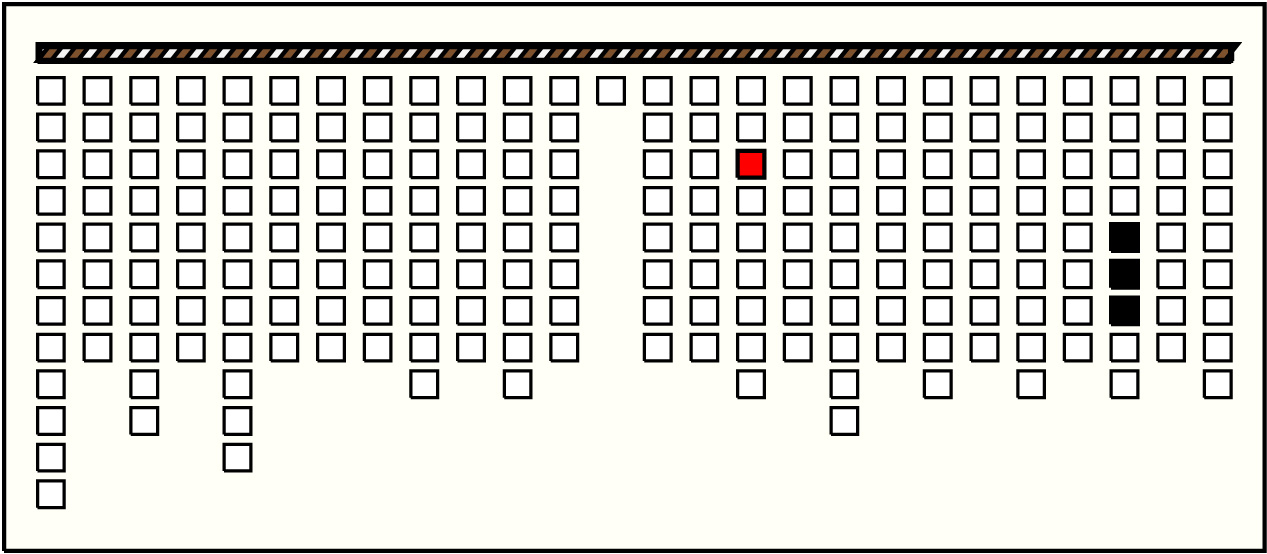

13	p127_{16, 3} : 53_DB	53	3	p198: 19_DB + p199: 7_DB + p200: 27_DB
14	p145_{18, 4} : 45_DB	45	3	p199: 7_DB + p200: 27_DB + p201: 11_DB
15	p162_{20, 3} : 53_DB	53	3	p198: 19_DB + p199: 7_DB + p200: 27_DB
16	p200_{24, 7} : 27_DB	27	3	p216: 6_DB + p217: 11_DB + p218: 10_DB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p76_{9, 3} : 63_DB	63	3	p60: 17_DB + p61: 25_DB + p62: 21_DB

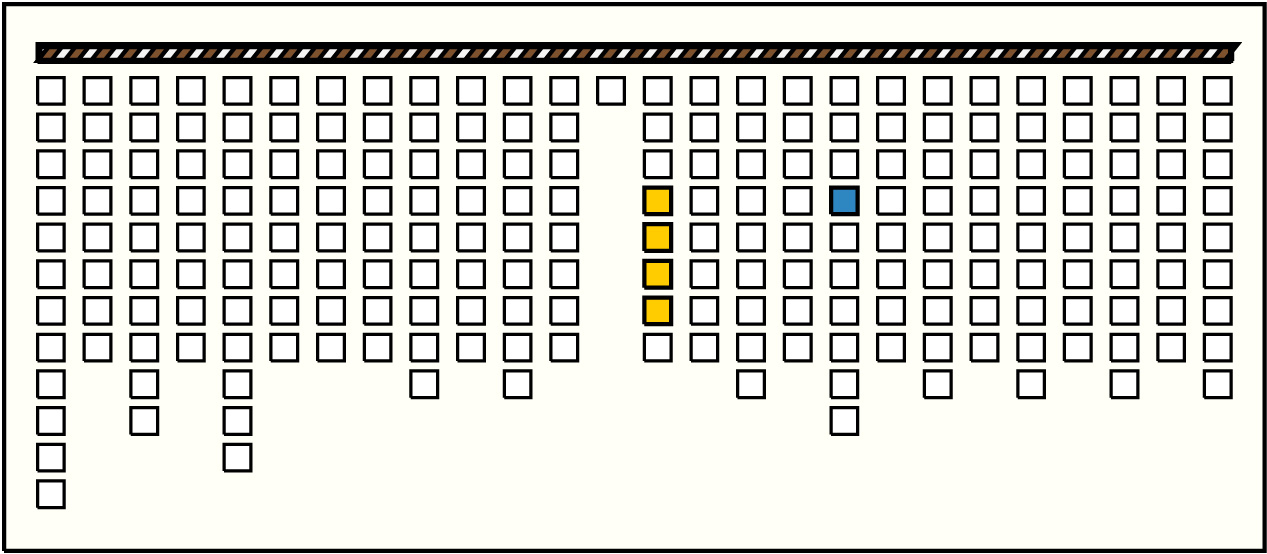

2	p145_{18, 4} : 45_DB	45	4	p112: 16_DB + p113: 10_DB + p114: 6_DB + p115: 13_DB

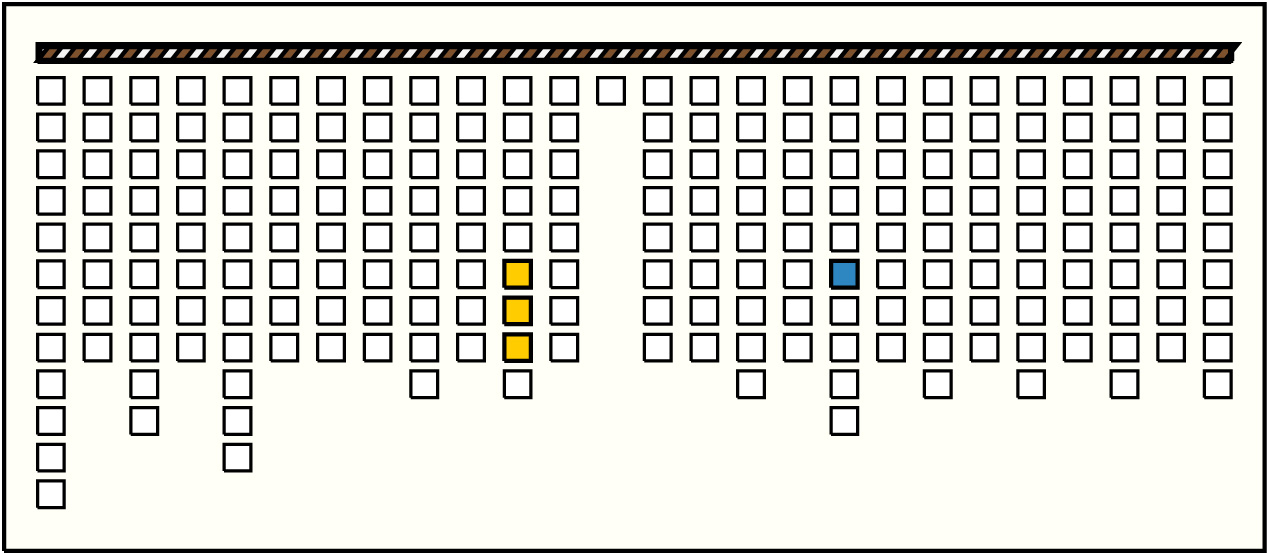

3	p147_{18, 6} : 28_DB	28	3	p96: 13_DB + p97: 4_DB + p98: 11_DB

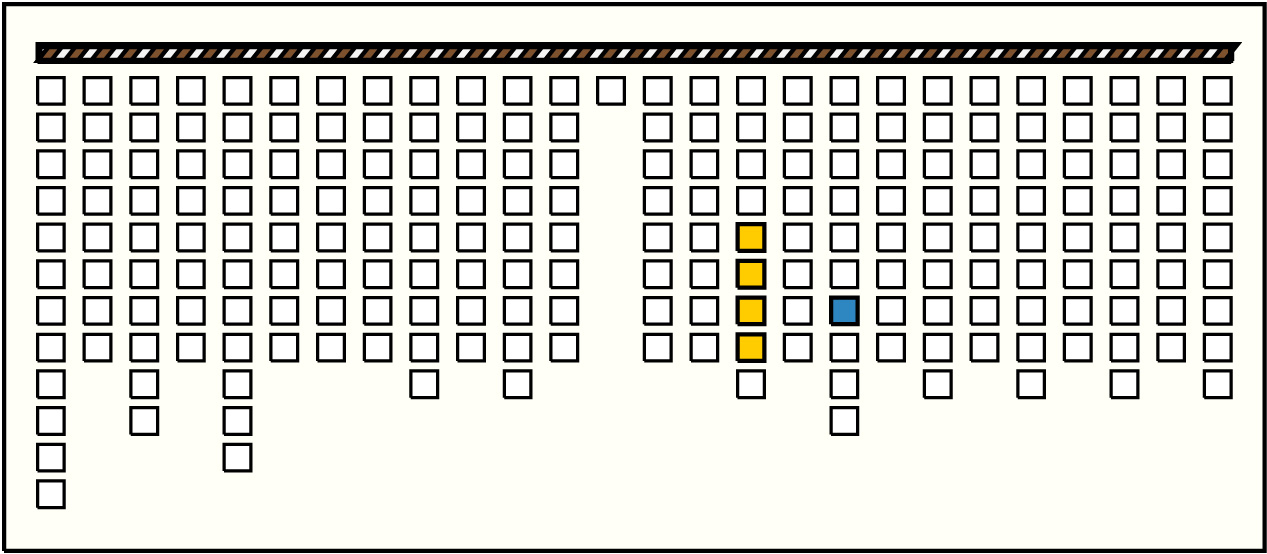

4	p148_{18, 7} : 35_DB	35	4	p129: 11_DB + p130: 9_DB + p131: 4_DB + p132: 11_DB

Khipu Notes:

Ascher Databook Notes:

A detached fragment of 9.0 cm. stored with the khipu has been assumed to be part of P5s3.
UR1127, AS128, and UR1176 were acquired by the Museum in 1933 with provenance Nazca.
By color, the khipu is separated in 25 groups. The first group is 12 pendants. Then there are 24 groups alternating in color pattern. Basically the pattern is a group of 8 pendants color W, followed by a group of 9 pendants colored RB, 7 DB, RB. (The exceptions t o the pattern are: groups 3, 5, and 17 each have an additional pendant between positions 1 and 2; groups 5, 7, and 9 each have an additional pendant between positions 8 and 9; in groups 7 and 9, position 4 is non-existent; and in group 7, position 2 is also non-existent. ) Starting with group 4, all groups of W pendants are of value 0 (or blank) and, in the alternate groups, all values in positions 1, 2, and 4 are 0 (or blank).
1. The values in group 3, position by position, are the sums of the values in corresponding positions in groups 7, 9, 11, 13, 15, while the values in group 5 are the sums of values in groups 17, 19, 21, 23, 25. These values include all the subsidiary values on each pendant. The sums are exact (or off by at most 2 in one digit) for only 14 of the 18 positions.
2. The values in group 1 are related to, but not exactly, the sums of values in groups 3 and 5, position by position. If at most one subsidiary is omitted when evaluating a position in group 1, then 8 of the 12 values in group 1 are the sums (+1 or 2) of the values in groups 3 and 5.
