MM021 - Indexed Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Indexed Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

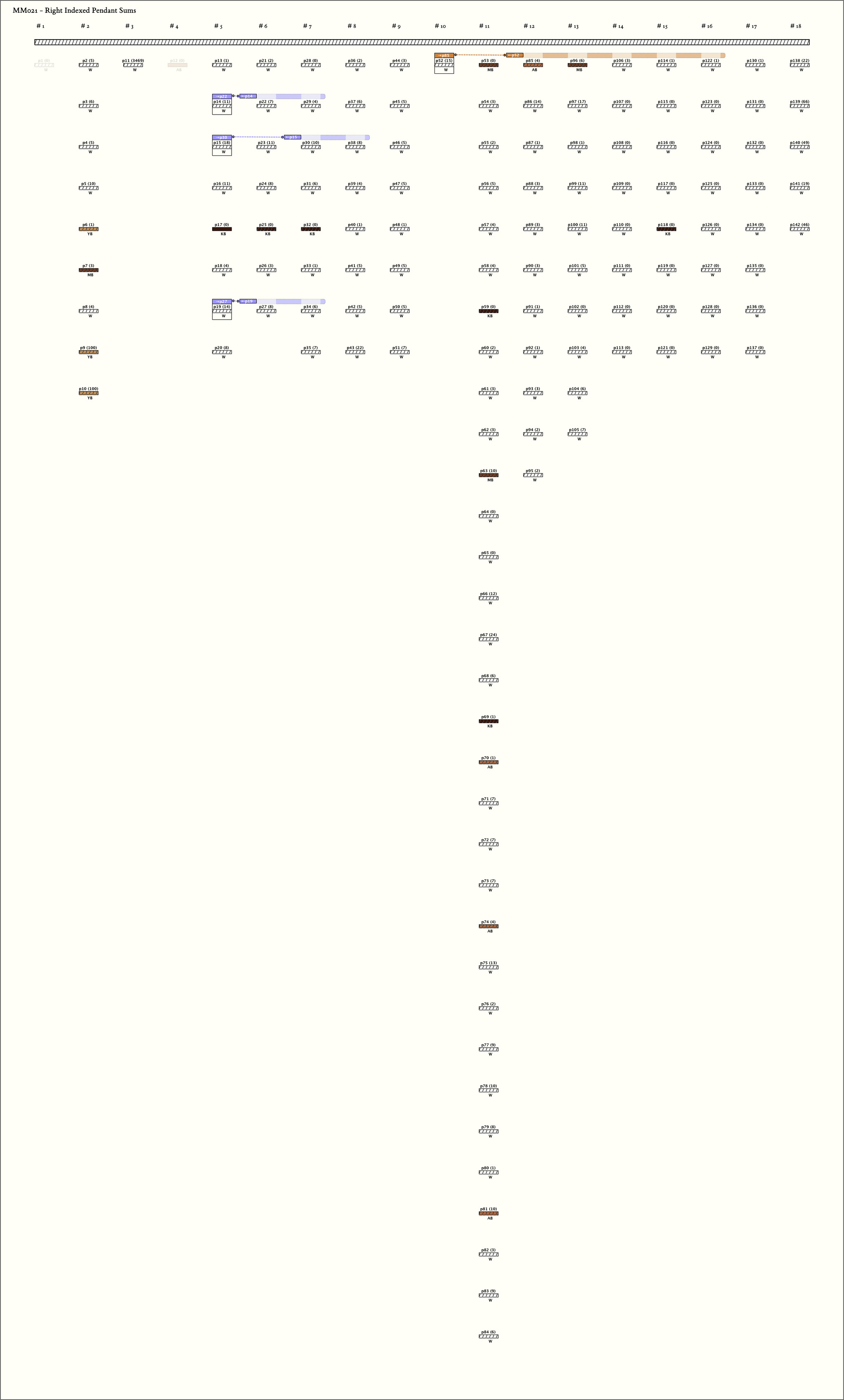

Right Handed Sums: # Sums = 4, Max # Summands = 5, (Min, Mean, Max) Sum Values = (11, 14, 18)
Click on Image to View Larger

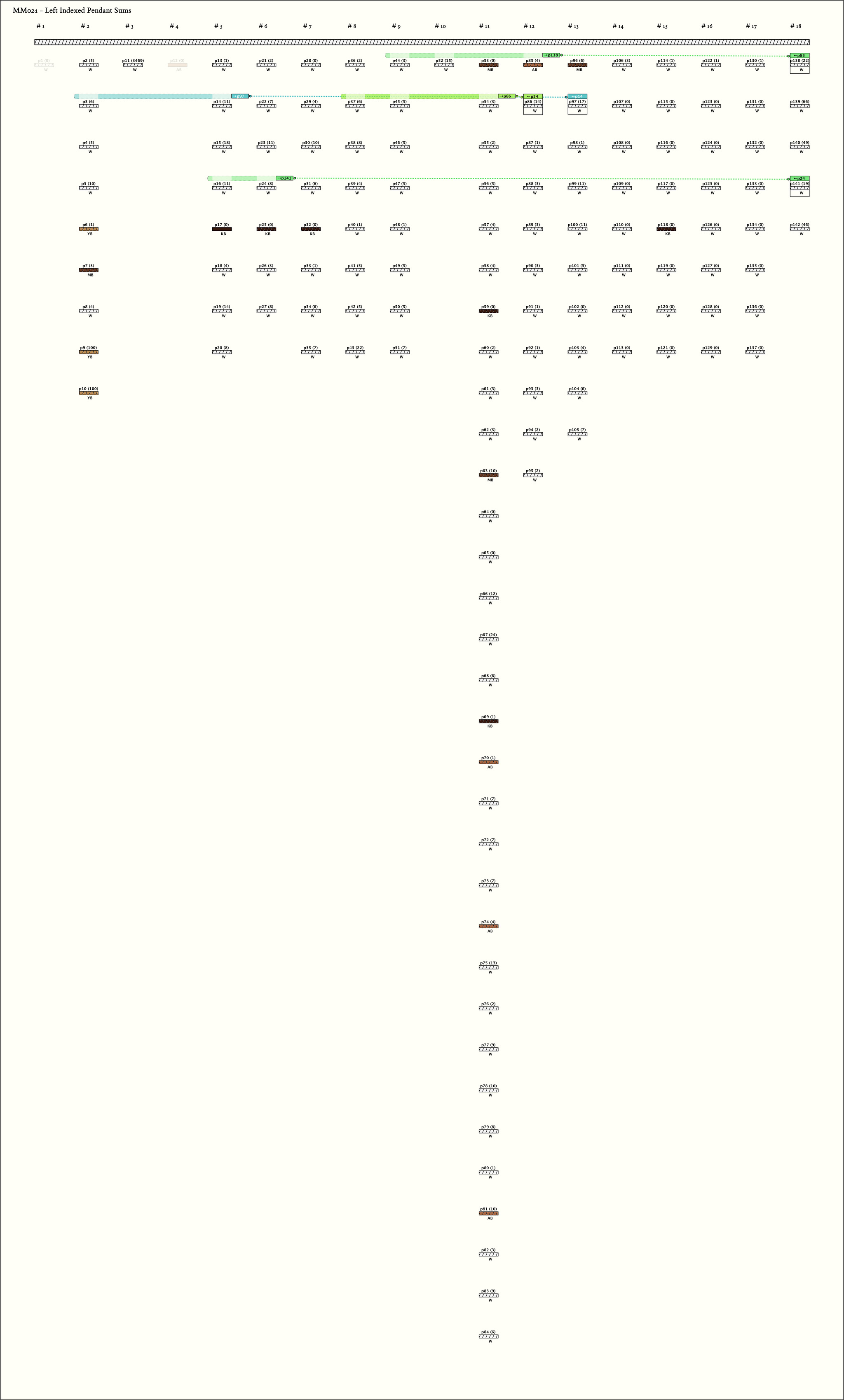

Left Handed Sums: # Sums = 4, Max # Summands = 3, (Min, Mean, Max) Sum Values = (14, 18, 22)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

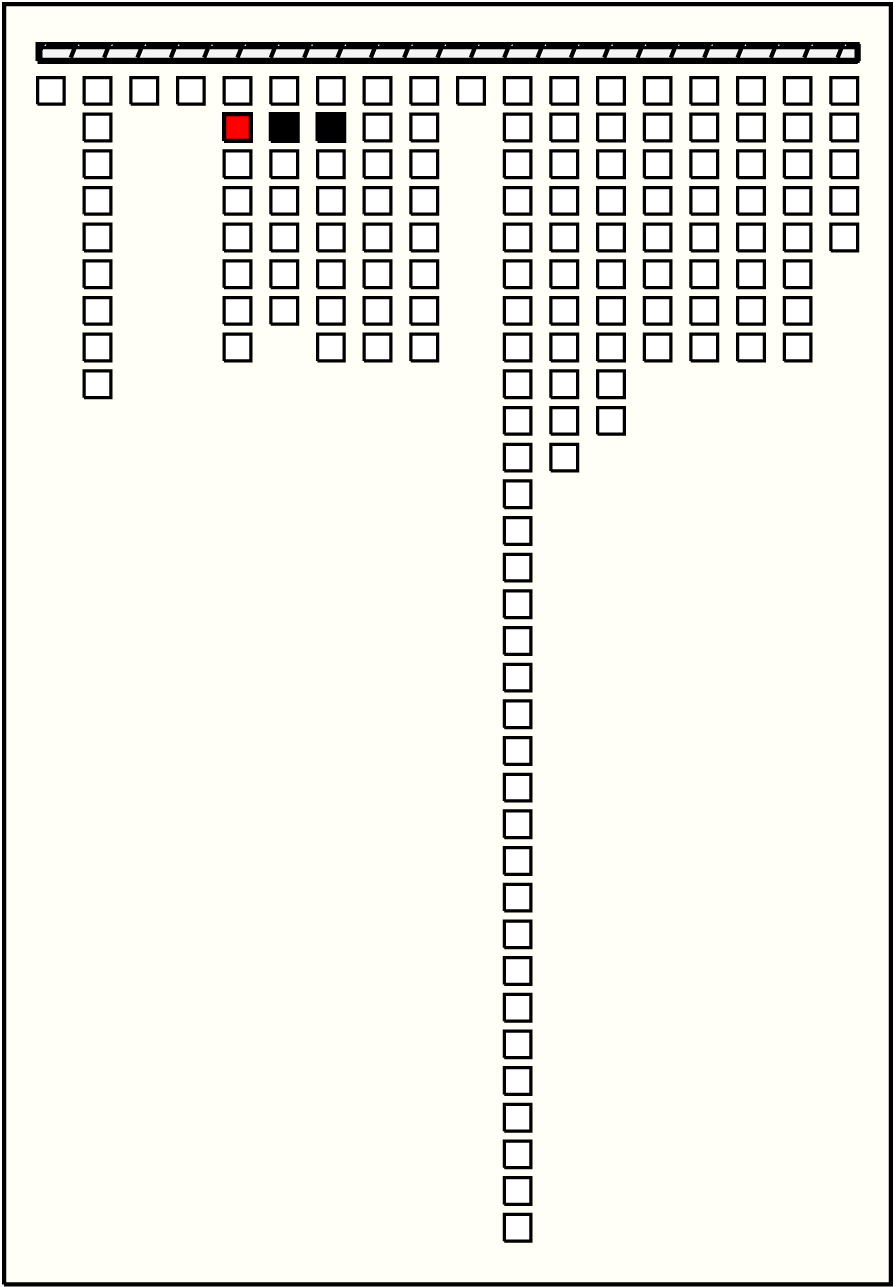

1	p14_{5, 2} : 11_W	11	2	p22: 7_W + p29: 4_W

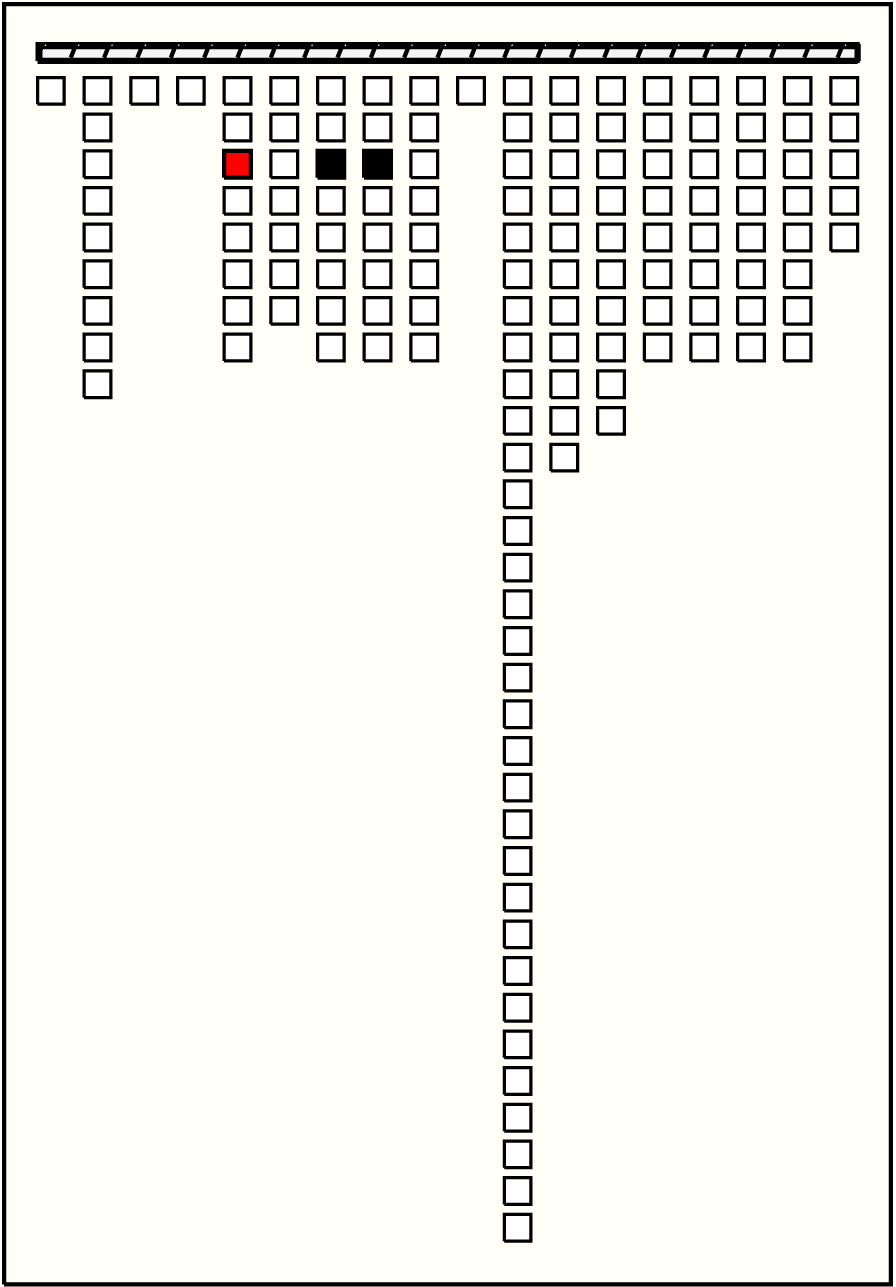

2	p15_{5, 3} : 18_W	18	2	p30: 10_W + p38: 8_W

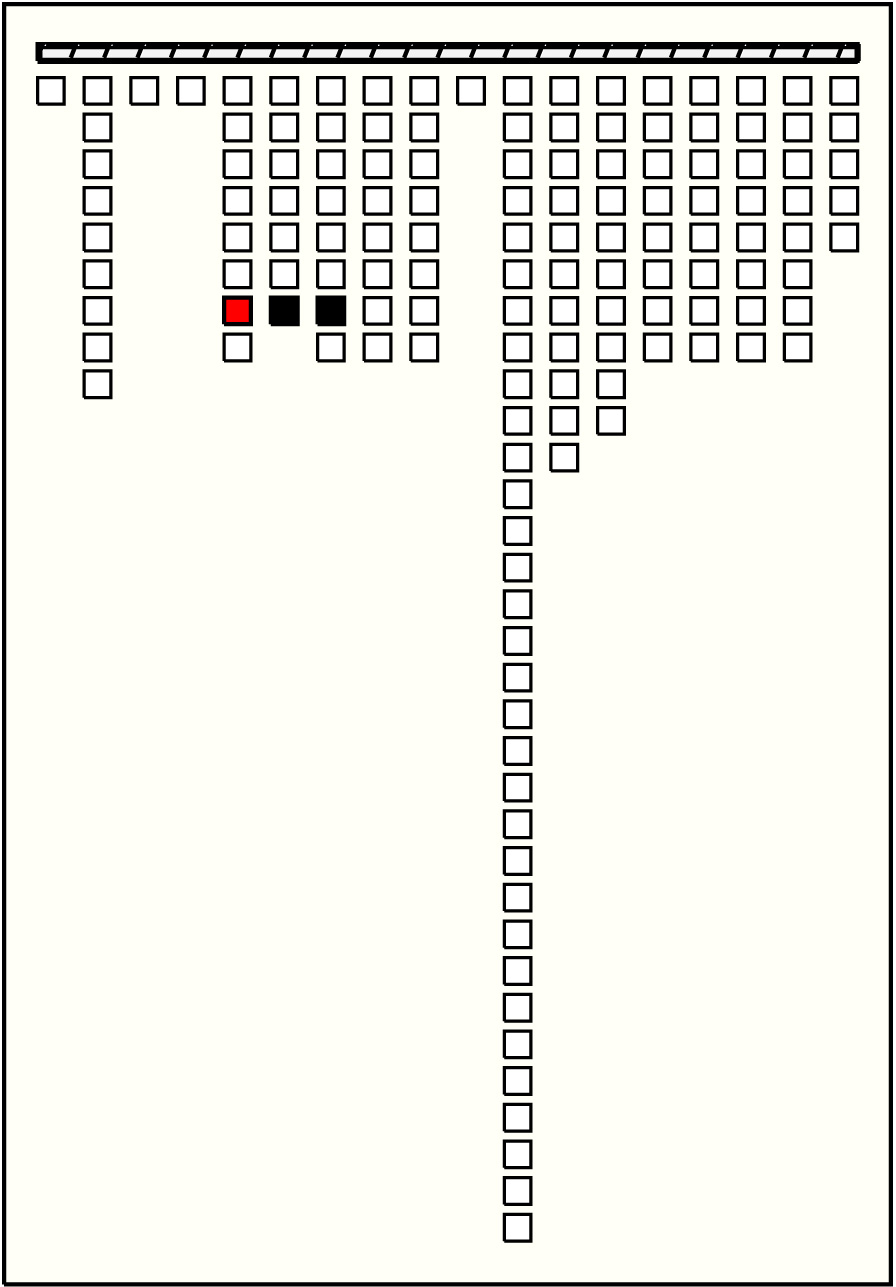

3	p19_{5, 7} : 14_W	14	2	p27: 8_W + p34: 6_W
4	p52_{10, 1} : 15_W	15	5	p85: 4_AB + p96: 6_MB + p106: 3_W + p114: 1_W + p122: 1_W

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

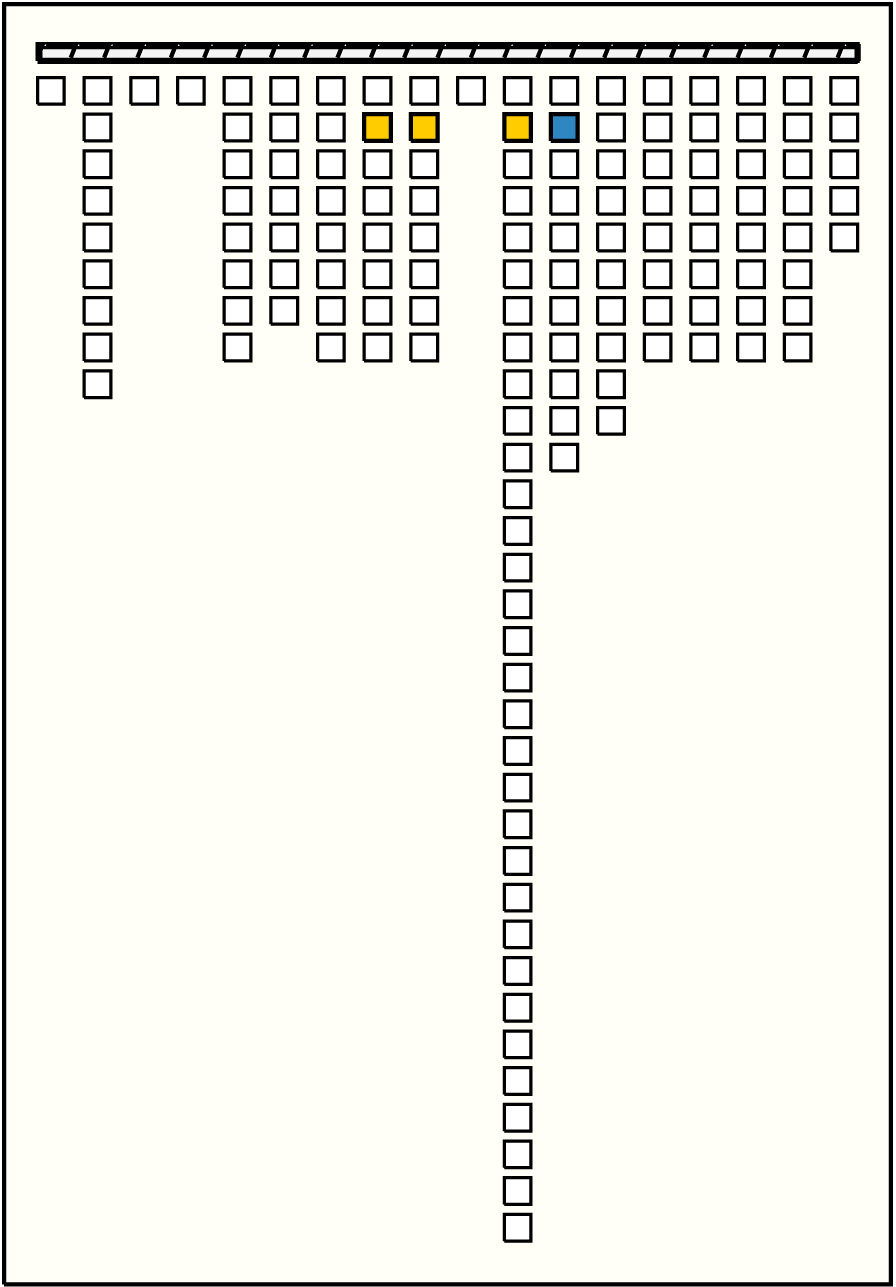

1	p86_{12, 2} : 14_W	14	3	p37: 6_W + p45: 5_W + p54: 3_W
2	p97_{13, 2} : 17_W	17	2	p3: 6_W + p14: 11_W

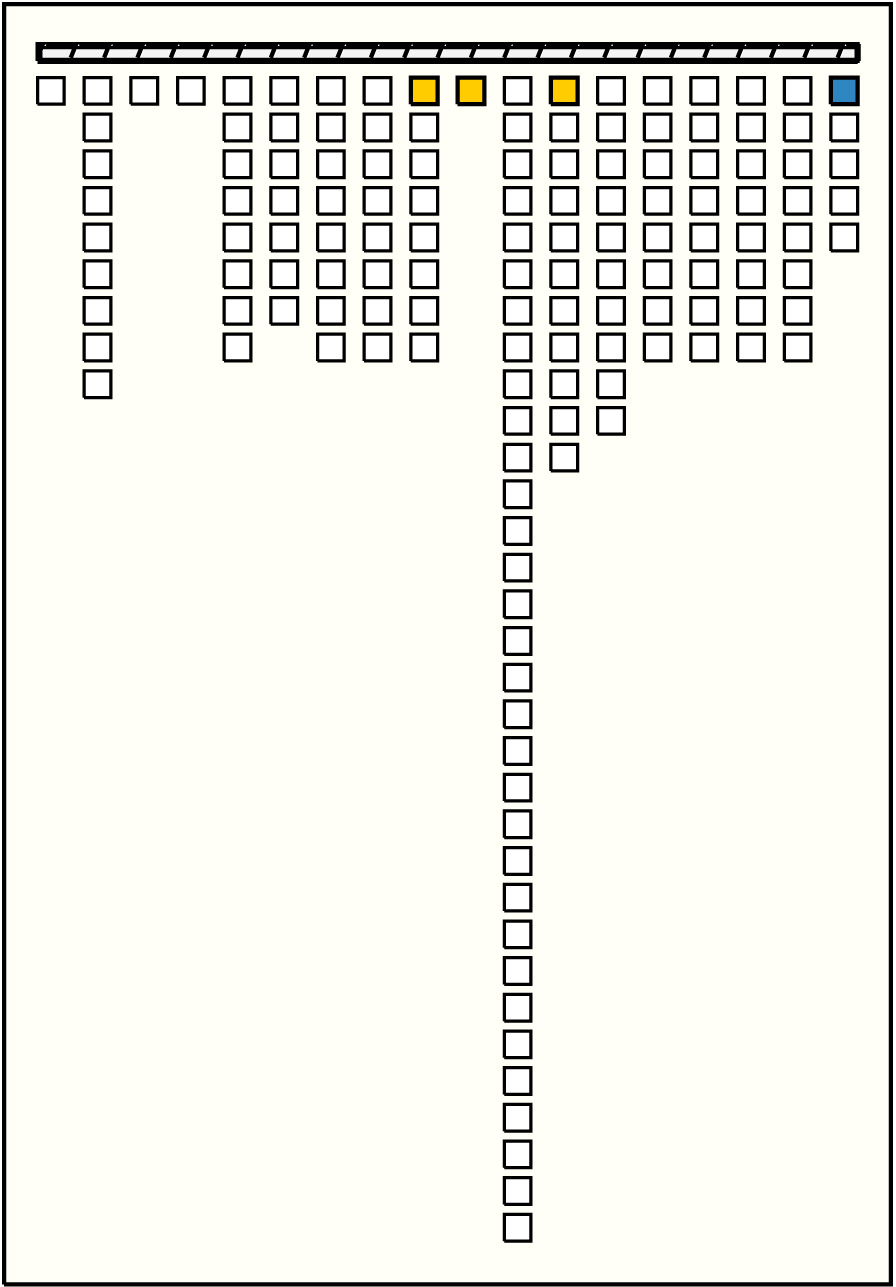

3	p138_{18, 1} : 22_W	22	3	p44: 3_W + p52: 15_W + p85: 4_AB

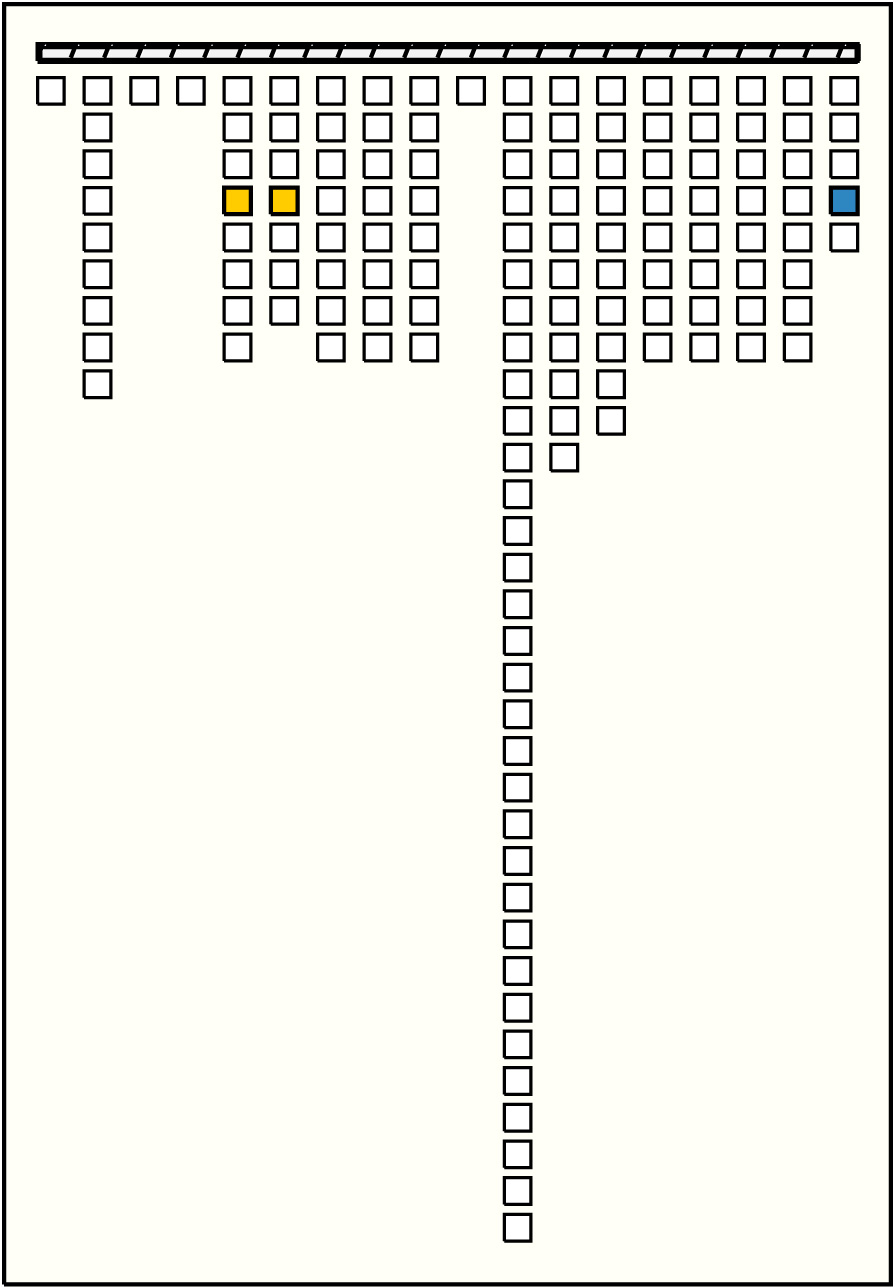

4	p141_{18, 4} : 19_W	19	2	p16: 11_W + p24: 8_W

Khipu Notes:

Notes and Obeservations for Khipu MM021

1: p1 subsidiaries (p1s1-P1s6) attached with pendant-like attachment knots, though p1 is not significantly thicker than other pendant cords, suggesting this is not a subsidiary primary cord
6: string damaged between 8.0-18.0cm
11: repair knot at 14.0cm
13: untied 1S knot at 31.0cm
27: extra loop behind top of 8L knot
37: pendant loop at 27.0cm
58: color changes in turn of long knot
75: repair knot at 18.0cm
77: color changes in turn of long knot
87: pendant loop at 16.5cm
102: pendant damaged between 15.5-18.0cm

Primary Cord Notes

Primary Cord Thread Wrappings
YB wrapping at 47.5cm
All khipus I have studied are currently designated "MM", following convention in the field (and until a more suitable replacement convention is agreed upon) - Nanuel Medrano
