MM022 - Indexed Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Indexed Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

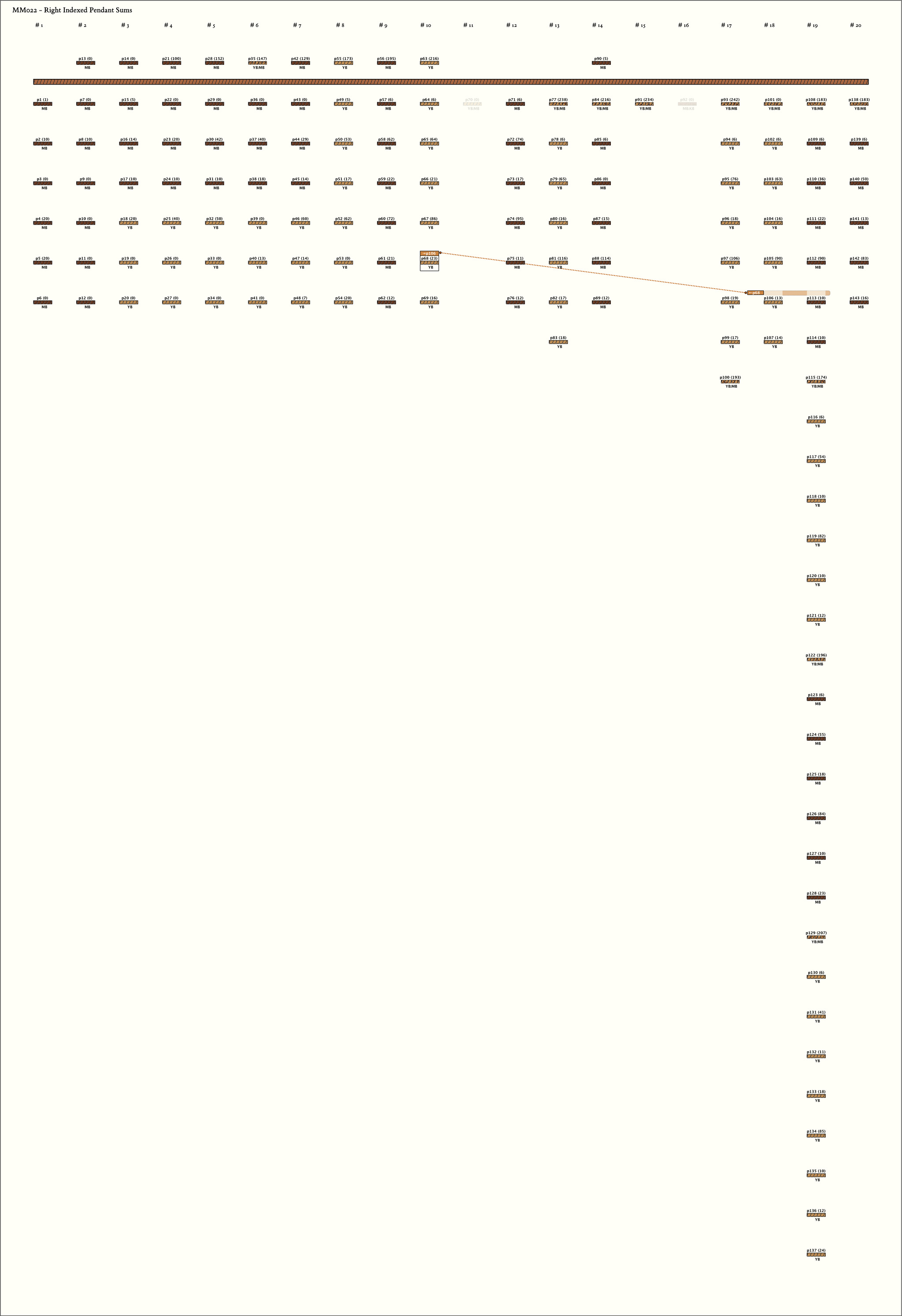

Right Handed Sums: # Sums = 1, Max # Summands = 2, (Min, Mean, Max) Sum Values = (23, 23, 23)
Click on Image to View Larger

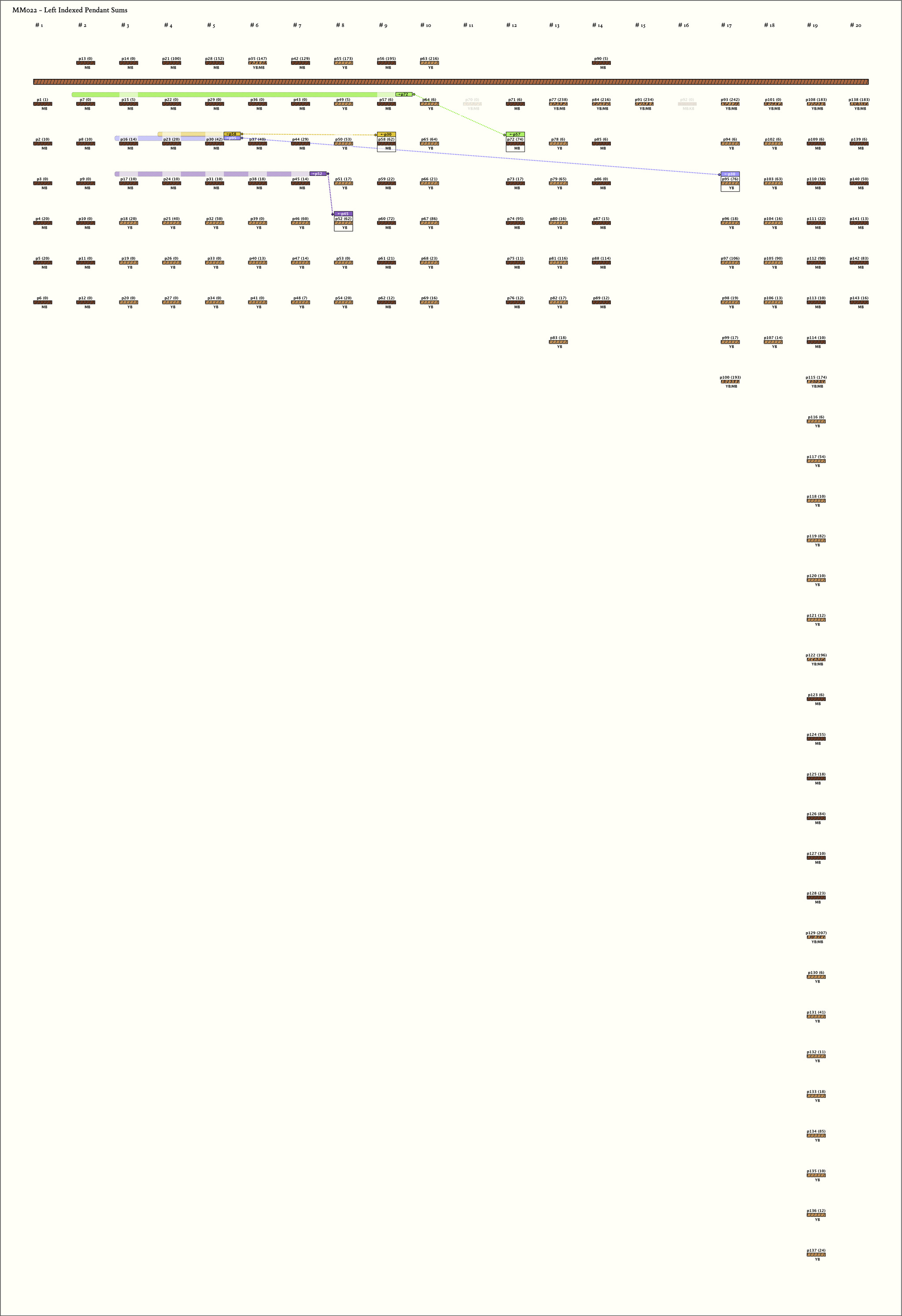

Left Handed Sums: # Sums = 4, Max # Summands = 5, (Min, Mean, Max) Sum Values = (62, 68, 76)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

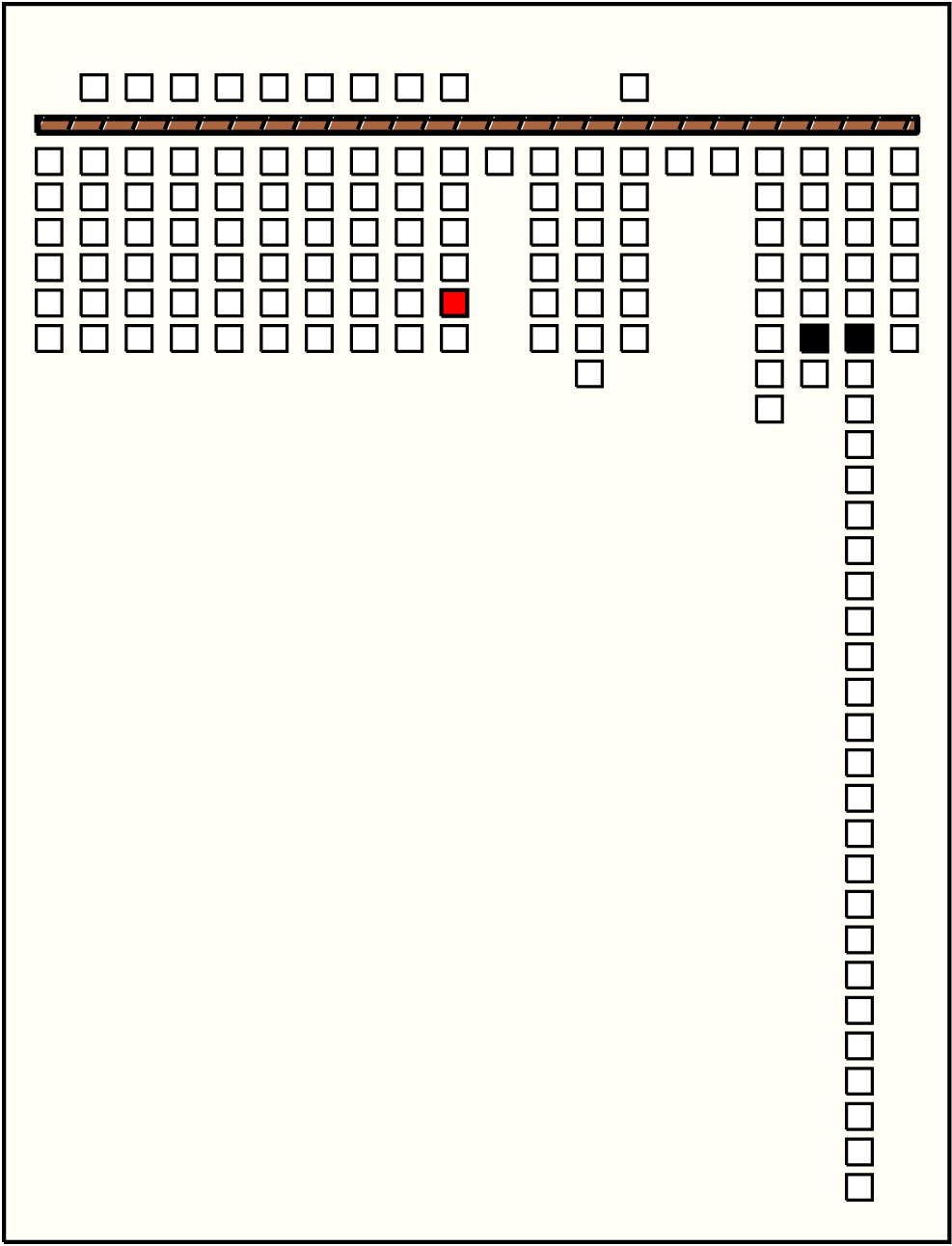

1			p68_{10, 6} : 23_YB	23	2	p106: 13_YB + p113: 10_MB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p52_{8, 4} : 62_YB	62	5	p17: 10_MB + p24: 10_MB + p31: 10_MB + p38: 18_MB + p45: 14_MB

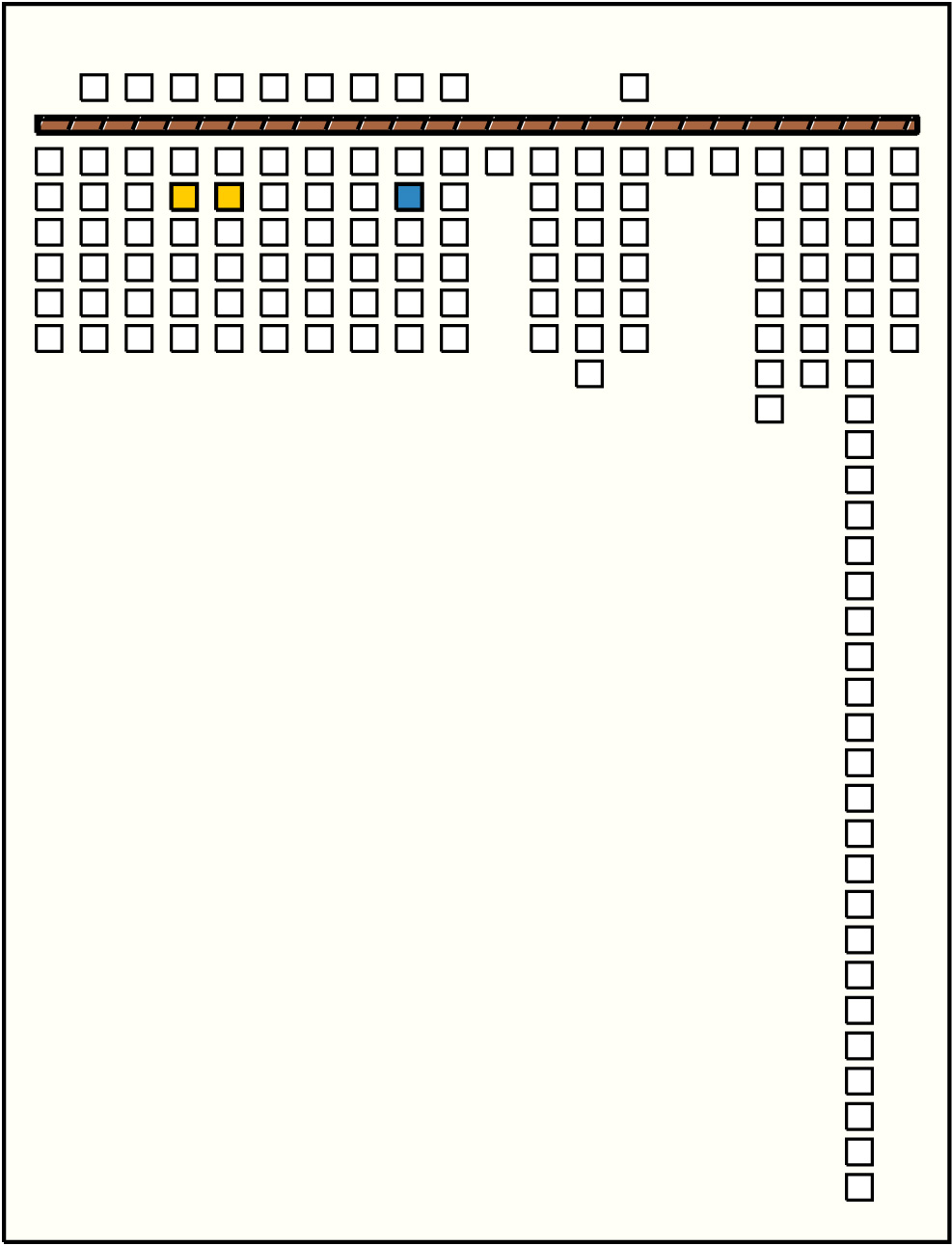

2	p58_{9, 3} : 62_MB	62	2	p23: 20_MB + p30: 42_MB

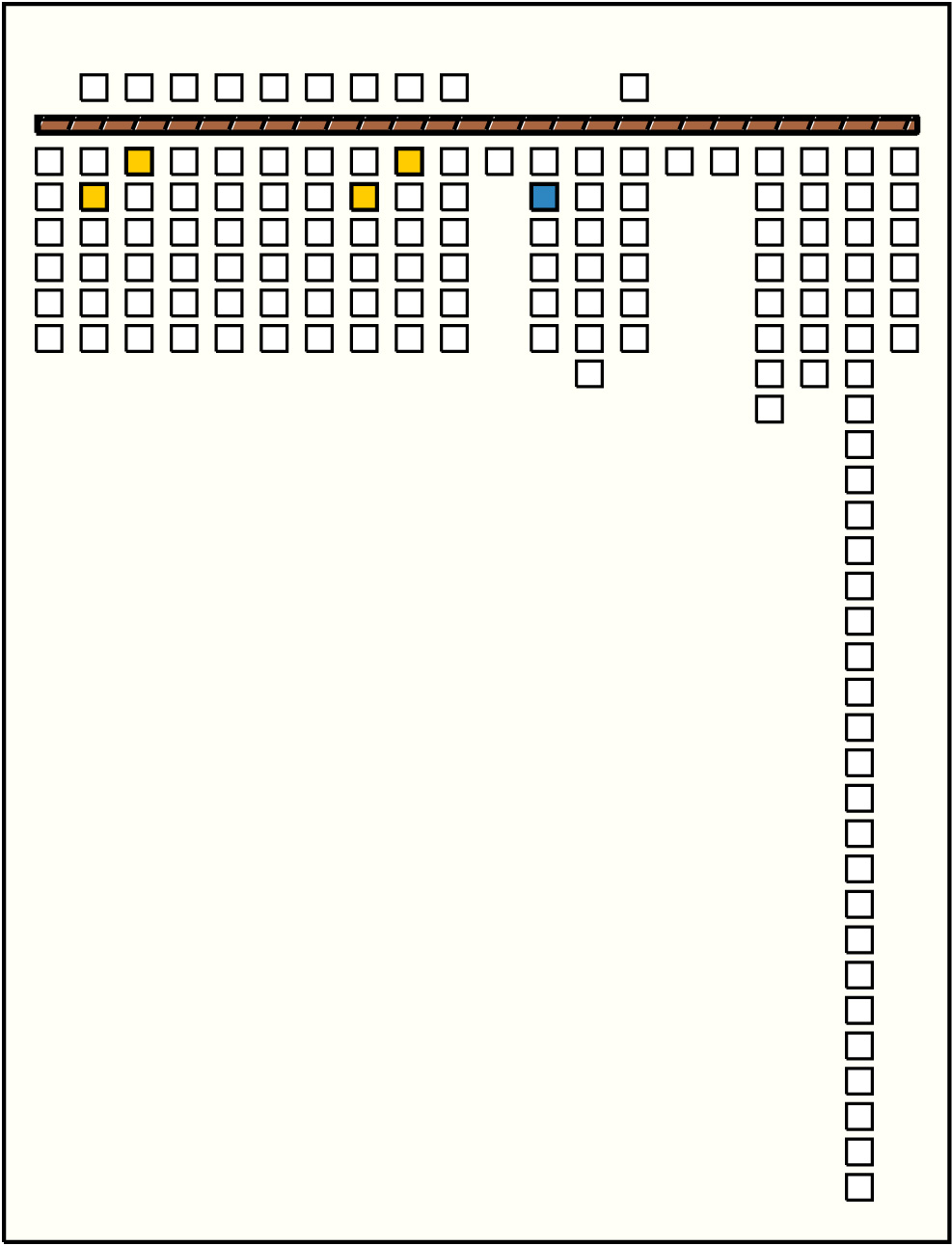

3	p72_{12, 2} : 74_MB	74	4	p8: 10_MB + p15: 5_MB + p50: 53_YB + p57: 6_MB
4	p95_{17, 3} : 76_YB	76	3	p16: 14_MB + p23: 20_MB + p30: 42_MB

Khipu Notes:

Notes and Obeservations for Khipu MM022

45s3: broken ≥2L knot (unidentifiable) on end of string
T10: this is not a loop-through top cord like the others; it attaches one primary cord to the other
100: fragile; string held together by a single fraying thread
109s2: highly-damaged 1E knot, knot direction uncertain
114s2: broken and unraveling long knot; number of turns uncertain
128s2: might be 8L (very tight long knot)
130s1: at 2.0cm single thread holding this pendant together

Primary Cord Notes

Notes: ***Read from left to right as mounted. Note that this khipu consists of two primary cords tied together. Primary cord 1 has one string attached to it and was recorded separately. This is the record for primary cord 2.
All khipus I have studied are currently designated "MM", following convention in the field (and until a more suitable replacement convention is agreed upon) - Manuel Medrano
