UR1091/KH0104 - Indexed Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Indexed Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

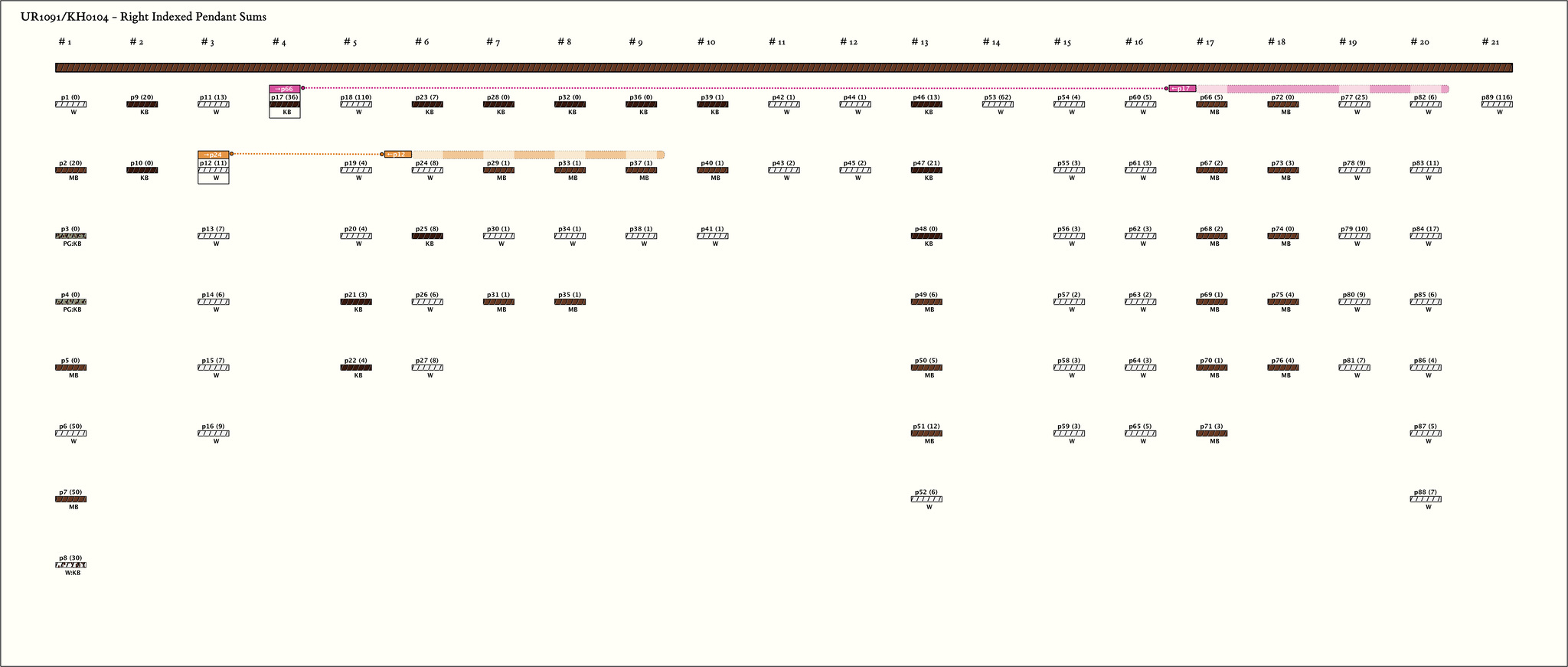

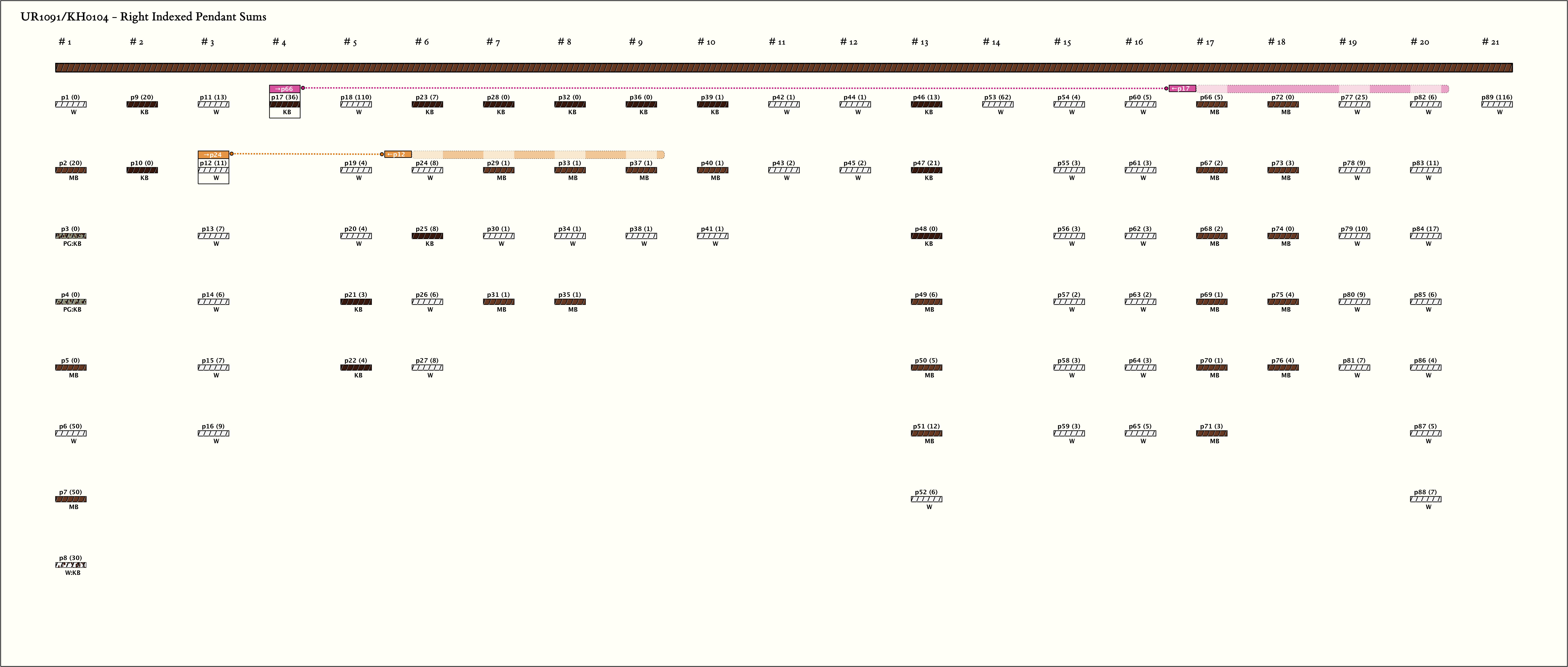

Right Handed Sums: # Sums = 2, Max # Summands = 4, (Min, Mean, Max) Sum Values = (11, 24, 36)
Click on Image to View Larger

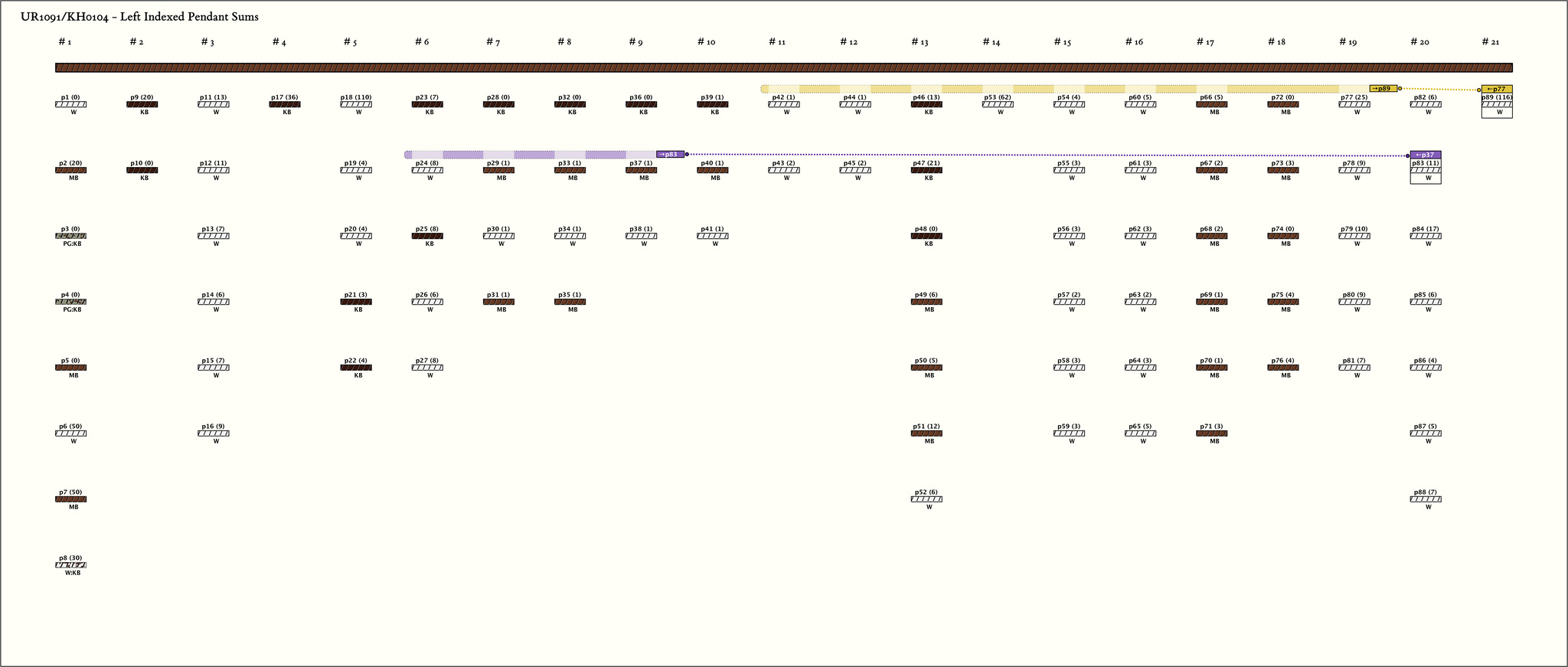

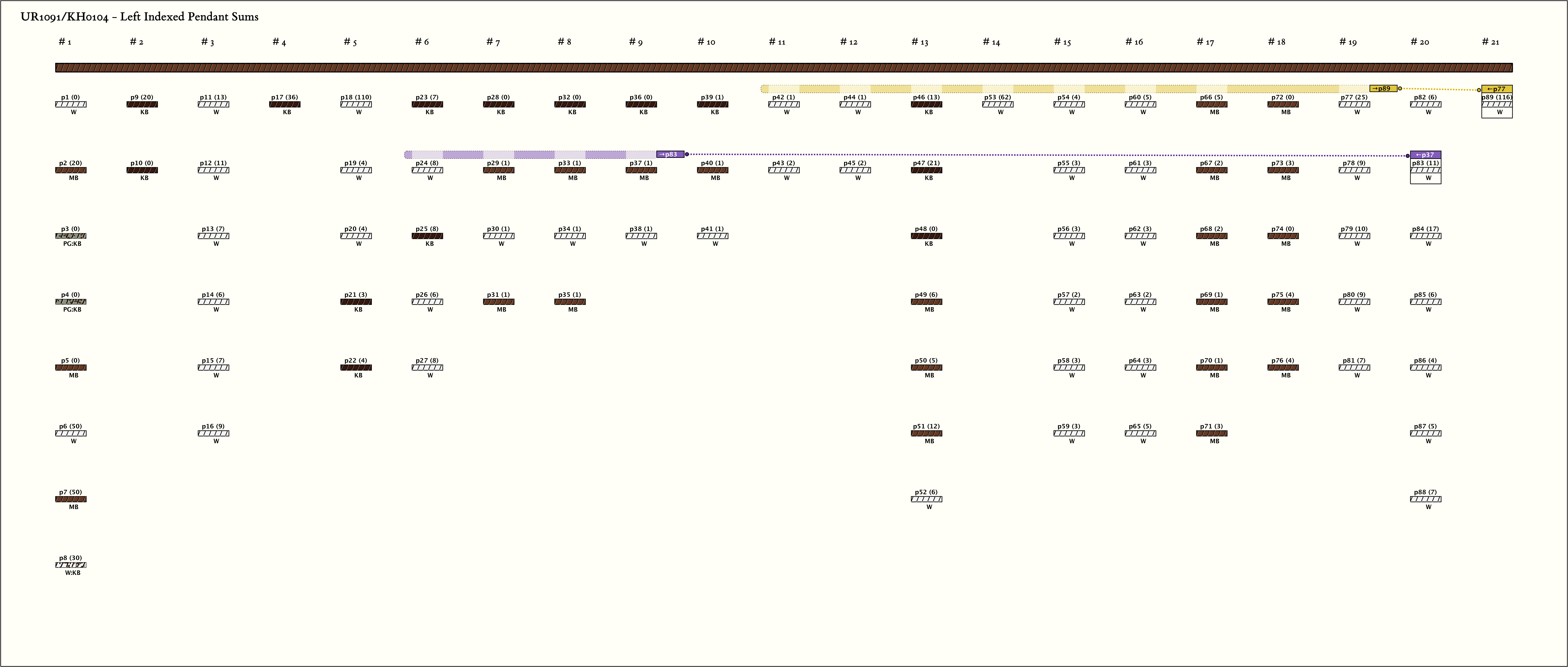

Left Handed Sums: # Sums = 2, Max # Summands = 8, (Min, Mean, Max) Sum Values = (11, 64, 116)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

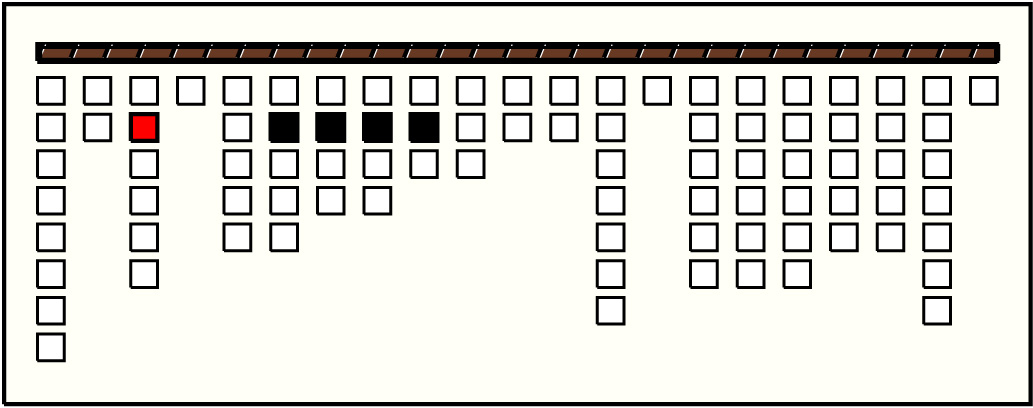

1			p12_{3, 2} : 11_W	11	4	p24: 8_W + p29: 1_MB + p33: 1_MB + p37: 1_MB

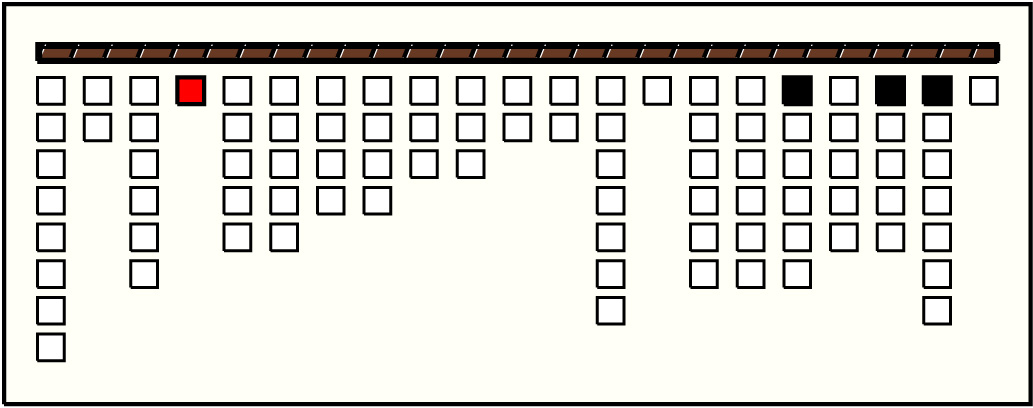

2			p17_{4, 1} : 36_KB	36	3	p66: 5_MB + p77: 25_W + p82: 6_W

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

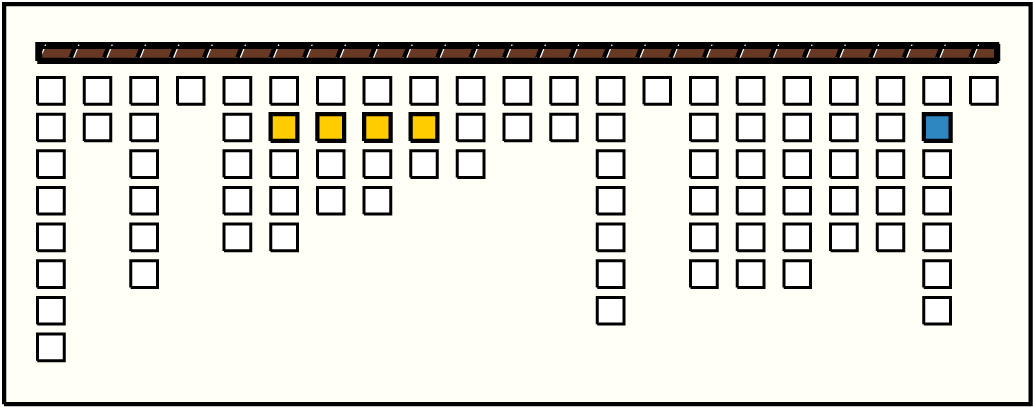

1			p83_{20, 2} : 11_W	11	4	p24: 8_W + p29: 1_MB + p33: 1_MB + p37: 1_MB

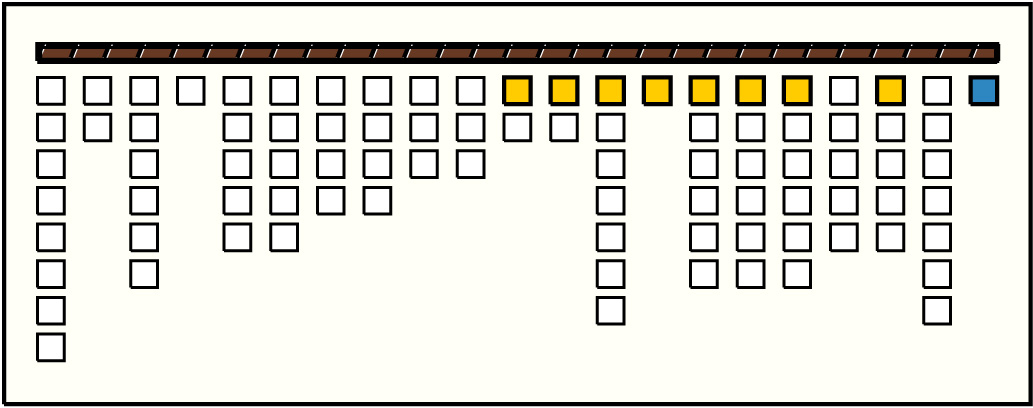

2			p89_{21, 1} : 116_W	116	8	p42: 1_W + p44: 1_W + p46: 13_KB + p53: 62_W + p54: 4_W + p60: 5_W + p66: 5_MB + p77: 25_W

Khipu Notes:

Ascher Databook Notes:

By spacing, there are 3 groups followed by a single pendant, then 9 groups followed by a single pendant, then 6 groups followed by a single pendant.
Groups 4-11 are paired in size and color. The number of pendants per group are 5, 5, 4, 4, 3, 3, 2, 2 respectively. The first 2 of these groups each have 3W and 2KB cords but in different orders; then 2 groups have the color pattern KB, MB, W, MB; the next 2 groups continue this pattern but without the final color (KB, MB, W); and the last 2 groups are both all W. Groups 13-18 are also paired in color: 2 groups are W; then 2 are MB; and then 2 are W.
Many of the pendants contain multiple values. For example, we interpret the value of pendant 11 as 5&8, and the value of pendant 7 7 as 16&9. With this interpretation, the values of the 12 pendants in groups 15 and 16 sum to the value of the single pendant that follows them.
