AS178/KH0195 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

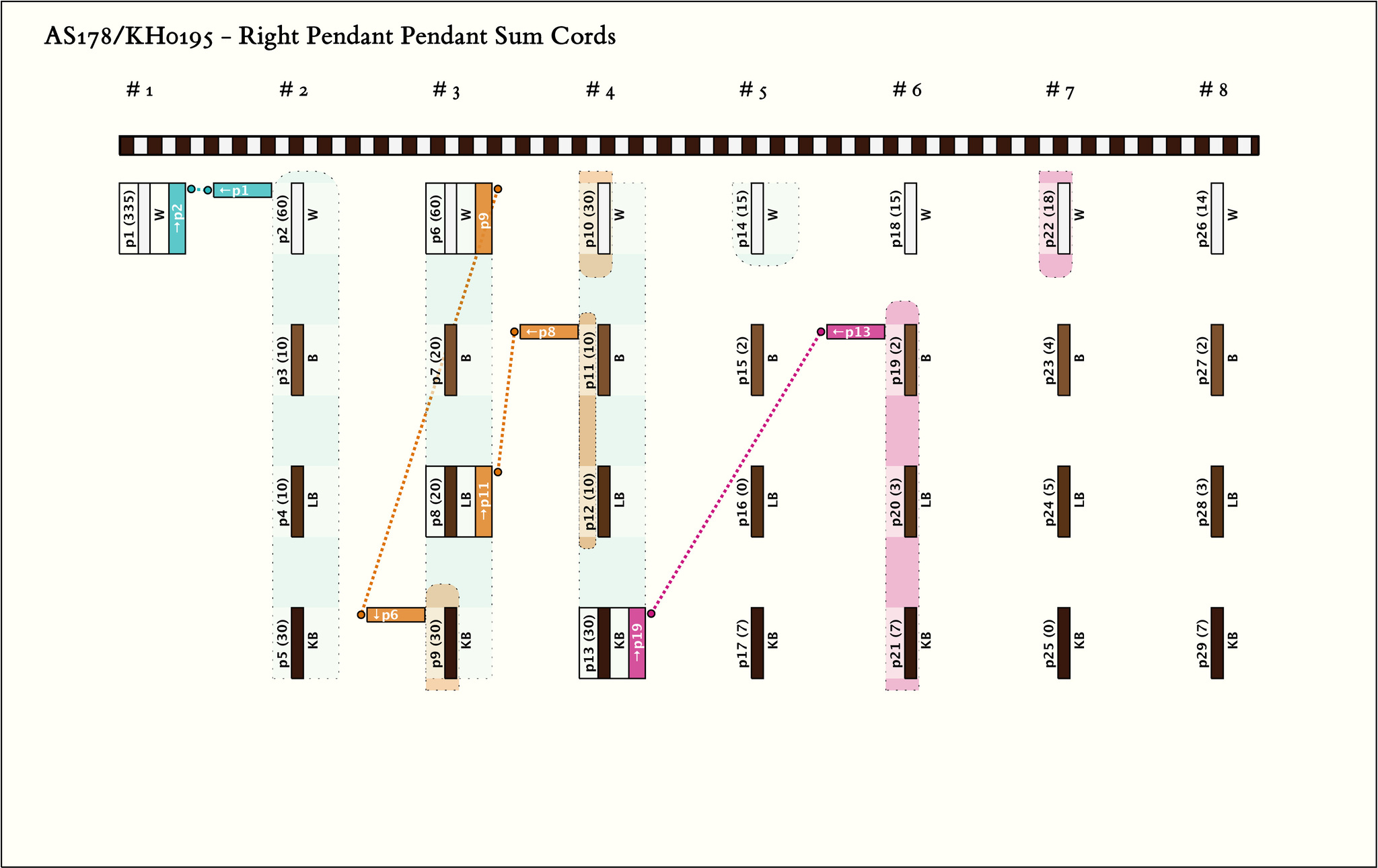

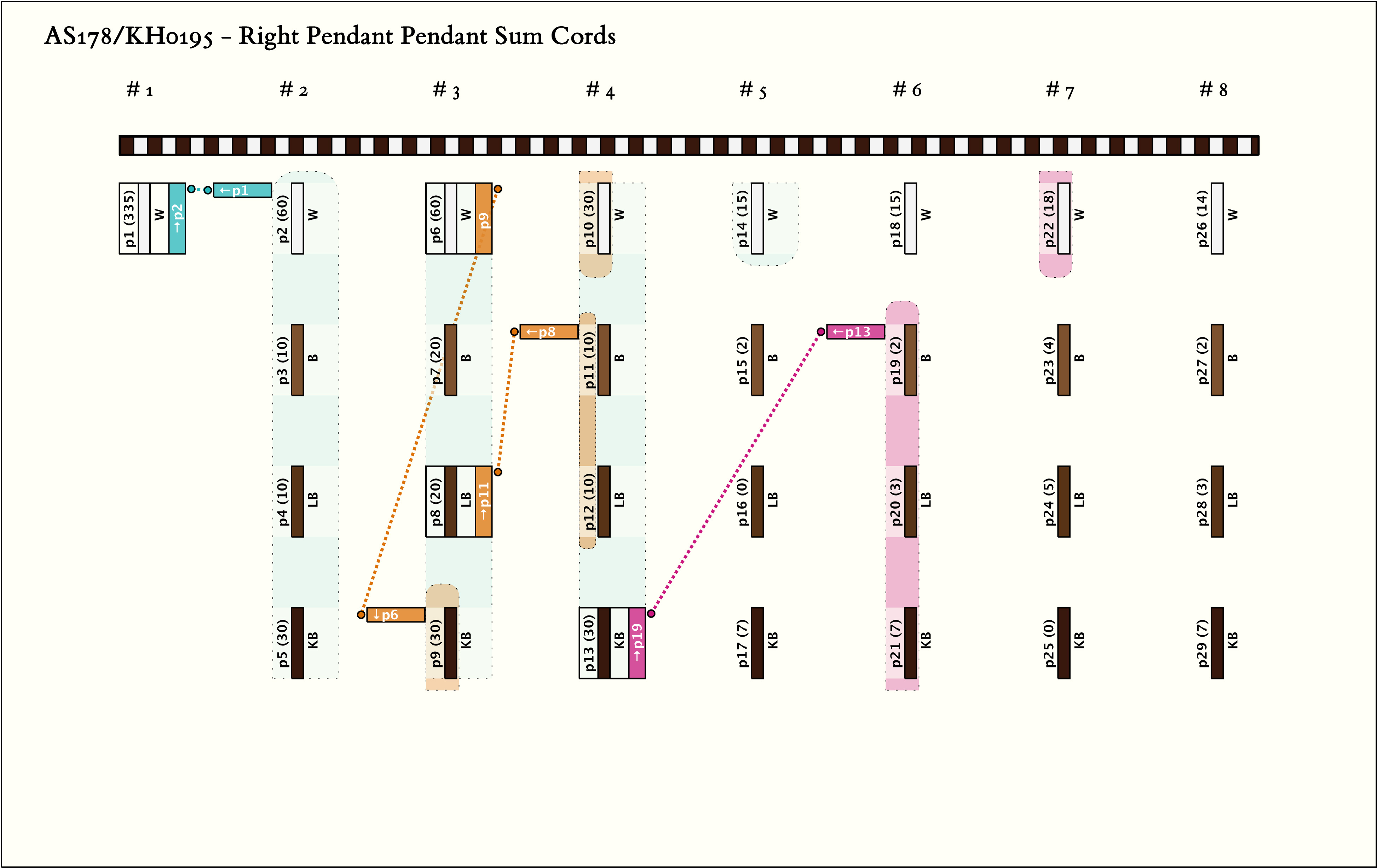

Right Handed Sums: # Sums = 4, Max # Summands = 13, (Min, Mean, Max) Sum Values = (20, 111, 335)
Click on Image to View Larger

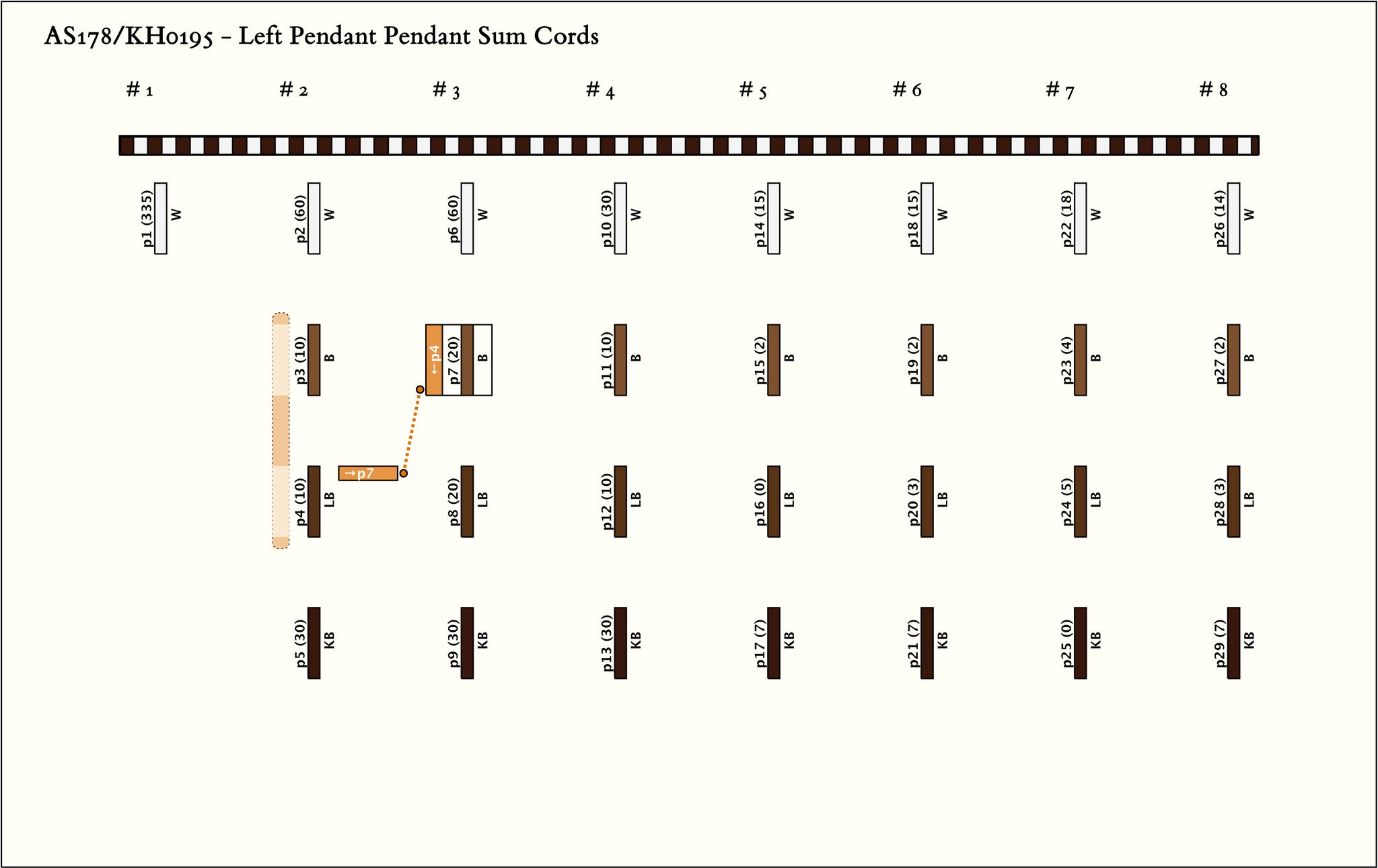

Left Handed Sums: # Sums = 1, Max # Summands = 2, (Min, Mean, Max) Sum Values = (20, 20, 20)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

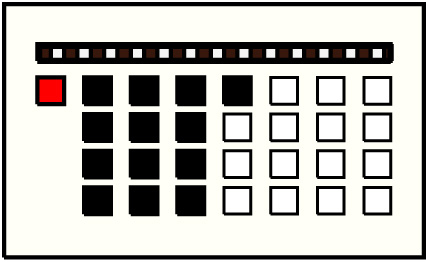

1	p1_{1, 1} : 335_W	335	13	p2: 60_W + p3: 10_B + p4: 10_LB + p5: 30_KB + p6: 60_W + p7: 20_B + p8: 20_LB + p9: 30_KB + p10: 30_W + p11: 10_B + p12: 10_LB + p13: 30_KB + p14: 15_W

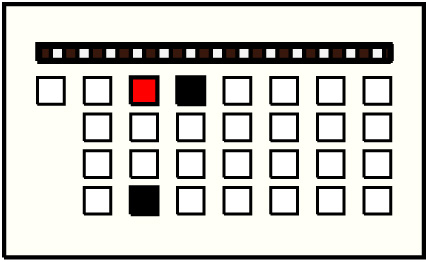

2	p6_{3, 1} : 60_W	60	2	p9: 30_KB + p10: 30_W

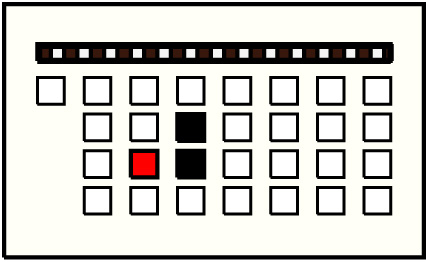

3	p8_{3, 3} : 20_LB	20	2	p11: 10_B + p12: 10_LB

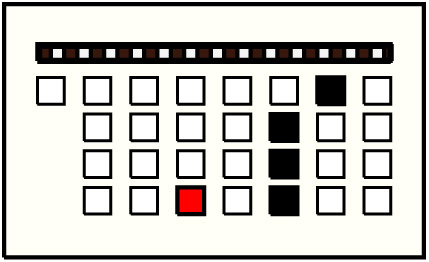

4	p13_{4, 4} : 30_KB	30	4	p19: 2_B + p20: 3_LB + p21: 7_KB + p22: 18_W

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands

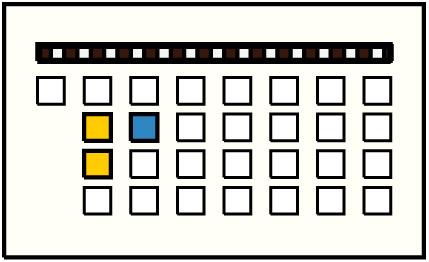

1			p7_{3, 2} : 20_B	20	2	p3: 10_B + p4: 10_LB

Khipu Notes:

Ascher Databook Notes:

Construction note: The khipu is made of animal hair.
This is one of several khipu acquired by the Museum in 1907 with provenance near Lima. For a discussion of them, see UR1130.
By spacing, there is 1 pendant cord and 7 groups of 4 pendants each. The first 3 groups are separated f rom the last 4 groups.
Each group has the same color pattern: W, B, LB, KB.
The values in the last 4 groups are all 0-18, while the values in the first 3 groups are 10-70.
The value on pendant 1 is the order of magnitude of the sum of the values in group 1. The values in group 1 are the order of magnitude of the sums of values in the corresponding positions in the last 4 groups. Too many cords are brokento know the relationship of the values with certainty.
