AS186/KH0204 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

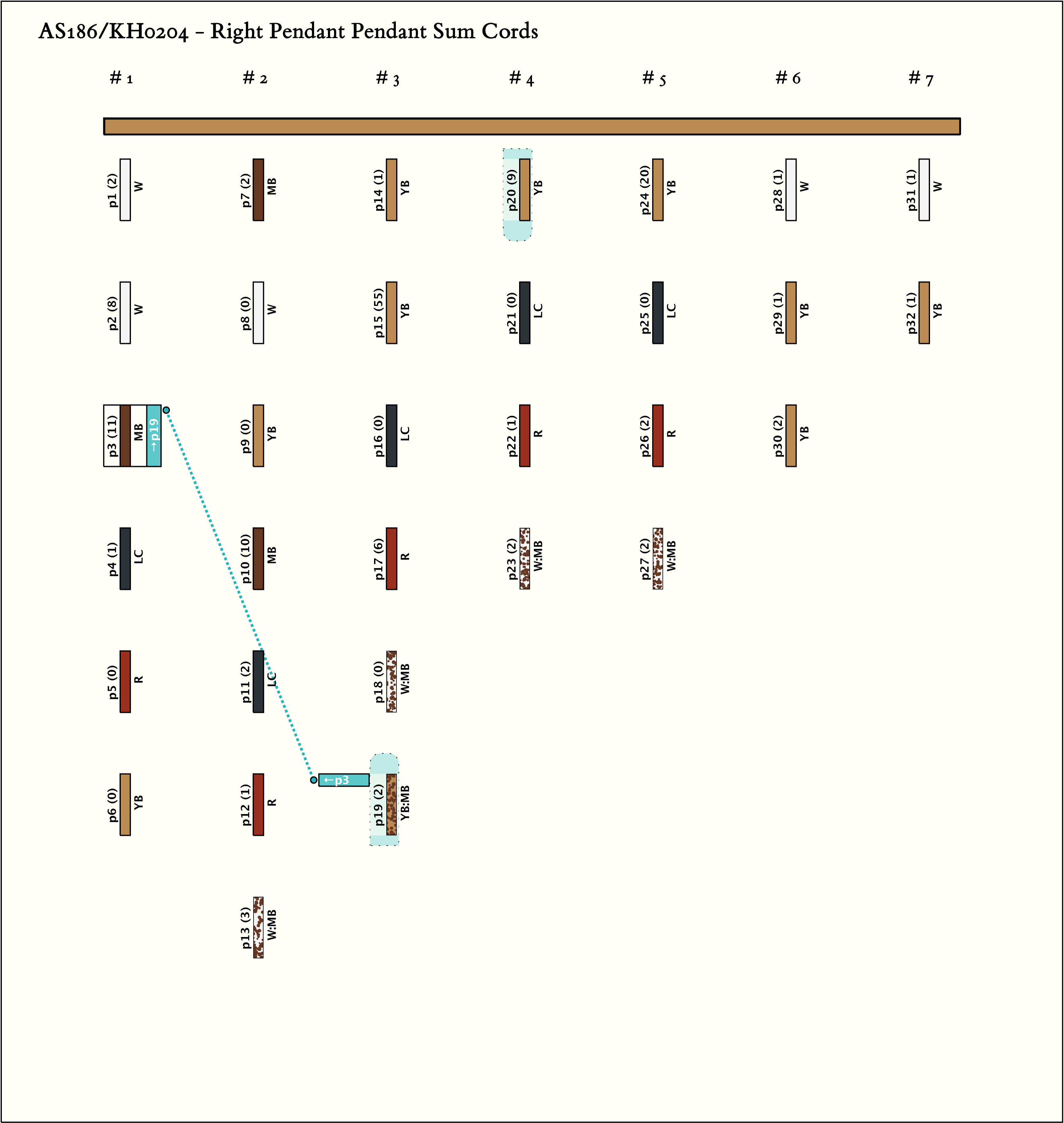

Right Handed Sums:     # Sums = 1,  Max # Summands = 2,   (Min, Mean, Max) Sum Values = (11, 11, 11)
Click on Image to View Larger

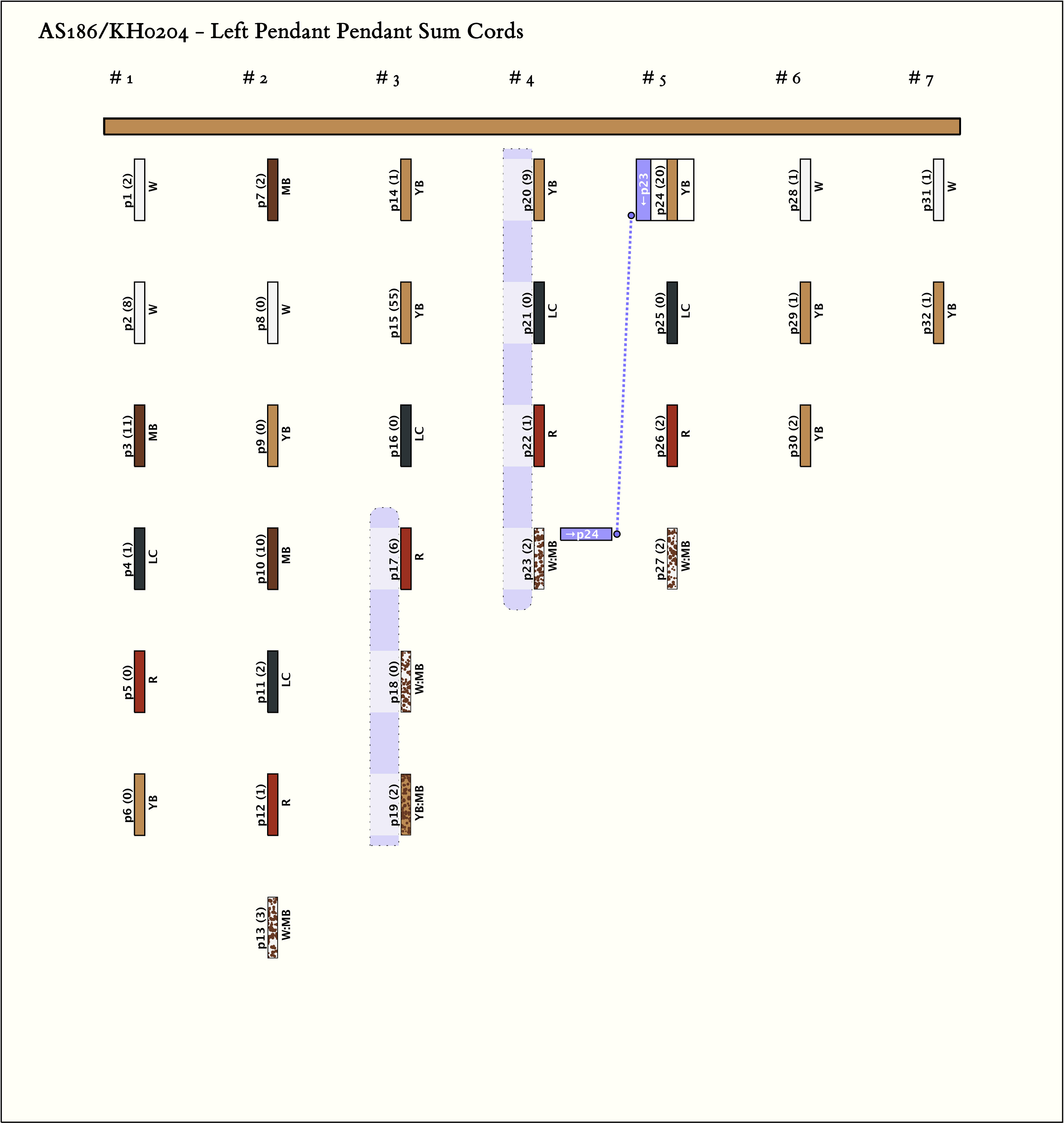

Left Handed Sums:     # Sums = 1,  Max # Summands = 7,   (Min, Mean, Max) Sum Values = (20, 20, 20)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			p31, 3 : 11MB	11	2	p19: 2YB:MB + p20: 9YB

Left Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			p245, 1 : 20YB	20	7	p17: 6R + p18: 0W:MB + p19: 2YB:MB + p20: 9YB + p21: 0LC + p22: 1R + p23: 2W:MB

Khipu Notes:

Ascher Databook Notes:

1. AS182-AS186 are associated in that they are tied together. For a comparison of them, see AS182.
2. By spacing, the khipu is separated into 3 parts of 2, 3, and 2 groups respectively. Although the groups differ in the number of pendants, within each part there is some shared color pattern:
   1. Both groups in part 1 have 3 consecutive pendants MB, LC, and R (with an R:W subsidiary);
   2. Each of the 3 groups in part 2 have 4 consecutive pendants YB (with 3 subsidiaries YB, LB:LC, W), LC, R (with an R:W subsidiary), and MB:W (with an FB:W subsidiary); and
   3. Each of the 2 groups in part 3 have a W pendant followed by a YB pendant.
