QU019/KH0607 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 46, Max # Summands = 22, (Min, Mean, Max) Sum Values = (11, 54, 601)
Click on Image to View Larger

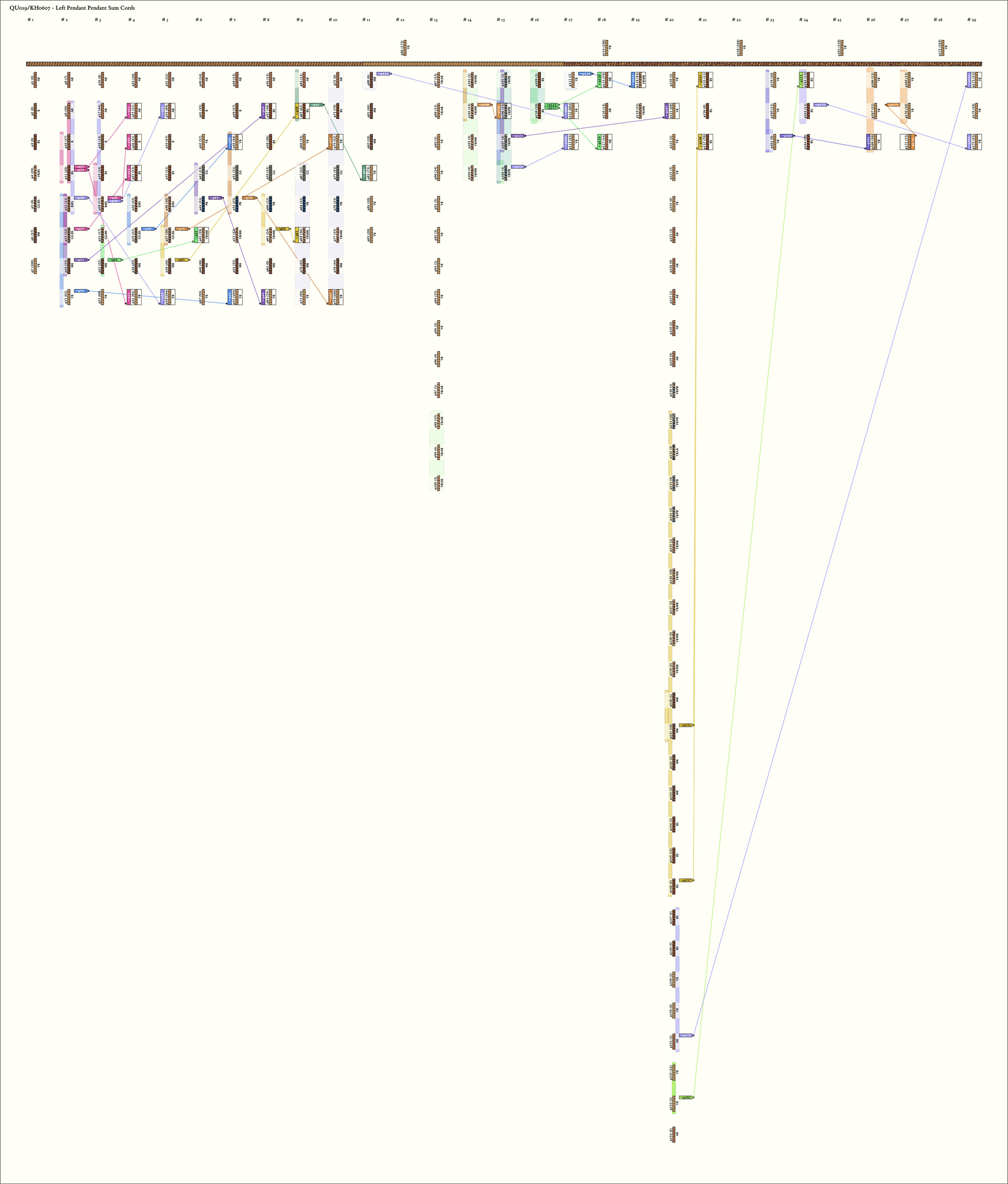

Left Handed Sums: # Sums = 30, Max # Summands = 16, (Min, Mean, Max) Sum Values = (11, 68, 601)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p7_{1, 7} : 100_YB	100	4	p8: 7_AB + p9: 36_AB + p10: 37_B + p11: 20_BS
2	p10_{2, 3} : 37_B	37	6	p88: 13_YB:AB + p89: 1_YB + p90: 14_YB + p91: 5_YB + p92: 3_YB + p93: 1_YB
3	p14_{2, 7} : 15_MB	15	2	p89: 1_YB + p90: 14_YB

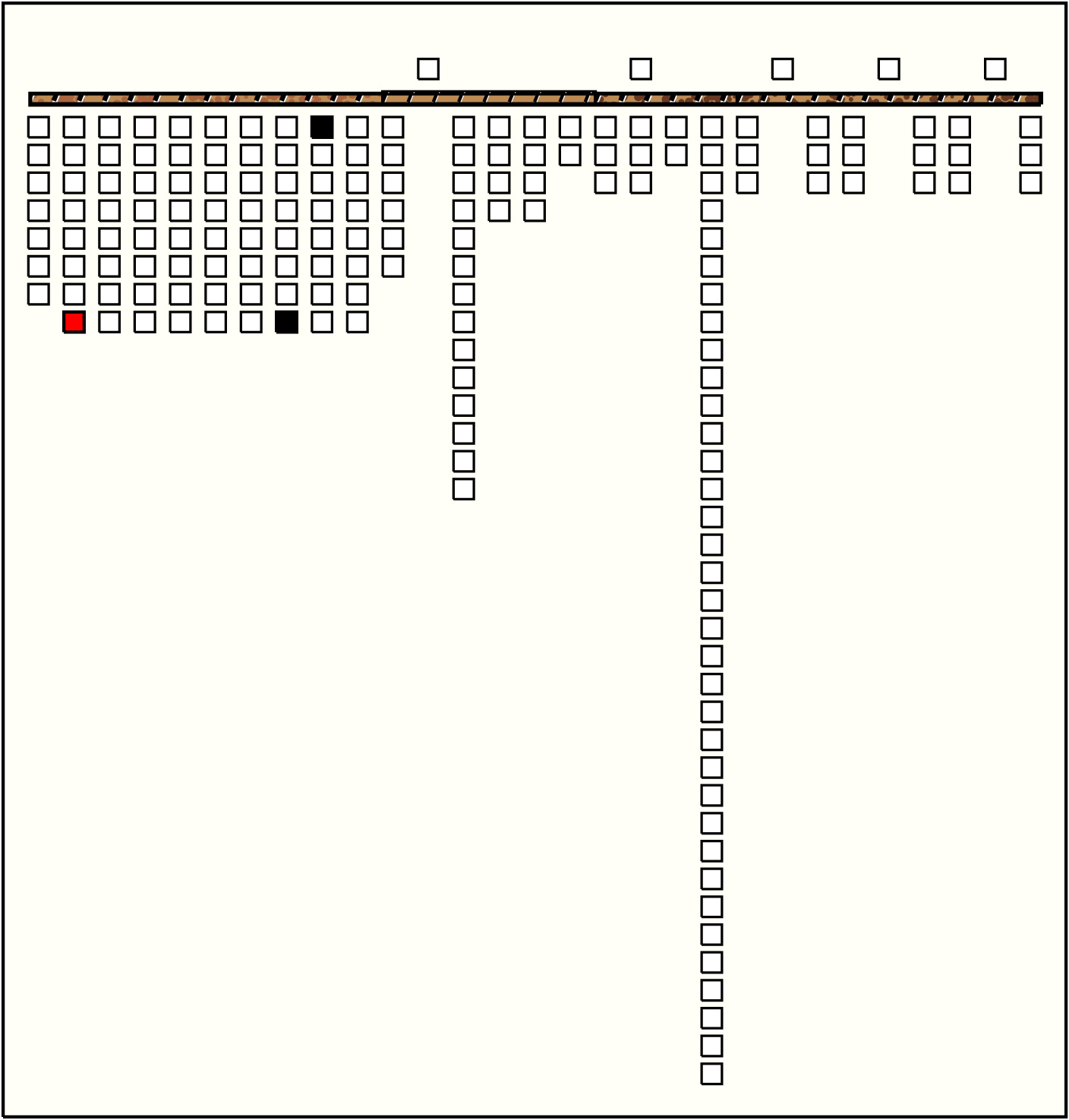

4	p15_{2, 8} : 65_YB	65	2	p63: 54_YB + p64: 11_AB

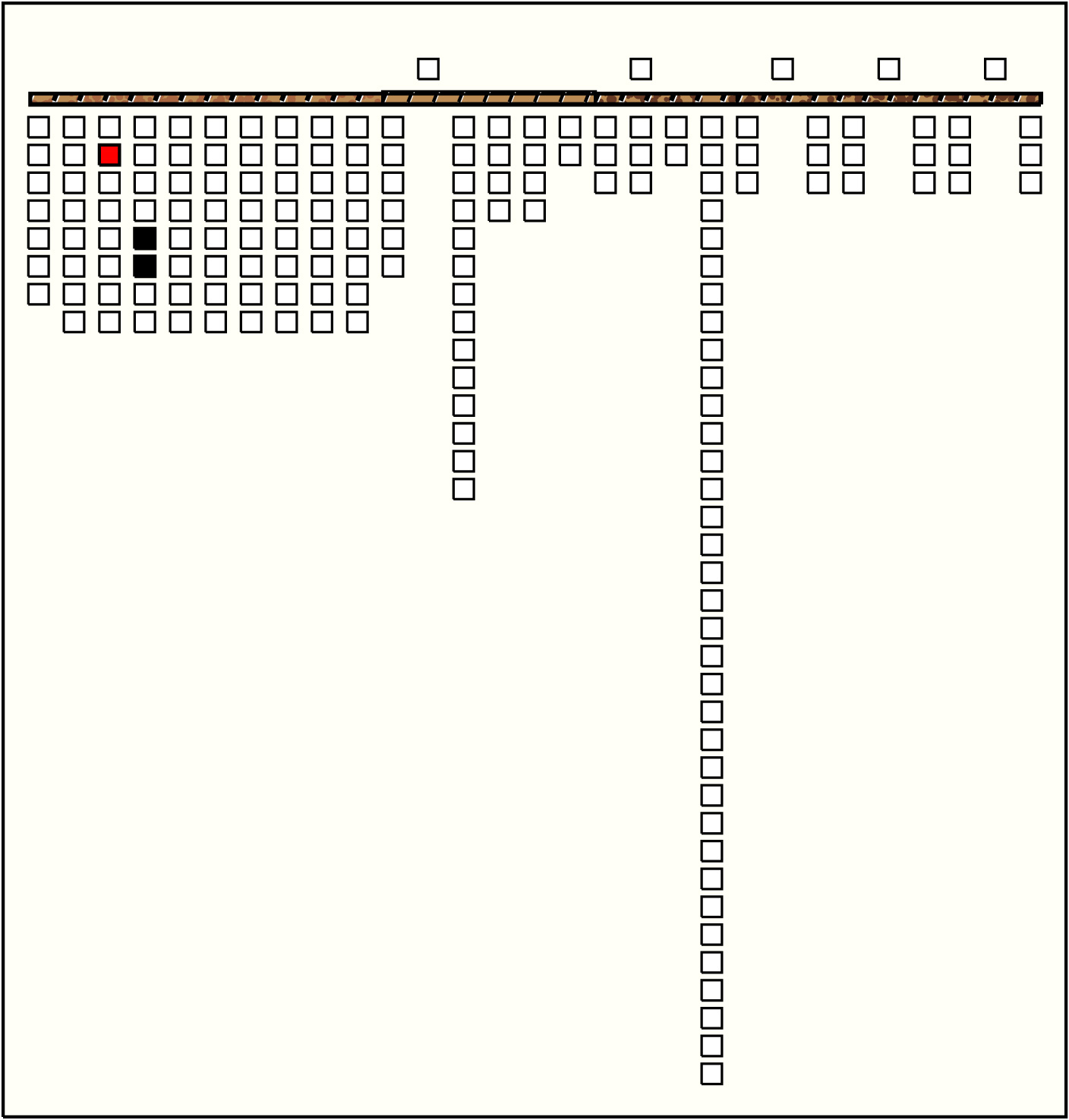

5	p17_{3, 2} : 44_AB	44	2	p28: 22_B:BS + p29: 22_GG:BS
6	p21_{3, 6} : 17_GG:BS	17	2	p110: 10_BS + p111: 7_YB
7	p23_{3, 8} : 60_YB	60	10	p88: 13_YB:AB + p89: 1_YB + p90: 14_YB + p91: 5_YB + p92: 3_YB + p93: 1_YB + p94: 15_YB + p95: 3_YB + p96: 4_YB + p97: 1_YB:AB

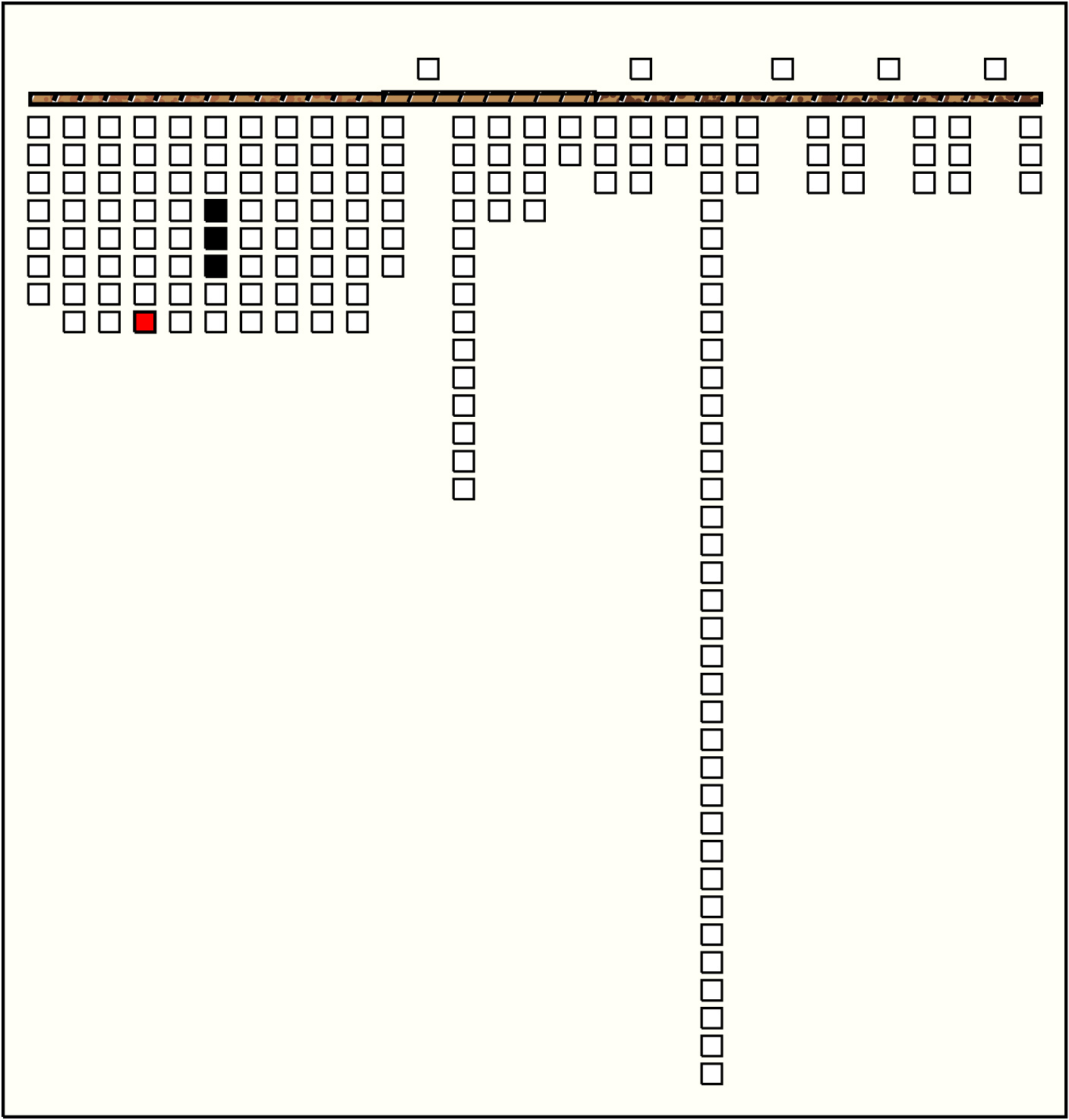

8	p31_{4, 8} : 93_YB	93	3	p43: 23_GG + p44: 31_PB + p45: 39_YB:MB

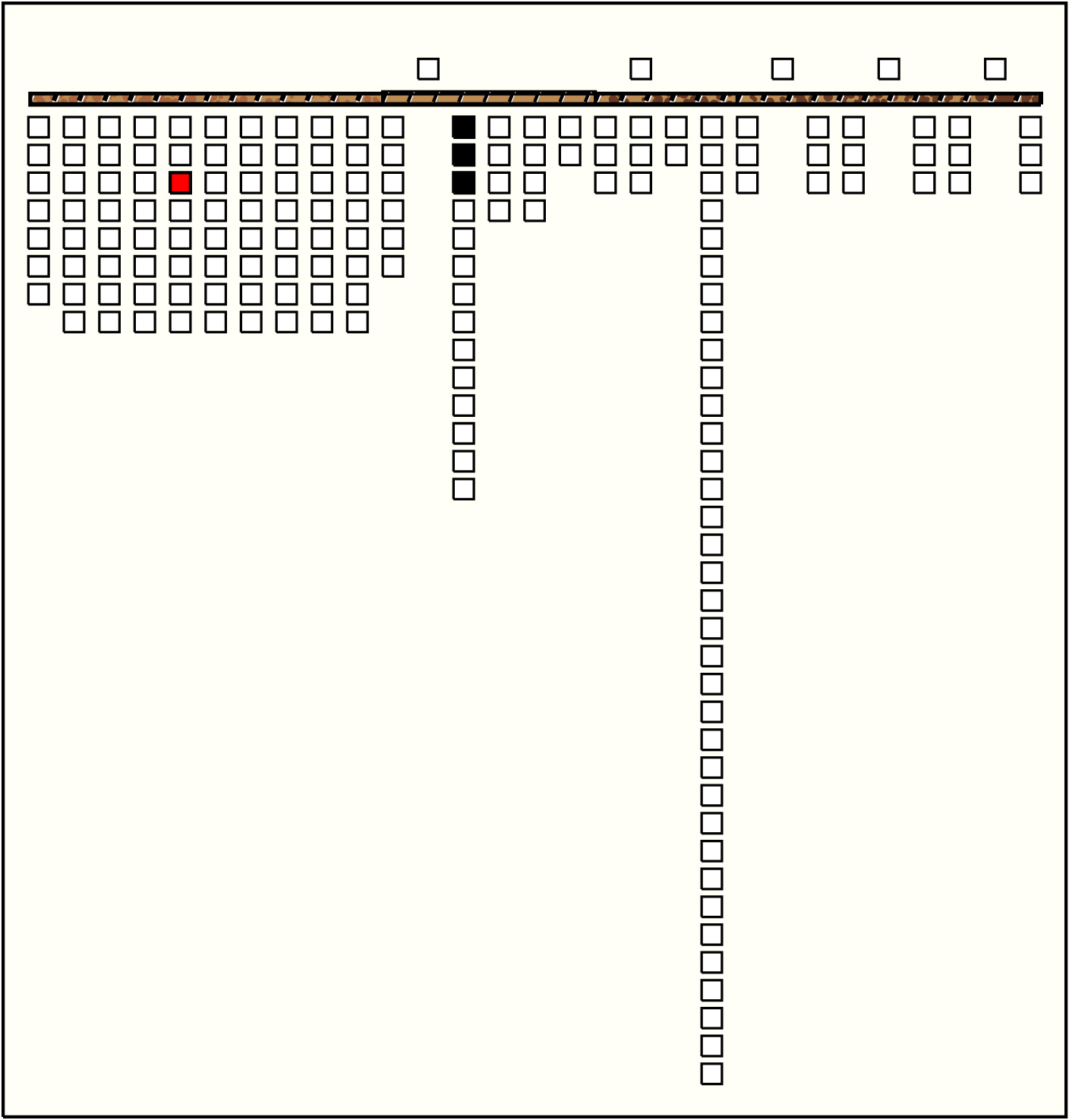

9	p34_{5, 3} : 47_B	47	3	p87: 33_YB:AB + p88: 13_YB:AB + p89: 1_YB

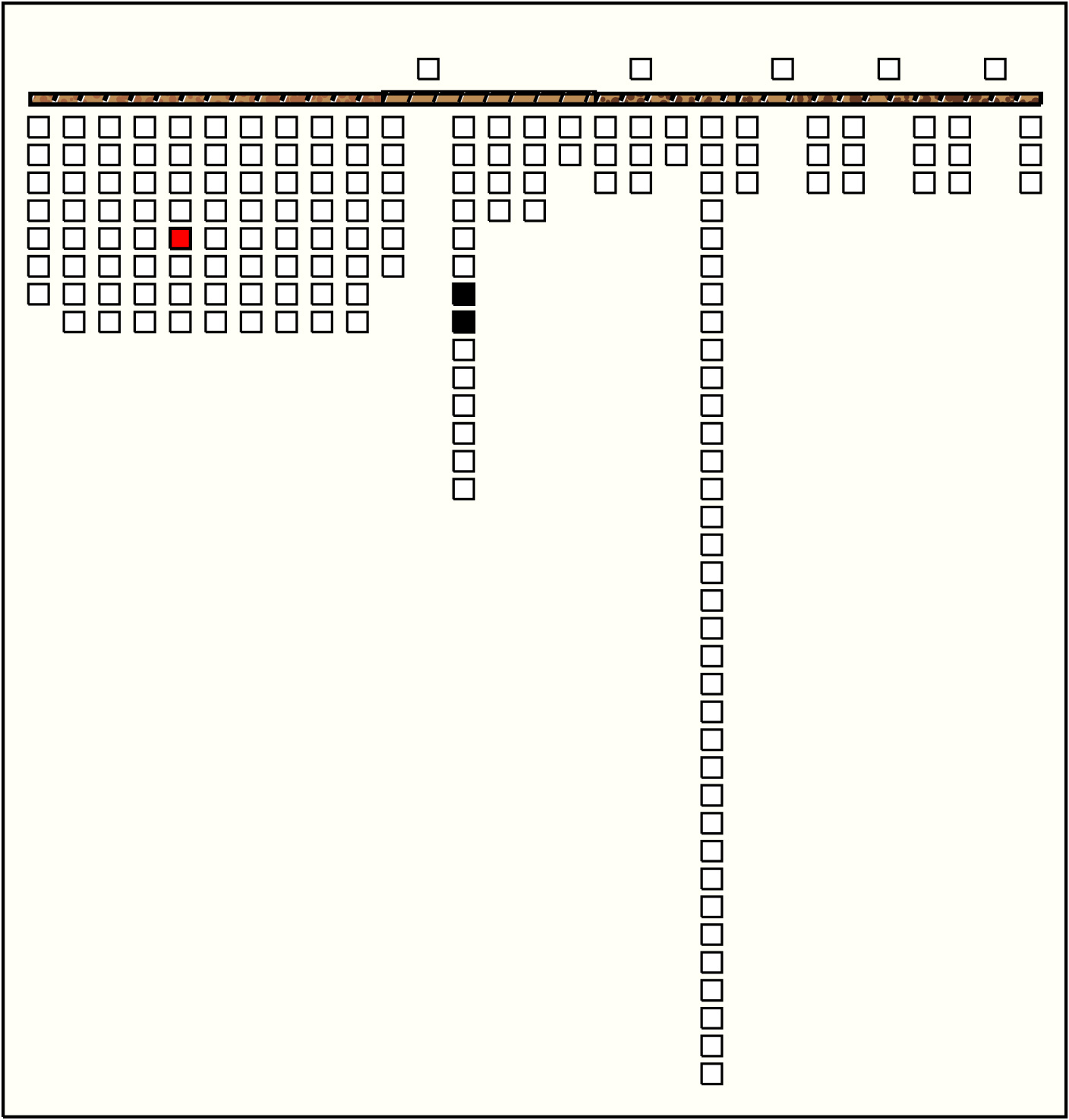

10	p36_{5, 5} : 16_B:BS	16	2	p93: 1_YB + p94: 15_YB

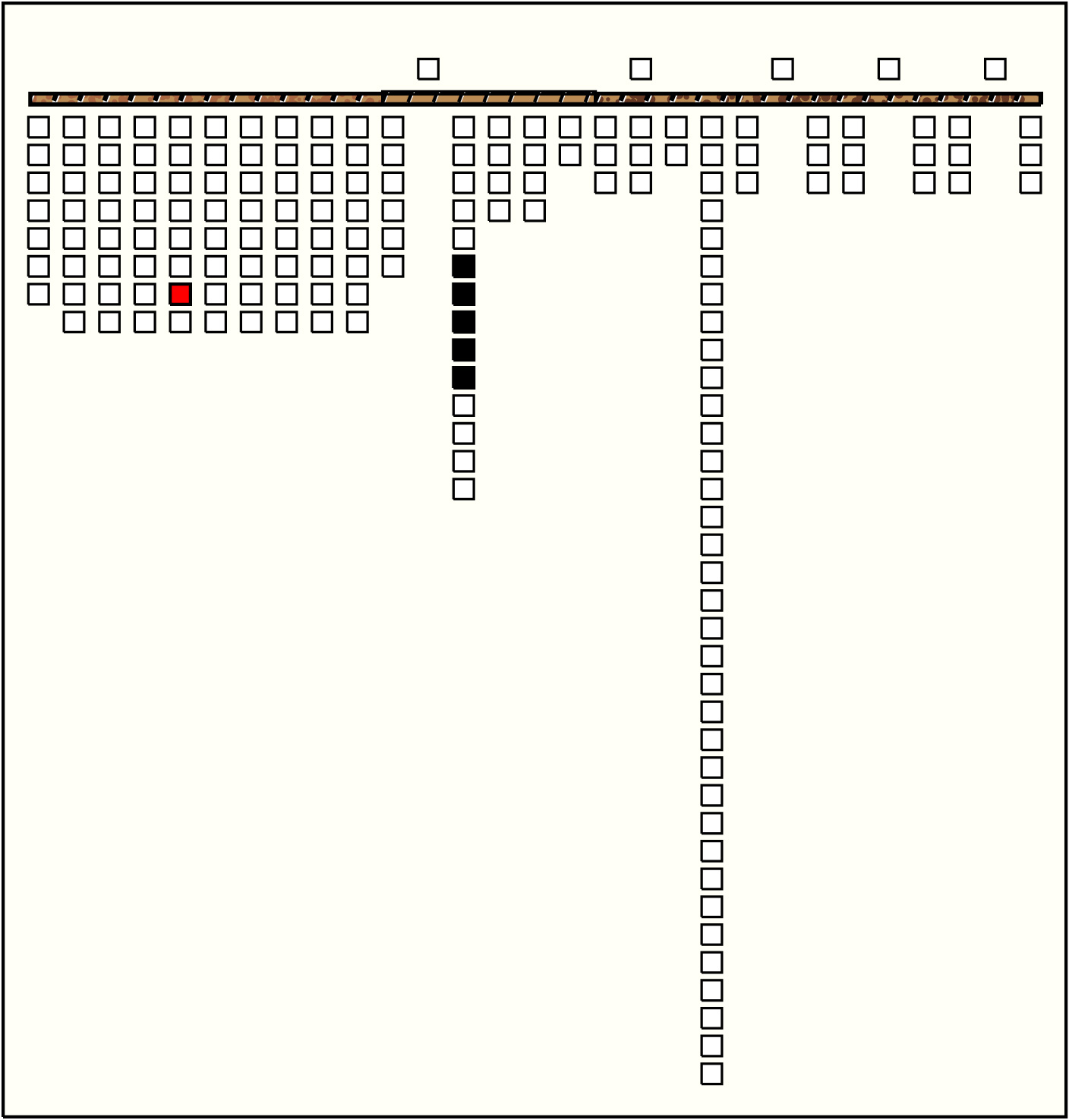

11	p38_{5, 7} : 26_MB	26	5	p92: 3_YB + p93: 1_YB + p94: 15_YB + p95: 3_YB + p96: 4_YB

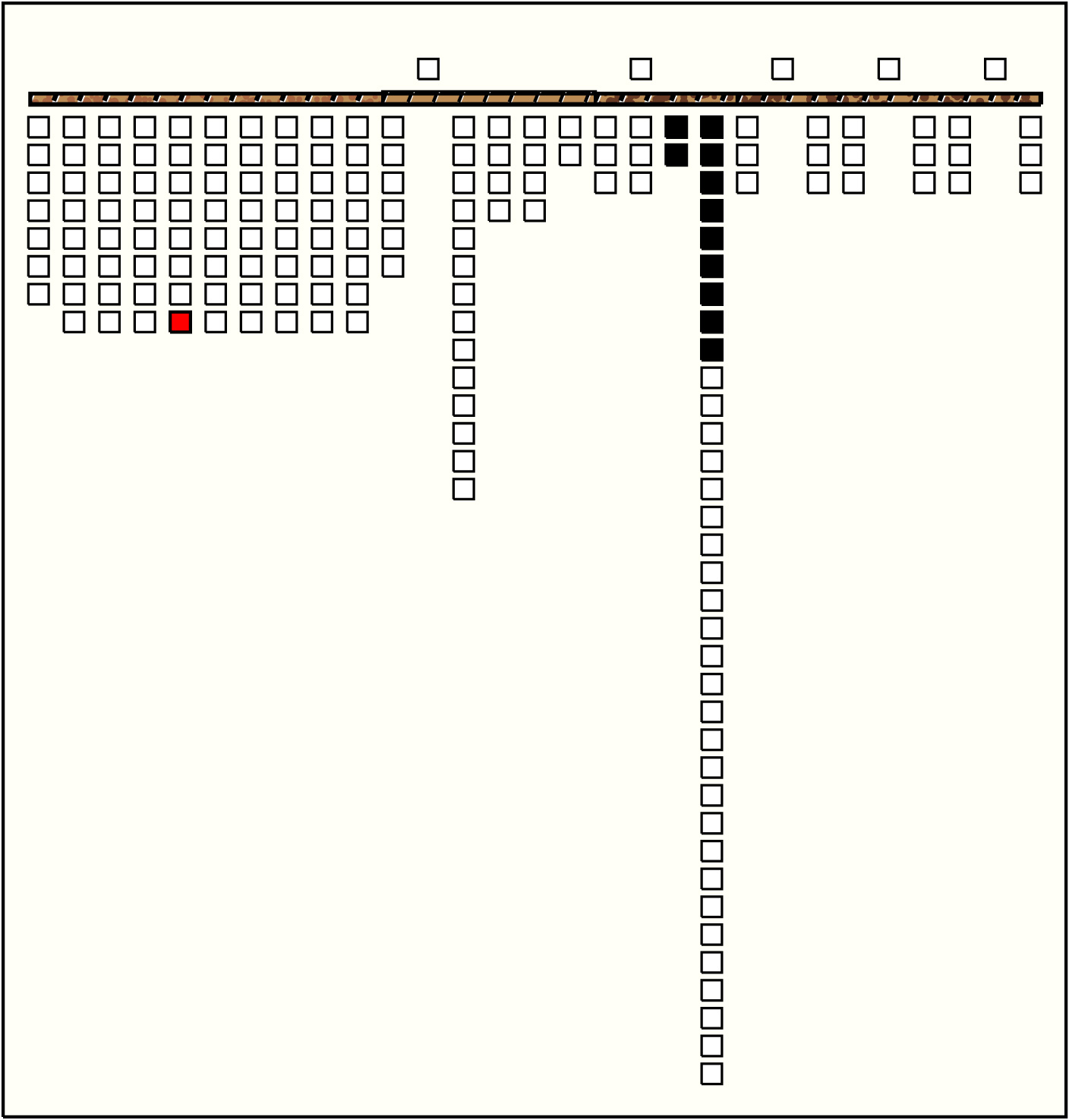

12	p39_{5, 8} : 104_YB	104	11	p118: 41_YB:MB + p119: 22_YB:MB + p120: 1_YB + p121: 20_YB + p122: 2_YB + p123: 5_YB + p124: 0_YB + p125: 1_AB + p126: 9_AB + p127: 1_AB + p128: 2_AB

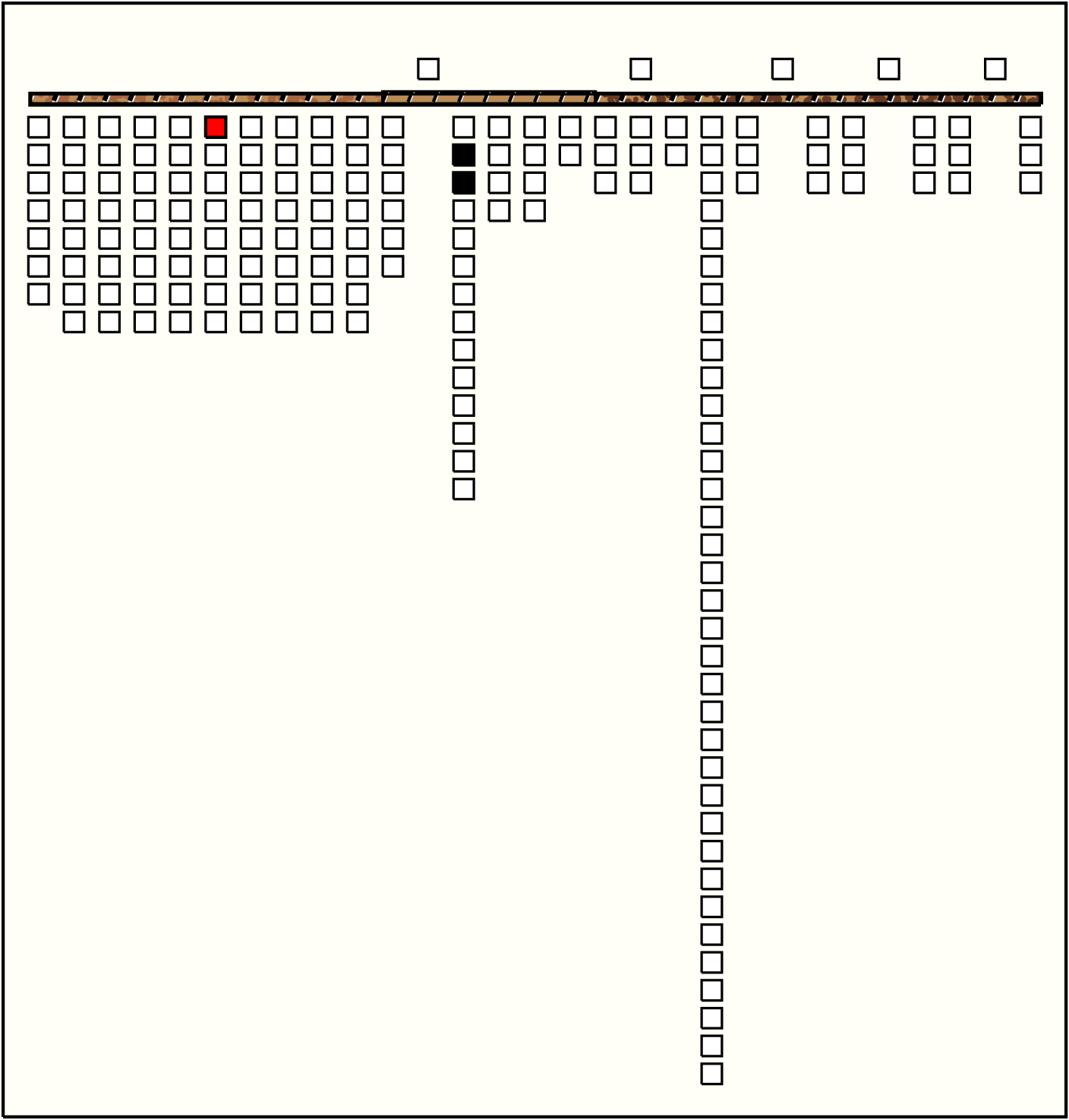

13	p40_{6, 1} : 14_AB	14	2	p88: 13_YB:AB + p89: 1_YB

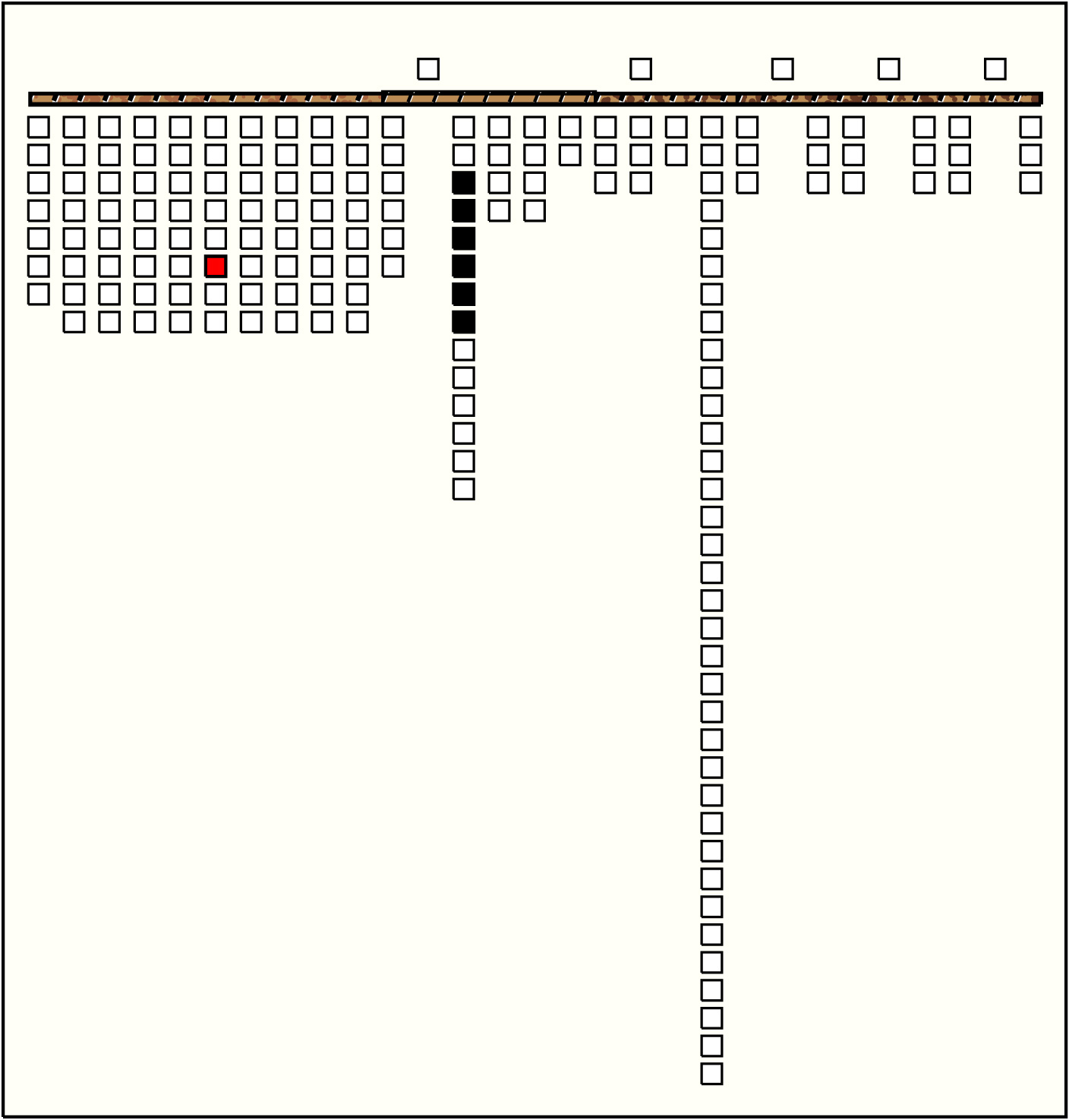

14	p45_{6, 6} : 39_YB:MB	39	6	p89: 1_YB + p90: 14_YB + p91: 5_YB + p92: 3_YB + p93: 1_YB + p94: 15_YB

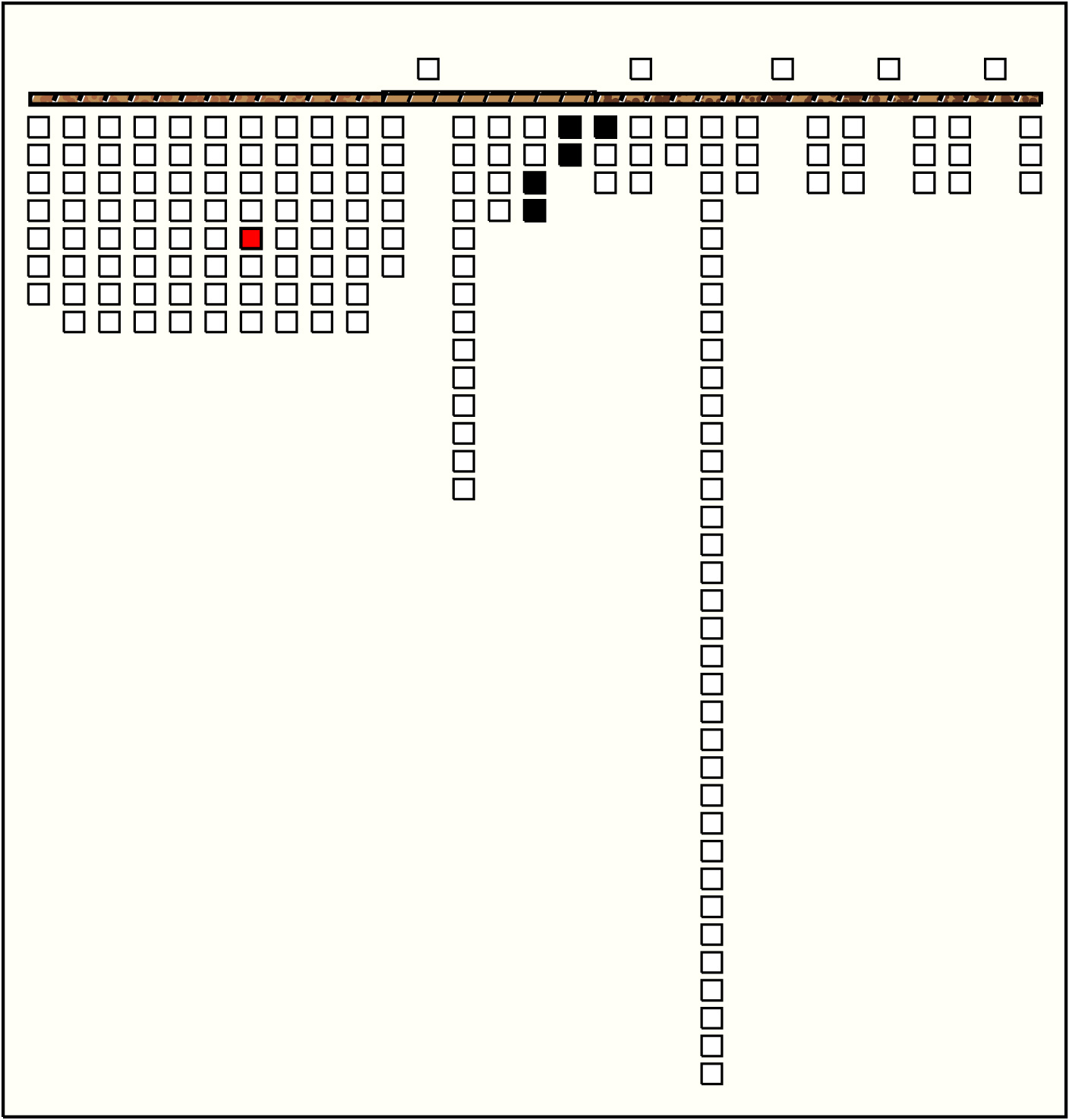

15	p52_{7, 5} : 25_PB	25	5	p107: 4_YB:PB + p108: 3_YB:PB + p109: 1_BS + p110: 10_BS + p111: 7_YB

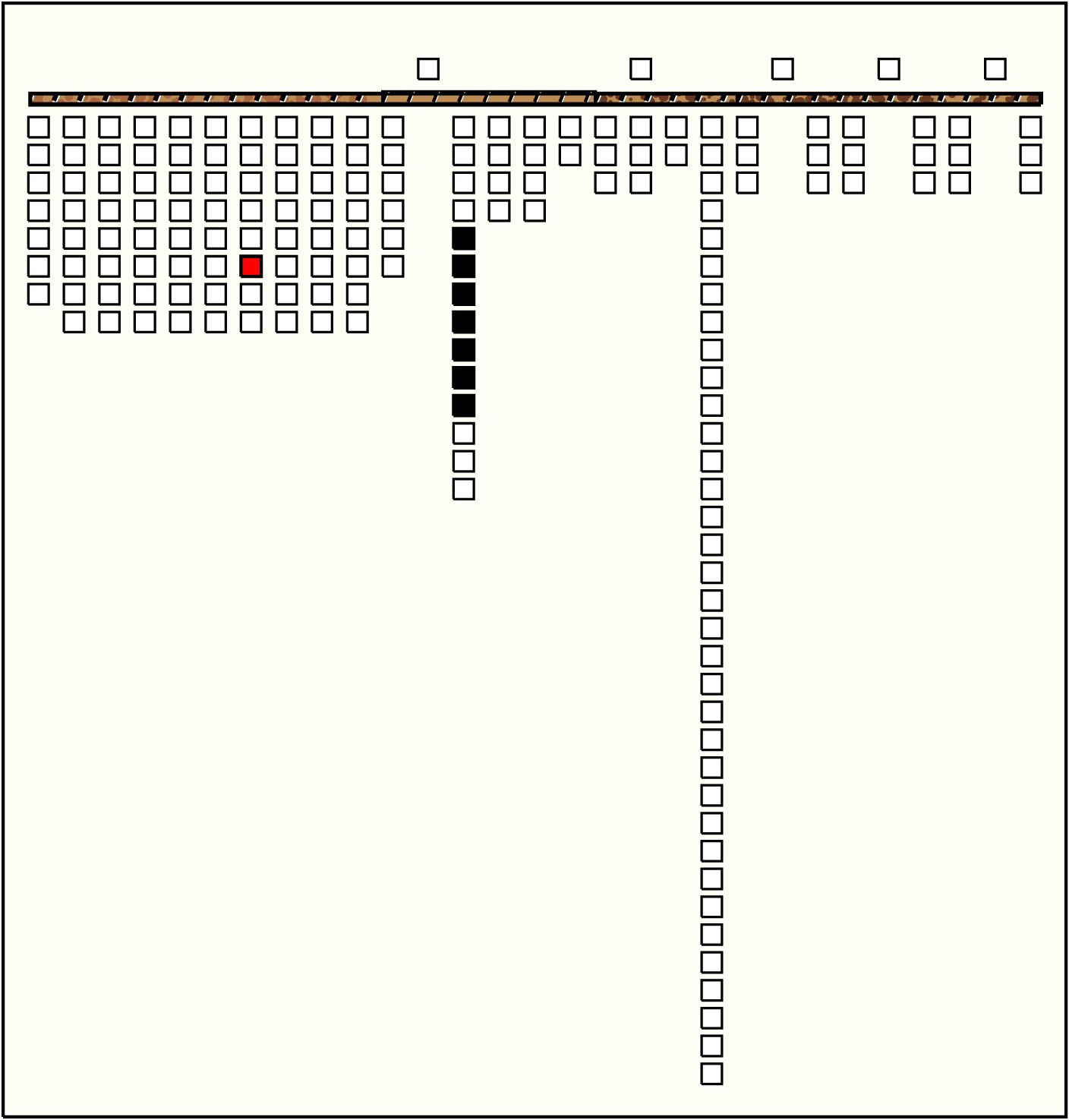

16	p53_{7, 6} : 32_YB:MB	32	7	p91: 5_YB + p92: 3_YB + p93: 1_YB + p94: 15_YB + p95: 3_YB + p96: 4_YB + p97: 1_YB:AB
17	p55_{7, 8} : 103_YB	103	3	p83: 73_YB + p84: 10_YB + p85: 20_YB

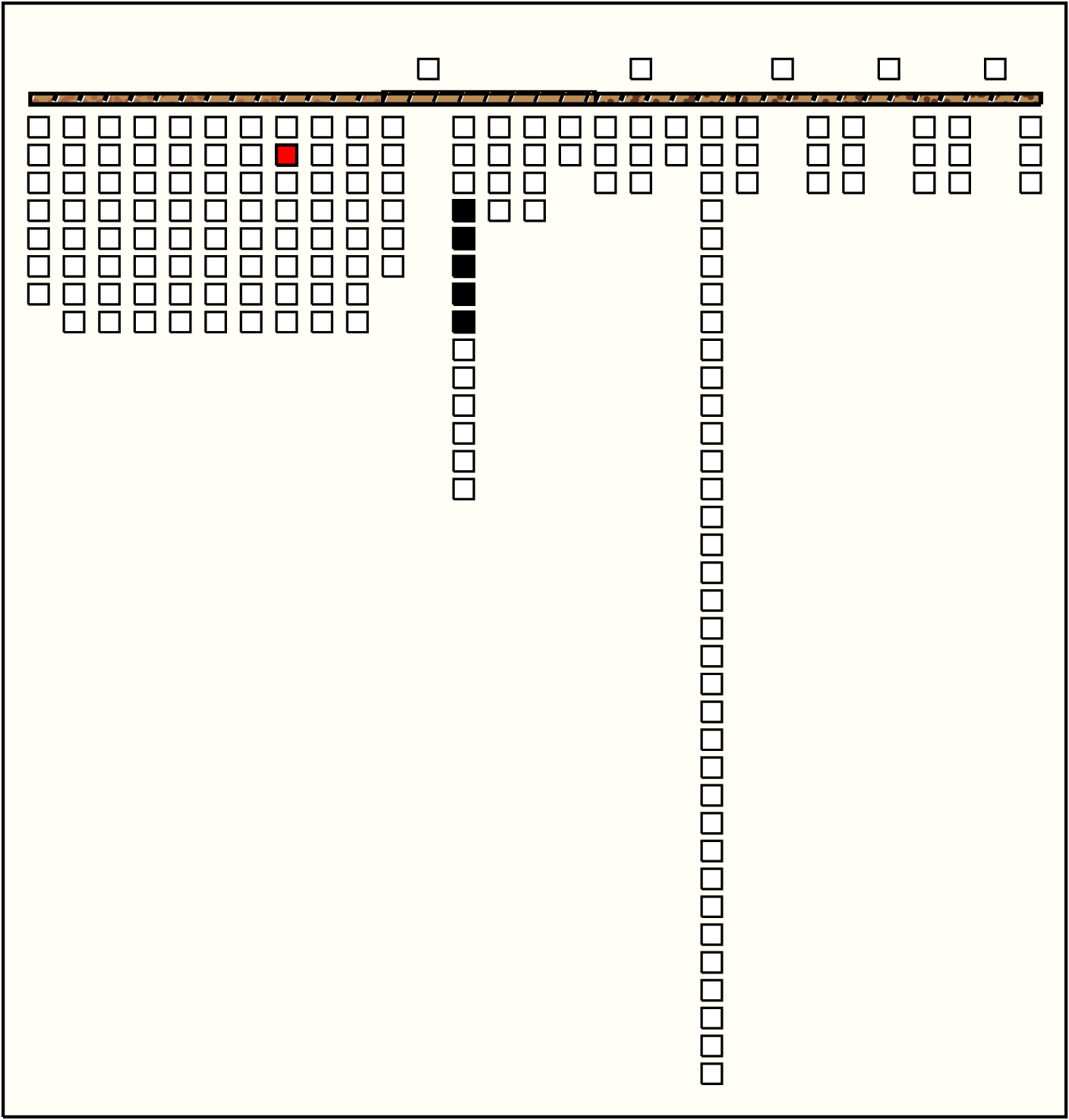

18	p57_{8, 2} : 38_BS	38	5	p90: 14_YB + p91: 5_YB + p92: 3_YB + p93: 1_YB + p94: 15_YB
19	p60_{8, 5} : 12_PB	12	3	p126: 9_AB + p127: 1_AB + p128: 2_AB

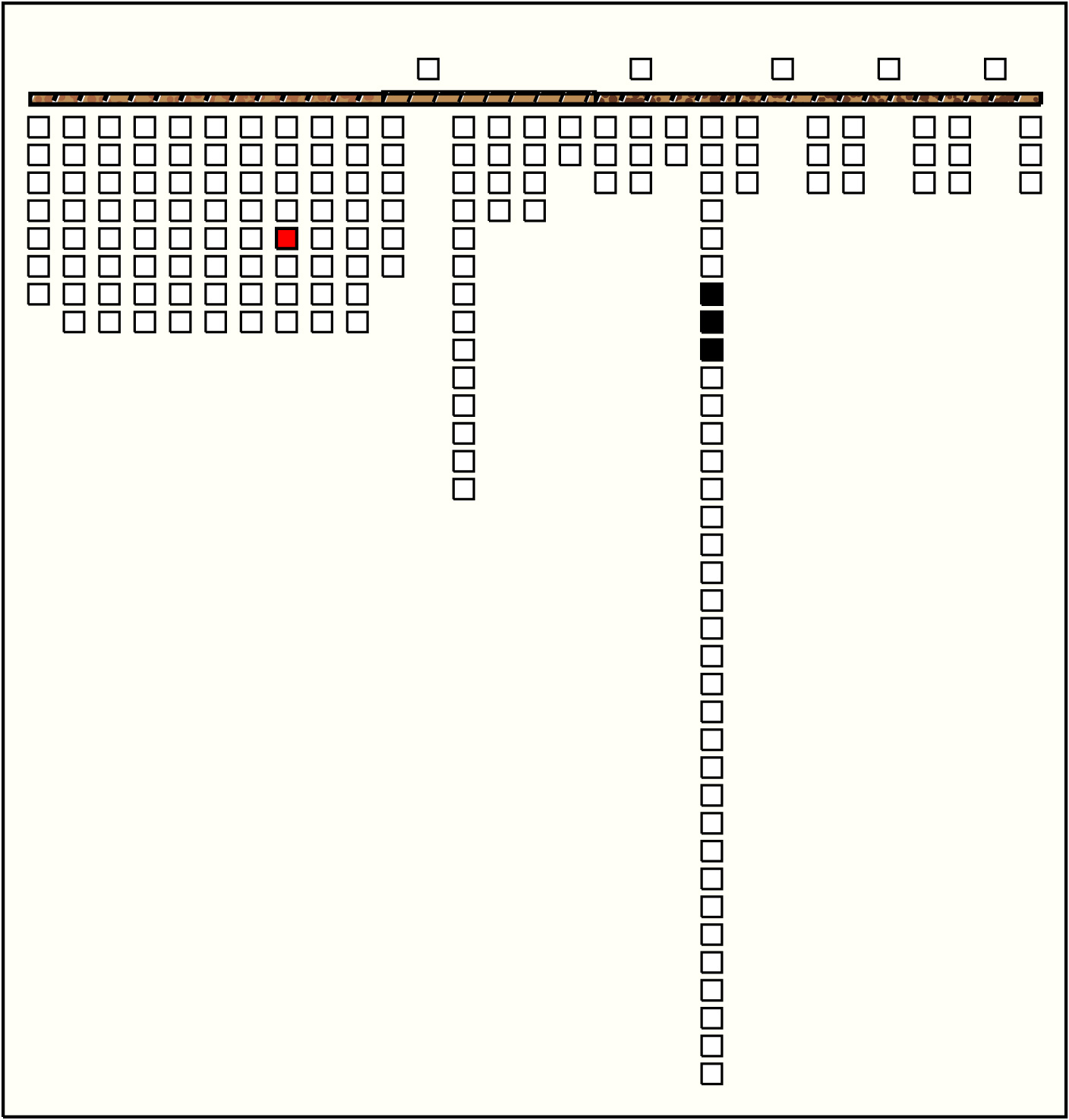

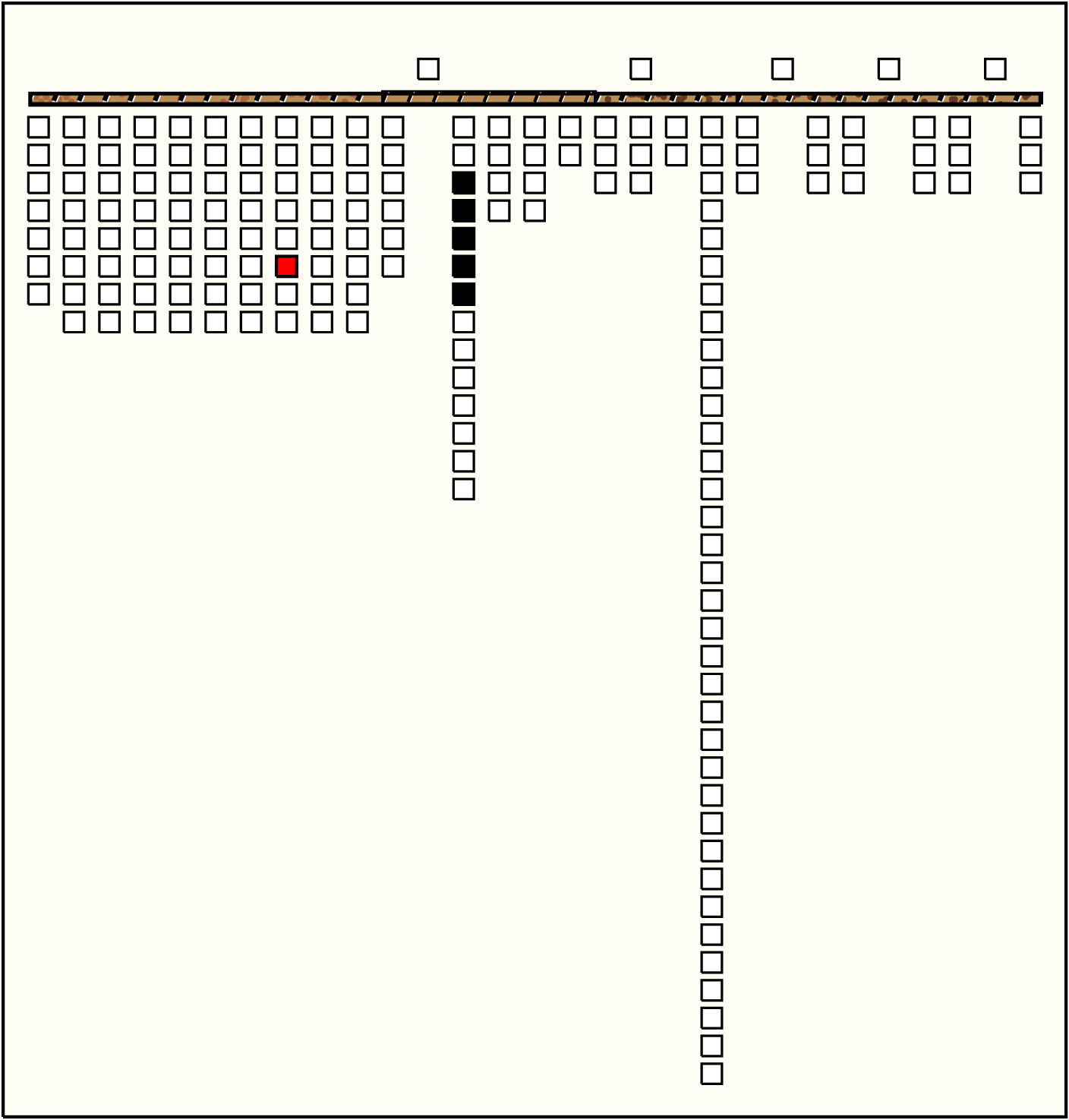

20	p61_{8, 6} : 24_YB:MB	24	5	p89: 1_YB + p90: 14_YB + p91: 5_YB + p92: 3_YB + p93: 1_YB

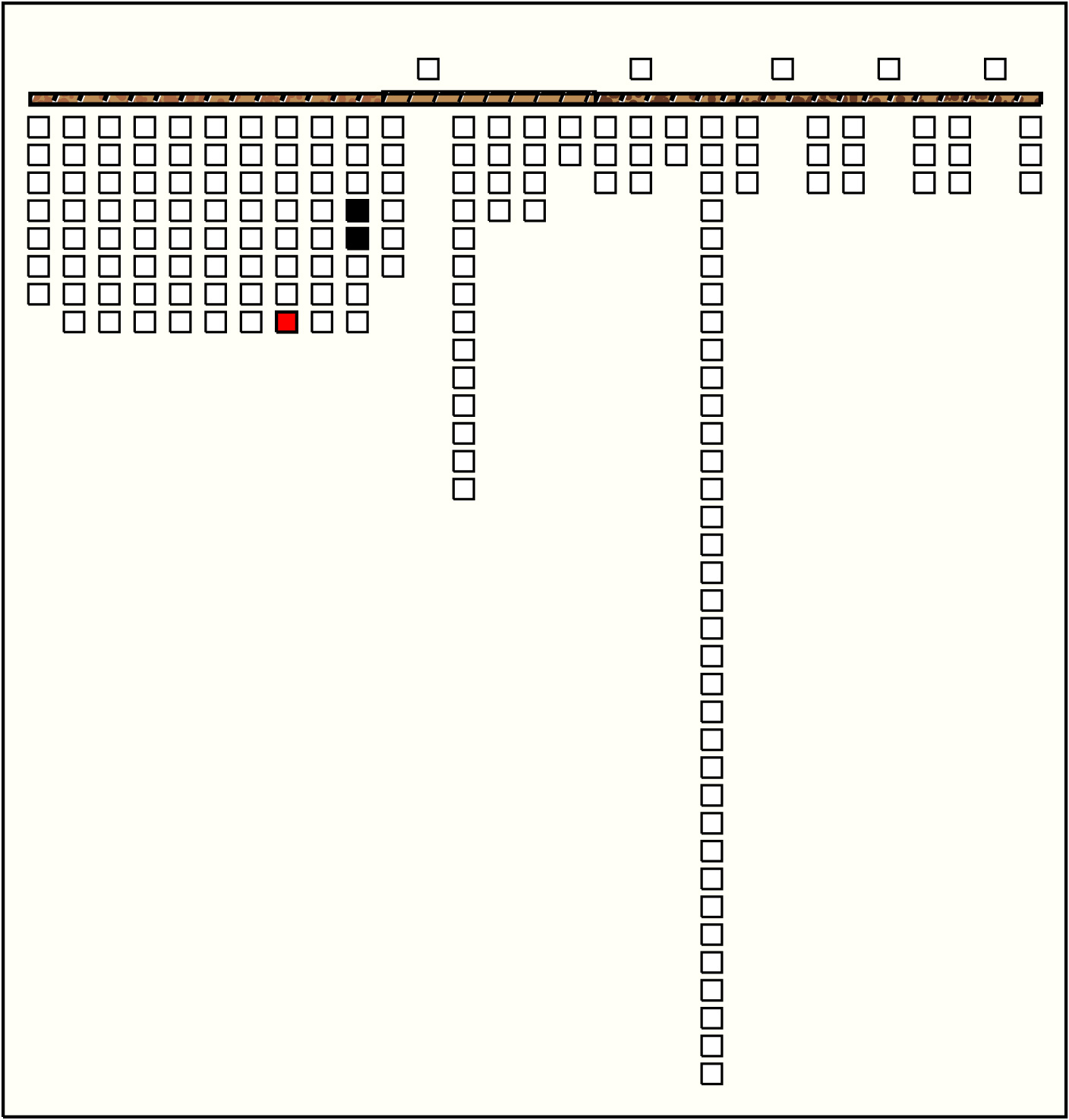

21	p63_{8, 8} : 54_YB	54	2	p75: 31_GG + p76: 23_PB

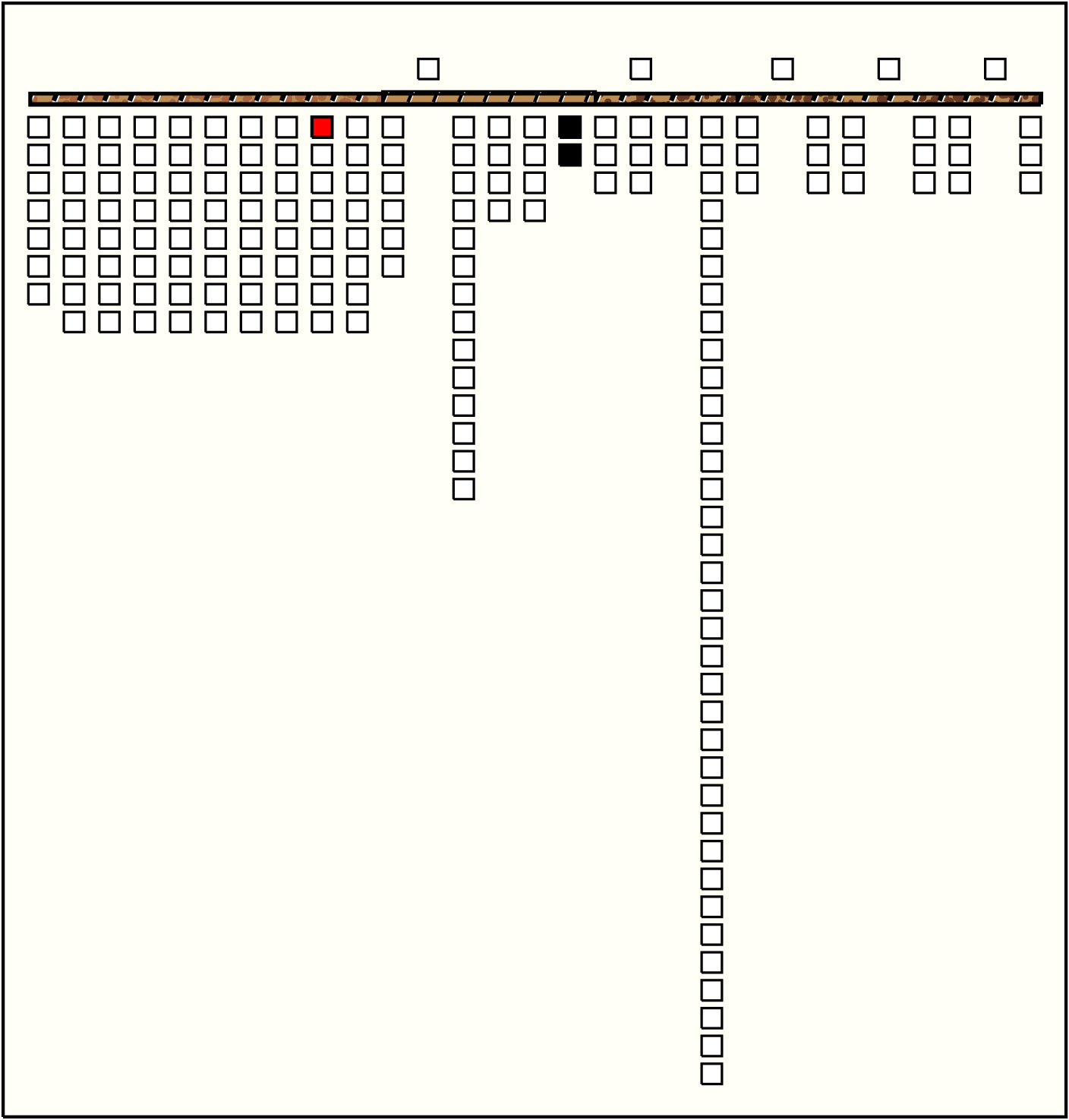

22	p64_{9, 1} : 11_AB	11	2	p109: 1_BS + p110: 10_BS

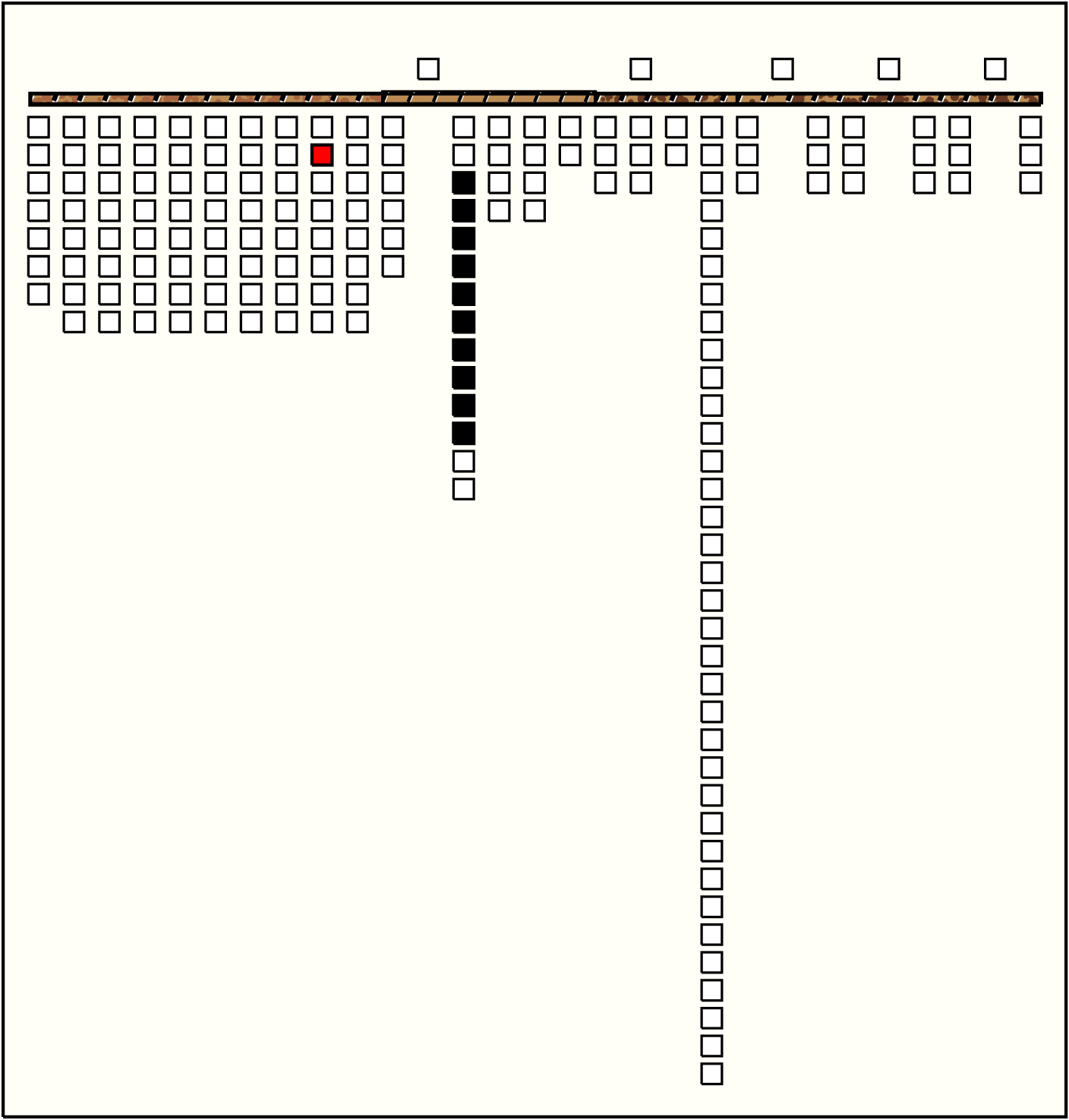

23	p65_{9, 2} : 62_BS	62	10	p89: 1_YB + p90: 14_YB + p91: 5_YB + p92: 3_YB + p93: 1_YB + p94: 15_YB + p95: 3_YB + p96: 4_YB + p97: 1_YB:AB + p98: 15_YB:AB

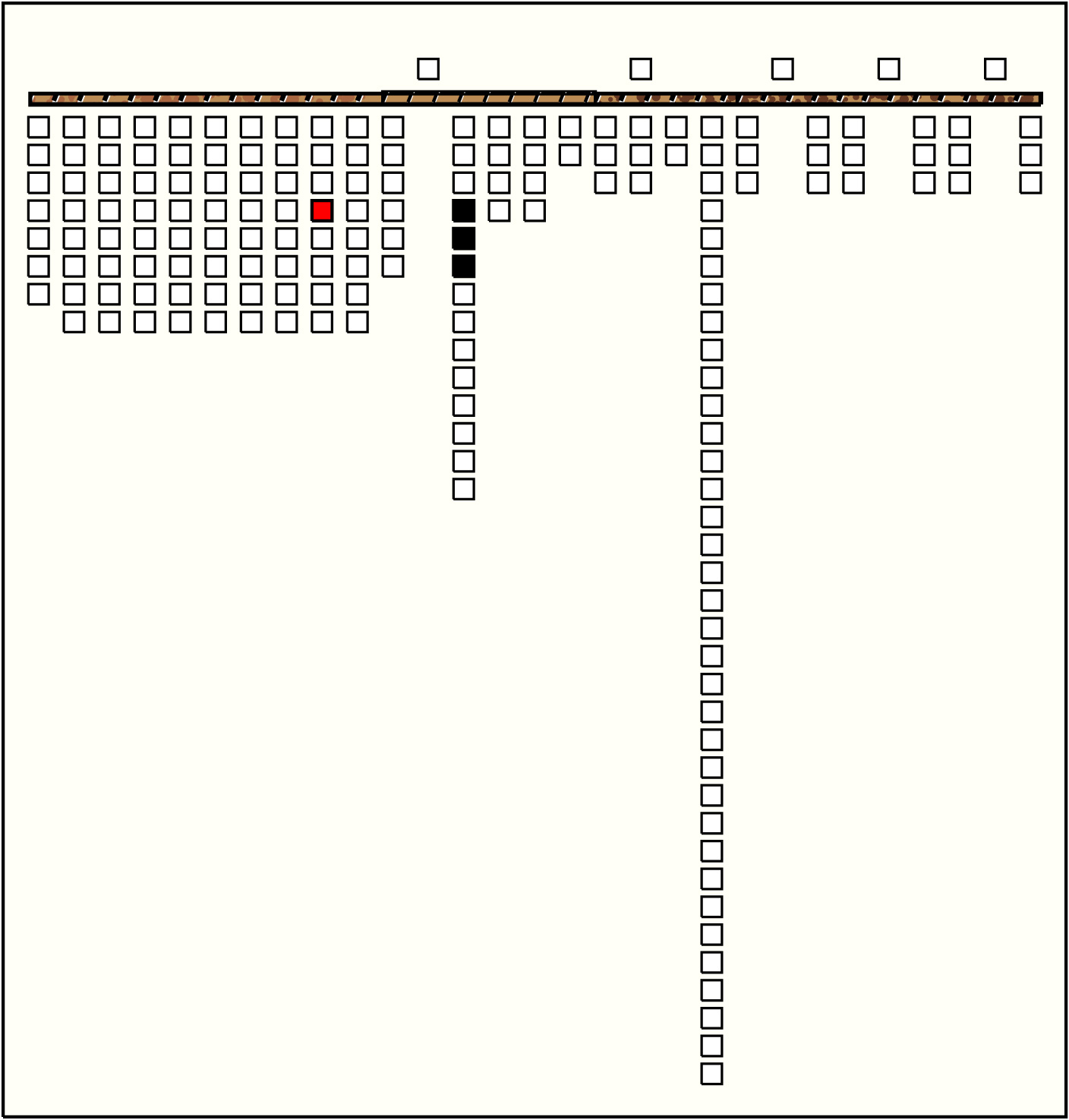

24	p67_{9, 4} : 22_GG	22	3	p90: 14_YB + p91: 5_YB + p92: 3_YB

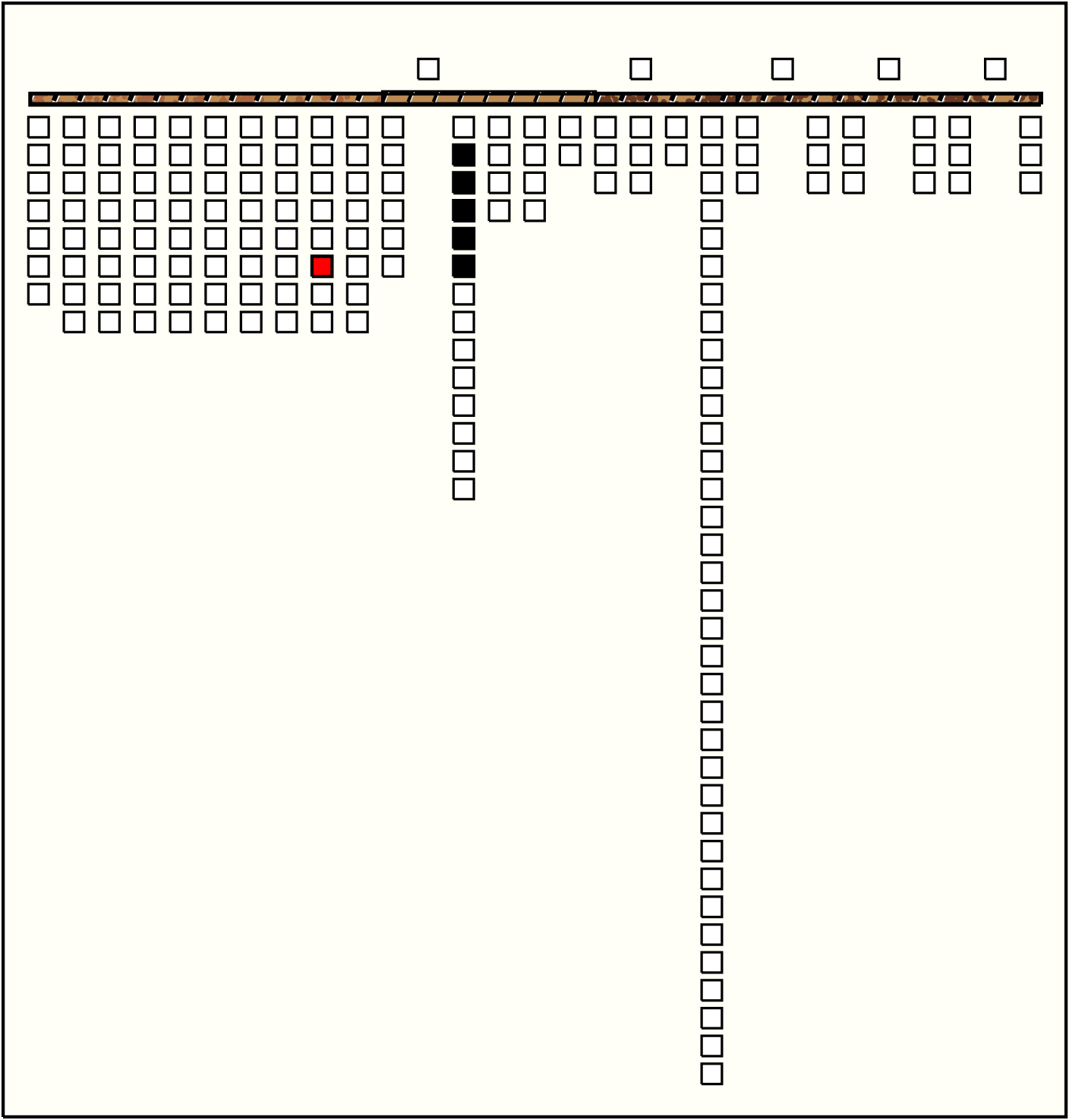

25	p69_{9, 6} : 36_YB:MB	36	5	p88: 13_YB:AB + p89: 1_YB + p90: 14_YB + p91: 5_YB + p92: 3_YB
26	p70_{9, 7} : 41_MB	41	6	p90: 14_YB + p91: 5_YB + p92: 3_YB + p93: 1_YB + p94: 15_YB + p95: 3_YB

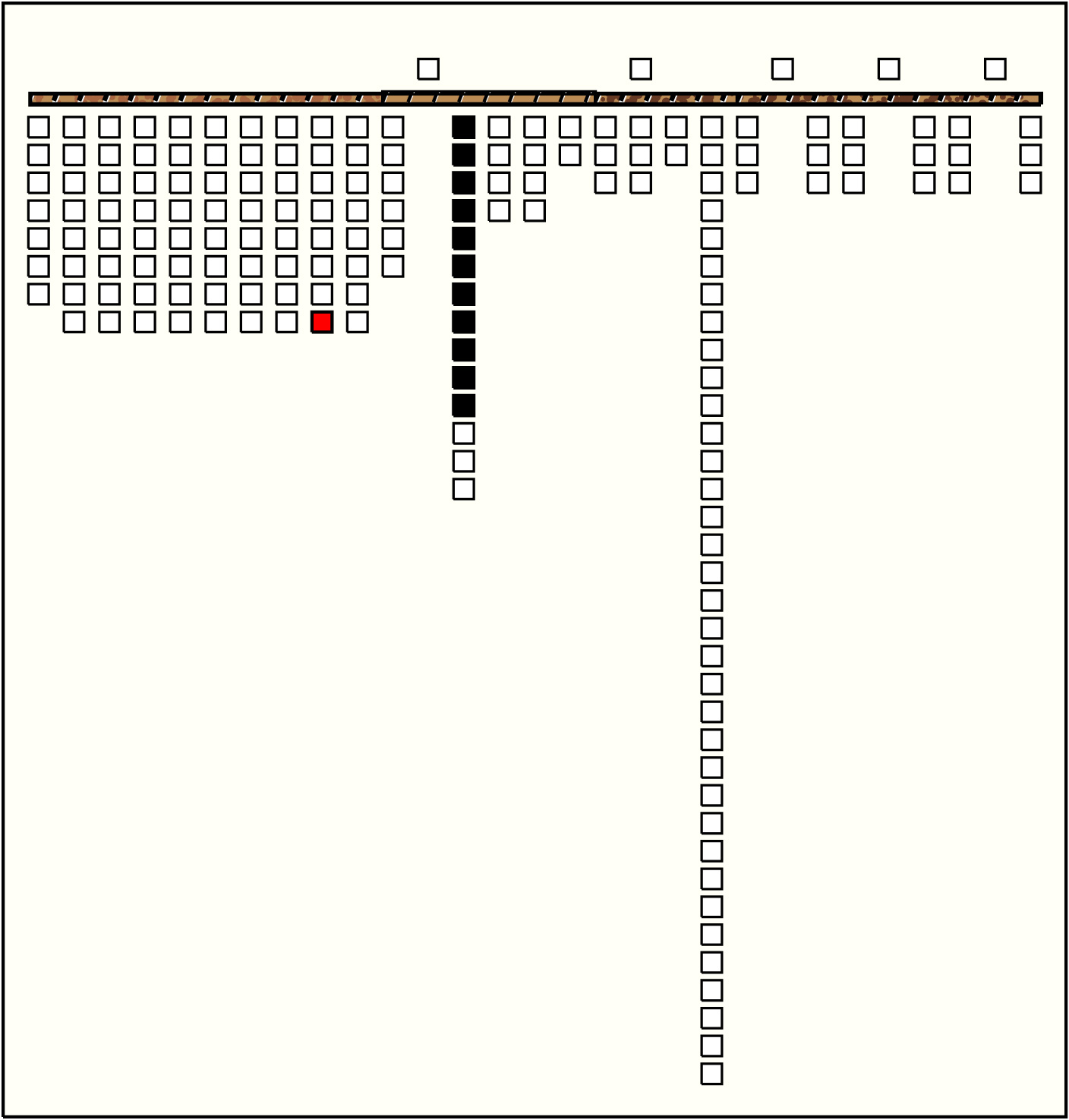

27	p71_{9, 8} : 93_YB	93	11	p87: 33_YB:AB + p88: 13_YB:AB + p89: 1_YB + p90: 14_YB + p91: 5_YB + p92: 3_YB + p93: 1_YB + p94: 15_YB + p95: 3_YB + p96: 4_YB + p97: 1_YB:AB

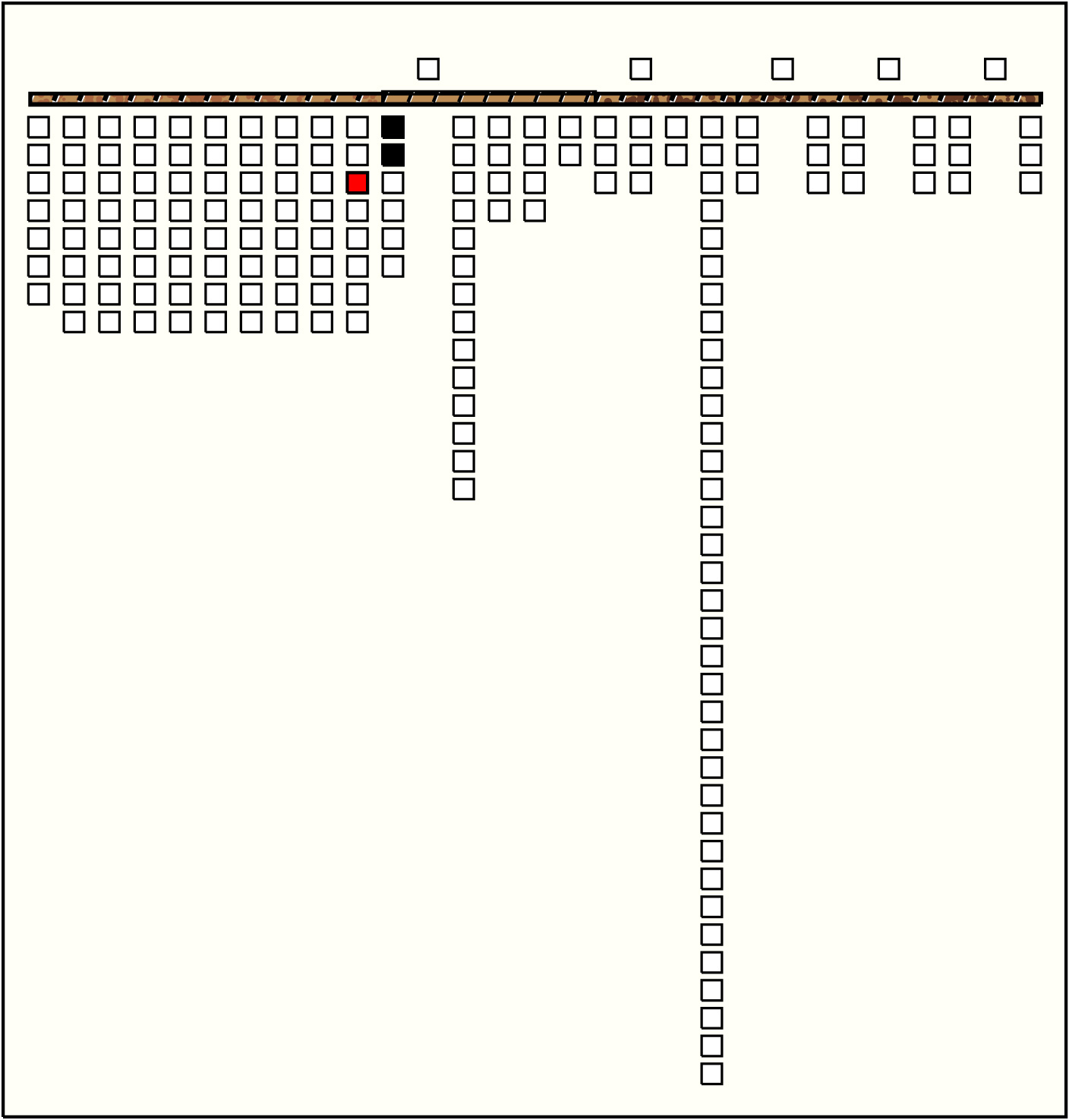

28	p74_{10, 3} : 52_YB	52	2	p80: 6_MB + p81: 46_MB

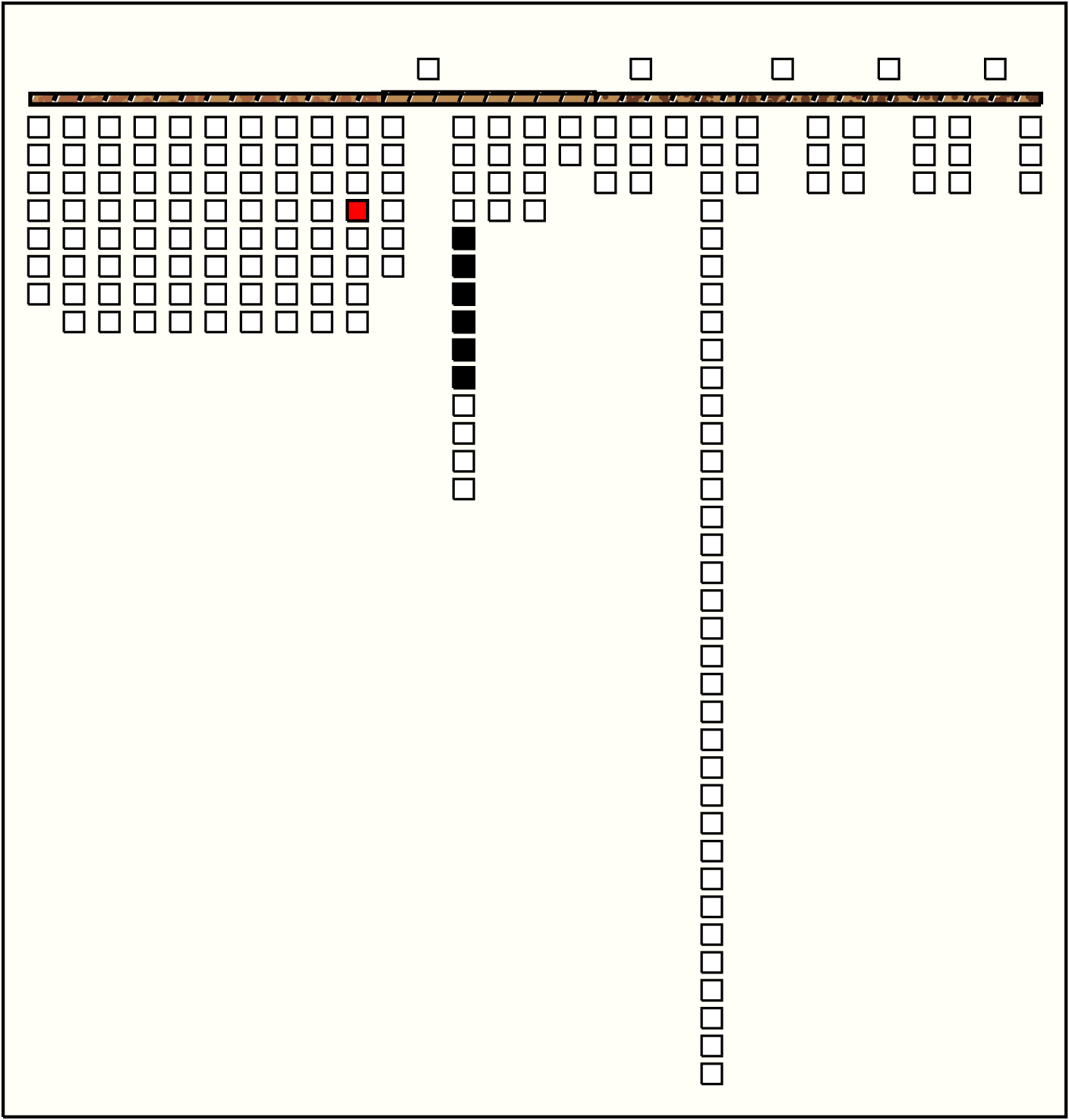

29	p75_{10, 4} : 31_GG	31	6	p91: 5_YB + p92: 3_YB + p93: 1_YB + p94: 15_YB + p95: 3_YB + p96: 4_YB

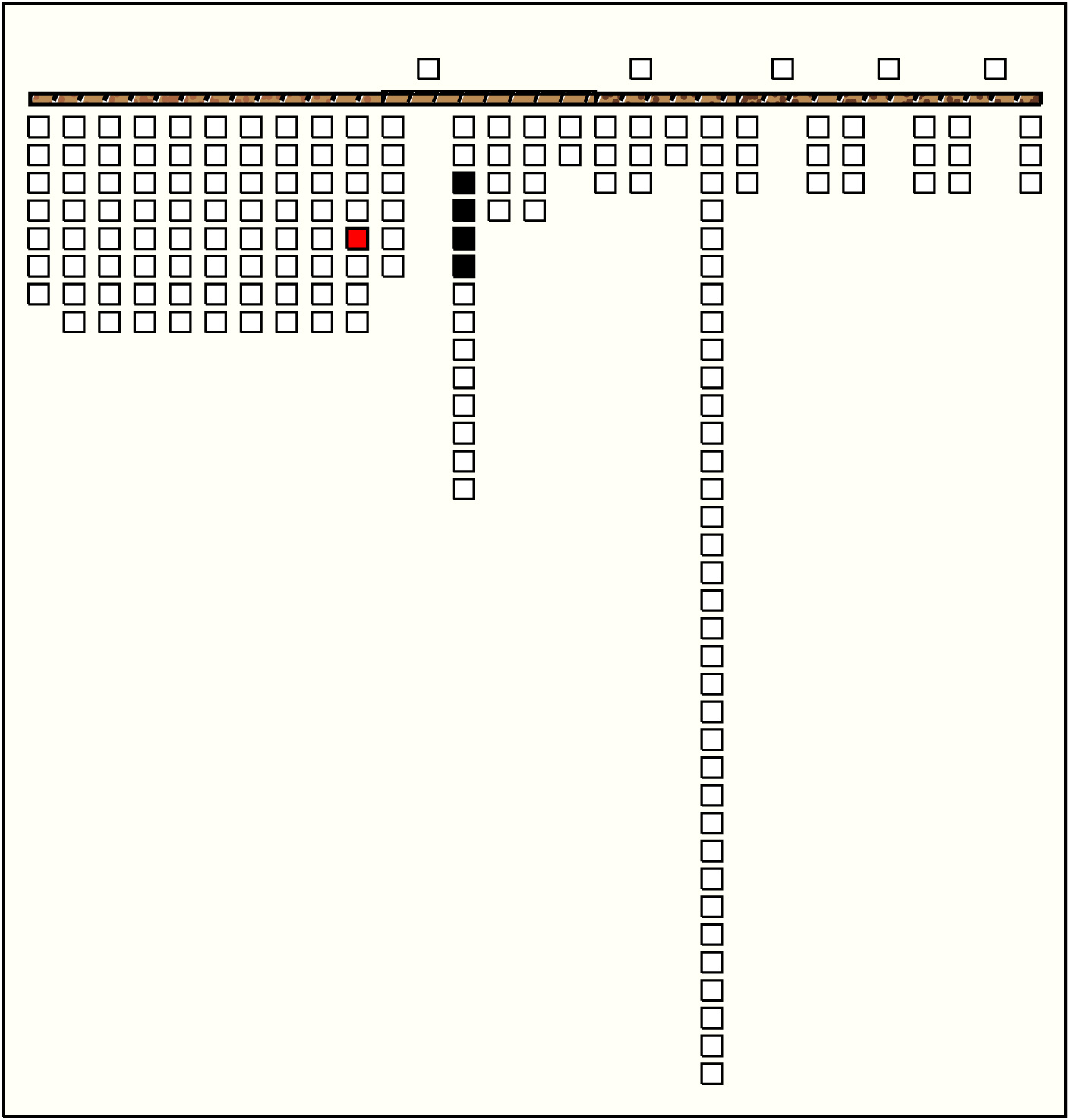

30	p76_{10, 5} : 23_PB	23	4	p89: 1_YB + p90: 14_YB + p91: 5_YB + p92: 3_YB

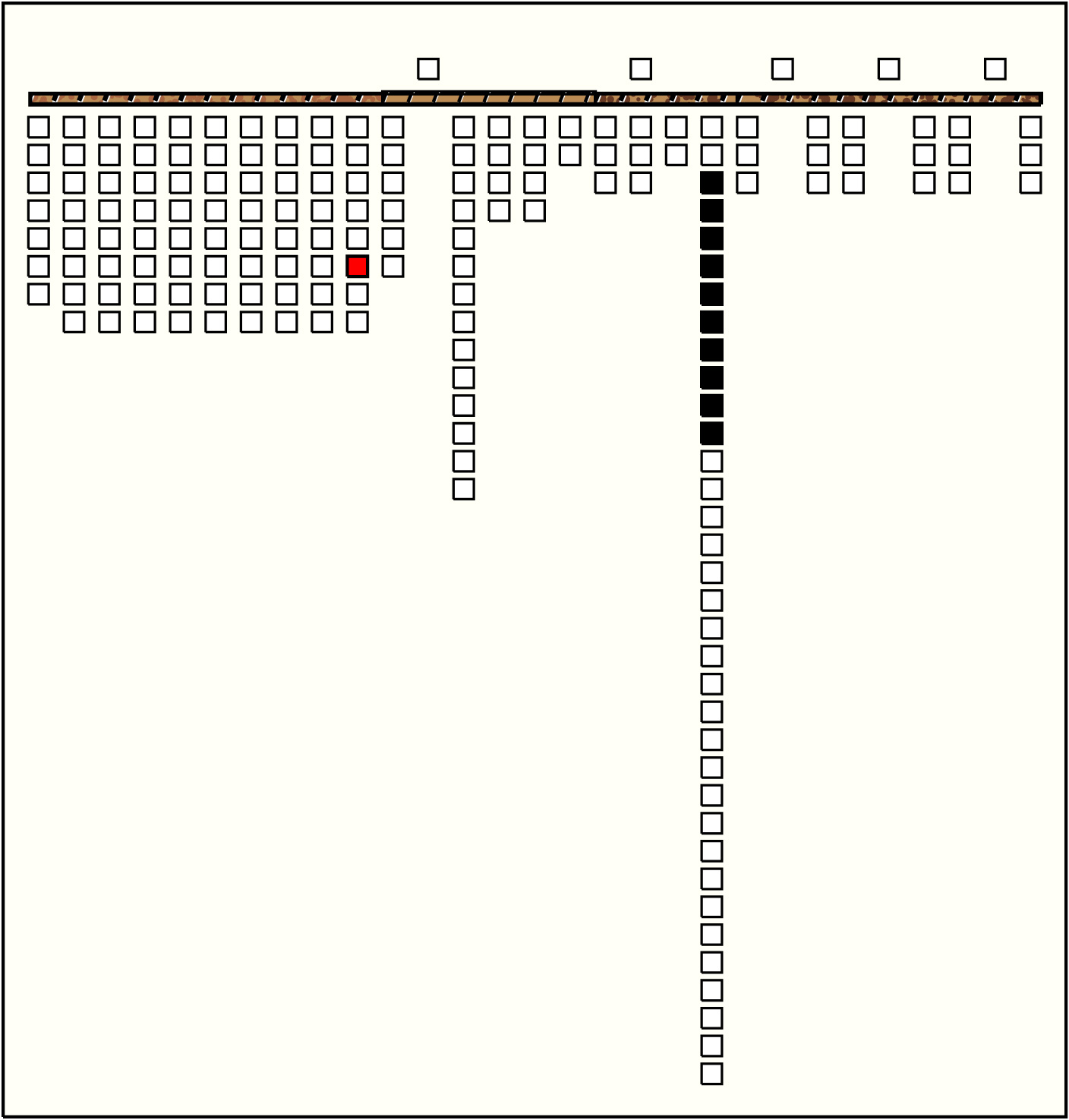

31	p77_{10, 6} : 35_YB:MB	35	10	p122: 2_YB + p123: 5_YB + p124: 0_YB + p125: 1_AB + p126: 9_AB + p127: 1_AB + p128: 2_AB + p129: 4_AB + p130: 1_YB:PB + p131: 10_YB:PB
32	p78_{10, 7} : 44_MB	44	9	p121: 20_YB + p122: 2_YB + p123: 5_YB + p124: 0_YB + p125: 1_AB + p126: 9_AB + p127: 1_AB + p128: 2_AB + p129: 4_AB

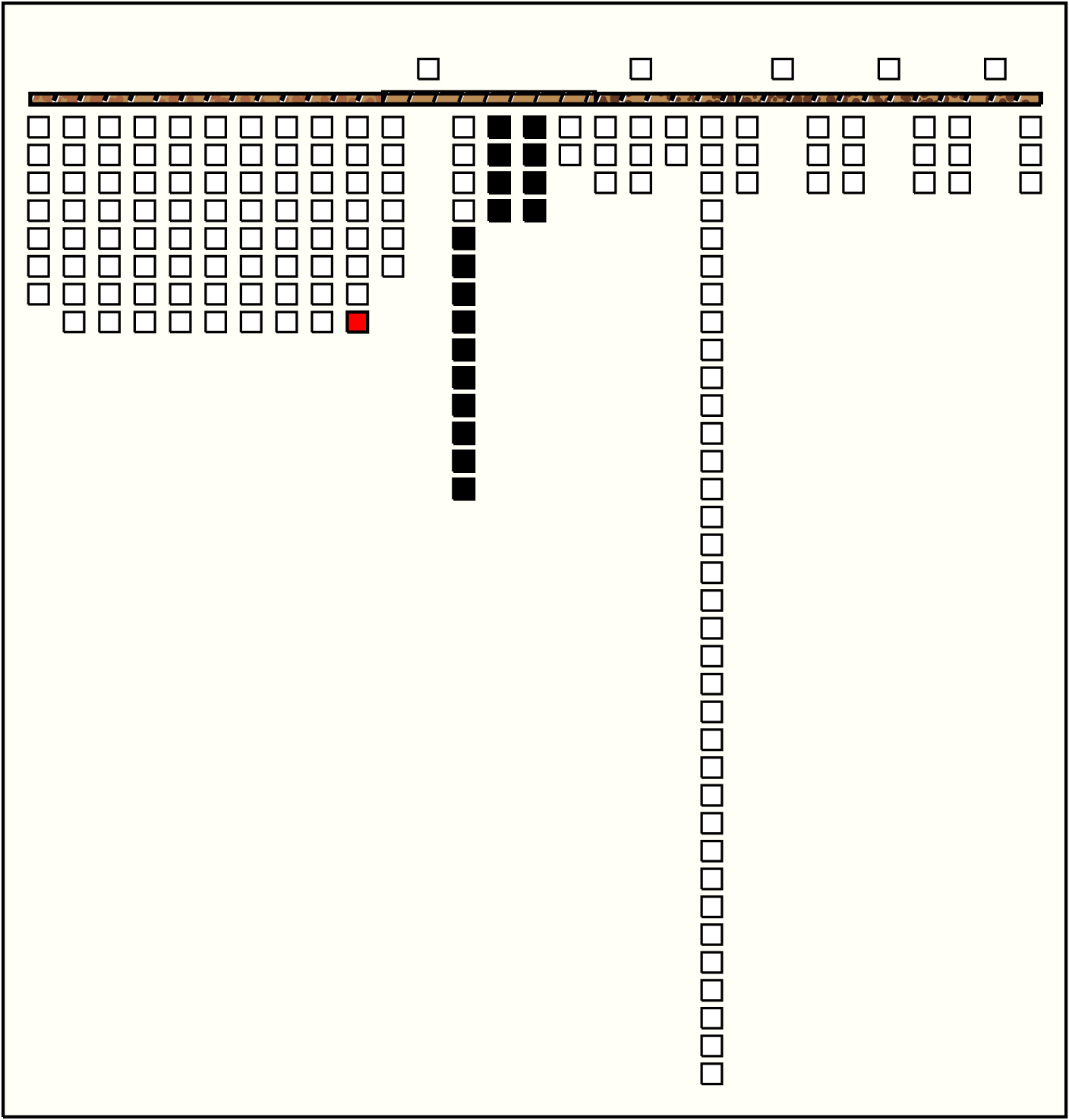

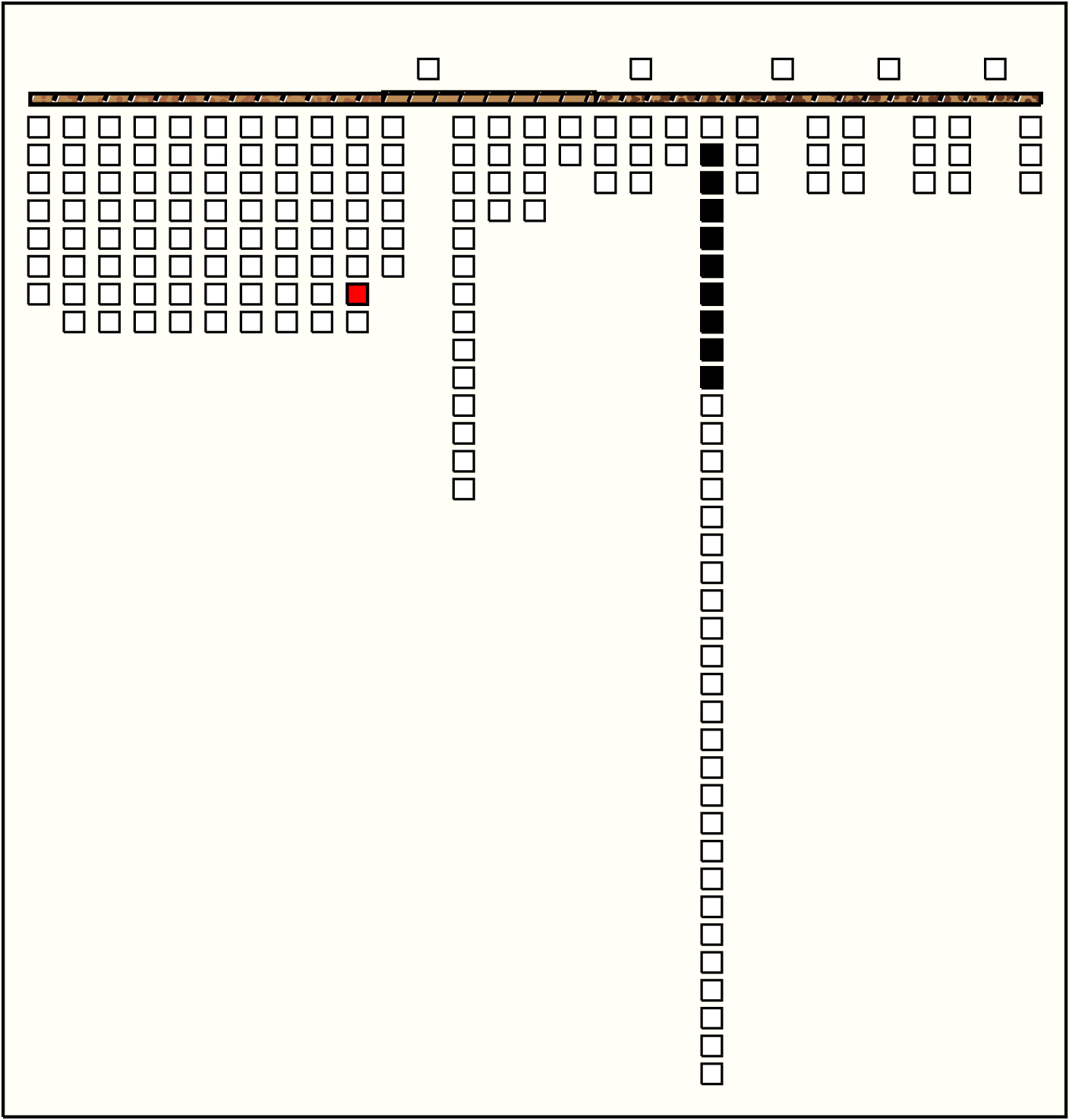

33	p79_{10, 8} : 100_YB	100	18	p91: 5_YB + p92: 3_YB + p93: 1_YB + p94: 15_YB + p95: 3_YB + p96: 4_YB + p97: 1_YB:AB + p98: 15_YB:AB + p99: 4_YB:AB + p100: 3_YB:AB + p101: 1_YB:MB + p102: 14_YB:MB + p103: 4_YB:MB + p104: 4_YB:MB + p105: 1_YB:PB + p106: 15_YB:PB + p107: 4_YB:PB + p108: 3_YB:PB

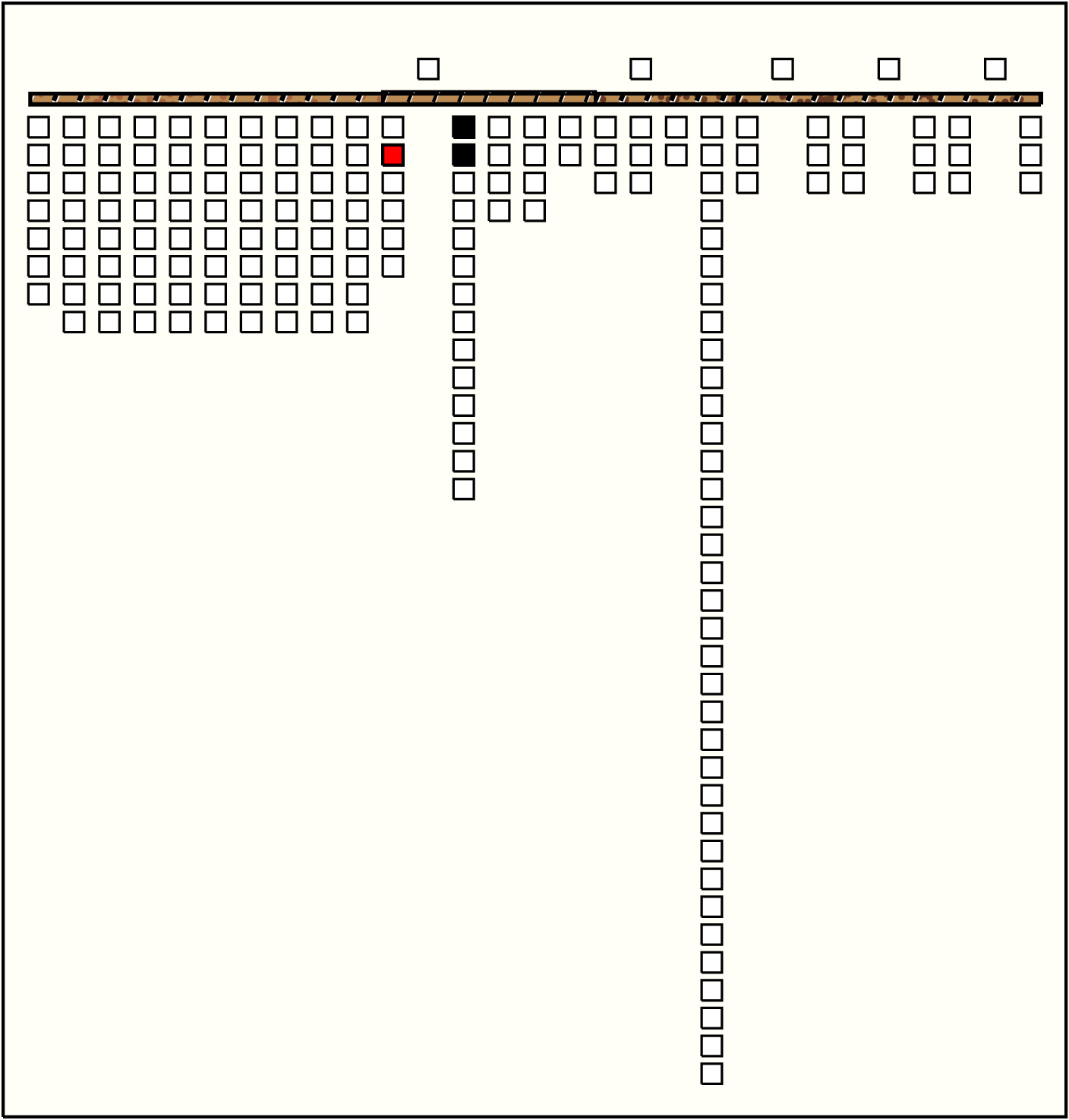

34	p81_{11, 2} : 46_MB	46	2	p87: 33_YB:AB + p88: 13_YB:AB

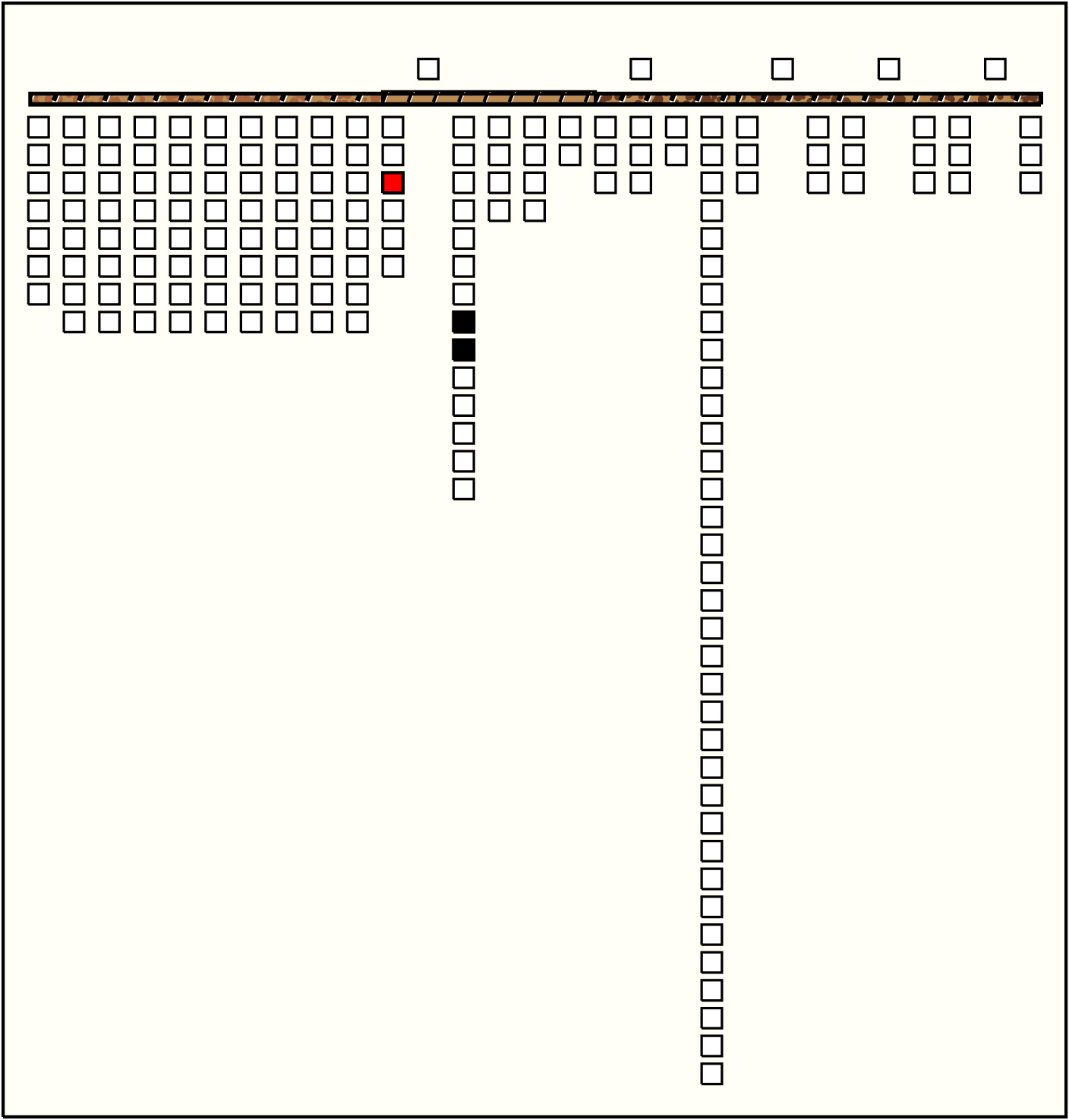

35	p82_{11, 3} : 18_MB	18	2	p94: 15_YB + p95: 3_YB
36	p83_{11, 4} : 73_YB	73	13	p91: 5_YB + p92: 3_YB + p93: 1_YB + p94: 15_YB + p95: 3_YB + p96: 4_YB + p97: 1_YB:AB + p98: 15_YB:AB + p99: 4_YB:AB + p100: 3_YB:AB + p101: 1_YB:MB + p102: 14_YB:MB + p103: 4_YB:MB

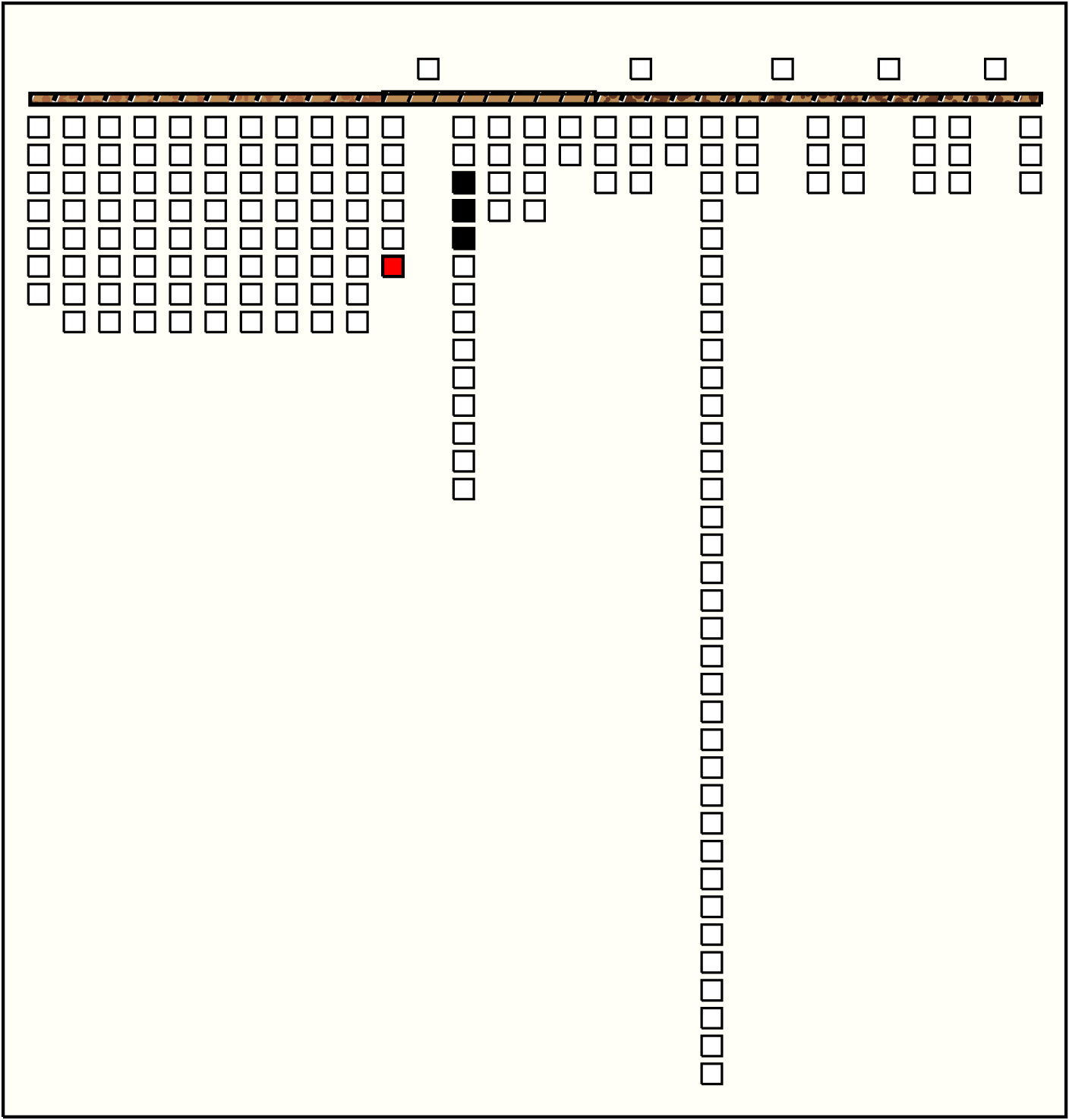

37	p85_{11, 6} : 20_YB	20	3	p89: 1_YB + p90: 14_YB + p91: 5_YB

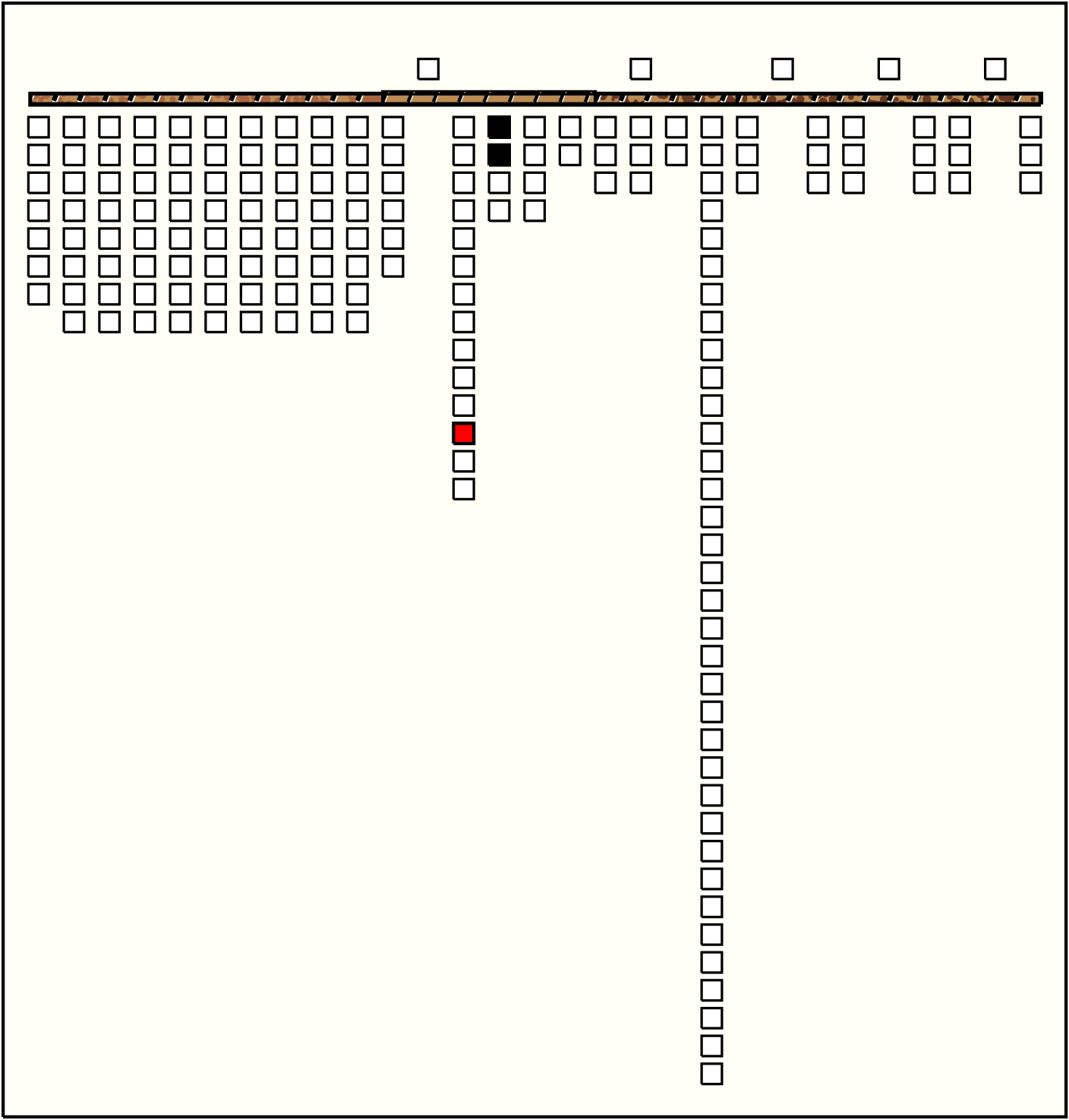

38	p98_{13, 12} : 15_YB:AB	15	2	p101: 1_YB:MB + p102: 14_YB:MB
39	p102_{14, 2} : 14_YB:MB	14	3	p108: 3_YB:PB + p109: 1_BS + p110: 10_BS

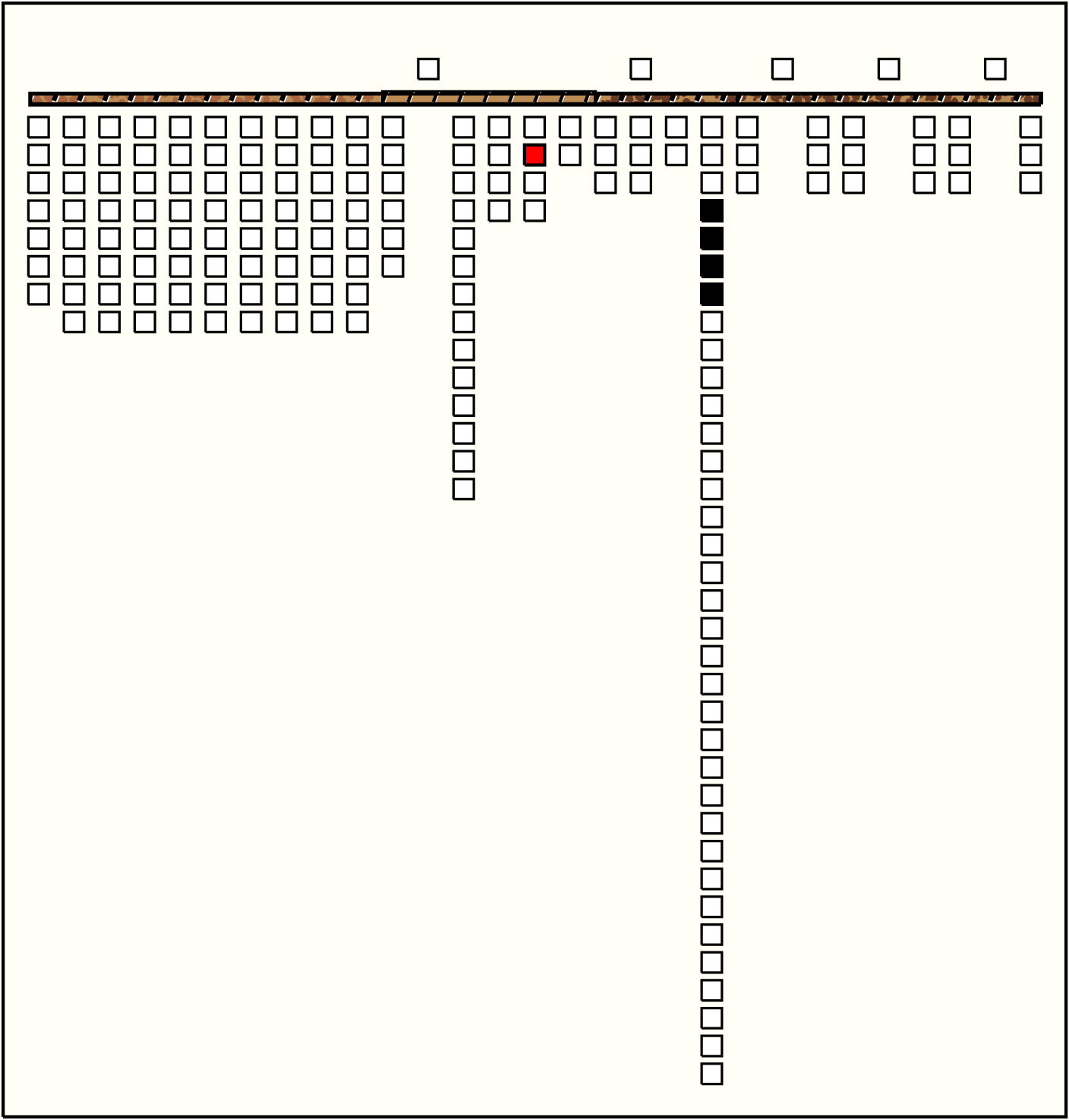

40	p106_{15, 2} : 15_YB:PB	15	4	p123: 5_YB + p124: 0_YB + p125: 1_AB + p126: 9_AB

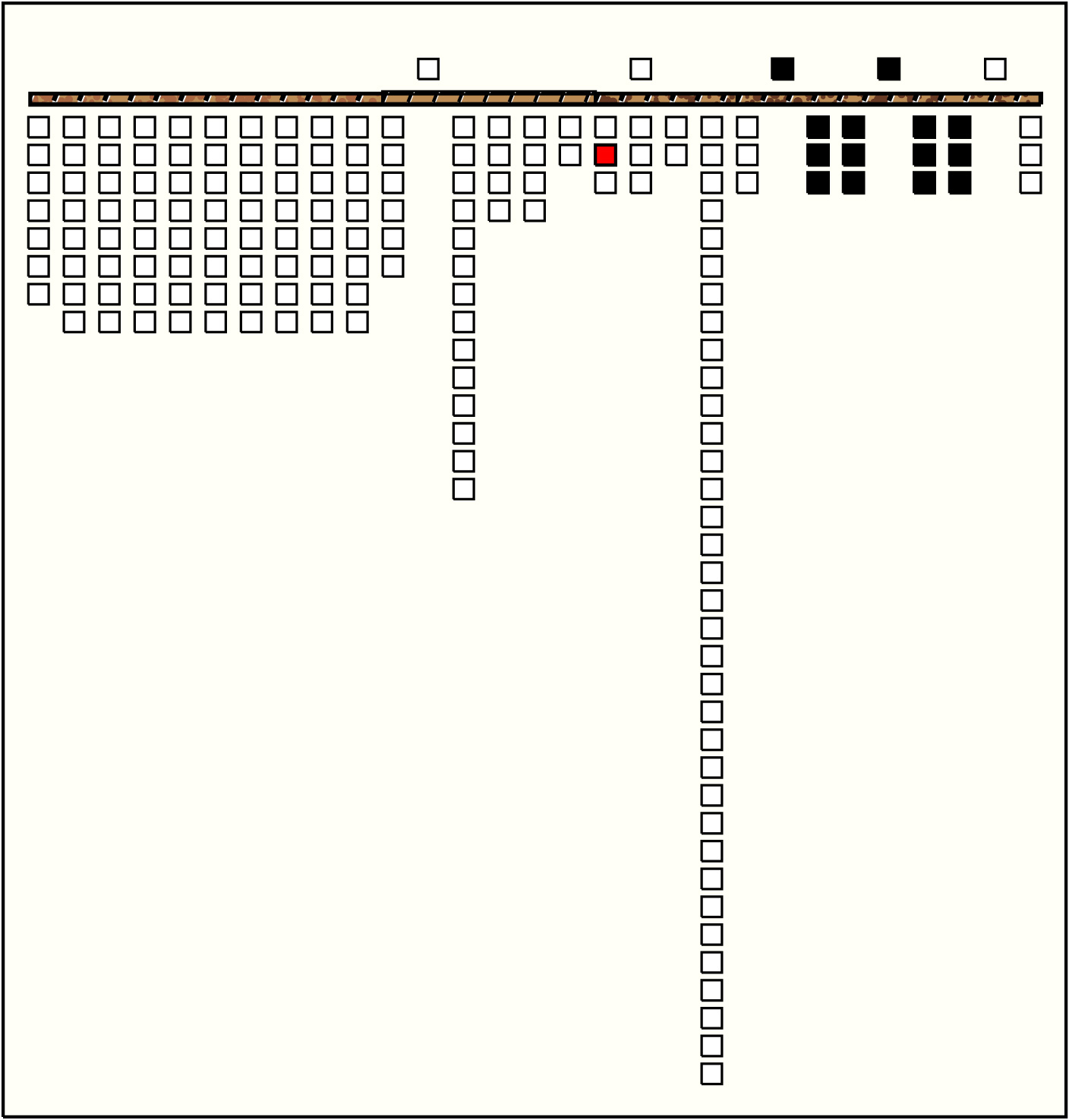

41	p112_{17, 2} : 601_YB	601	14	p158: 168_YB + p159: 10_YB + p160: 11_YB + p161: 9_YB + p162: 13_BS + p163: 11_BS + p164: 70_BS + p165: 159_YB + p166: 11_YB + p167: 11_YB + p168: 30_YB + p169: 13_YB + p170: 10_YB + p171: 75_YB
42	p115_{18, 2} : 79_AB	79	22	p123: 5_YB + p124: 0_YB + p125: 1_AB + p126: 9_AB + p127: 1_AB + p128: 2_AB + p129: 4_AB + p130: 1_YB:PB + p131: 10_YB:PB + p132: 3_YB:LK + p133: 4_YB:PB + p134: 1_YB:PB + p135: 1_YB:MB + p136: 10_YB:MB + p137: 3_YB:MB + p138: 5_YB:MB + p139: 2_YB:MB + p140: 1_MB + p141: 10_MB + p142: 2_MB + p143: 3_MB + p144: 1_BS
43	p116_{18, 3} : 13_AB	13	4	p125: 1_AB + p126: 9_AB + p127: 1_AB + p128: 2_AB

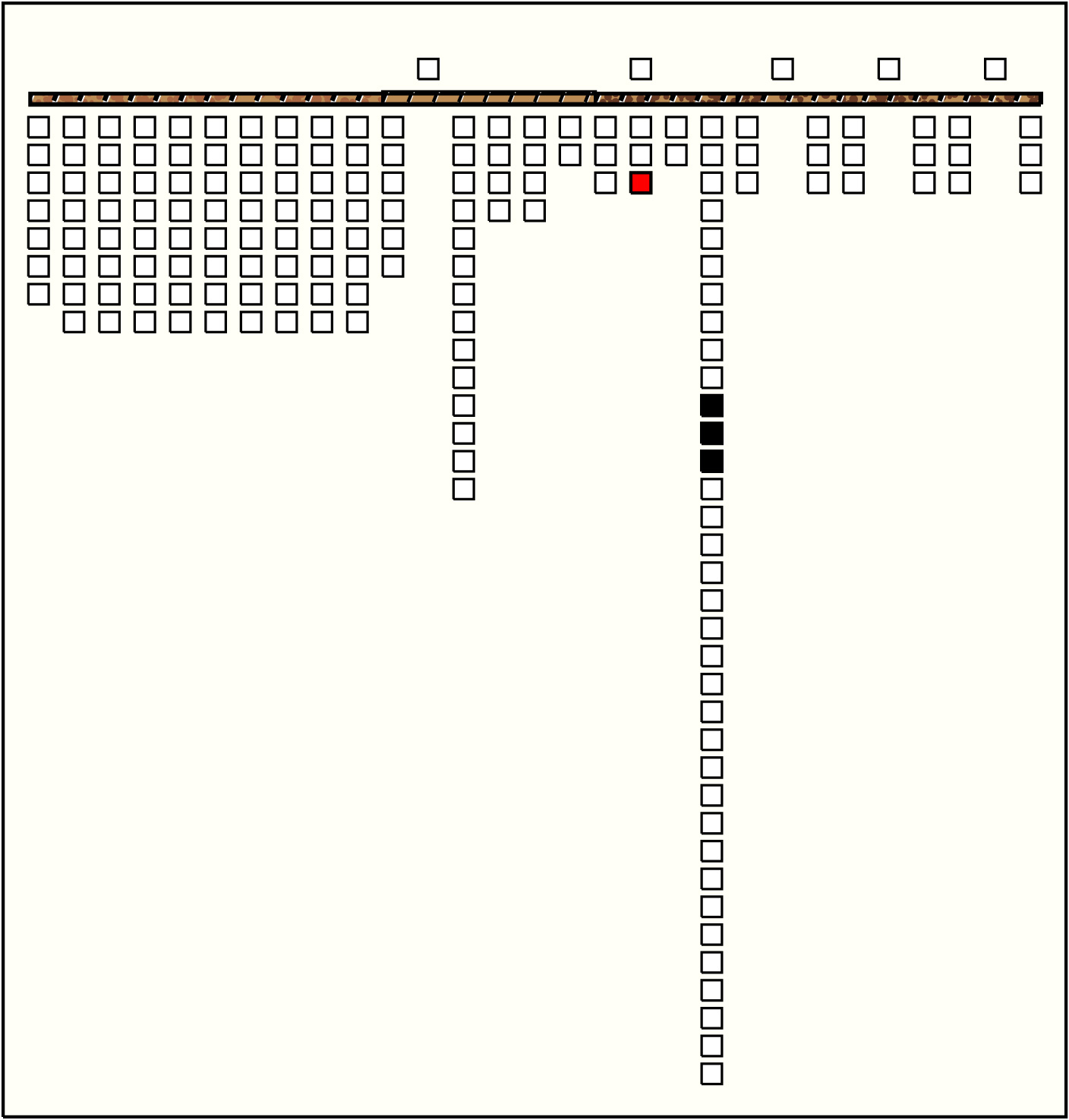

44	p117_{18, 4} : 14_AB	14	3	p130: 1_YB:PB + p131: 10_YB:PB + p132: 3_YB:LK

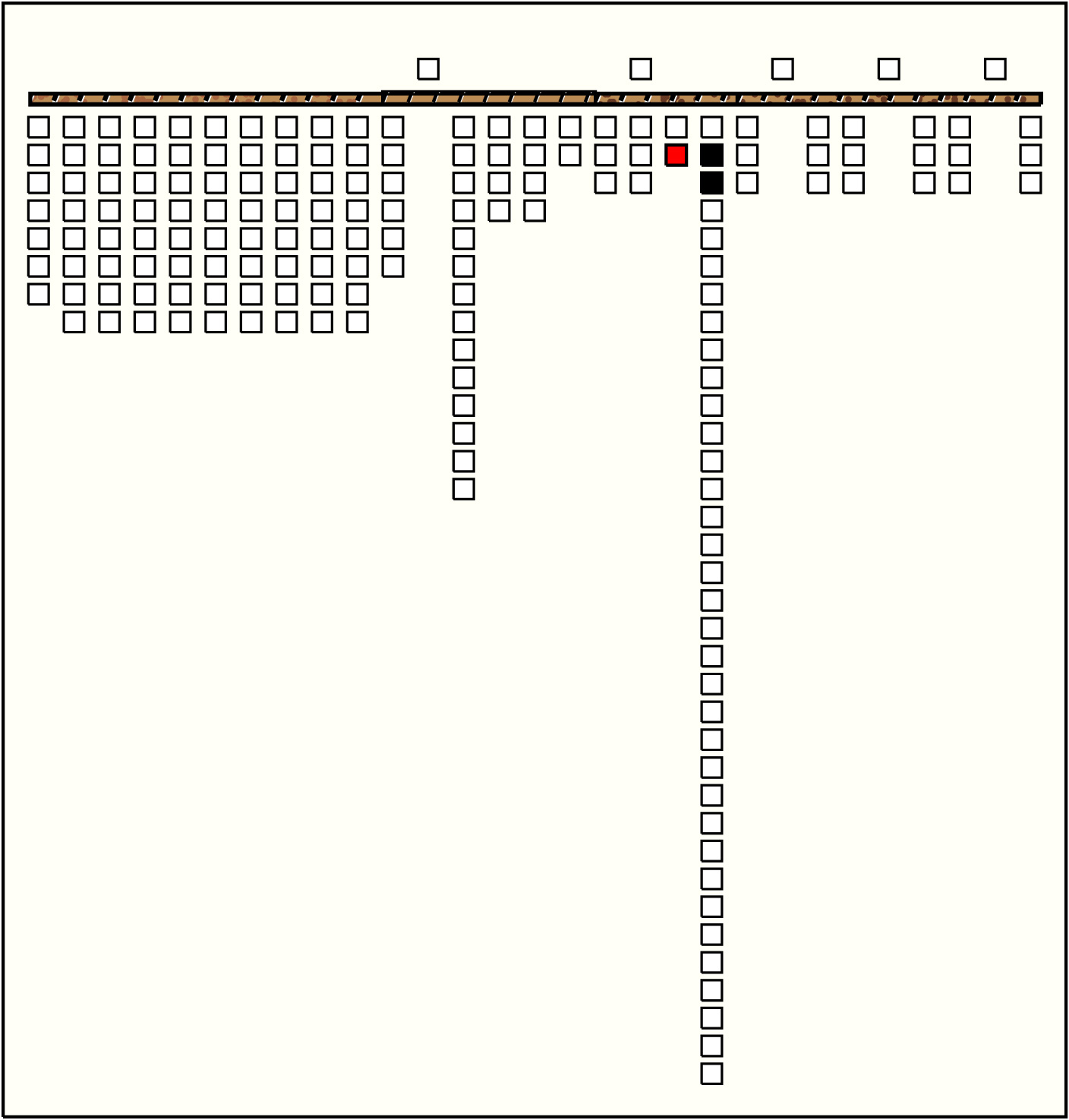

45	p118_{19, 1} : 41_YB:MB	41	9	p120: 1_YB + p121: 20_YB + p122: 2_YB + p123: 5_YB + p124: 0_YB + p125: 1_AB + p126: 9_AB + p127: 1_AB + p128: 2_AB
46	p119_{19, 2} : 22_YB:MB	22	2	p121: 20_YB + p122: 2_YB

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p25_{4, 2} : 57_AB	57	2	p10: 37_B + p11: 20_BS

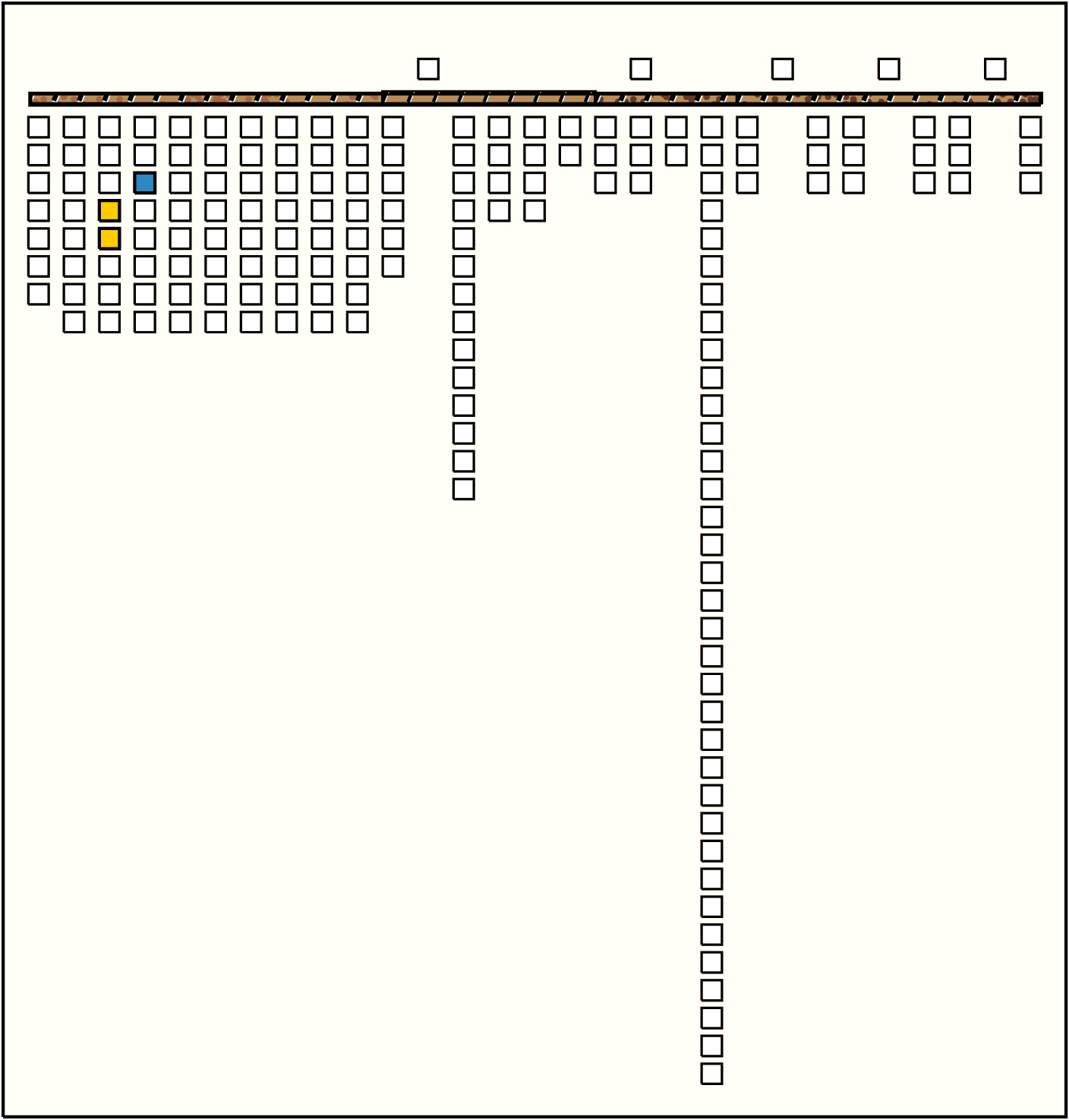

2	p26_{4, 3} : 31_B	31	2	p19: 14_BS + p20: 17_B:BS
3	p27_{4, 4} : 23_BS	23	2	p12: 11_B:BS + p13: 12_GG:BS

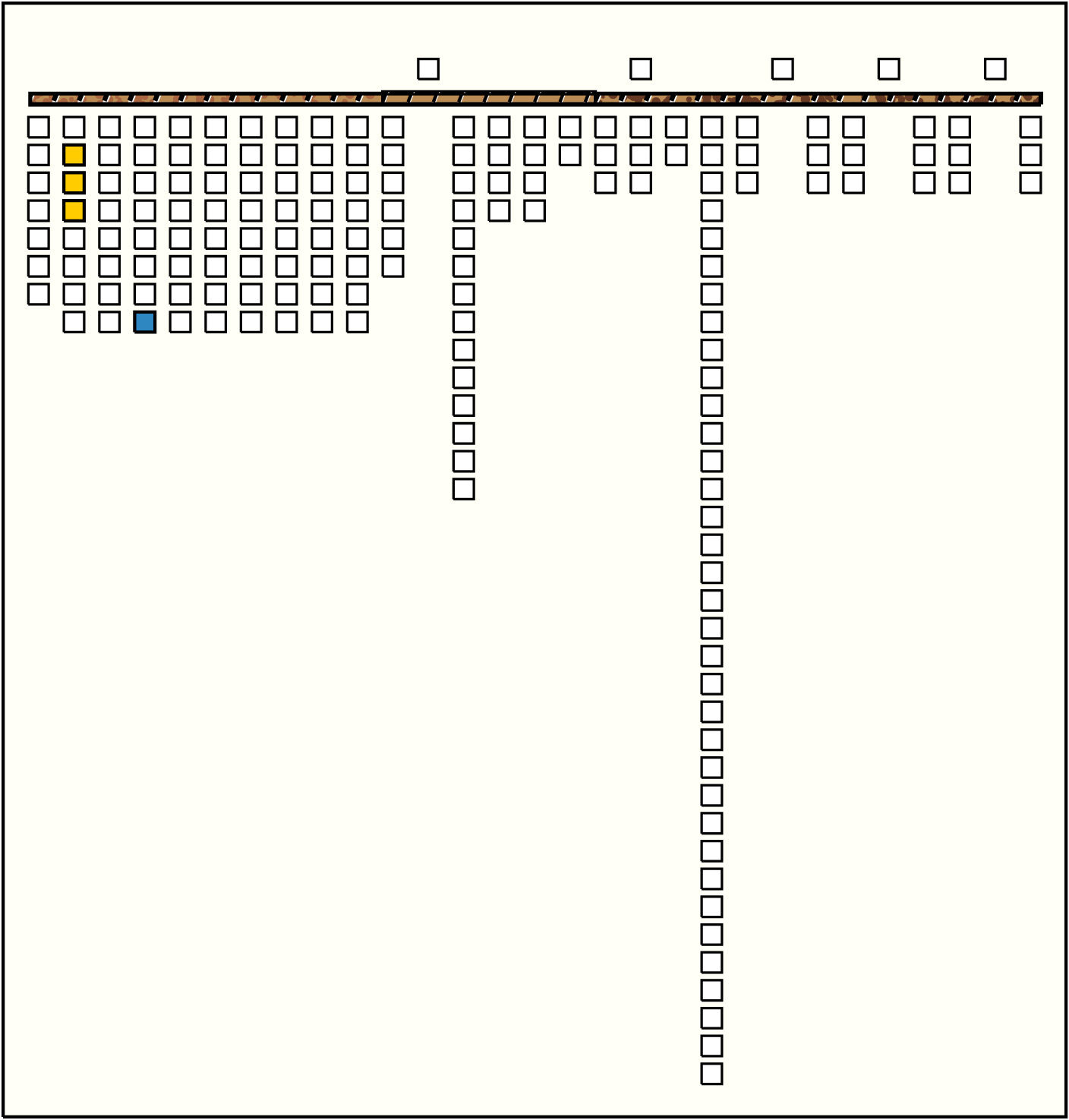

4	p31_{4, 8} : 93_YB	93	3	p9: 36_AB + p10: 37_B + p11: 20_BS
5	p33_{5, 2} : 89_AB	89	4	p17: 44_AB + p18: 14_B + p19: 14_BS + p20: 17_B:BS
6	p39_{5, 8} : 104_YB	104	4	p9: 36_AB + p10: 37_B + p11: 20_BS + p12: 11_B:BS
7	p45_{6, 6} : 39_YB:MB	39	2	p21: 17_GG:BS + p22: 22_MB

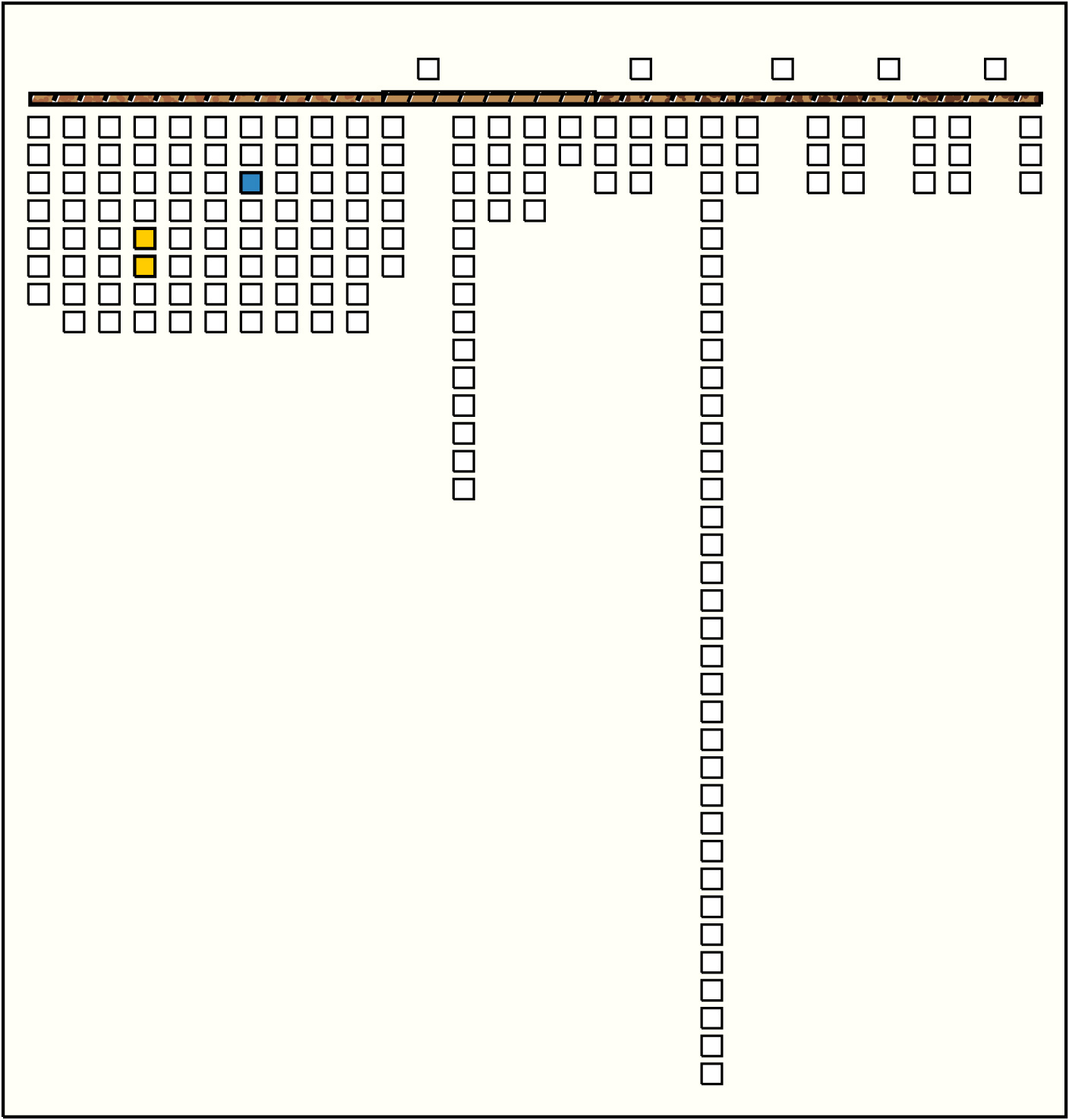

8	p50_{7, 3} : 44_YB	44	2	p28: 22_B:BS + p29: 22_GG:BS
9	p55_{7, 8} : 103_YB	103	4	p12: 11_B:BS + p13: 12_GG:BS + p14: 15_MB + p15: 65_YB
10	p57_{8, 2} : 38_BS	38	3	p12: 11_B:BS + p13: 12_GG:BS + p14: 15_MB
11	p63_{8, 8} : 54_YB	54	2	p43: 23_GG + p44: 31_PB
12	p65_{9, 2} : 62_BS	62	2	p37: 36_GG:BS + p38: 26_MB
13	p69_{9, 6} : 36_YB:MB	36	2	p60: 12_PB + p61: 24_YB:MB
14	p74_{10, 3} : 52_YB	52	2	p36: 16_B:BS + p37: 36_GG:BS
15	p79_{10, 8} : 100_YB	100	3	p50: 44_YB + p51: 31_GG + p52: 25_PB
16	p83_{11, 4} : 73_YB	73	2	p64: 11_AB + p65: 62_BS
17	p106_{15, 2} : 15_YB:PB	15	2	p101: 1_YB:MB + p102: 14_YB:MB
18	p112_{17, 2} : 601_YB	601	14	p67: 22_GG + p68: 31_PB + p69: 36_YB:MB + p70: 41_MB + p71: 93_YB + p72: 8_AB + p73: 79_BS + p74: 52_YB + p75: 31_GG + p76: 23_PB + p77: 35_YB:MB + p78: 44_MB + p79: 100_YB + p80: 6_MB
19	p113_{17, 3} : 22_YB	22	3	p106: 15_YB:PB + p107: 4_YB:PB + p108: 3_YB:PB
20	p115_{18, 2} : 79_AB	79	13	p98: 15_YB:AB + p99: 4_YB:AB + p100: 3_YB:AB + p101: 1_YB:MB + p102: 14_YB:MB + p103: 4_YB:MB + p104: 4_YB:MB + p105: 1_YB:PB + p106: 15_YB:PB + p107: 4_YB:PB + p108: 3_YB:PB + p109: 1_BS + p110: 10_BS
21	p117_{18, 4} : 14_AB	14	3	p108: 3_YB:PB + p109: 1_BS + p110: 10_BS
22	p118_{19, 1} : 41_YB:MB	41	7	p105: 1_YB:PB + p106: 15_YB:PB + p107: 4_YB:PB + p108: 3_YB:PB + p109: 1_BS + p110: 10_BS + p111: 7_YB
23	p121_{20, 2} : 20_YB	20	3	p105: 1_YB:PB + p106: 15_YB:PB + p107: 4_YB:PB
24	p155_{21, 1} : 11_BS	11	2	p140: 1_MB + p141: 10_MB
25	p157_{21, 3} : 70_BS	70	16	p131: 10_YB:PB + p132: 3_YB:LK + p133: 4_YB:PB + p134: 1_YB:PB + p135: 1_YB:MB + p136: 10_YB:MB + p137: 3_YB:MB + p138: 5_YB:MB + p139: 2_YB:MB + p140: 1_MB + p141: 10_MB + p142: 2_MB + p143: 3_MB + p144: 1_BS + p145: 12_BS + p146: 2_BS
26	p162_{24, 1} : 13_BS	13	2	p152: 12_YB + p153: 1_YB
27	p168_{26, 3} : 30_YB	30	3	p159: 10_YB + p160: 11_YB + p161: 9_YB
28	p171_{27, 3} : 75_YB	75	5	p166: 11_YB + p167: 11_YB + p168: 30_YB + p169: 13_YB + p170: 10_YB
29	p173_{29, 1} : 15_YB	15	5	p147: 2_BS + p148: 3_BS + p149: 1_YB + p150: 8_YB + p151: 1_AB
30	p175_{29, 3} : 33_YB	33	3	p161: 9_YB + p162: 13_BS + p163: 11_BS

Khipu Notes:

Wise Khipu B371 / T41299.38
Fragmentary khipu with four main cords and top and subsidiary cords. Four main cords tied together. Could have been tied in a circle originally. Both ends are severed - cut? Third main cord hangs on another, tied at both ends, like a subsidiary.
Includes 1 scrap package, A, of 3 fragments
Throughout khipu, the cord colors are patterned and repeated or set up with groups of the same hue.
Originally sewn to a green poster board. Removed by Dawn Planas and Kylie Quave 3/30/06.
There are a few top cords, one looped around two pendants (Main B1) and four that are just "standing" upward rather than "hanging" in Main C1, and Main D 1, 2, and 3.

Primary Cord Notes

There are 4 S-plied main cords knotted together (seem a bit haphazard).
Main A- mot lt br/lt tn. Main A 46.25cm, with knot at 40.25
Main B - mot lt tn. Main B - 55, with knots at 2, 5.5, 28 cm
Main C - mot md br/lt tn. Main C - 35 with knots at .5, 16.
Main D -mot md br/lt tn, with less lt tn than MC. Main D 19.0cm with a knot at 13.
Total from beginning of MA to end of MD=75cm stretched out.
Measurements (going from without the knotted sections, so excluding the part of the main cord that is held up in a knot)
Knot values on Main A have a slight pattern: the last pendant in each group is the largest value, but not the total of the others. However, when the last pendant value is subtracted some sets of groups have similar sums (i.e. Groups 2 and 3 have 130-140 without the last P; Groups 5-10 have a sum of about 237-247 and 272 without last P). Sum of Main A knots is 2789, with some possible missing knots.
Main A plied end is on right and tied in single knot to plied end of Main B. In middle of Main B, it is wrapped around Main C and then pulled through the wraps to make a knot. Main B's right end is pulled once through left of Main D (where B, C, and D all converge). Main C wraps around once and through Main B and then its knotted end is tied in a single knot with Main D's knotted end. Main D's knotted end hangs on its left and then is severed at right.
Main cord C is like a subsidiary main cord, hung across Main B. Similar to the main cords hung onto another main cord in Harvard Peabody khipu 41-52-30 2938.
How would it have been held up and read?

Cord Notes

Total Pendant count = 170 (A has 79, B 30, C 43, and D 18)
Top cord in Group A goes around two pendants of two different colors and on either side of it in the group, the pendants are two different colors corresponding to those within the top cord loop.
Knot registers shift up one on Main B. Change again on Main C and Main D.
On Main B, the first group has a knot sum of 173, while the top cord that follows the group also has a knot value of 173. Total of Main B is 345 without repeat of the top cord value.
Then, in the rest of Main B, Groups 2-5 have a knot sum of 172, one unit away from the value of Group 1 and the top cord.
Main C has a few color changing subsidiaries. These are relatively unusual.
Sum of Main C knots is 1145, but without the top cord, is 949. Group 2 has a value of 63, while the first half of Group 1 before top cord has value of 630, 10x as much. Top cord value in Group 1 is 196, while 630 is value of the group before top cord and 106 is value after -- does the 196 include some of what's recorded in each half - like a Venn Diagram?
For Main D, Group 1 has 111 with missing knots and a top cord of 168. Group 2 has value of 146 and some missing, but with 159 top. Group 3 has 156 with missing knots and a top cord of 164. All of these may have added up to their top cords when knots were complete? Or just nearly added up. Plus the top cords values are very close, so recording something similar and related.
Total knot count of khipu is around 5000 for pendants.
