UR1033F/KH0040 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Right-Handed Sum Detail
This Khipu's Fieldmark Catalog	Khipu Notes
This Khipu's Drawing

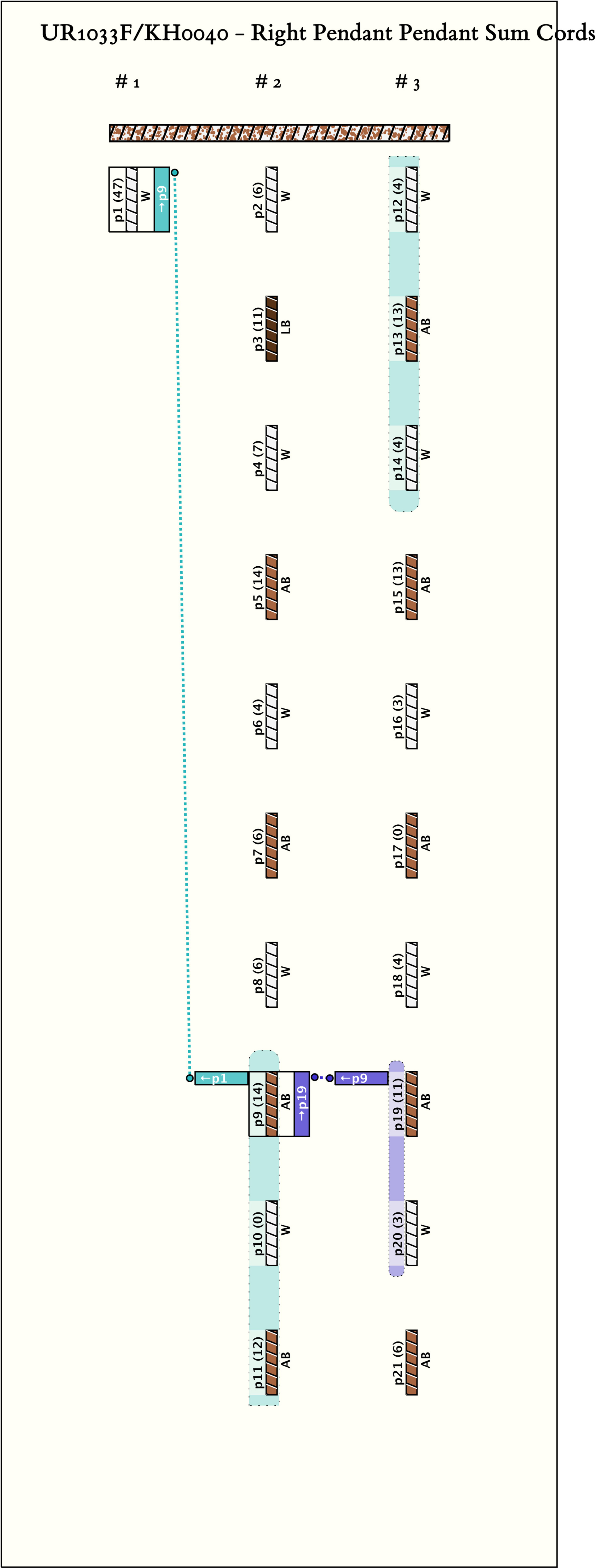

Right Handed Sums:     # Sums = 2,  Max # Summands = 6,   (Min, Mean, Max) Sum Values = (14, 30, 47)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Color	Sum Schema	Sum Cord	Sum Cord Value	# Summands	Summands
1			p11, 1 : 47W	47	6	p9: 14AB + p10: 0W + p11: 12AB + p12: 4W + p13: 13AB + p14: 4W
2			p92, 8 : 14AB	14	2	p19: 11AB + p20: 3W

Khipu Notes:

Ascher Databook Notes:

1. Construction note : Cord 1 is linked through the twisted end of the main cord.
2. This khipu is part of the collection of 7 connected khipus numbered UR1033A-UR1033G.
3. The khipu cons ists of 2 groups of 10 pendants each by spacing. Within each group, the pendants alternate in color : W, AB, W, AB, ... etc .
4. With the exception of the cord dangling at the end of the main cord (P1), all values are 3-7 or 11-14.
5. The values on the AB colored cords are greater than or equal to the values on the adjacent W cords. With the exception of position 2, the values in group 1 are greater than the values in the corresponding positions in group 2.
6. The value 47 on Pl, which is W, could be associated with the sum of the W pendants. However, there is one W pendant that is broken and so its value is unknown. For 47 to be their sum, this pendant value would have to be 6; this is consistent with the regularities observed above.
