UR1091/KH0104 - Pendant Pendant Sums

Drawings:

Overview	Detail View
All Khipus' Ascher Sum Fieldmarks	Right-Handed XRay
All Pendant Pendant Sum Relationships	Left-Handed XRay
This Khipu's Fieldmark Catalog	Right-Handed Sum Detail
This Khipu's Drawing	Left-Handed Sum Detail

Right Handed Sums: # Sums = 10, Max # Summands = 31, (Min, Mean, Max) Sum Values = (11, 36, 110)
Click on Image to View Larger

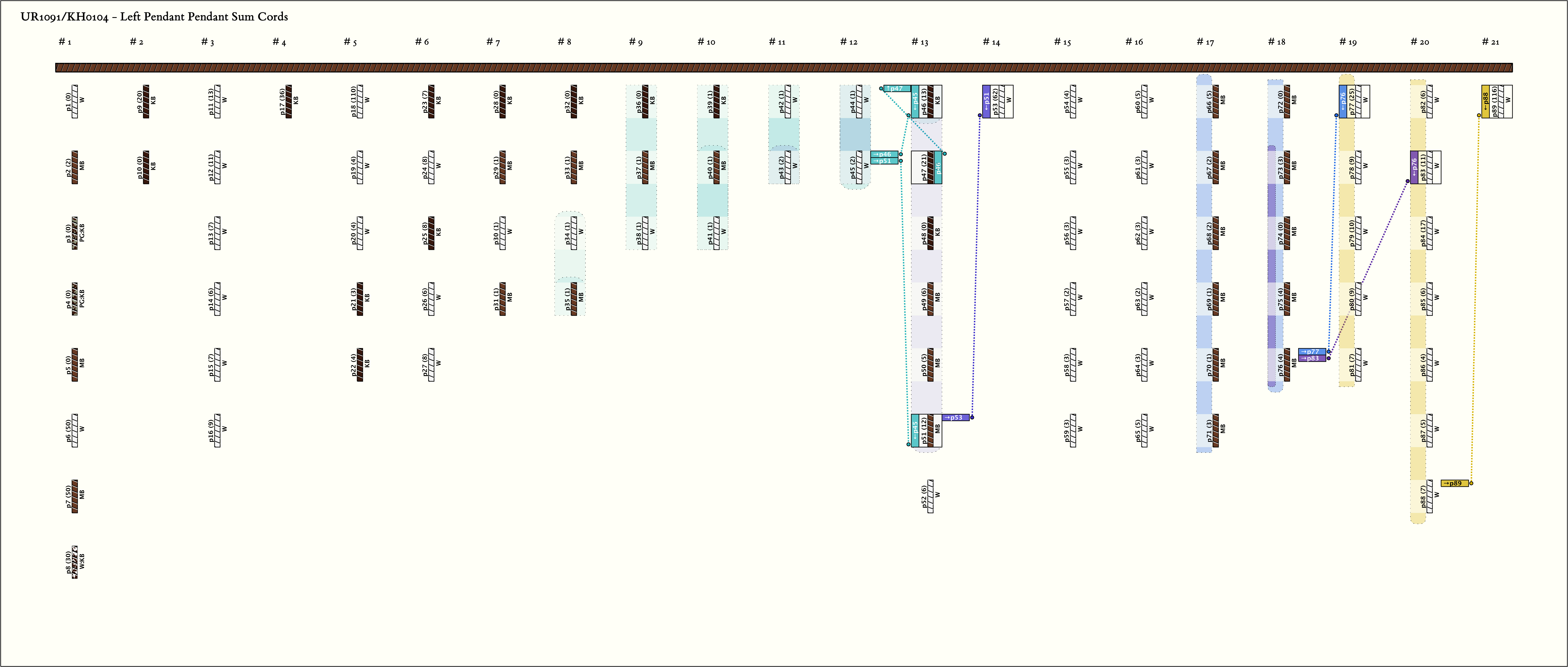

Left Handed Sums: # Sums = 7, Max # Summands = 12, (Min, Mean, Max) Sum Values = (11, 37, 116)
Click on Image to View Larger

Right Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands

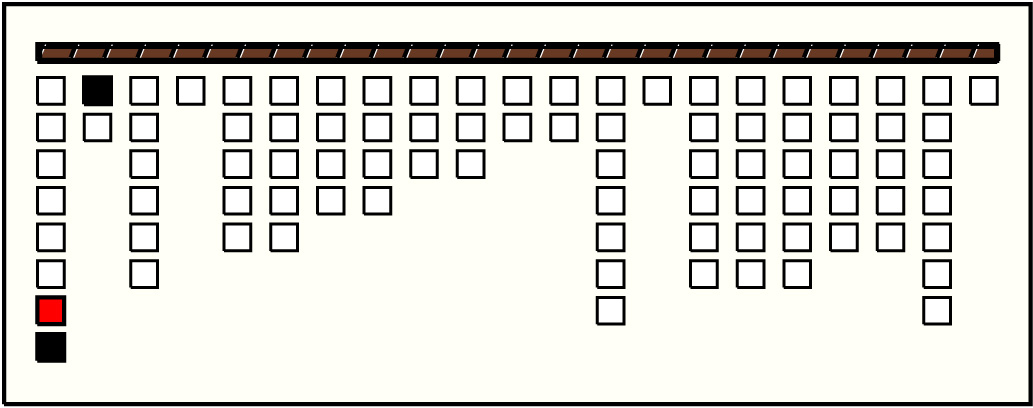

1	p7_{1, 7} : 50_MB	50	2	p8: 30_W:KB + p9: 20_KB

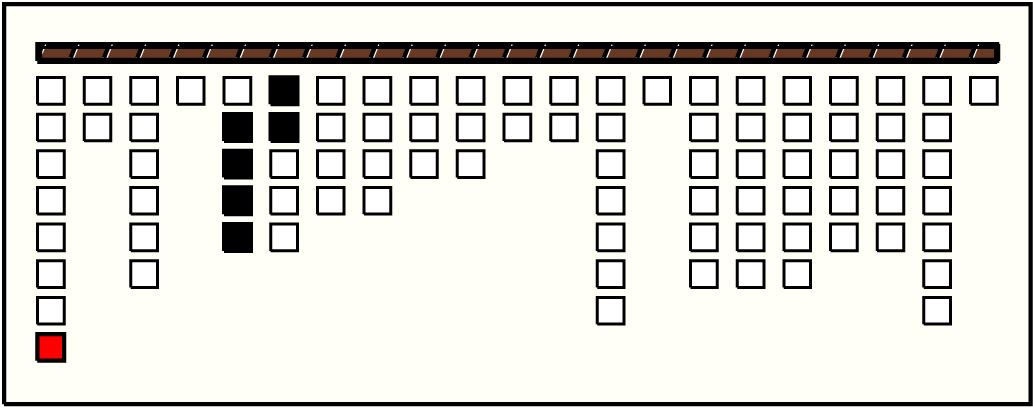

2	p8_{1, 8} : 30_W:KB	30	6	p19: 4_W + p20: 4_W + p21: 3_KB + p22: 4_KB + p23: 7_KB + p24: 8_W

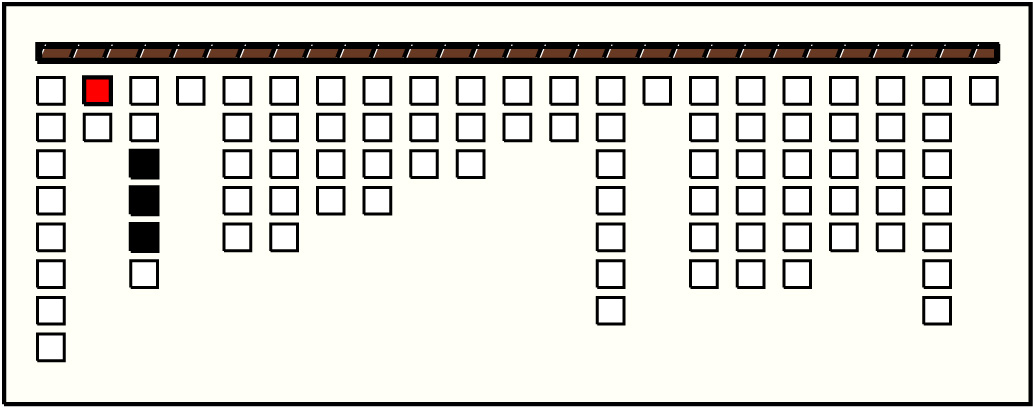

3	p9_{2, 1} : 20_KB	20	3	p13: 7_W + p14: 6_W + p15: 7_W
4	p12_{3, 2} : 11_W	11	3	p19: 4_W + p20: 4_W + p21: 3_KB

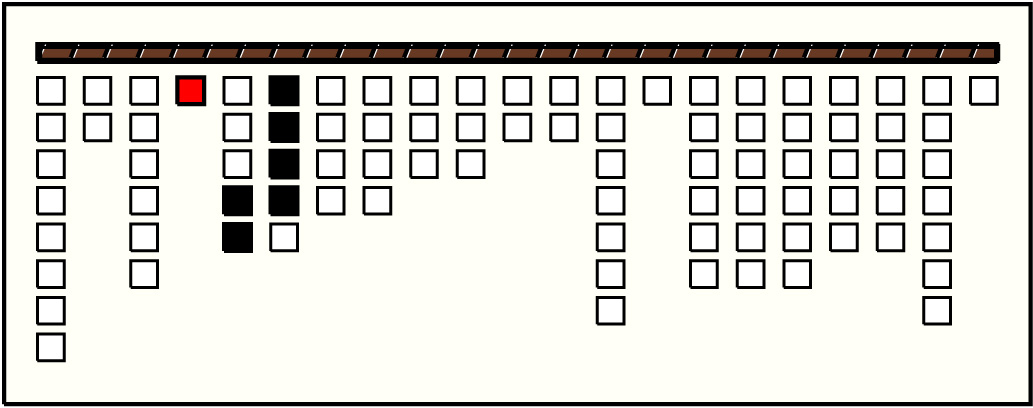

5	p17_{4, 1} : 36_KB	36	6	p21: 3_KB + p22: 4_KB + p23: 7_KB + p24: 8_W + p25: 8_KB + p26: 6_W

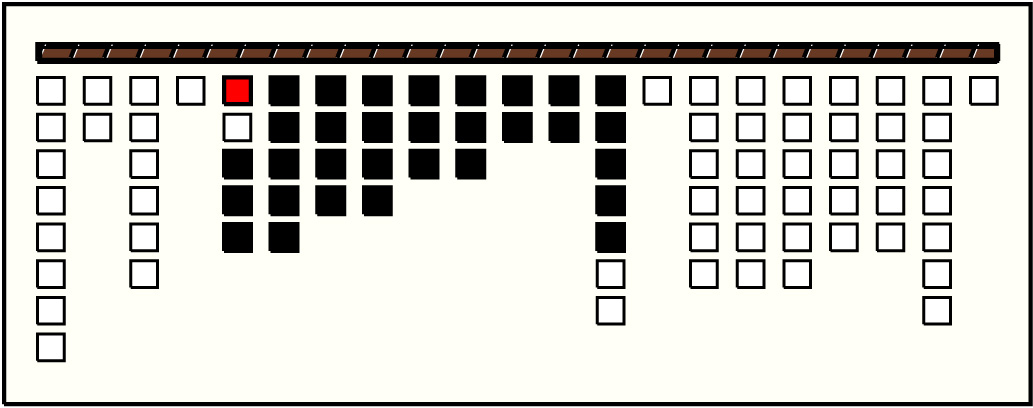

6	p18_{5, 1} : 110_W	110	31	p20: 4_W + p21: 3_KB + p22: 4_KB + p23: 7_KB + p24: 8_W + p25: 8_KB + p26: 6_W + p27: 8_W + p28: 0_KB + p29: 1_MB + p30: 1_W + p31: 1_MB + p32: 0_KB + p33: 1_MB + p34: 1_W + p35: 1_MB + p36: 0_KB + p37: 1_MB + p38: 1_W + p39: 1_KB + p40: 1_MB + p41: 1_W + p42: 1_W + p43: 2_W + p44: 1_W + p45: 2_W + p46: 13_KB + p47: 21_KB + p48: 0_KB + p49: 6_MB + p50: 5_MB
7	p46_{13, 1} : 13_KB	13	4	p57: 2_W + p58: 3_W + p59: 3_W + p60: 5_W

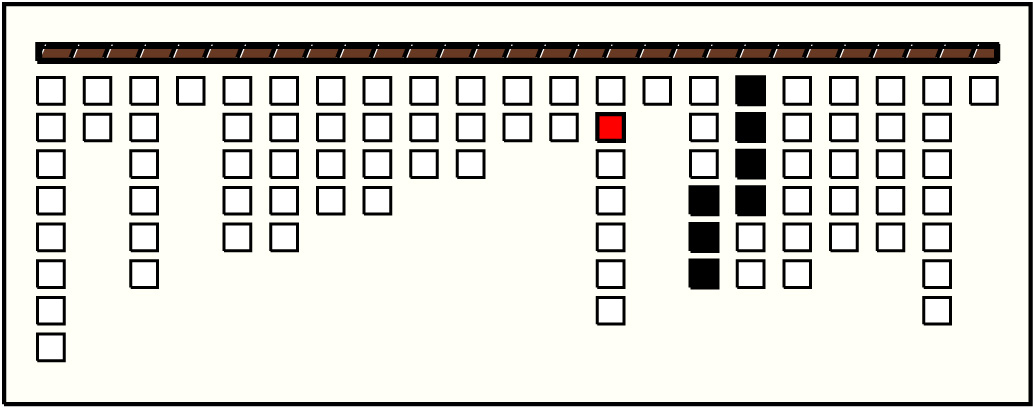

8	p47_{13, 2} : 21_KB	21	7	p57: 2_W + p58: 3_W + p59: 3_W + p60: 5_W + p61: 3_W + p62: 3_W + p63: 2_W
9	p51_{13, 6} : 12_MB	12	4	p54: 4_W + p55: 3_W + p56: 3_W + p57: 2_W
10	p53_{14, 1} : 62_W	62	12	p68: 2_MB + p69: 1_MB + p70: 1_MB + p71: 3_MB + p72: 0_MB + p73: 3_MB + p74: 0_MB + p75: 4_MB + p76: 4_MB + p77: 25_W + p78: 9_W + p79: 10_W

Left Handed Sum Detail: - Click on column name to sort

#	Sum Cord	Sum Cord Value	# Summands	Summands
1	p46_{13, 1} : 13_KB	13	12	p34: 1_W + p35: 1_MB + p36: 0_KB + p37: 1_MB + p38: 1_W + p39: 1_KB + p40: 1_MB + p41: 1_W + p42: 1_W + p43: 2_W + p44: 1_W + p45: 2_W

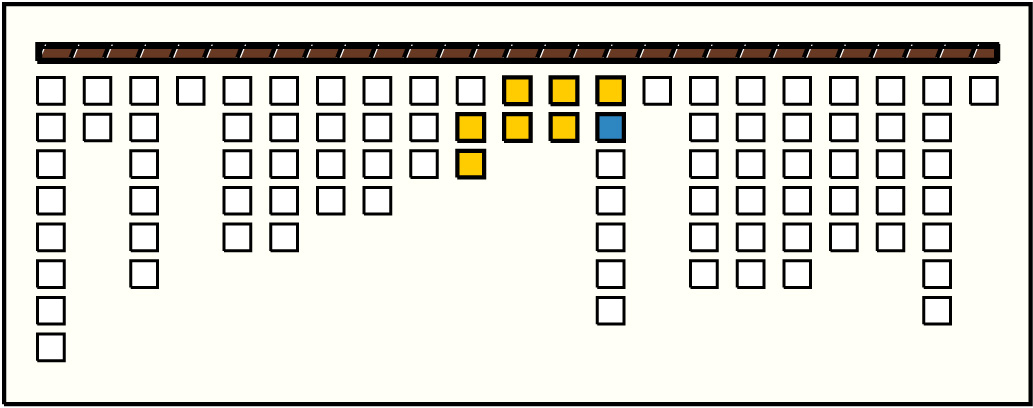

2	p47_{13, 2} : 21_KB	21	7	p40: 1_MB + p41: 1_W + p42: 1_W + p43: 2_W + p44: 1_W + p45: 2_W + p46: 13_KB

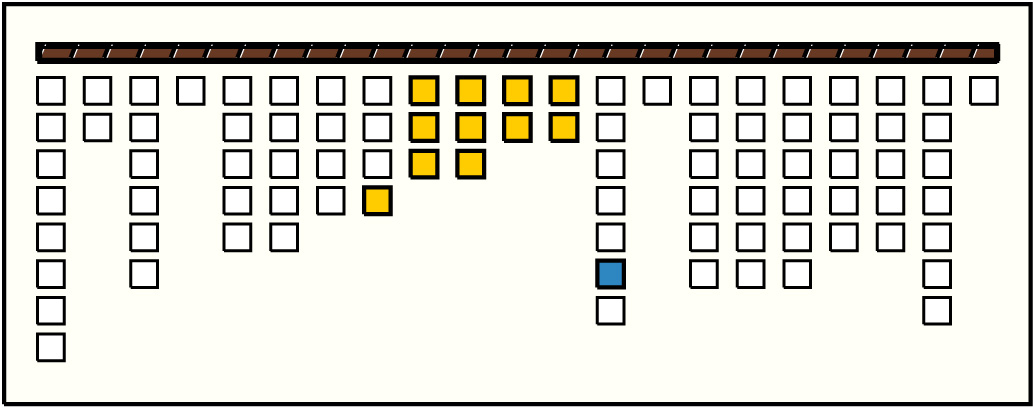

3	p51_{13, 6} : 12_MB	12	11	p35: 1_MB + p36: 0_KB + p37: 1_MB + p38: 1_W + p39: 1_KB + p40: 1_MB + p41: 1_W + p42: 1_W + p43: 2_W + p44: 1_W + p45: 2_W

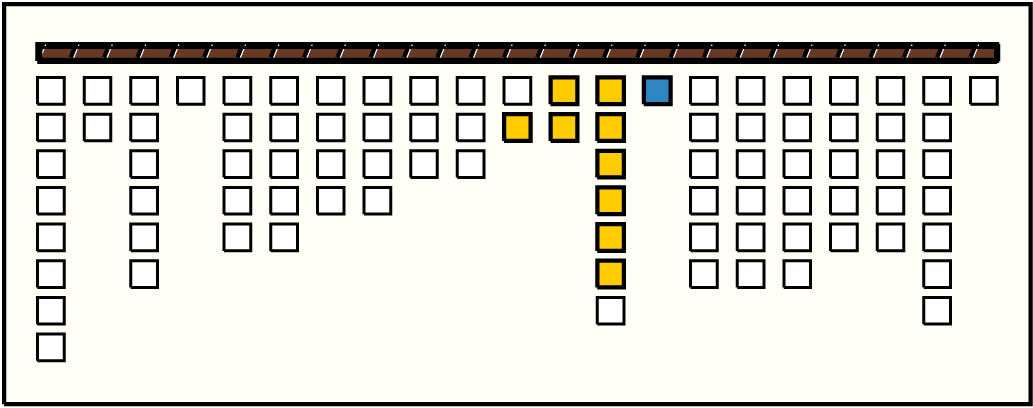

4	p53_{14, 1} : 62_W	62	9	p43: 2_W + p44: 1_W + p45: 2_W + p46: 13_KB + p47: 21_KB + p48: 0_KB + p49: 6_MB + p50: 5_MB + p51: 12_MB

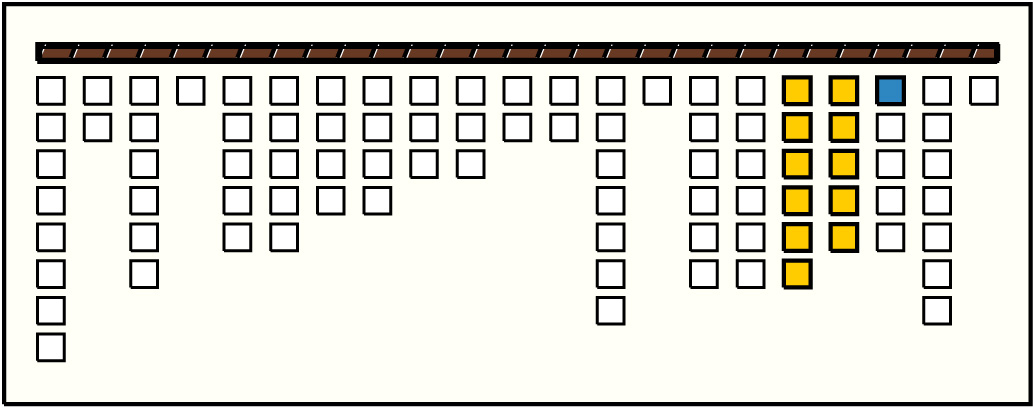

5	p77_{19, 1} : 25_W	25	11	p66: 5_MB + p67: 2_MB + p68: 2_MB + p69: 1_MB + p70: 1_MB + p71: 3_MB + p72: 0_MB + p73: 3_MB + p74: 0_MB + p75: 4_MB + p76: 4_MB

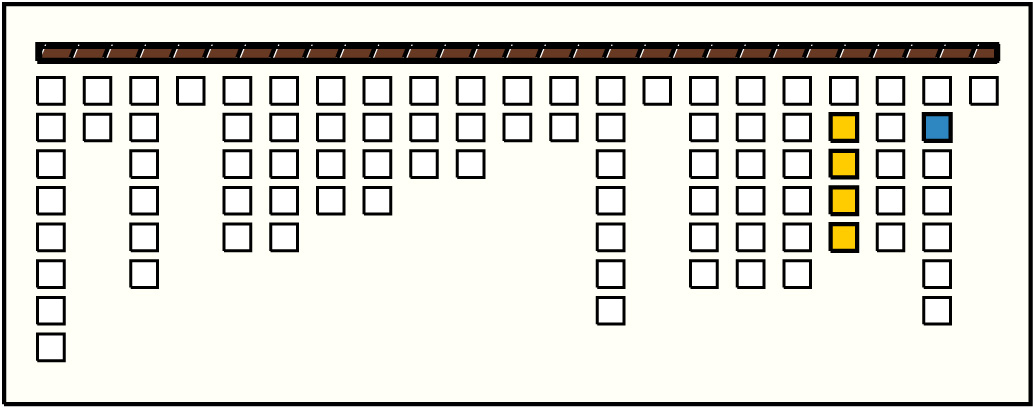

6	p83_{20, 2} : 11_W	11	4	p73: 3_MB + p74: 0_MB + p75: 4_MB + p76: 4_MB

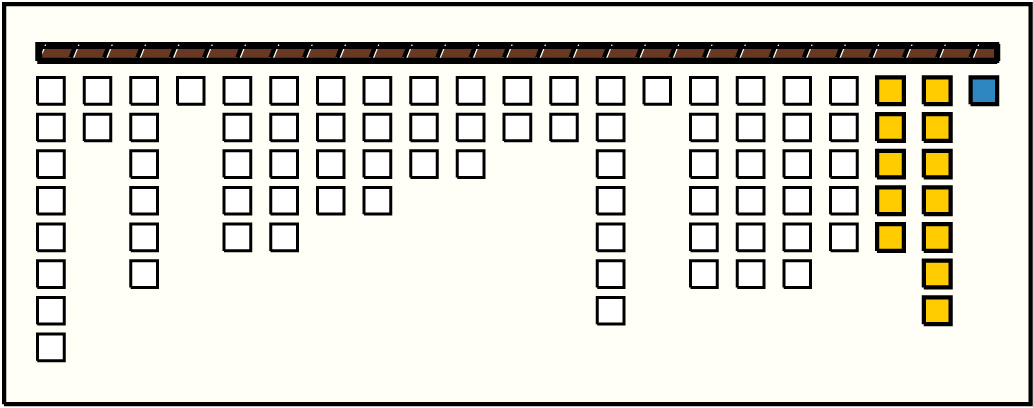

7	p89_{21, 1} : 116_W	116	12	p77: 25_W + p78: 9_W + p79: 10_W + p80: 9_W + p81: 7_W + p82: 6_W + p83: 11_W + p84: 17_W + p85: 6_W + p86: 4_W + p87: 5_W + p88: 7_W

Khipu Notes:

Ascher Databook Notes:

By spacing, there are 3 groups followed by a single pendant, then 9 groups followed by a single pendant, then 6 groups followed by a single pendant.
Groups 4-11 are paired in size and color. The number of pendants per group are 5, 5, 4, 4, 3, 3, 2, 2 respectively. The first 2 of these groups each have 3W and 2KB cords but in different orders; then 2 groups have the color pattern KB, MB, W, MB; the next 2 groups continue this pattern but without the final color (KB, MB, W); and the last 2 groups are both all W. Groups 13-18 are also paired in color: 2 groups are W; then 2 are MB; and then 2 are W.
Many of the pendants contain multiple values. For example, we interpret the value of pendant 11 as 5&8, and the value of pendant 7 7 as 16&9. With this interpretation, the values of the 12 pendants in groups 15 and 16 sum to the value of the single pendant that follows them.
